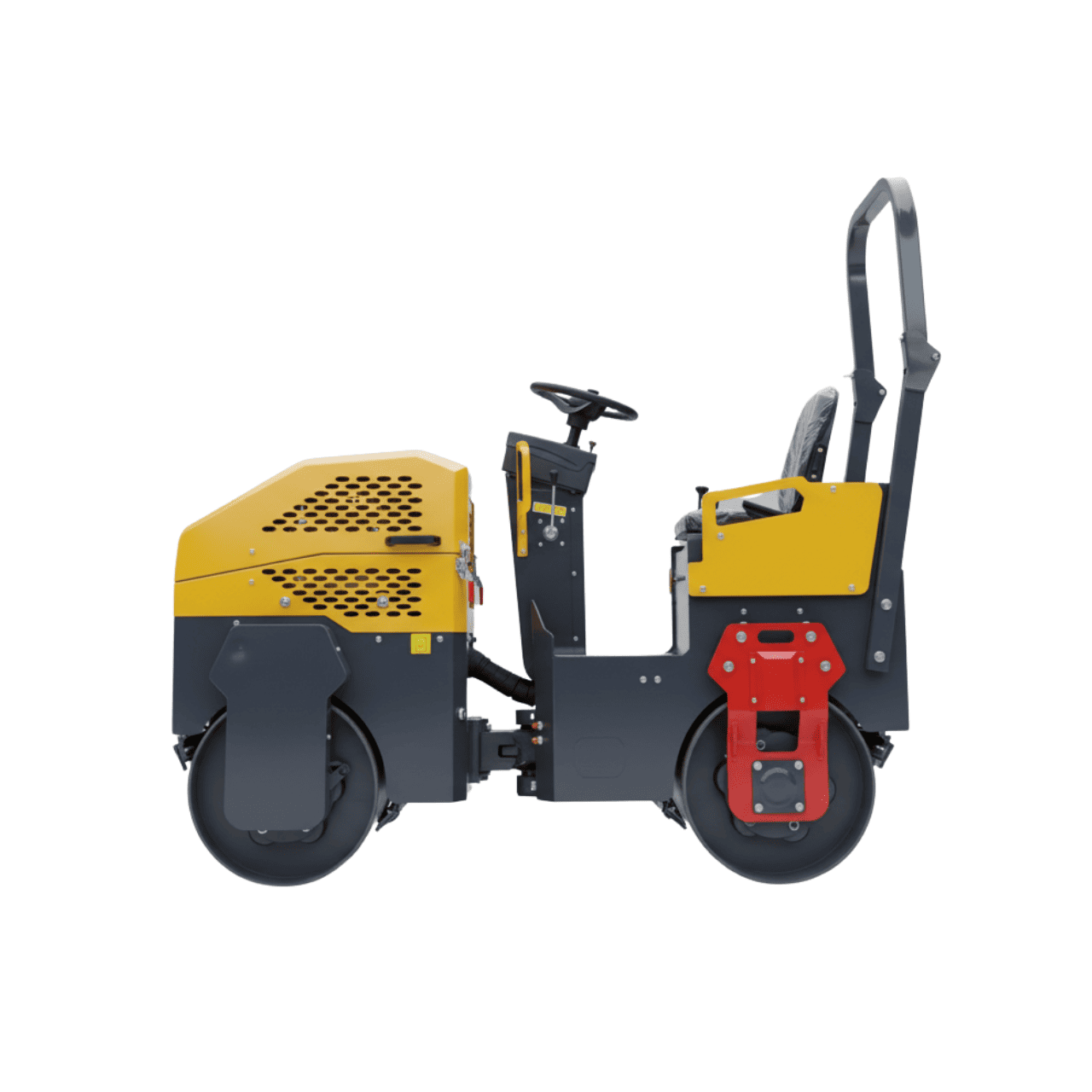

TYPHON Fury 10 Mini Road Roller 1Ton Hydraulic oil B&S 13.5hp gas USA air-cooled

The TYPHON Fury 10 mini road roller delivers reliable and efficient compaction on asphalt, soil, and gravel. It features a 1-ton operating weight, providing the perfect balance of power and maneuverability for small-to-medium jobs, designed for road construction, paving, and landscaping, its compact footprint allows smooth operation in confined spaces while maintaining excellent stability.

Powered by a strong hydraulic drive and advanced vibration system, it reduces required passes and boosts productivity. High climbing ability and articulated veer steering ensure safe, precise control on uneven terrain. User-friendly controls and an electronic pressure spray system complete this professional compaction solution.

TYPHON Fury 10 Mini Road Roller Key Features:

1. Wide Applications:

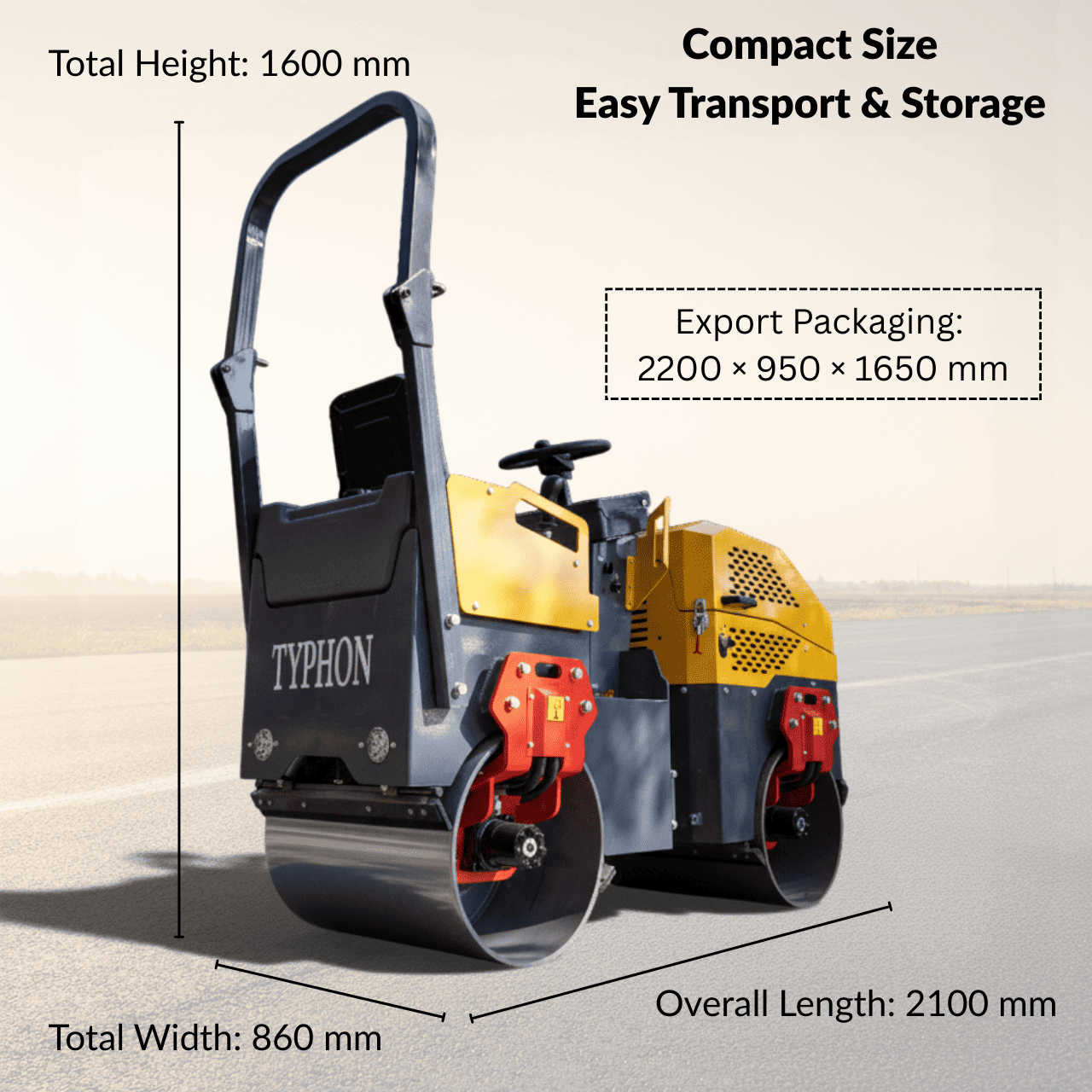

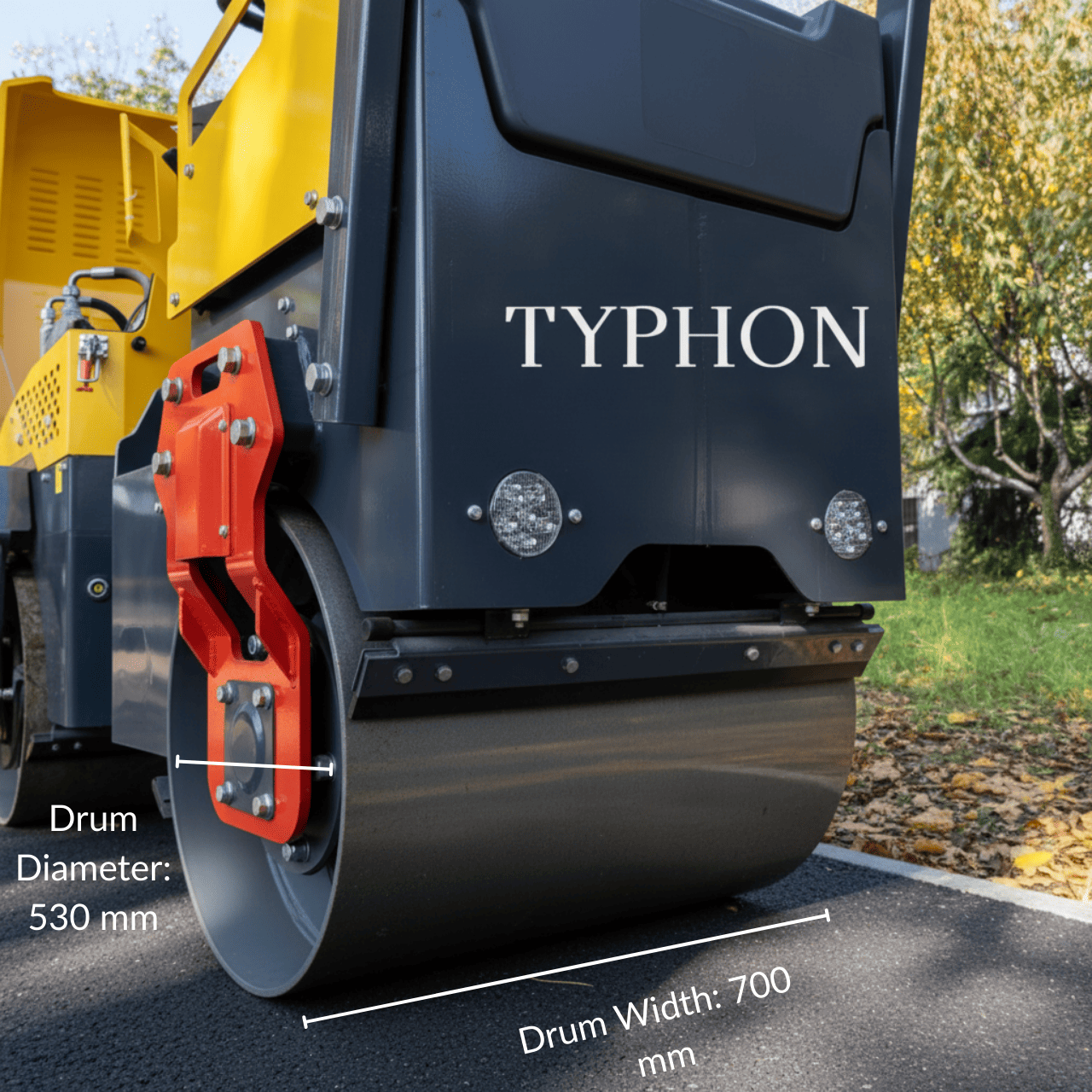

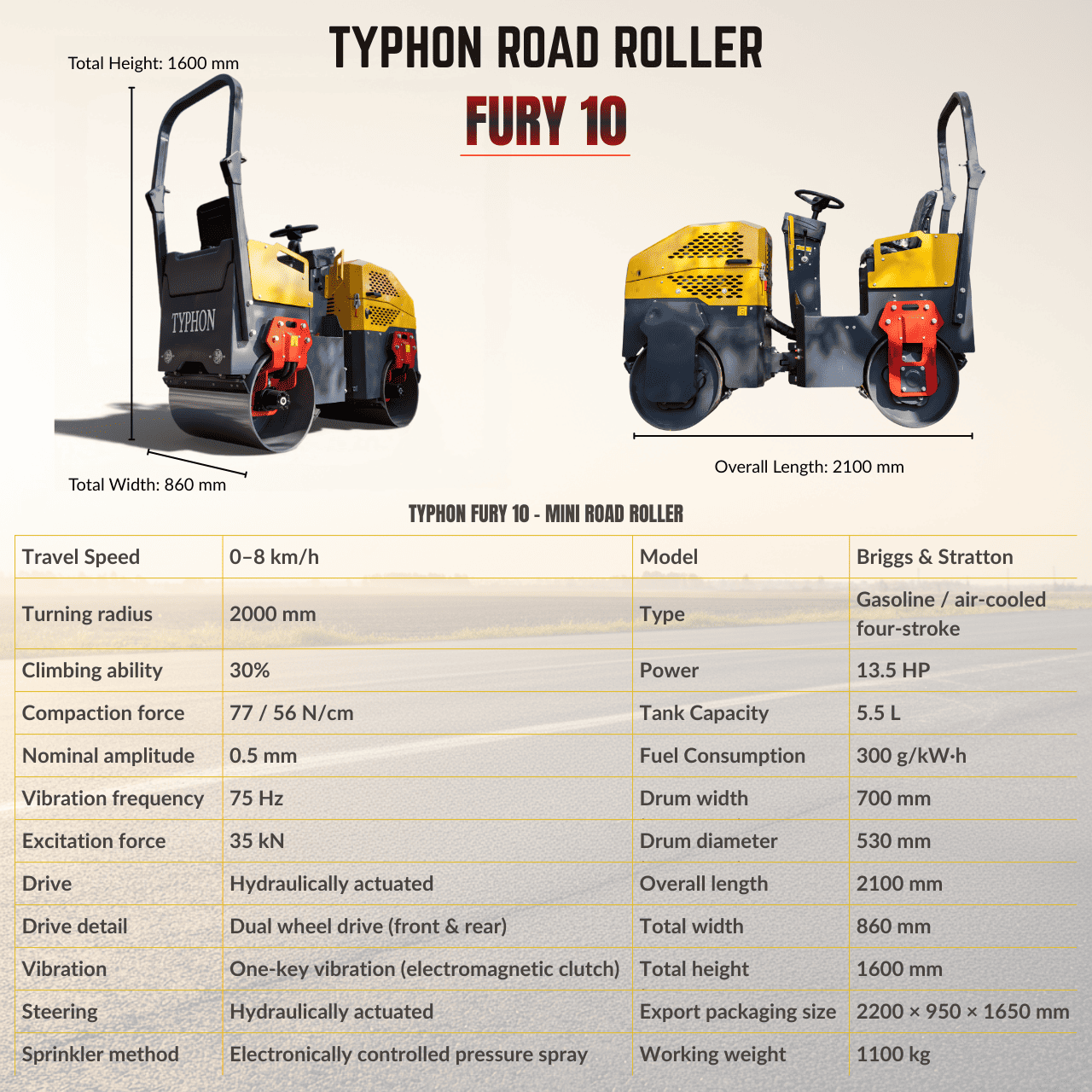

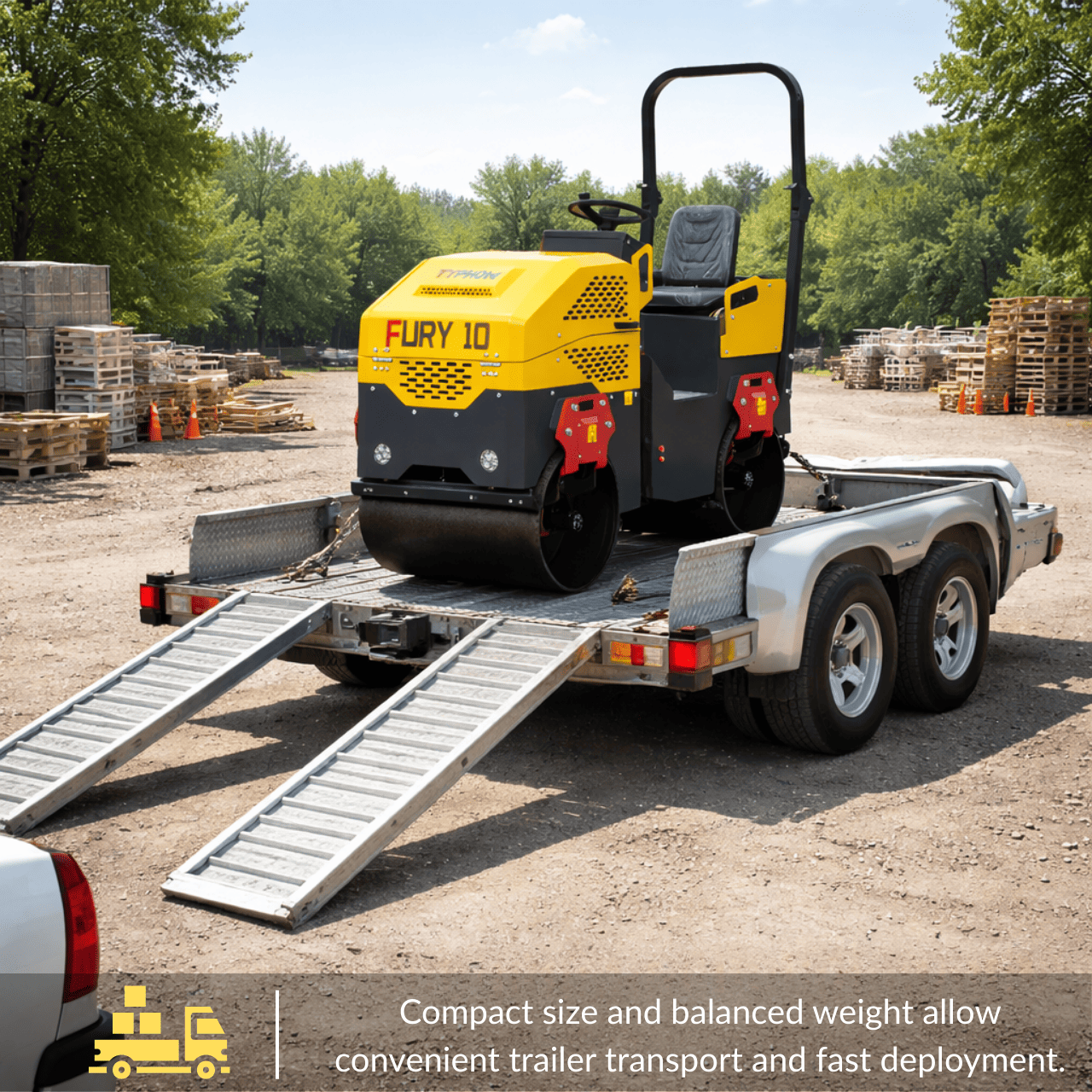

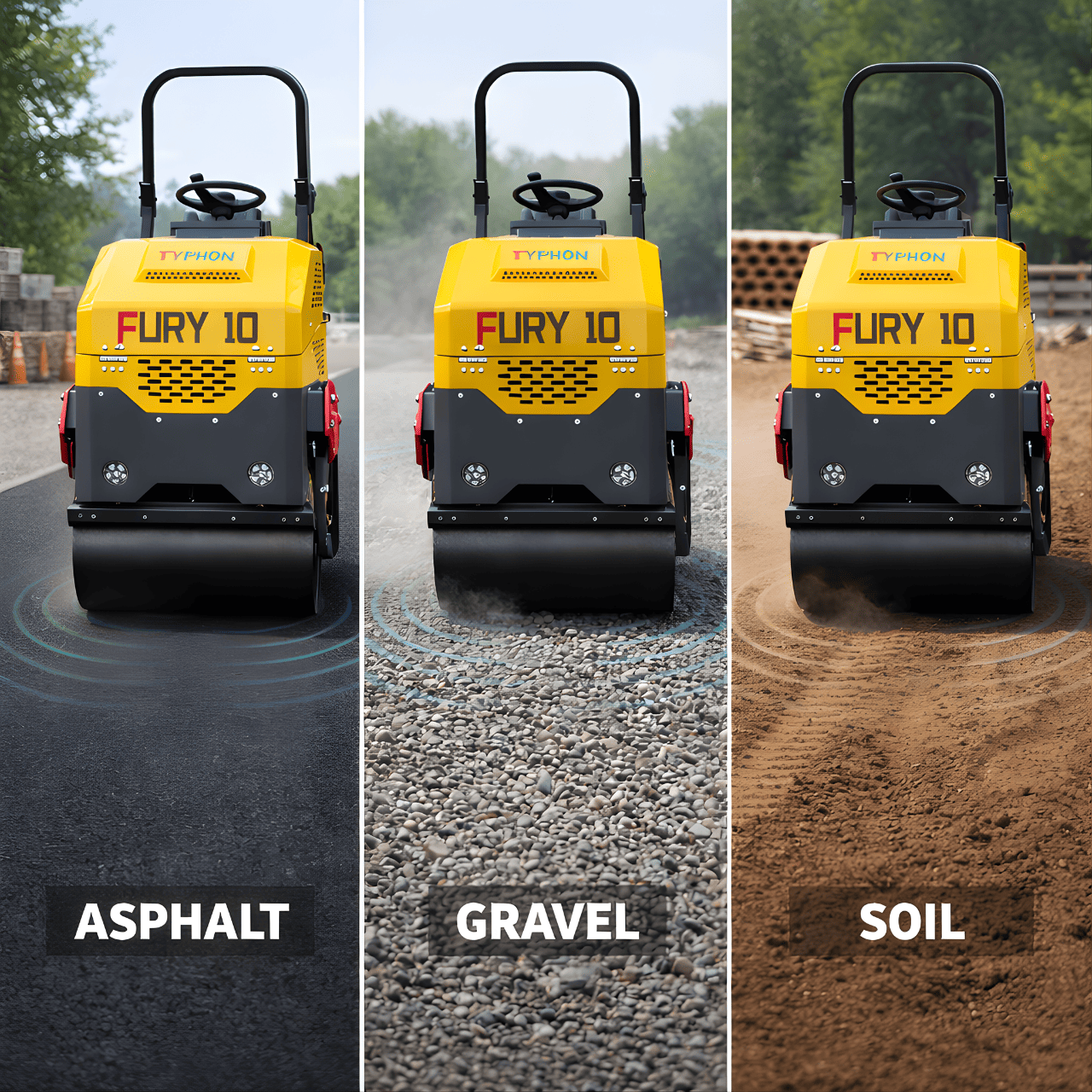

Designed for versatile compaction work, this machine is suitable for roads, highways, driveways, parking lots, and construction sites. Its compact size allows easy operation in tight areas while maintaining stable and efficient performance. With an overall length of 2100 mm, width of 860 mm, and height of 1600 mm (excluding impact beam), it is simple to transport and maneuver. The 700 mm front and rear drum width and 530 mm drum diameter ensure uniform compaction and smooth surface finishing.

2. Effective Compaction:

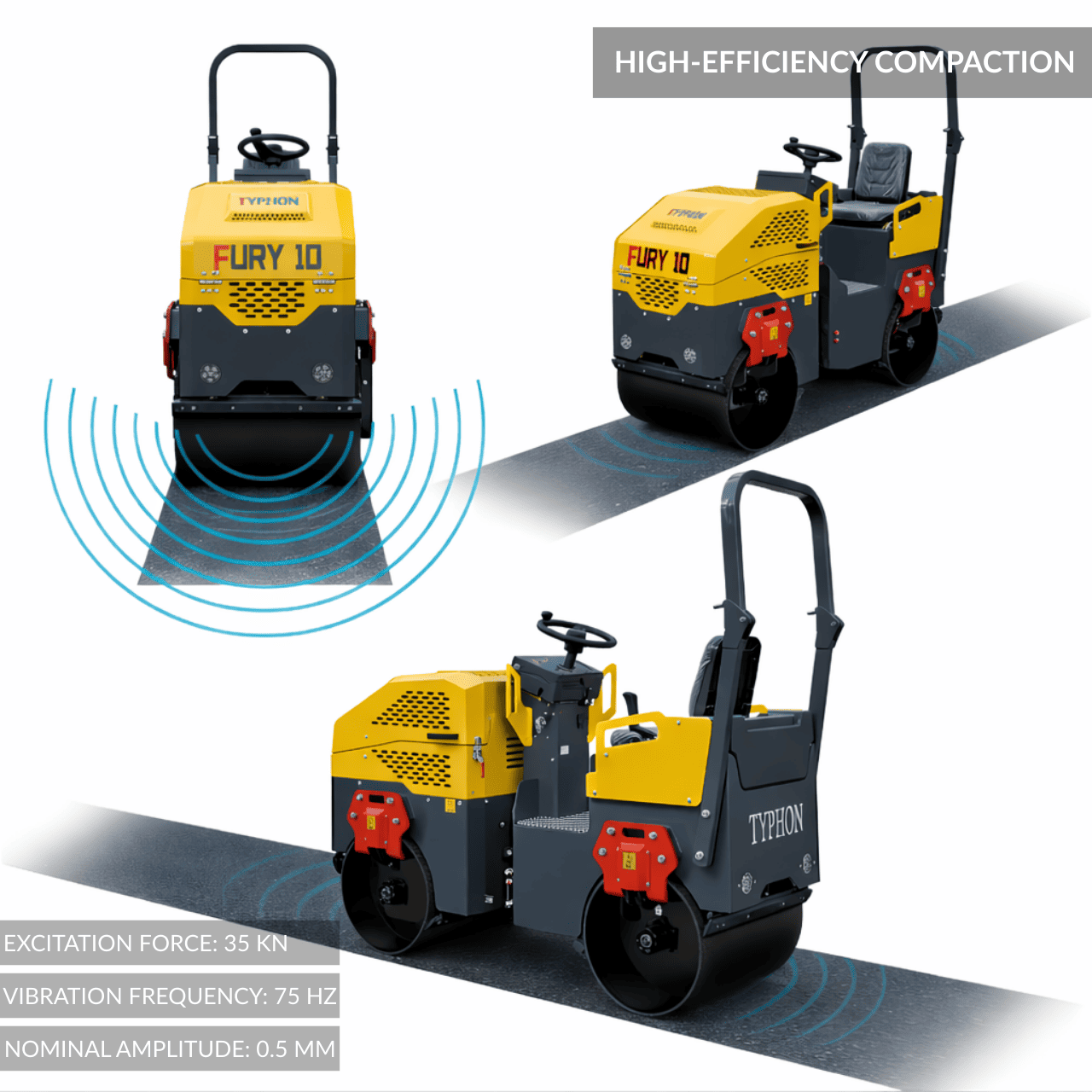

Engineered for reliable performance, this machine delivers smooth and even compaction on asphalt, soil, and gravel. With a 30% climbing ability, it maintains strong traction on slopes and uneven terrain. The 0.5 mm nominal amplitude, 75 Hz vibration frequency, and 35 kN excitation force work together to ensure deep, consistent compaction. A one-key vibration system with an electromagnetic clutch allows quick engagement and precise control, improving efficiency while reducing operator fatigue.

3. Refined Compact Strength:

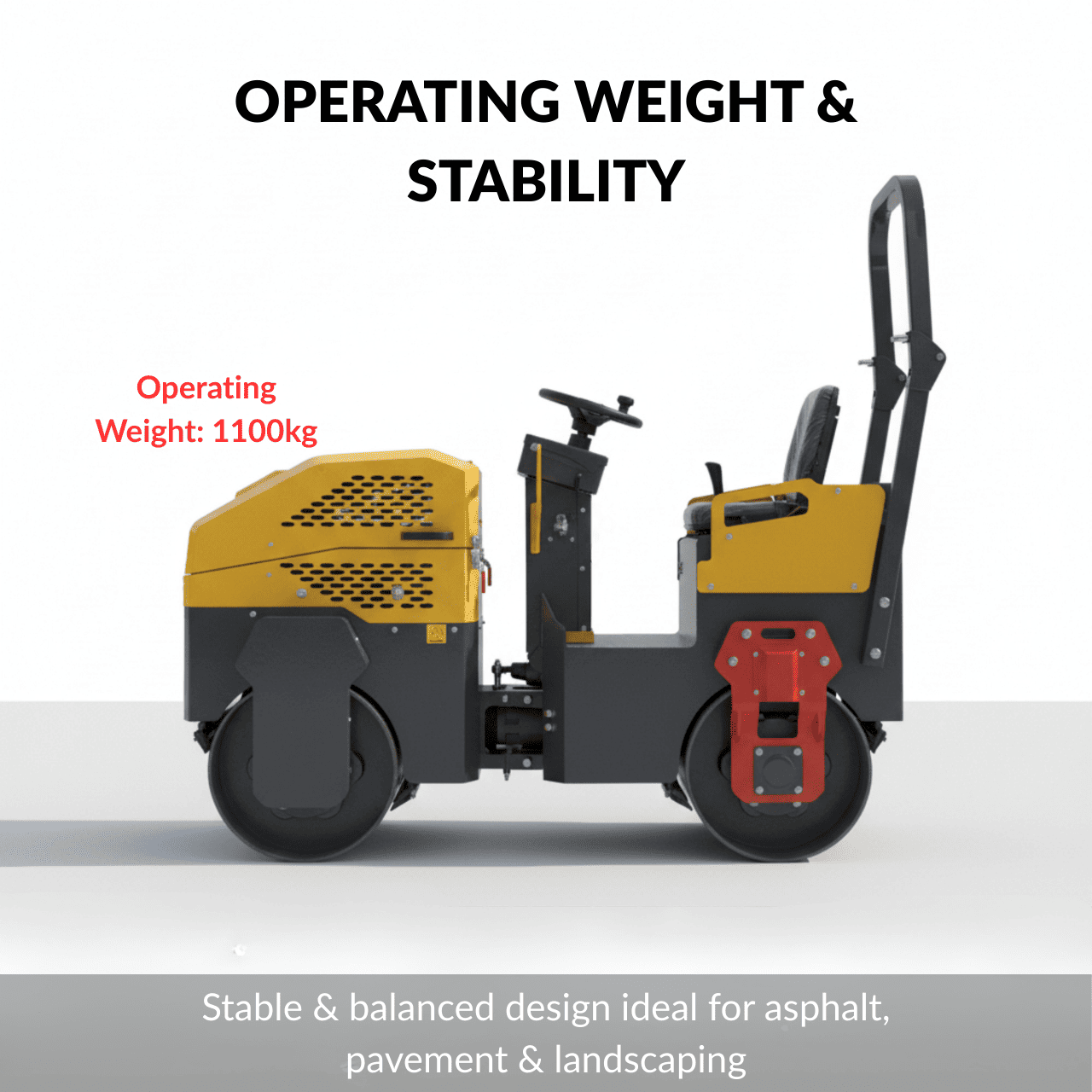

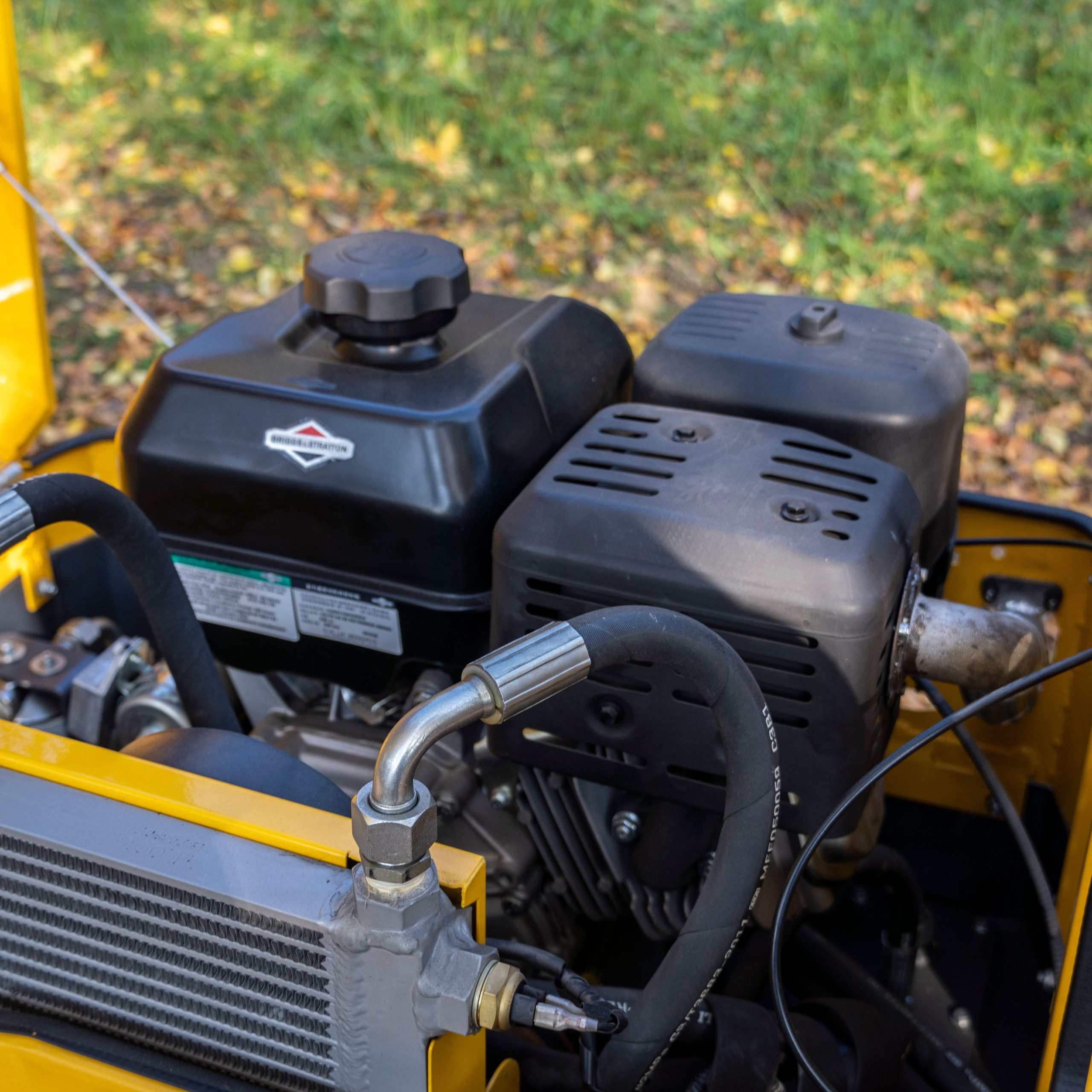

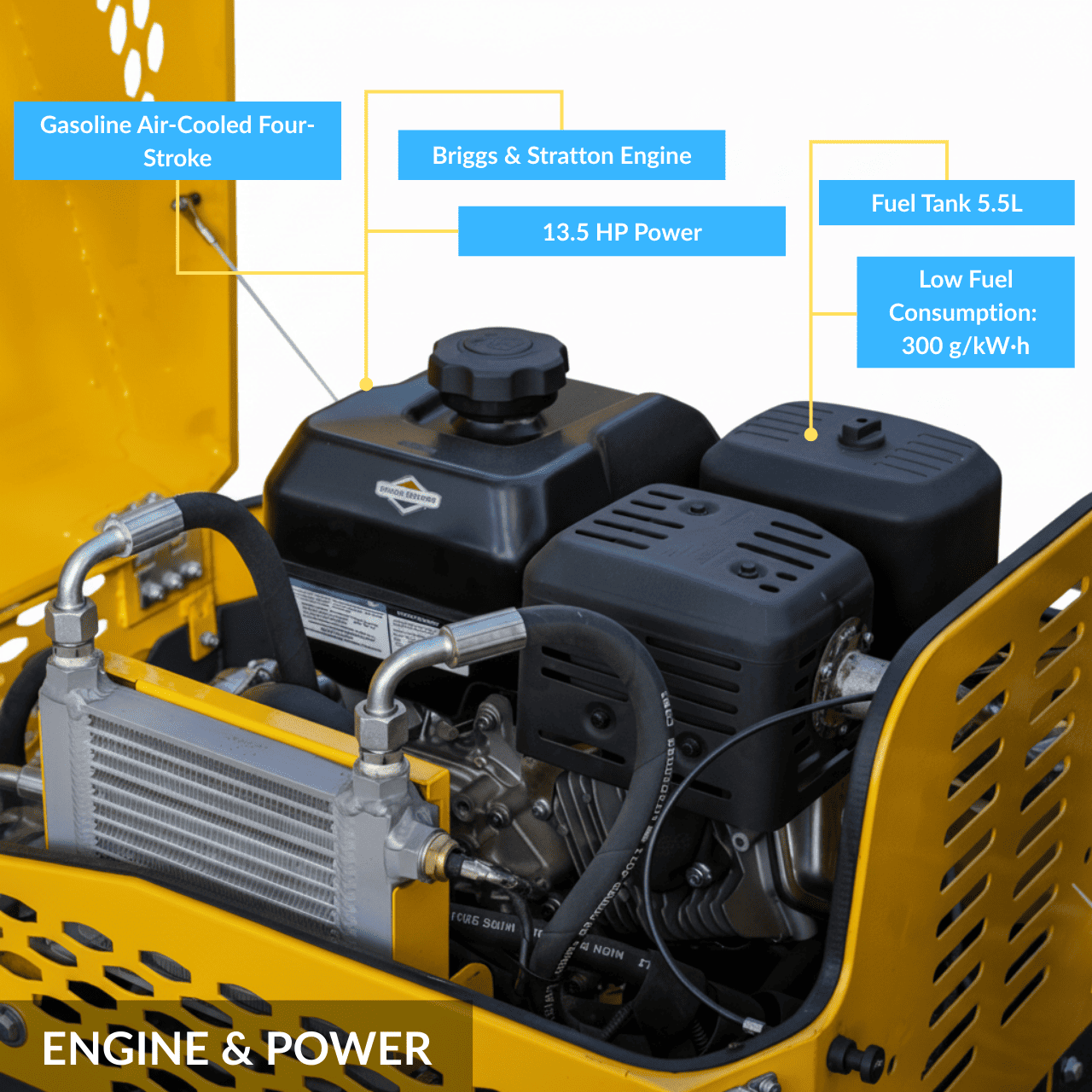

TYPHON Fury 10 mini road roller Featuring a 1-ton operating weight and powered by a Briggs & Stratton 13.5 HP gasoline engine, this air-cooled, four-stroke model delivers reliable performance with excellent fuel efficiency. It features an operating speed of 0–8 km/h for precise control and a tight 200 mm turning radius for smooth operation in confined spaces. Equipped with a 5.5 L fuel tank and a fuel consumption rate of 300 g/kW·h, it supports extended working hours with minimal downtime.

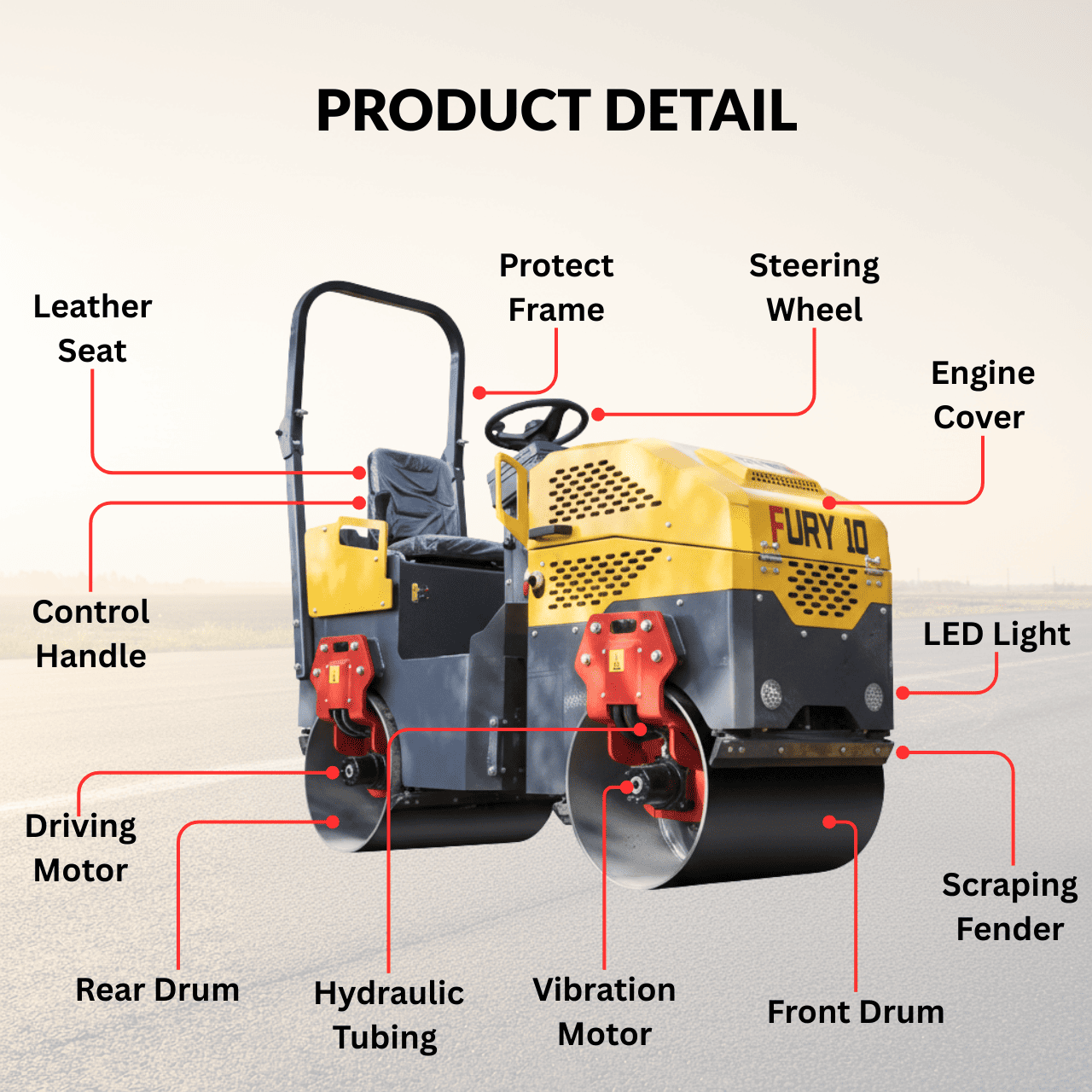

4. User-Friendly Controls:

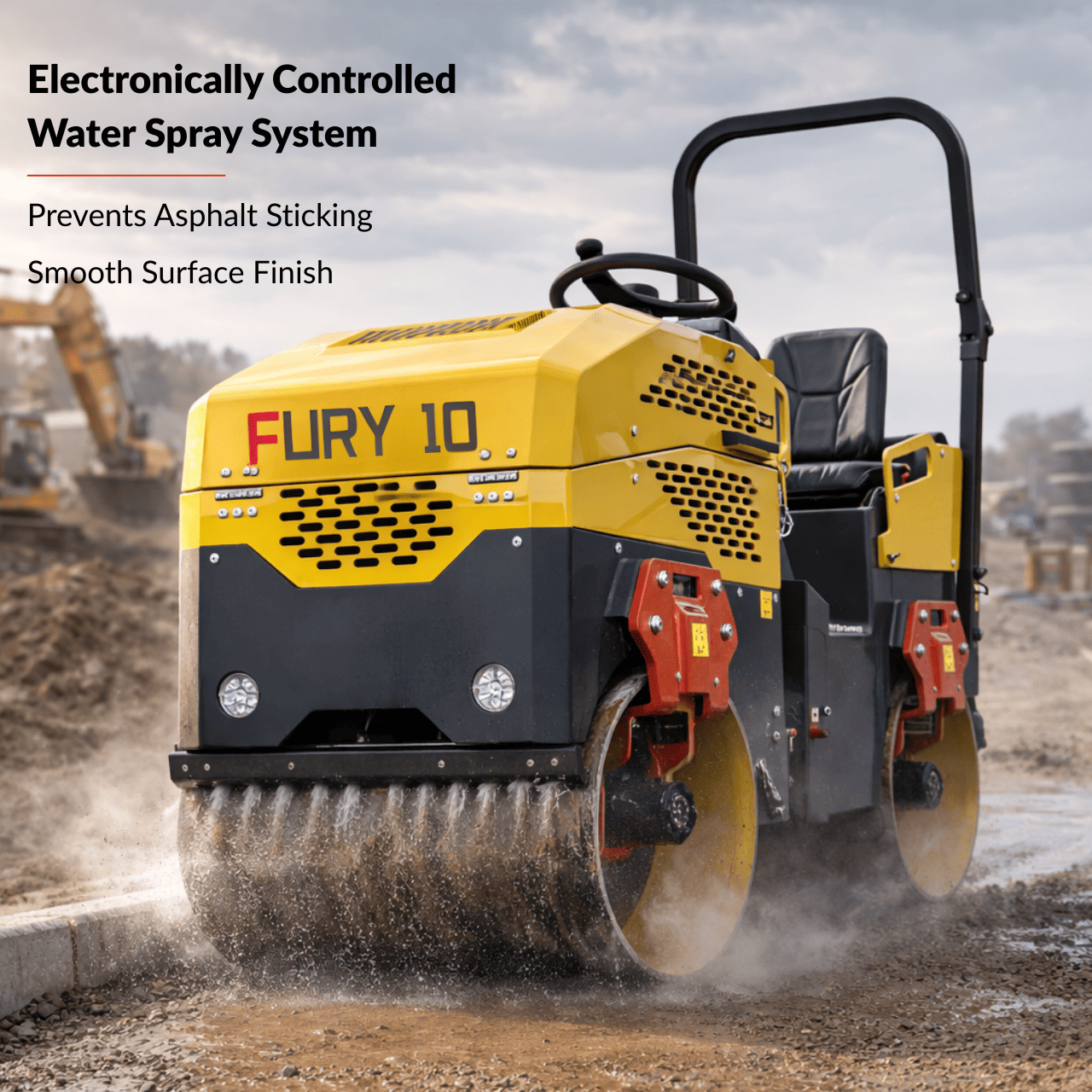

Designed for safe, precise, and user-friendly operation, this machine features a fully hydraulically actuated drive system with dual-wheel drive on both front and rear wheels for stable traction and smooth control. Hydraulically actuated veer steering ensures accurate maneuvering in tight spaces, while the electronically controlled pressure spray water sprinkler system improves moisture control and compaction quality.

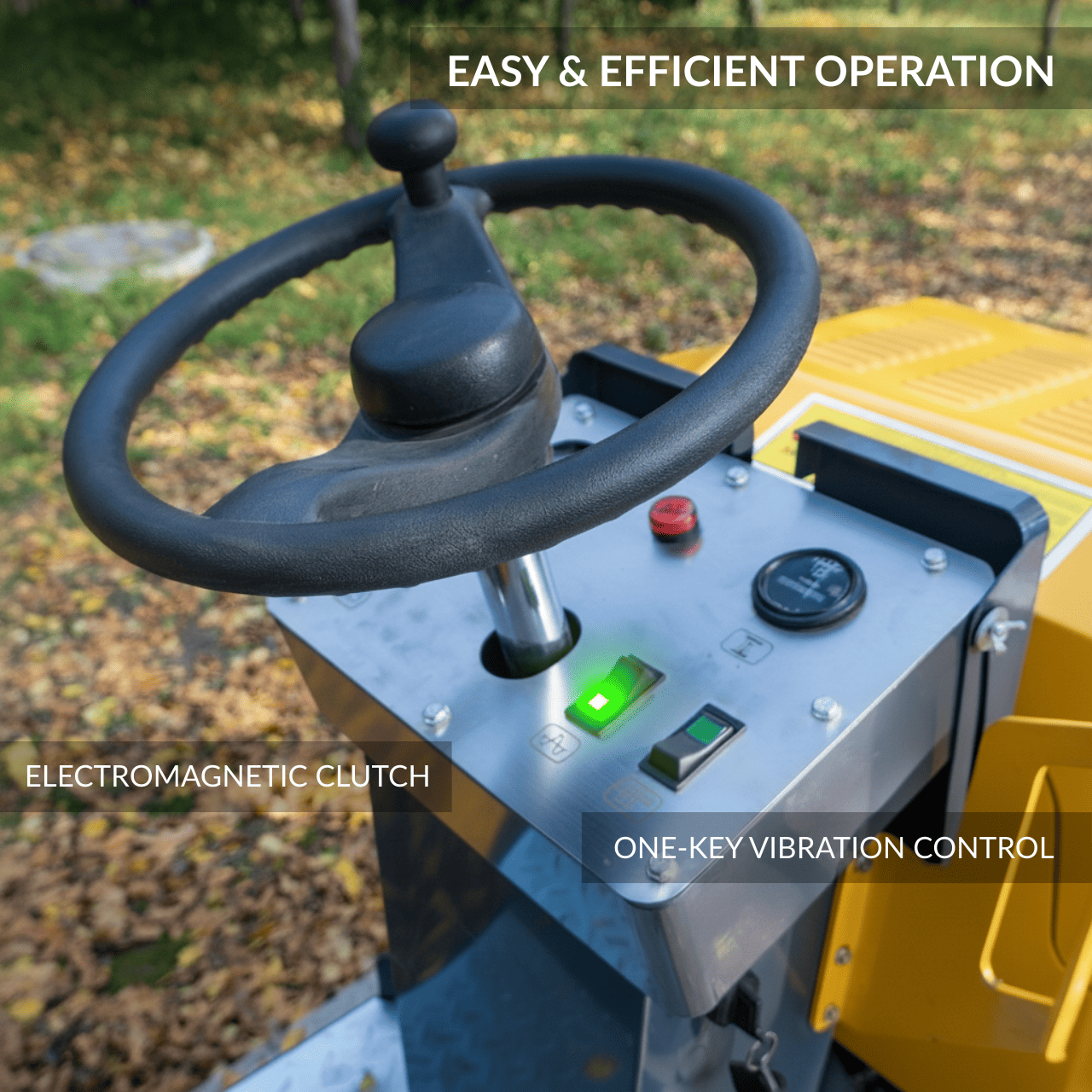

One-key vibration with an electromagnetic clutch front drum vibration for uniform surface compaction, and the comfortable ergonomic operator chair reduces fatigue during long working hours.

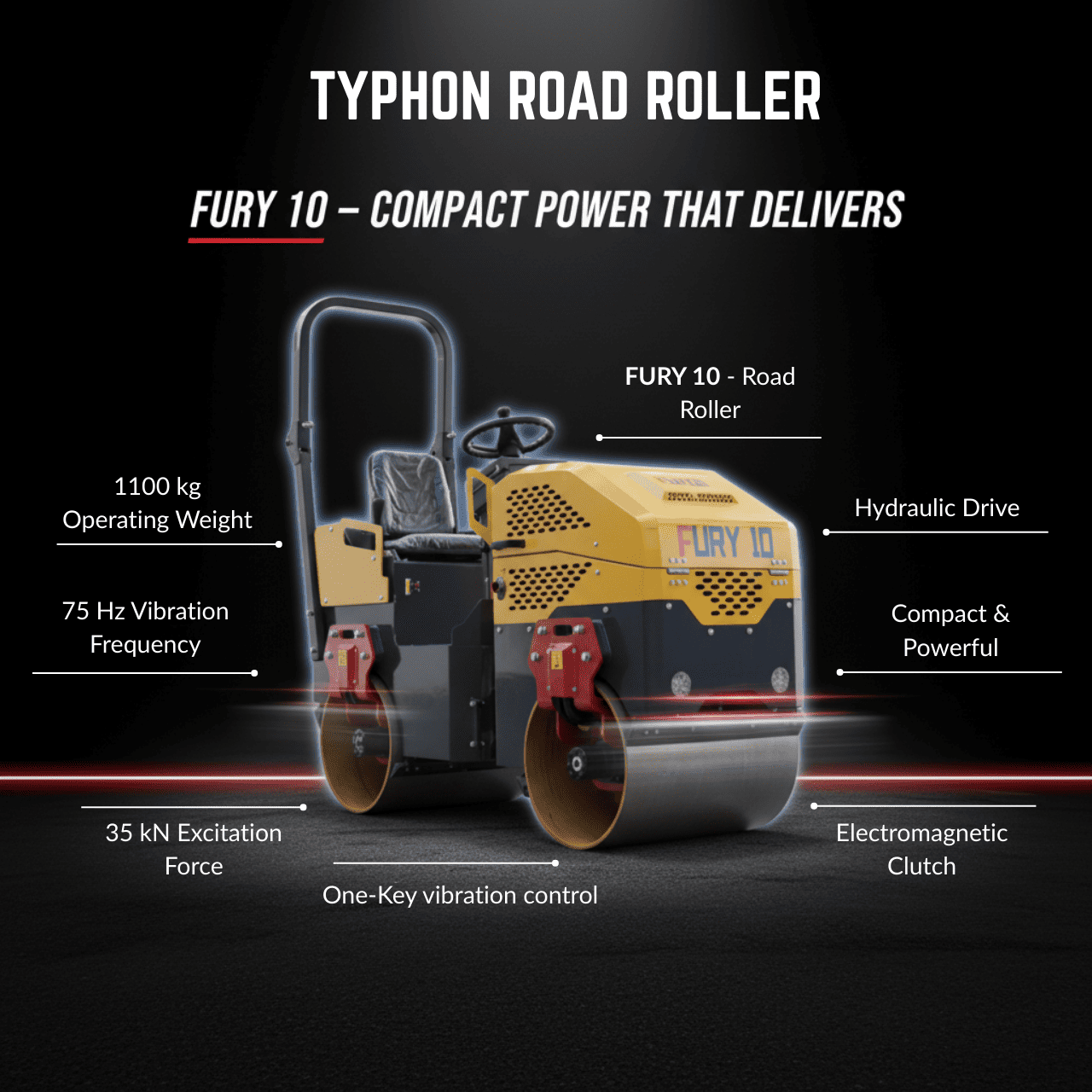

FURY 10 Mini Road Roller—Performance Highlights:

• Compaction & Force: Delivers a 35 kN excitation force and 75 Hz frequency via hydraulic vibration, featuring a 0.5 mm amplitude for smooth results on asphalt, soil, and gravel.
• Power & Build: A 1-ton sturdy frame powered by a 13.5 hp Briggs & Stratton engine, offering 0–8 km/h speed range and an efficient 300 g/kWh fuel rate with a 5.5L tank.
• Precision Control: Equipped with hydraulic actuated and an electronically controlled pressure water spray system for accurate, safe, and intuitive operation.

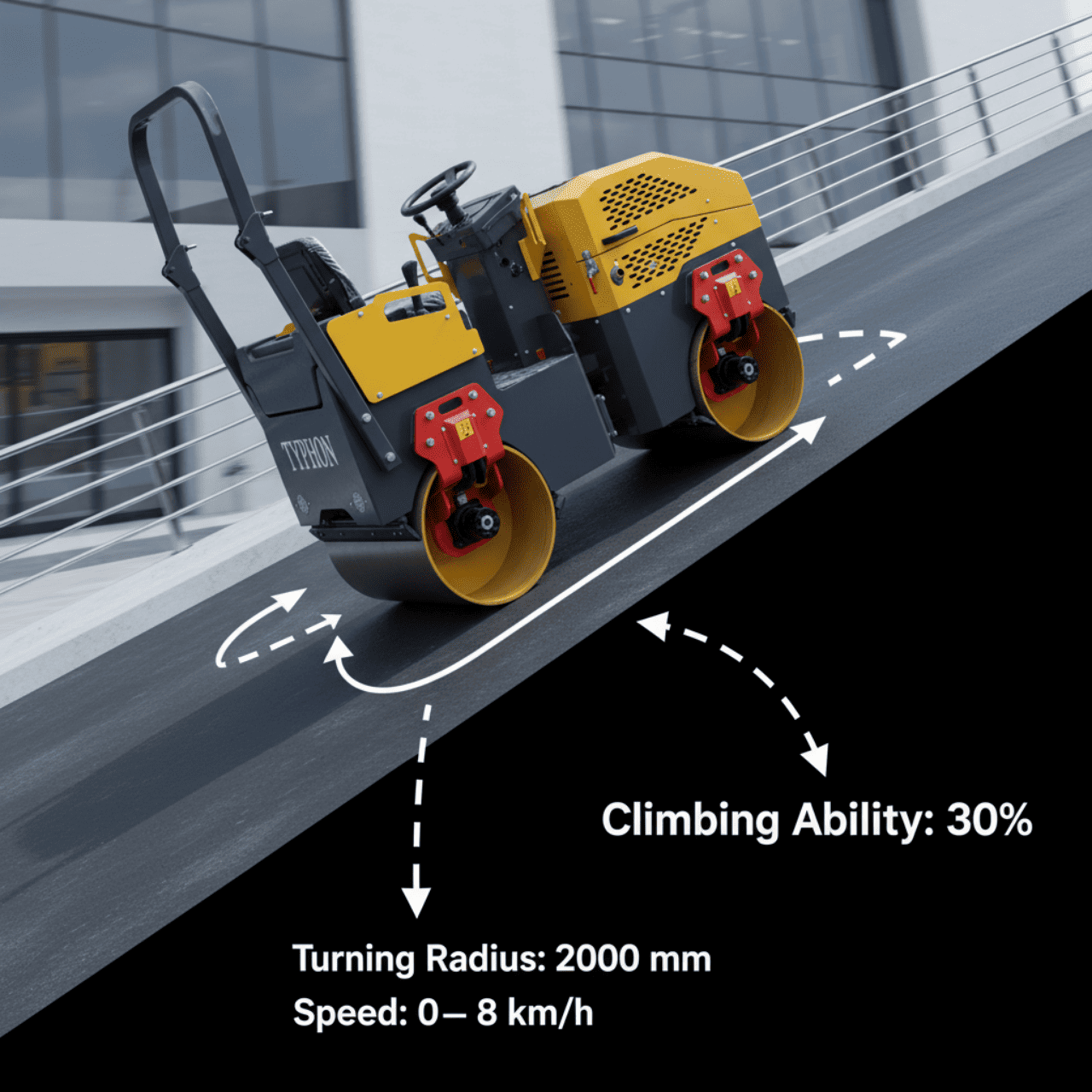

• Gradability: Tackles inclines with a robust 30% climbing ability, making it suitable for sloped driveways and uneven construction sites.
• Frequency & Force: Operates at a high 75 Hz vibration frequency with a powerful 35 kN excitation force, ensuring deep and uniform material stabilization.
