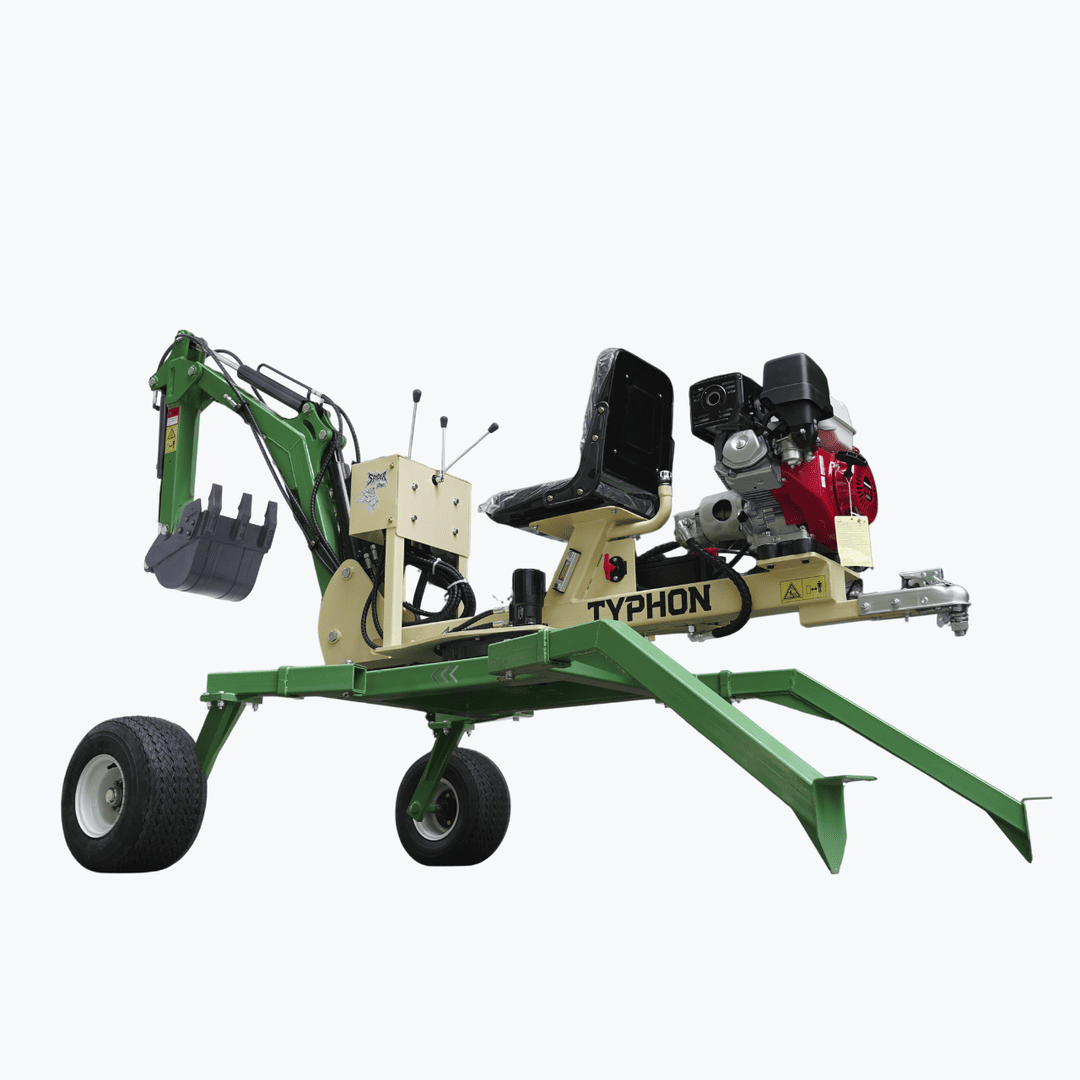

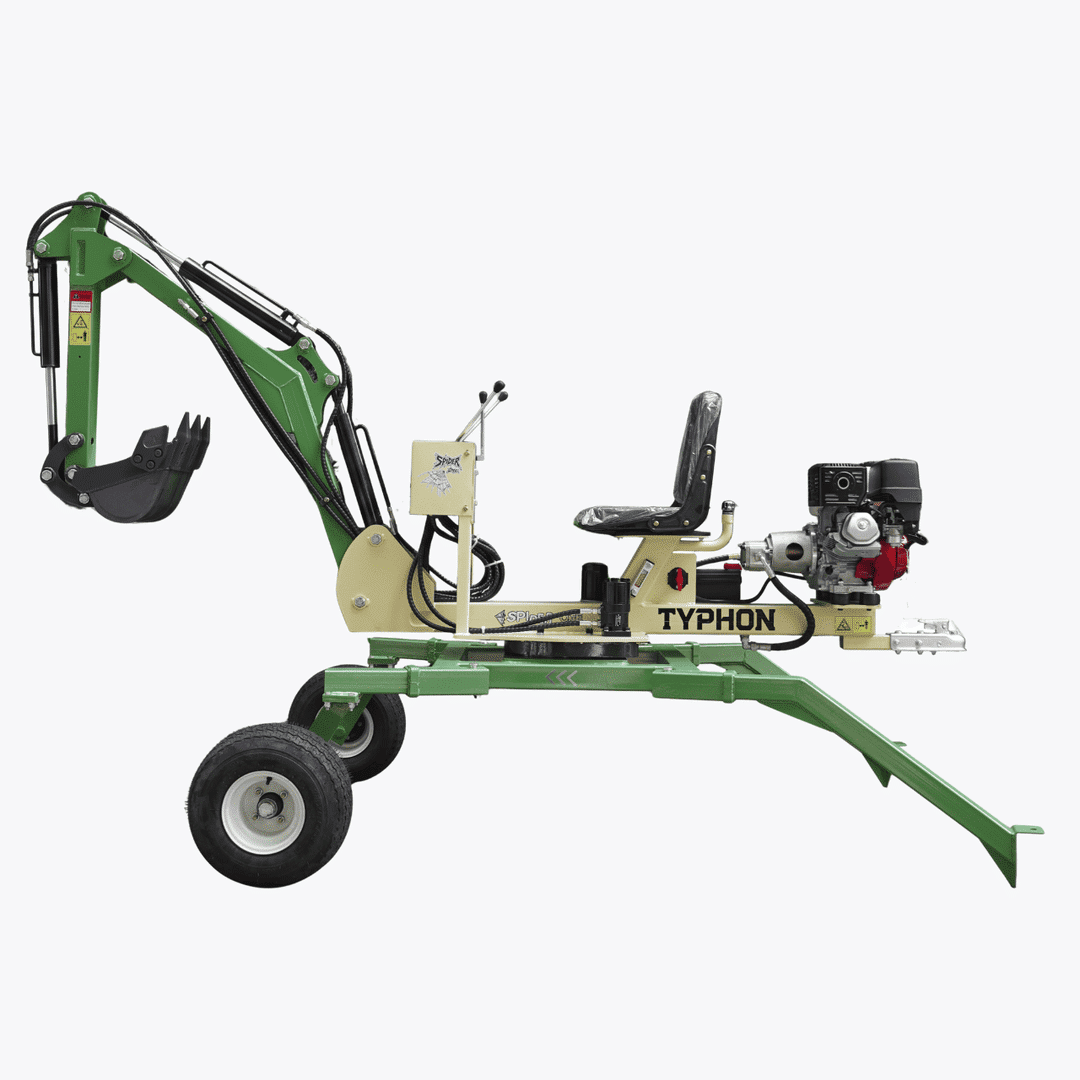

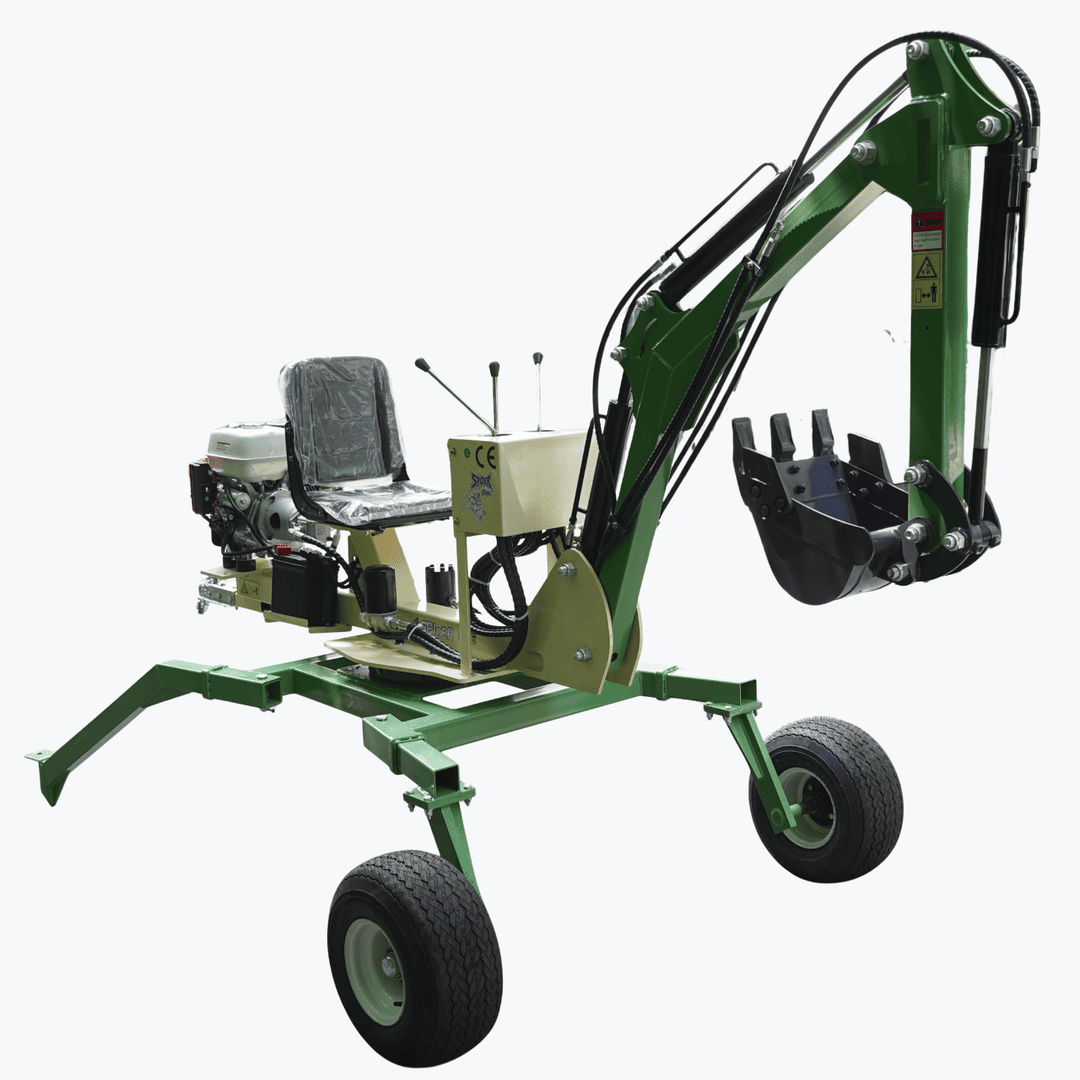

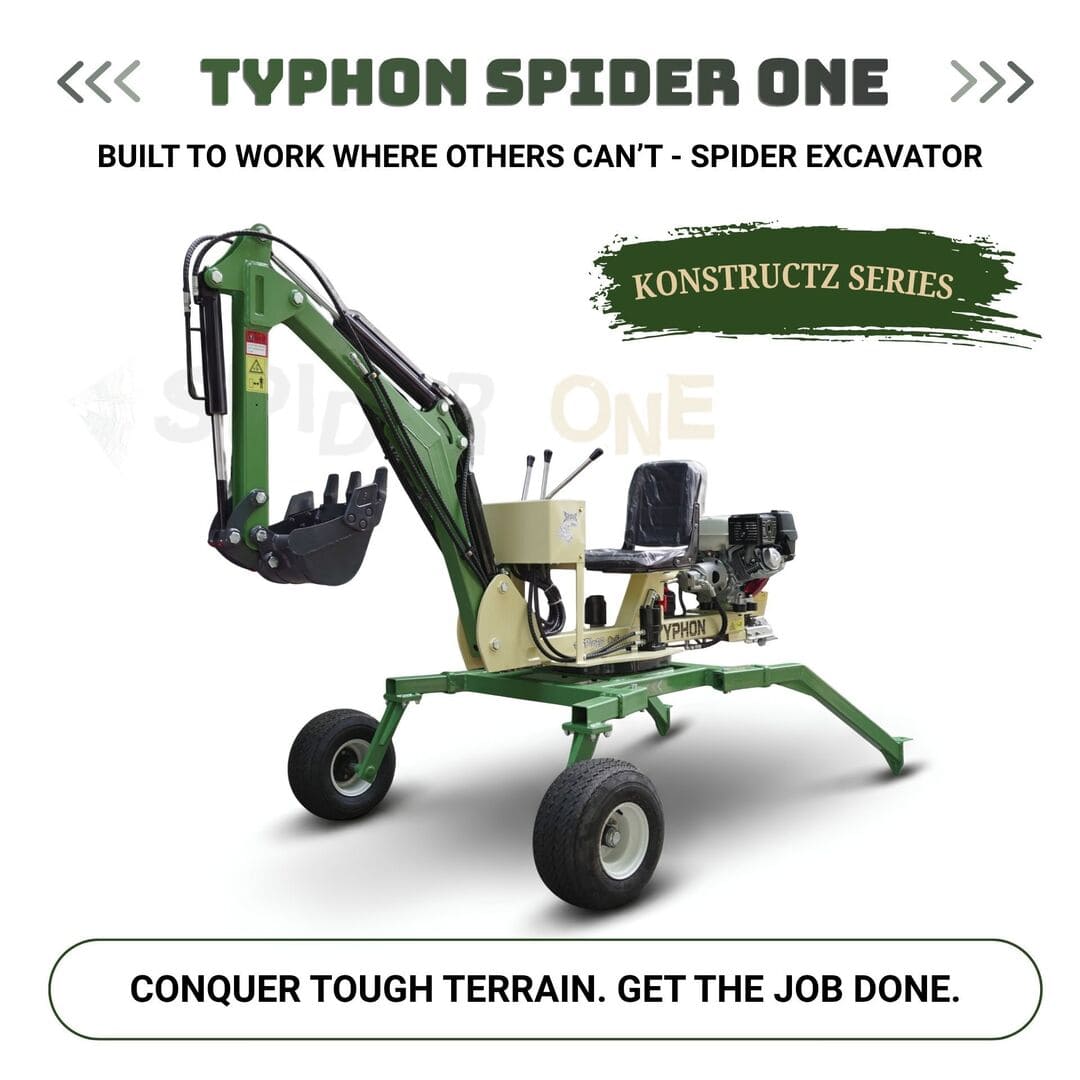

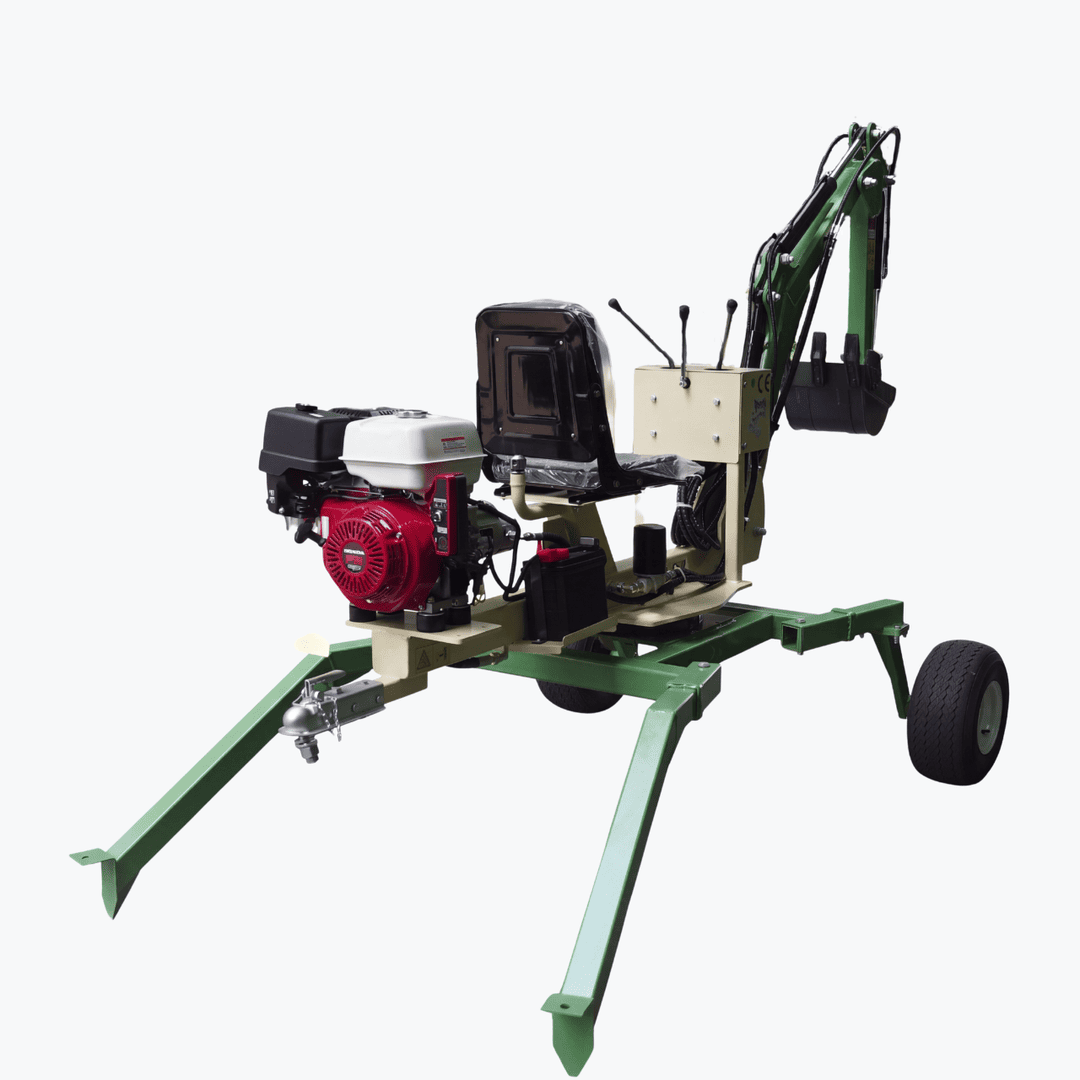

Introducing the TYPHON Spider One from the KONSTRUCTZ SERIES, a compact mini spider excavator made for tight job sites. Its small frame and dependable Honda engine bring full digging capability to places where larger machines can’t go.
At just 904 lb with compact dimensions of 7.87 × 5.05 × 5.91 ft, the Spider One fits through narrow gates, doorways, and access points that stop conventional excavators. It is simple to transport, and its towable design reduces the need for specialized hauling equipment, which makes moving between job sites quick and easy. Gentle on finished surfaces, it works just as well on farms and in gardens as it does on construction sites and urban lots.
Don’t let the small size fool you. Full 360-degree rotation lets you dig, swing, and unload in any direction from a single spot, and two stabilizing legs keep the machine firmly anchored while you work. A wide range of interchangeable attachments, from a bucket and auger to a rake, grapple, and hydraulic hammer, lets one machine cover excavation, demolition, drilling, and land clearing. If you need real digging ability in the tightest of spaces, the Spider One is built to deliver.
- Built to Fit Anywhere
The TYPHON Spider One is engineered for space-restricted projects and fits where conventional excavators cannot. Its compact dimensions of 7.87 × 5.05 × 5.91 ft let it pass through narrow gates, doorways, and access points with ease.
Weighing just 904 lb, this unit is simple to transport and gentle on finished surfaces. It works equally well on farms, in gardens, on construction sites, and in urban lots, delivering full excavation capability without the heavy footprint.
- The Engine Behind the Machine

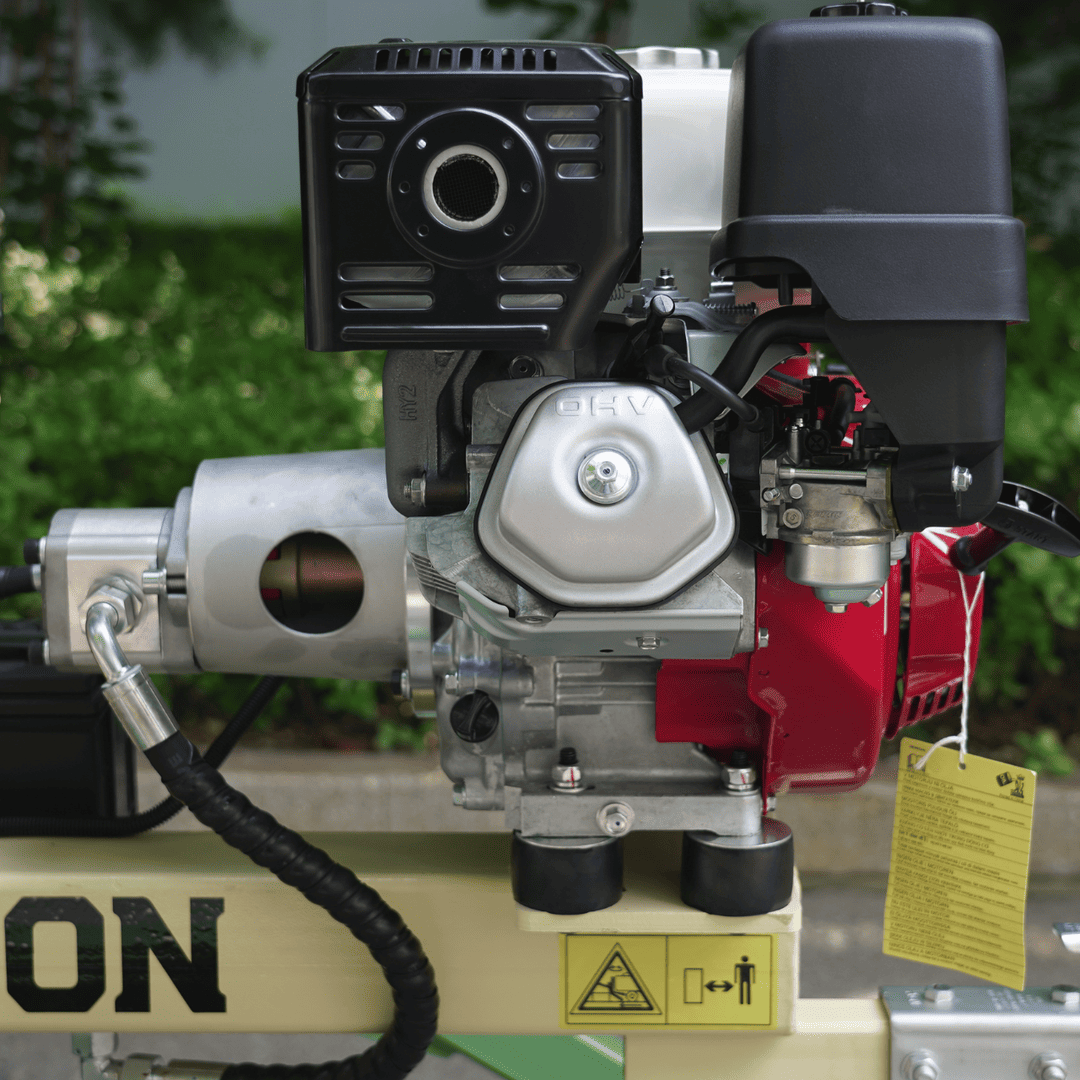

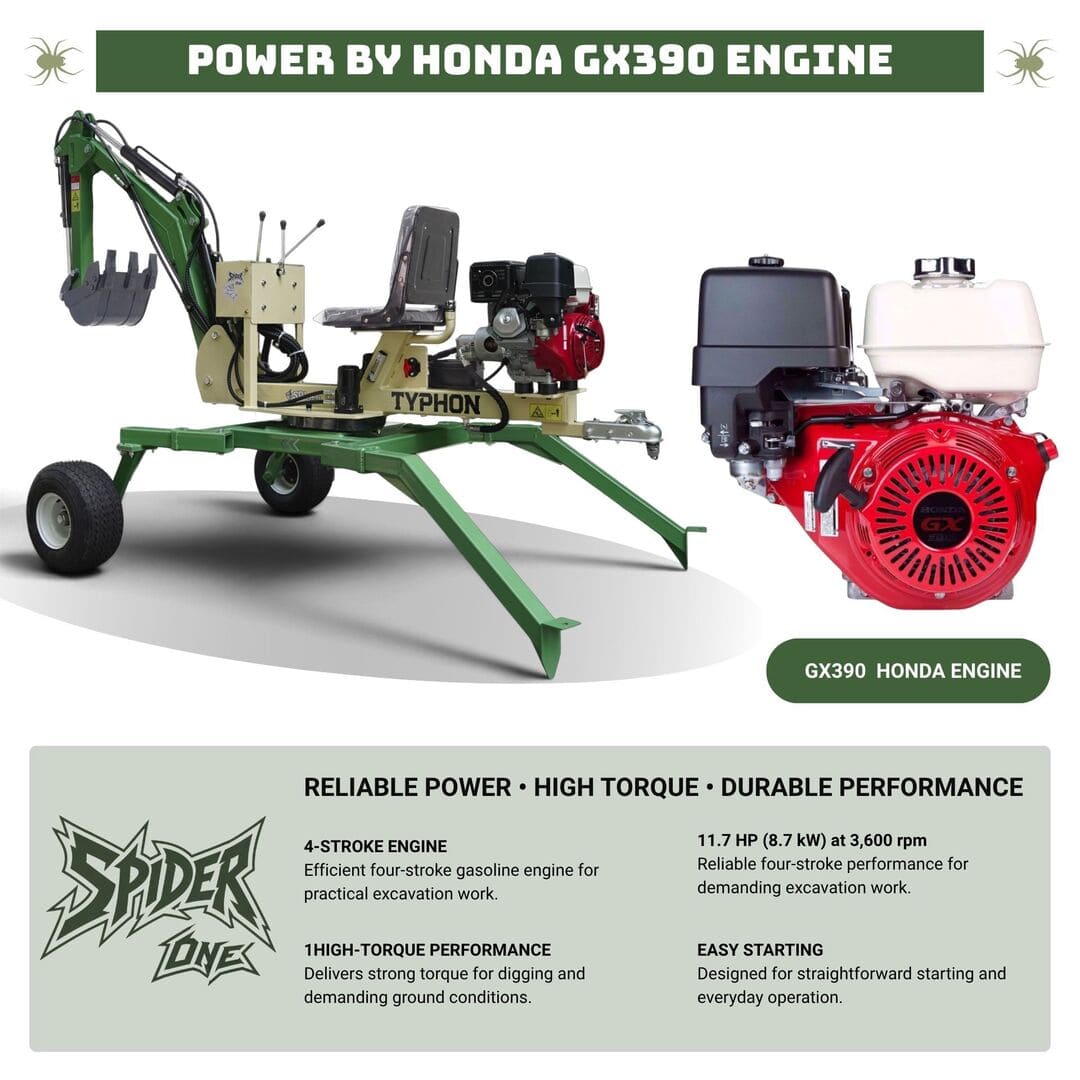

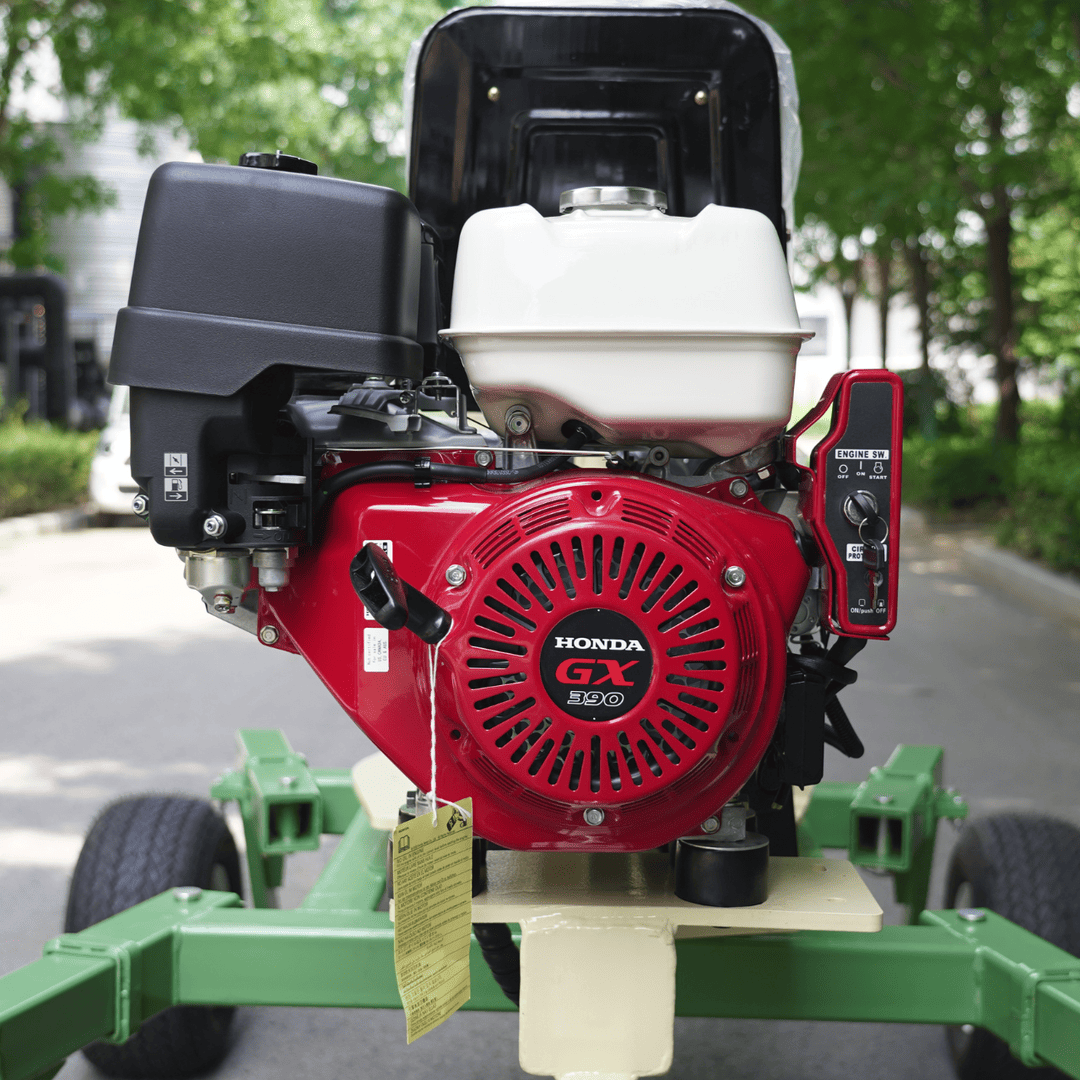

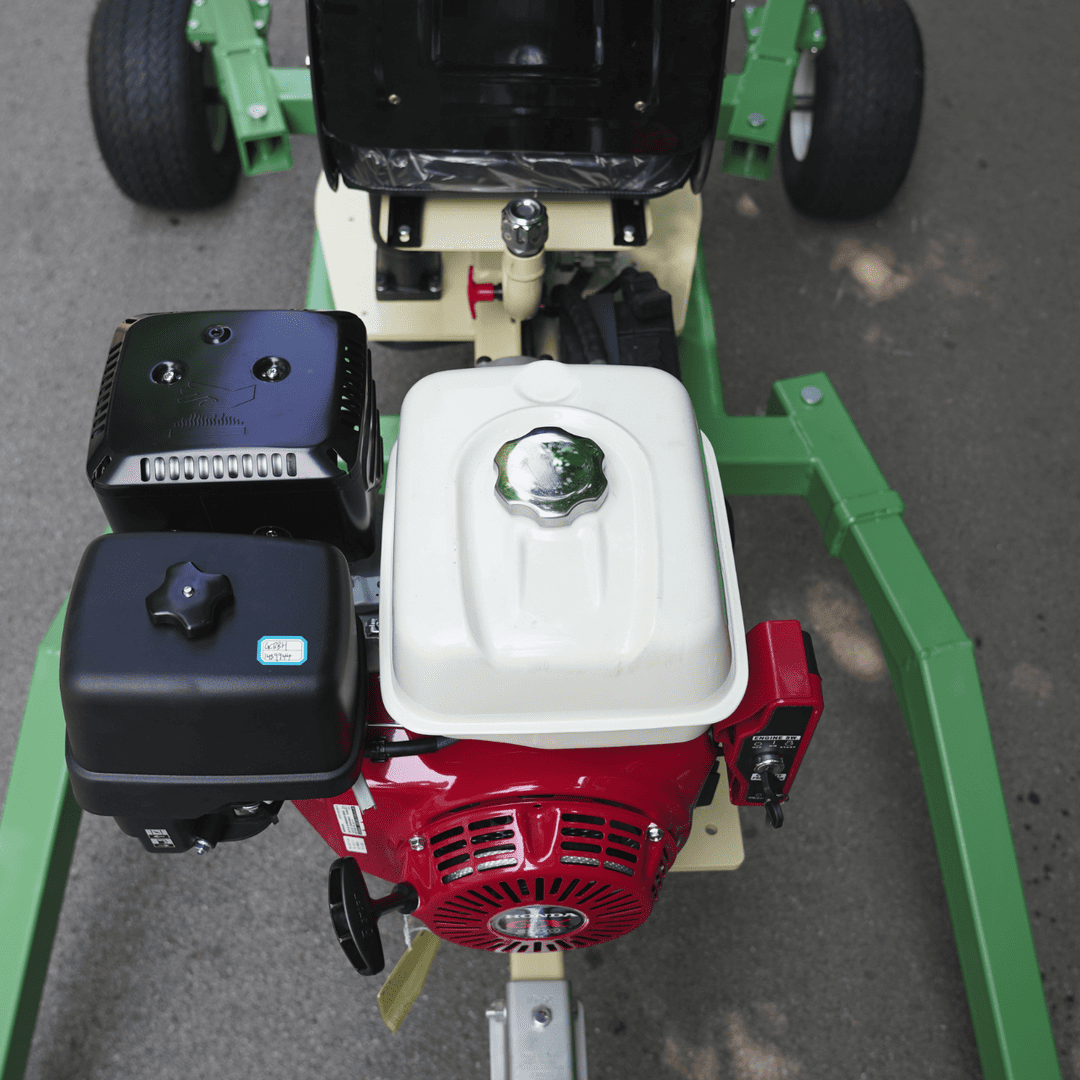

- EPA Certified Honda GX390 Engine: Delivers 11 HP at 3,600 RPM for dependable starting, steady output, and efficient fuel use shift after shift.

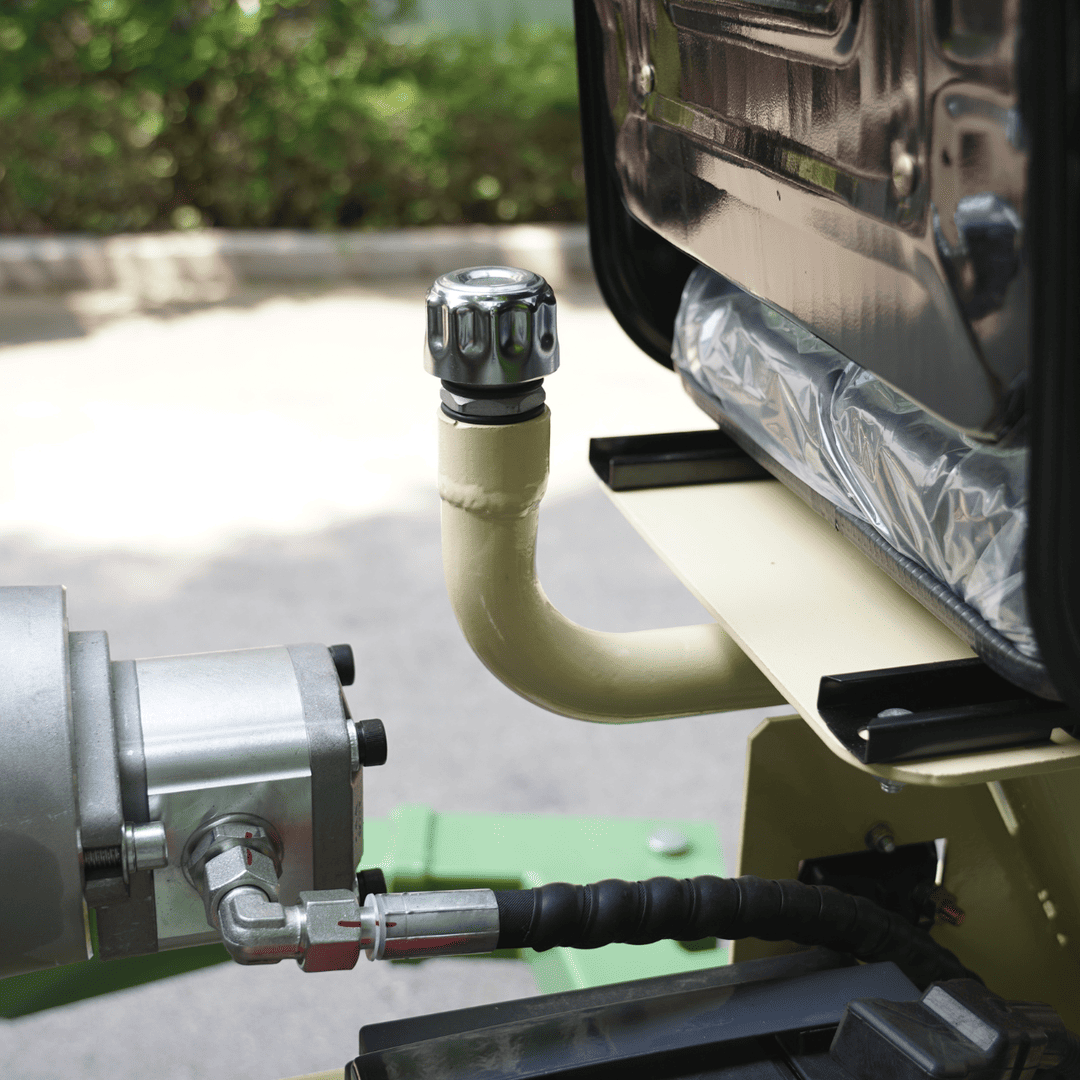

- Hydraulic Gear Pump: Supplies smooth, responsive flow to the boom, arm, and attachments, keeping every movement precise and controlled.
- 0.71 ft³ Bucket Capacity: Handles soil, gravel, and debris efficiently across a wide range of digging jobs.
- Unleash Digging Power

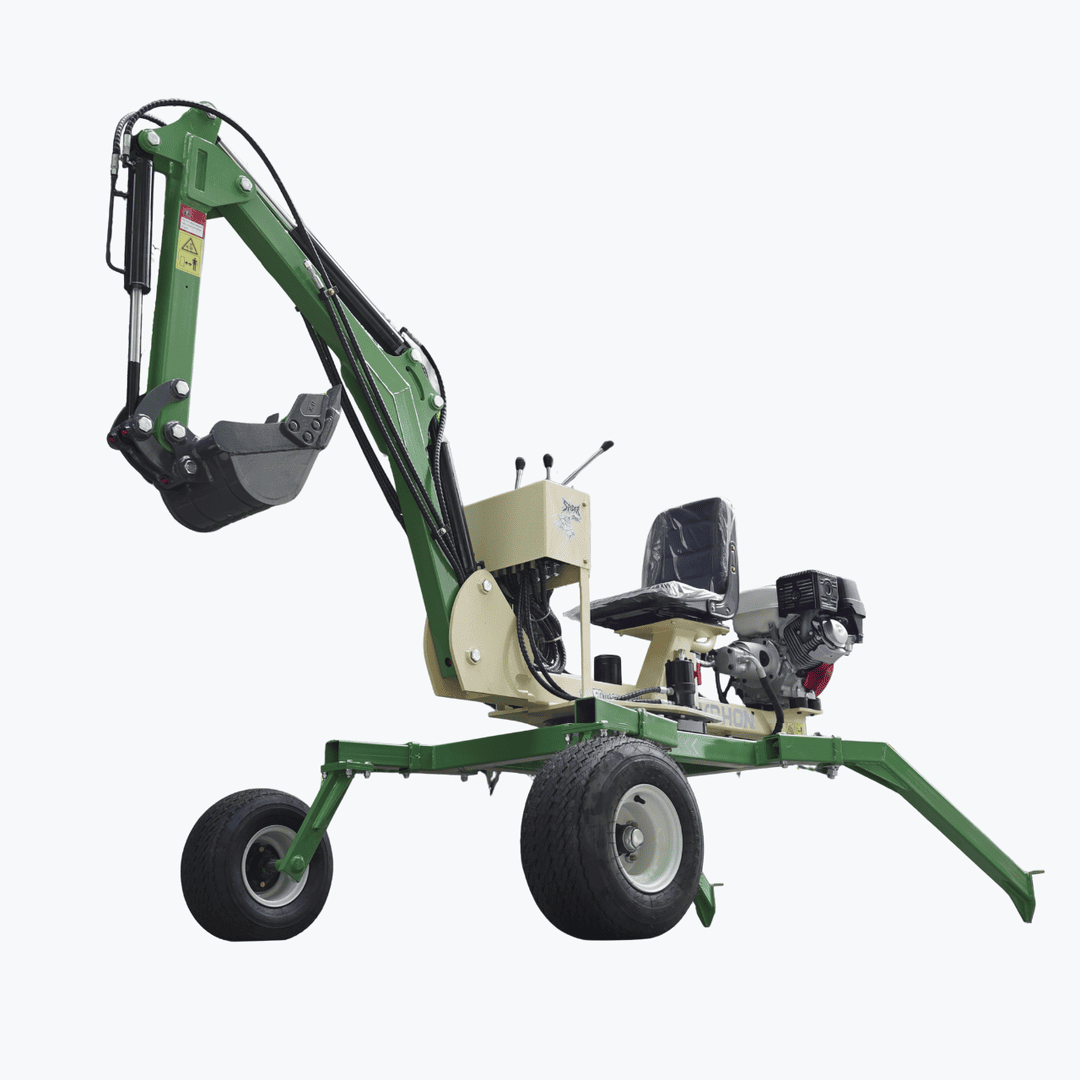

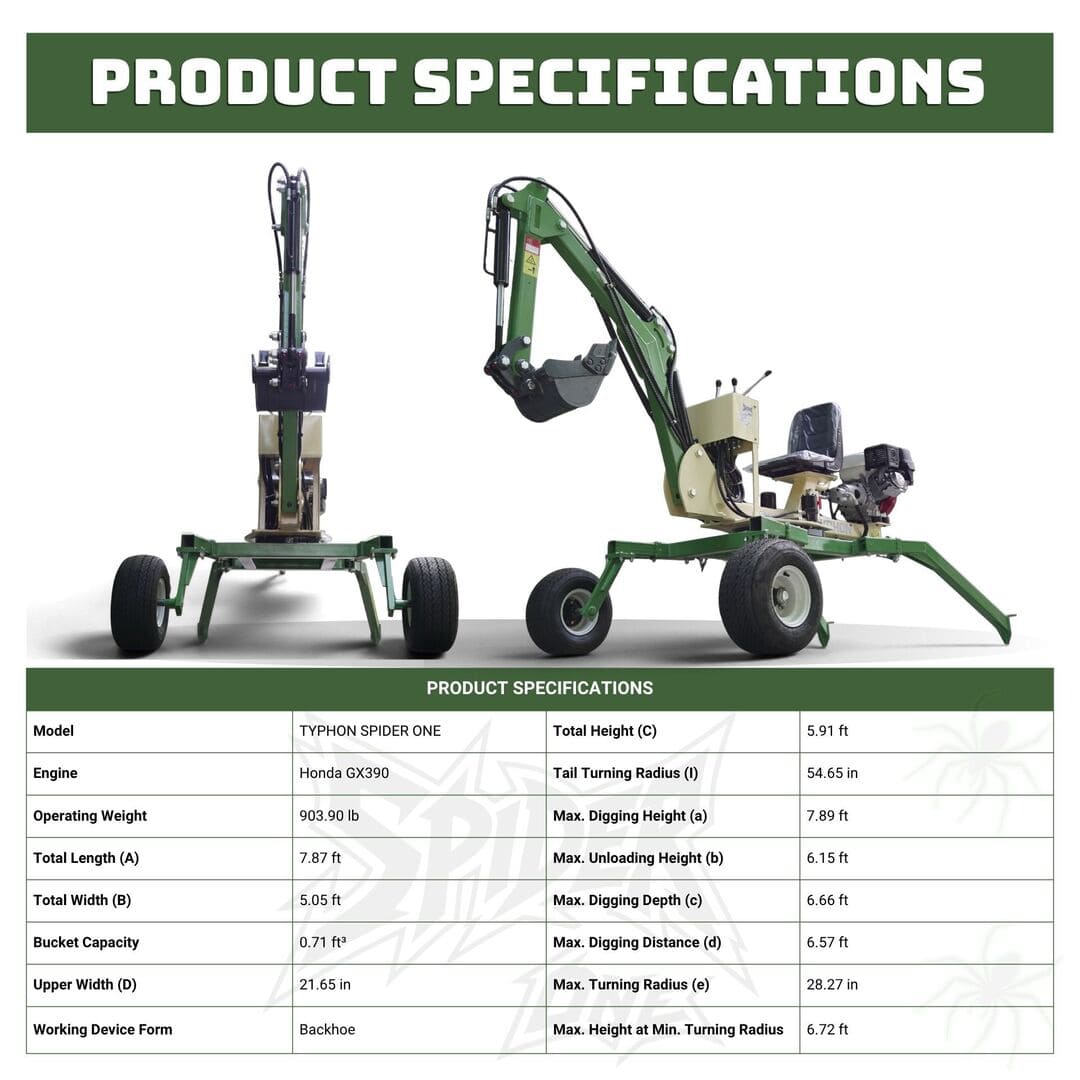

- Vertical Range: Reaches a maximum digging depth of 6.66 ft and a maximum digging height of 7.89 ft, suited to trenching, foundation work, and site preparation.
- Horizontal Reach: Extends up to 6.57 ft of maximum digging distance, covering landscaping, site prep, and material handling without constant repositioning.
- Unloading Height: A maximum unloading height of 6.15 ft lets you place material exactly where it needs to go, shift after shift.
- Turning Radius: The maximum turning radius is 28.27 inch, helping the machine maneuver inside tight working areas.
- All-Terrain Mobility and Performance

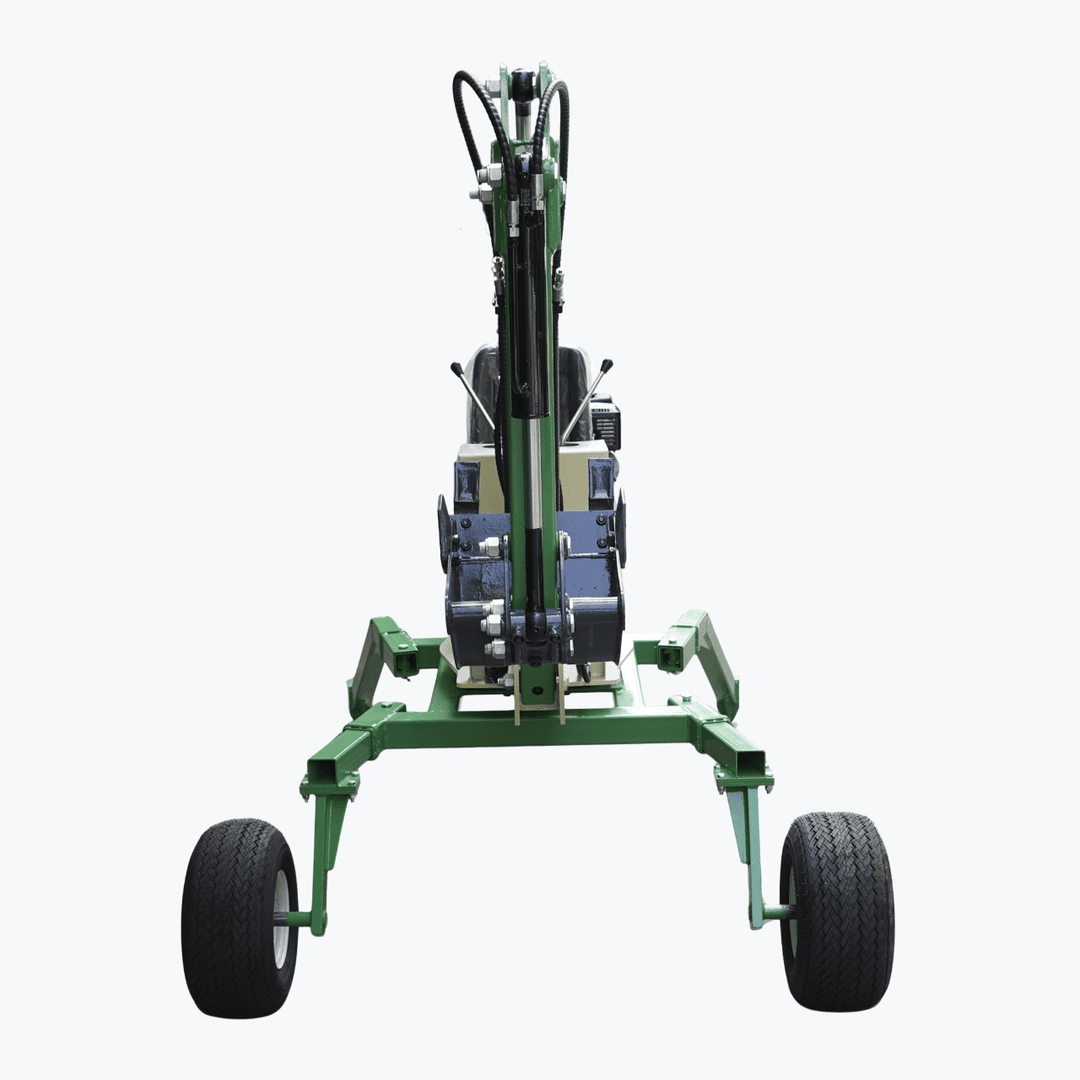

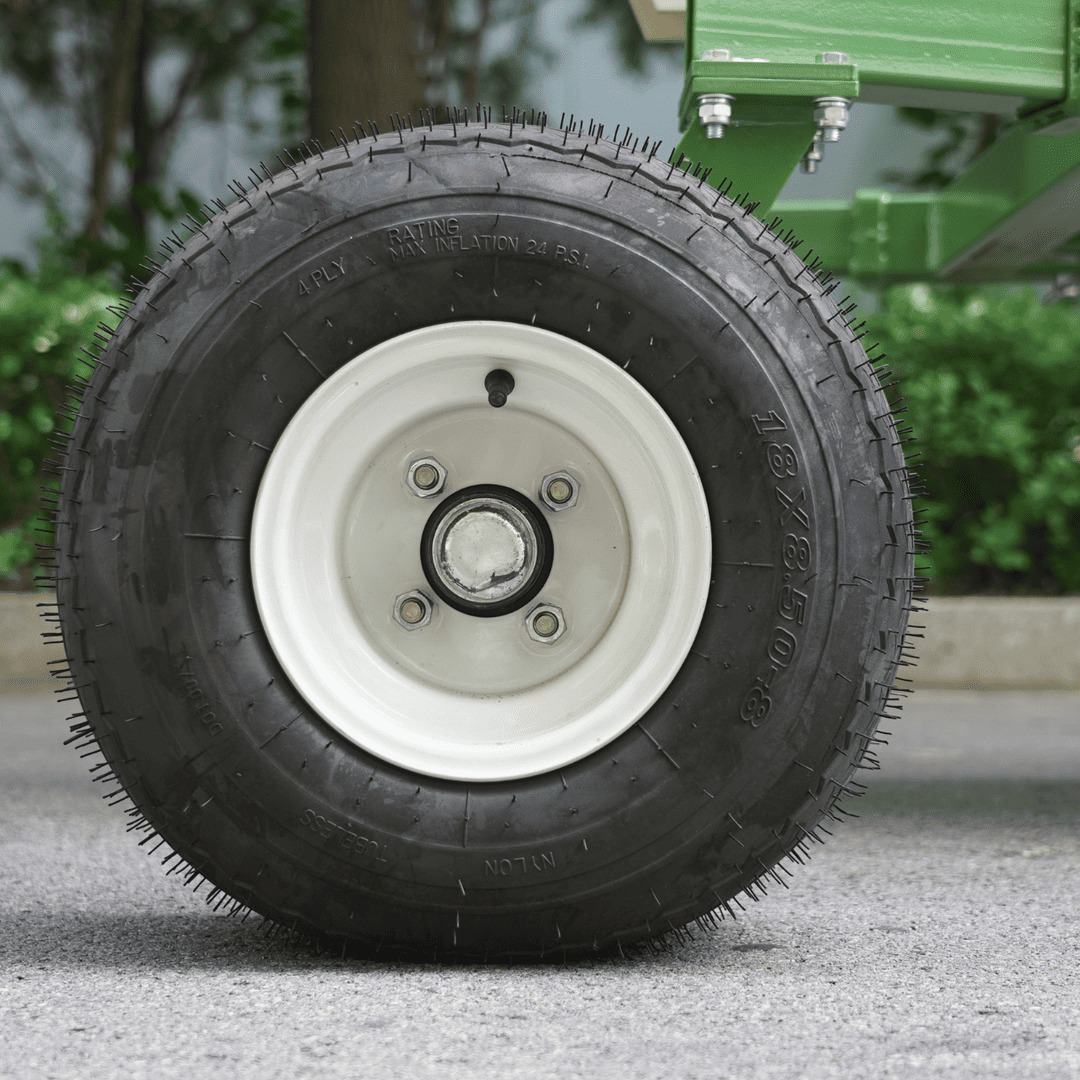

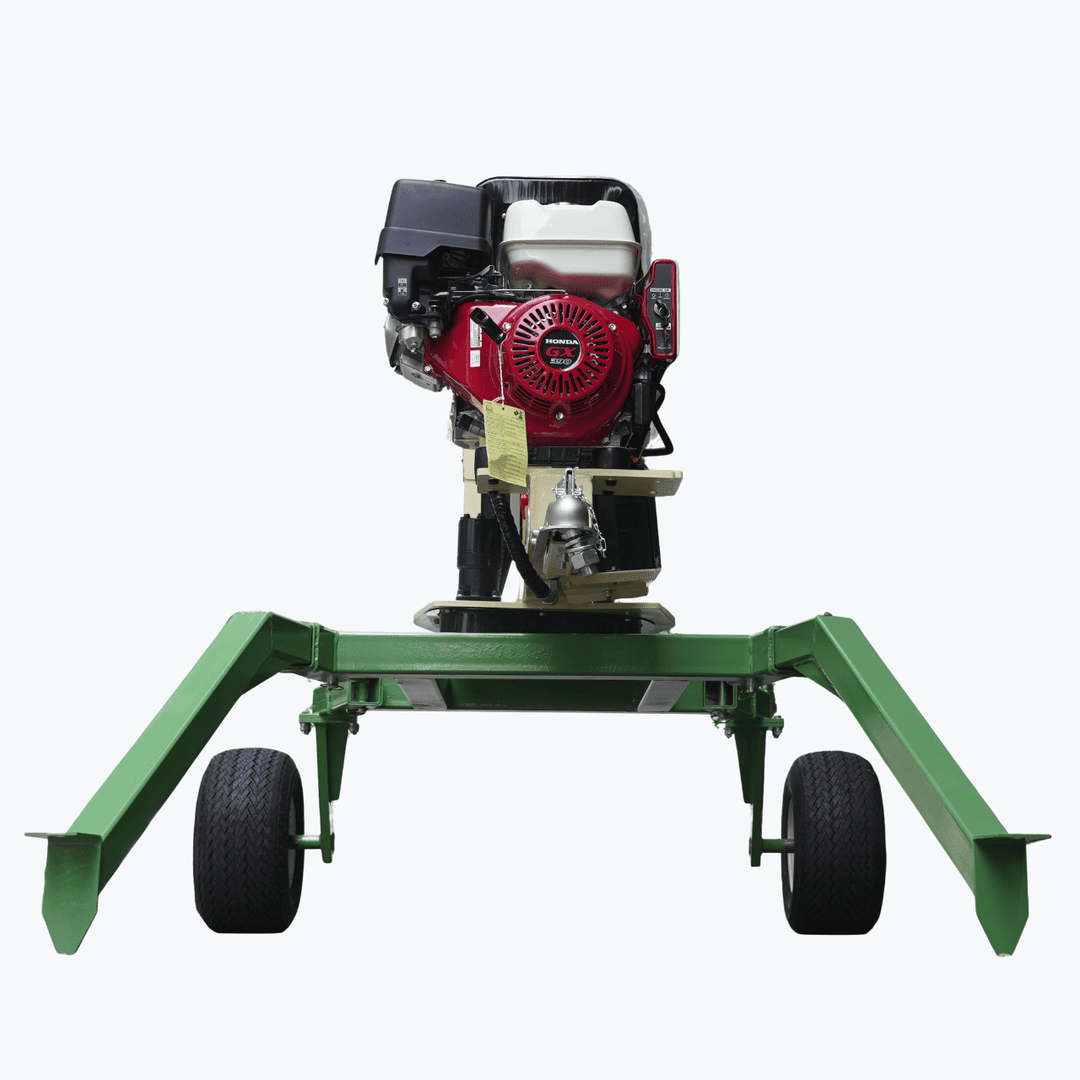

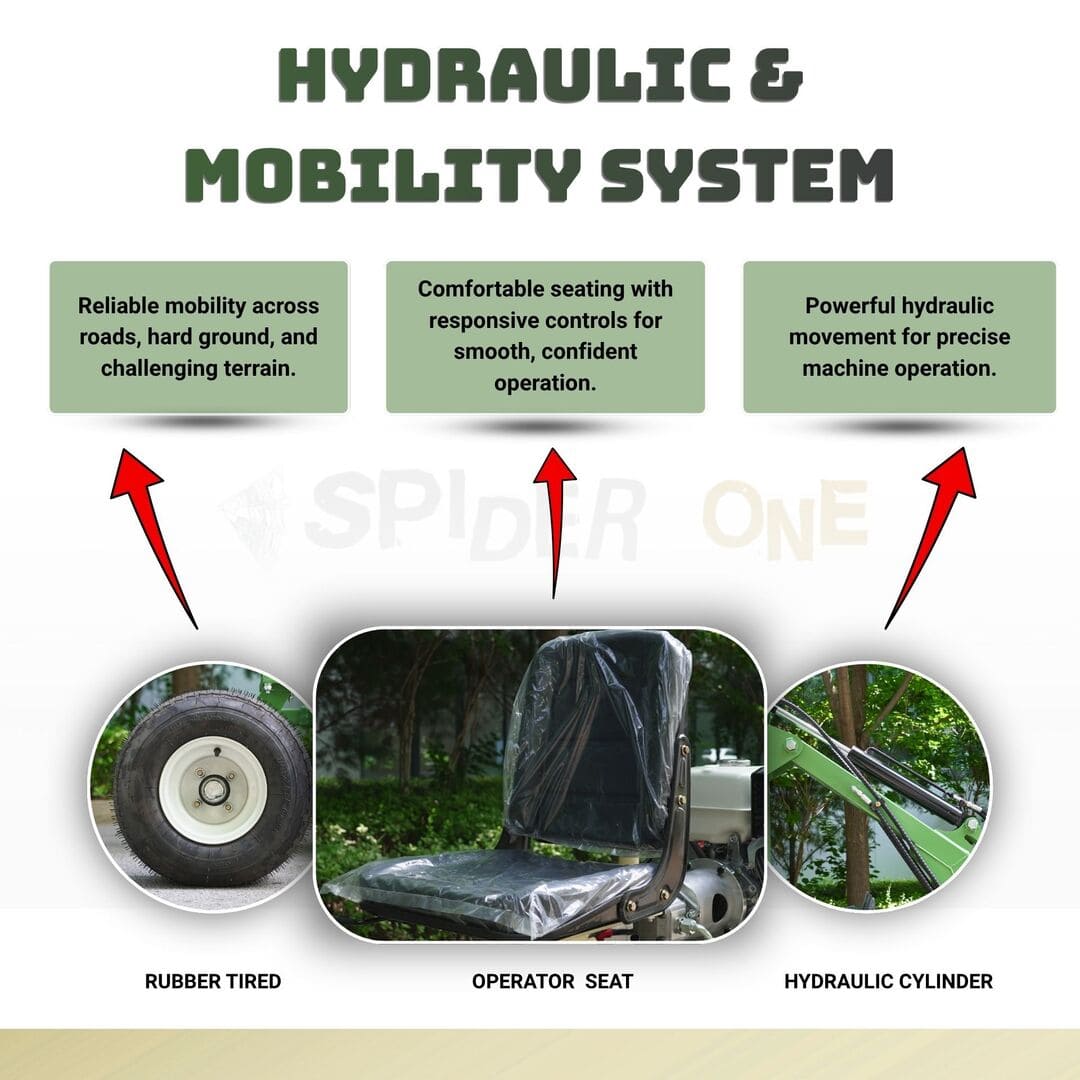

A sturdy support frame and two stabilizing legs anchor the machine firmly while digging, so you stay in full control on different ground conditions. Rubber tires allow smooth travel over varied terrain as you move between positions.

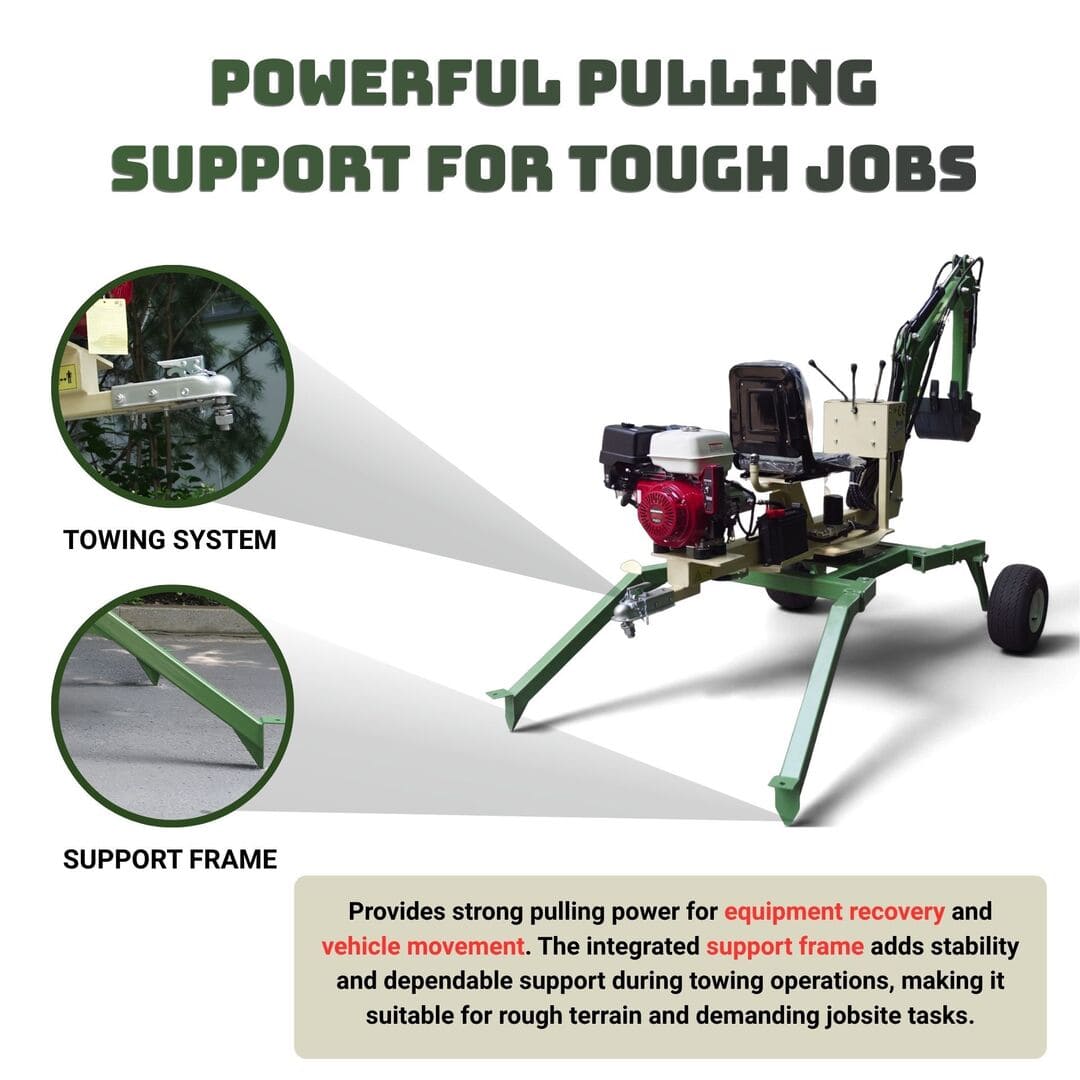

The towable design makes it easy to move between job sites, reducing the need for specialized hauling equipment.

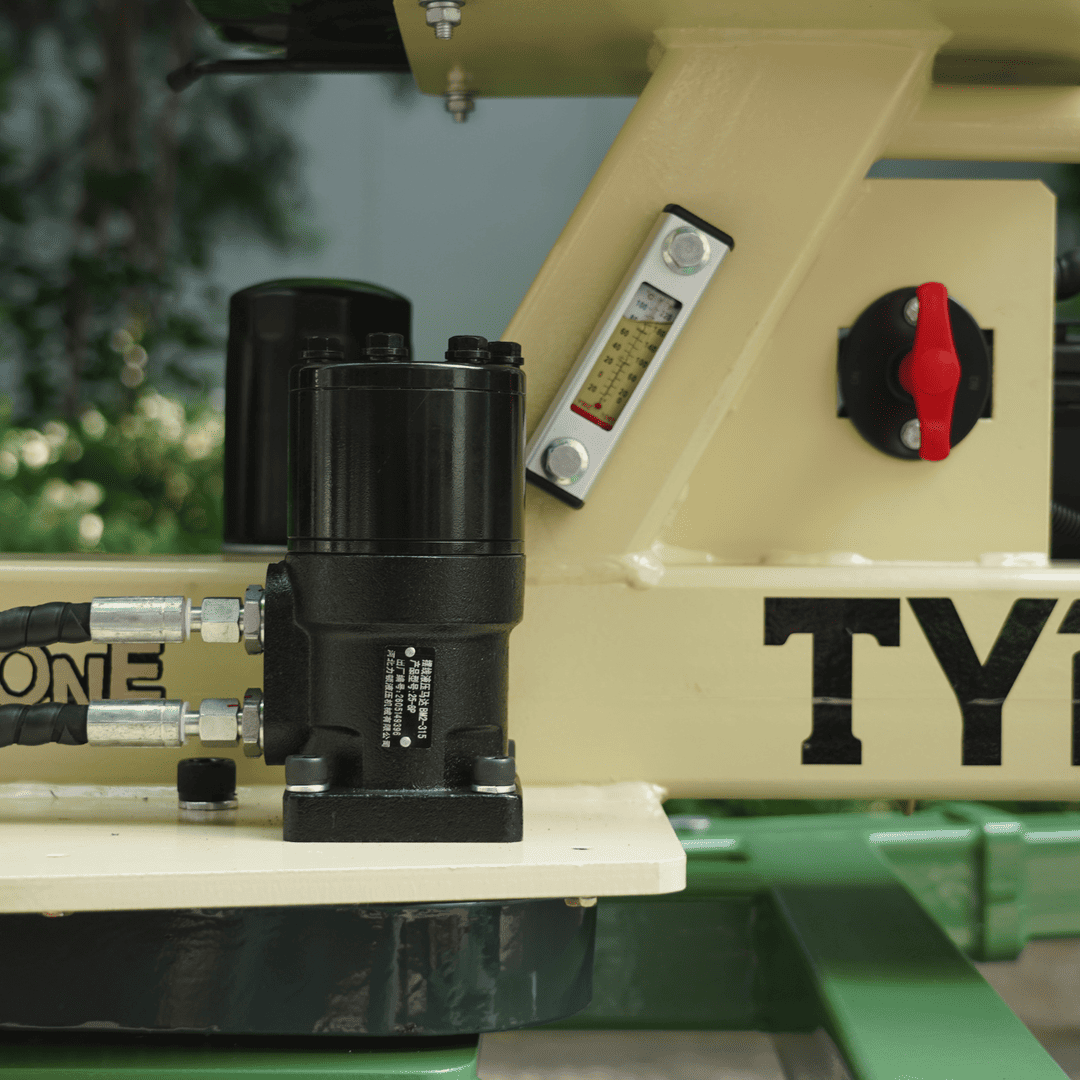

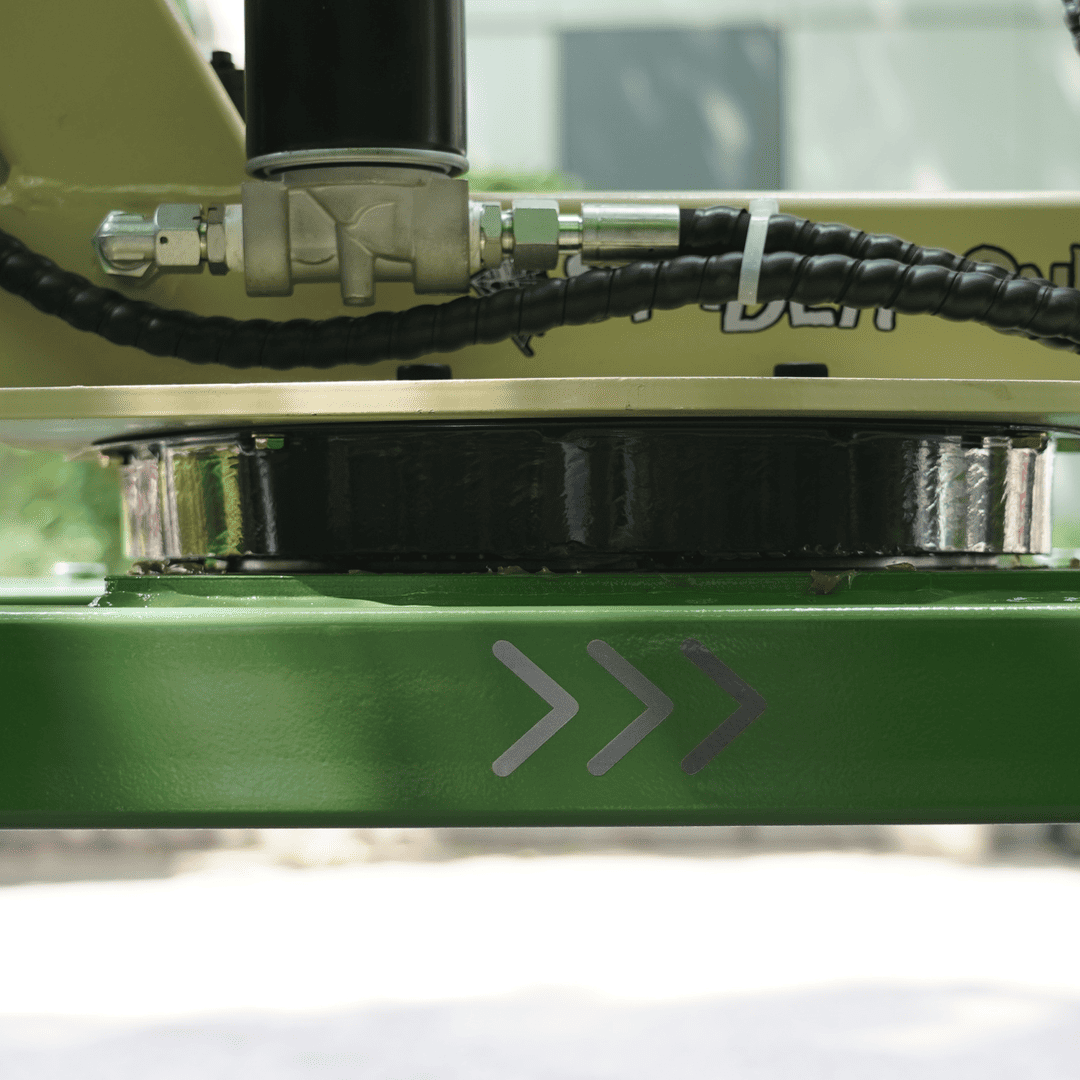

Full 360-degree rotation lets you dig, swing, and unload in any direction from a single spot. With a 54.65 inch tail turning radius, the machine works efficiently in confined worksites where repositioning wastes time. The rotary motor supports smooth, controlled movement of the upper structure during operation.
- Easy Maintenance, More Versatility

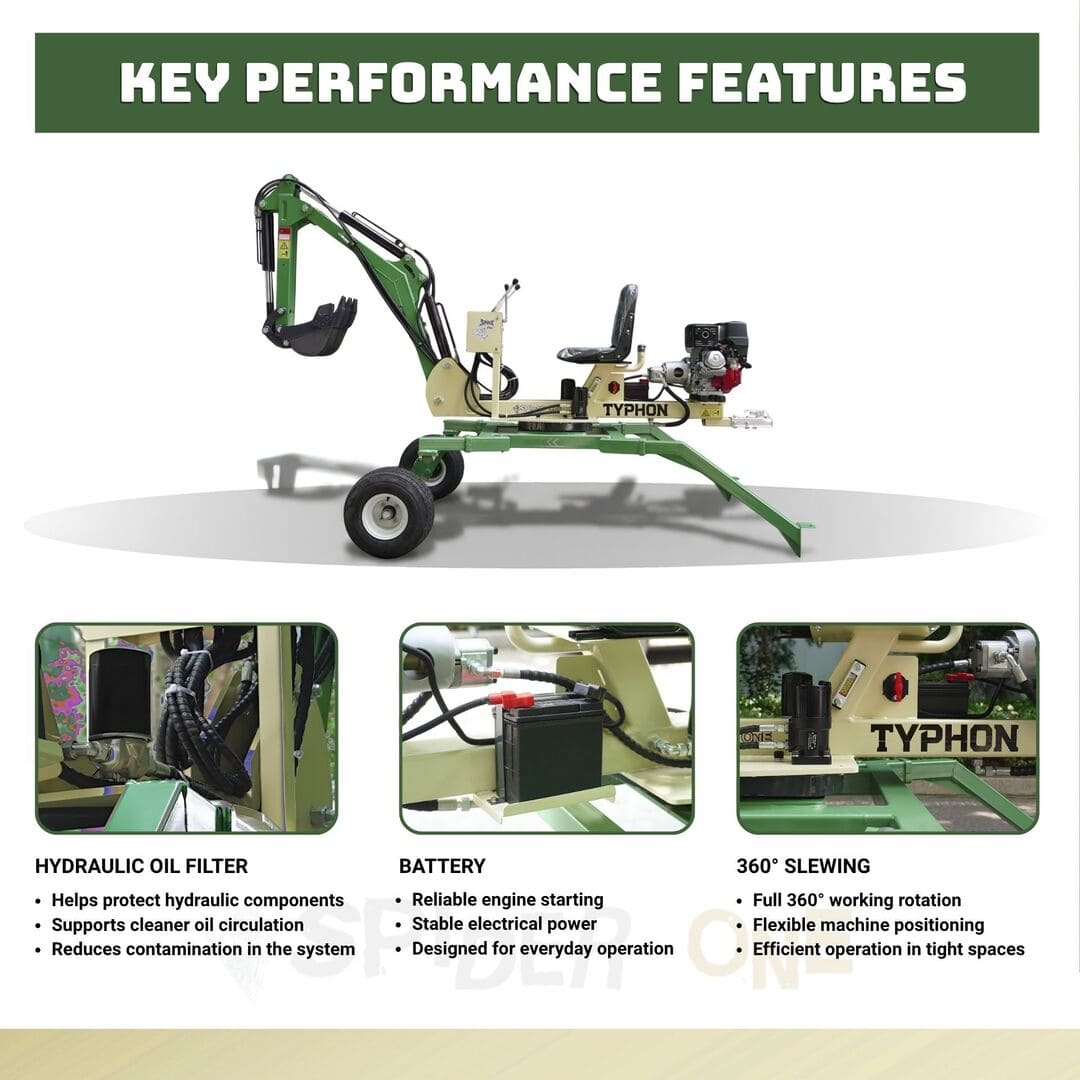

An external hydraulic oil filter puts a key service point within easy reach, which simplifies routine maintenance and helps keep the hydraulic system clean. Shock-absorbing pads reduce vibration during operation, helping protect the engine and core components from unnecessary wear.
The Spider One also supports a wide range of interchangeable attachments for excavation, demolition, drilling, land clearing, and more. Supported attachments include:

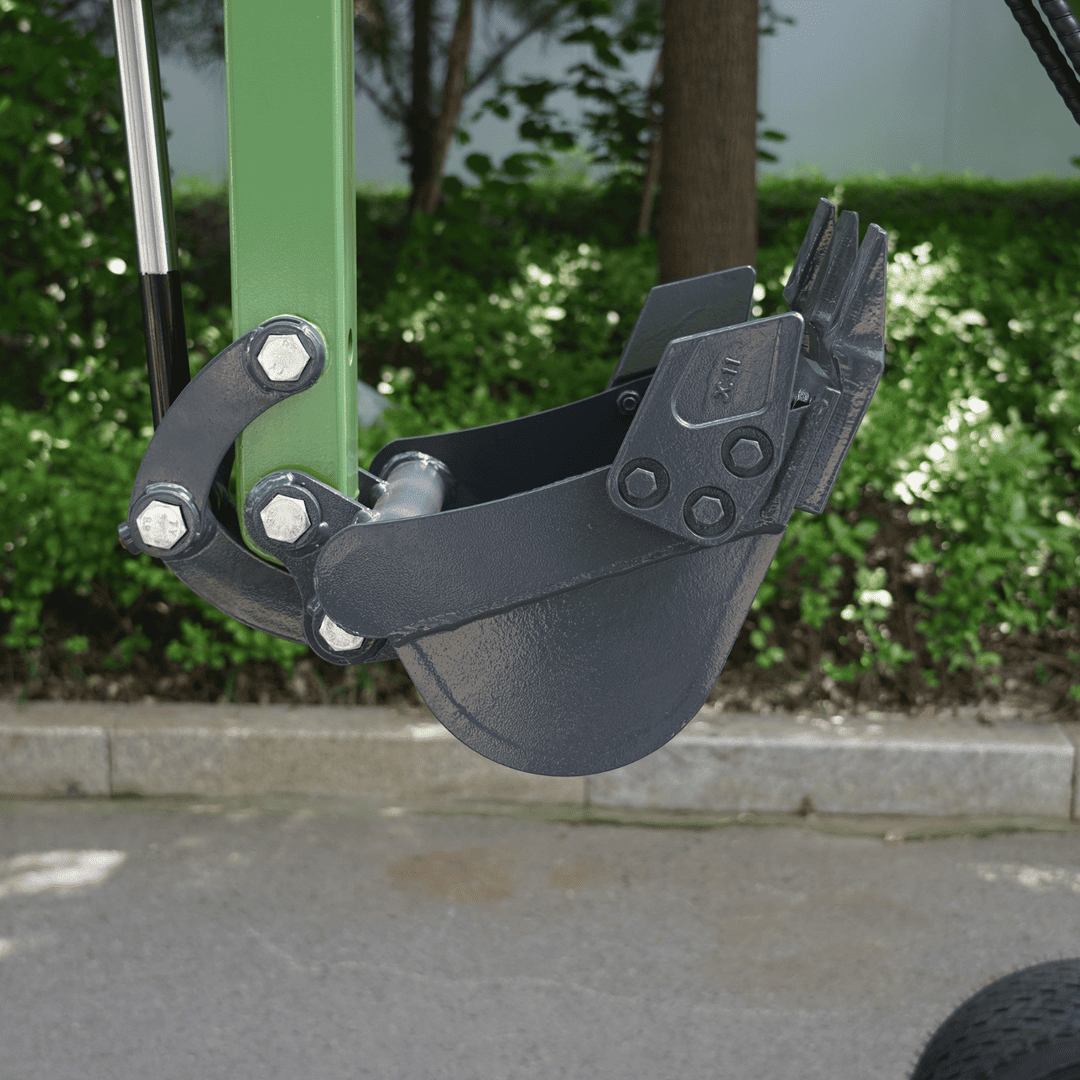

- Bucket: General digging, trenching, and material handling
- Rake: Clearing debris, leveling, and land preparation
- Grapple: Grabbing and moving irregular materials
- Ripper: Breaking up hard, compacted ground and roots
- Auger: Boring holes for posts, footings, and planting
- Hydraulic Break Hammer: Demolition and breaking concrete or rock
- Hydraulic Thumb Clip: Secure gripping of bulky loads
- Grass Trimmer: Vegetation control and land maintenance
The TYPHON Spider One packs full-size digging ability into a compact, easy-to-transport machine built for the tightest job sites. EPA-certified and ready for work, order yours today and put it to work where it counts.
