Description

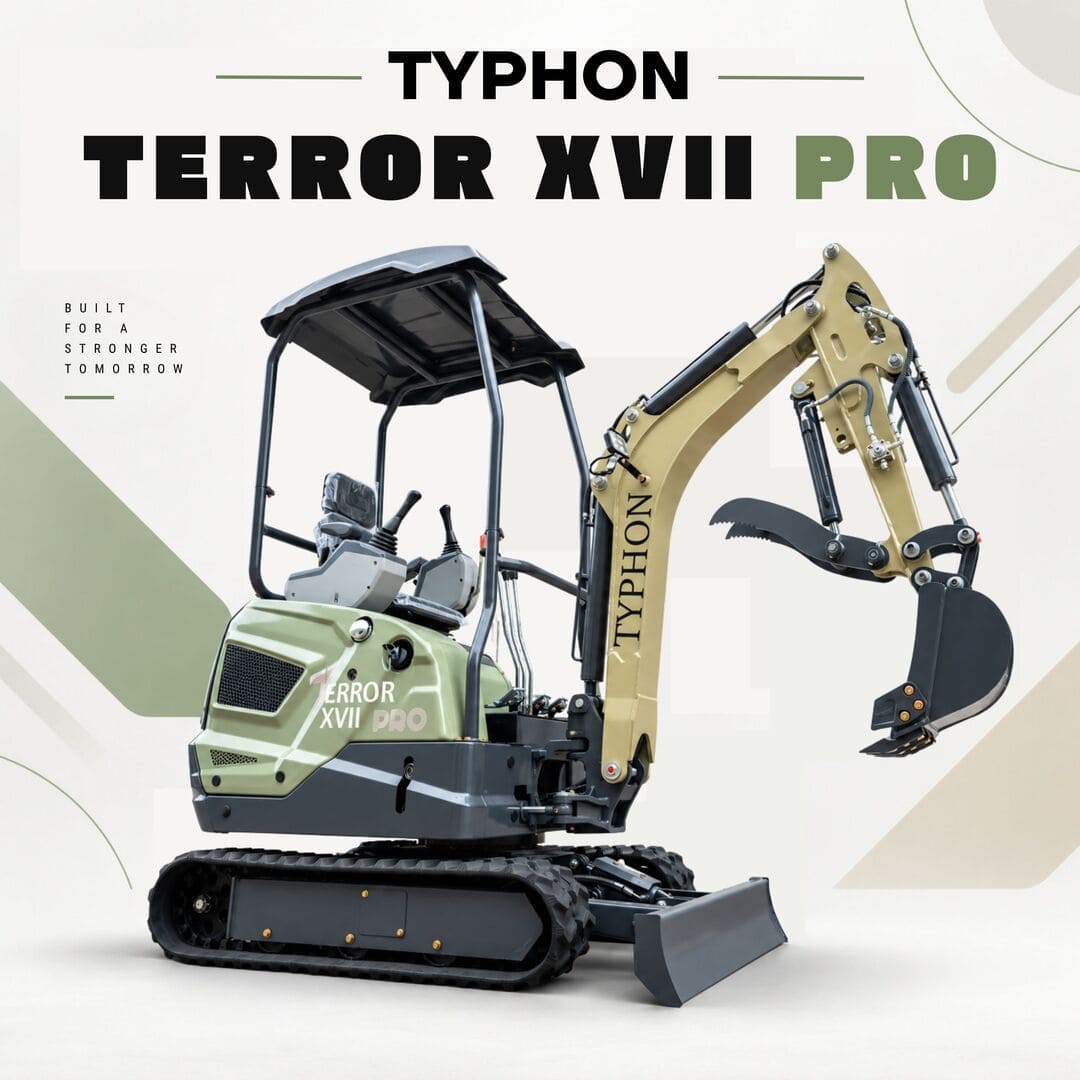

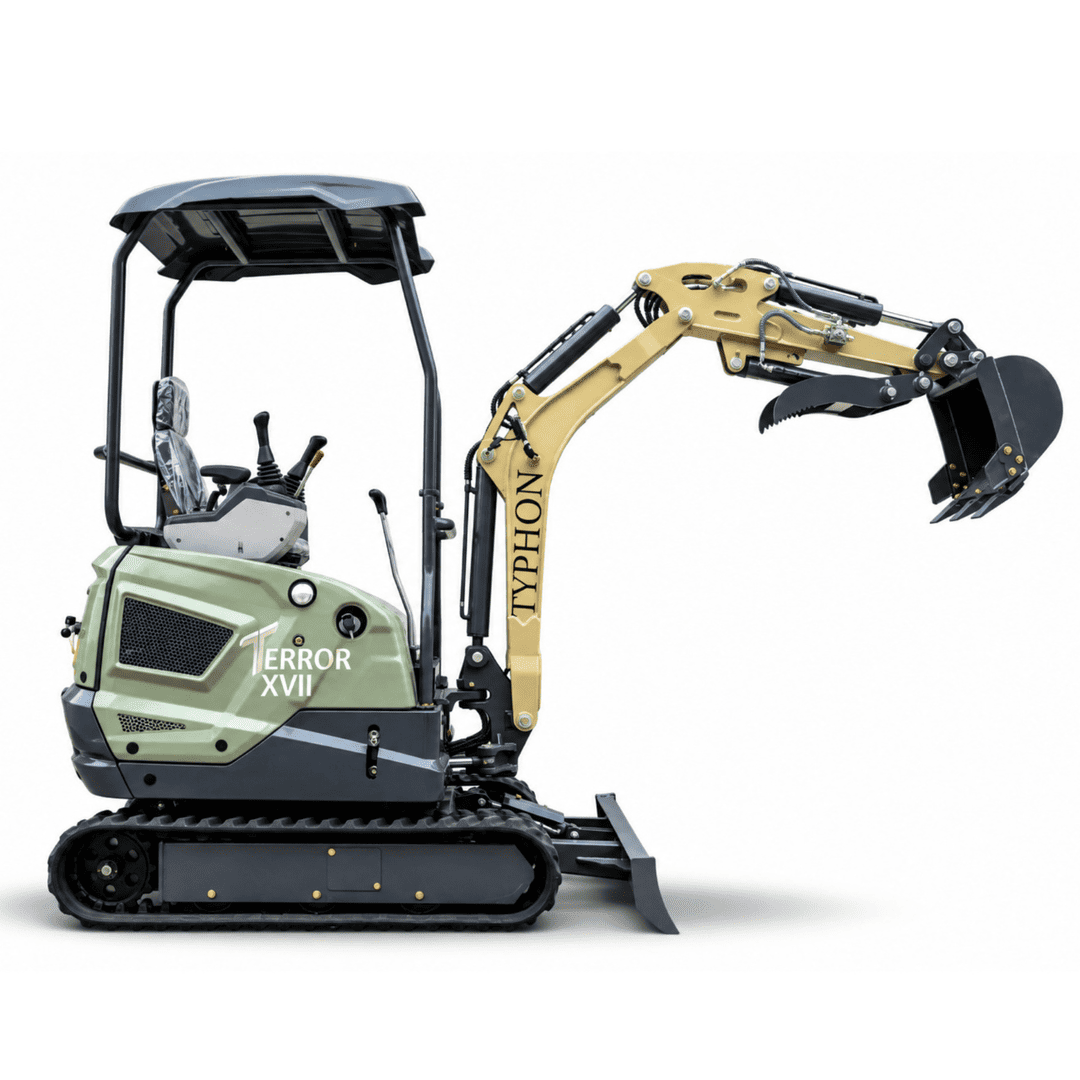

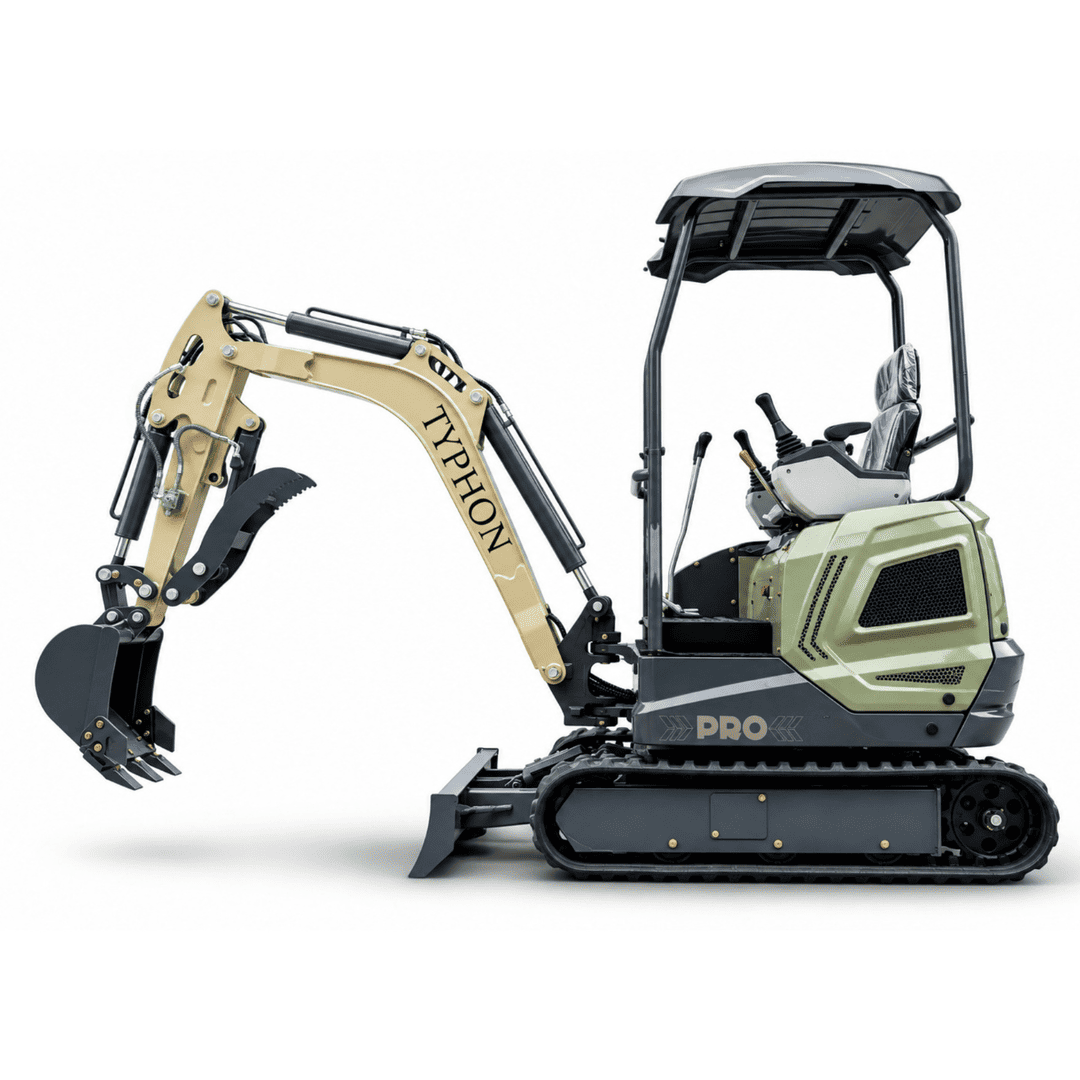

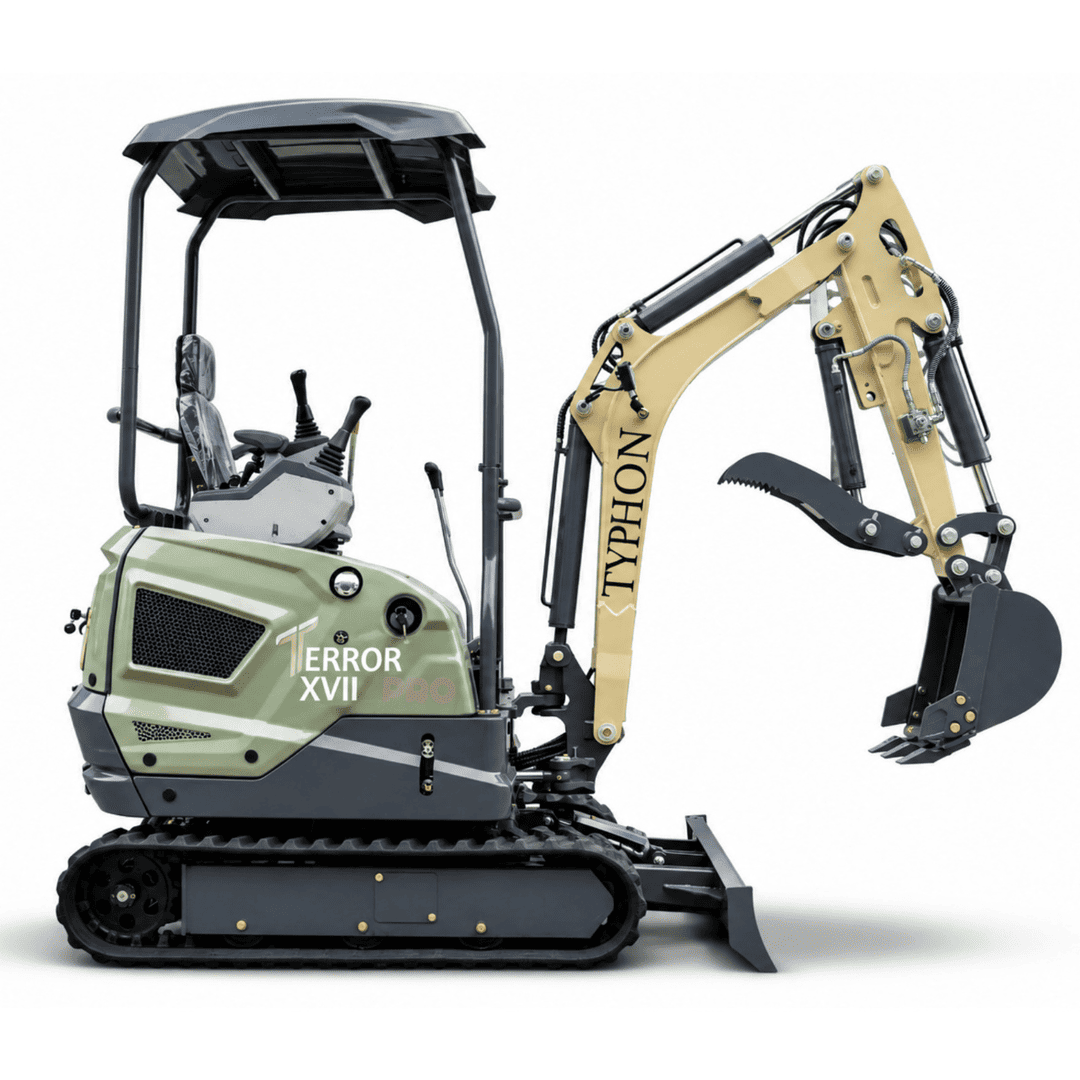

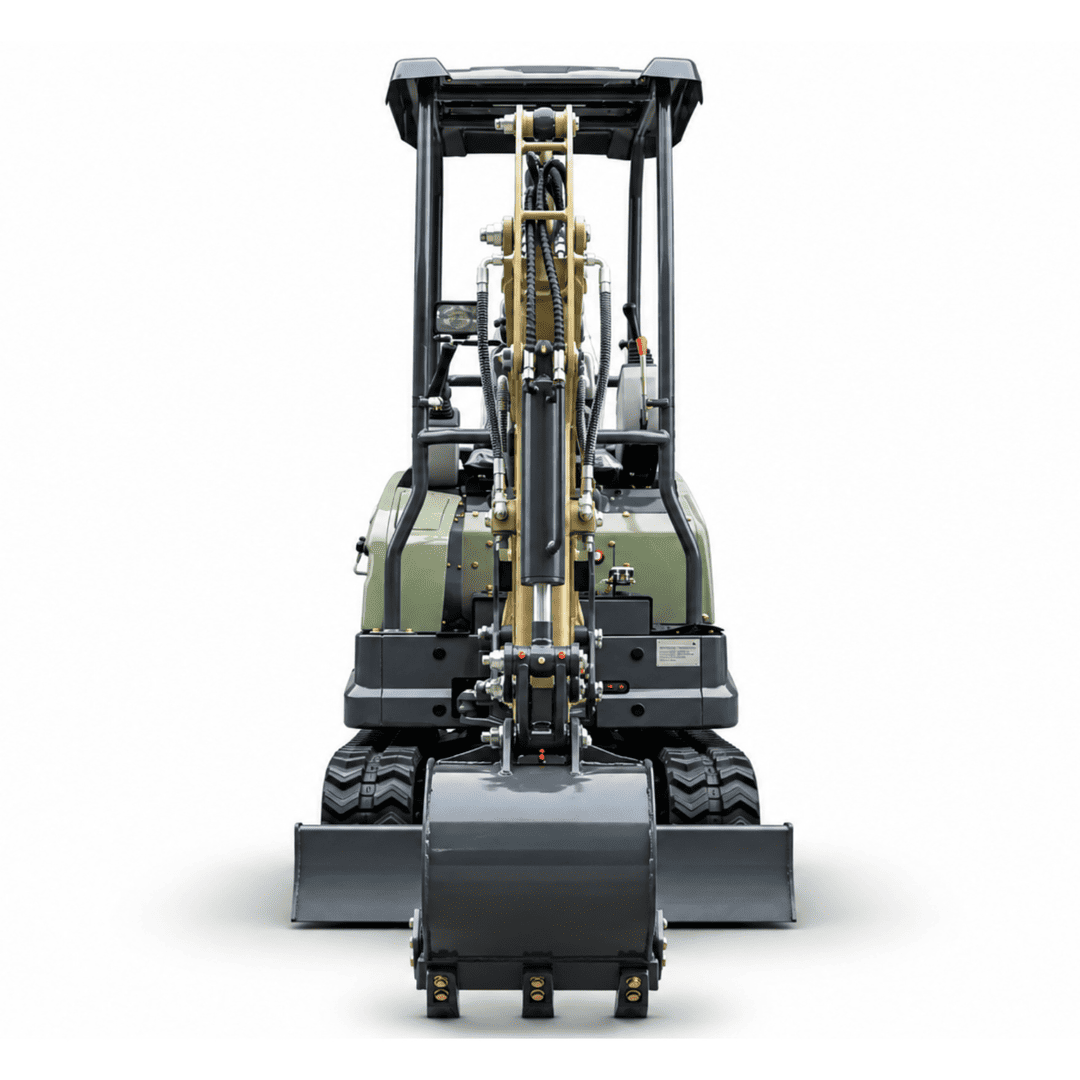

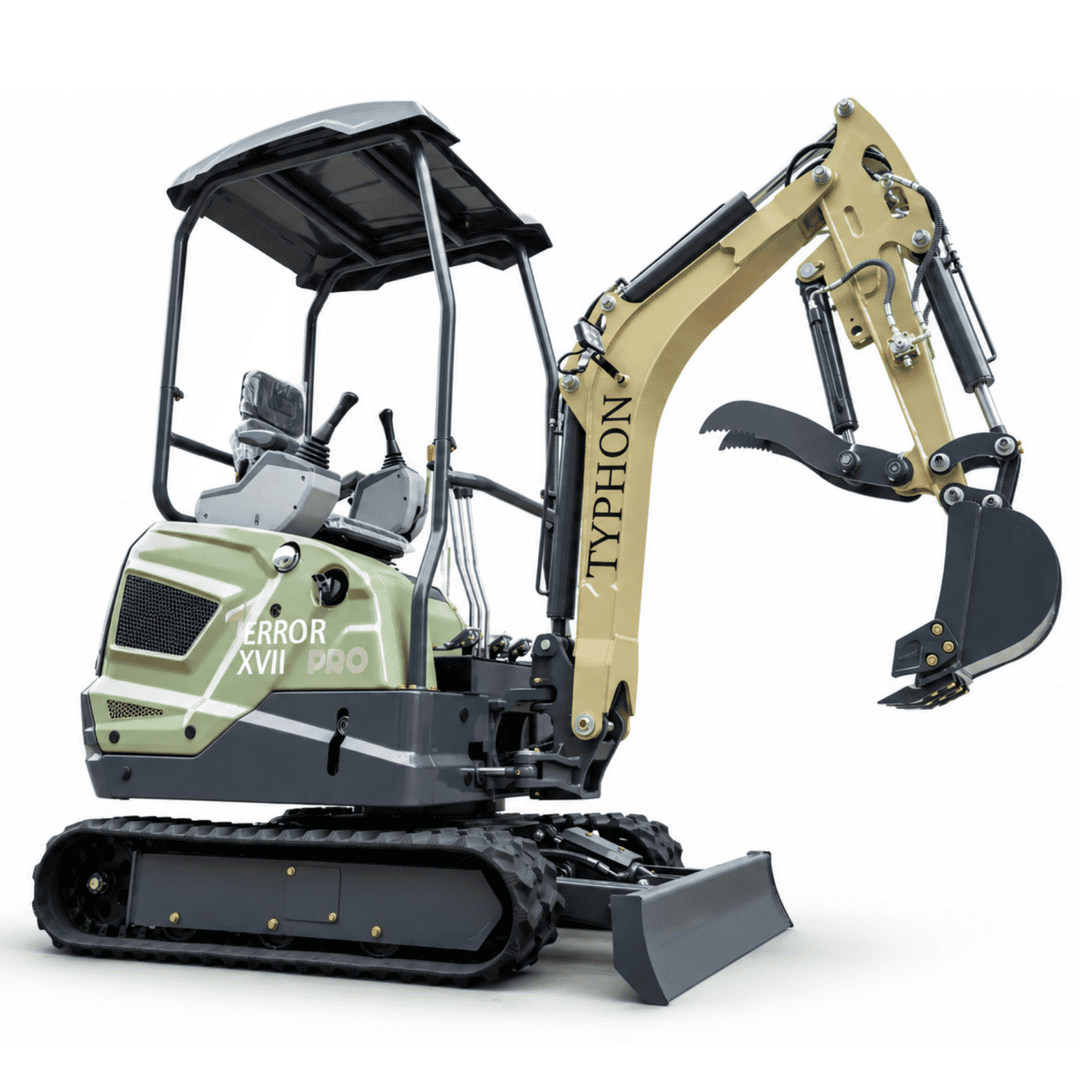

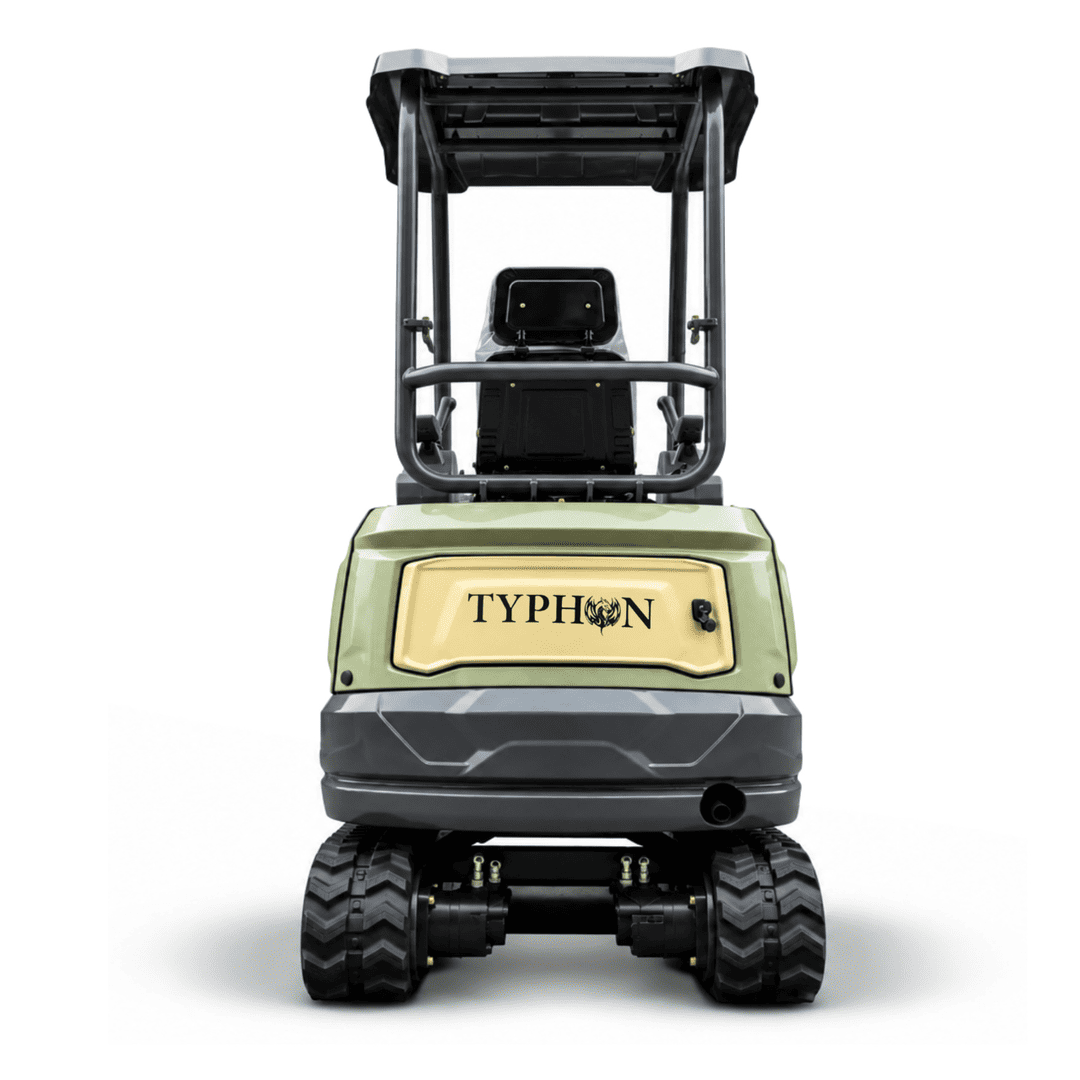

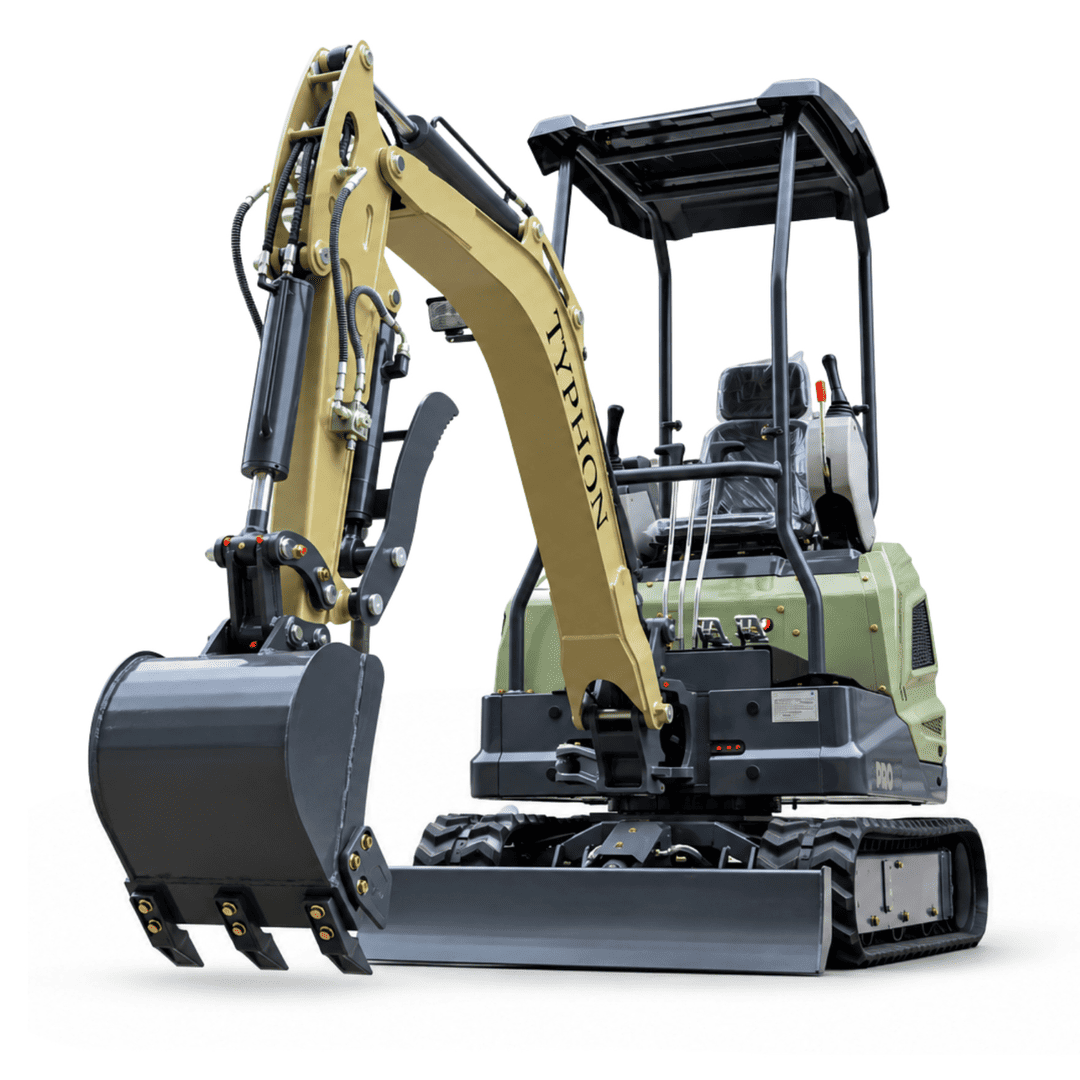

The TYPHON TERROR XVII PRO is a 3800 lb mini excavator for contractors, landscapers, farmers, and property owners who need serious digging power in a compact machine. It handles construction, landscaping, agriculture, forestry, demolition, and property-improvement projects, backed by a Kubota diesel engine, protected hydraulics, precise controls, and a comfortable operator station. The result is a stable, versatile machine that keeps tough jobs on schedule.
Whether you are trenching along a foundation, clearing roots on a farm, or finishing a backyard project, the TERROR XVII PRO delivers 14 kN of digging force to break through hard soil and compacted ground. The offset boom swings 45° left and 55° right, so you can dig beside walls and obstacles without constantly repositioning, and wide rubber tracks keep the machine steady on soft or uneven ground.
Dual auxiliary hydraulic circuits and an integrated hydraulic oil cooler support a wide range of attachments and consistent performance in hot conditions. With a bucket, dozer blade, and hydraulic thumb clip included, one machine can dig, level, grab, and clean up in fewer passes, helping you get more done with less downtime. Supportive seating makes long workdays easier, and the fuel tank and hydraulic oil reservoir sit side by side for simple refilling.
- Dependable Kubota Diesel Power

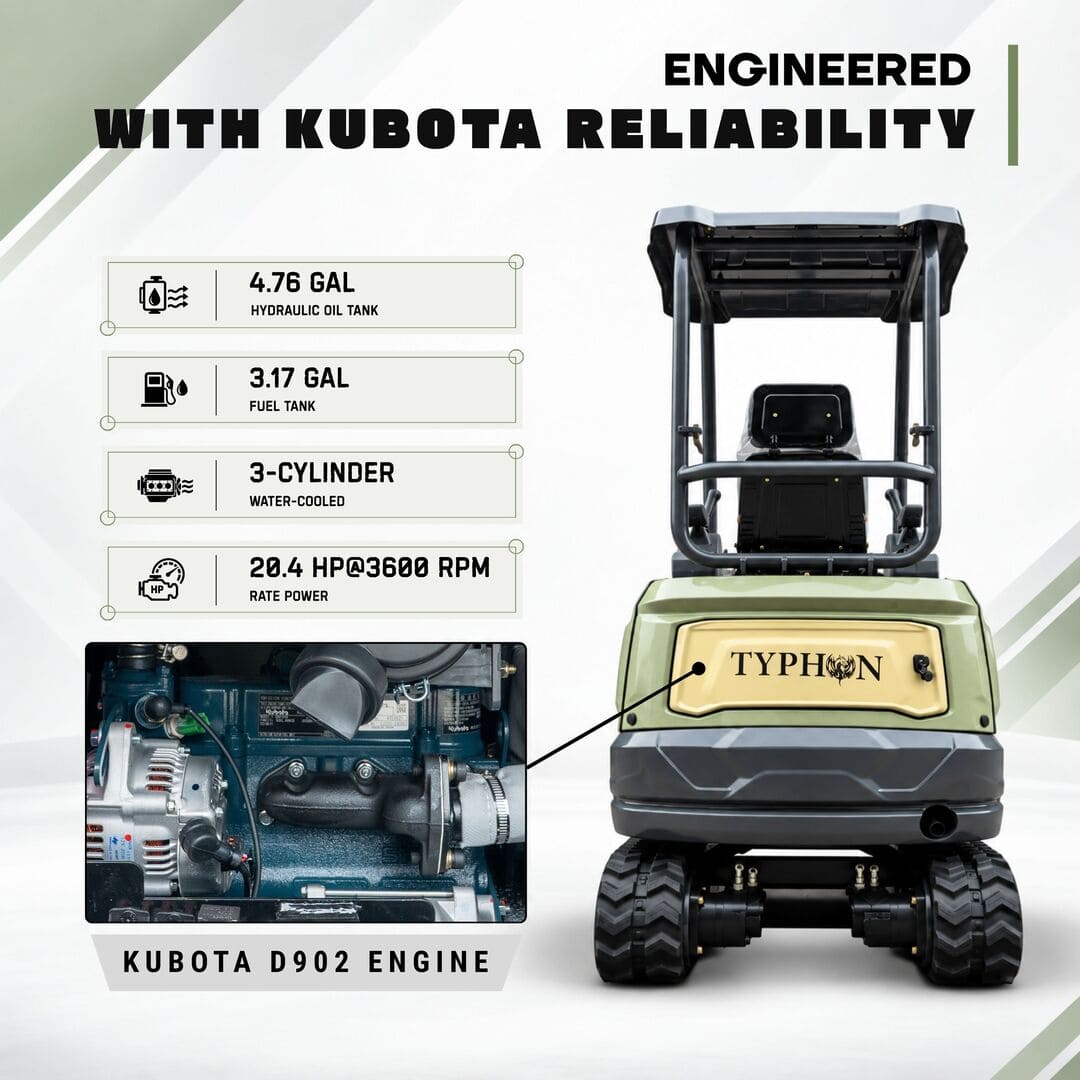

Under the hood is an EPA-certified Kubota D902 diesel engine. This Japanese-built, vertical three-cylinder, four-cycle engine produces 15.8 HP at 2,200 RPM and up to 20.4 HP at 3,600 RPM, so power delivery stays smooth, efficient, and reliable through demanding work.
With a 4.76-gallon hydraulic oil reservoir and a 3.17-gallon fuel tank, you can work longer between stops and lose less time to downtime on extended jobs.
- Hydraulics Made for Precise Attachment Work

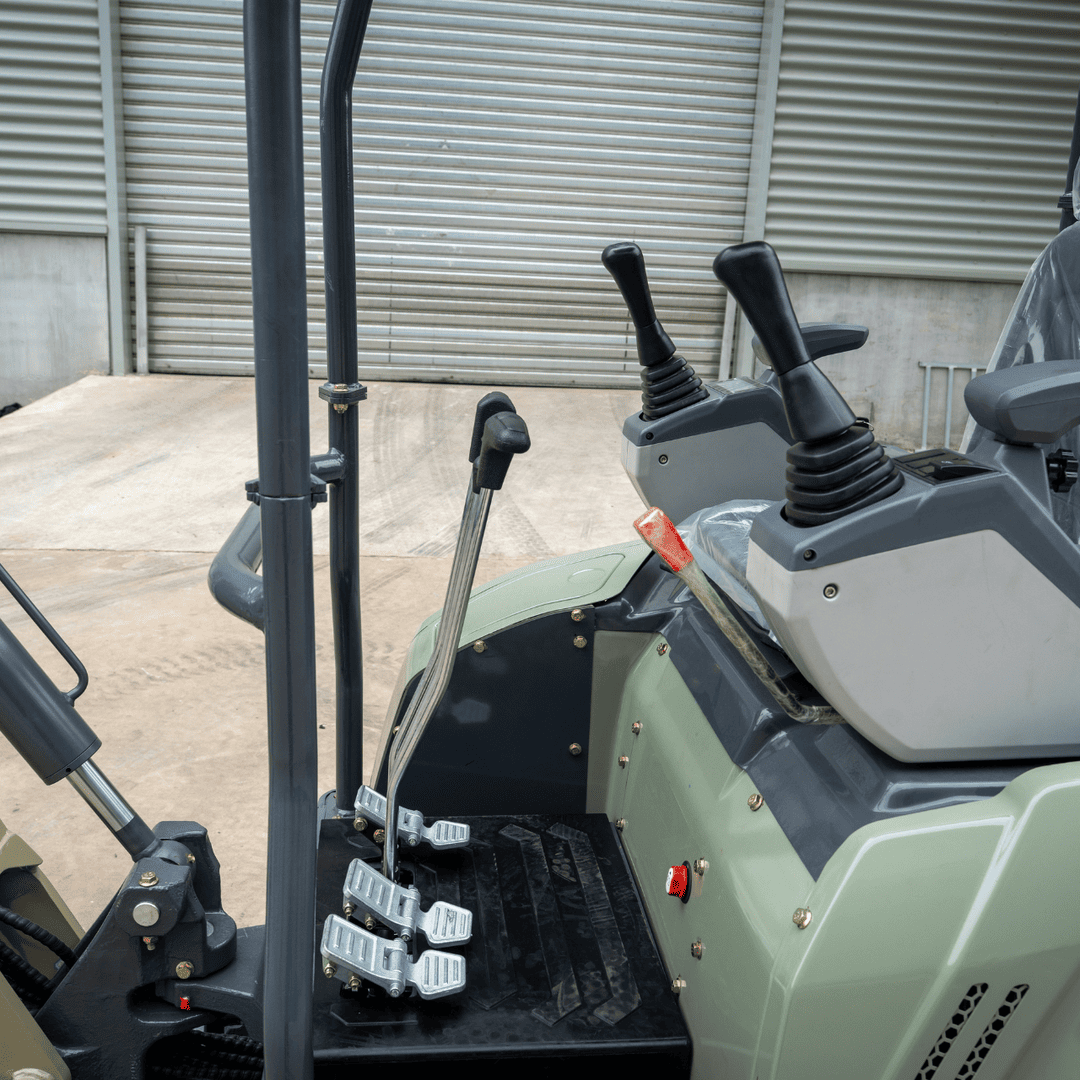

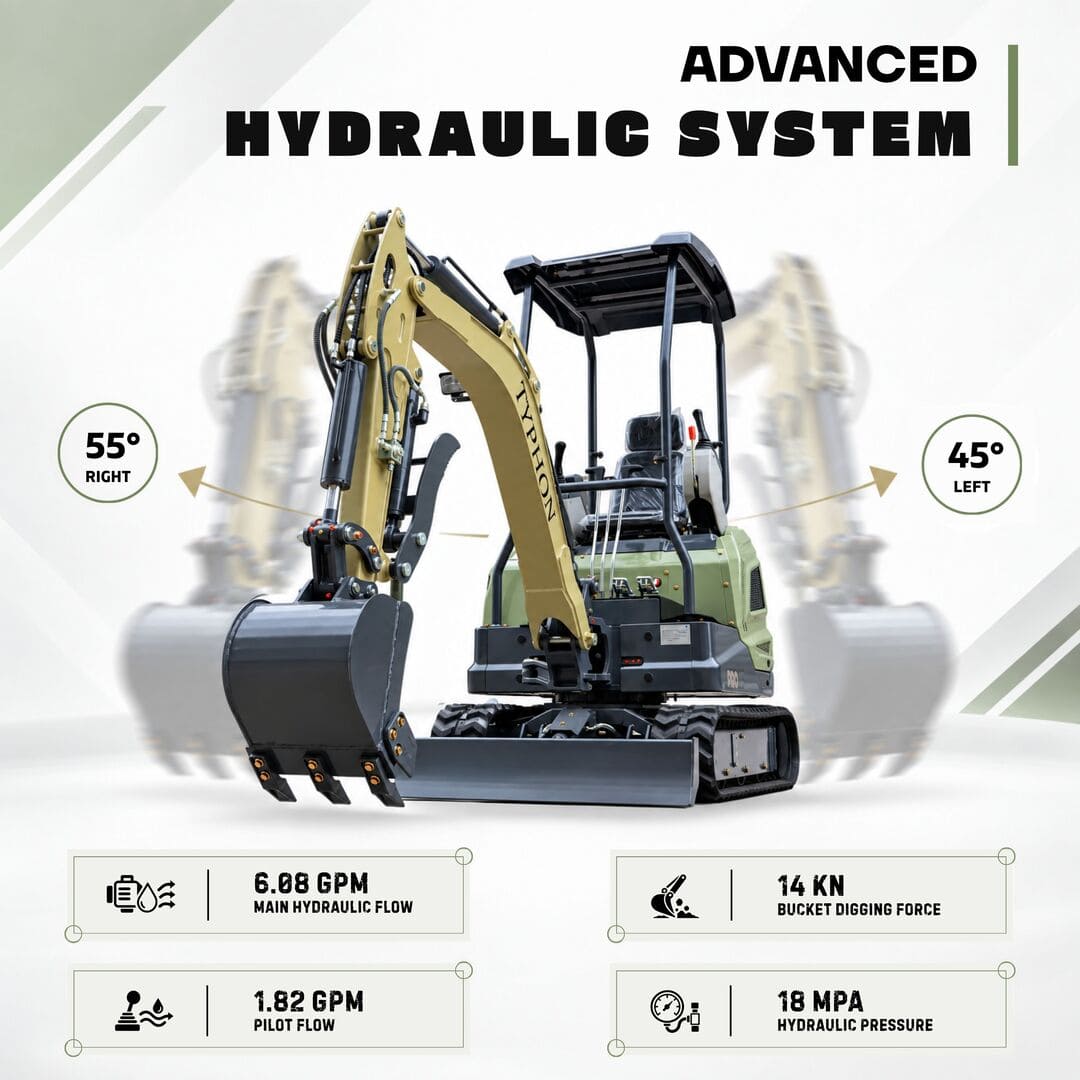

Running at 18 MPa, the hydraulic system reaches up to 2,610.68 PSI, so you can dig with confidence and run demanding attachments. Precision pilot controls with 1.82 GPM of pilot flow give you smooth, responsive handling for trenching, grading, cleanup, and fine detail work.

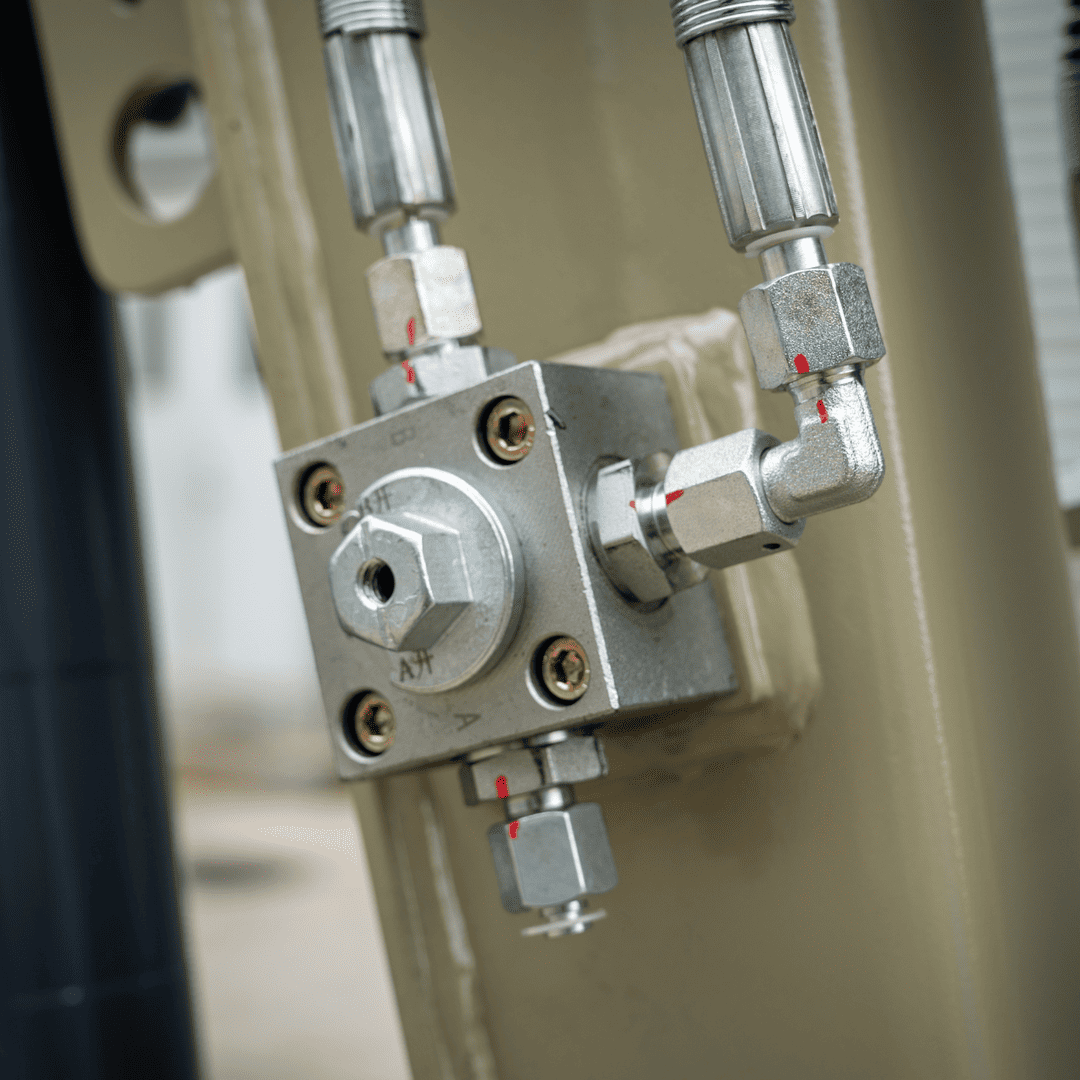

- Dual auxiliary hydraulic circuits: Double-sided auxiliary throttle valves feed powered attachments and the hydraulic thumb at the same time.
- Ready for attachments: Use augers, breakers, and material-handling tools without changing the basic setup.
- Built-in hydraulic oil cooler: Controls heat during continuous operation and keeps hydraulic performance steady in hot weather.

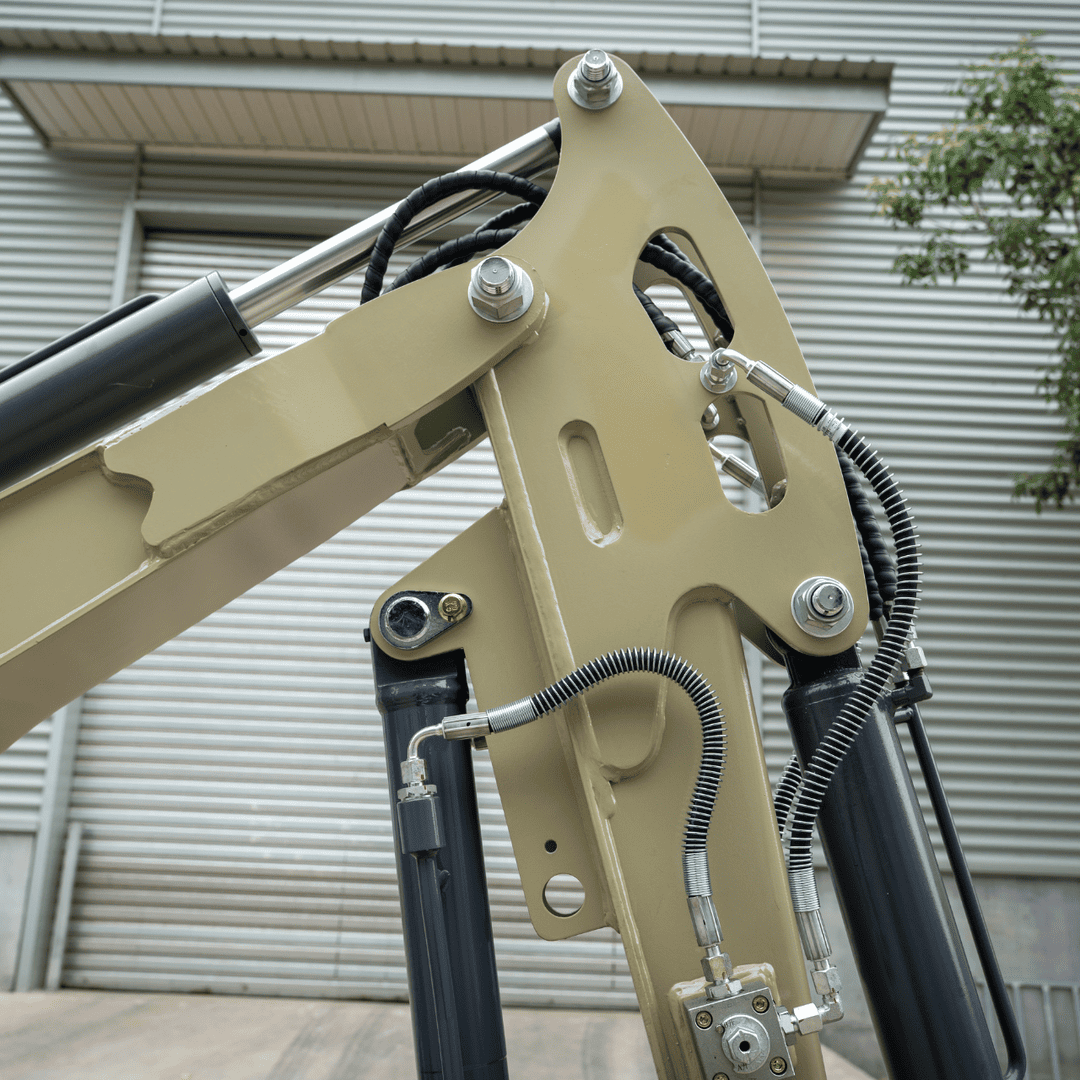

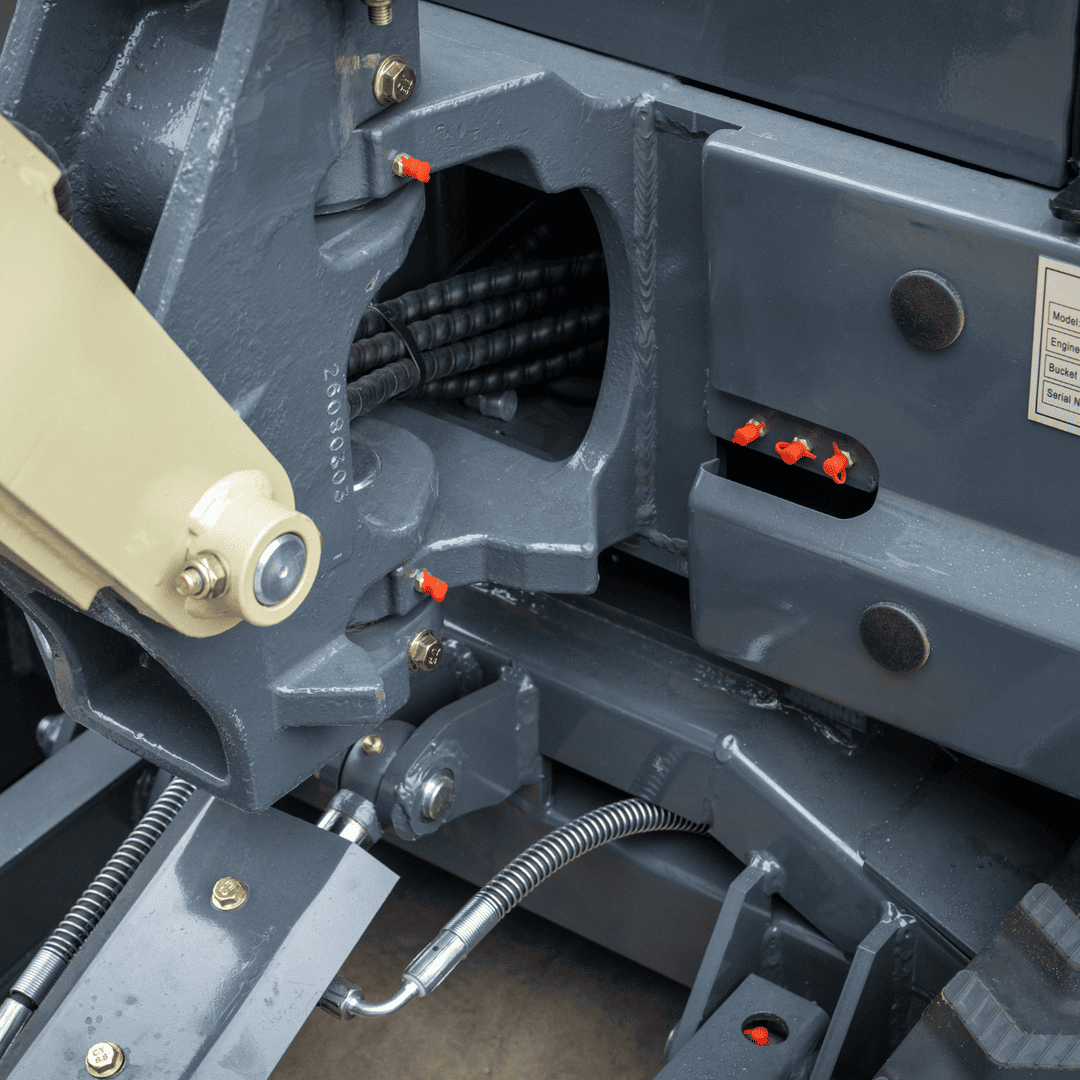

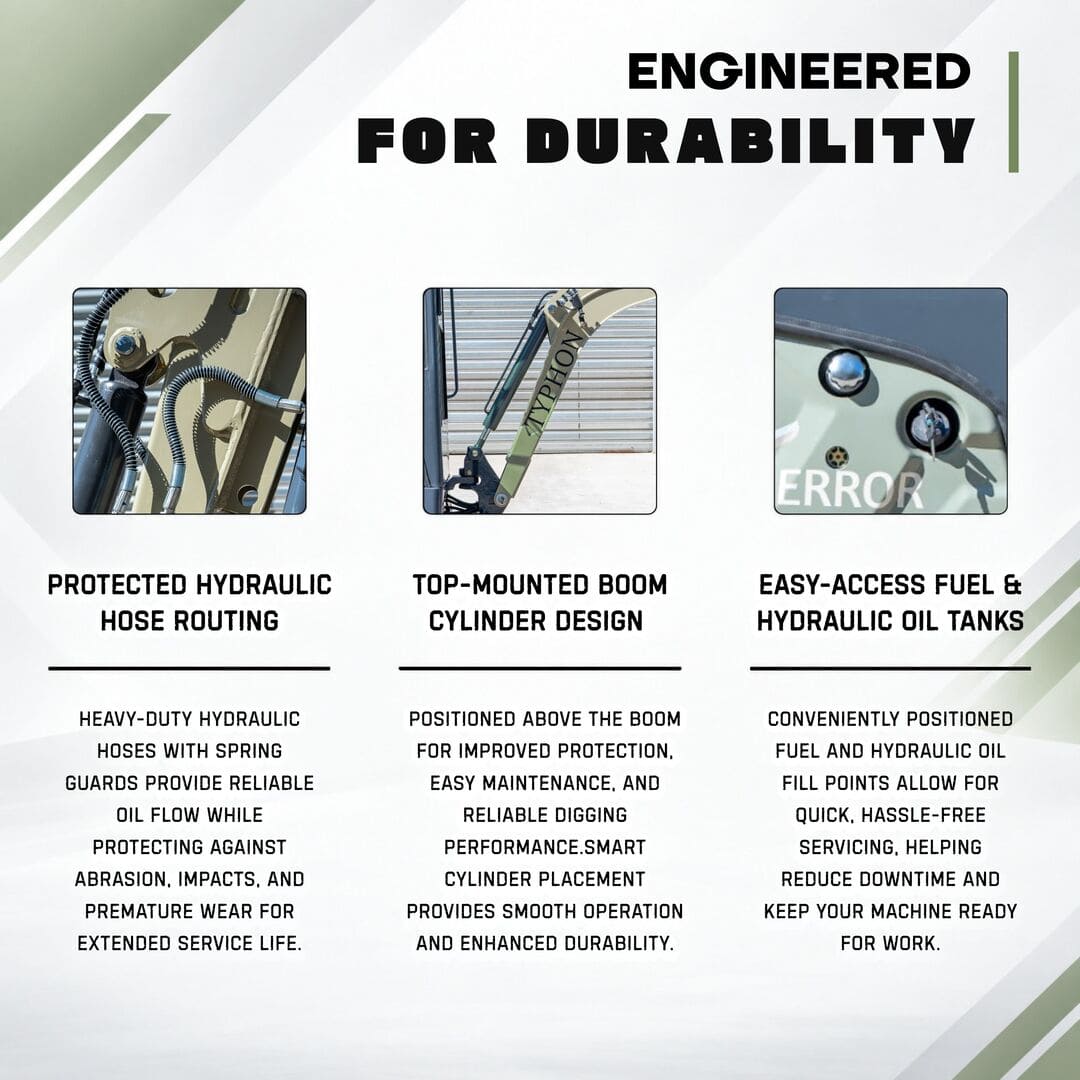

- Shielded hydraulic components: Armored hoses and protected valves stand up to abrasion, impacts, and rough jobsite conditions.
- Move Confidently in Tight and Uneven Spaces

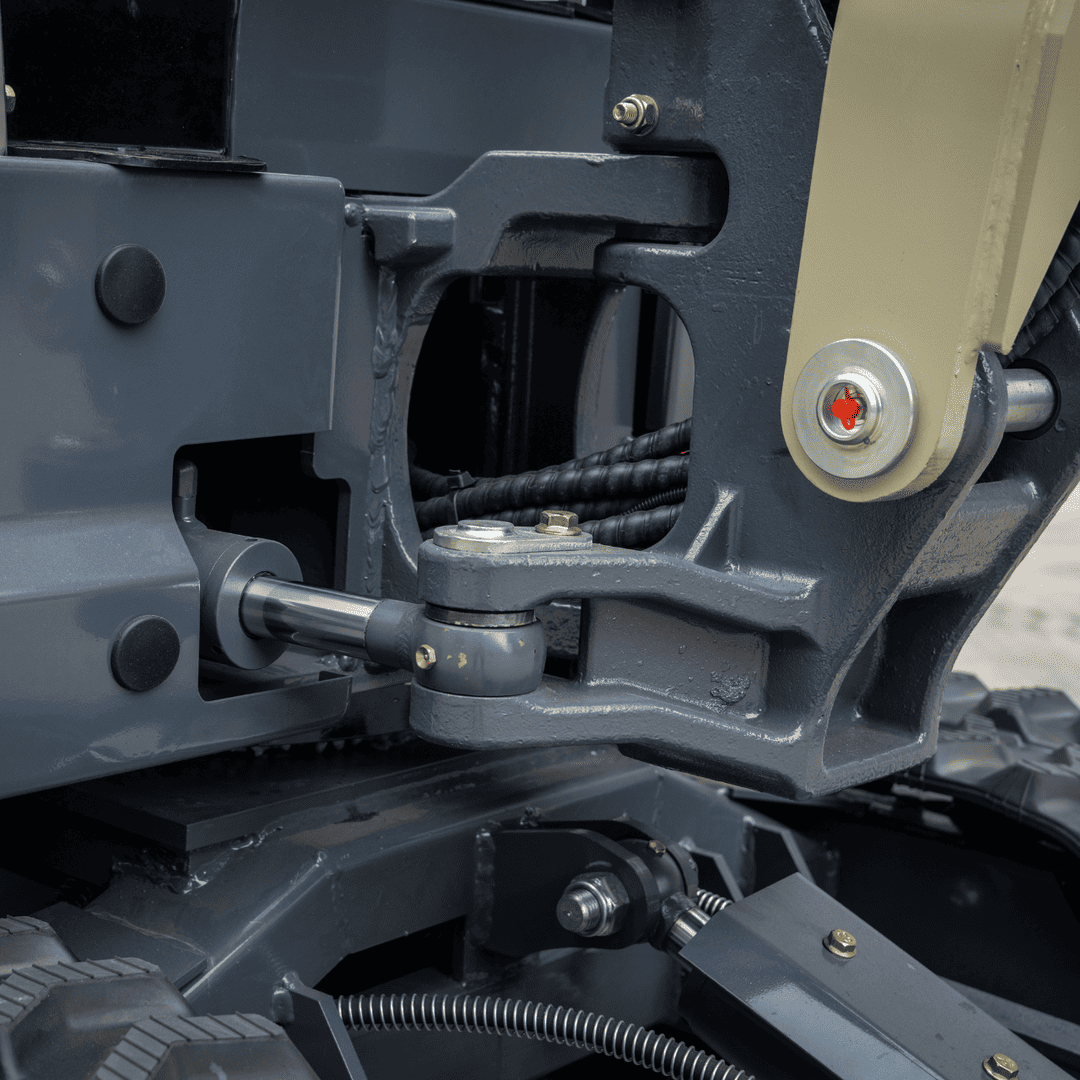

The offset boom swings 45° to the left and 55° to the right, so you can dig next to walls, foundations, and other obstacles without constantly repositioning. Add a full 360° swing and 6.07 GPM of main hydraulic flow, and you get smooth positioning and quick cycle times for digging, loading, and material handling.

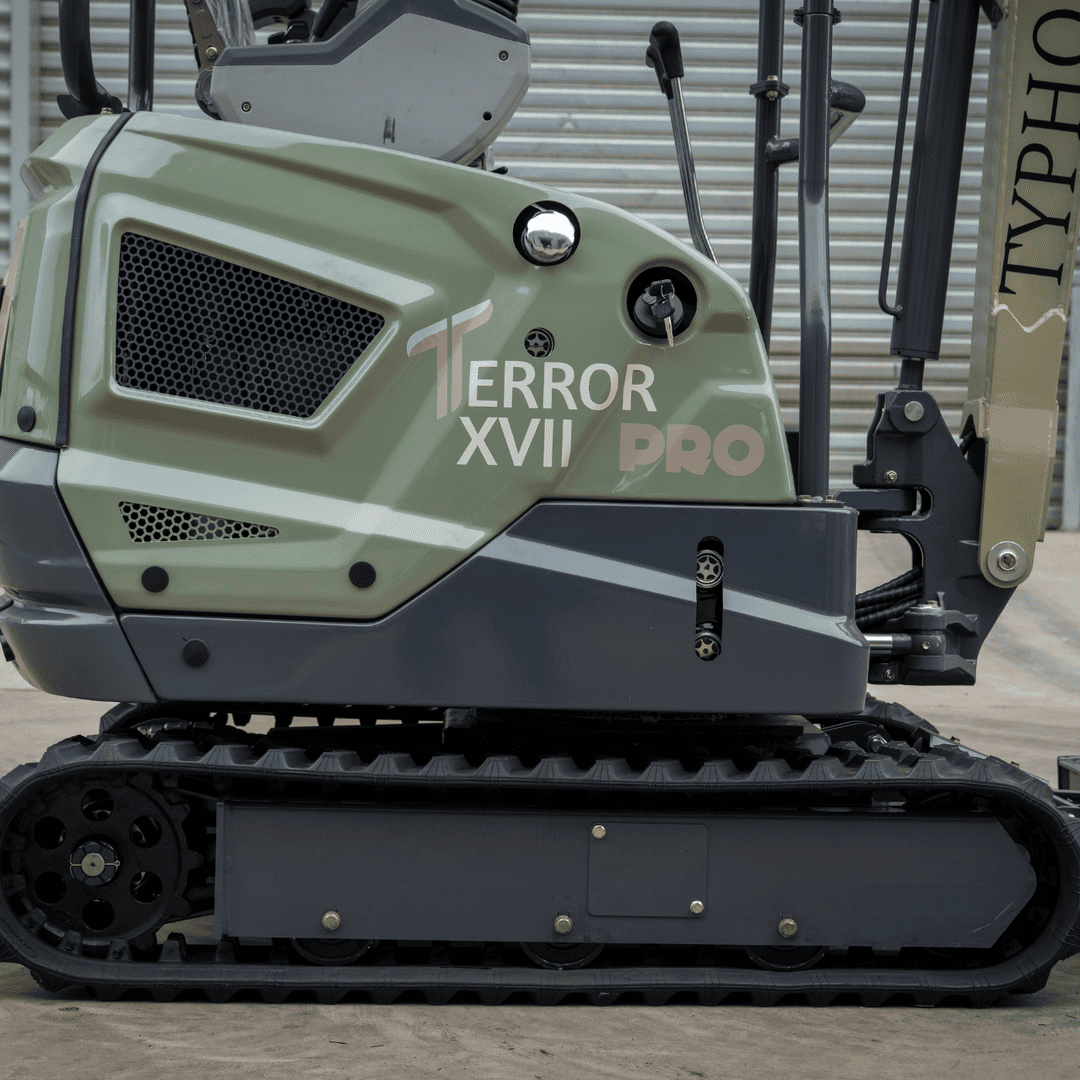

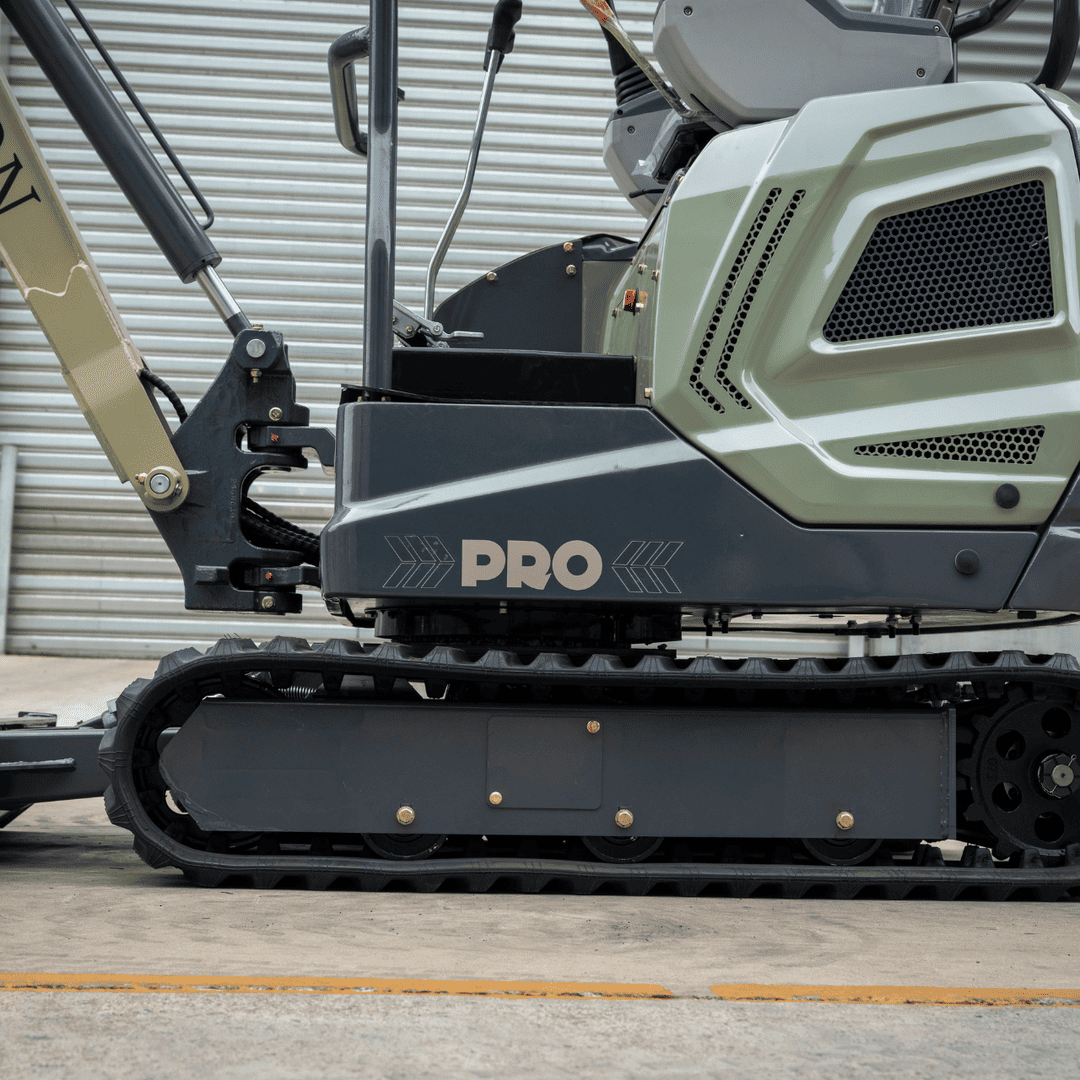

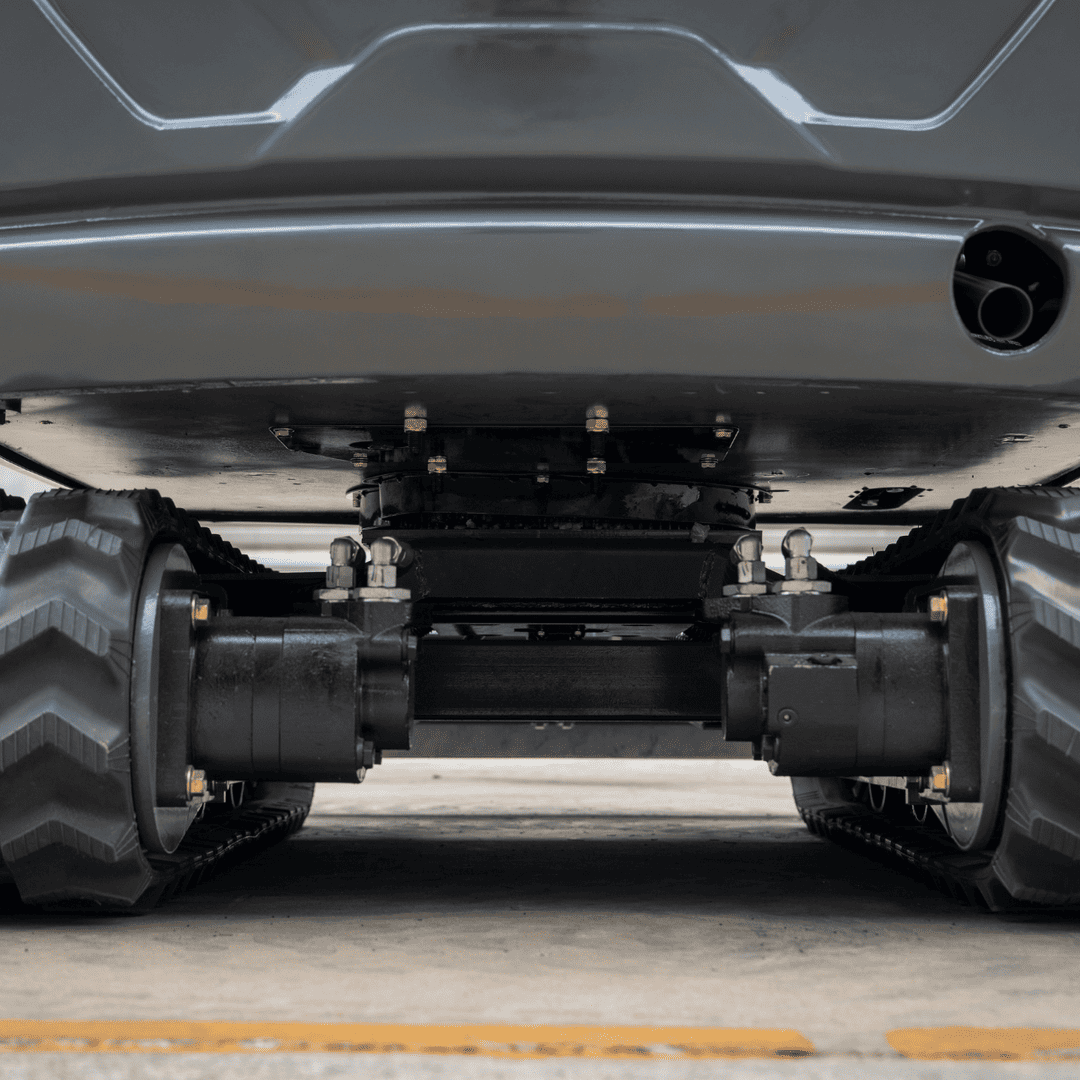

Travel speed reaches 1.30 MPH, and the wide 9.06-inch sure-grip rubber tracks hold traction and stability across muddy, soft, and uneven ground.
- Dig, Grade, Grab, and Clean Up

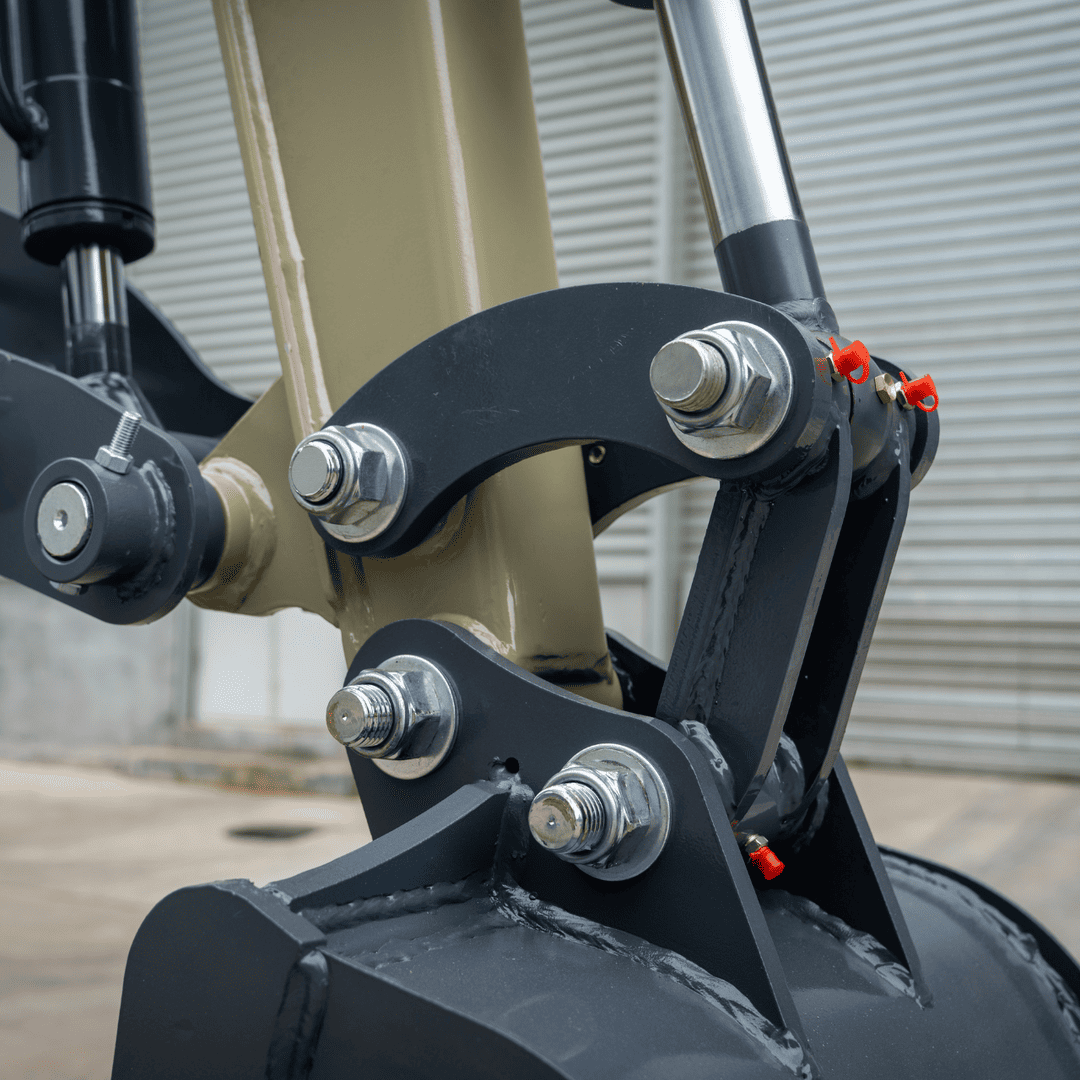

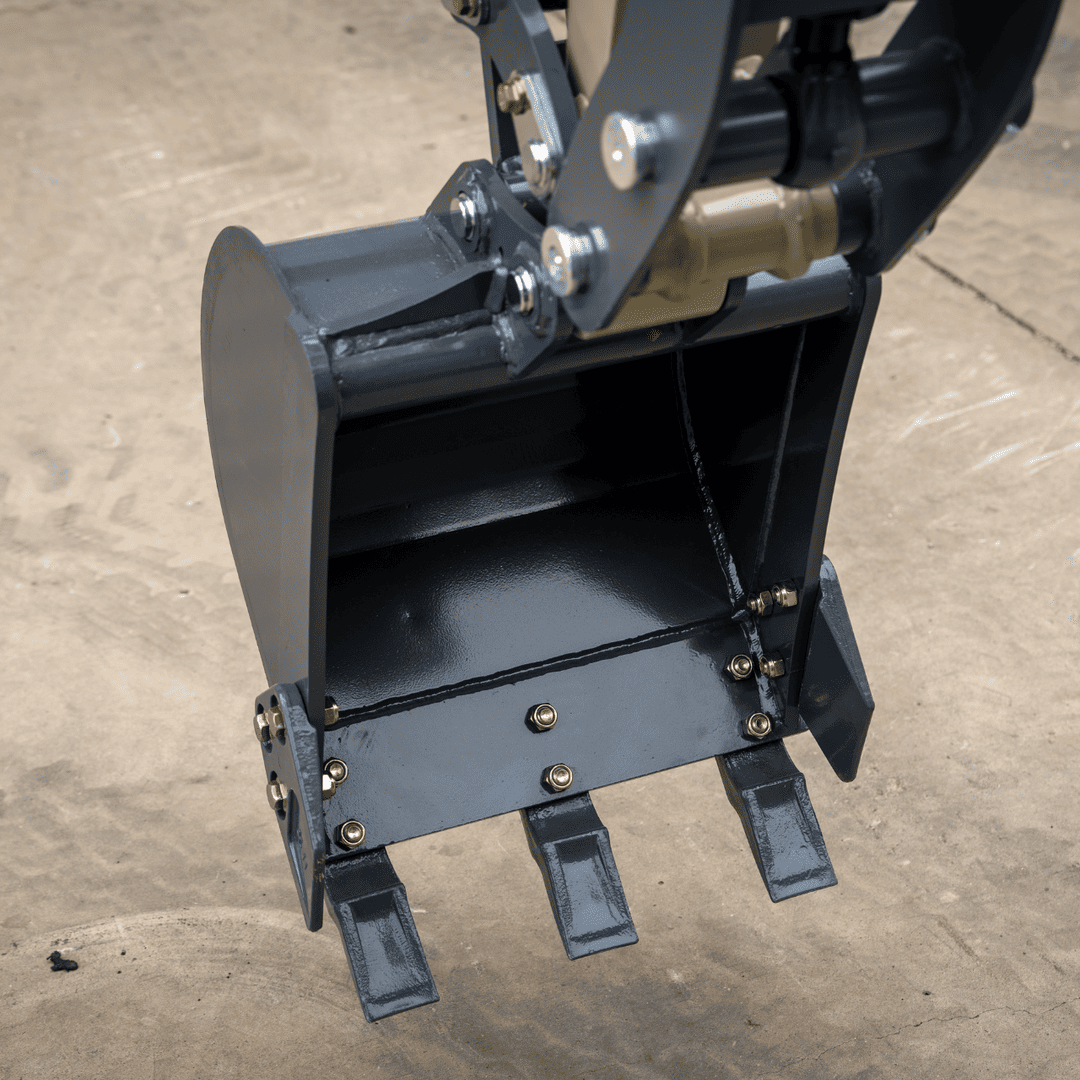

Delivering 14 kN of digging force, the TERROR XVII PRO has the strength to cut through hard soil, compacted ground, and roots. The all-in-one work package includes a 16.54-inch bucket with 1.41 ft³ capacity, an 86.50-inch maximum digging depth, a standard dozer blade, and a hydraulic thumb clip. With these tools on board, you can dig, level, handle materials, and clear debris in fewer passes.
- Comfort and Design Made for the Jobsite

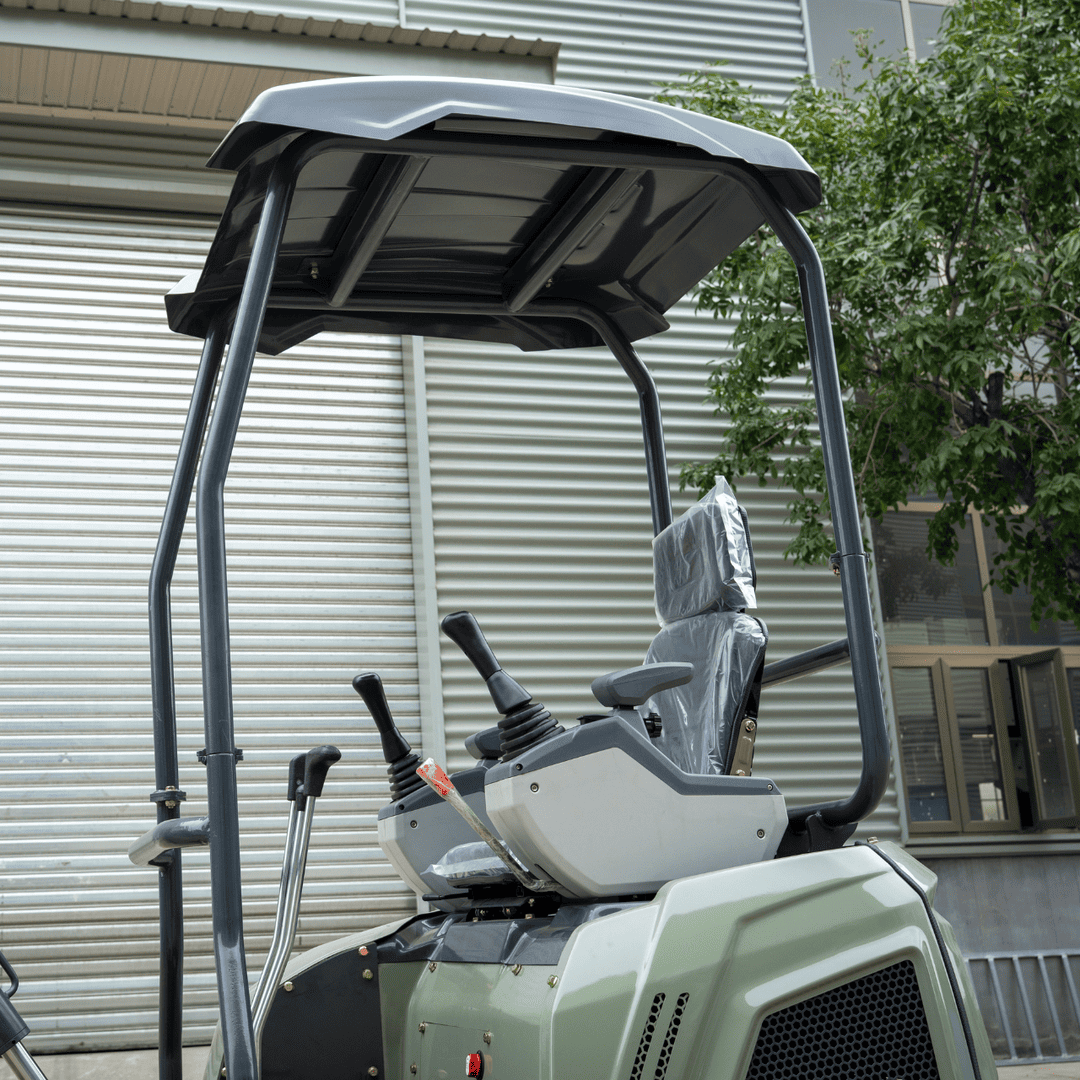

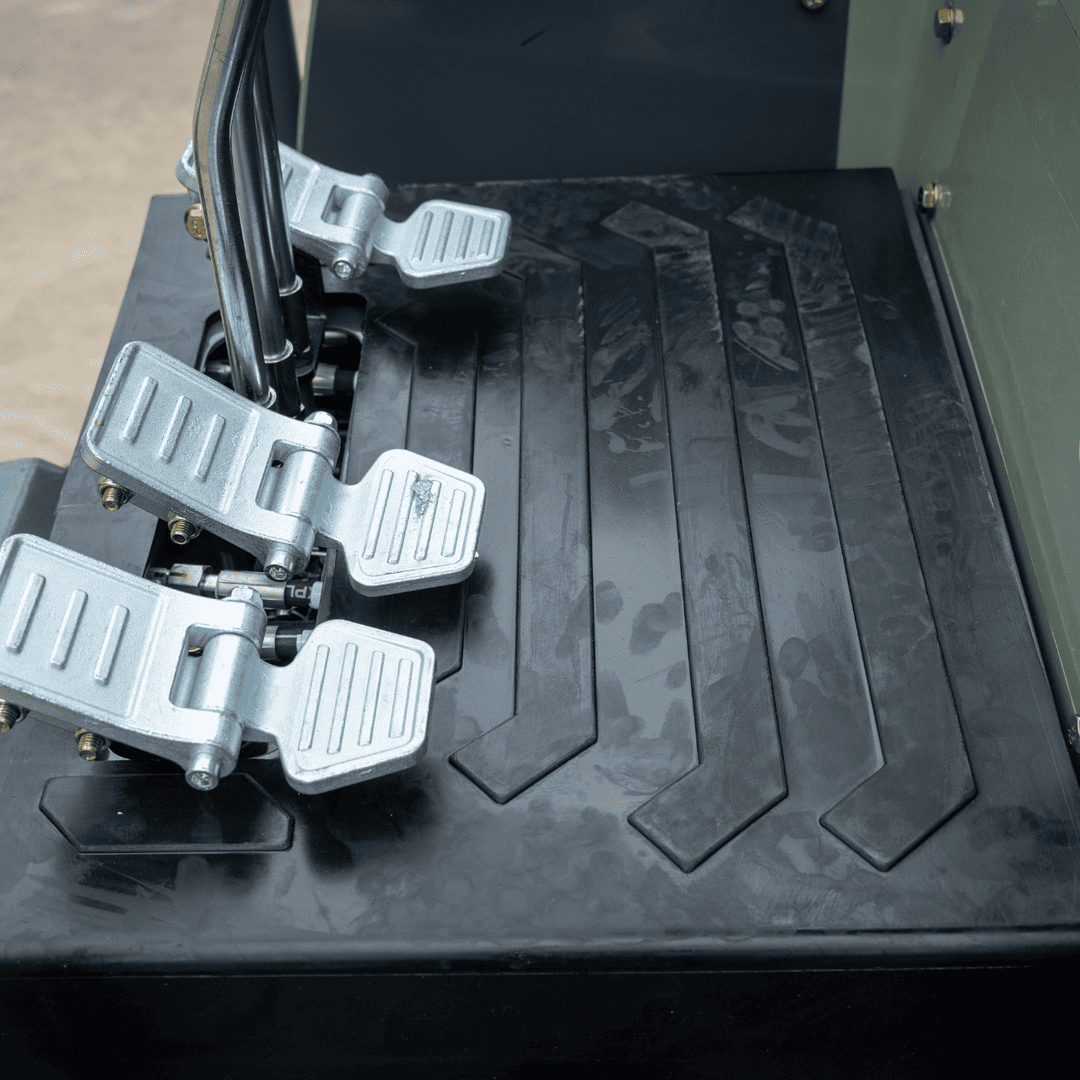

Its high-visibility look keeps the machine easy to spot on the jobsite. In the cab area, the redesigned operator station offers practical space and supportive seating for long workdays.
- Ergonomic seat: A premium headrest and armrests give extra support during long hours of operation.
- Roomy operator station: Interior dimensions of 41.34 inches high by 20.08 inches wide help limit fatigue and keep you productive.
- Easy service access: The diesel fuel tank and hydraulic oil reservoir sit side by side for faster refilling and simpler routine maintenance.
- Reinforced protection: Armored hydraulic hoses and protected valves reduce exposure to impacts and abrasion.
