Description

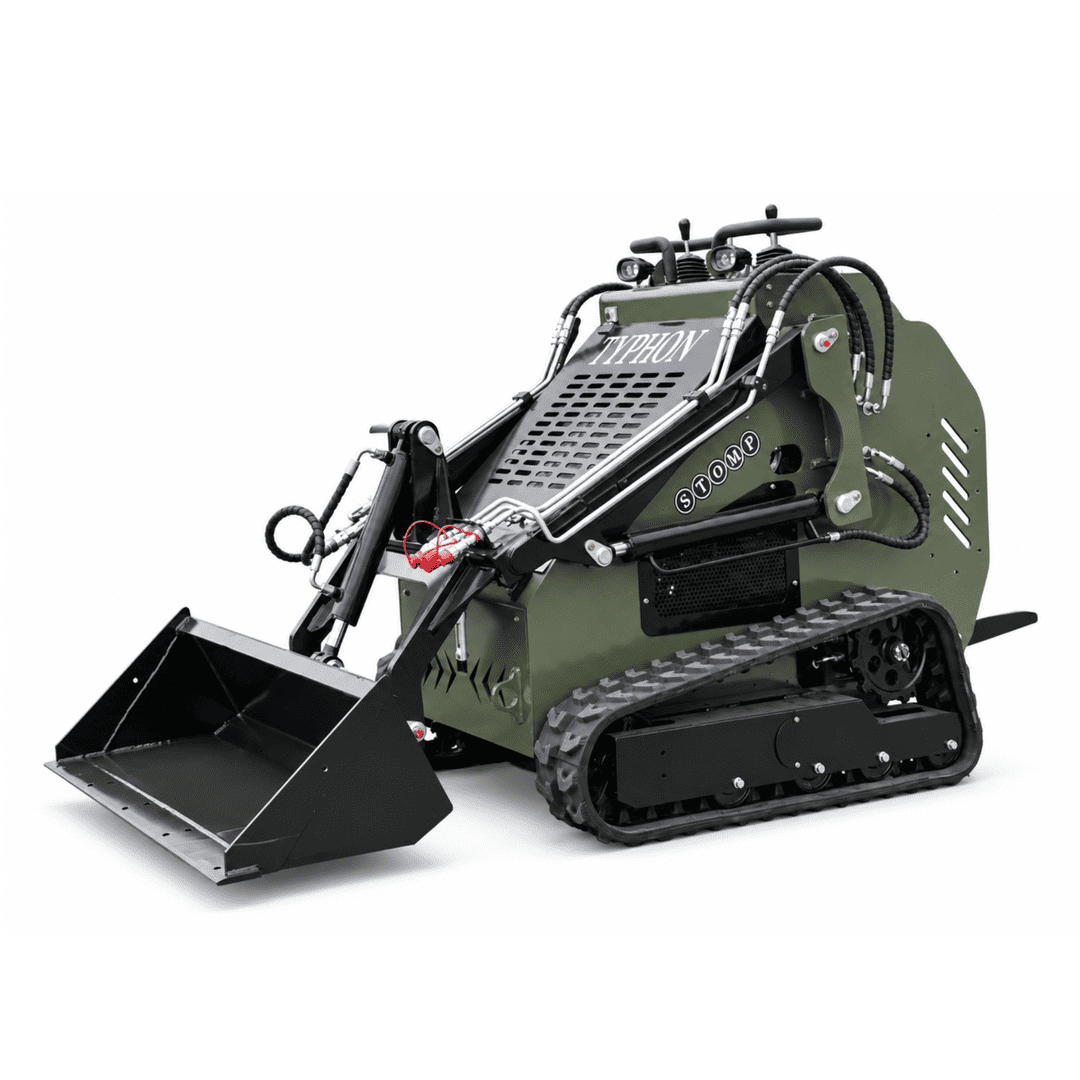

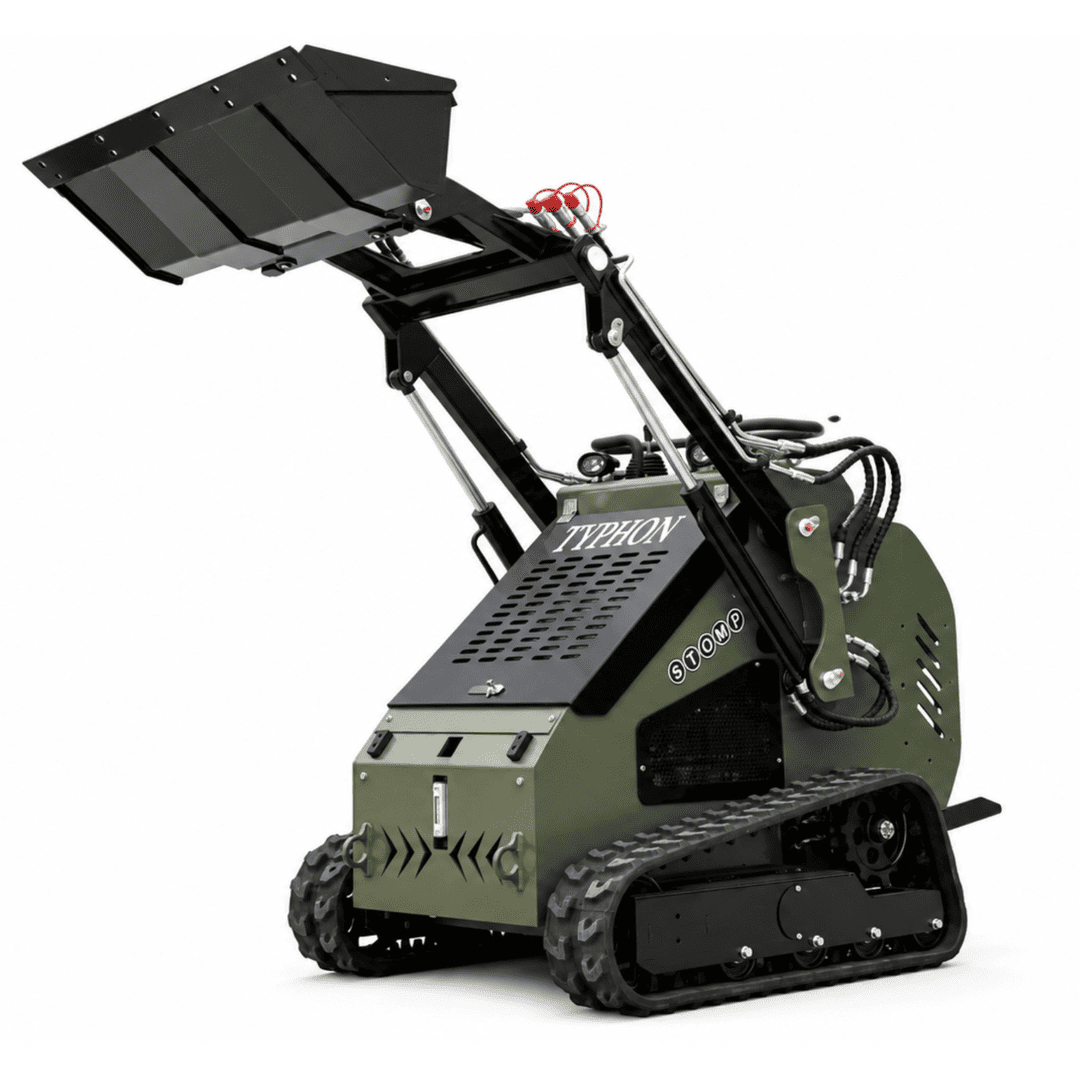

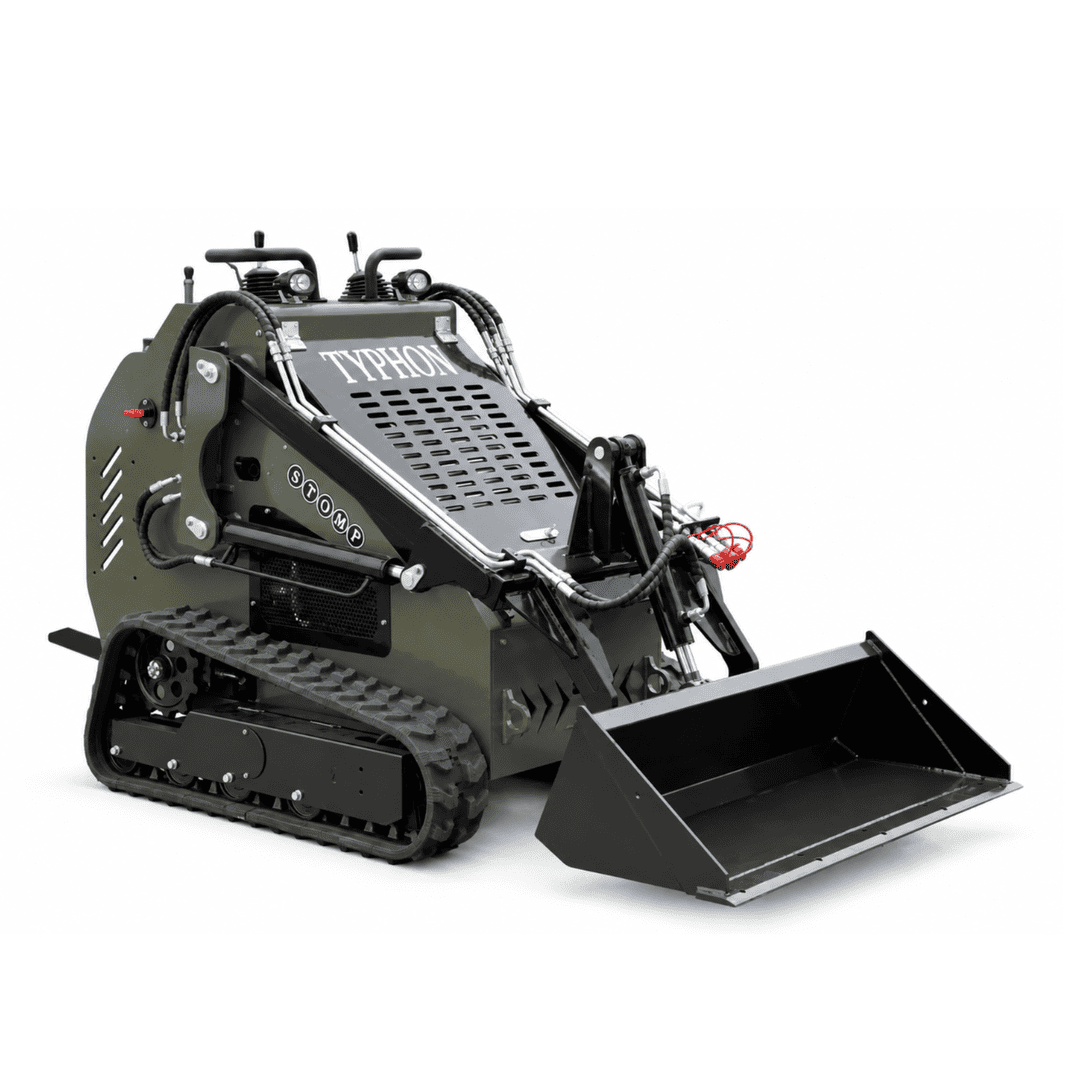

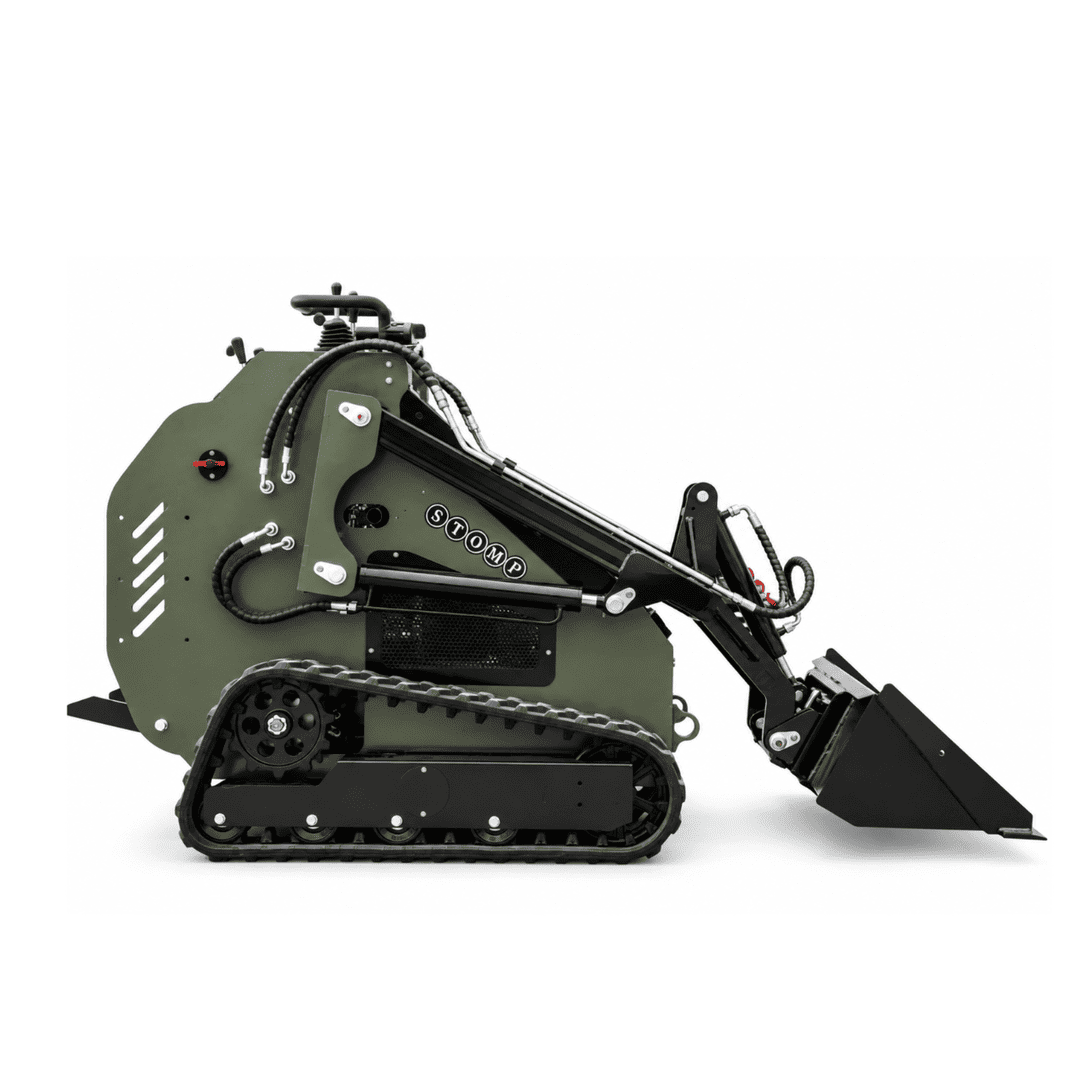

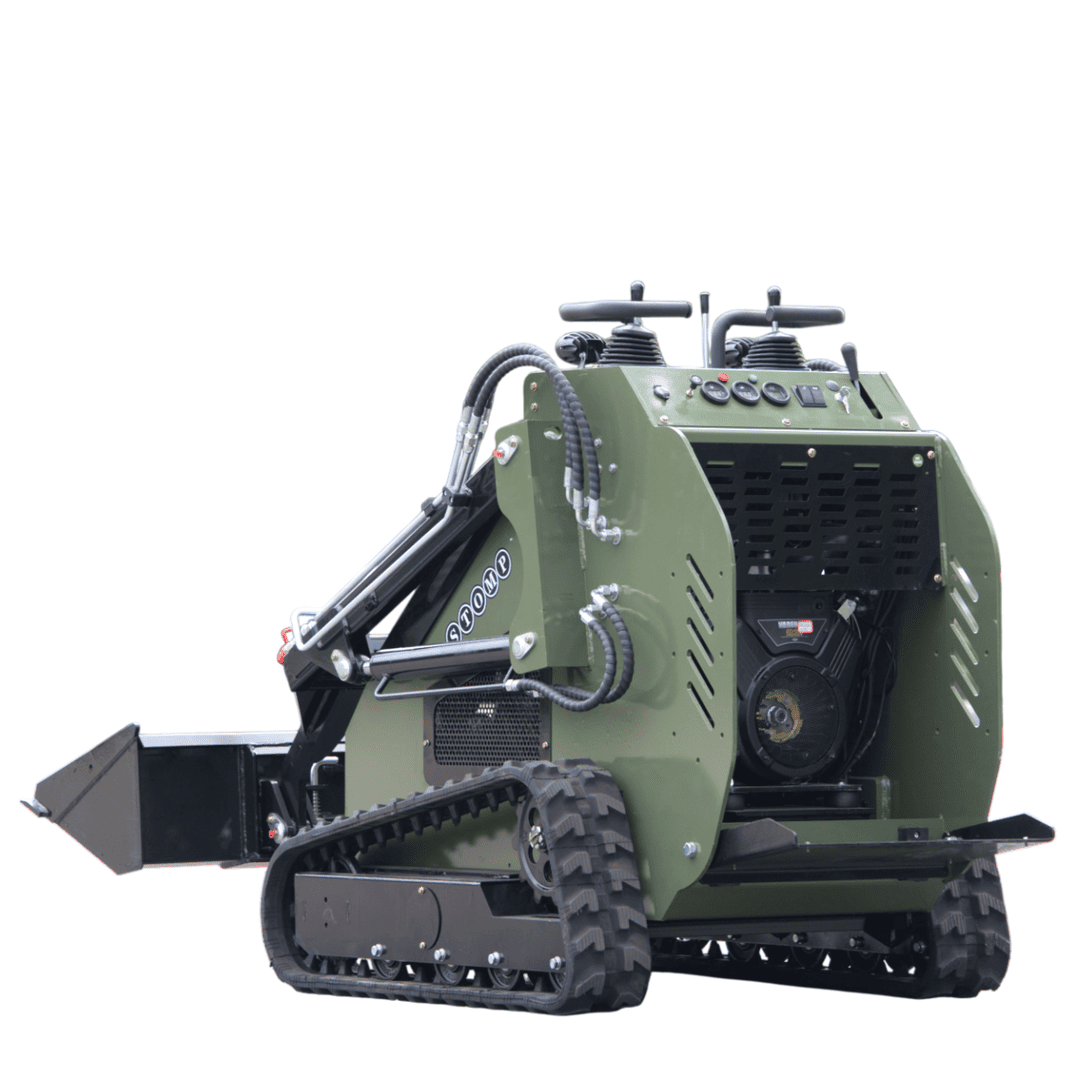

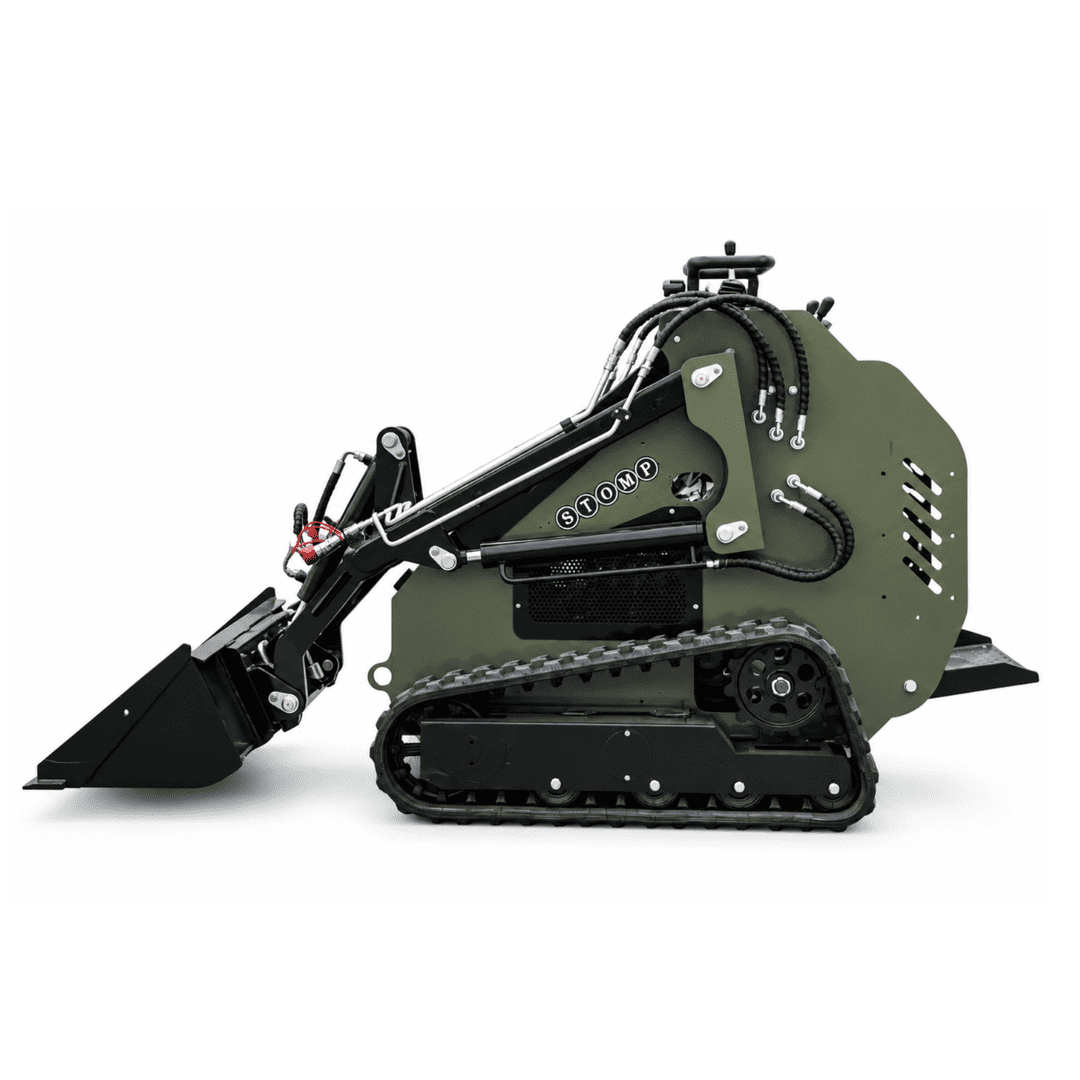

This is the machine for heavy work in spaces that bigger loaders can’t get into. The TYPHON STOMP 501 PRO in bold Green pairs serious power with a compact, agile build, giving you the strength and reach to move materials quickly on any jobsite.
At an operating weight of 1,962 lb, the STOMP 501 PRO balances stability and maneuverability, so you get dependable performance without the bulk. The Green finish is more than good looks. It marks a machine made for operators who value reliability, precision, and getting more done in less time.
Powered by an EPA-certified 23 HP Briggs & Stratton Vanguard V-Twin engine, this stand-on loader runs smoothly through long, demanding shifts, and its air-cooled design helps keep engine temperatures steady. The 3-Pump / 3-Valve hydraulic system supplies 11.4 GPM of main flow, while a 992 lb maximum lifting capacity makes quick work of everyday material handling.
Access is where this machine really stands out. At just 40.7 inches wide, with Triangle rubber tracks and 360° pivot steering, it reaches narrow and confined work areas that full-size equipment cannot. With dual joystick controls, front LED work lights, and a quick hitch system, the STOMP 501 PRO adapts to whatever the day brings.
- Power That Works as Hard as You Do

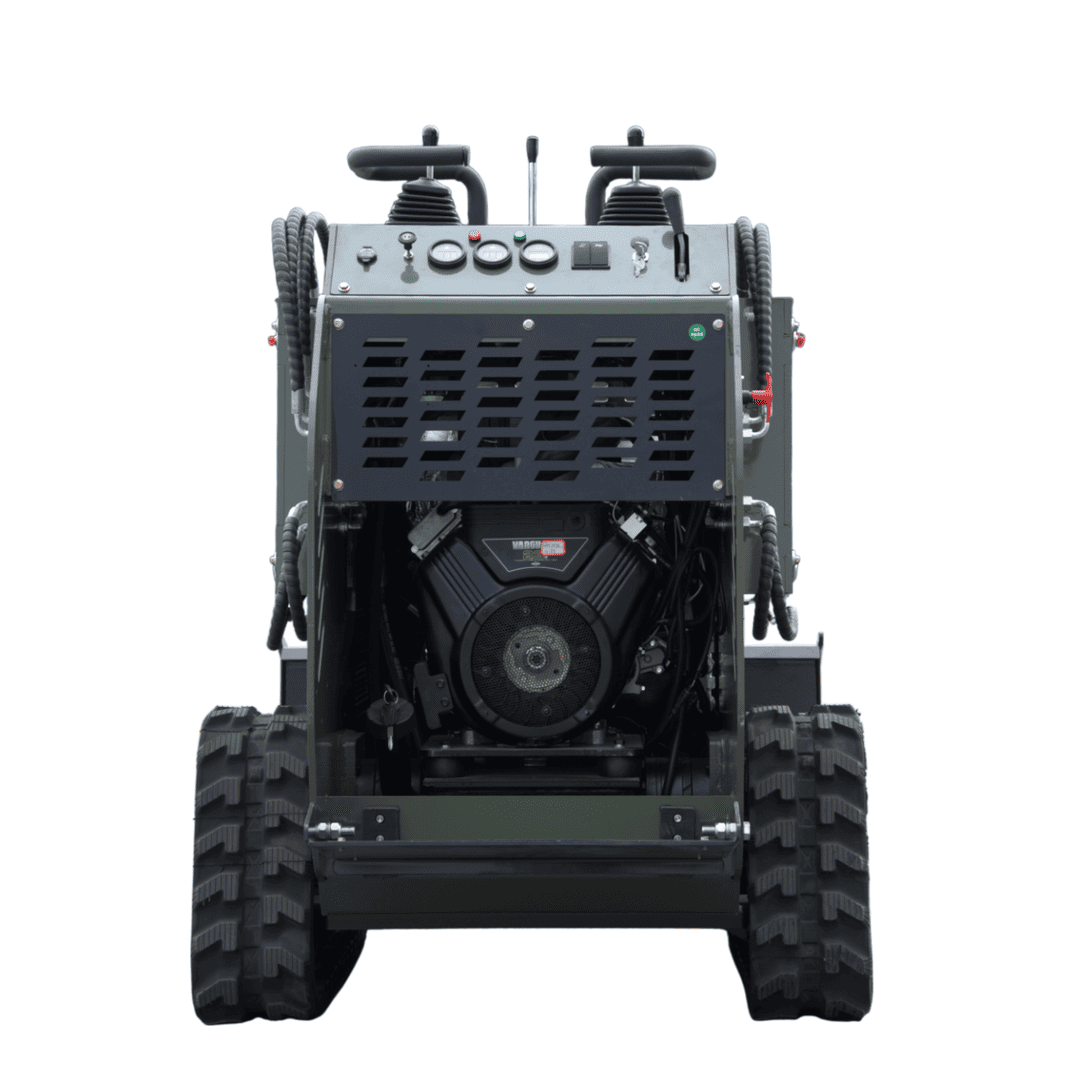

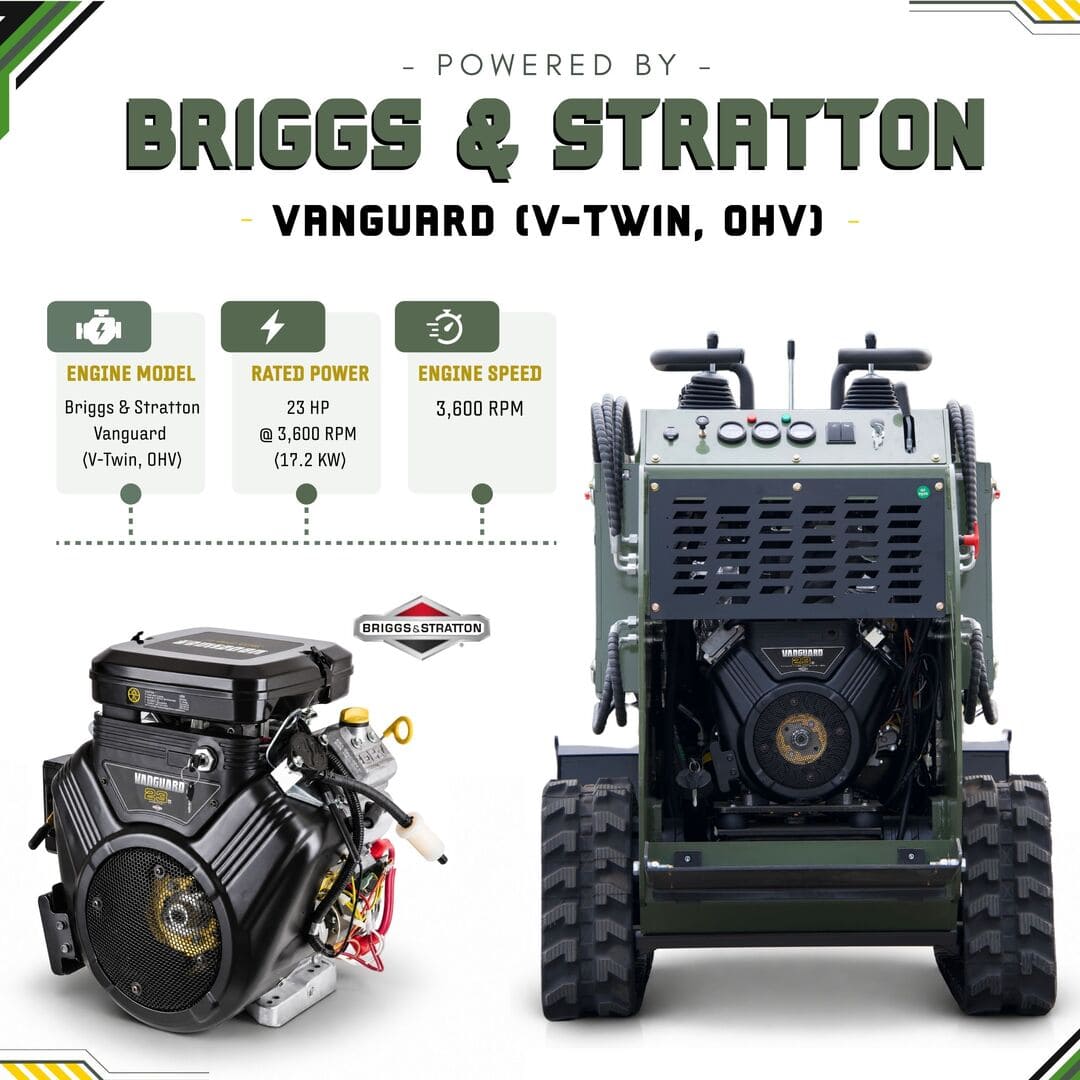

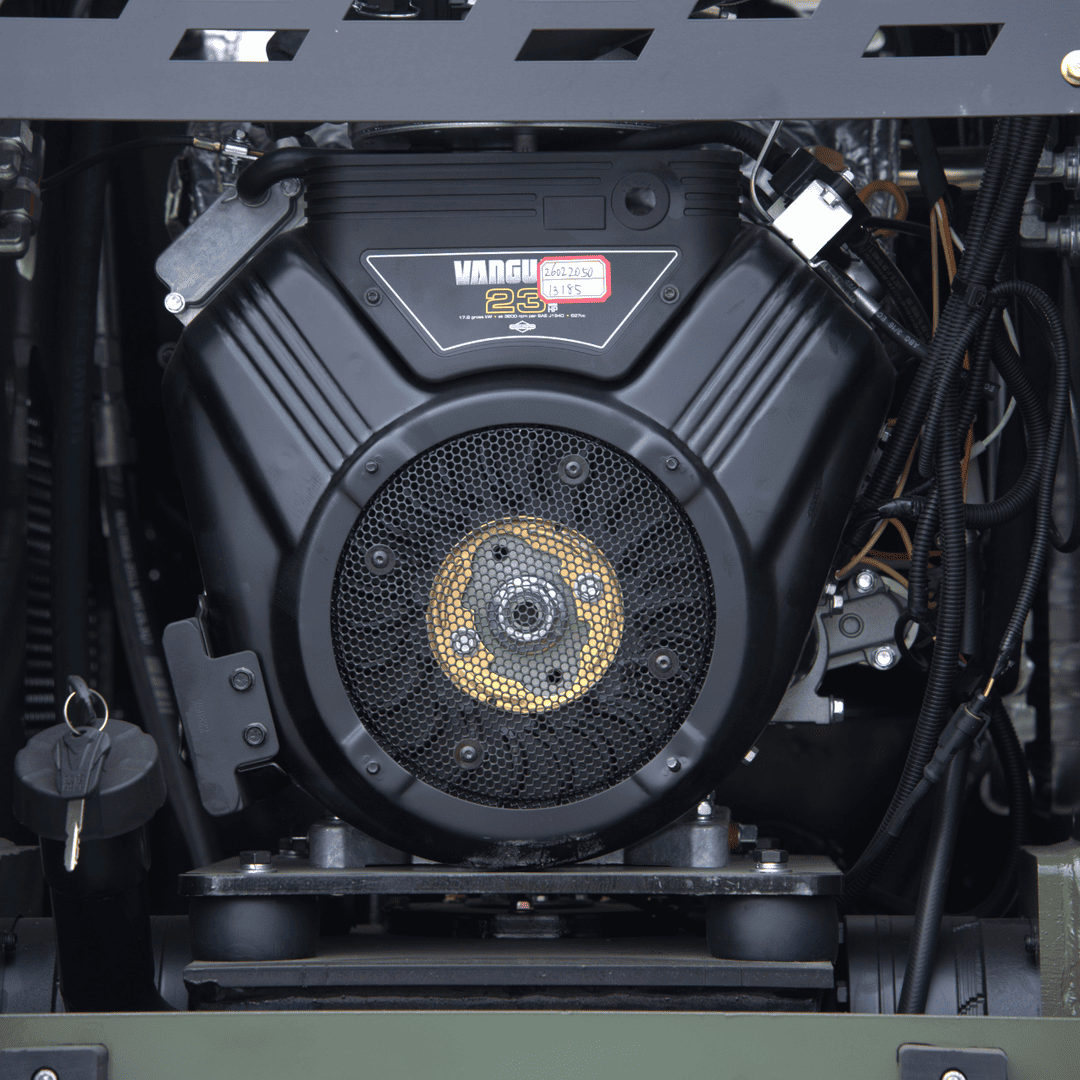

The heart of the STOMP 501 PRO is an EPA-certified Briggs & Stratton Vanguard V-Twin OHV gasoline engine that delivers a strong 23 HP at 3,600 RPM. The V-Twin configuration gives smooth, steady output, and the air-cooled system keeps engine temperatures under control through long, demanding shifts. With a 5.33-gallon fuel tank, you spend more time working and less time refueling.
- Built to Fit Where Others Can’t
At just 40.7 inches wide, the Green STOMP 501 PRO slips through narrow gates, tight backyards, confined jobsites, and restricted landscaping areas with ease. If access has been a problem for you, this loader solves it. You get full loader capability in a footprint that goes where full-size equipment can’t.
- High-Flow Hydraulics for Responsive Control

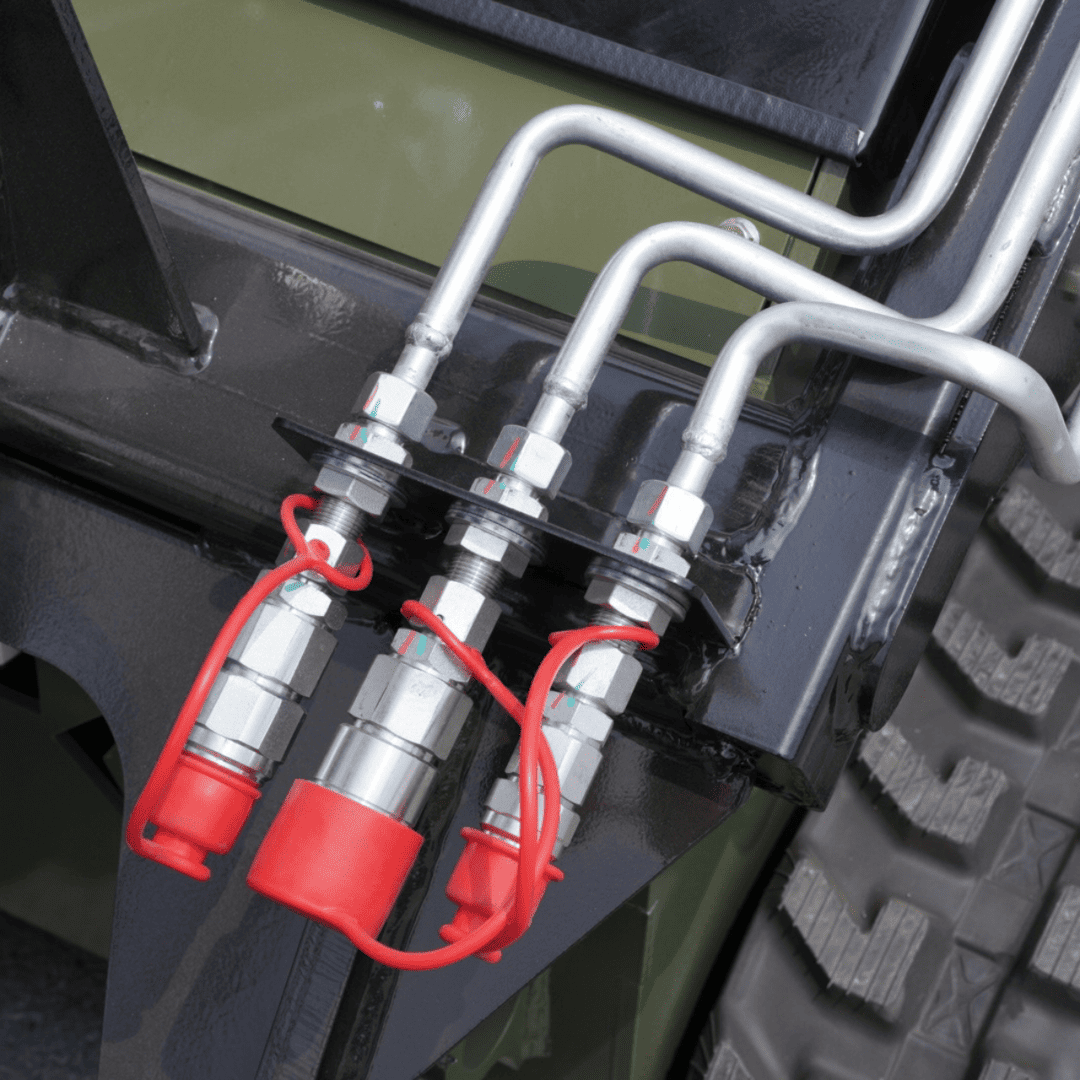

The advanced 3-Pump / 3-Valve hydraulic system delivers 11.4 GPM of main flow and two 5.7 GPM auxiliary flows, giving you responsive performance across multiple functions. With hydraulic pressure of up to 2,465.6 PSI, the STOMP 501 PRO has the power to run a wide range of compatible attachments with confidence. A generous 9.2-gallon hydraulic oil tank supports consistent performance and longer operation, keeping your workflow smooth from start to finish.
- Strong Lifting, Practical Capacity

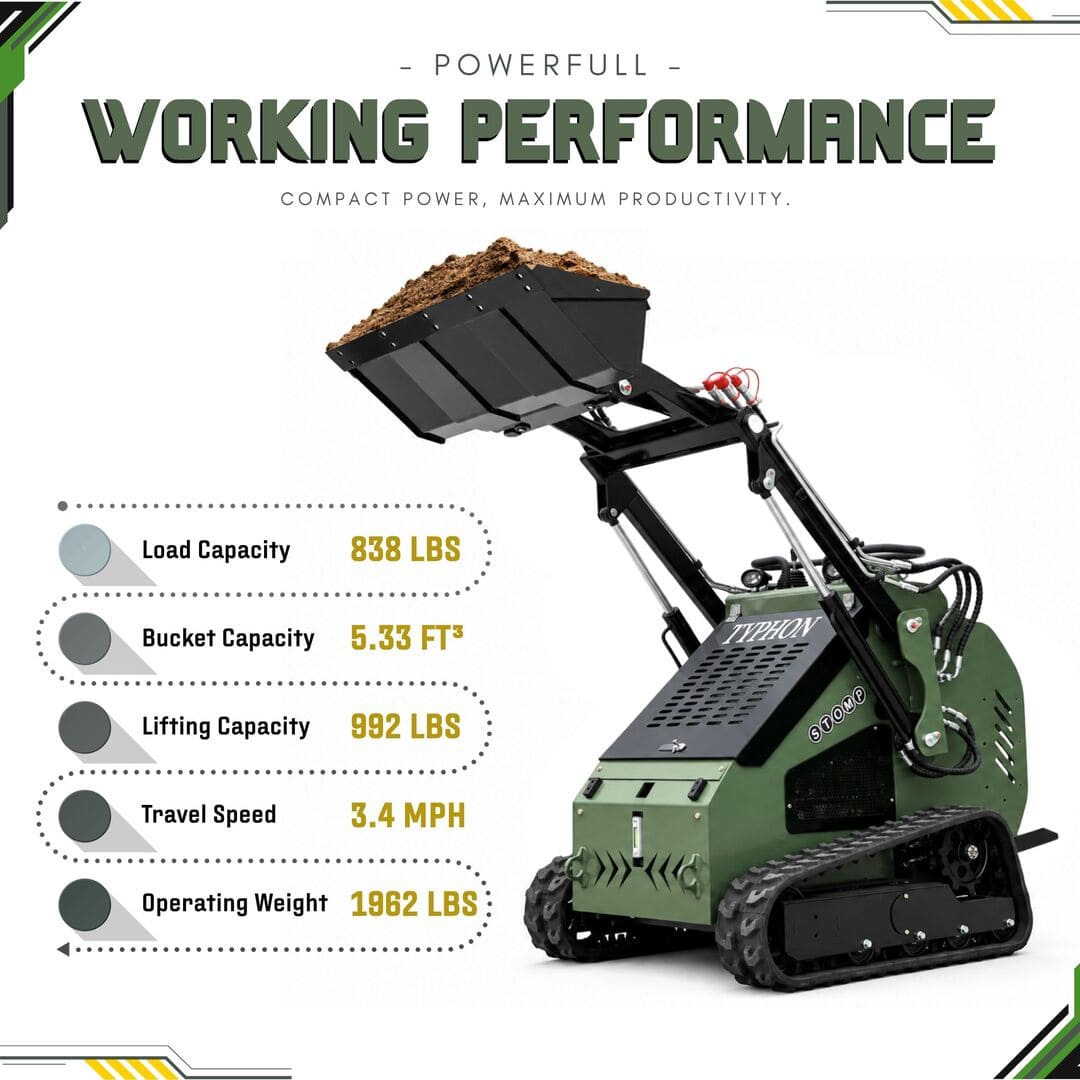

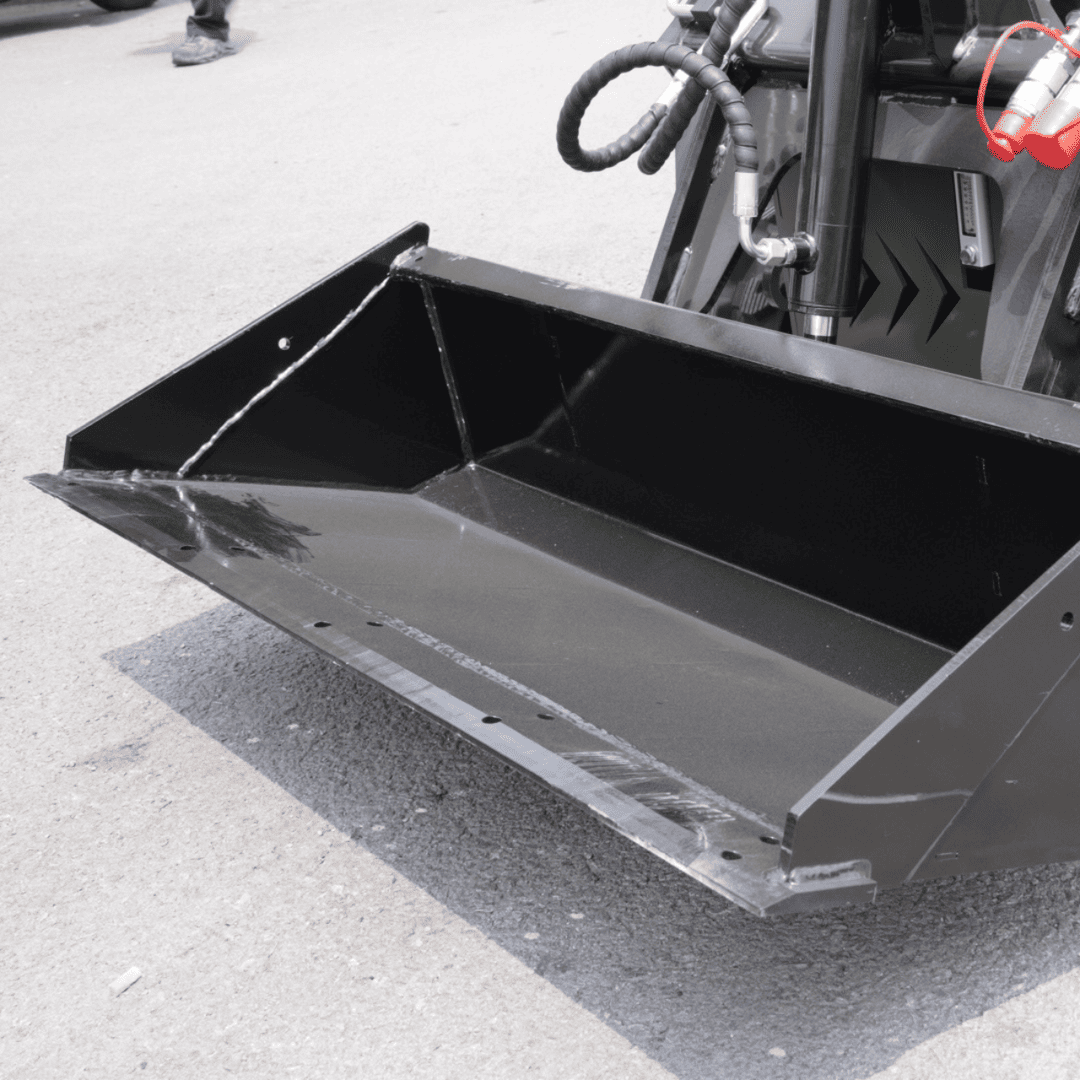

For its compact size, this machine lifts with real authority. A 992 lb Maximum Lifting Capacity and an 838 lb Load Capacity make quick work of soil, gravel, mulch, debris, and landscaping materials. The 5.33 ft³ bucket gives you practical capacity for moving aggregate and jobsite materials efficiently, load after load.

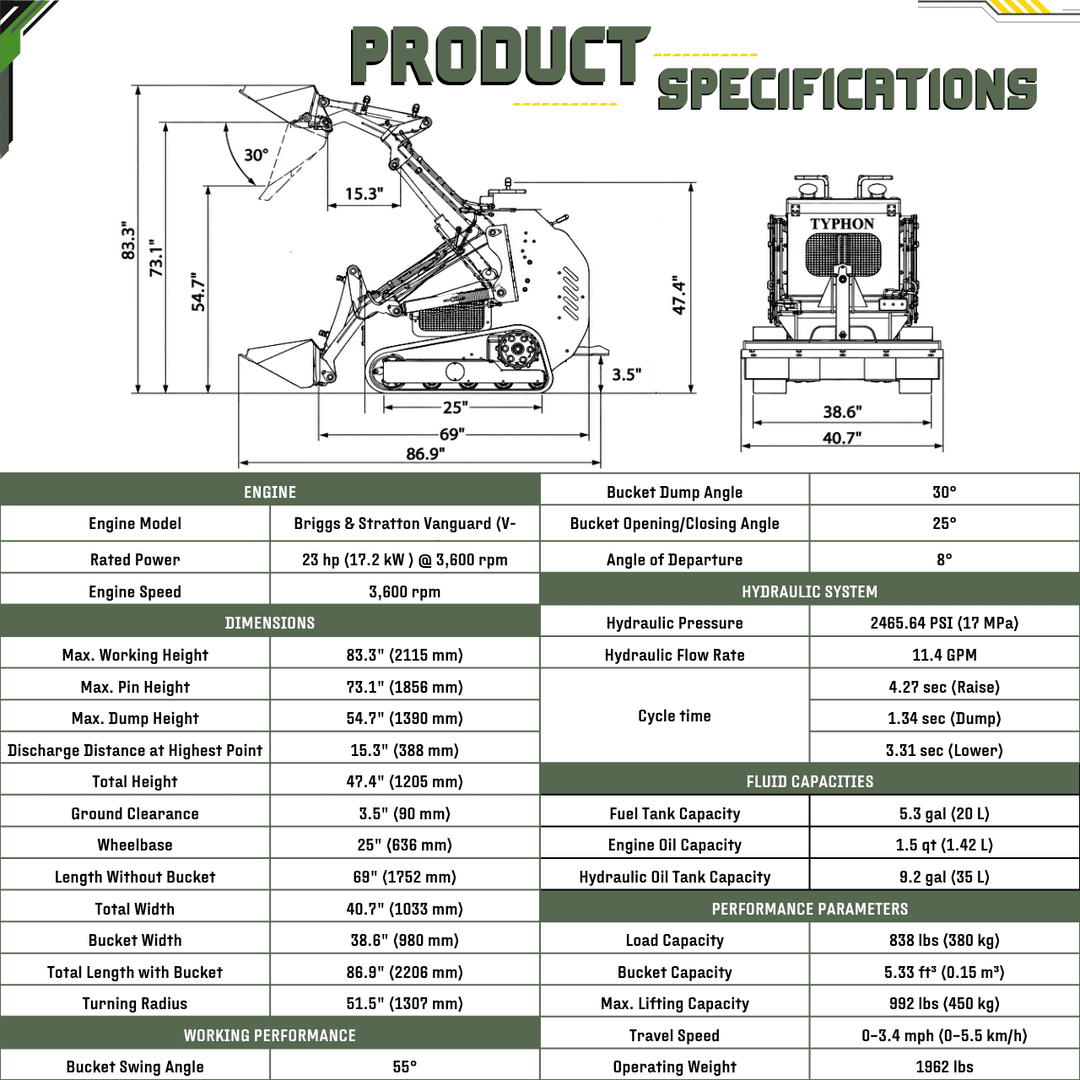

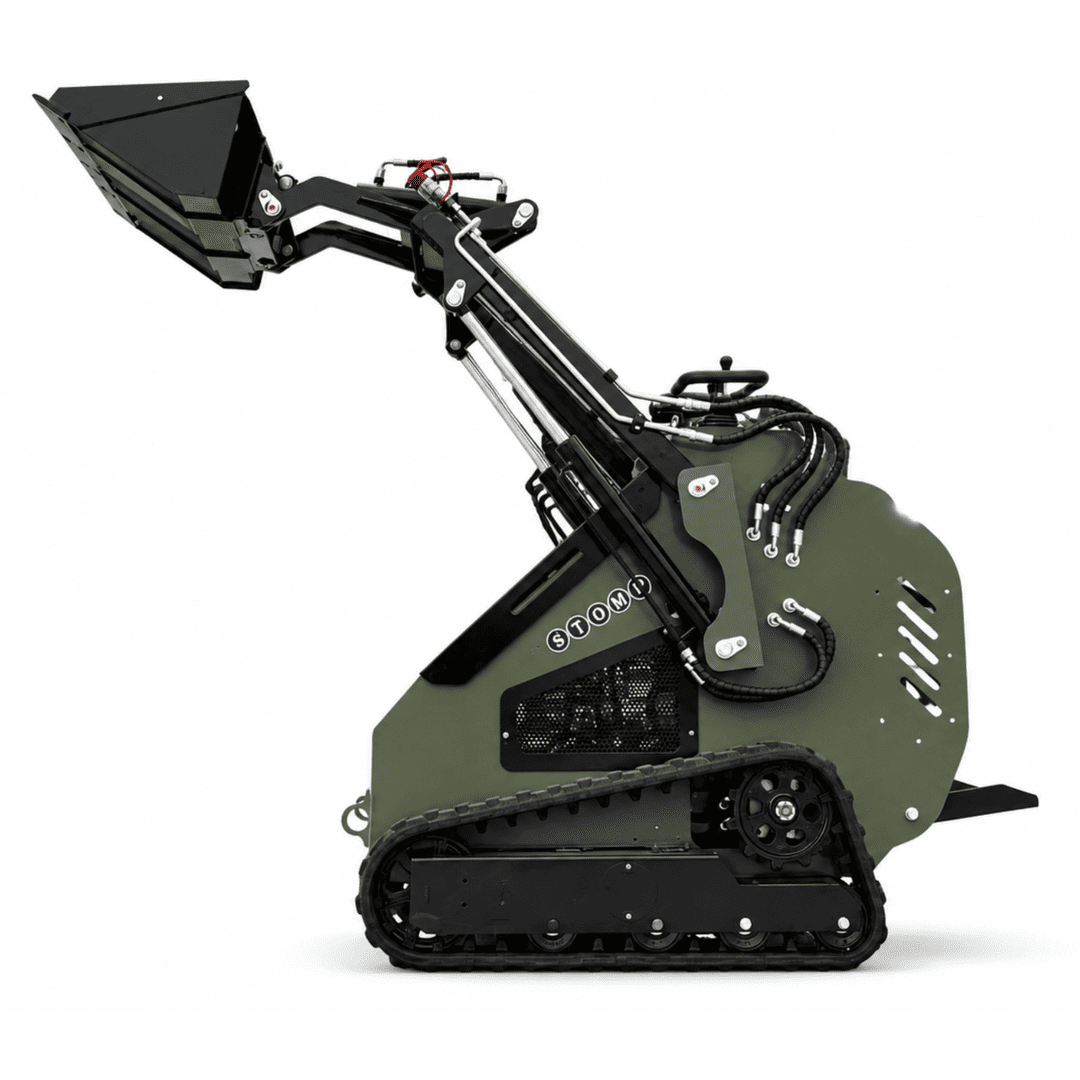

You also get the reach you need. A maximum working height of 83.3 inches and a 54.7-inch dump height give you plenty of clearance to load trailers, containers, and work areas with precision.
- Compact Access & Agile Handling

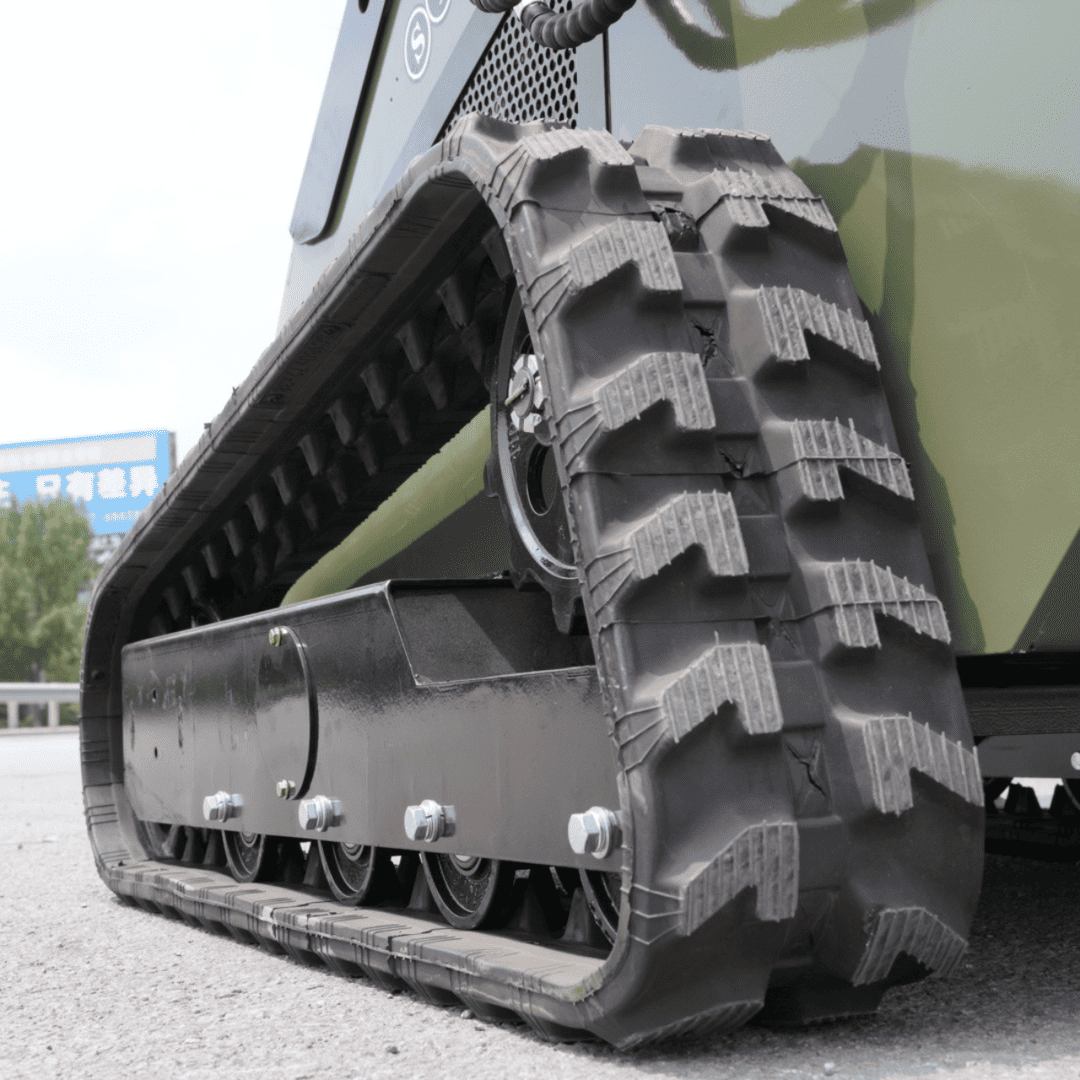

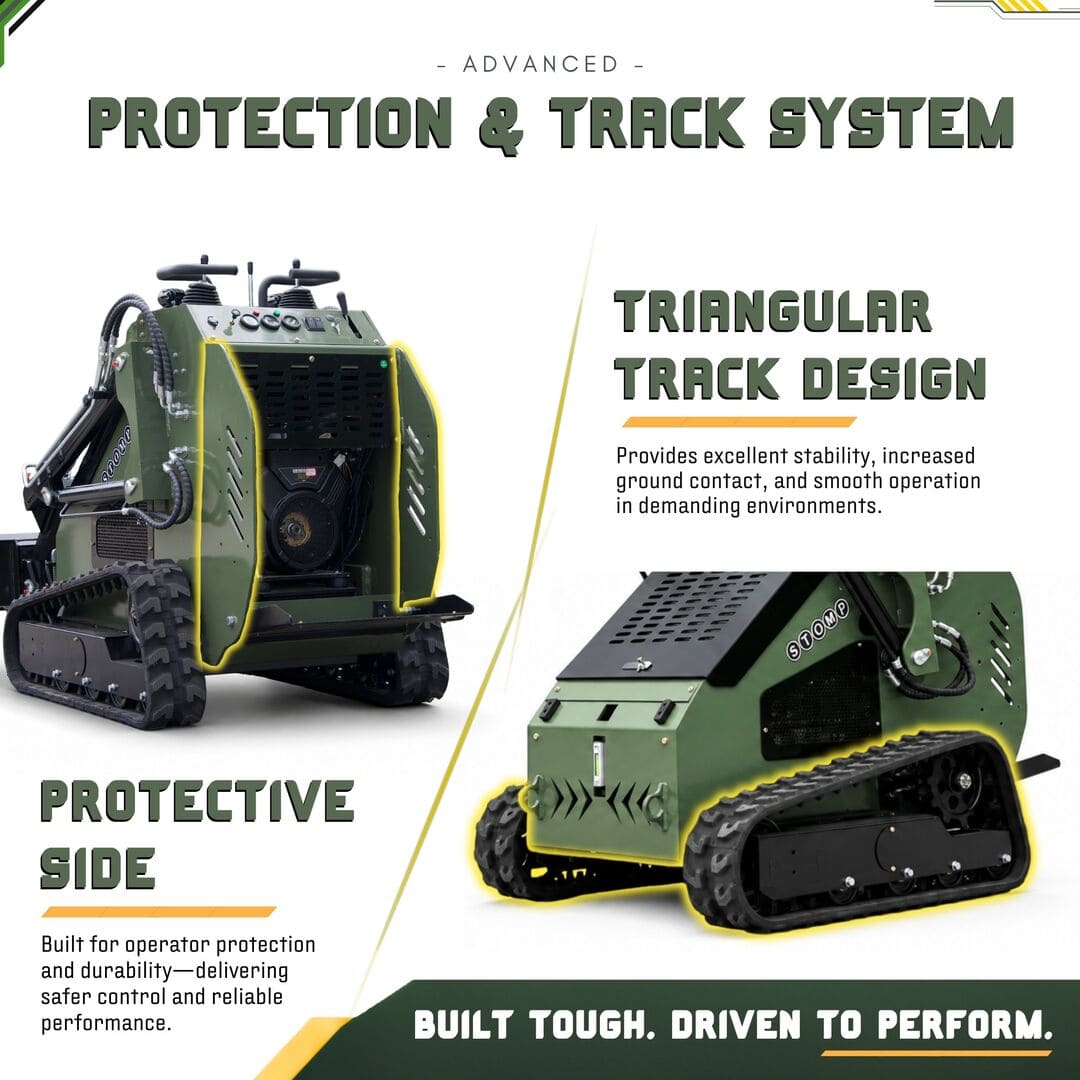

The STOMP 501 PRO combines a 40.7-inch compact width with 360° pivot steering and Triangle rubber tracks. This lets it reach narrow and confined work areas while keeping strong traction and maneuverability.
With an operating weight of 1,962 lb and travel speeds of up to 3.4 MPH, it repositions efficiently across residential, landscaping, agricultural, and construction sites, while keeping the stability and compact footprint that demanding work calls for.
- Operator-First Design

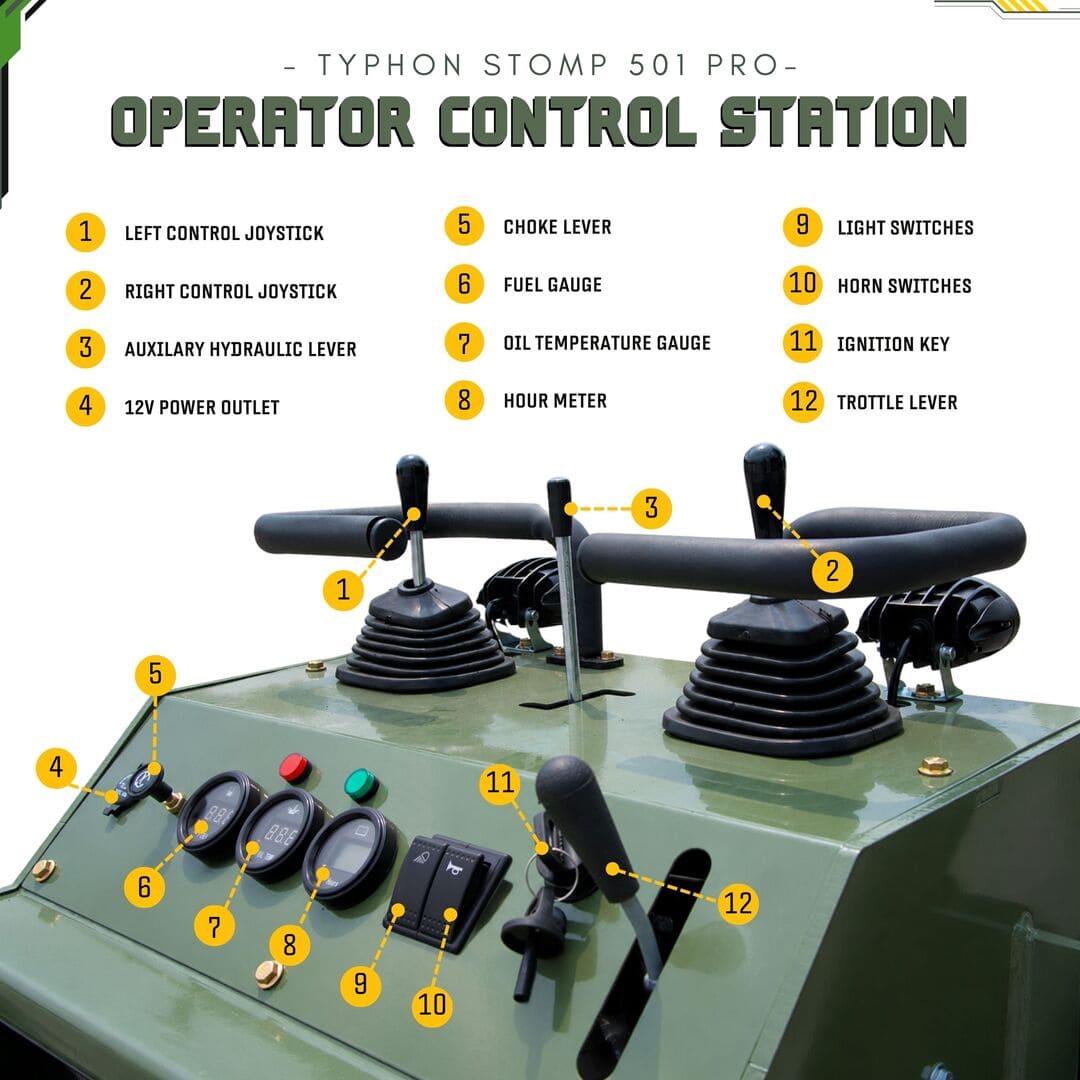

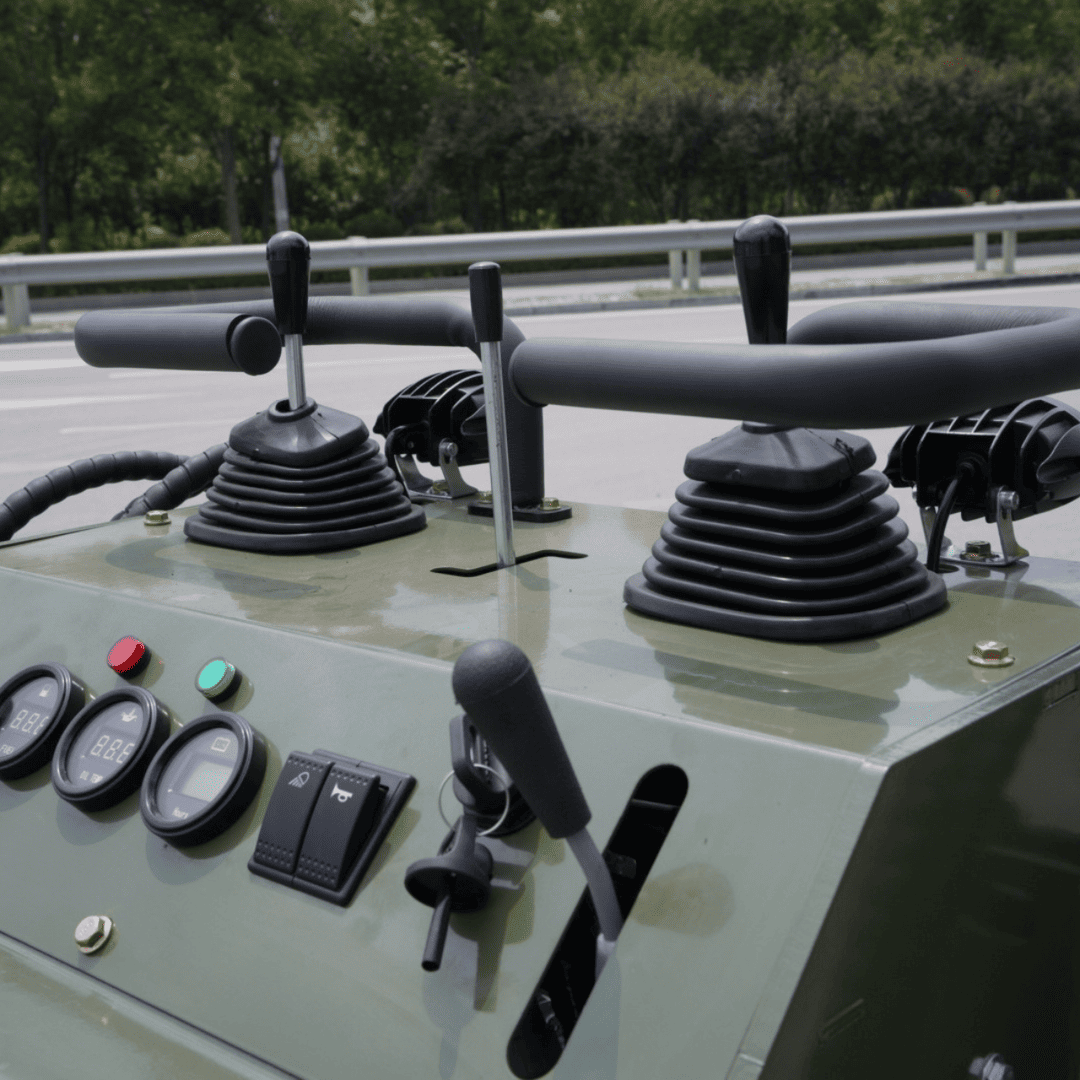

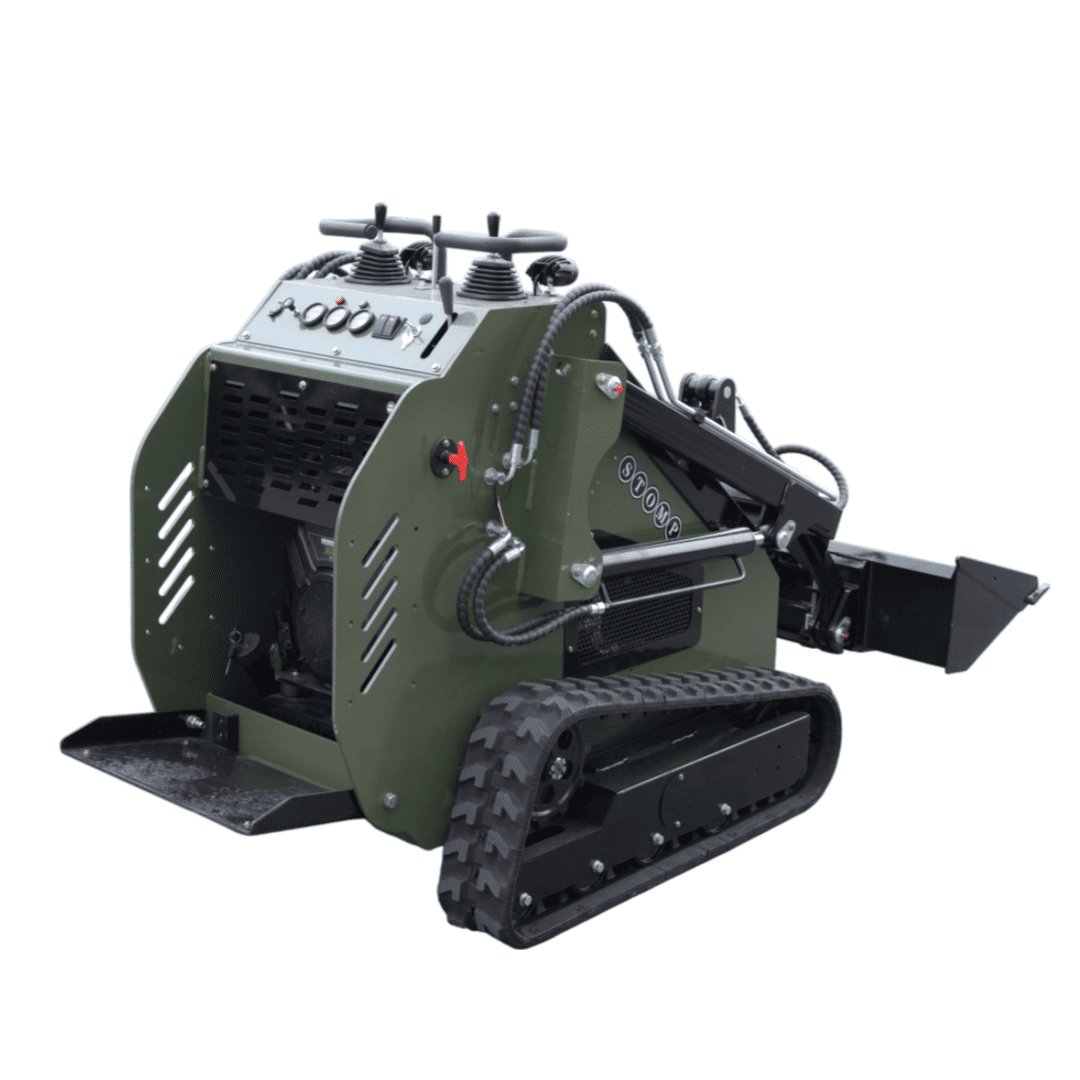

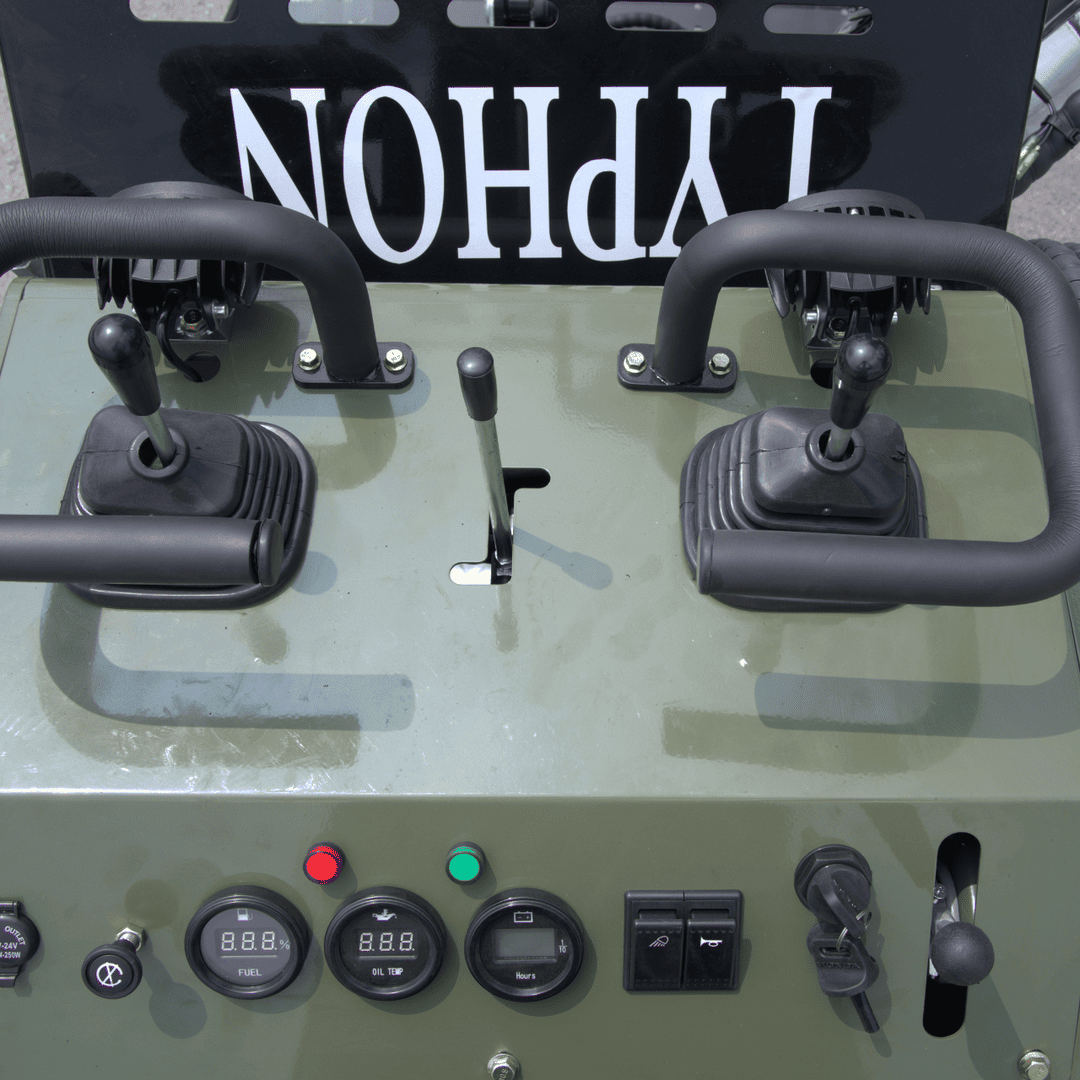

The stand-on operator platform keeps you close to the action with clear visibility all around the machine, while keeping a compact footprint for confined-space work. Dual joystick controls put movement and working functions right at your fingertips for direct, intuitive operation.

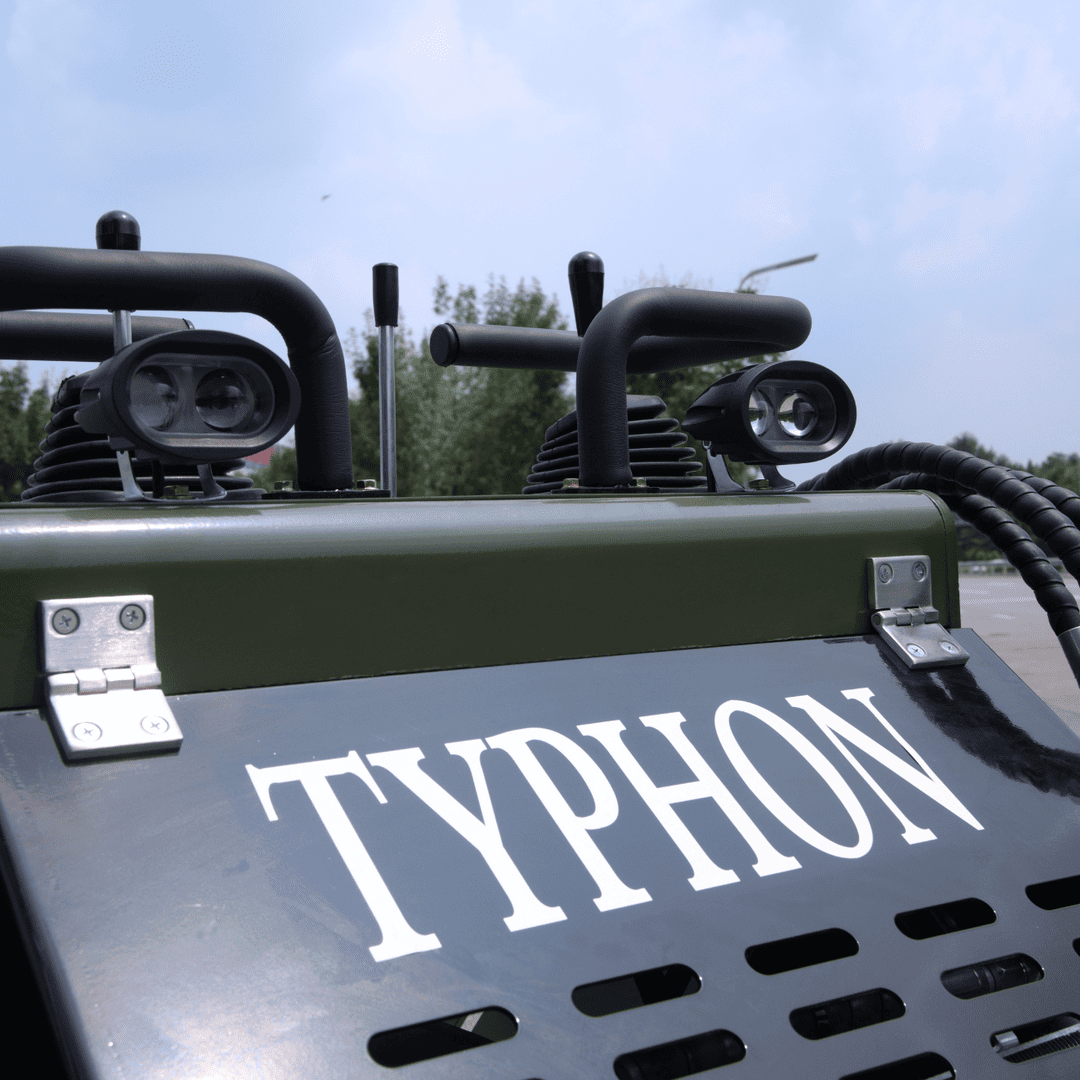

An integrated digital display panel keeps key machine information front and center. The heavy-duty control console brings together digital gauges, ignition, lighting controls, warning indicators, and operating functions in one organized layout. Front LED work lights extend your productivity into low-light and early-morning conditions.
- Fast Attachment Changes
The quick hitch attachment system lets you swap tools in moments, cutting downtime and letting one machine handle a broad range of applications. From loading to grading and beyond, the STOMP 501 PRO adapts to the task in front of you.
Key Features:
- 23 HP Briggs & Stratton Vanguard V-Twin, EPA Certified
- 11.4 GPM High-Flow Hydraulics
- 992 lb Maximum Lift & 838 lb Operating Load
- 3 Pump / 3 Valve
- 40.7″ Compact Width
- 360° Pivot Steering & Triangle Rubber Tracks
- 3.4 MPH Travel Speed
- 5.33 ft³ Bucket Capacity
- 83.3″ Maximum Working Height
- Stand-On Platform & Dual Joysticks
- Quick-Hitch Attachment System
- Front LED Work Lights
