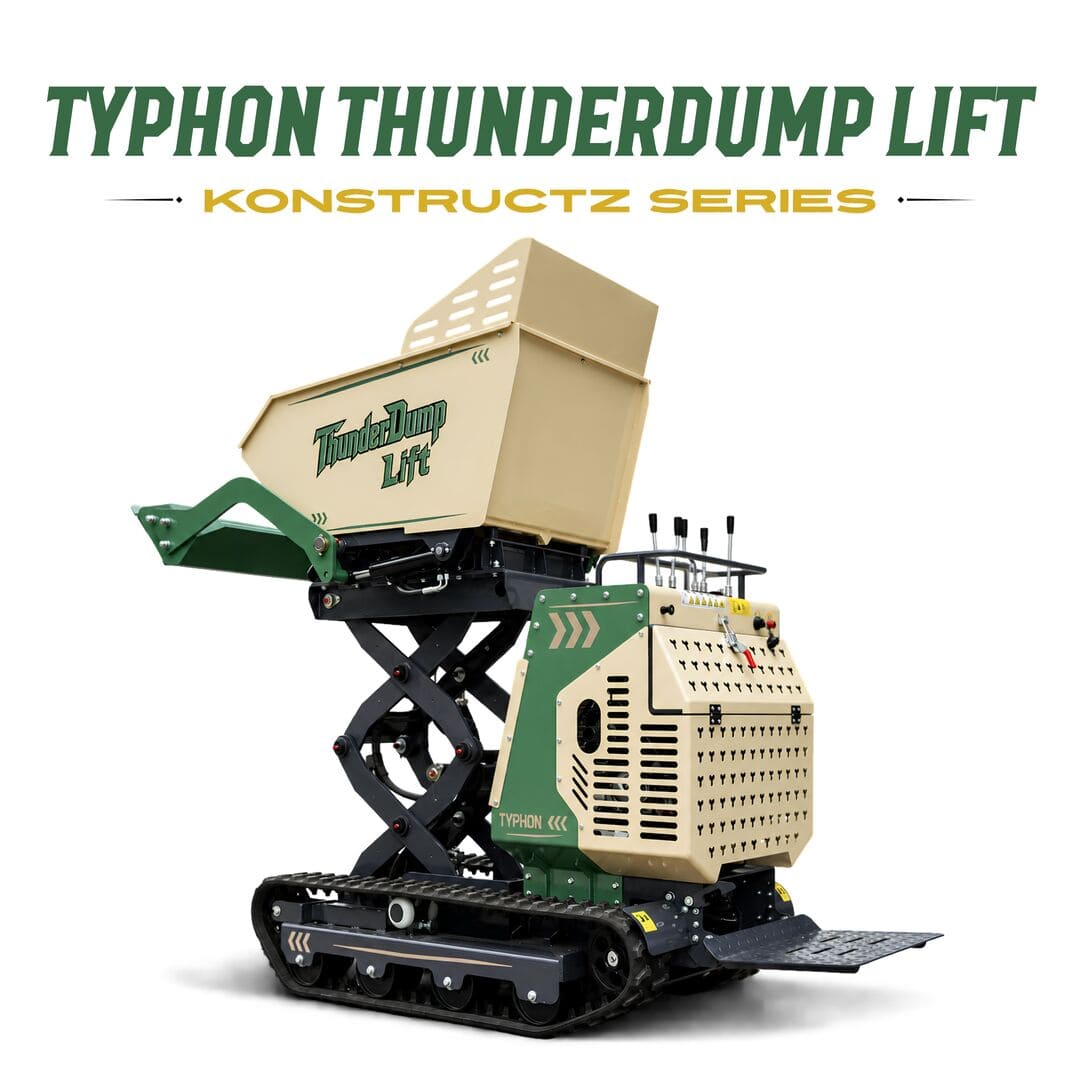

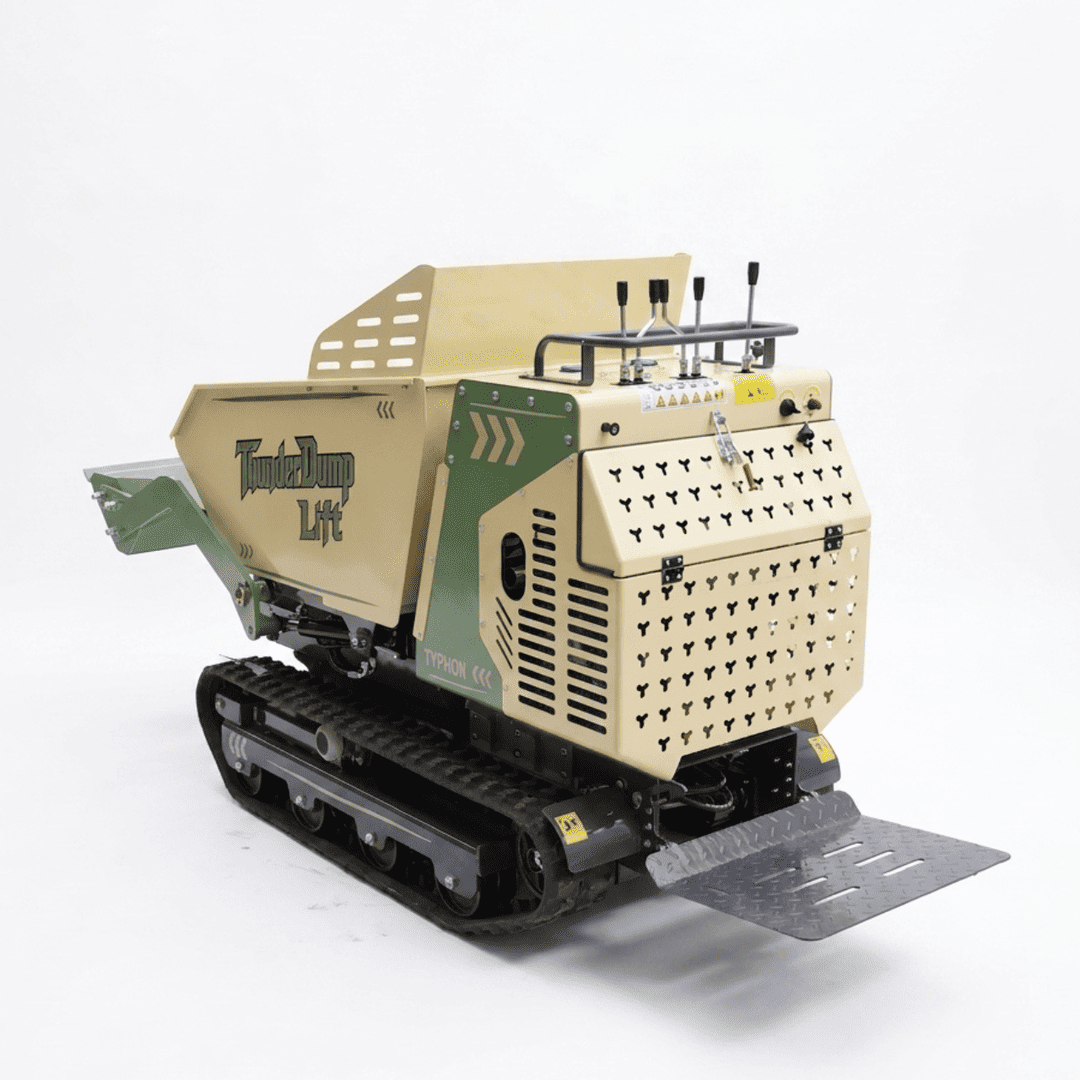

Meet the ThunderDump Lift from the KONSTRUCTZ SERIES, a compact hauler built to move demanding loads without demanding much space. Its small footprint and strong Honda engine let you get the job done in tight, hard-to-reach areas where bigger machines simply won’t fit.
1. Solid Build, Compact Size

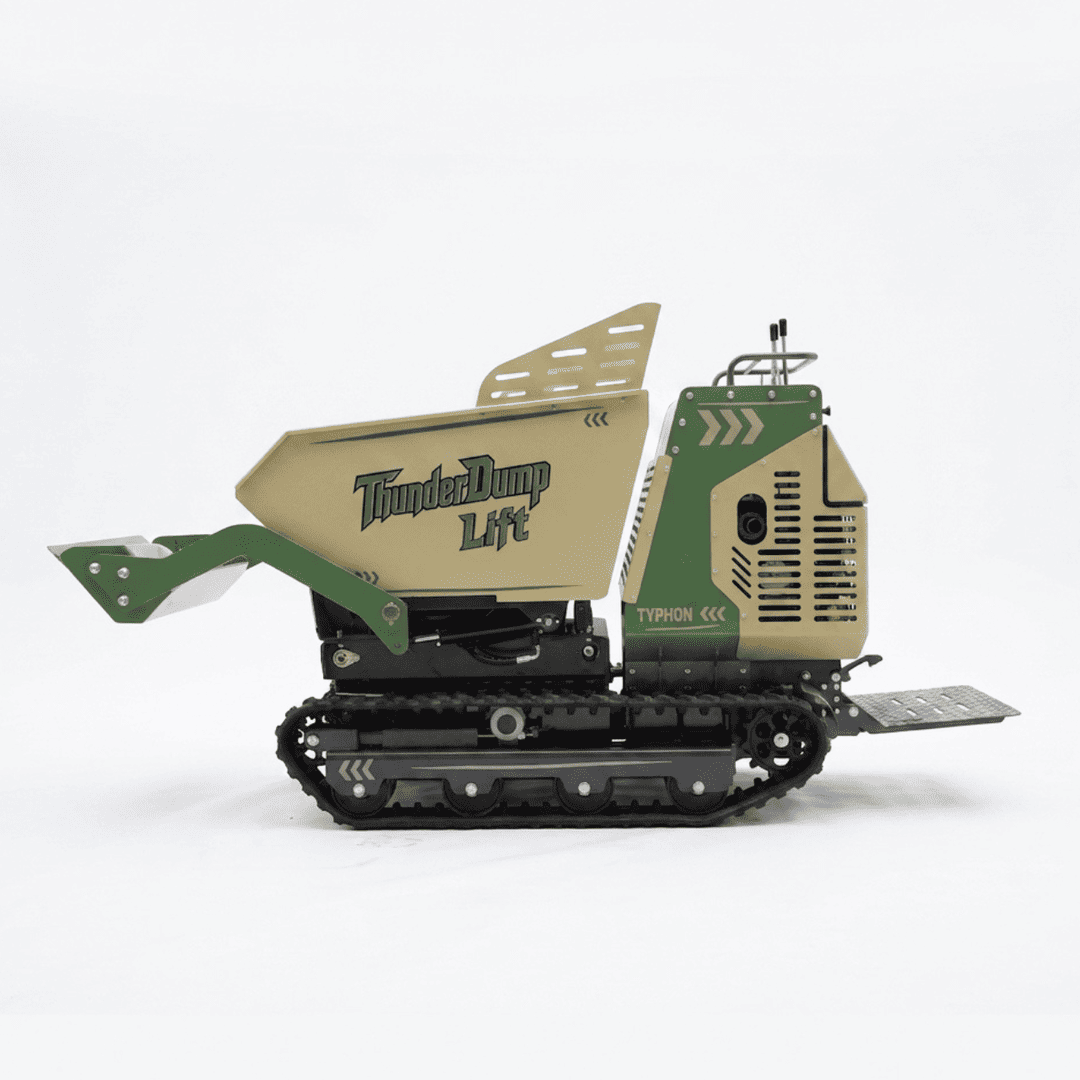

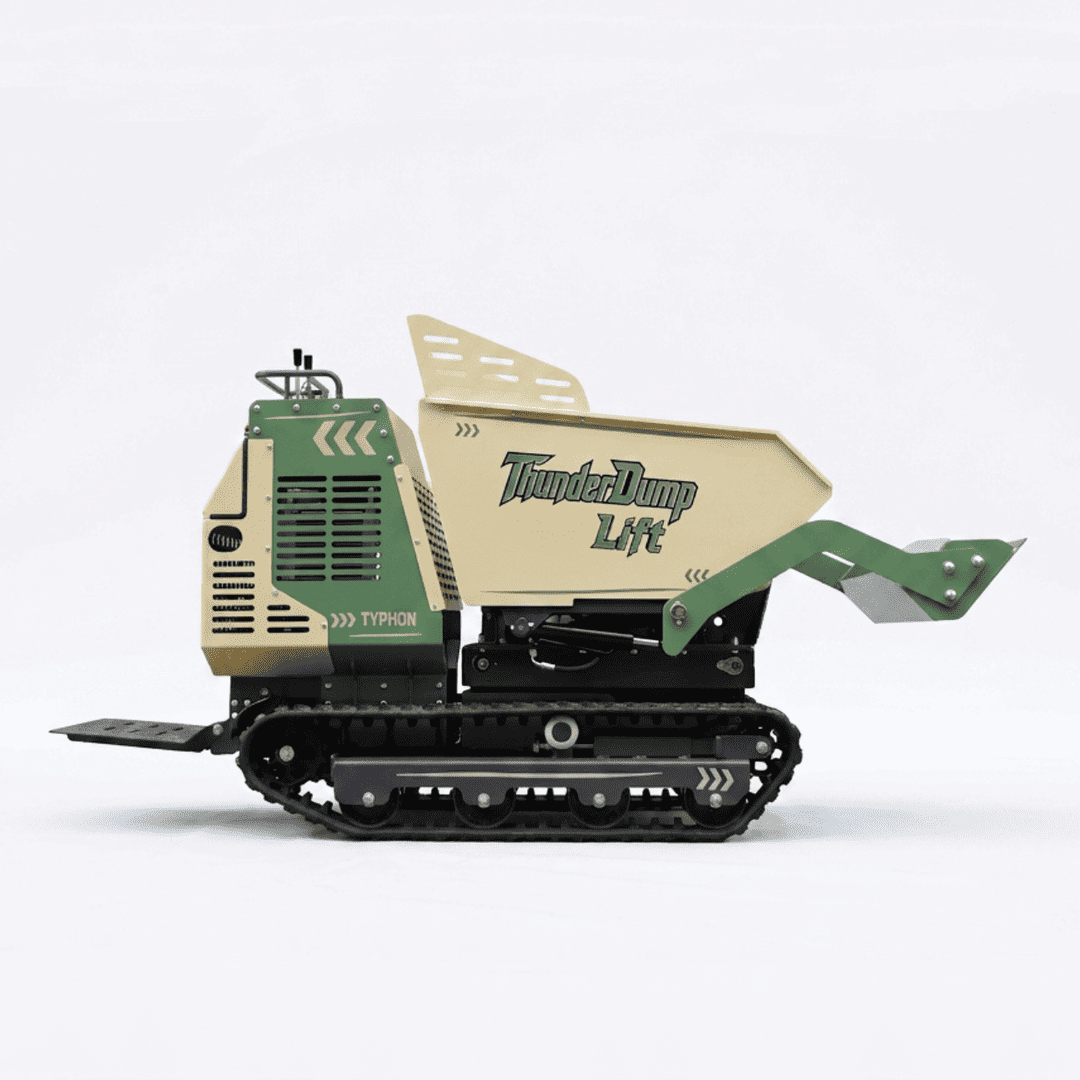

At just 1,940 lb, the machine strikes a smart balance between a solid, stable build and easy maneuverability. Its 98.4 × 35.4 × 61.4 in overall dimensions keep it compact enough to access tight jobsites and work confidently in spaces where larger equipment can’t go, helping you stay productive even in confined areas.
2. Reliable Power for Heavy Work

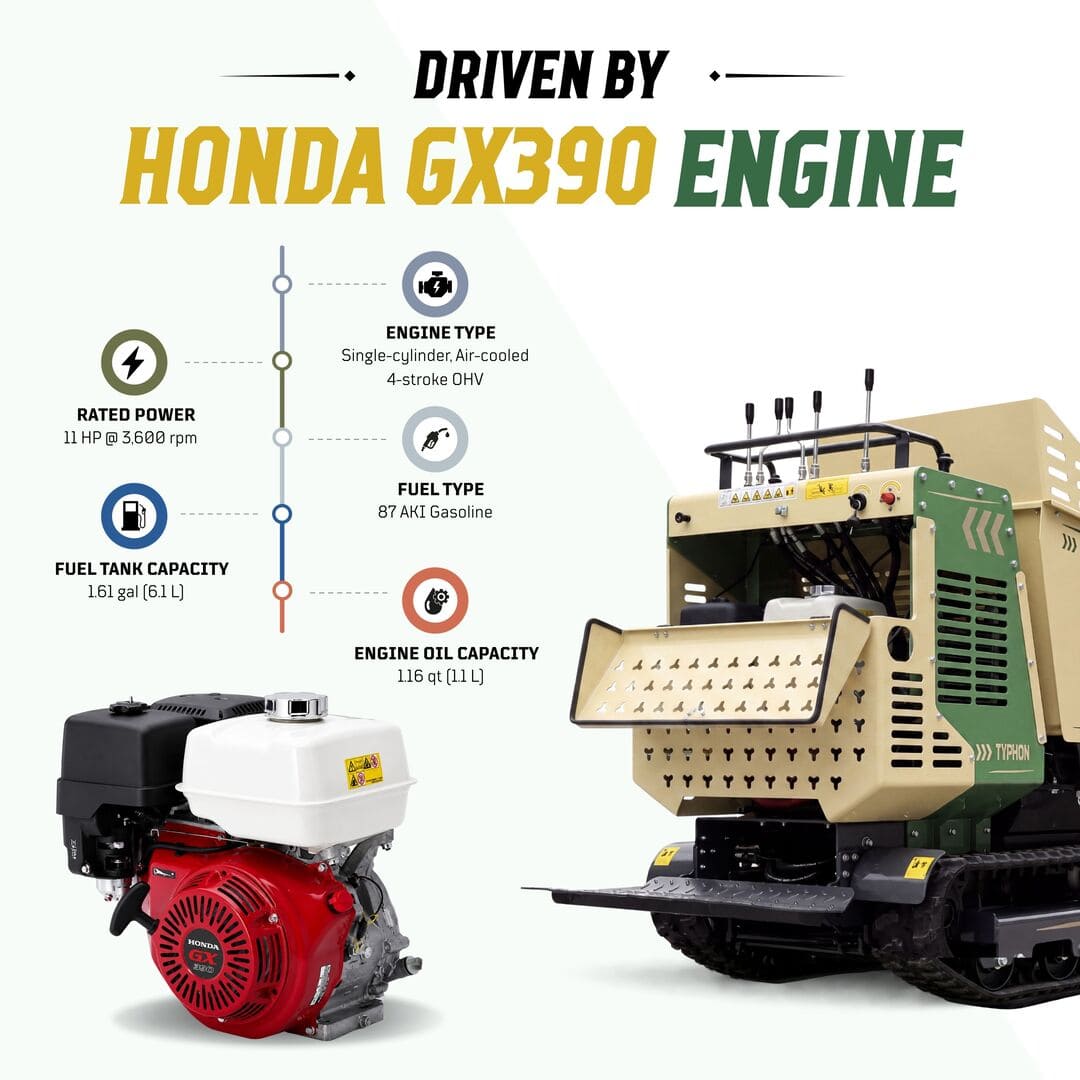

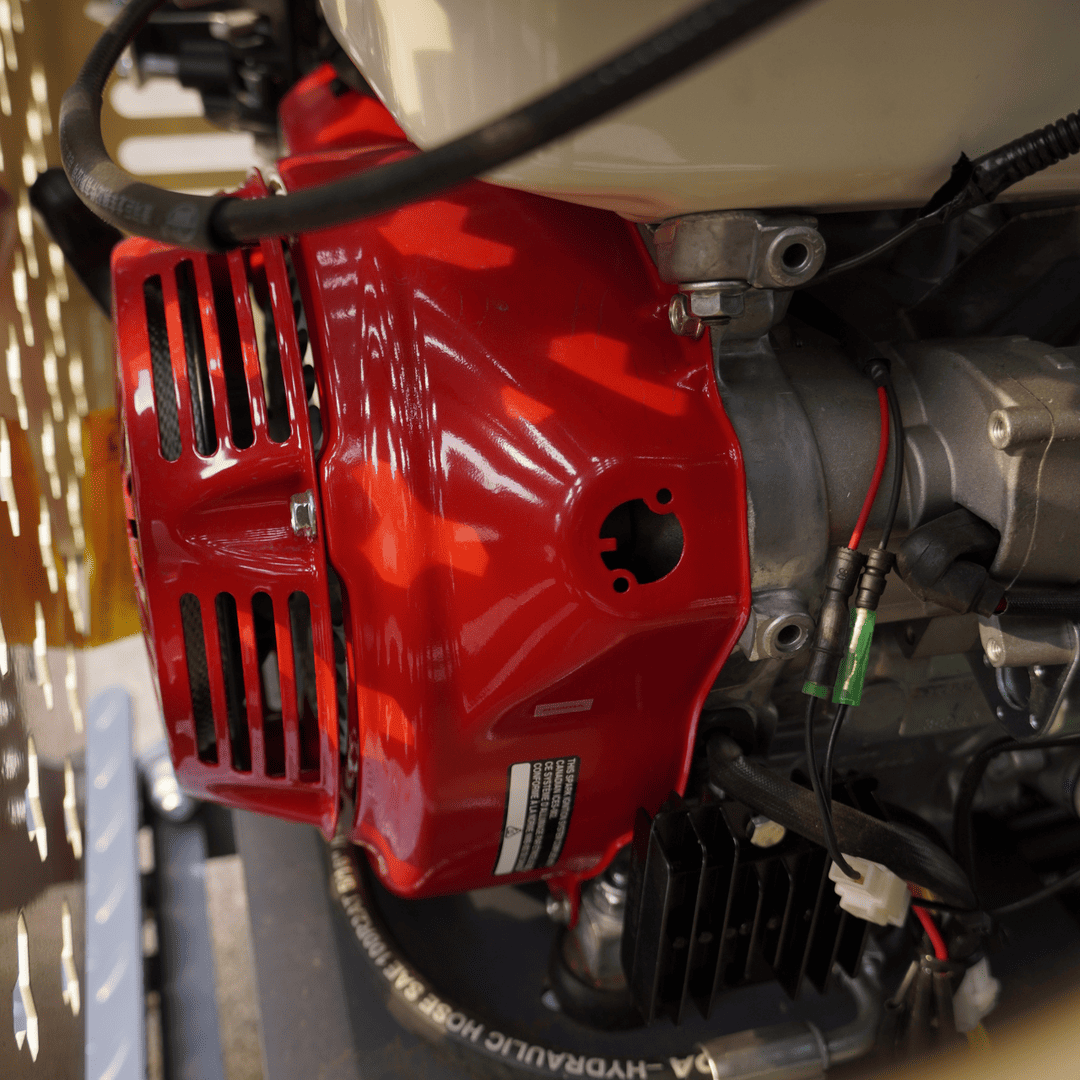

- Honda GX390 Engine: Powered by the trusted Honda GX390, a 389 cc single-cylinder, air-cooled engine producing 8.7 kW (11.7 hp) at 3,600 rpm for steady, dependable performance and reliable power for moving heavy loads and operating the hydraulic system.
- 92 RON (Approx. 87AKI) Gasoline: runs on widely available fuel, keeping refills quick and convenient wherever you work.
- Good-Sized Fuel Tank: 6L (1.6 gal) supports extended runtime between top-ups so you spend more time working and less time refueling.

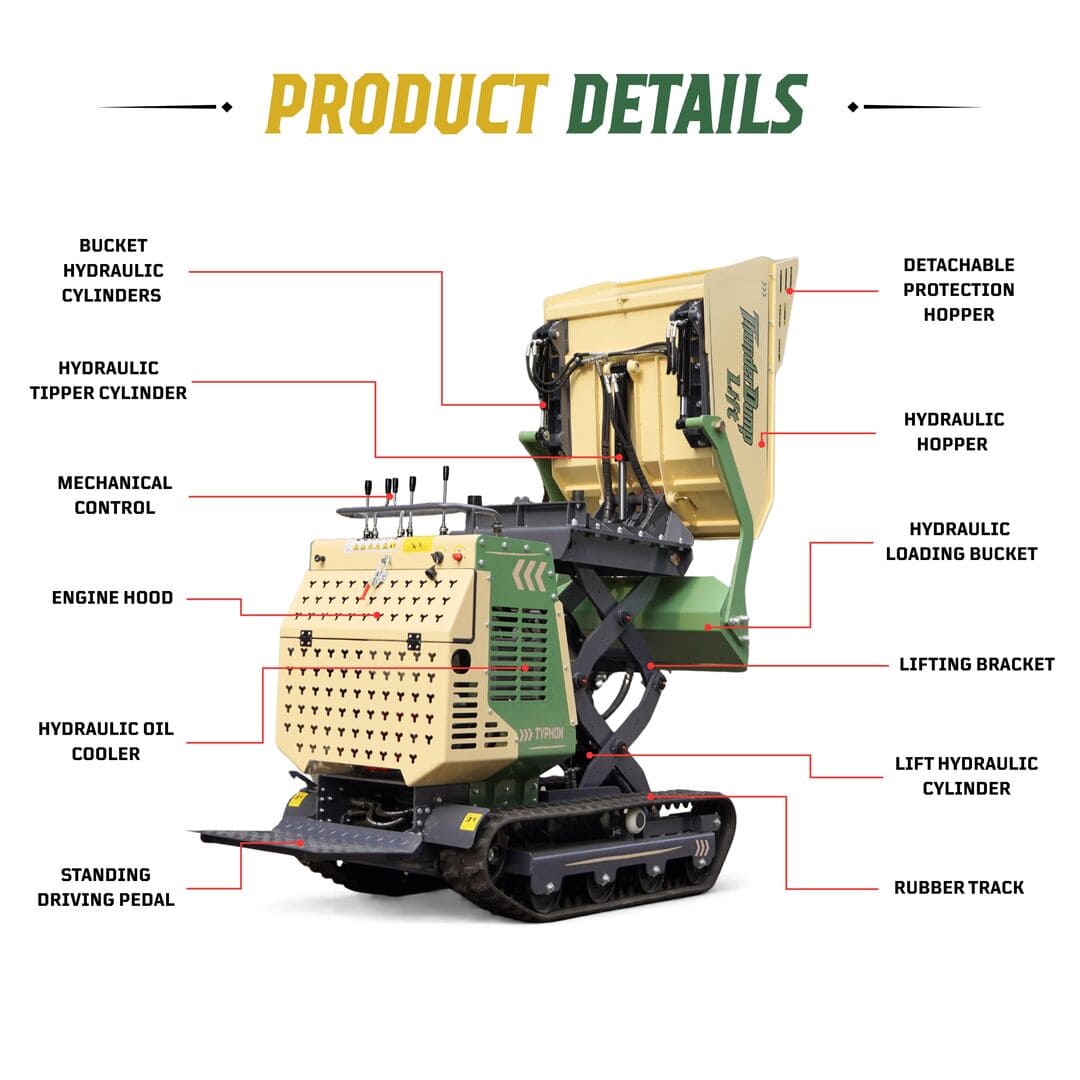

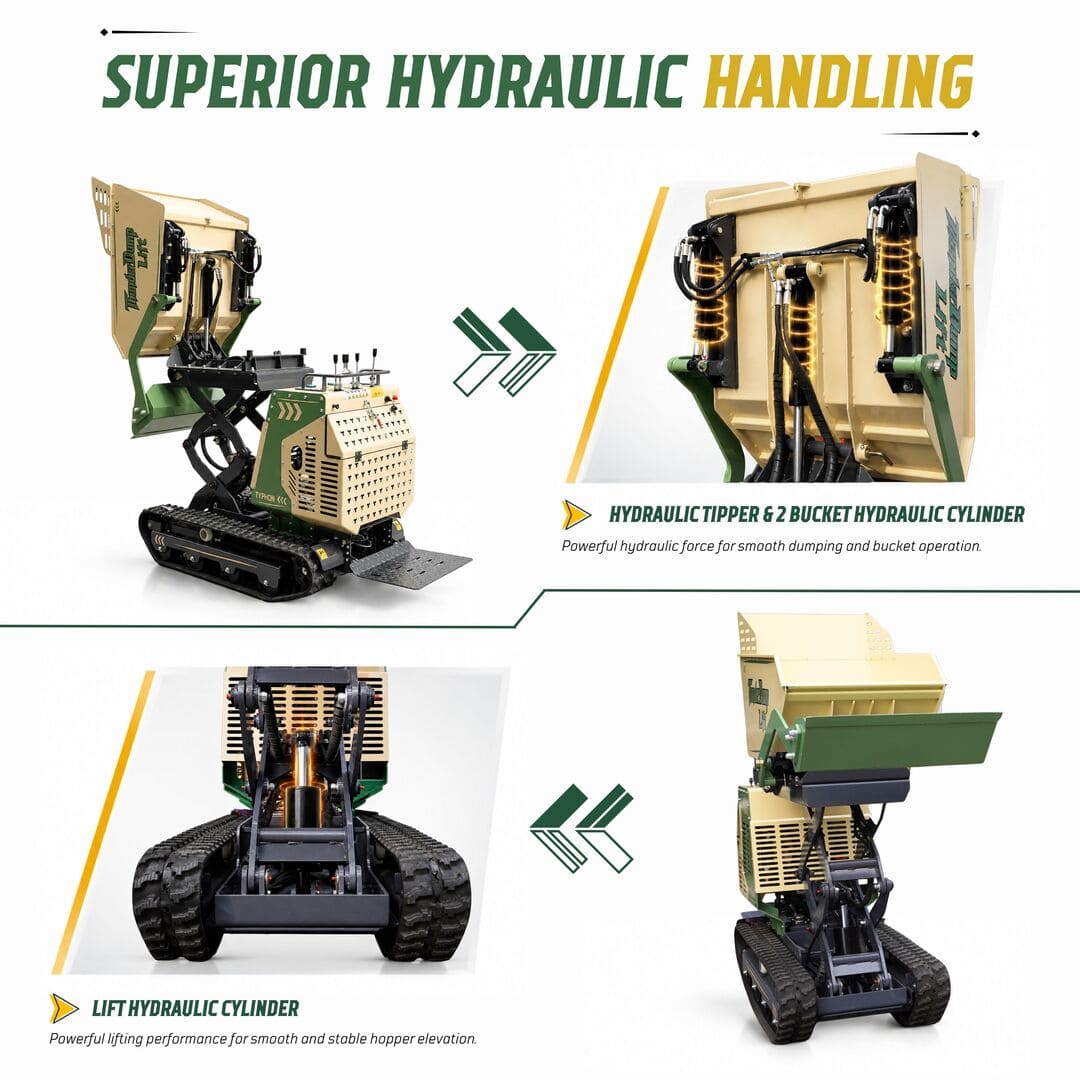

3. Precision Hydraulic Load Handling

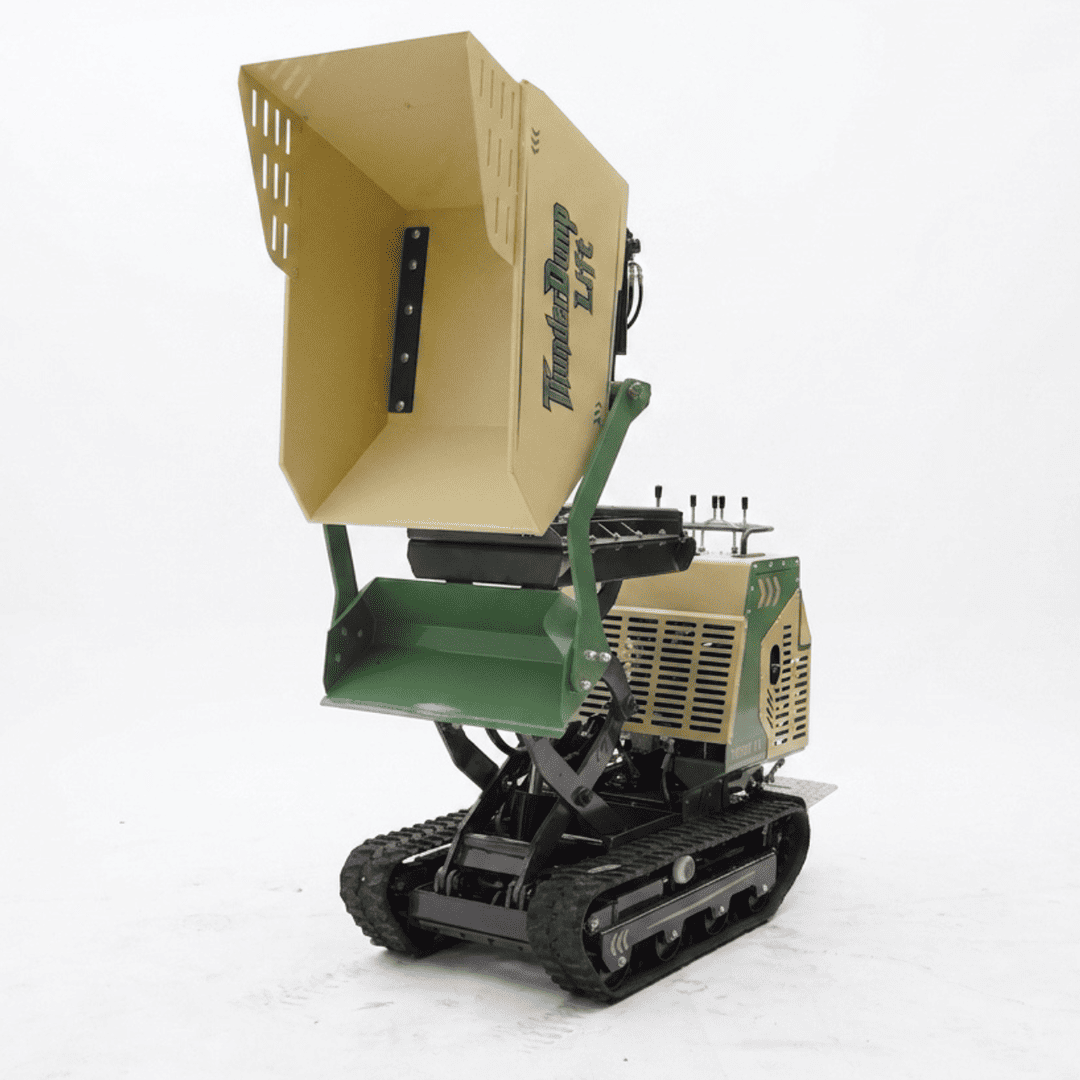

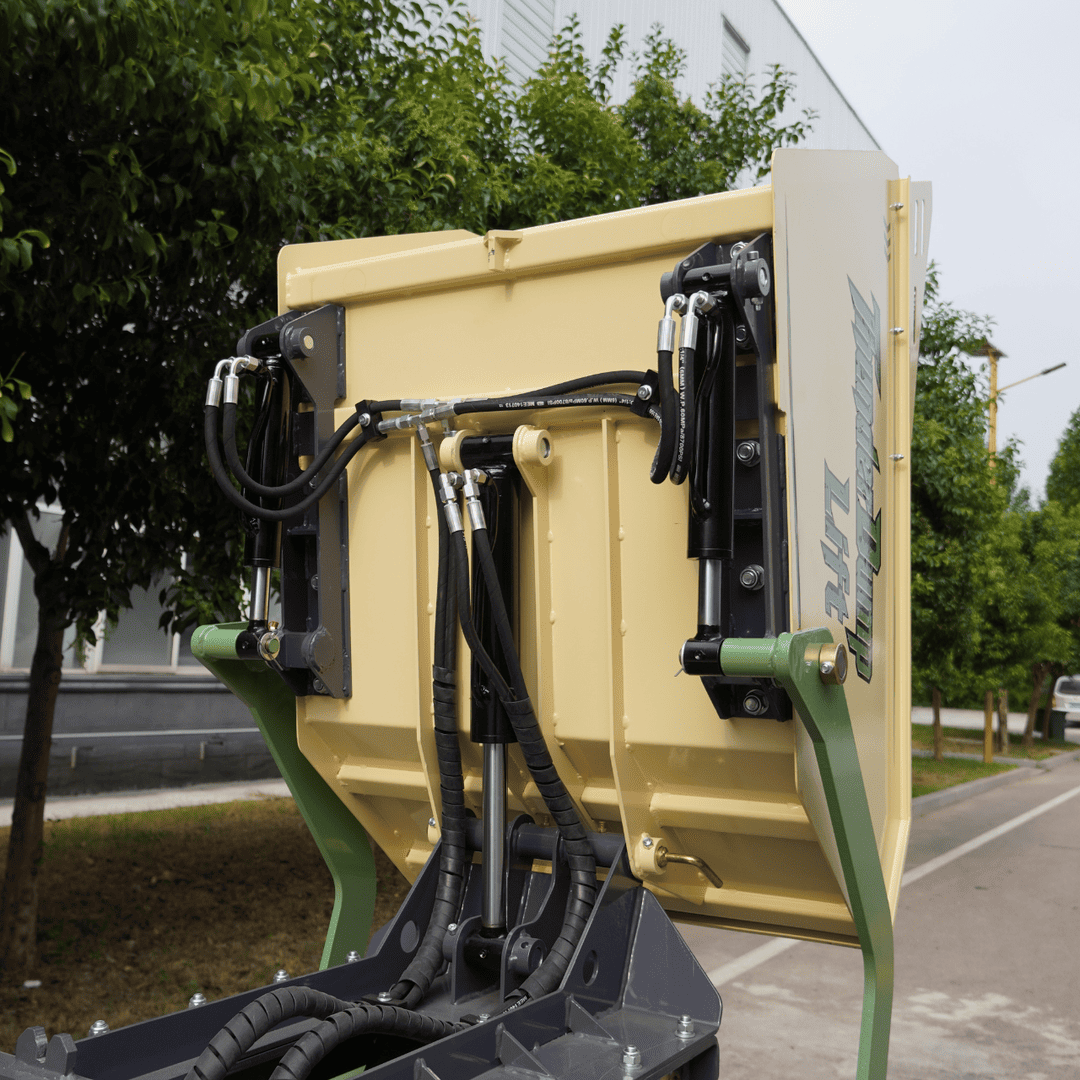

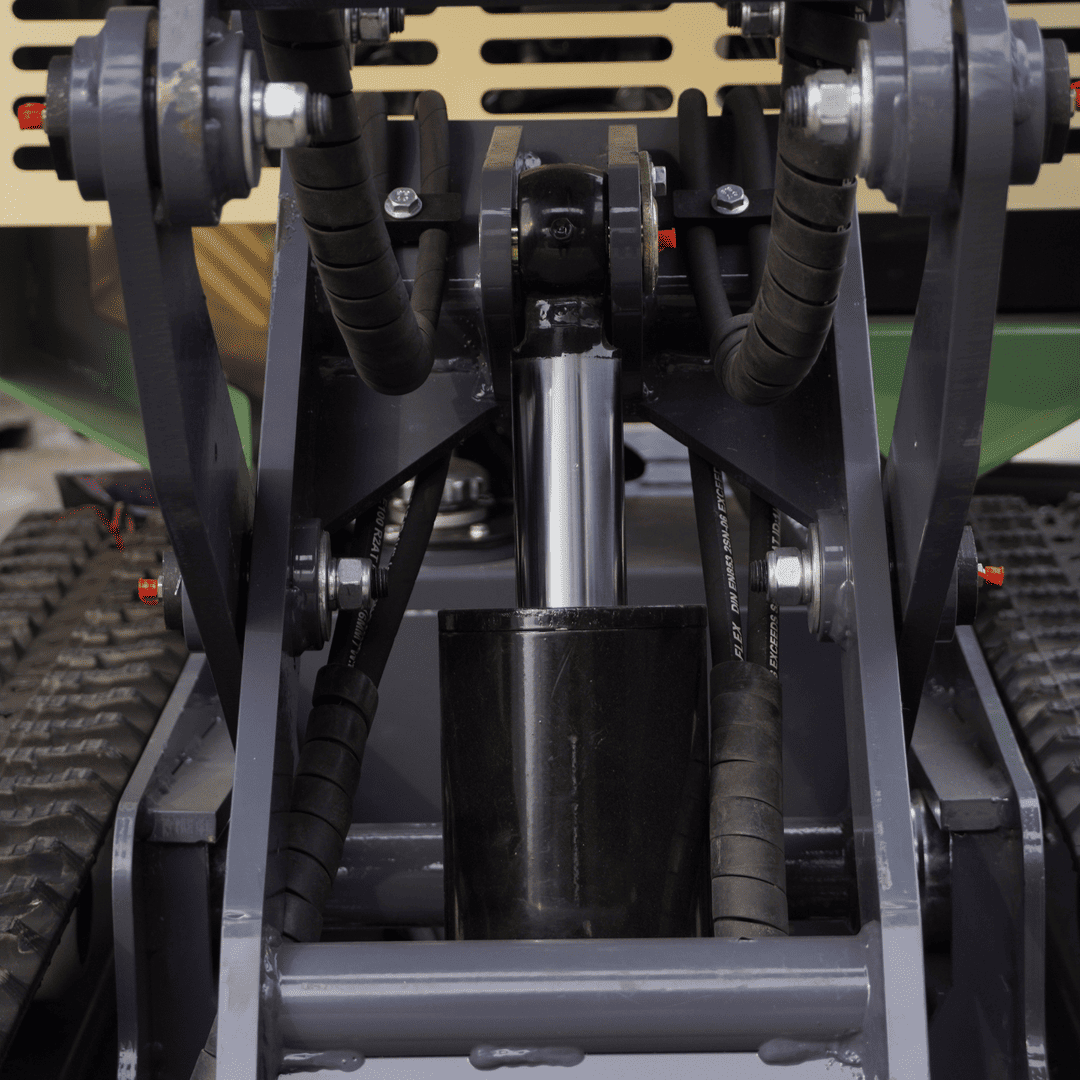

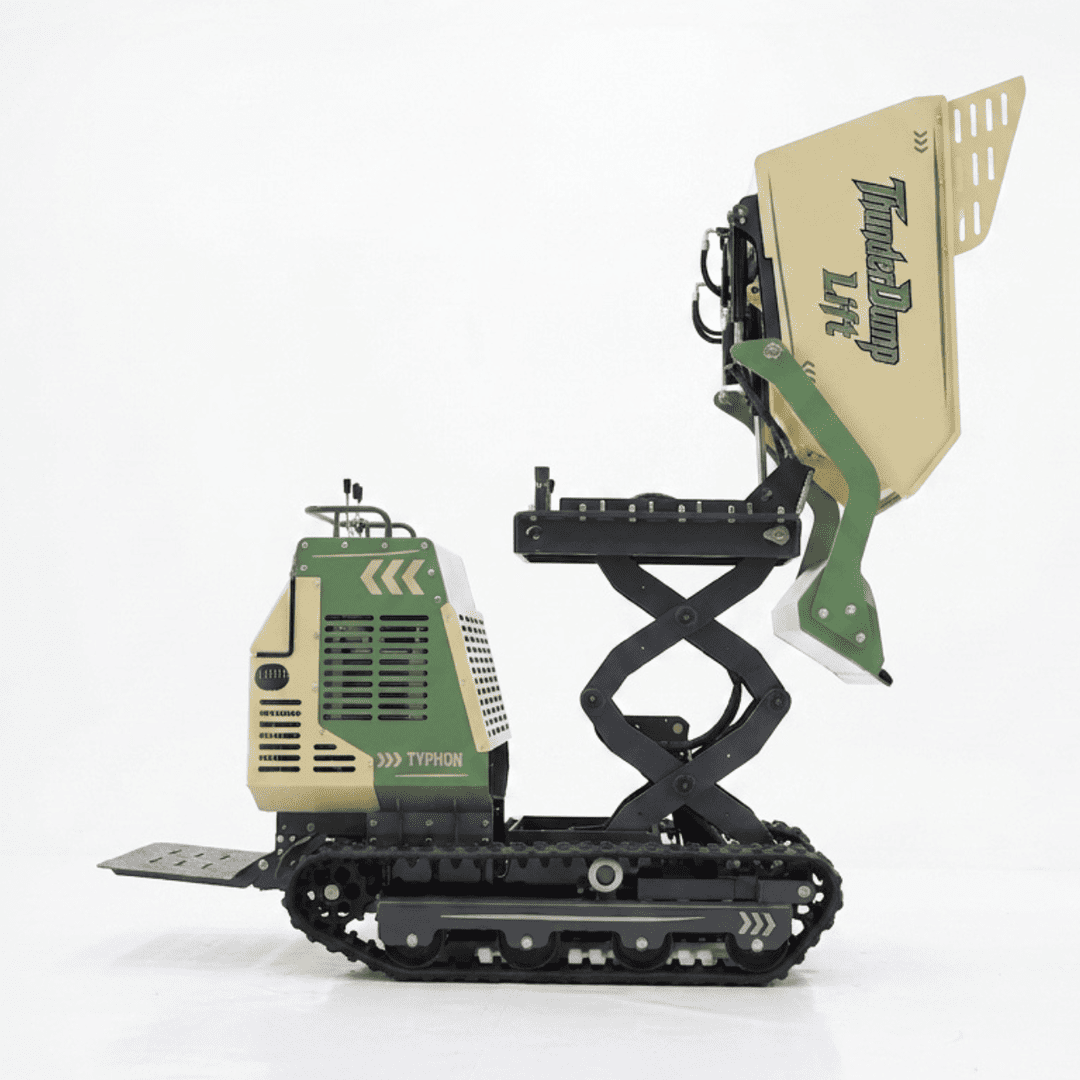

- Hydraulic Dumping: the hydraulic system raises the Hopper to unload material efficiently, with a 90° dumping angle for controlled discharge.
- Load Capacity: handles up to 1,000kg (2,205 lb) of material, making it suitable for demanding hauling tasks on construction and landscaping jobsites.

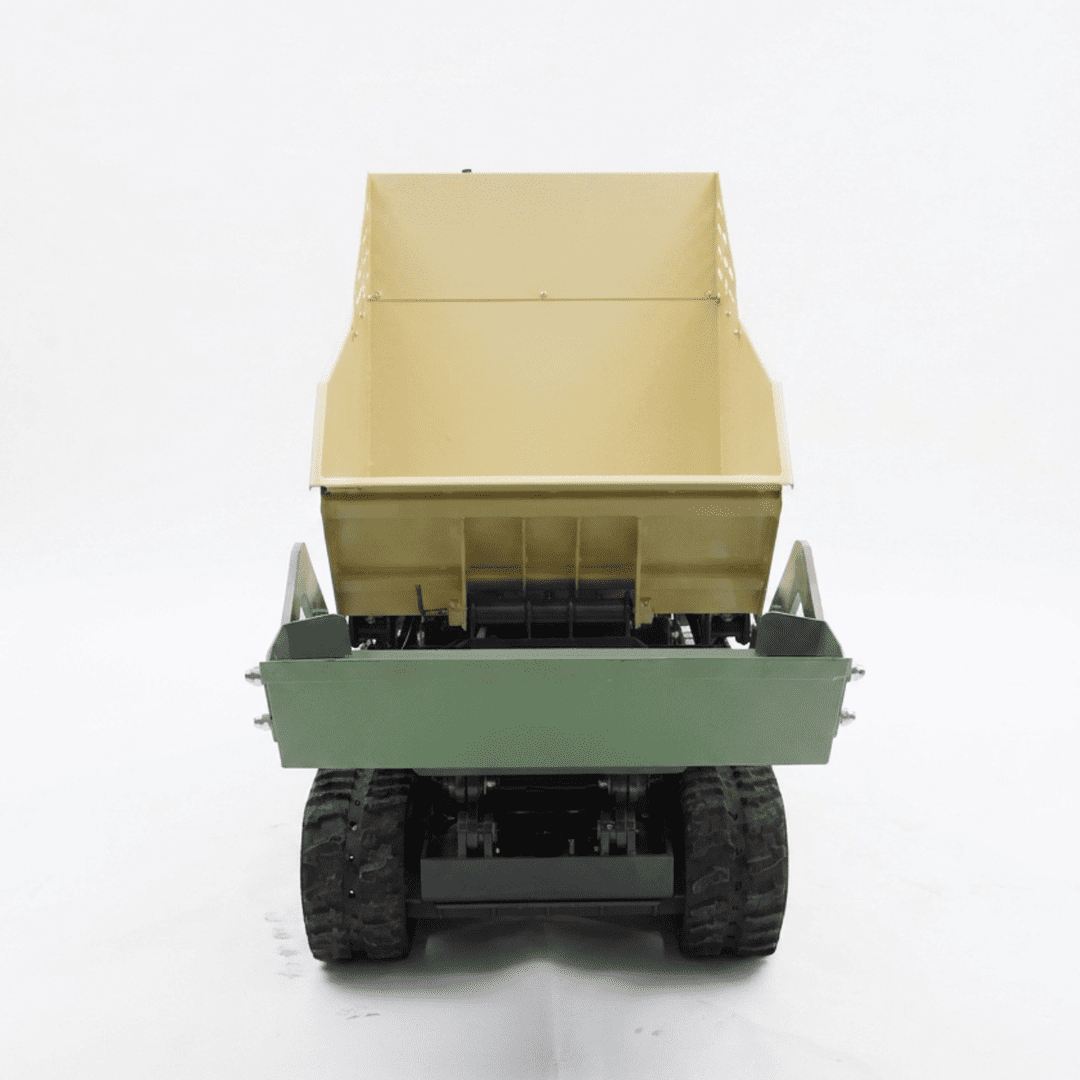

- Hopper Capacity: with 450dm³ (15.9 ft³) provides practical space for transporting soil, gravel, debris, and other materials.

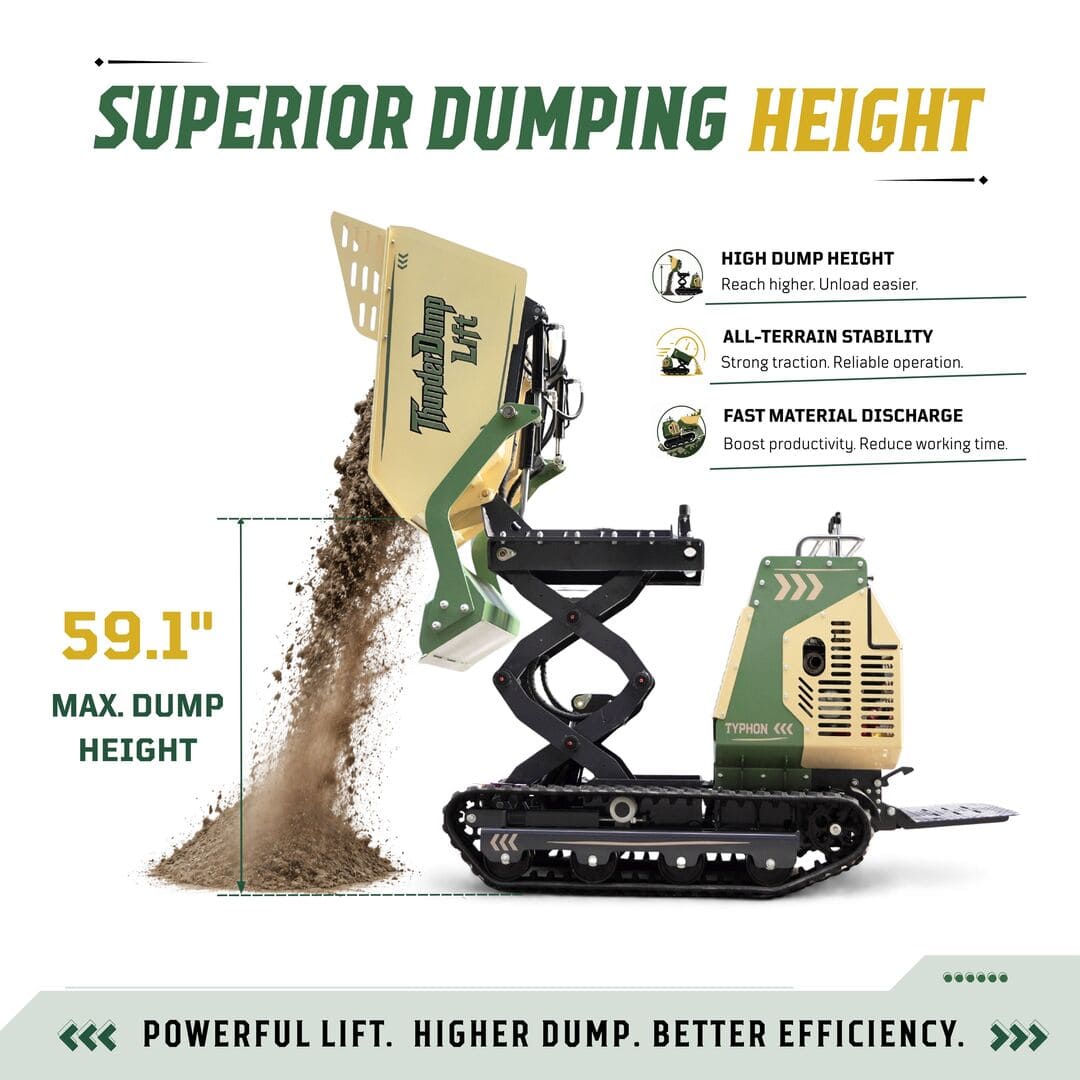

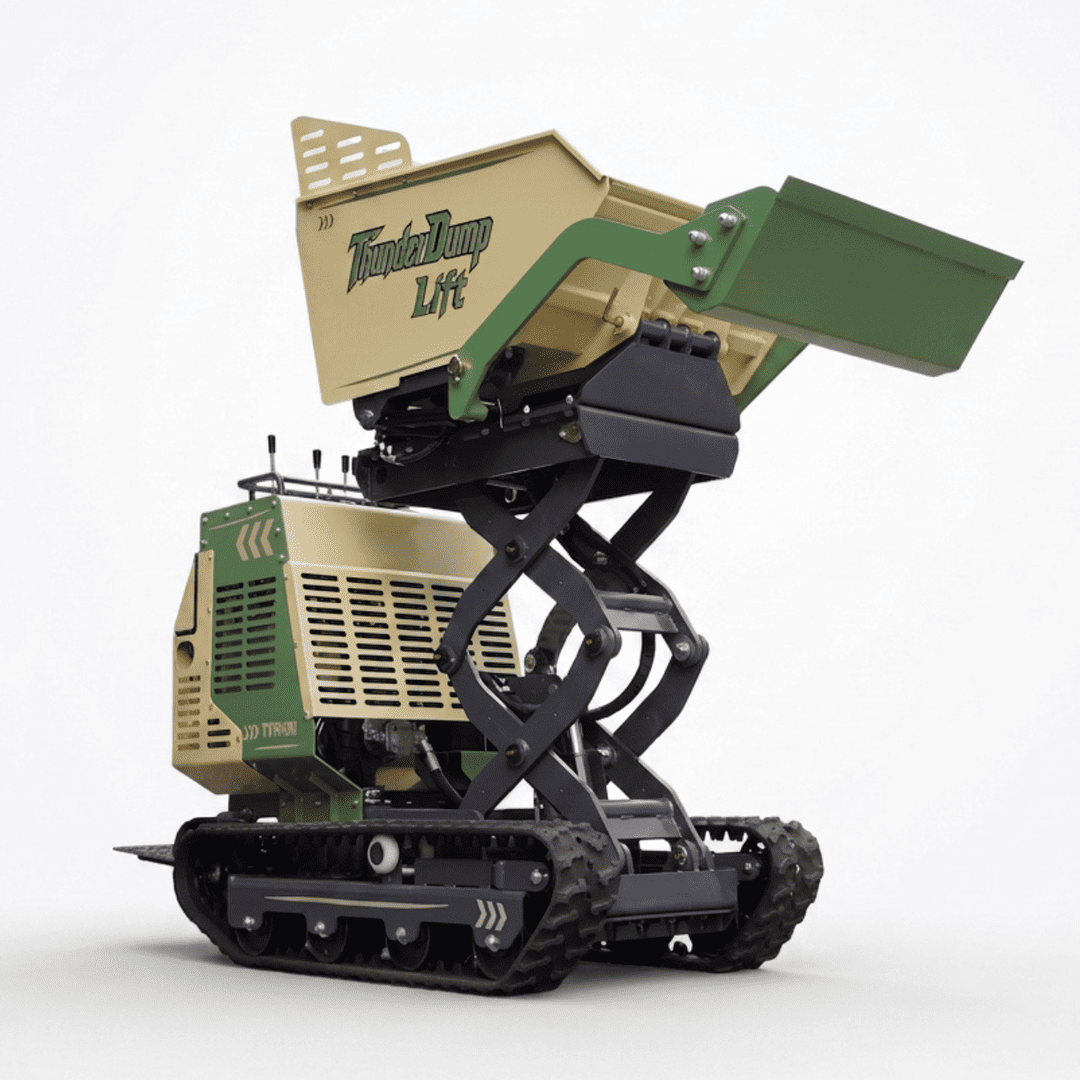

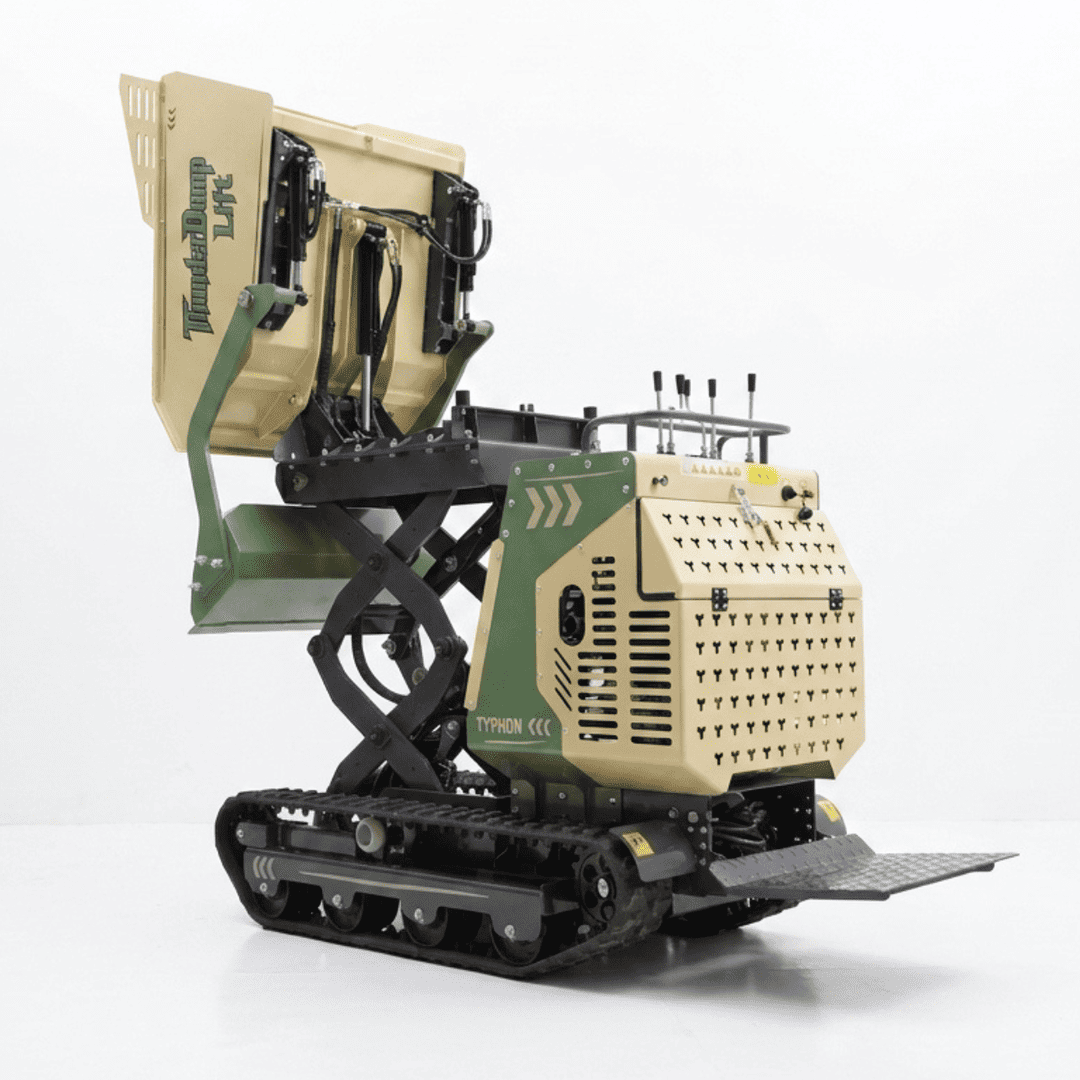

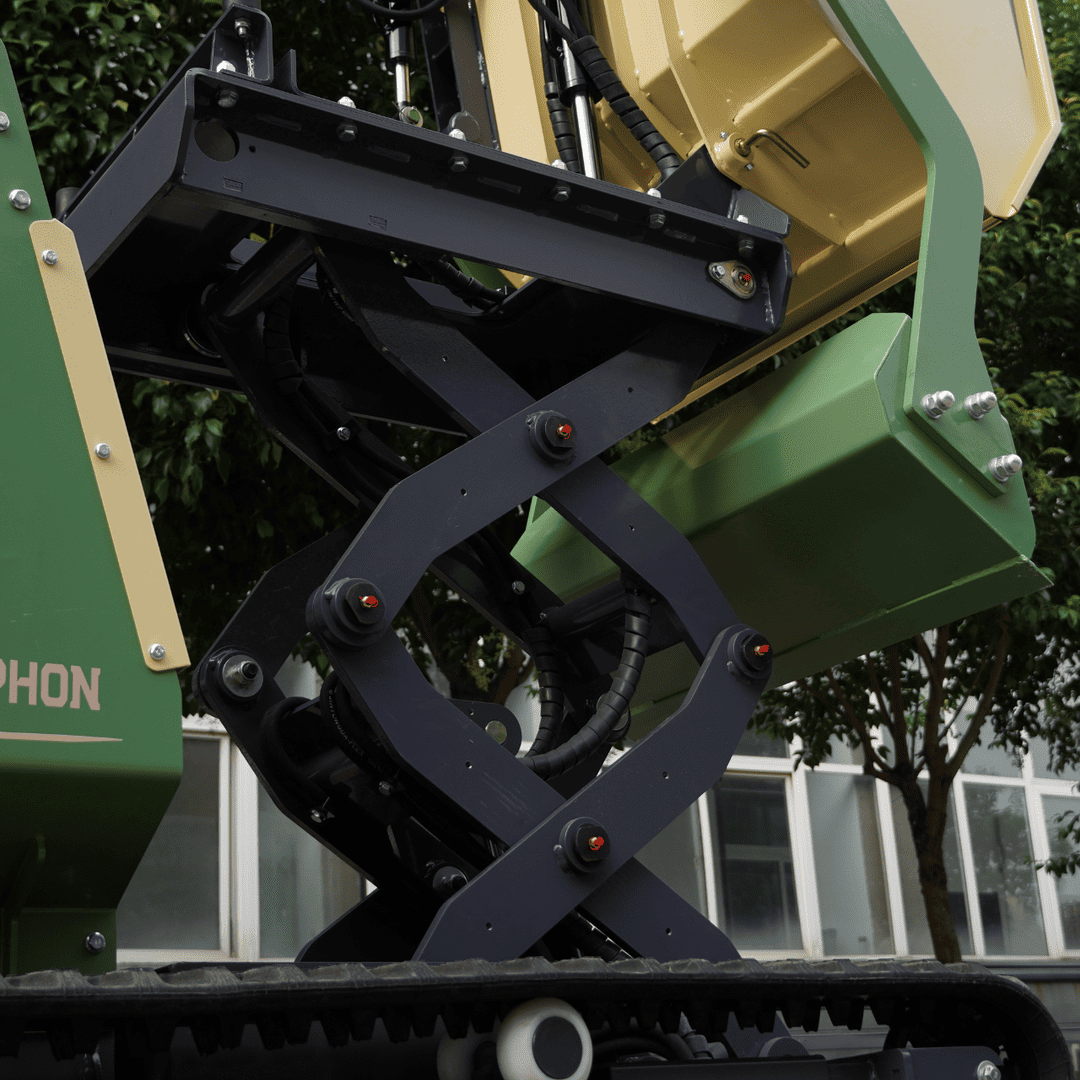

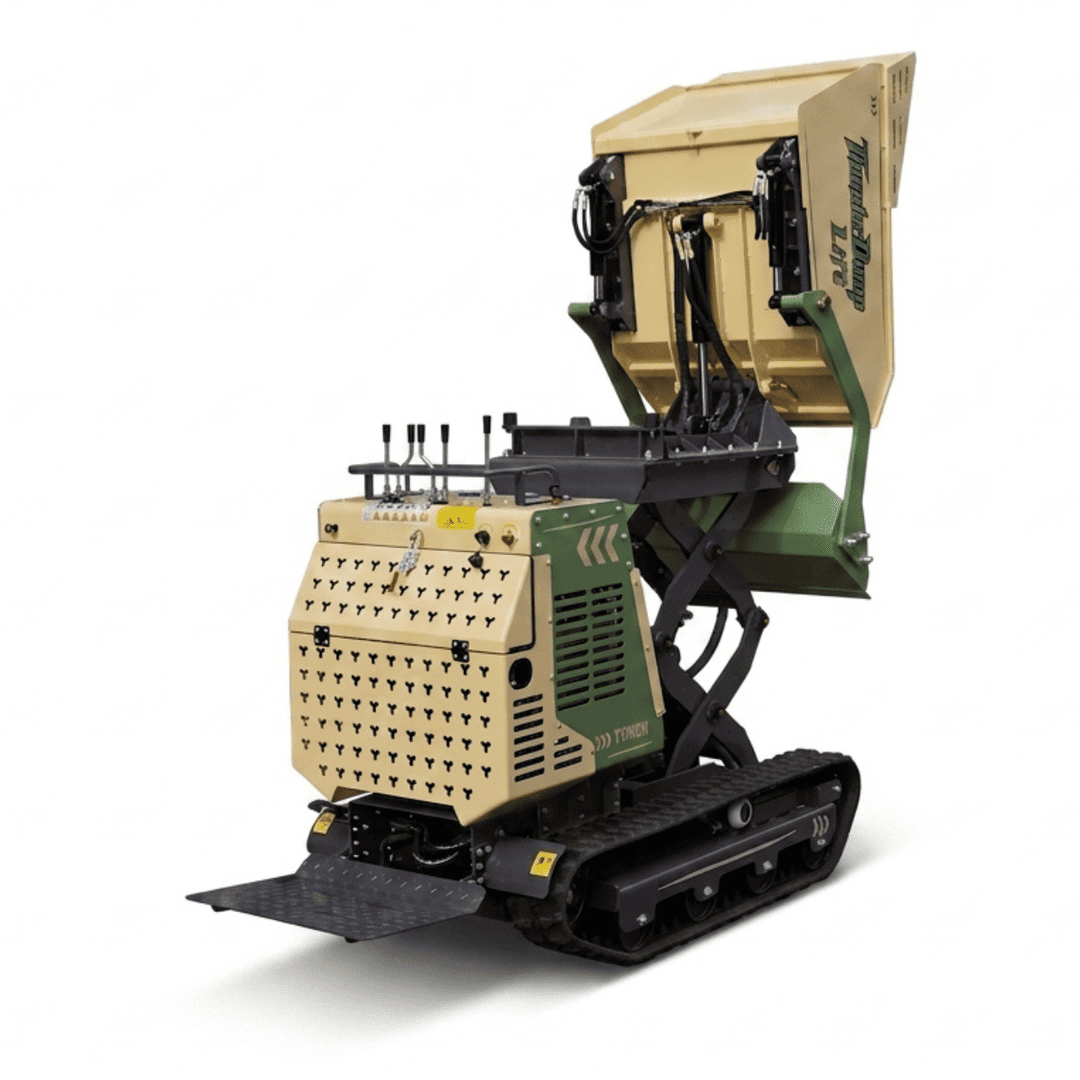

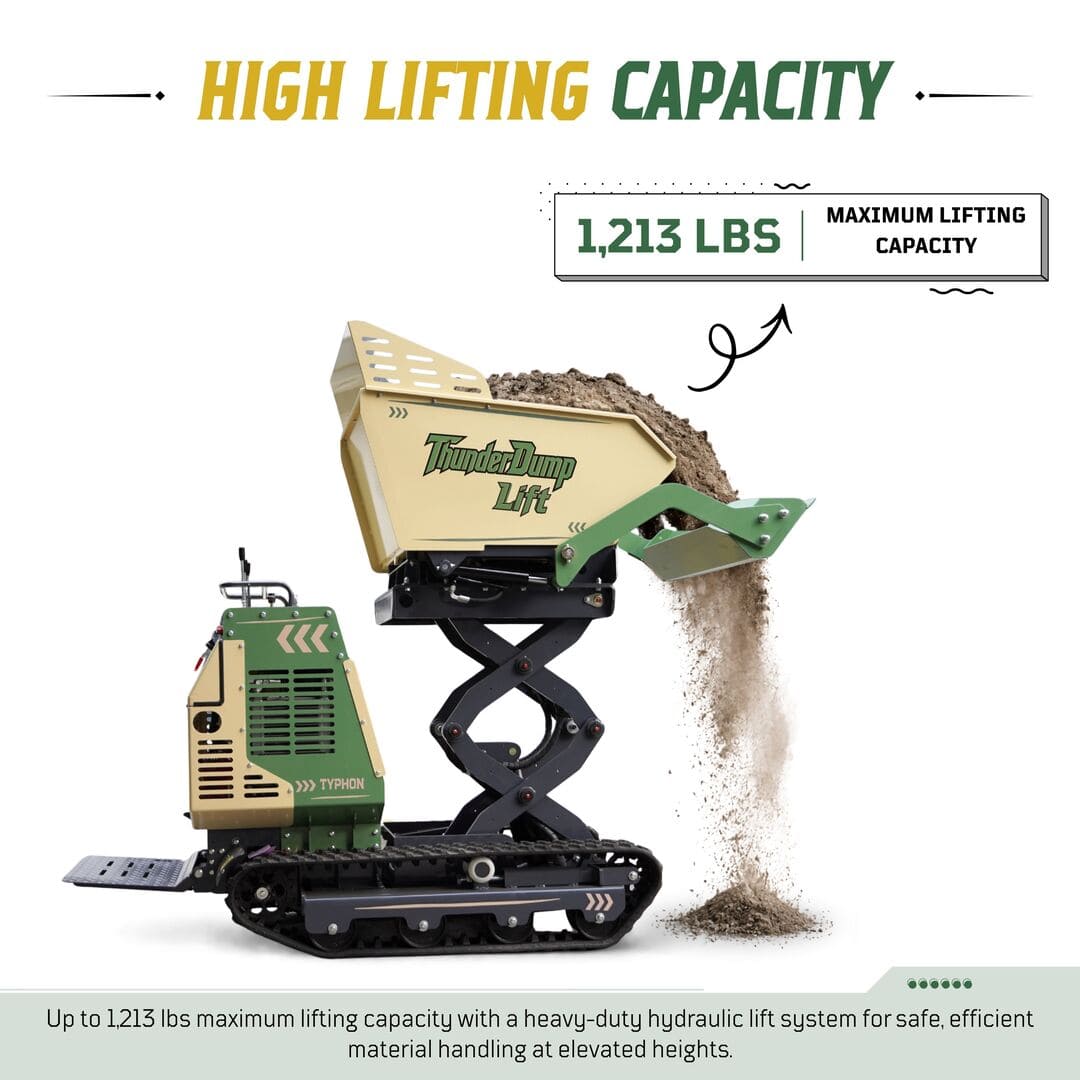

- Lifting and Dump Performance: Raises the hopper to a maximum lifting height of 1,500 mm (59.1 in), giving the machine the clearance needed for elevated material transfer. It also provides a 1,300 mm (51.2 in) dumping clearance height and 300 mm (11.8 in) dumping reach for controlled discharge.

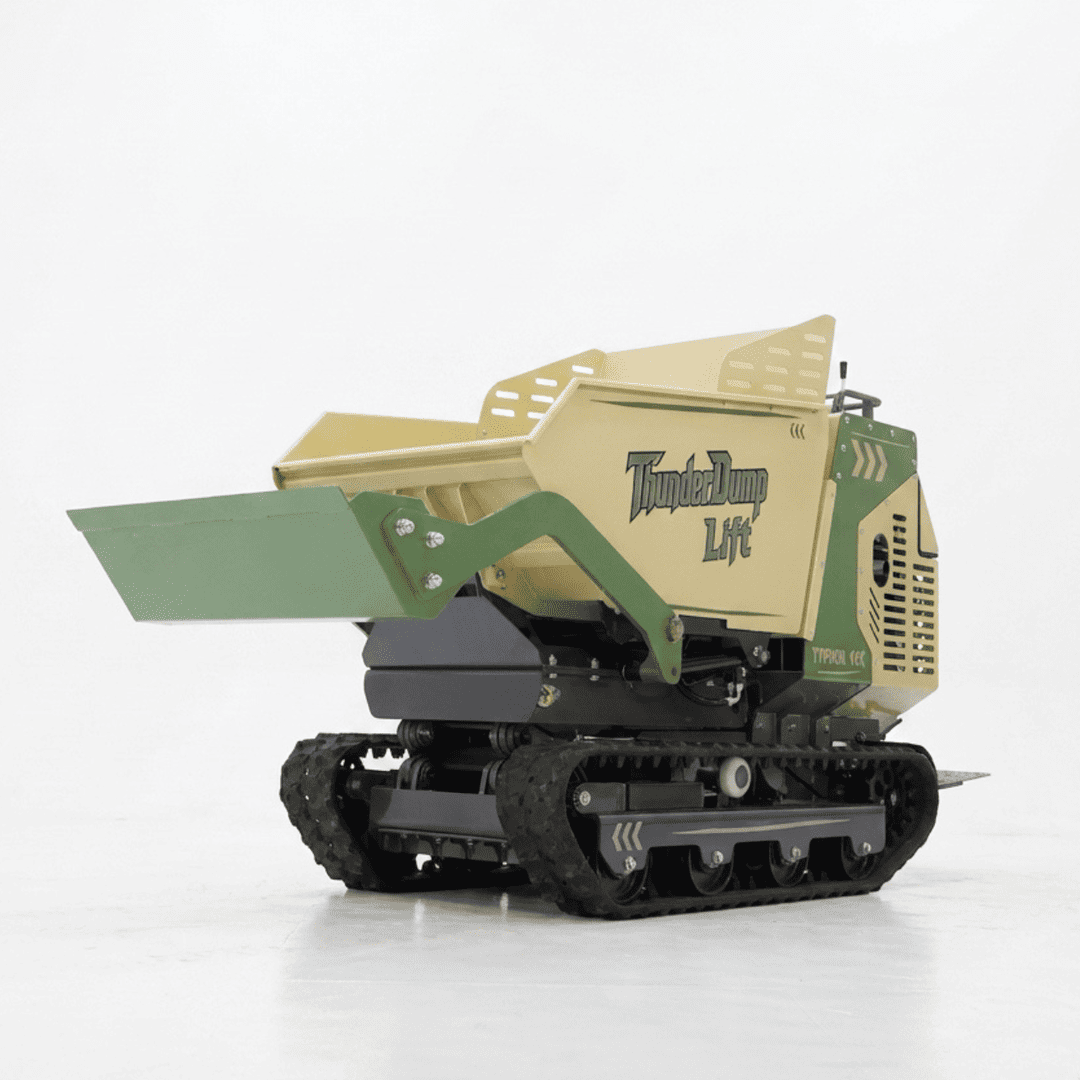

- Hydraulic Loading Bucket: Scoops and lifts soil, gravel, debris, and other materials directly into the Hopper for faster and more efficient loading.
4. All-Terrain Mobility and Stability
This material carrier is built to go where the work takes it and stay steady once it arrives. A travel speed of 5 km/h (3.1 mph) allows efficient movement between work areas, while 20° gradeability helps the machine handle slopes and ramps with confident control.
Its 1,300mm (51.2in) minimum turning radius and compact 850mm (33.5in) chassis width make repositioning easier in cramped quarters. 110 mm(4.3in) of chassis ground clearance helps the machine move over uneven terrain, and 1,000mm (39.4in) track ground contact length provides a stable footprint during loaded travel.

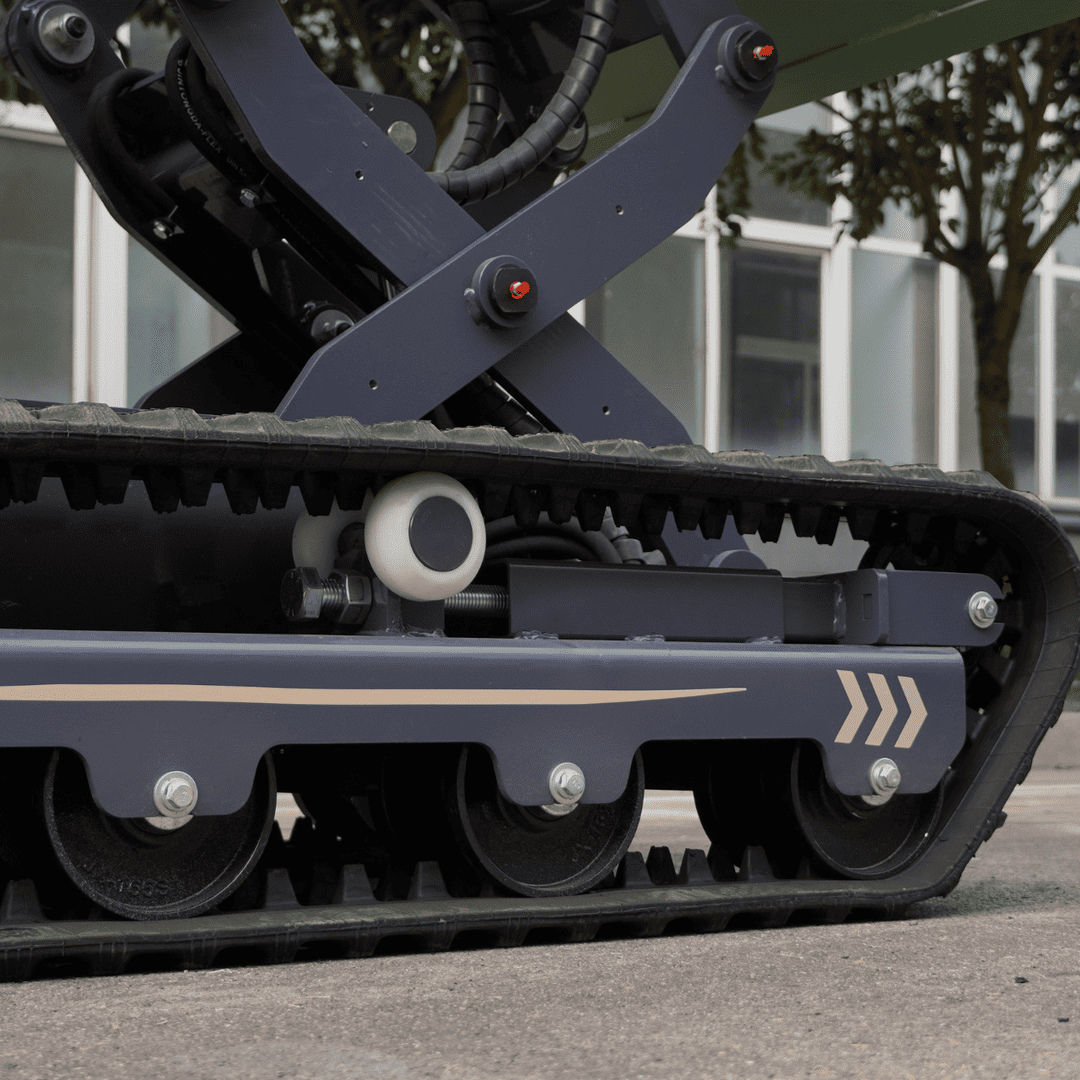

This material carrier uses rubber tracks for stable traction and smooth travel across uneven terrain. They also help reduce ground disturbance during operation.
Ready to Get to Work?
The ThunderDump Lift delivers reliable hauling, lifting, and dumping performance in a compact package built for tight jobsites. Built to handle demanding material transport where space is limited. Order yours today!!
