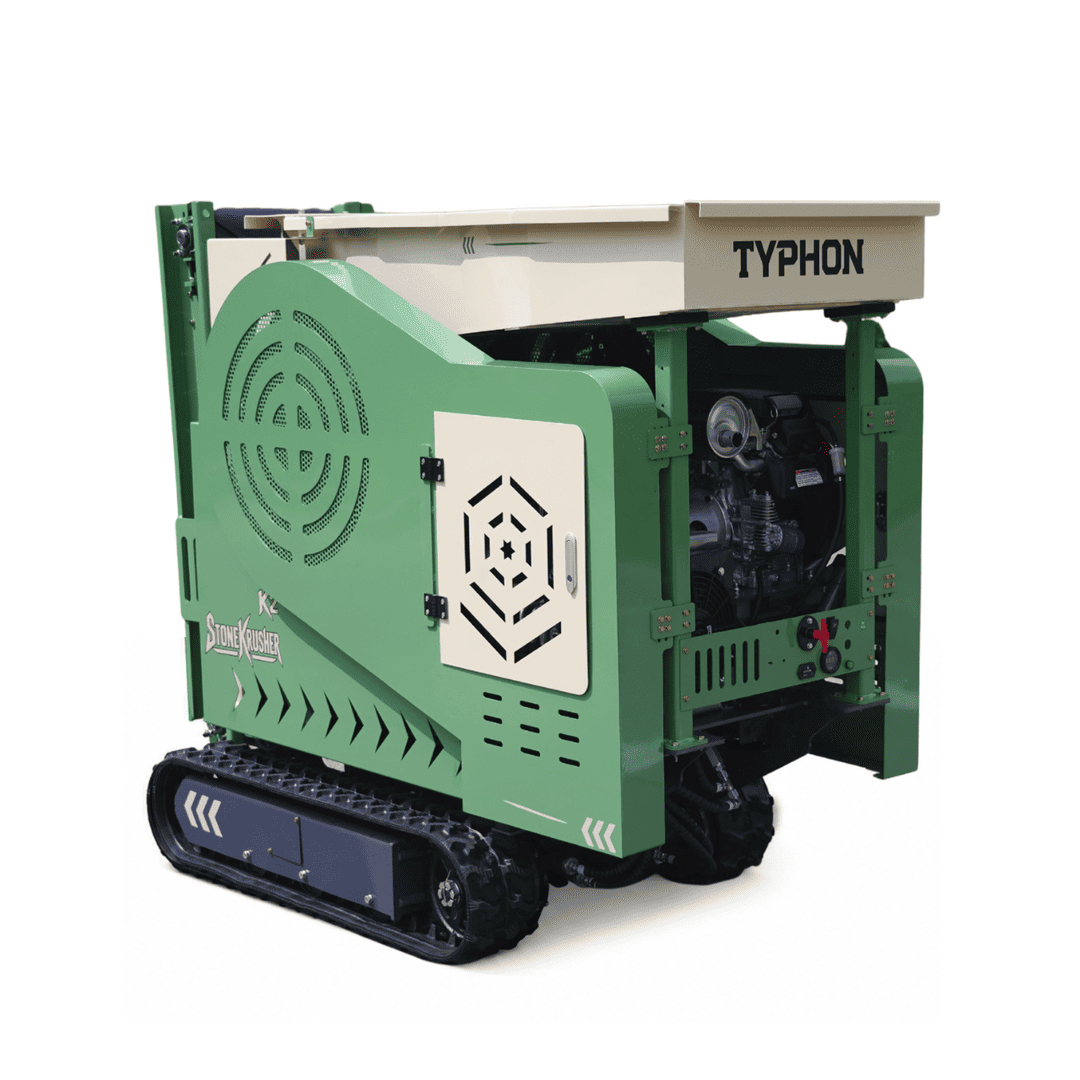

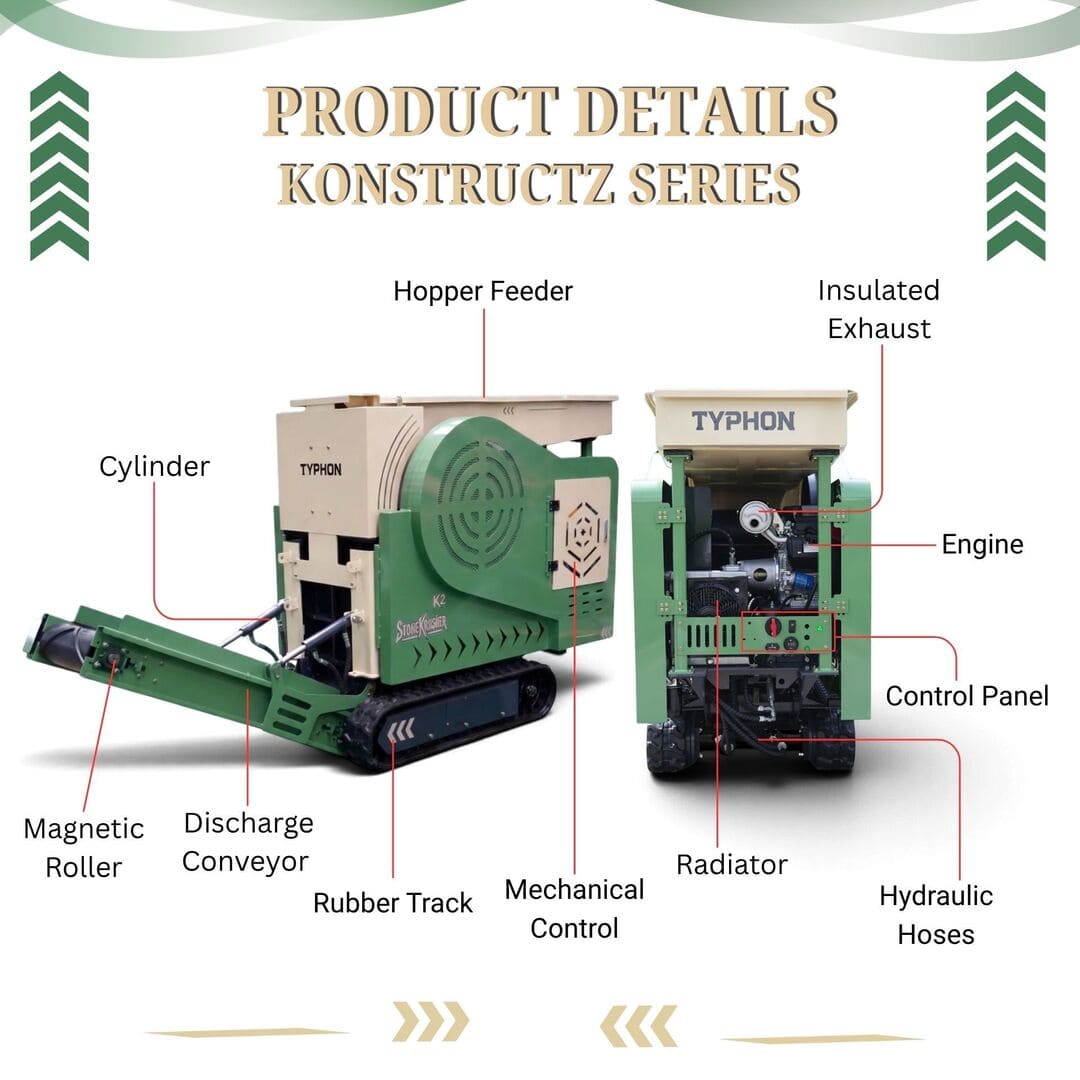

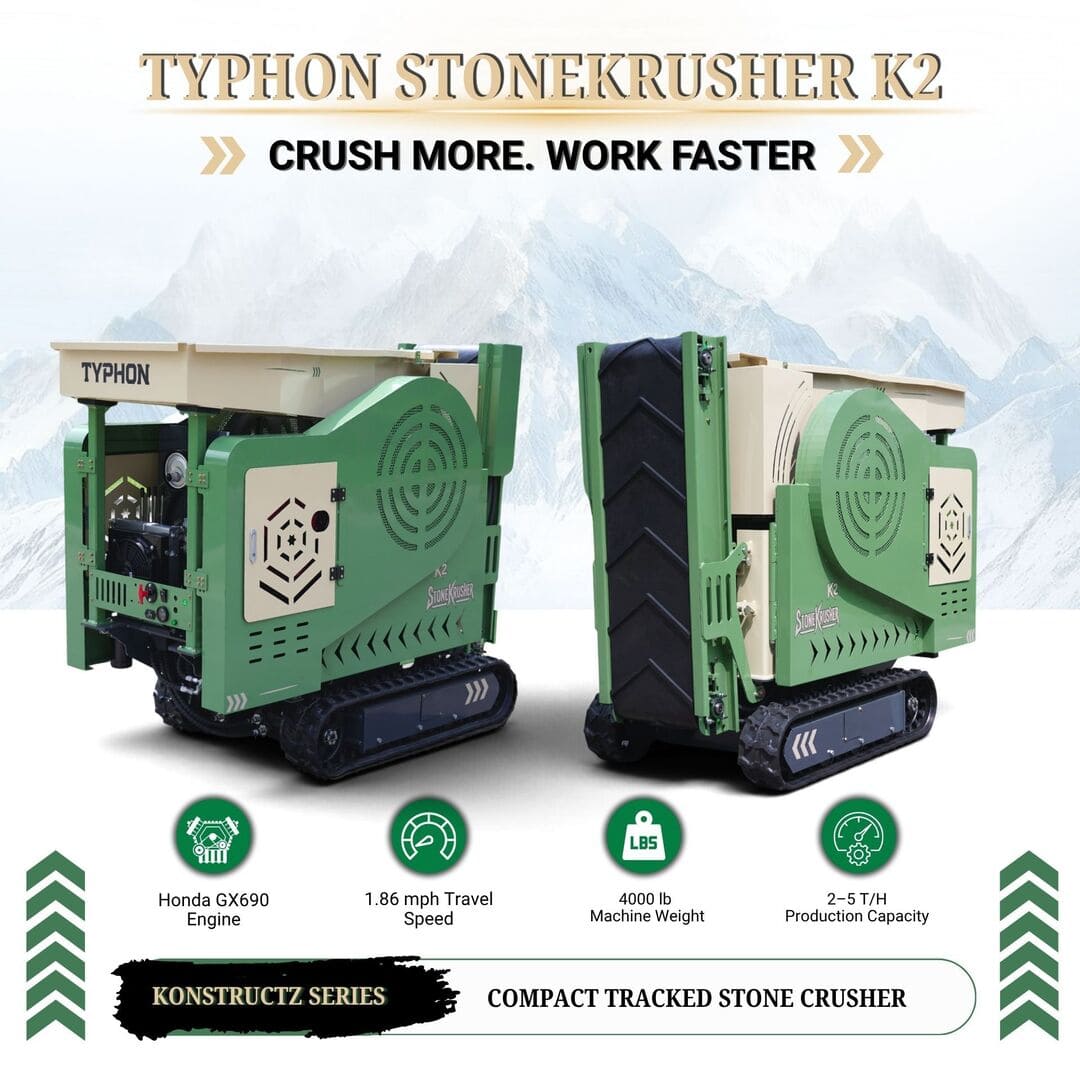

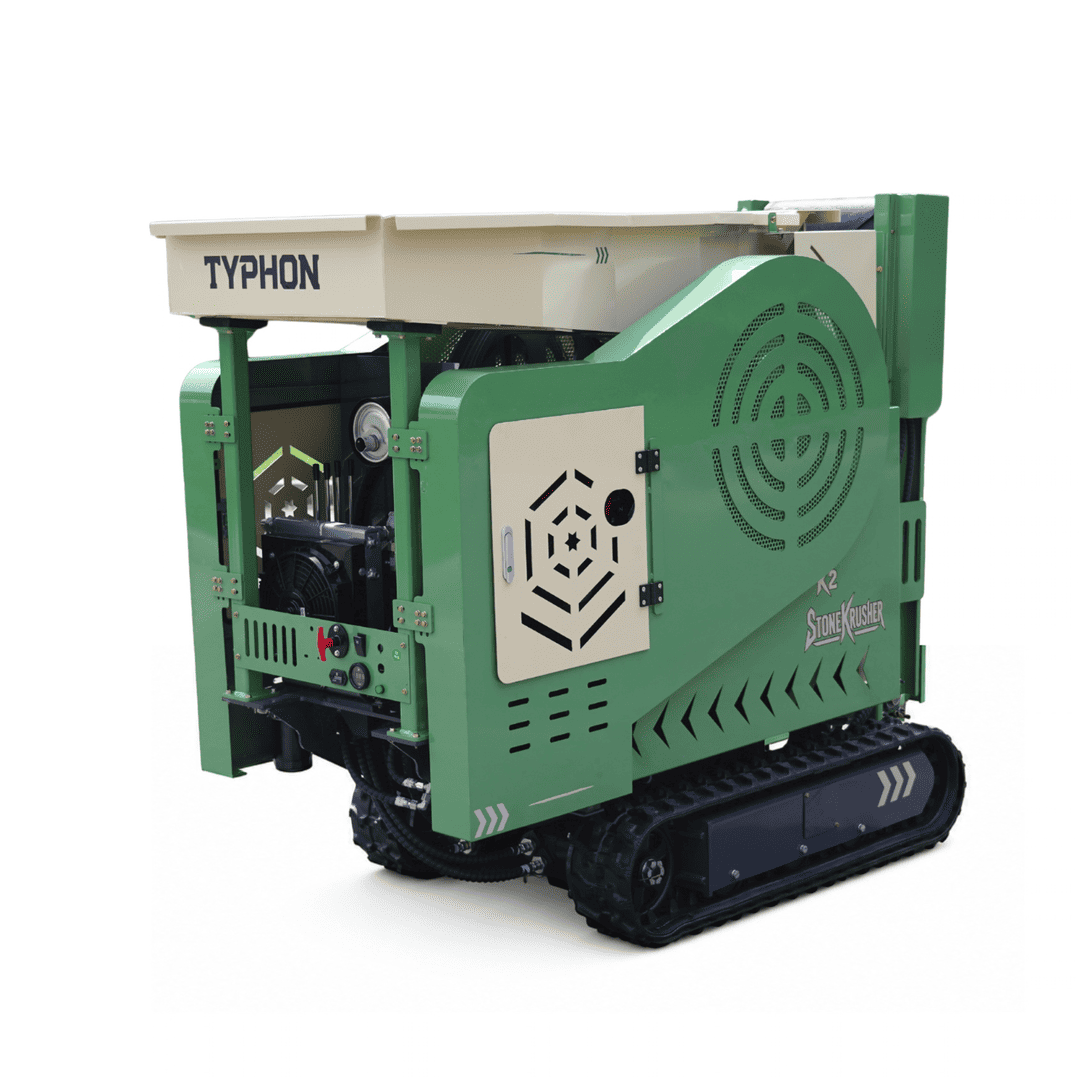

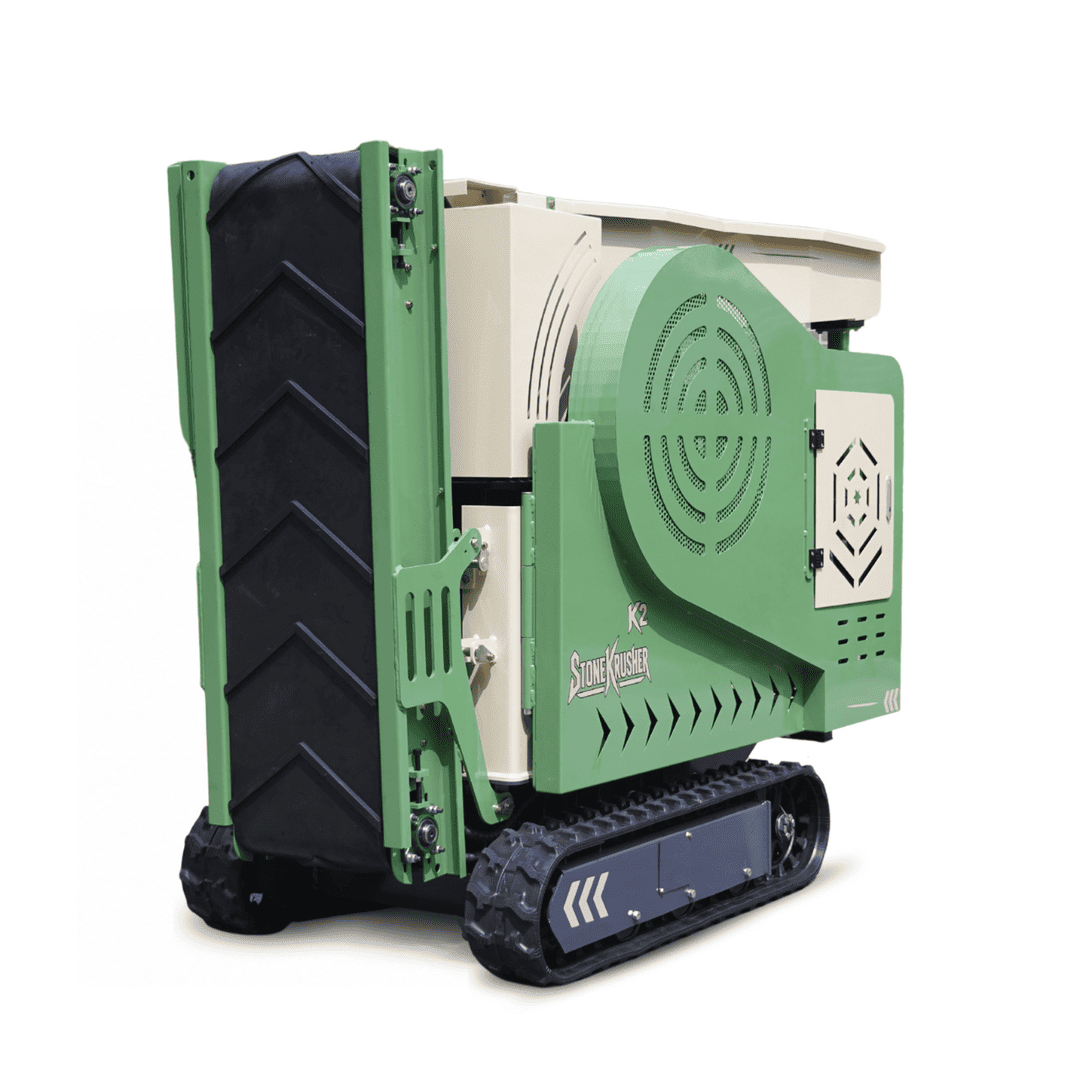

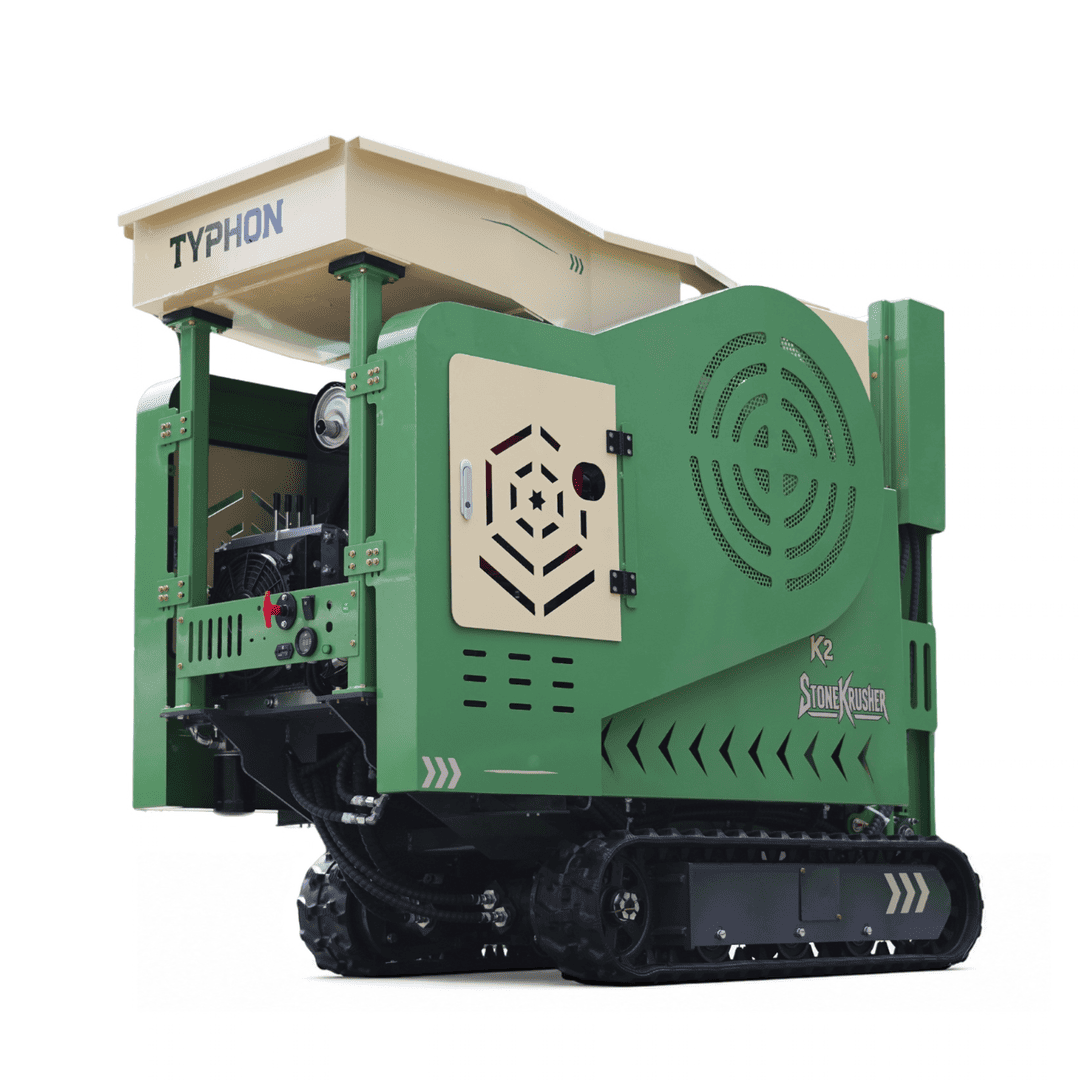

The TYPHON STONEKRUSHER K2 – Konstructz Series is a compact tracked jaw crusher engineered to bring crushing capability directly to the jobsite. Combining a Honda GX690 gasoline engine, hydraulic crawler drive, integrated conveyor, and adjustable crushing output, the K2 is built for contractors and operators who need a practical solution for processing rock, stone, concrete, and suitable construction materials.
With a production capacity of approximately 2–5 tons per hour, this compact mobile crusher delivers useful crushing performance while maintaining a narrow 39.4-inch working width.
1. Powerful 22.1 HP Engine

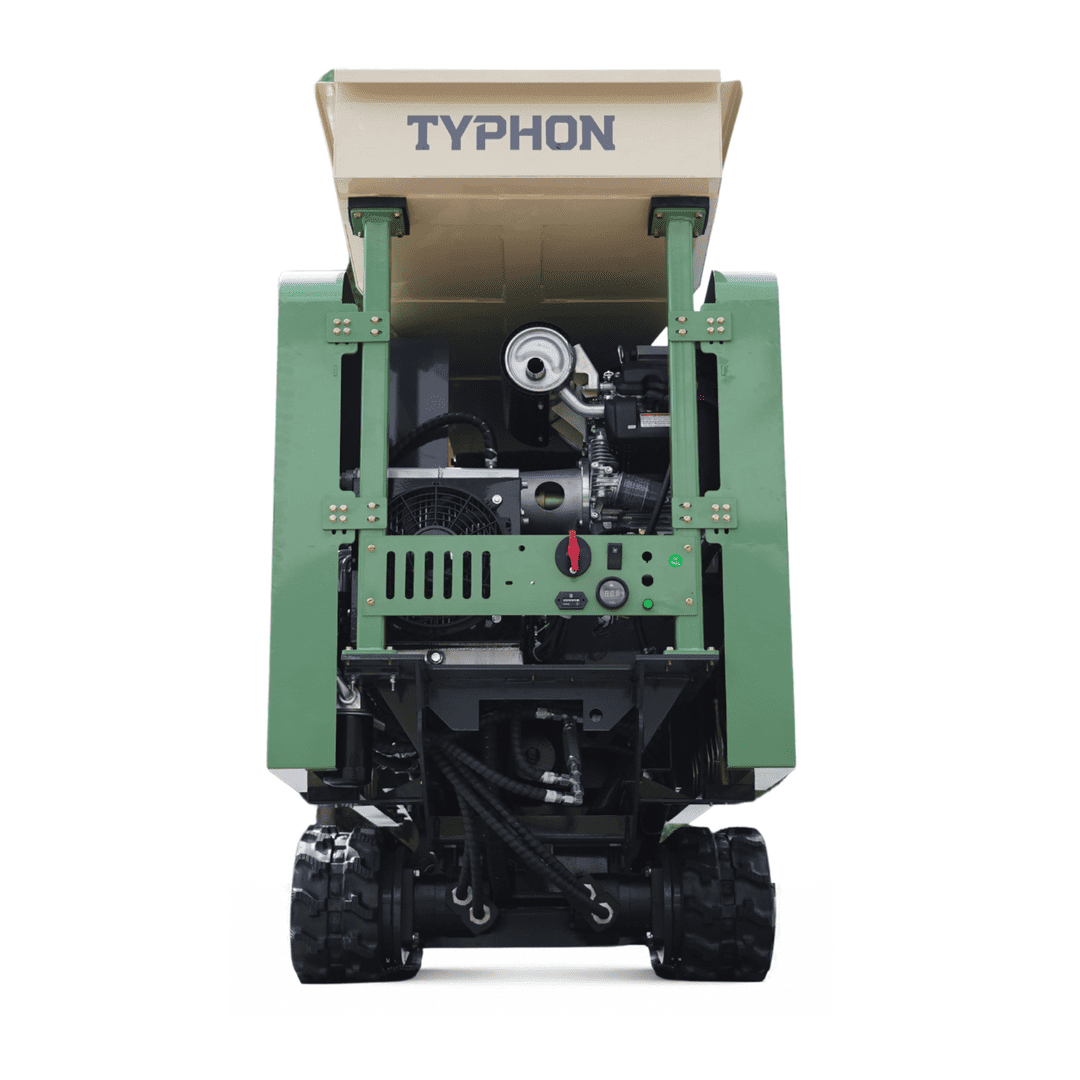

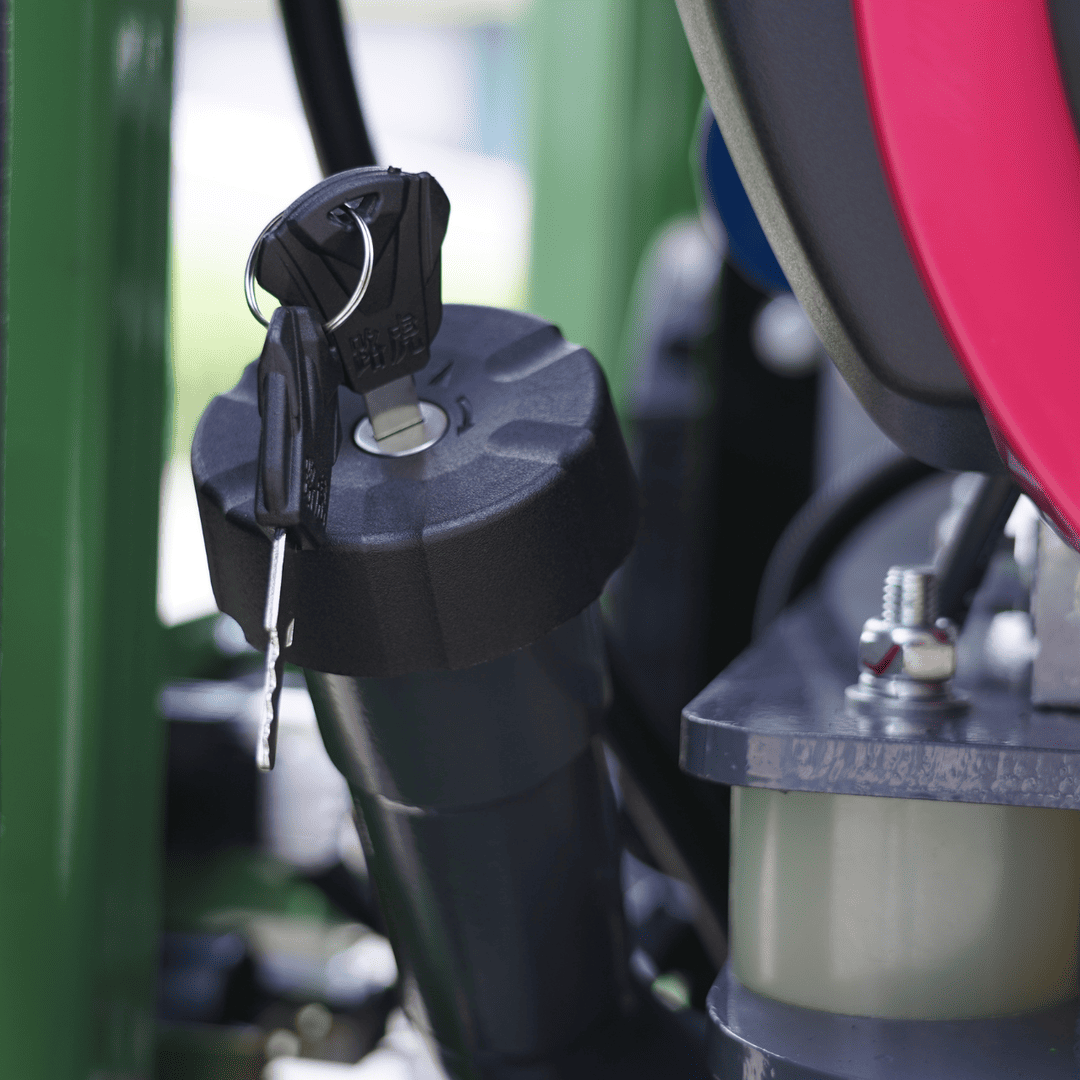

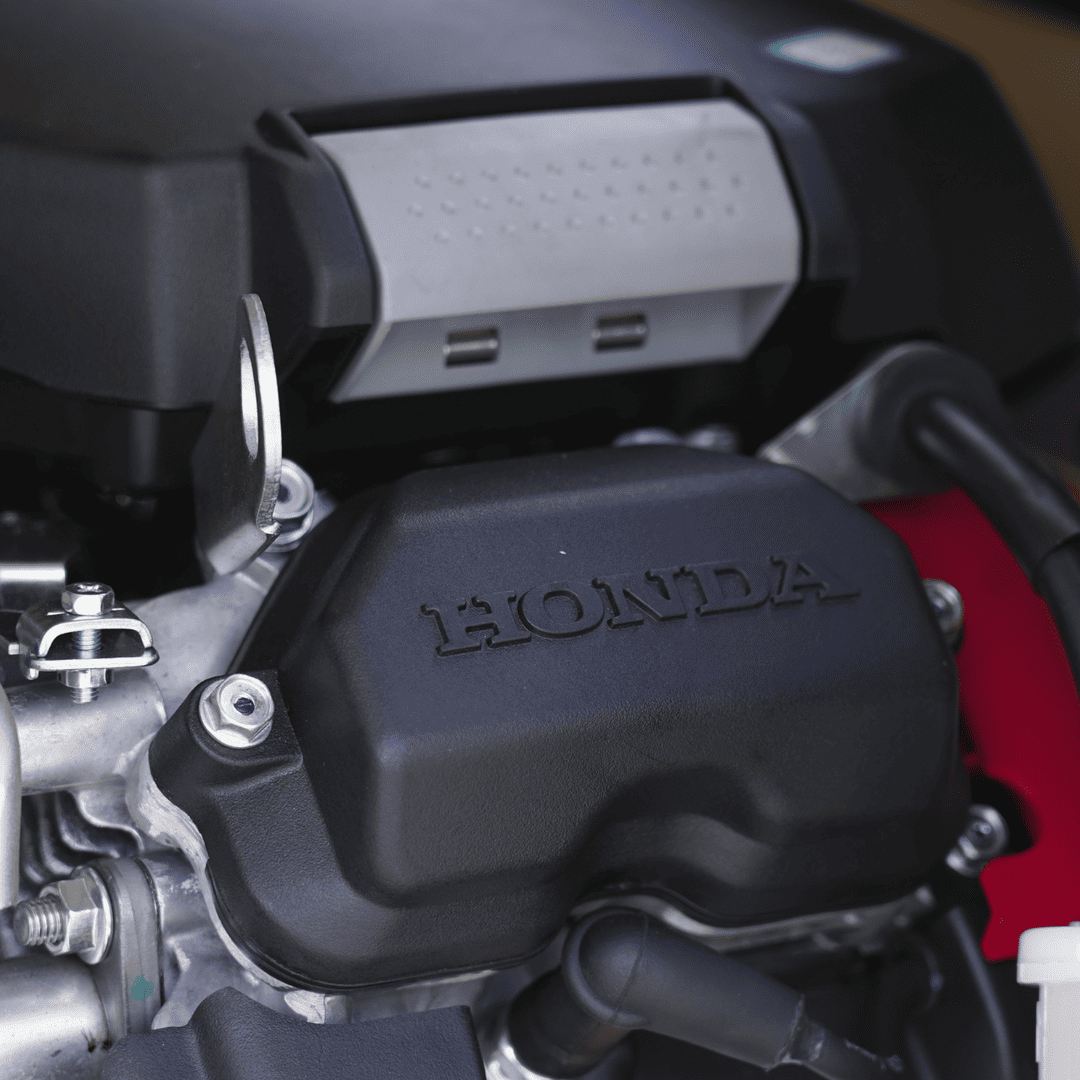

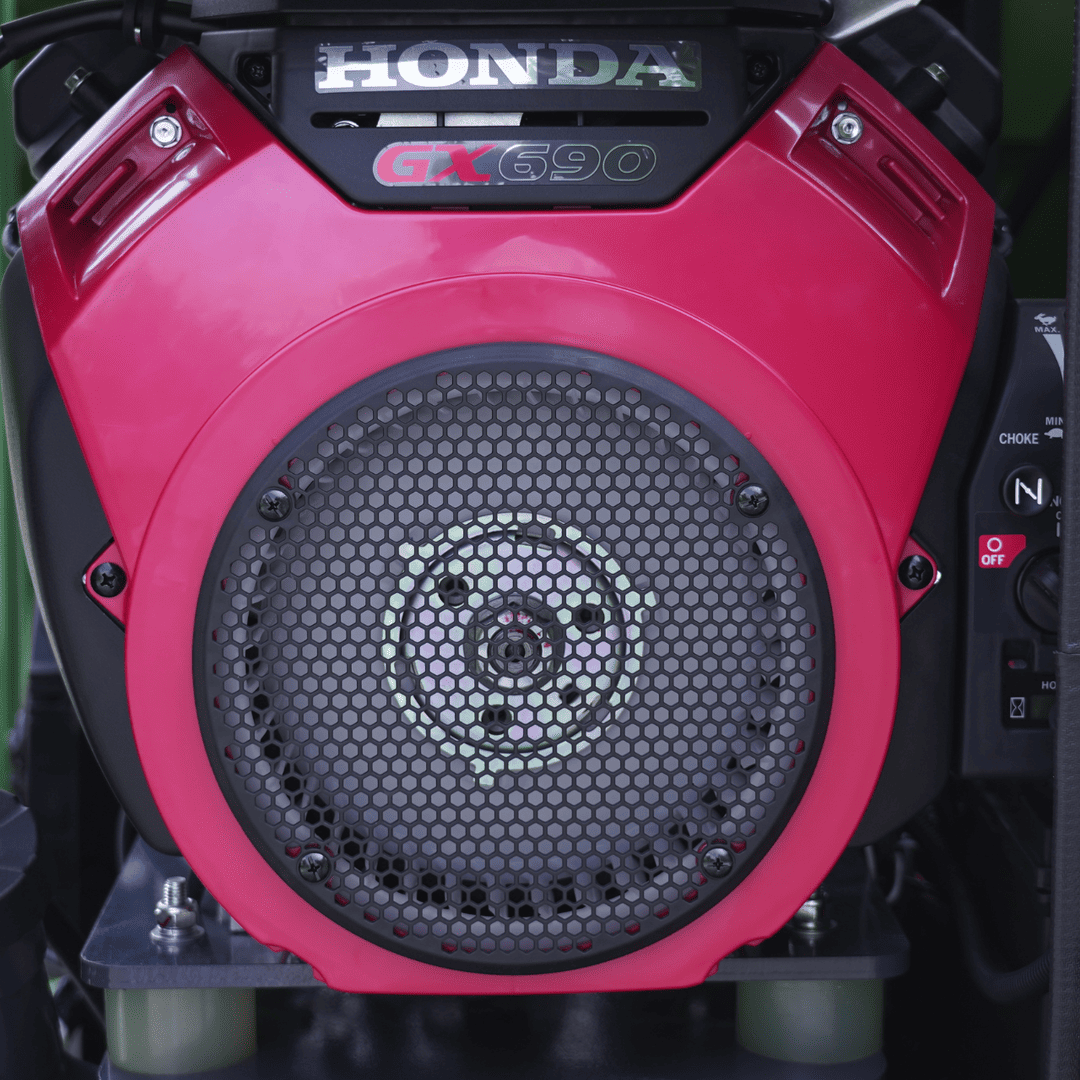

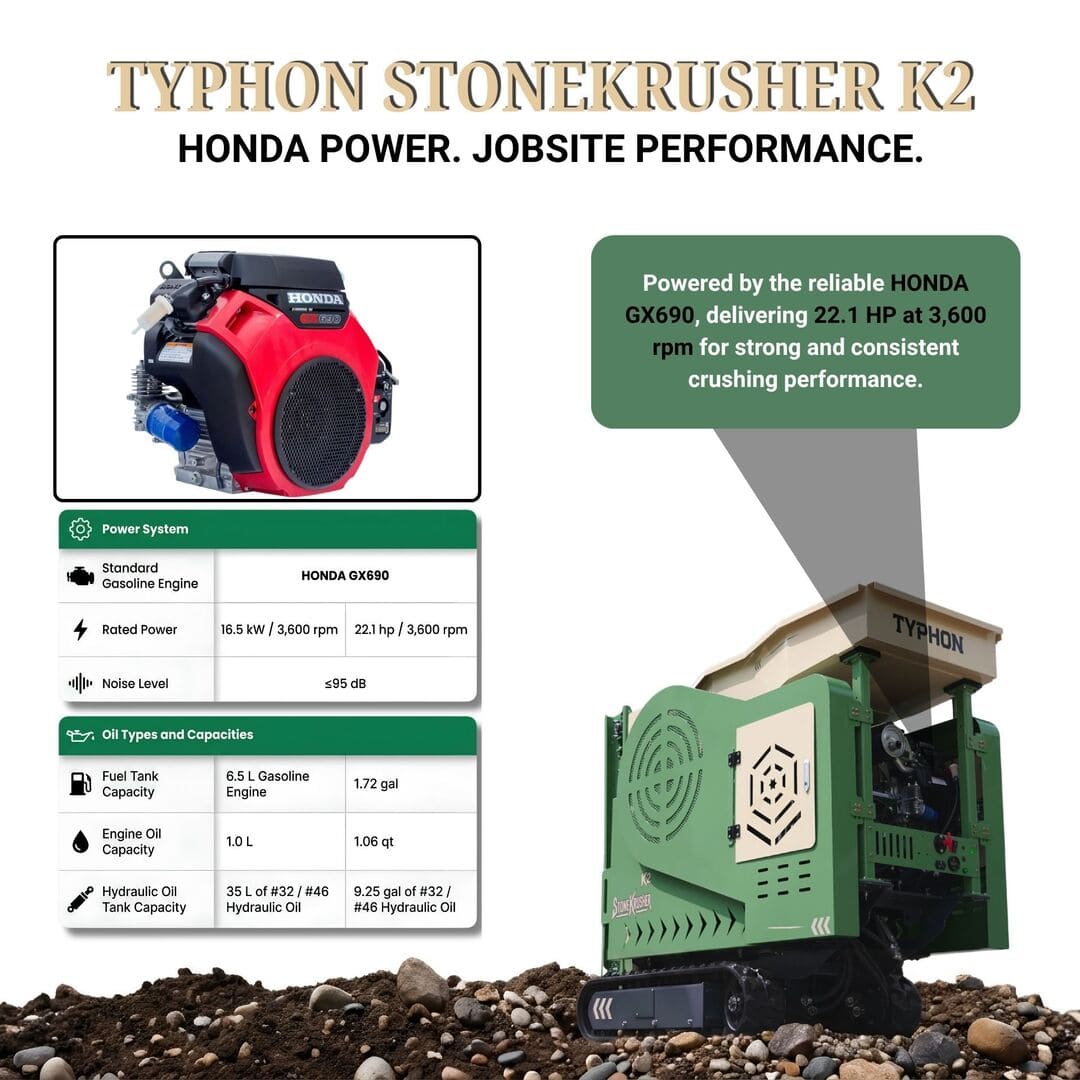

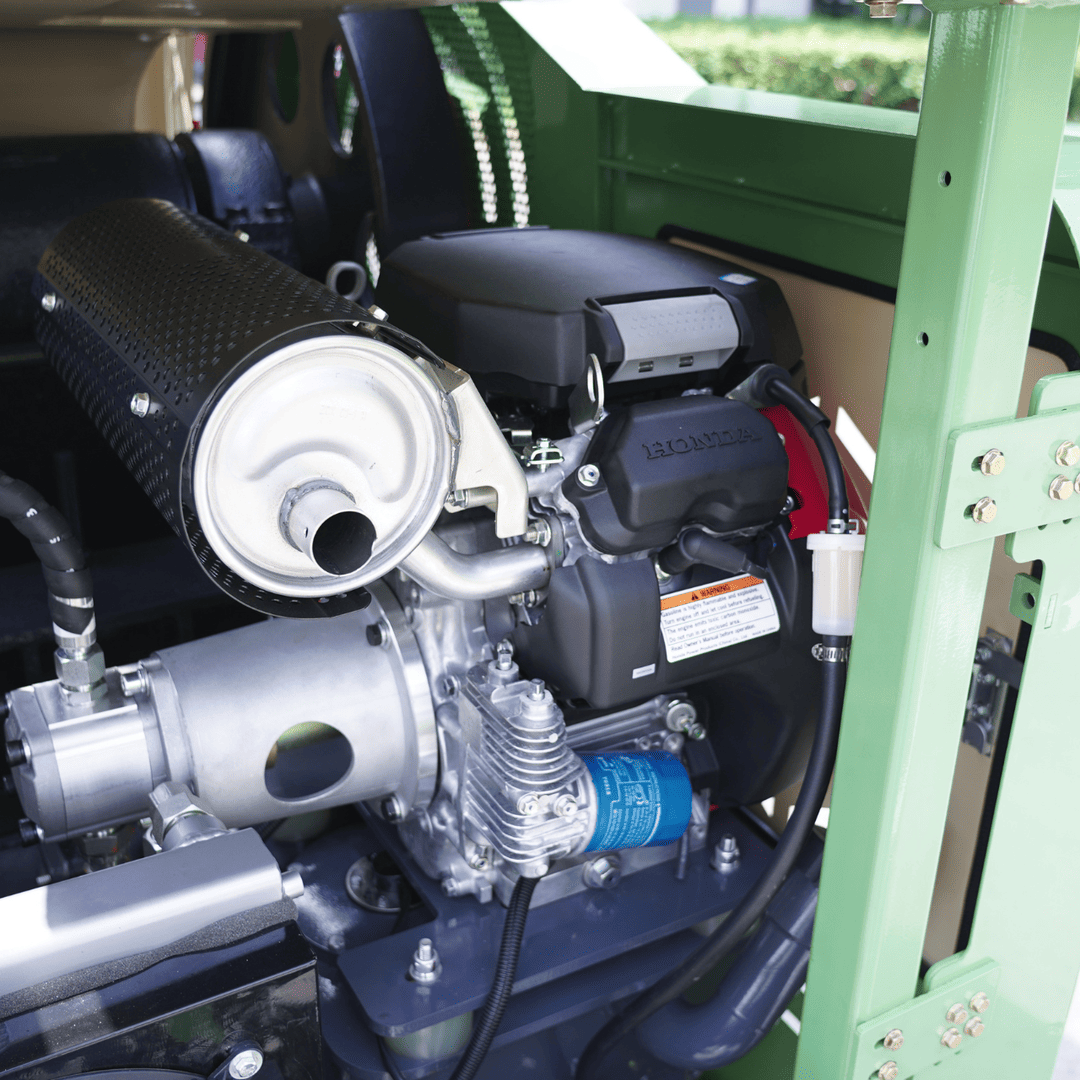

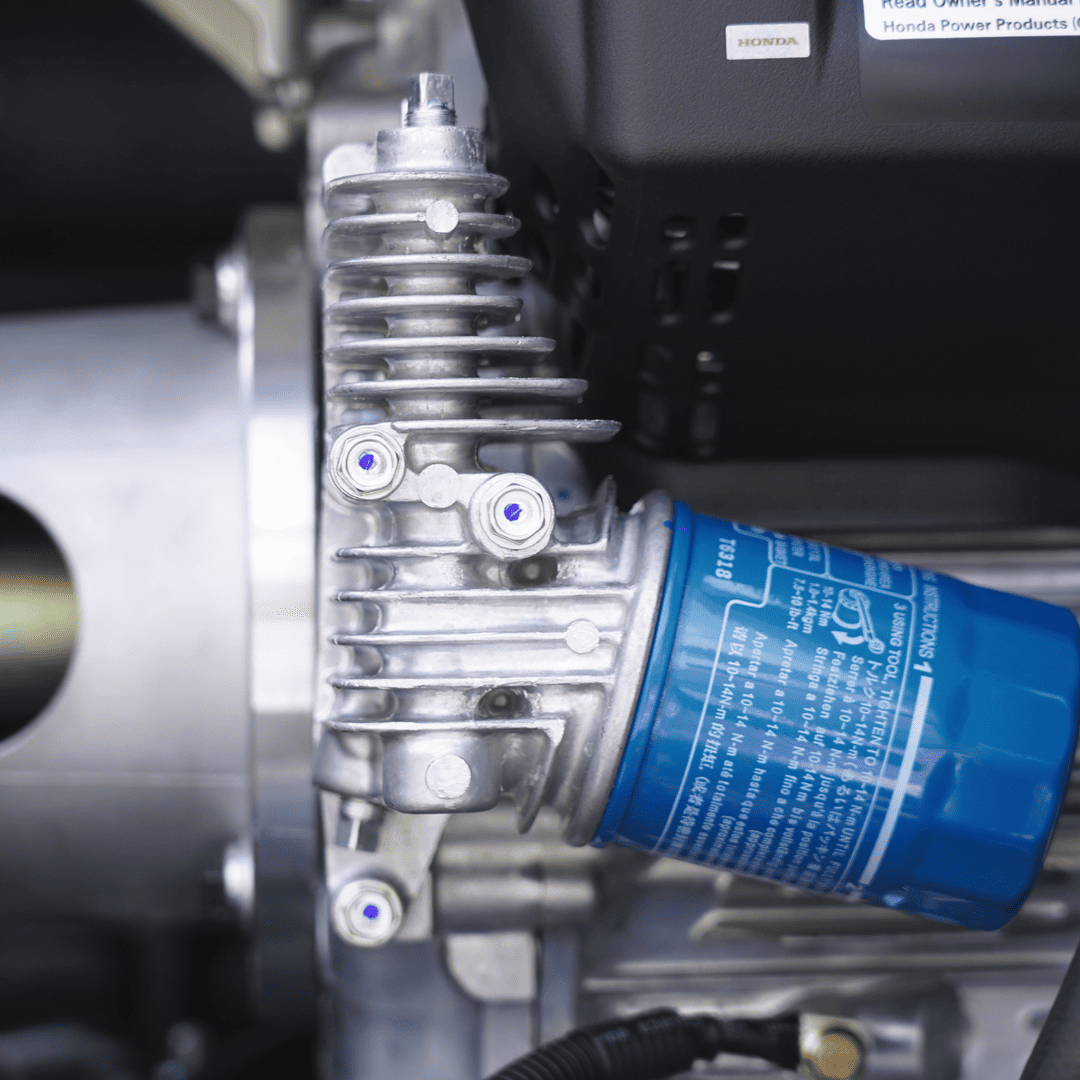

Powering the K2 is a Honda GX690 air-cooled, 4-stroke V-twin gasoline engine delivering 22.1 HP at 3,600 RPM and 627 lb-ft of continuous torque. With a 1.72-gallon fuel tank, the engine provides a practical power source for mobile crushing applications without requiring an external electrical connection. Its V-twin configuration delivers smooth, dependable power to support the K2’s crushing and hydraulic systems.

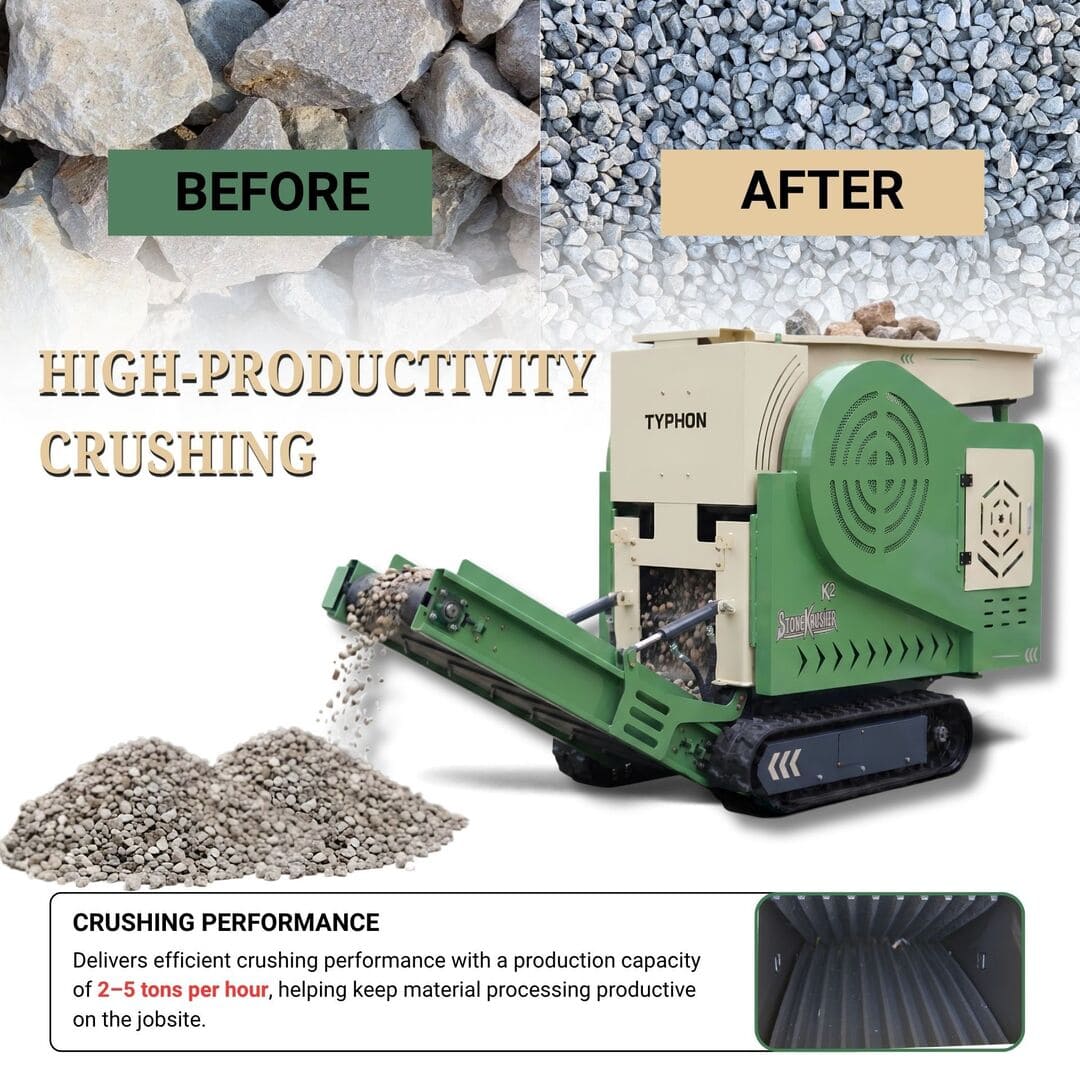

2. Crushing Performance

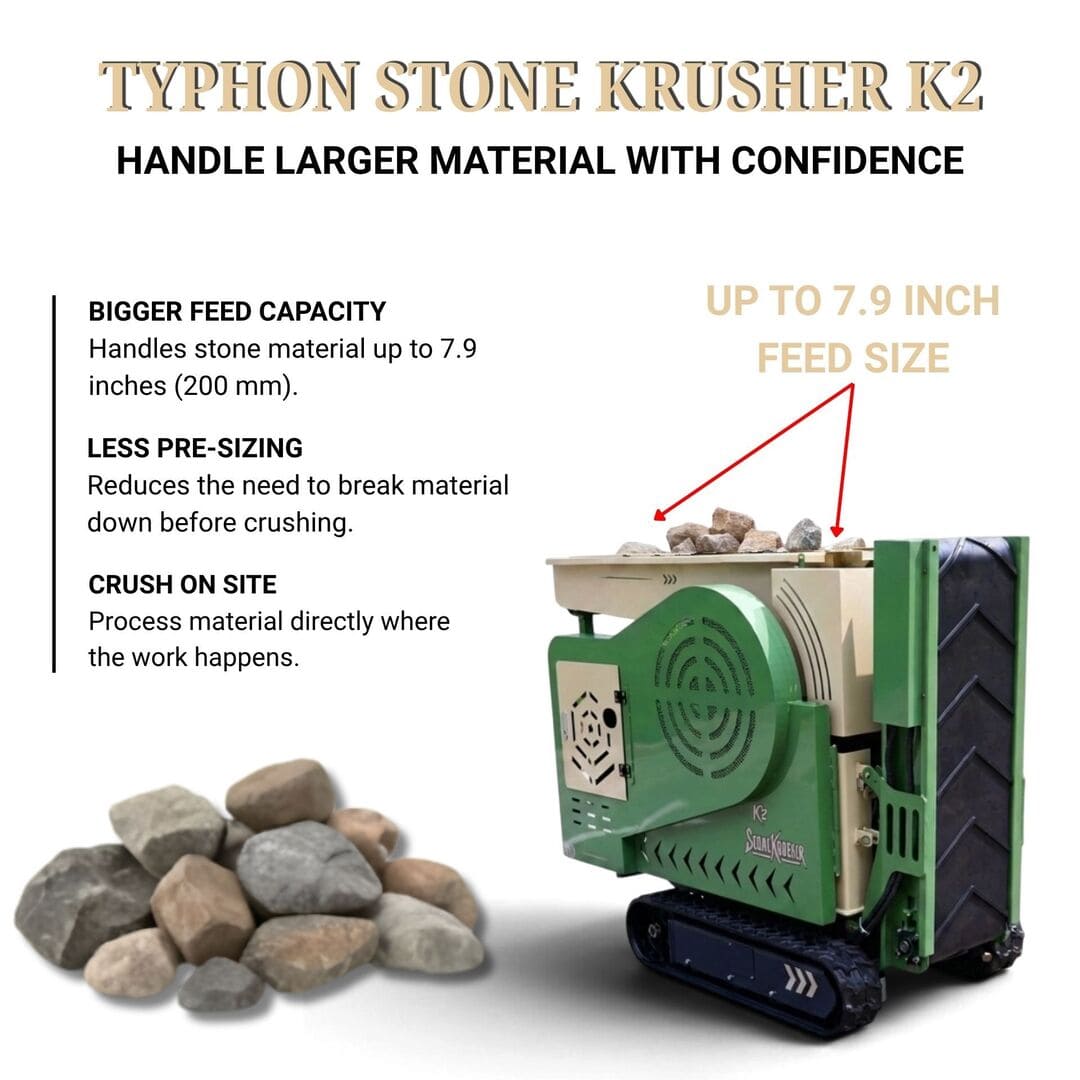

Delivering approximately 2–5 tons per hour, the K2 provides practical crushing performance for small-scale aggregate and material processing. Its 8.7 × 13.8-inch (220 × 350 mm) feed opening accepts material up to 7.9 inches (200 mm) maximum feed size, making it well suited for reducing appropriately sized rock, stone, concrete, and other aggregate materials. Actual production may vary depending on material type, moisture, feed size, crushing settings, and operating conditions.
3. Adjustable Discharge Size

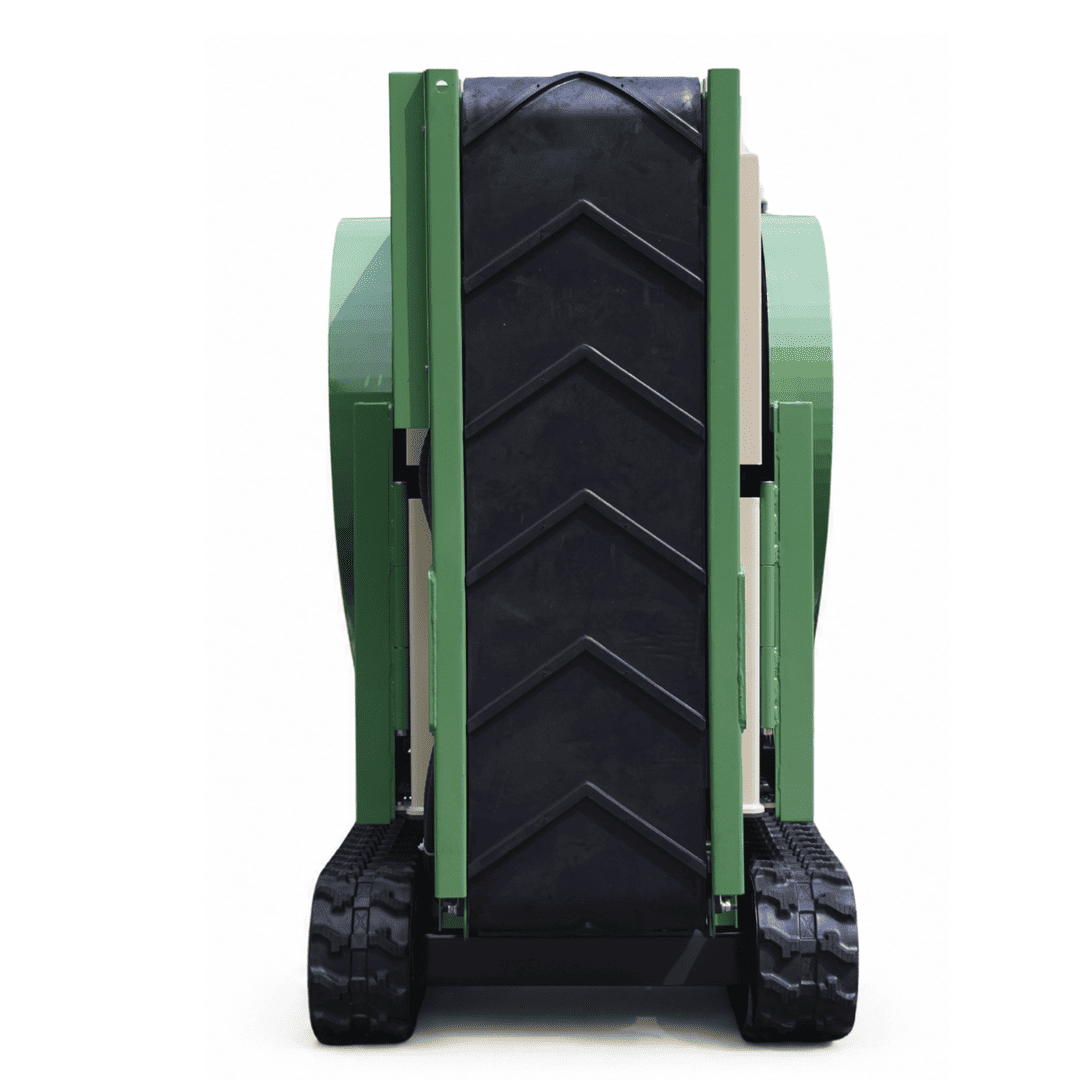

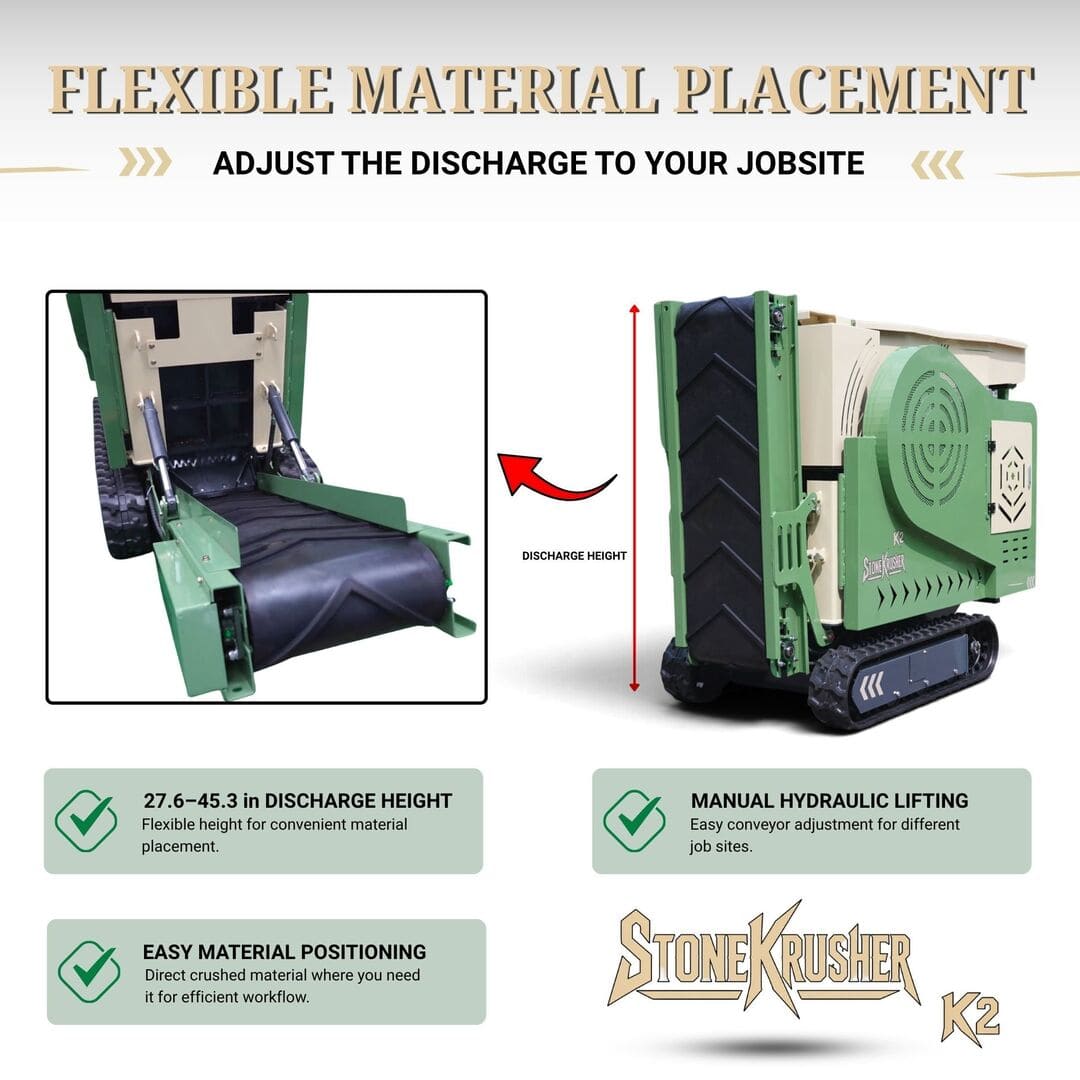

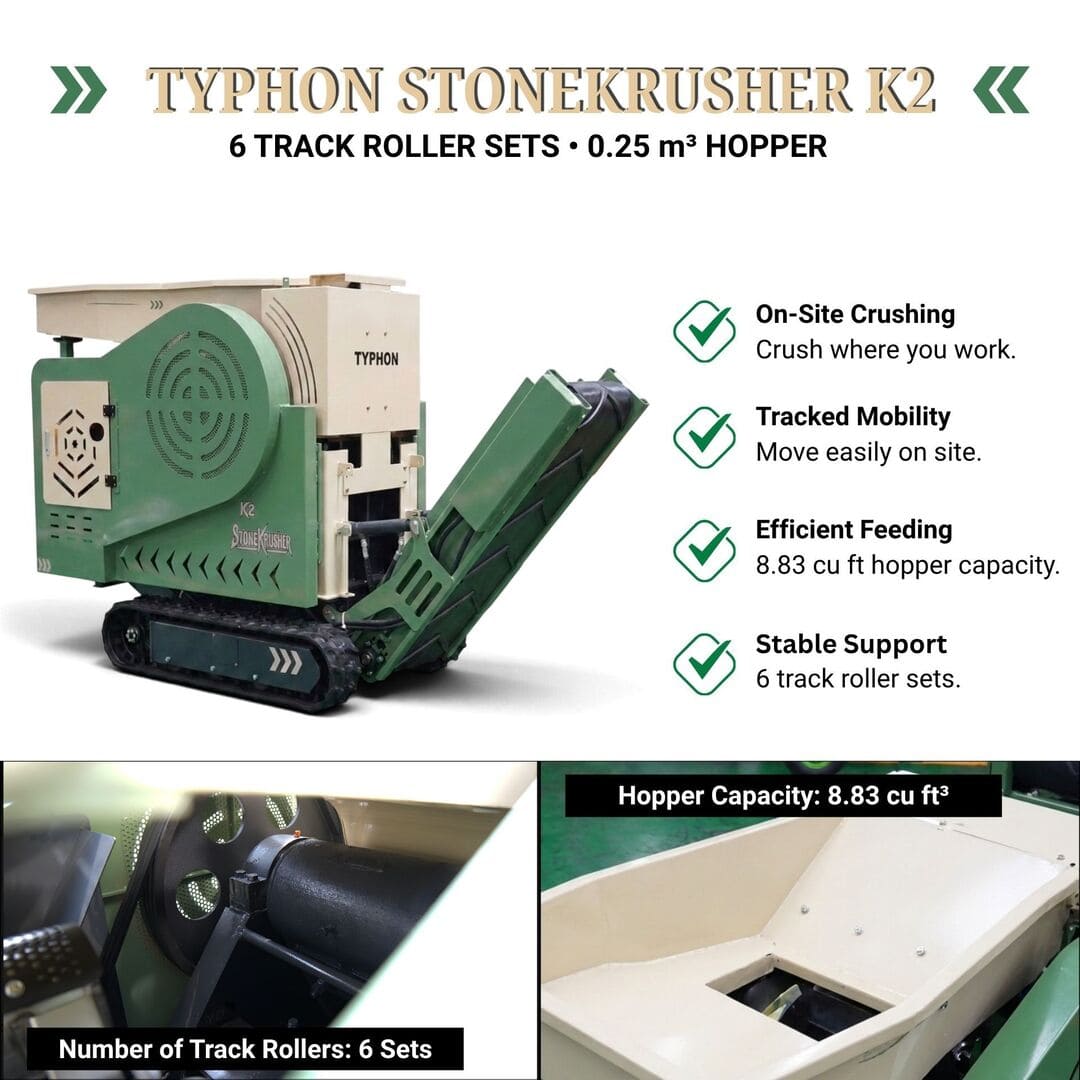

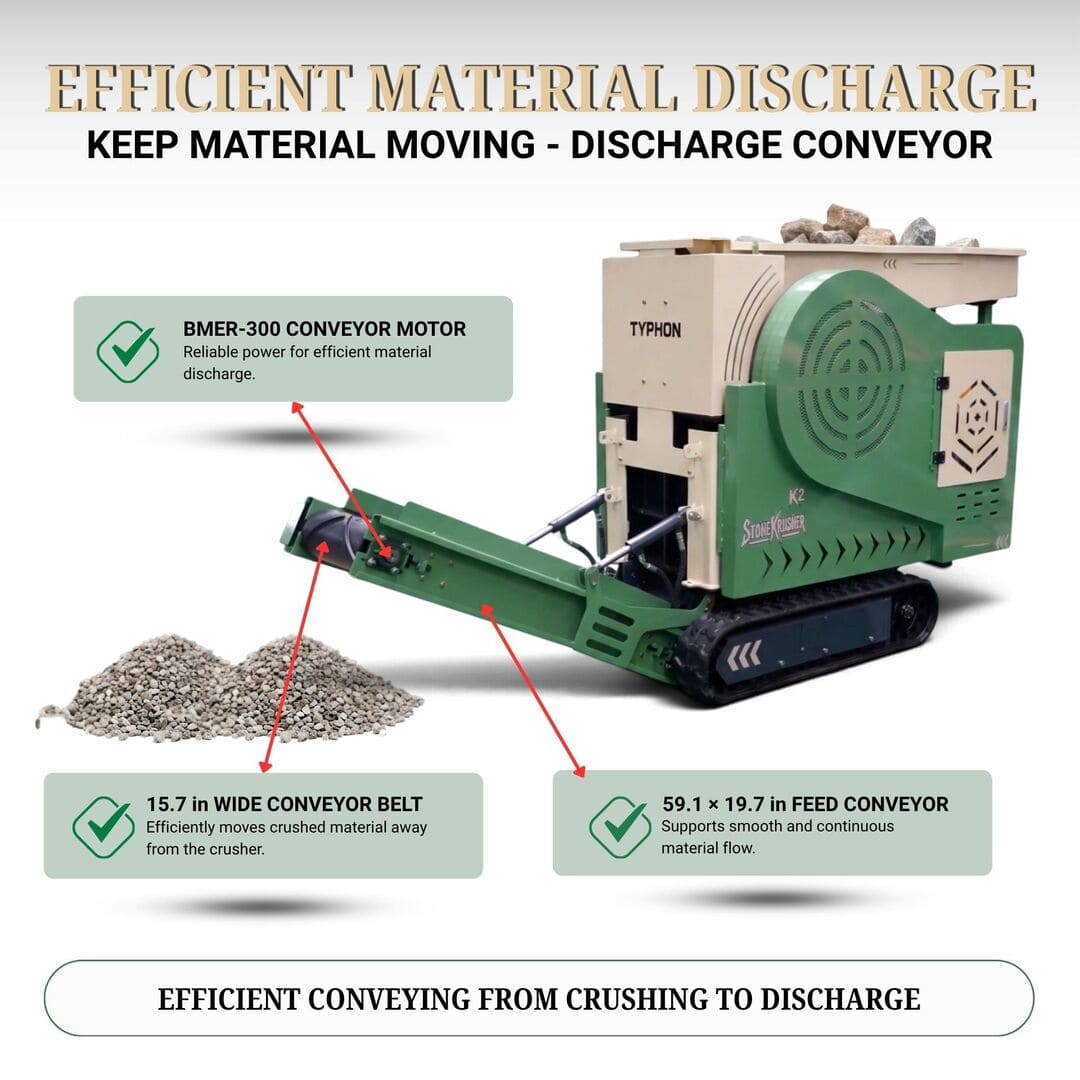

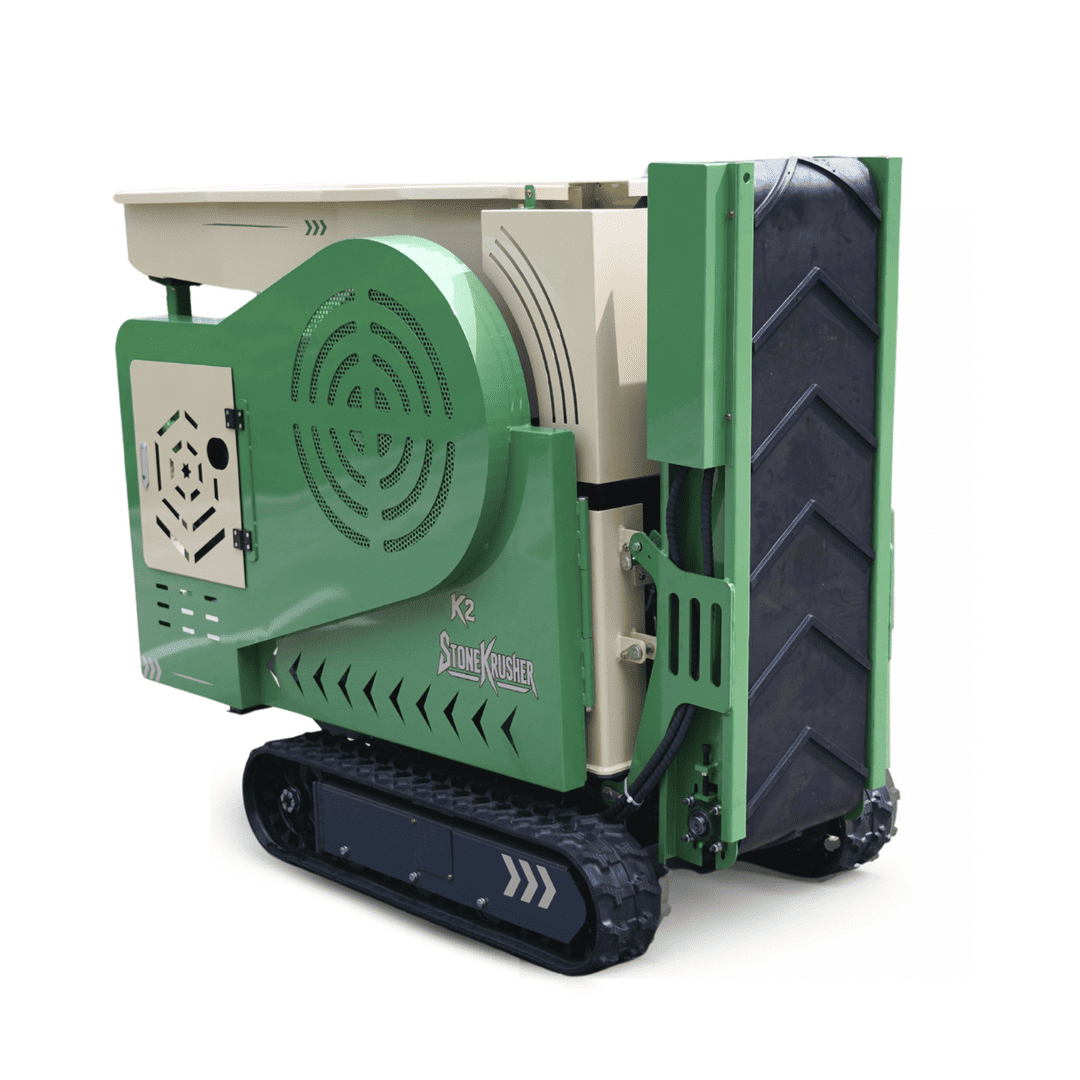

An adjustable crushed material range of approximately 0.6–2.0 inch (15–50 mm) gives operators flexibility to target different aggregate sizes based on crushing settings and material conditions. An 8.83 ft³ (0.25 m³) hopper and 59.1 × 19.7-inch (1,500 × 500 mm) feeding conveyor support steady material flow into the crusher, while the 15.7-inch (400 mm)-wide discharge conveyor moves processed material away from the jaw. Manual hydraulic conveyor lifting provides an adjustable discharge height of approximately 27.6–45.3 inches (700–1,150 mm).
4. Tracked Mobility for Jobsite Crushing

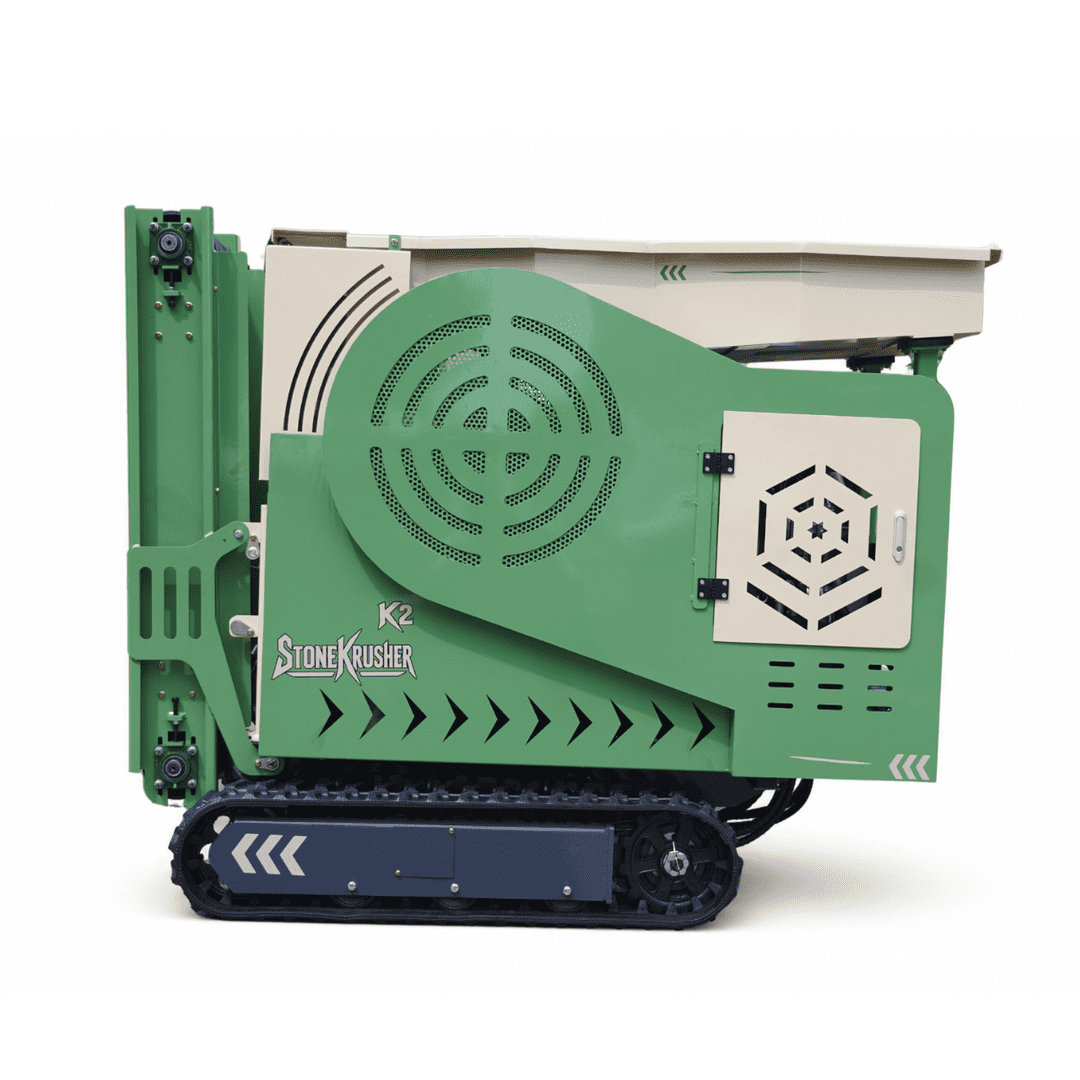

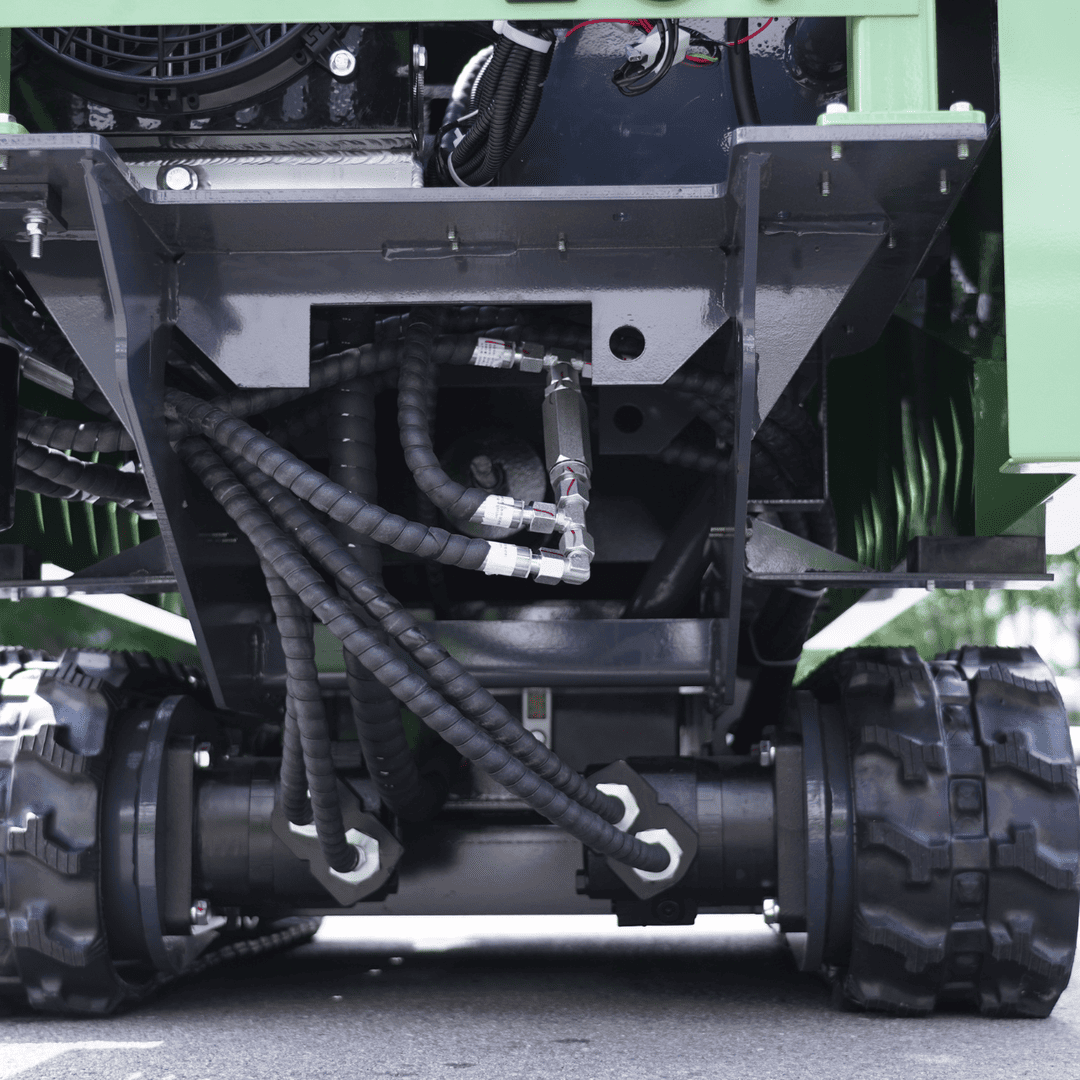

A hydraulic-powered rubber crawler system gives the K2 smooth jobsite mobility, with travel speeds from 0–1.9 mph (0–3 km/h) for convenient repositioning between work areas. Its compact 39.4-inch (1,000 mm) overall width and approximately 4000 lb operating weight provide excellent maneuverability in space-restricted environments, allowing operators to position the crusher closer to material piles and processing areas.
5. Efficient Hydraulic Control System

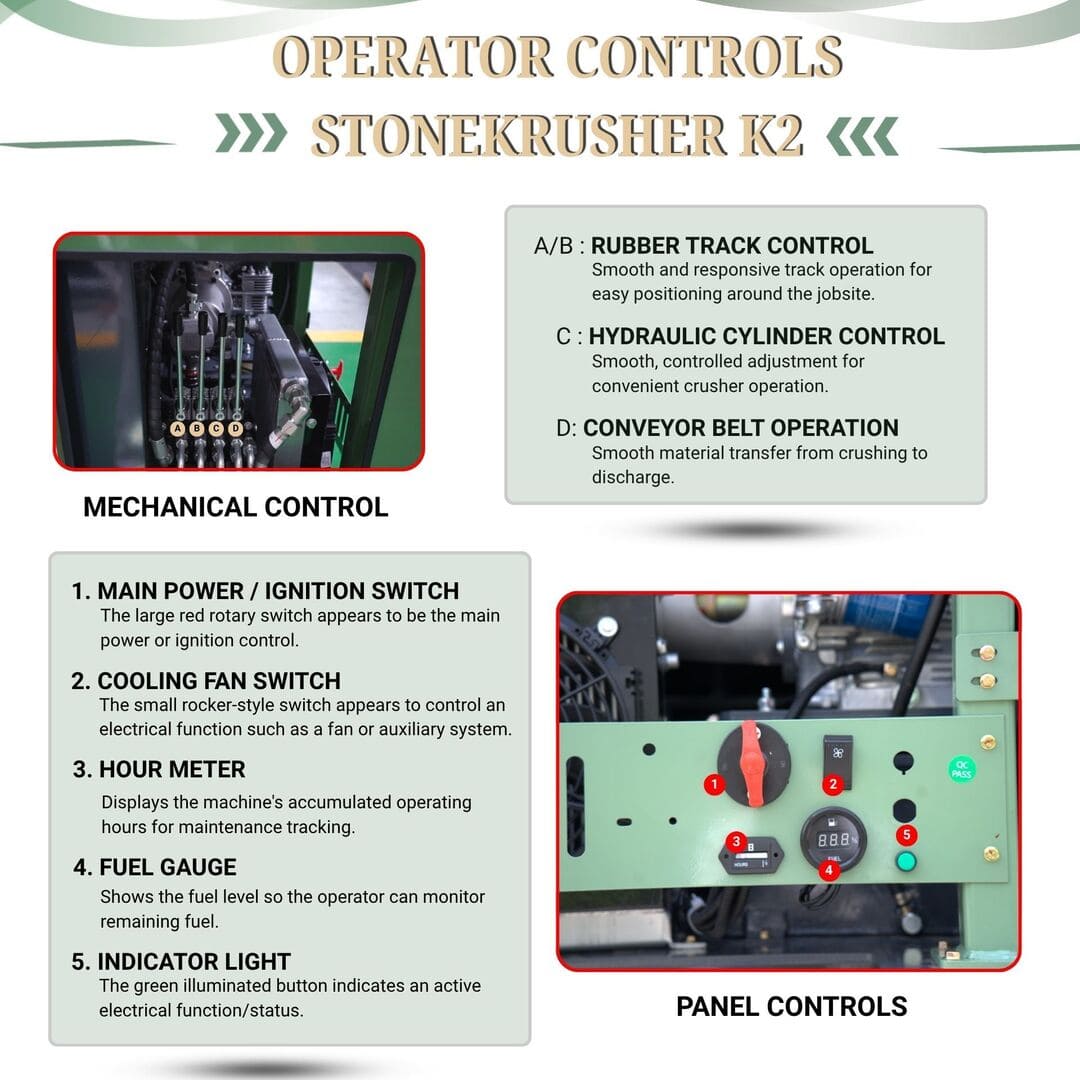

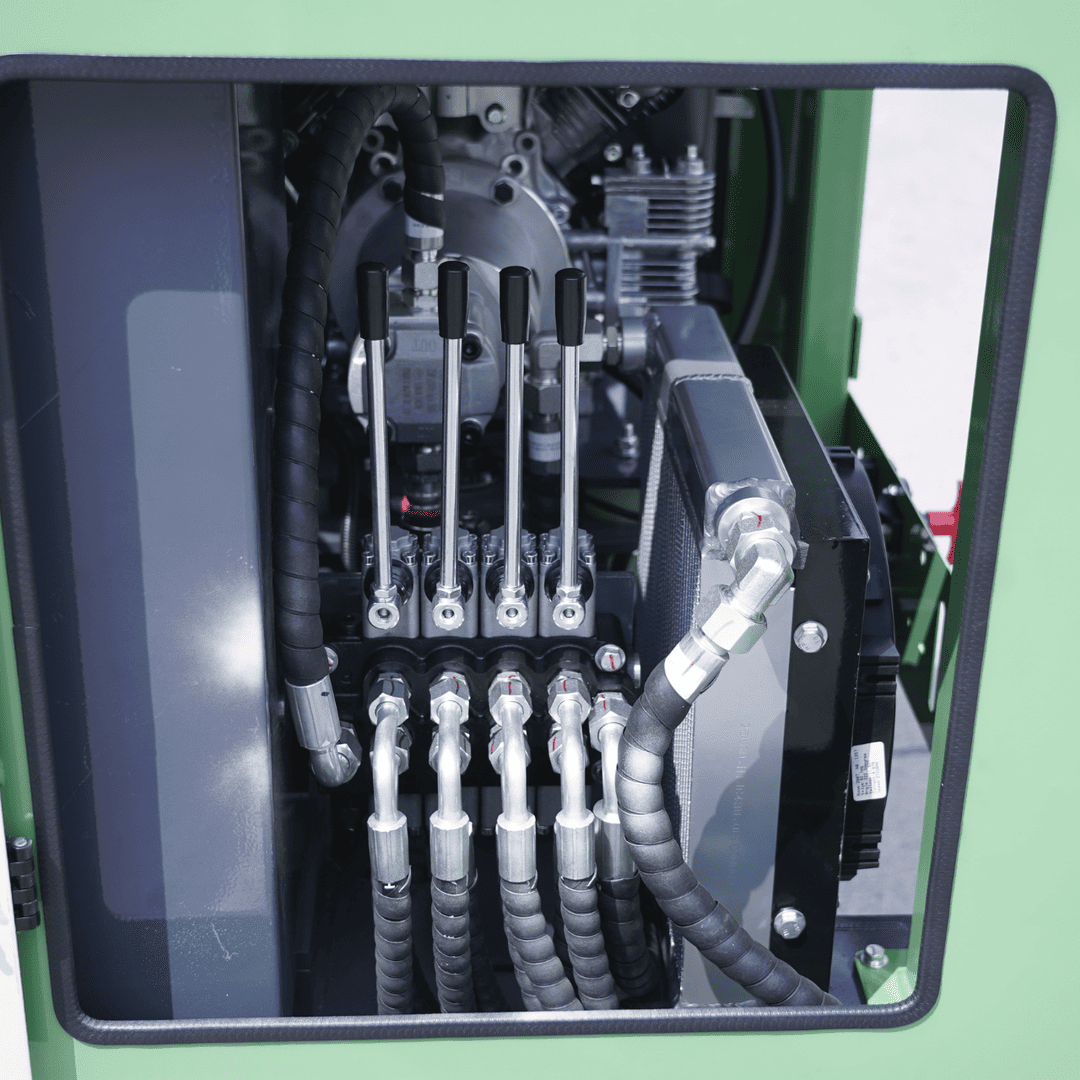

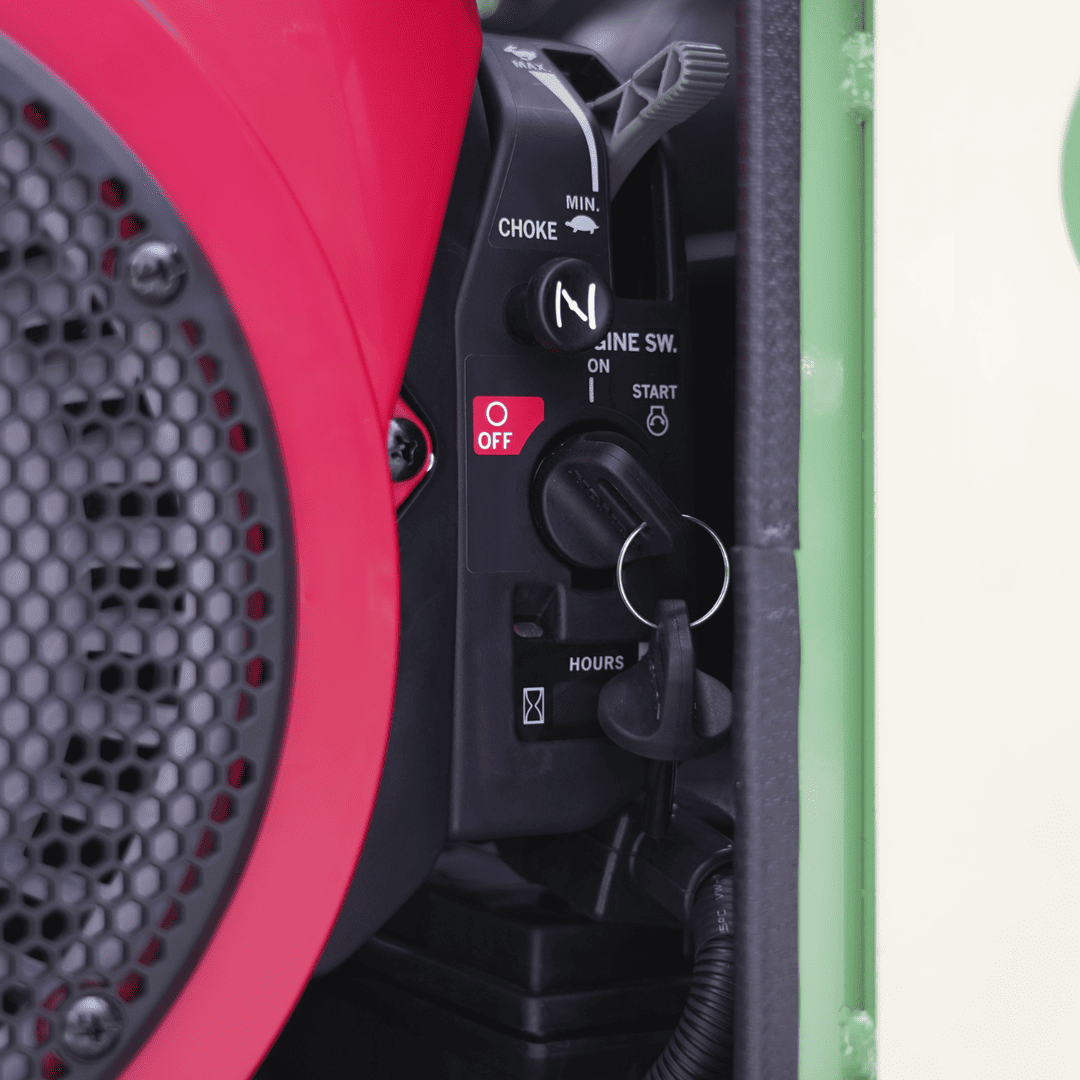

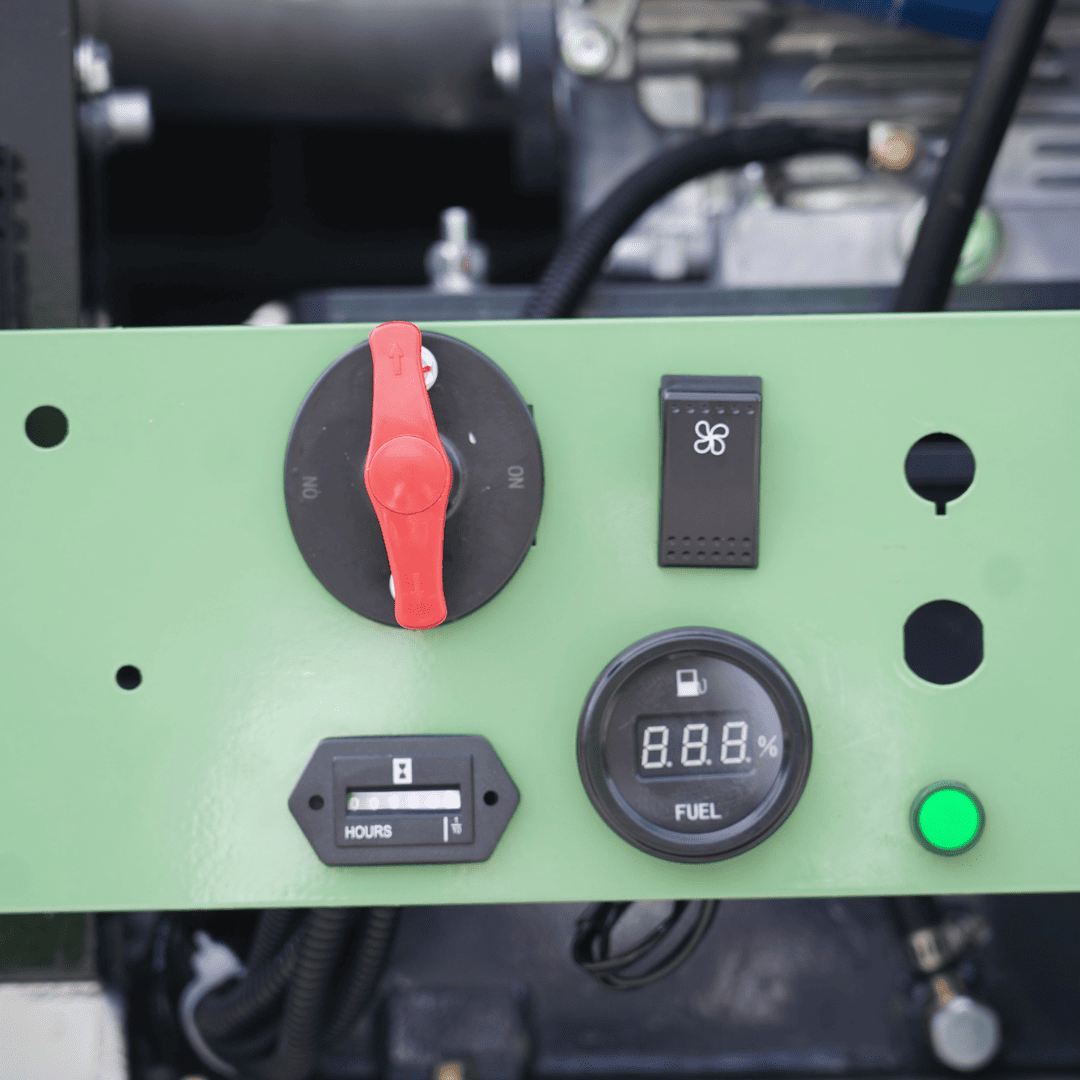

A dedicated hydraulic system powers the K2’s crawler drive, conveyor, and crushing-related functions, with manual hydraulic valve controls providing direct operation and easy service access. The system uses a hydraulic pump and conveyor drive motor, while grease lubrication supports the jaw mechanism for reliable operation and maintenance. An electric starting system provides quick, convenient engine startup for efficient operation.

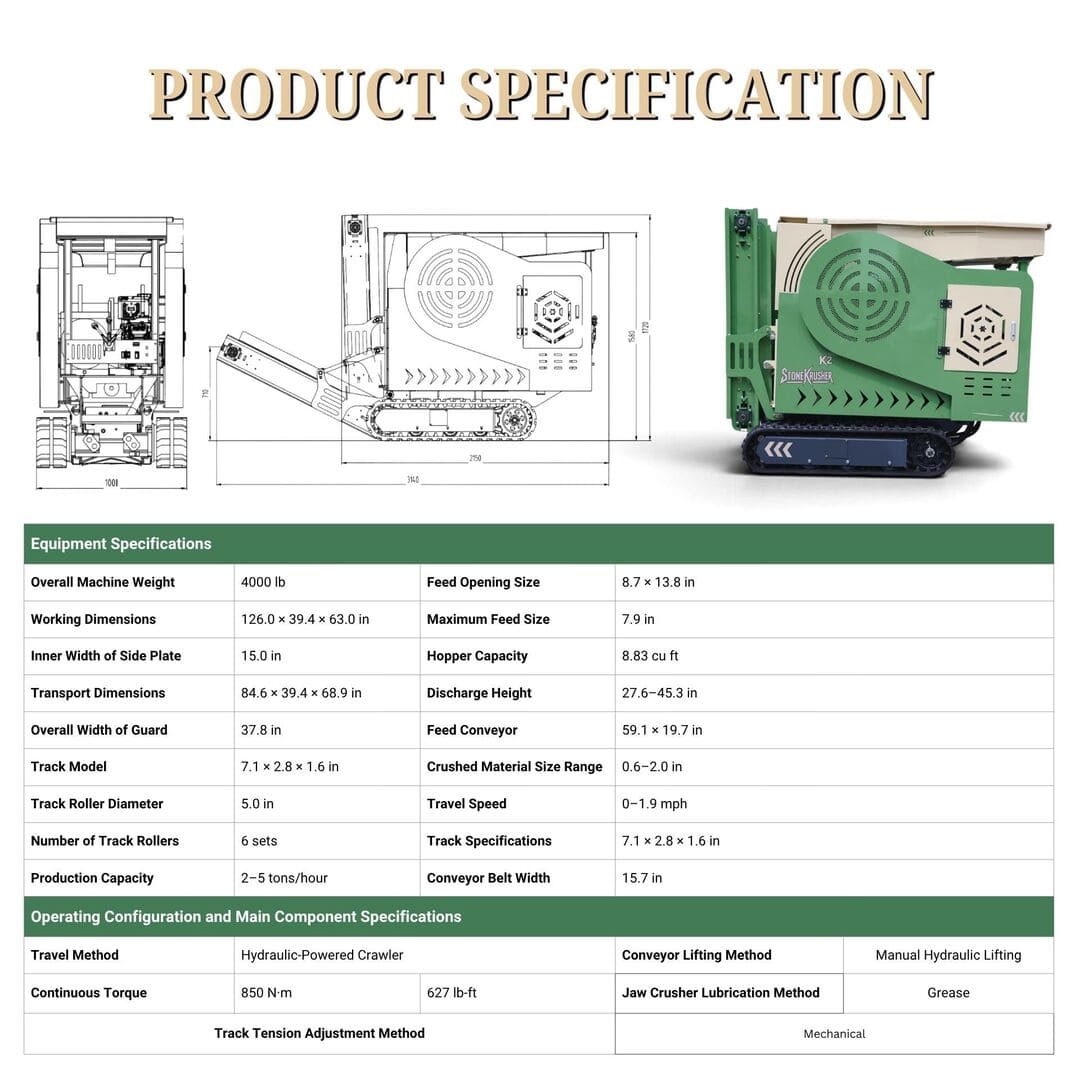

Key Highlights
- 22.1 HP Honda GX690 V-twin gasoline engine
- 2-5 tons/hour production capacity
- Up to 7.9-inch maximum feed size
- Adjustable 0.6-2.0-inch output range
- Hydraulic tracked drive
- 0-1.9 mph travel speed
- 0.25 m³ material hopper
- Integrated feeding and discharge conveyors
- hydraulic conveyor lift
- 9.25-gallon hydraulic tank
- Compact tracked configuration
- Designed for rock, stone, concrete, and aggregate crushing
