When space is limited but the job demands real power, the TYPHON STOMP 502 PRO delivers. With Honda V-Twin power, high-flow hydraulics, strong lifting capacity, and compact Triangle tracked maneuverability, it’s built to tackle demanding work without the bulk of a full-size loader. Put compact power to work and make the STOMP 502 PRO your next jobsite advantage.

01. Legendary Honda GX690 V-Twin Power

Powered by the industry-standard 22.1 HP Honda GX690 Air-Cooled V-Twin engine, this gasoline powerhouse delivers reliable torque at 3,600 RPM, ensuring consistent performance during demanding multi-hour shifts. A 5.33-gallon fuel tank provides ample fuel capacity for extended operation between refueling stops.

02. High-Flow 3-Pump Hydraulic System

Equipped with a sophisticated 3-pump, 3-valve hydraulic configuration, the STOMP 502 PRO delivers up to 10.6 GPM of flow and 2465.64 PSI of pressure. This system is optimized for high-demand attachments like trenchers, augers, and hydraulic grapples, while the 9.2-gallon hydraulic oil tank provides ample fluid capacity for demanding work and extended operation.

03. Heavy-Duty Lifting Performance

Despite its compact footprint, the STOMP 502 PRO boasts a maximum lifting force of 992 lb and a practical 838 lb operating load. Its 5.33 ft³ bucket capacity, combined with a maximum working height of 83.3 inches and 54.7-inch dump height, makes loading trailers, high-sided containers, and other elevated work areas fast and efficient.

04. Precision Stand-On Control

The ergonomic stand-on design features Dual Joystick Controls, giving the operator 360° visibility and tactile control over every movement. The heavy-duty console includes integrated digital displays and front LED work lights for early-morning or late-evening productivity.

05. Dominate Tight Spaces

• Landscaping Professionalism: Ideal for contractors working in residential backyards, parks, and golf courses where a low-profile, professional appearance is valued. With an operating weight of 1,962 lb, the STOMP 502 PRO offers a strong balance of stability, transportability, and jobsite performance.
• Turf & Soil Protection: Equipped with a crawler-style rubber Triangle track system, it provides excellent traction with minimal ground pressure, helping protect expensive turf and sensitive landscaping.
• Narrow Access Expert: With a total width of just 40.7 inches, the STOMP 502 PRO moves through standard garden gates and narrow walkways that stop larger loaders in their tracks. Its travel speed of up to 3.4 MPH also helps operators move efficiently between work areas.

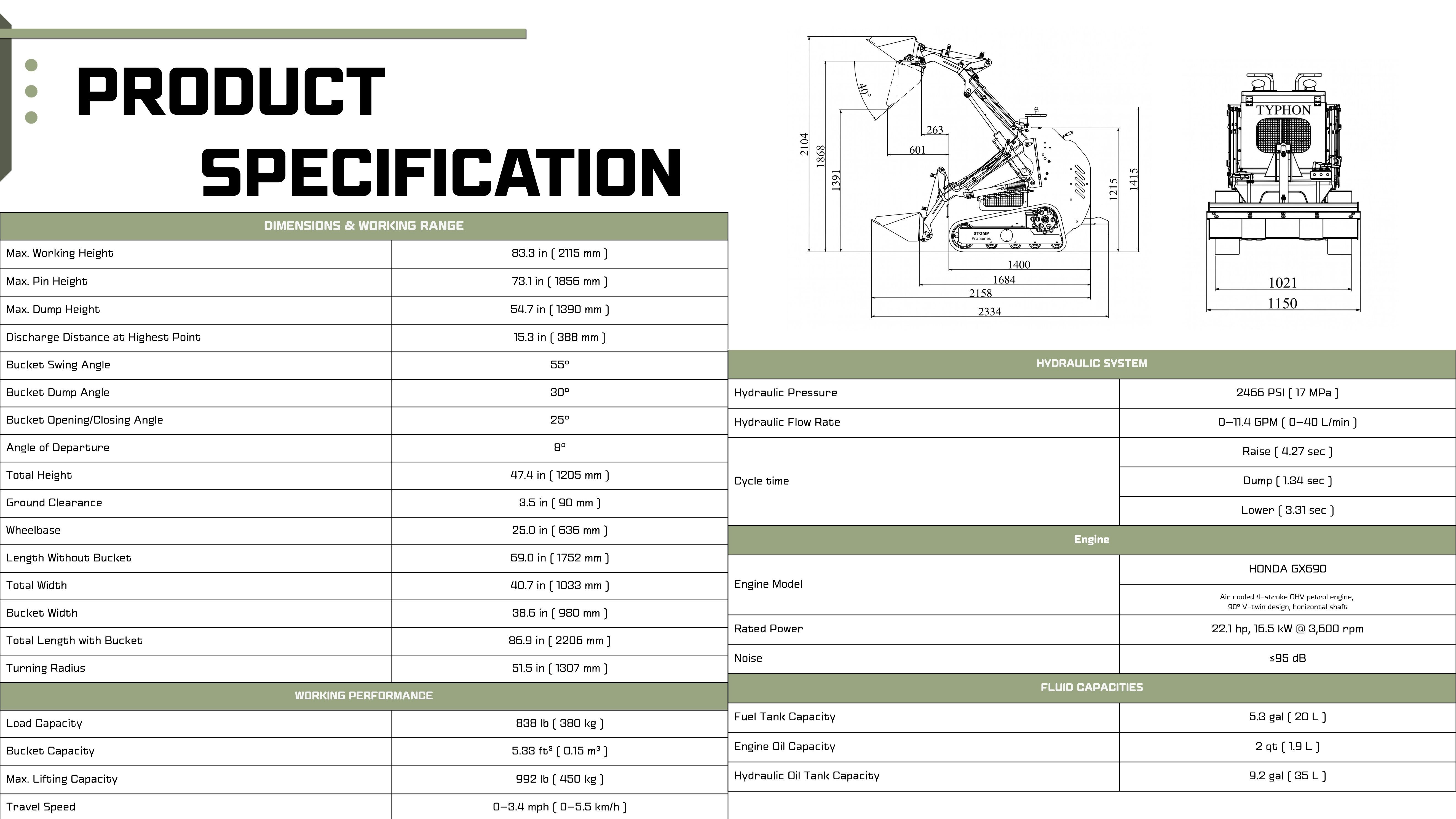

Key Features

• 22.1 HP Honda GX690 V-Twin, Air-Cooled - Reliable power for demanding jobs.
• 10.6 GPM High-Flow Hydraulics - Strong attachment performance.
• 992 lb Maximum Lift - Handles heavy materials with confidence.
• 40.7" Compact Width - Fits through tight access points.
• 360° Pivot Steering & Triangle Tracks - Easy maneuvering with strong traction.
• 3.4 MPH Travel Speed - Move efficiently between work areas.
• 838 lb Operating Load - Built for productive material handling.
• Stand-On Platform & Dual Joysticks - Comfortable, intuitive operation.
• 5.37 ft³ Bucket Capacity - Move more material per load.
• Hydraulic Attachment Ready - Quickly power a wide range of attachments.
