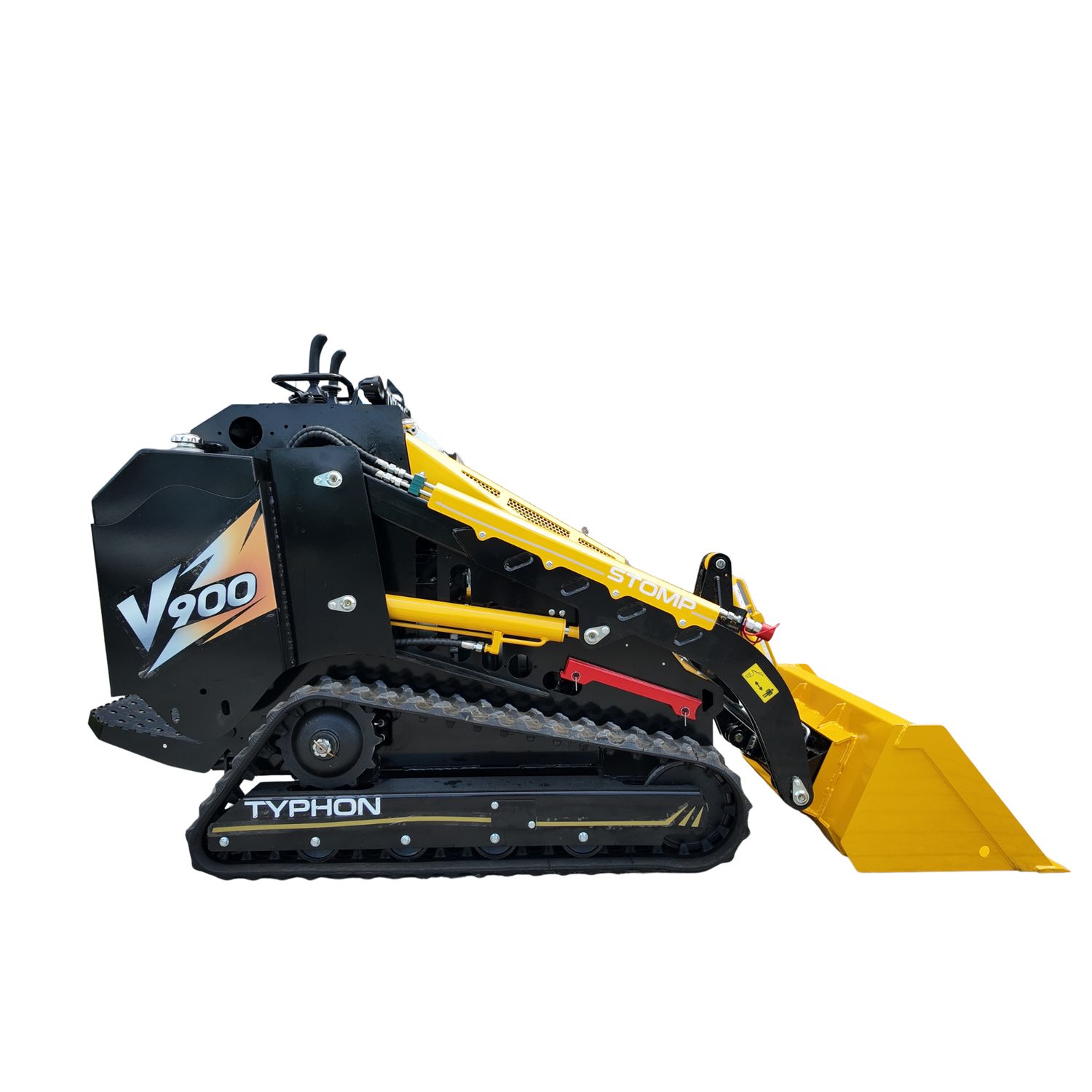

Powered by the Kubota D1105 25HP three-cylinder water-cooled diesel engine and built to a 1.4-ton operating weight, the Typhon Stomp V900 is a professional-grade mini track loader that delivers genuine commercial capability where full-size equipment simply doesn't fit. At just 35.9 inches wide, it easily passes through standard gates and confined work areas while providing the lifting power, hydraulic performance, and durability professionals demand.

1. Diesel Power You Can Count On

The Kubota D1105 engine needs no introduction. With 1,226 cc of displacement and 71.5 N·m of maximum torque, it delivers dependable power for grading, material handling, agriculture, landscaping, and attachment operation. Consistent torque delivery means you're not waiting for the machine to catch up it keeps working as hard as you do.

A generous 33 L (8.7 gal) fuel tank supports longer operating hours with fewer refueling stops, helping maximize productivity throughout the workday.

2. A Hydraulic System Built for Versatility

The V900 features a high-efficiency three-pump, three-valve hydraulic system delivering 48 L/min (12.7 GPM) at a rated pressure of 16 MPa (2,321 PSI), providing smooth and responsive hydraulic performance under demanding conditions.

Unlike conventional mini track loaders equipped with a single auxiliary hydraulic circuit, the V900 features a Dual Auxiliary Hydraulic Output System. This advanced design supports multi-function hydraulic attachments that require independent hydraulic circuits, including swing, side-shift, and other professional-grade implements, giving operators greater versatility for specialized applications.

Quick-connect hydraulic couplers make attachment changes fast and efficient, while the independent hydraulic oil cooling system maintains stable operating temperatures during extended workloads. Protected hydraulic hose routing further helps reduce hose exposure to debris and accidental impacts, improving durability on demanding job sites.

3. Lifting Capacity That Punches Above Its Weight

The V900 delivers a rated operating capacity of 1,014 lbs (460 kg) and a maximum load capacity of 1,102 lbs (500 kg), providing impressive lifting performance for a compact machine.

Its reinforced hydraulic cylinder mount adds structural strength where lifting forces are highest, while the internally structured rectangular boom tube with a low-weld design improves rigidity and long-term durability. A maximum operating height of 9.4 ft (2,873 mm) and a dumping height of 5.6 ft (1,704 mm) allow efficient truck loading and material handling with fewer repositioning movements.

4. Engineered to Go Where Others Can't

At only 35.9 inches (911 mm) wide, the V900 easily accesses narrow gates, residential properties, interior demolition sites, farms, and other confined work areas.

Its triangular track system provides outstanding traction, flotation, and stability across soft soil, mud, gravel, and uneven terrain, giving operators the confidence to work in conditions where larger machines struggle.

5. Operator-First Design

Every control and comfort feature has been designed to maximize productivity. The stand-on platform features ergonomic dual joystick controls and a digital dashboard that clearly displays fuel level and machine status.

Fish-eye anti-slip pedals provide secure footing, while the three-point LED lighting system—dual work lights combined with a front LED light bar extends productive working hours in low-light conditions.

Protective side safety guards help shield the operator from flying debris and loose materials during operation, providing additional confidence on demanding job sites.

The T-style locking system, high-strength hinges, and simple key start complete a machine designed for both durability and ease of operation. Easy-access service points also simplify routine maintenance, helping reduce downtime and keep the machine working longer.

6. EPA / EU Stage V Compliant

The Typhon Stomp V900 fully complies with both EPA and EU Stage V emission standards, making it an ideal choice for contractors, municipalities, rental fleets, agricultural operations, and environmentally regulated job sites.

Amazing Features of the TYPHON STOMP V900

• Kubota D1105 25HP Three-Cylinder Water-Cooled Diesel Engine
• EPA / EU Stage V Emission Compliant
• 3-Pump / 3-Valve System
• Dual Auxiliary Hydraulic Output System
• Quick-Connect Auxiliary Hydraulic Couplers
• Independent Hydraulic Oil Cooling System
• Protected Hydraulic Hose Routing
• Reinforced Hydraulic Cylinder Mount
• Internally Structured Rectangular Boom Tube (Low-Weld Design)
• Triangular Track System for Superior Stability & Traction
• Three-Point LED Lighting System (Dual Work Lights + Front LED Light Bar)
• Fish-Eye Anti-Slip Stand-On Pedals
• Ergonomic Dual Joystick Controls
• Digital Dashboard with Fuel & System Status Display
• Protective Side Safety Guards
• T-Style Locking System & High-Strength Hinges
• One-Touch Key start / simple ignition
• Easy-Access Service & Maintenance Design

Why Choose TYPHON MACHINERY?

Customer Assurance: We provide responsive service and reliable parts support to ensure your machine runs smoothly for years.

Performance You Can Trust: Every TYPHON excavator is built with premium components for durability, performance, and operator safety.

Global Reliability: Trusted by contractors and builders across the USA and beyond for delivering consistent quality and efficiency.

Your construction projects will reach new heights with the TYPHON Stomp V900 Mini Skid Steer. Compact, tough, and efficient, this trench digger machine is your ideal companion for successful projects at a mini scale. Trust TYPHON Machinery for reliability, toughness, and performance that surpass expectations. Elevate your construction game with the TYPHON Stomp V900 - The ultimate solution for all your excavation needs!
