TYPHON Auger Drill Attachment for Mini Excavators Augment Your Excavation Efficiency
An elongated extension from TYPHON called the Auger Drill Attachment is the surest way to take the edge off any given area completely.
With precision and endurance combined, manufacture this apparatus solely for digging purposes, and it will come in very handy for a variety of tasks.
The TYPHON auger is also associated with a mini excavator and hence the auger will deliver a high degree of performance throughout different terrains by ensuring that the operations are smooth and at the same time that the results are superb.
Transform your 1-3 ton TYPHON Auger Drill Attachment for Mini Excavators
TYPHON Auger Drill Attachment mini excavators is a commercial-grade, easy-to- use, and convenient method that empowers anyone at the jobsite to have the freshly-driven posts in his hands almost immediately, with the TYPHON brand as an exception.
Its hydraulically assisted operation and compatibility with most mini-excavator loaders of less than 3 tons grant it access to plunge the ground without creating an epicenter of dust, noise, and human congestion, hence the most labor-intensive, the most fuel-consuming, and the most wearing bucket.
Key Features
Compatible with All: Designed especially for TYPHON Auger Drill Attachment for Mini Excavators but also for use in the other heavy machines below 3 tons of weight, this Auger has a pin size of ∮25*160 which is versatile to all sorts of machinery.
Well-Built Design: This is constructed as a shaft with a hollow center that has steel blades on the sides and a drive head of the auger mounted on the top part. For the drilling head to do the dirty job, it’s designed with the hydraulic motor and the rotation unit. It will drill and rotate without the need for human power.
Optimal Dimensions:
- Drill Bit Length: 70 cm
- Drill Bit Diameter: 20 cm
- Weight: 102.6 lb
These dimensions are not only small and light but also of a most suitable size and weight that guarantee efficient digging and still allow maneuverability.
Comprehensive Package
The attachment comes complete with:
- Two hydraulic hoses
- Two mounting screws
This enables equipment owners to get your mini excavator running as quickly as possible.

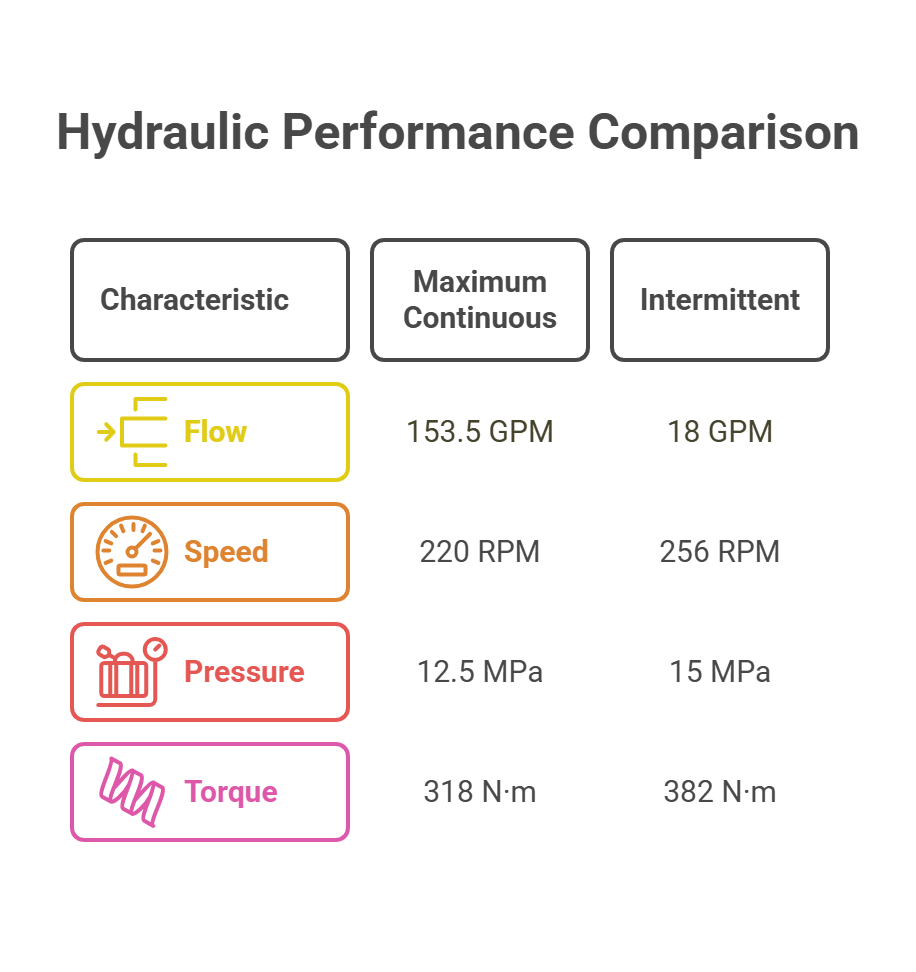

Technical Specifications
- Hydraulic Flow:
- Maximum Continuous: 153.5 GPM
- Intermittent: 18 GPM
- Speed:
- Maximum Continuous: 220 RPM
- Intermittent: 256 RPM
- Pressure:
- Maximum Continuous: 12.5 MPa
- Intermittent: 15 MPa
- Torque:
- Maximum Continuous: 318 N·m
- Intermittent: 382 N·m
Detailed Specifications
| Attribute | Value |
| Brand / Model | TYPHON TYPH-2007 |
| Vehicle class | Mini-excavators & equipment ≤ 3 tons |
| Bit diameter | 200 mm / 7.9 in |
| Bit length | 700 mm / 27.6 in |
| Pin size | Ø25 mm × 160 mm |
| Weight | 102.8 lb / 46.6 kg |
| Finish | Black powder-coat |
| Material | Stainless steel body & flighting |
| Country of origin | China |
| Included | Auger drive + 200 mm bit, 2 hydraulic hoses, 2 mounting screws |
Why Contractors Choose TYPHON
- True plug-and-play: Hydraulic hoses match standard quick-coupler ports; no fabrication required.
- Service & parts backing: Supported by TYPHON’s U.S. machinery network for spares and technical help.
- Cost efficiency: One attachment multiplies the earning potential of your mini excavator, avoiding rental fees or additional machines.
Why Choose TYPHON?
- Durability: Armored with the best possible materials to take the most rigorous of abuse.
- Efficiency: Crafted for the enhancement of the operation of your mini excavator.
- Versatility: Appropriate for various application types and also interchangeable among different equipment.
Ready to Power Up Your Mini Excavator?
Order online or request a quote today to begin your journey toward cleaner, quicker-drilling operations, backed by TYPHON’s commitment in every aspect of the flight.
Have any queries? Our experts are always available and ready to measure pin sizes, flow rates, and delivery dates of your replacement part with your machine. Feel free to make a call now!
Boost your excavator tasks with the TYPHON Mini Excavator Auger Attachment now!
