Description

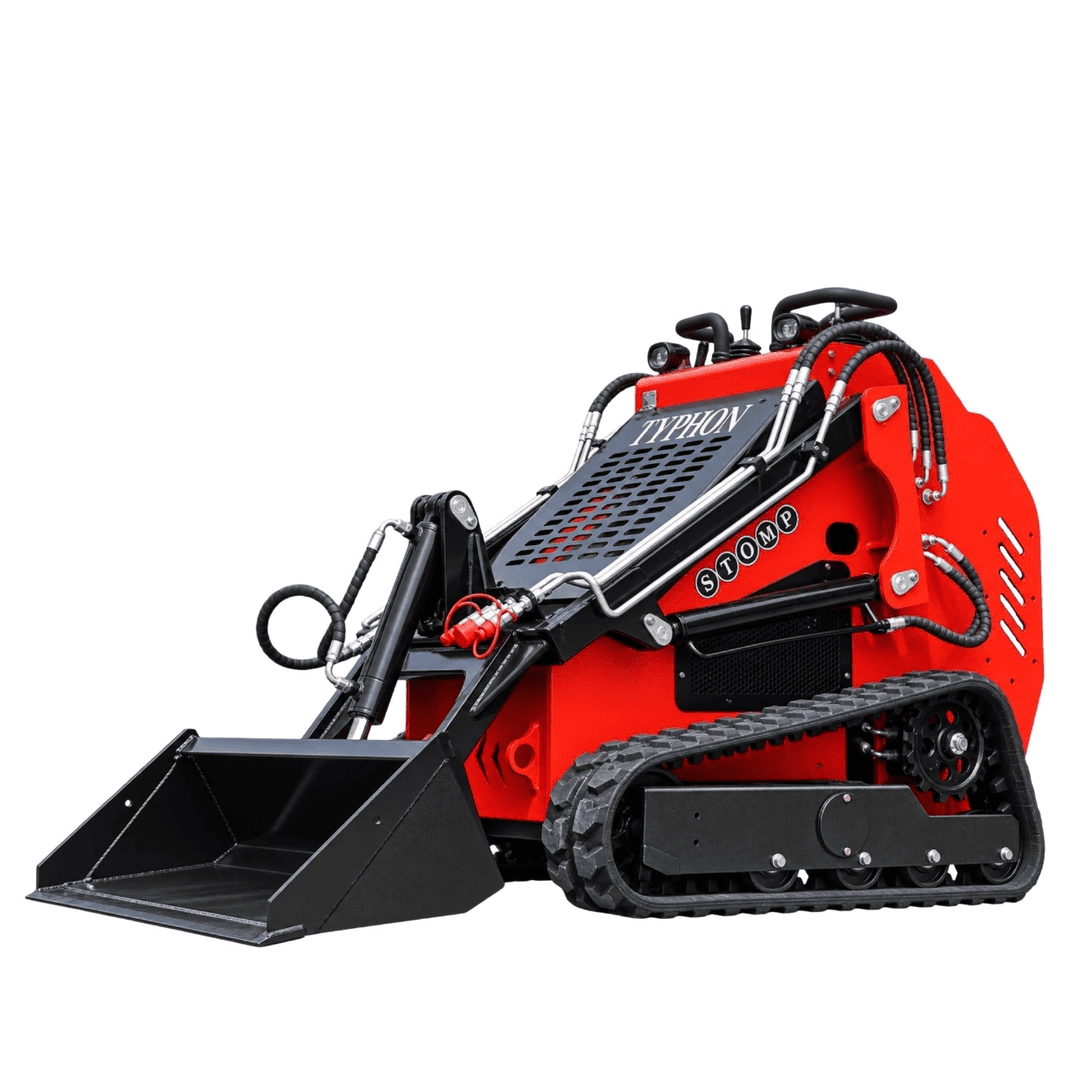

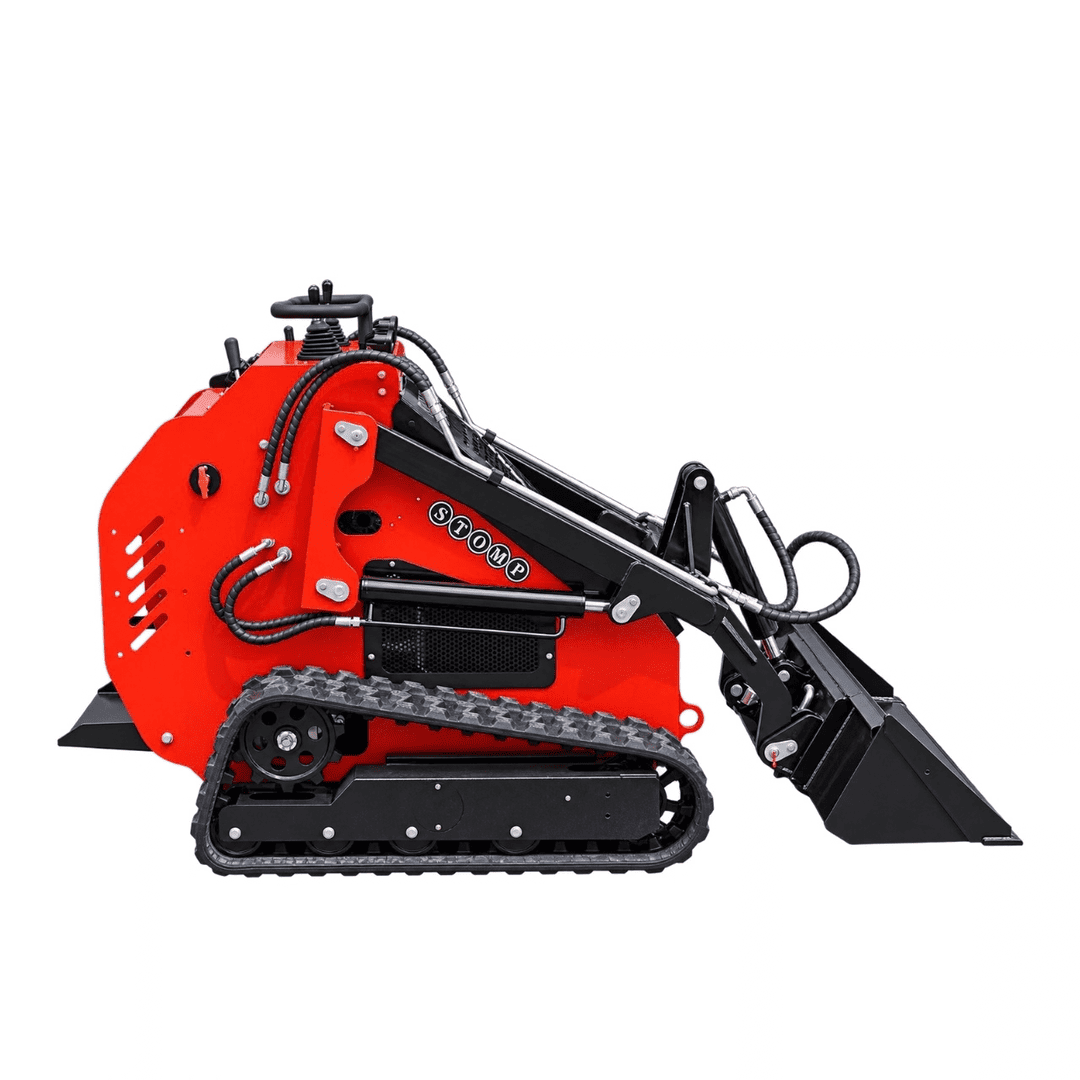

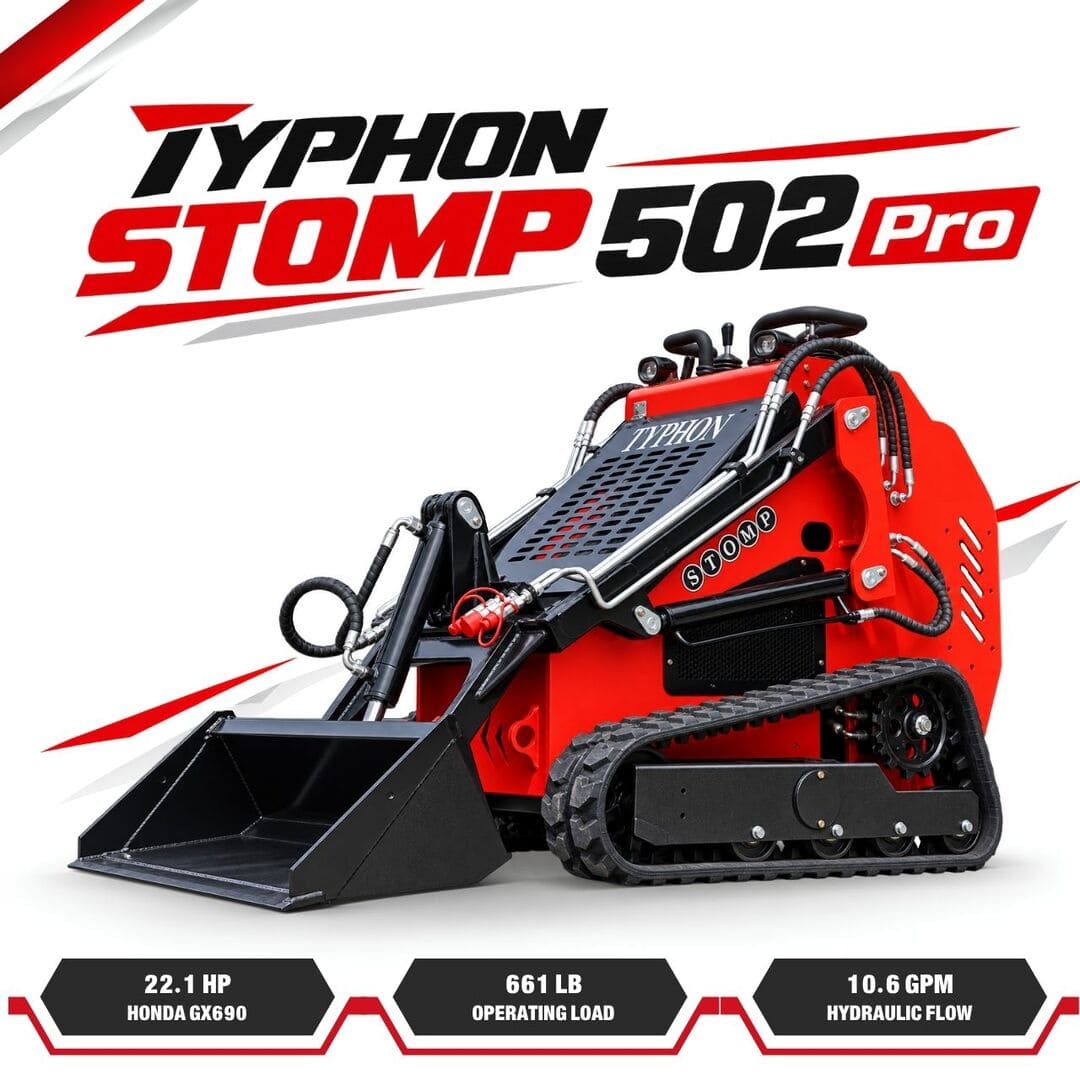

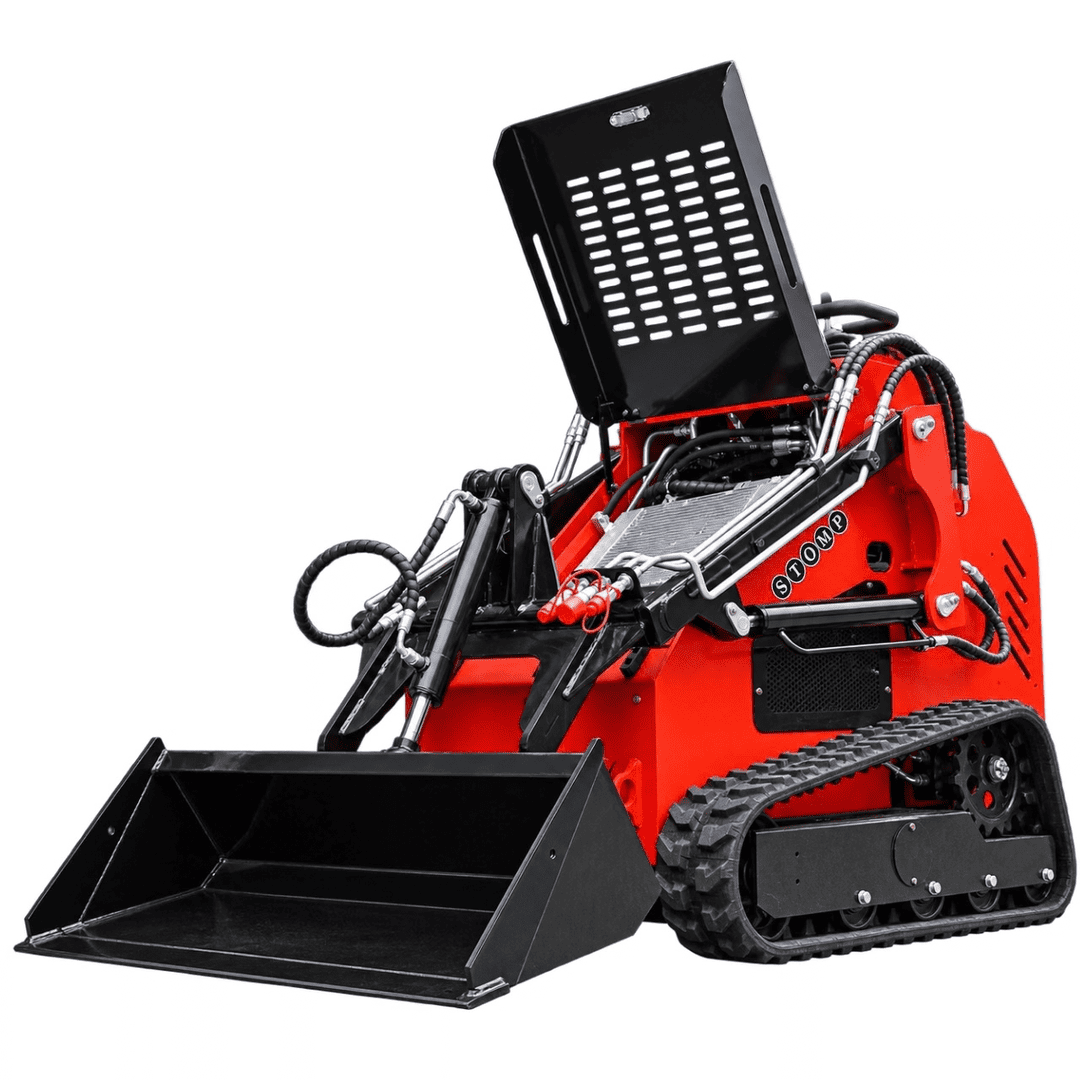

Tight access shouldn’t mean a light workload, and the TYPHON STOMP 502 PRO Compact Skid Steer Loader is built for exactly that. For landscaping, material handling, construction, and property maintenance, this compact machine combines strong power, hydraulic performance, lifting strength, and maneuverability to help you finish jobs faster. EPA Certified for the U.S. market, it delivers dependable performance in demanding work environments.
Powered by an EPA-certified 22.1 HP Honda GX690 V-Twin, known for its durability and easy maintenance, this air-cooled gasoline engine provides the steady power needed for heavy-duty lifting and long hydraulic operation. The professional 3-Pump / 3-Valve hydraulic system drives the tracks and boom independently, so they can work smoothly at the same time, and it has the force to cut through tough soil and handle heavy loads.
With a 992 lb maximum lifting force and an 838 lb load capacity, it punches well above its weight class on loading and placement tasks. At only 40.7 inches wide, it is made for tight access and easy transport between jobsites, and its high-visibility red finish helps the operator and ground crew stay aware of each other. A stand-on platform and dual joystick controls complete a machine that is ready for a wide range of hydraulic attachments.
- V-Twin Performance by Honda

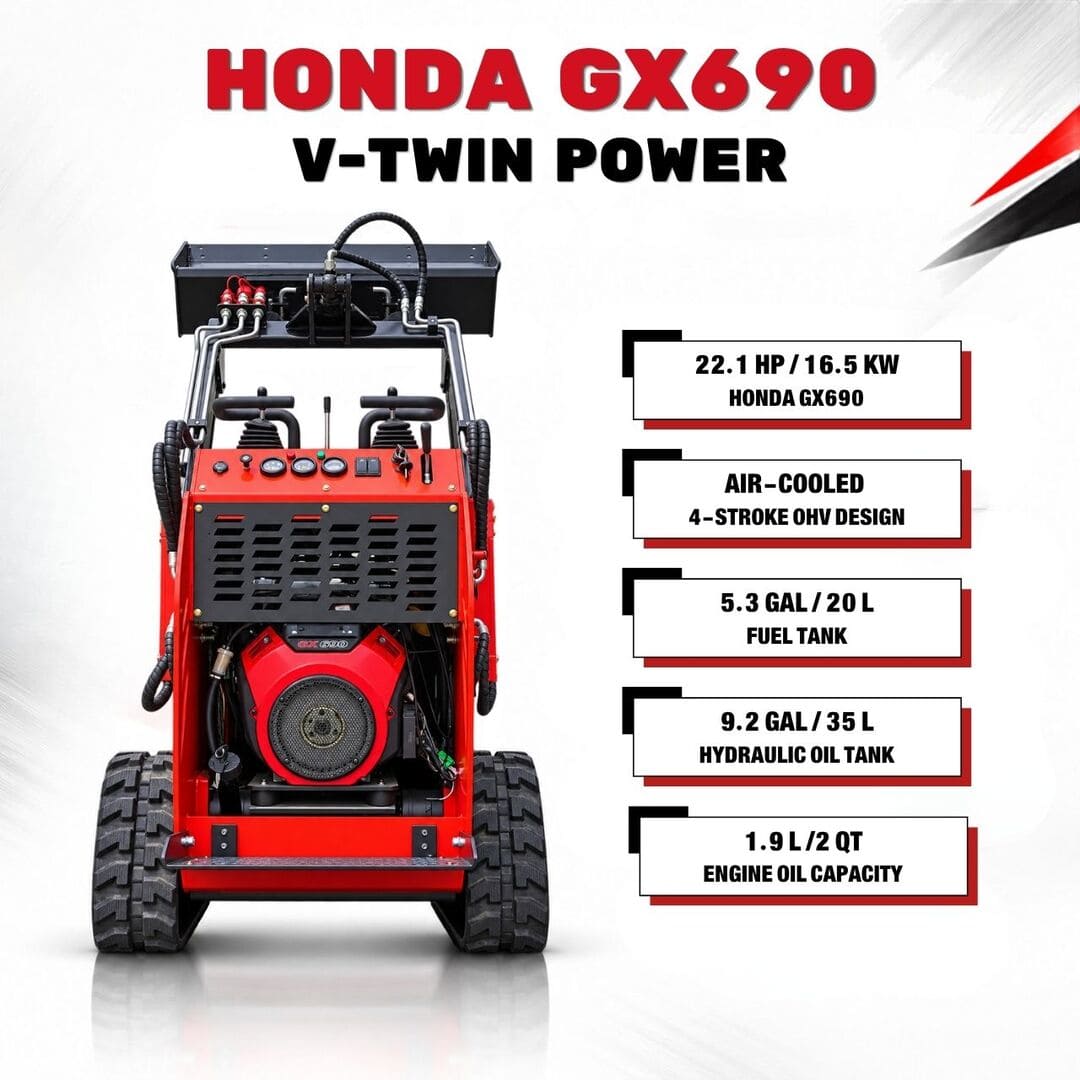

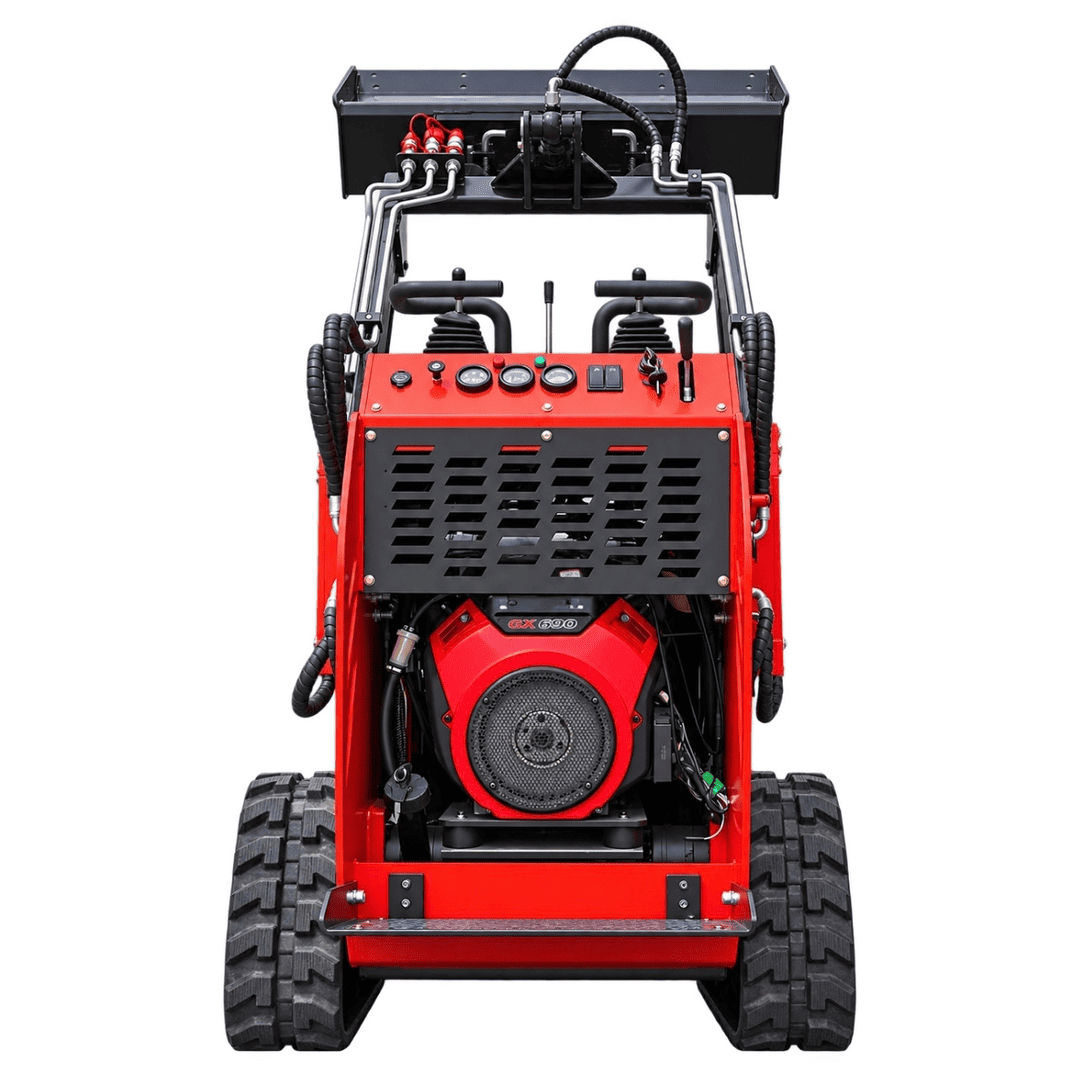

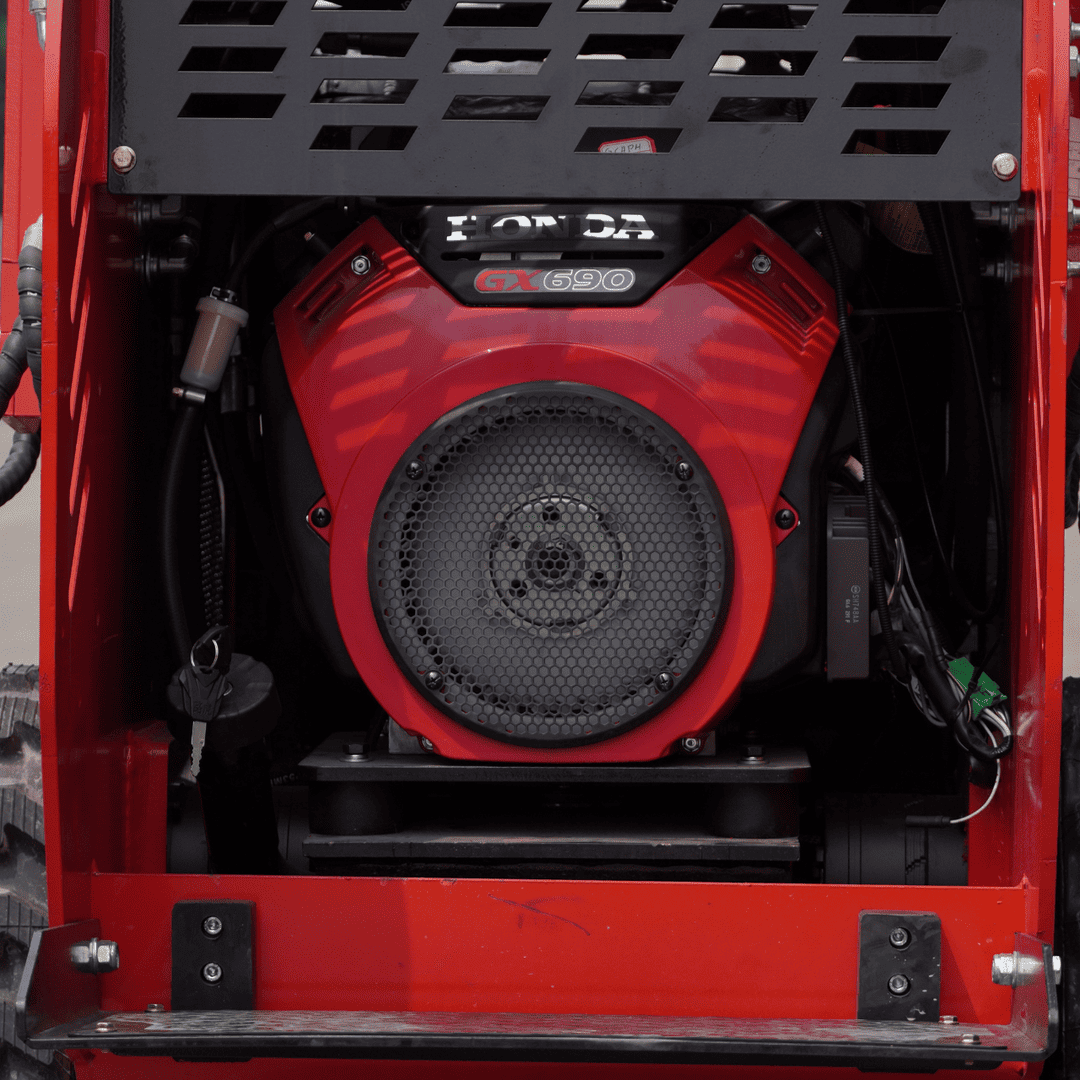

The machine is powered by the EPA Certified Honda GX690 22.1 HP V-Twin. This air-cooled gasoline engine is known for its durability and easy maintenance, and it provides the steady power needed for heavy-duty lifting and long hydraulic operation. A 5.33-gallon fuel tank gives you plenty of capacity for longer sessions between refills.
- Responsive 3-Pump Hydraulics

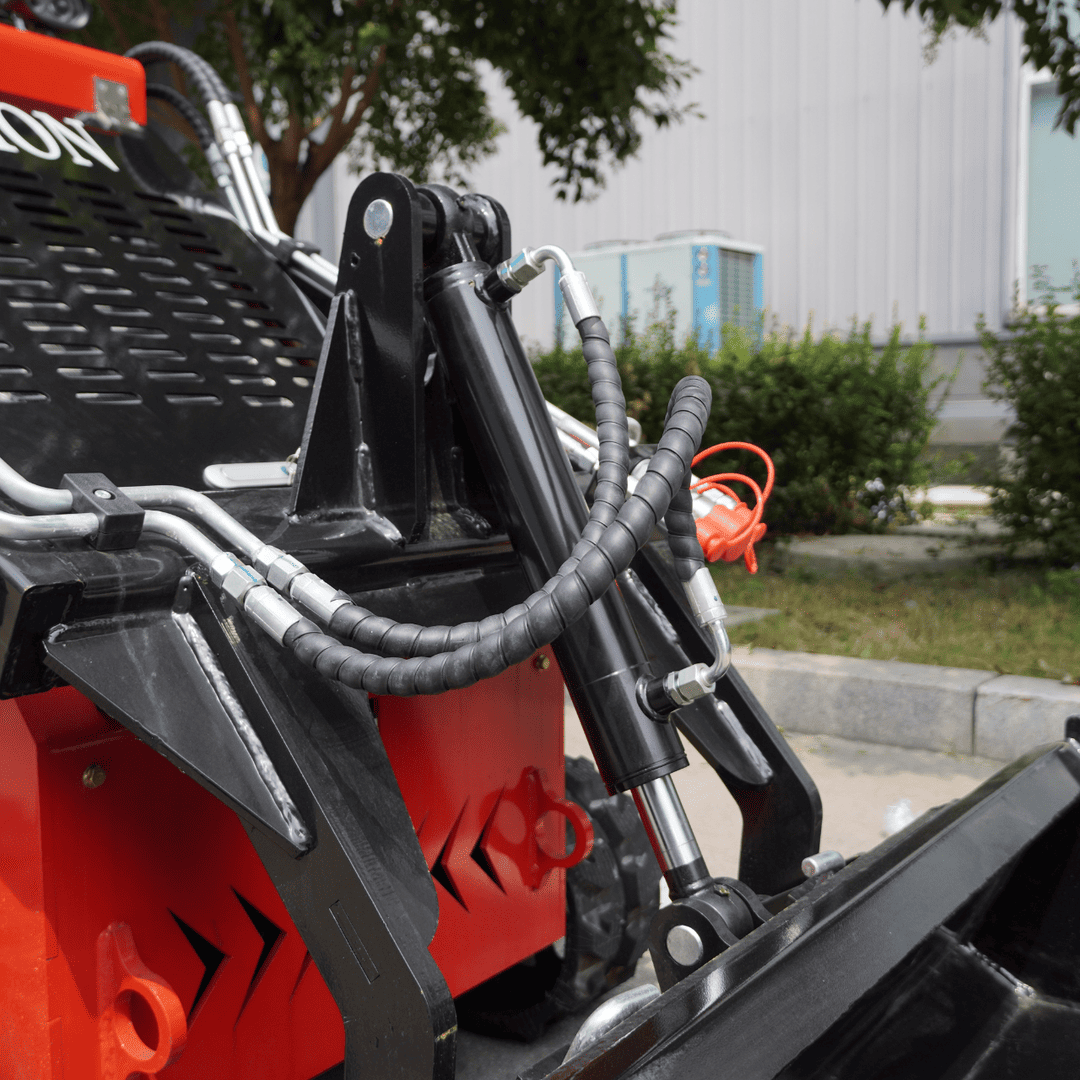

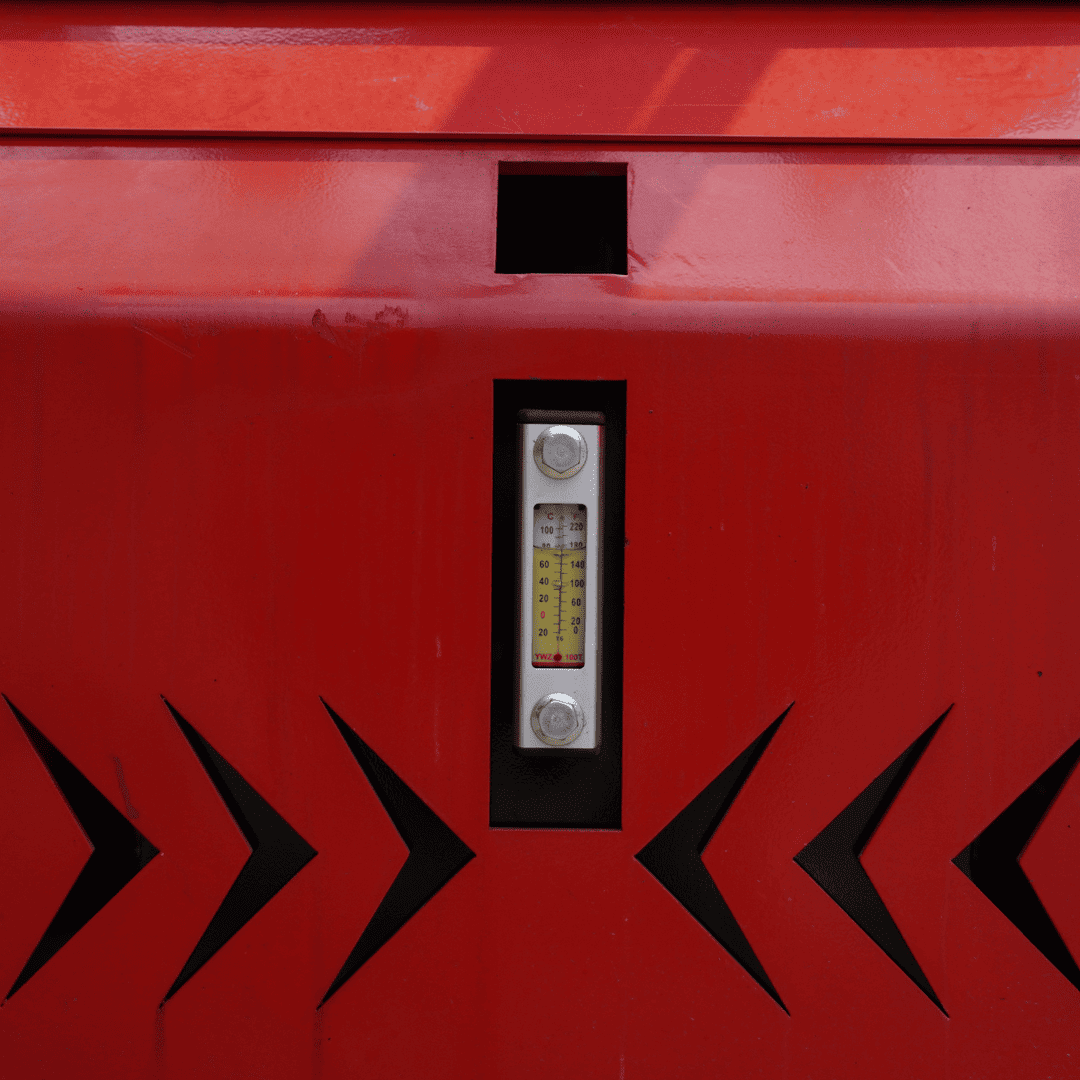

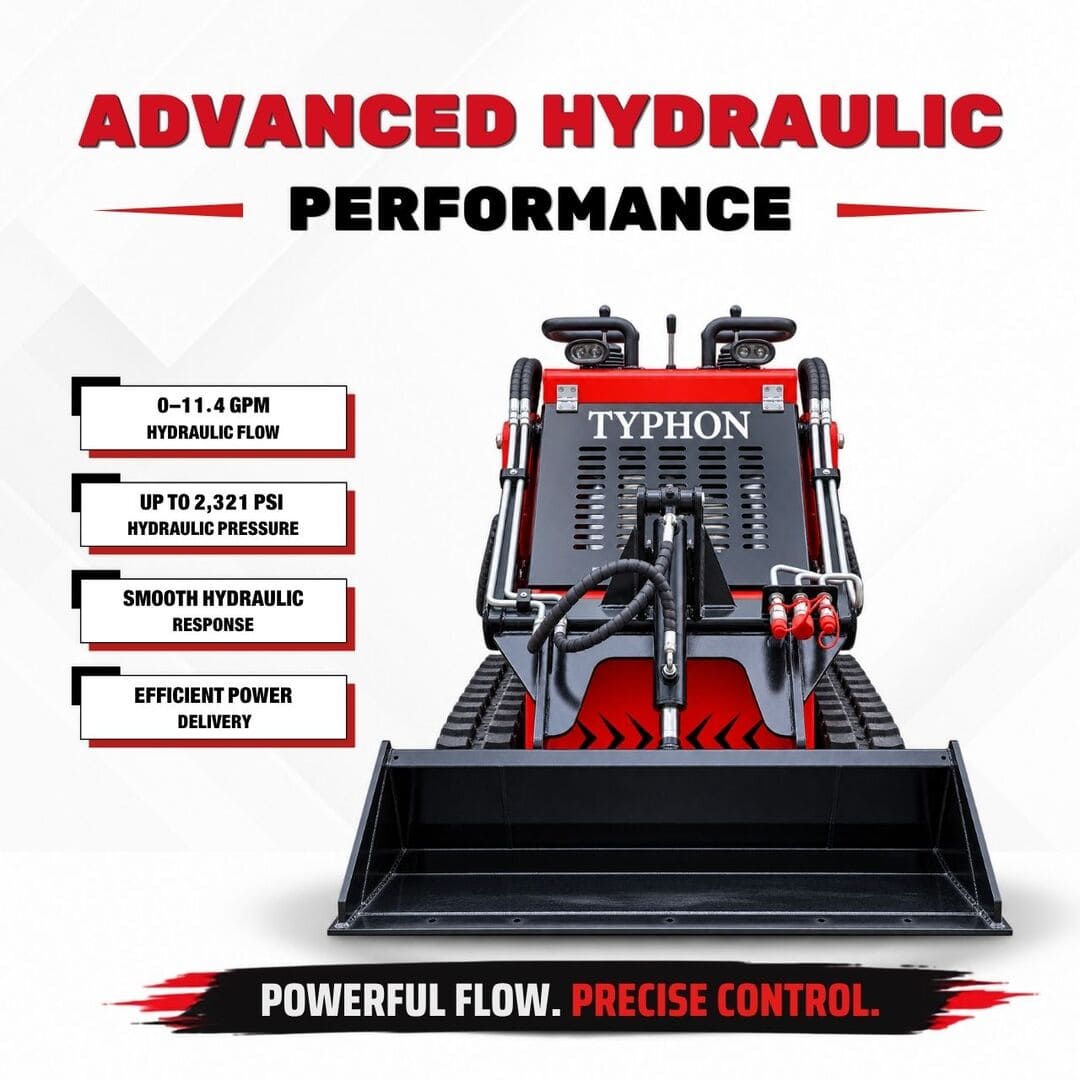

The professional 3-Pump / 3-Valve hydraulic system delivers 11.4 GPM of main flow and two 5.7 GPM auxiliary flows. It powers the tracks and boom independently, so they can work smoothly at the same time. With hydraulic pressure of up to 2,465.64 PSI, the system has the force to cut through tough soil and handle heavy loads with confidence. A 9.2-gallon hydraulic oil tank provides ample fluid capacity for demanding work and extended sessions.
- Compact Frame, Massive Output

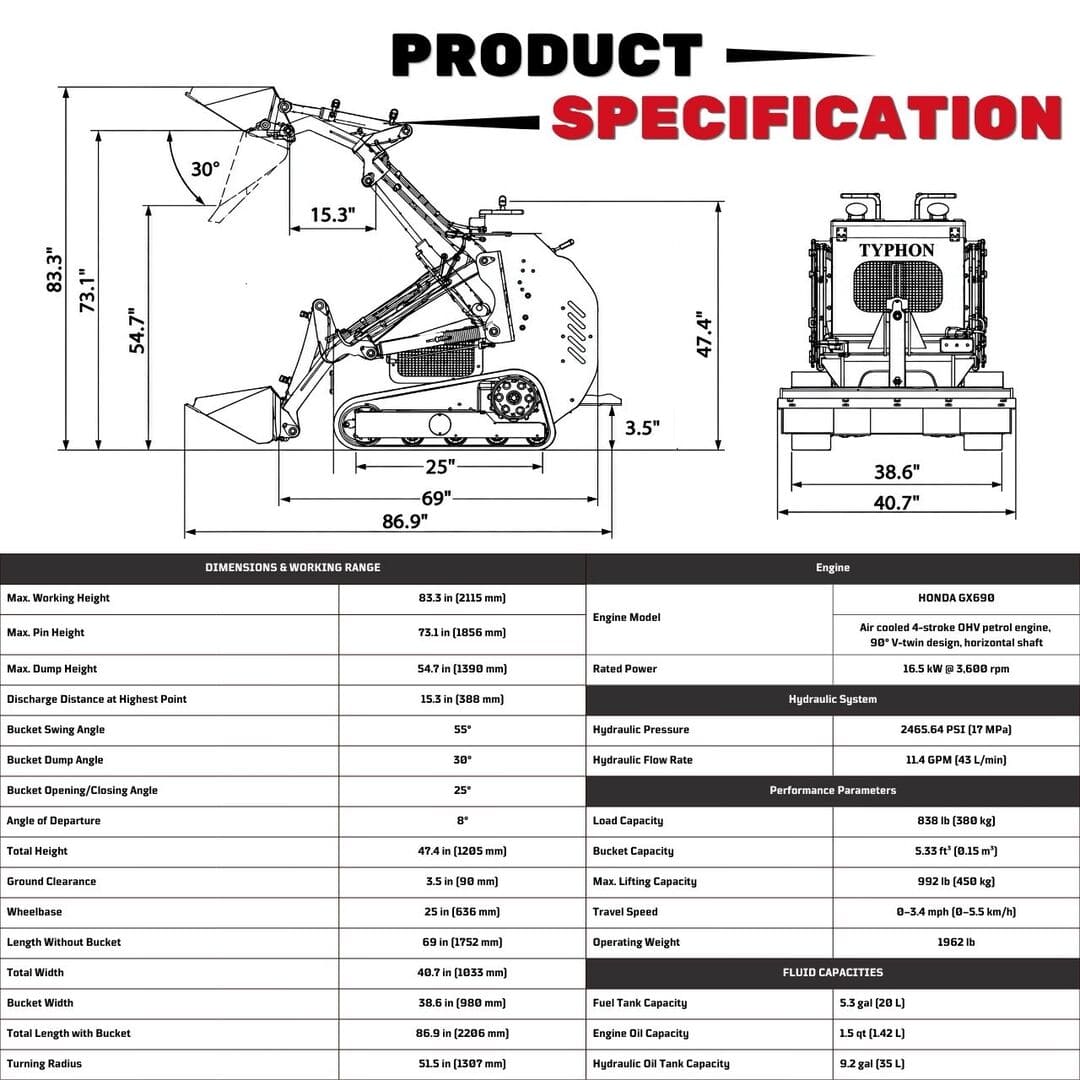

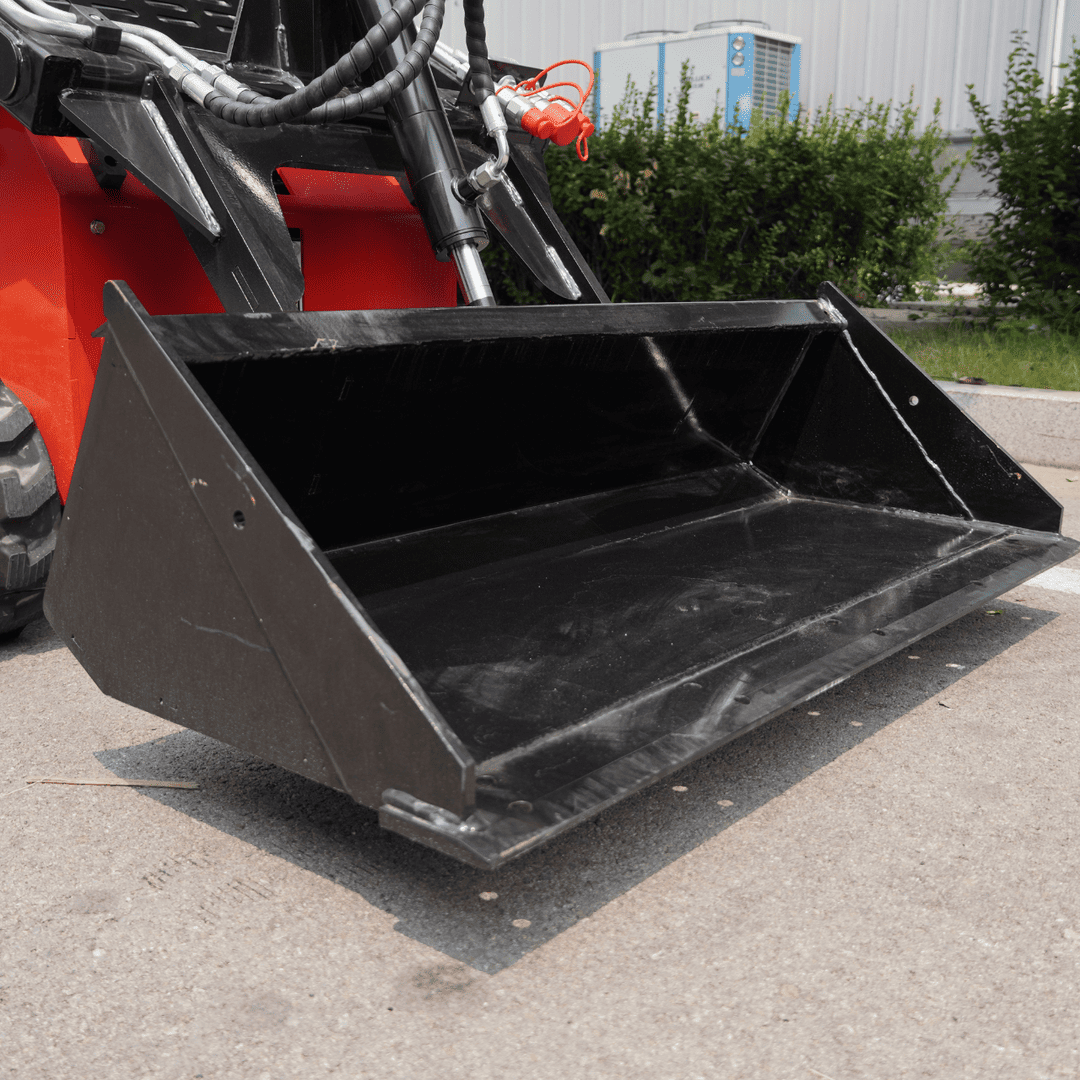

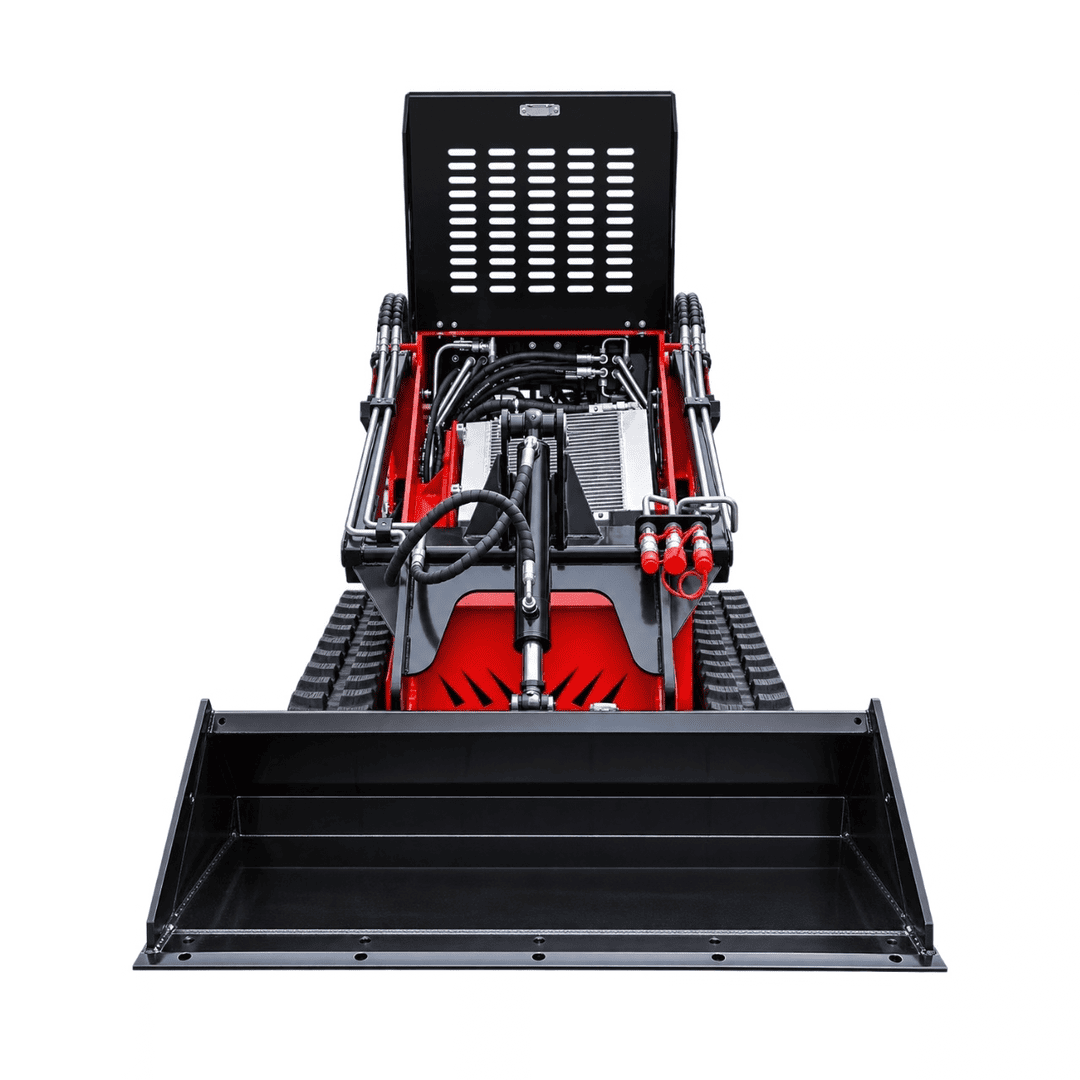

The STOMP 502 PRO goes where larger skid steers can’t. A 992 lb maximum lifting force, 838 lb load capacity, 5.37 ft³ bucket capacity, and 83.3-inch maximum working height let it punch well above its weight class on material handling, placement, and loading tasks.
- Operator-Centric Design

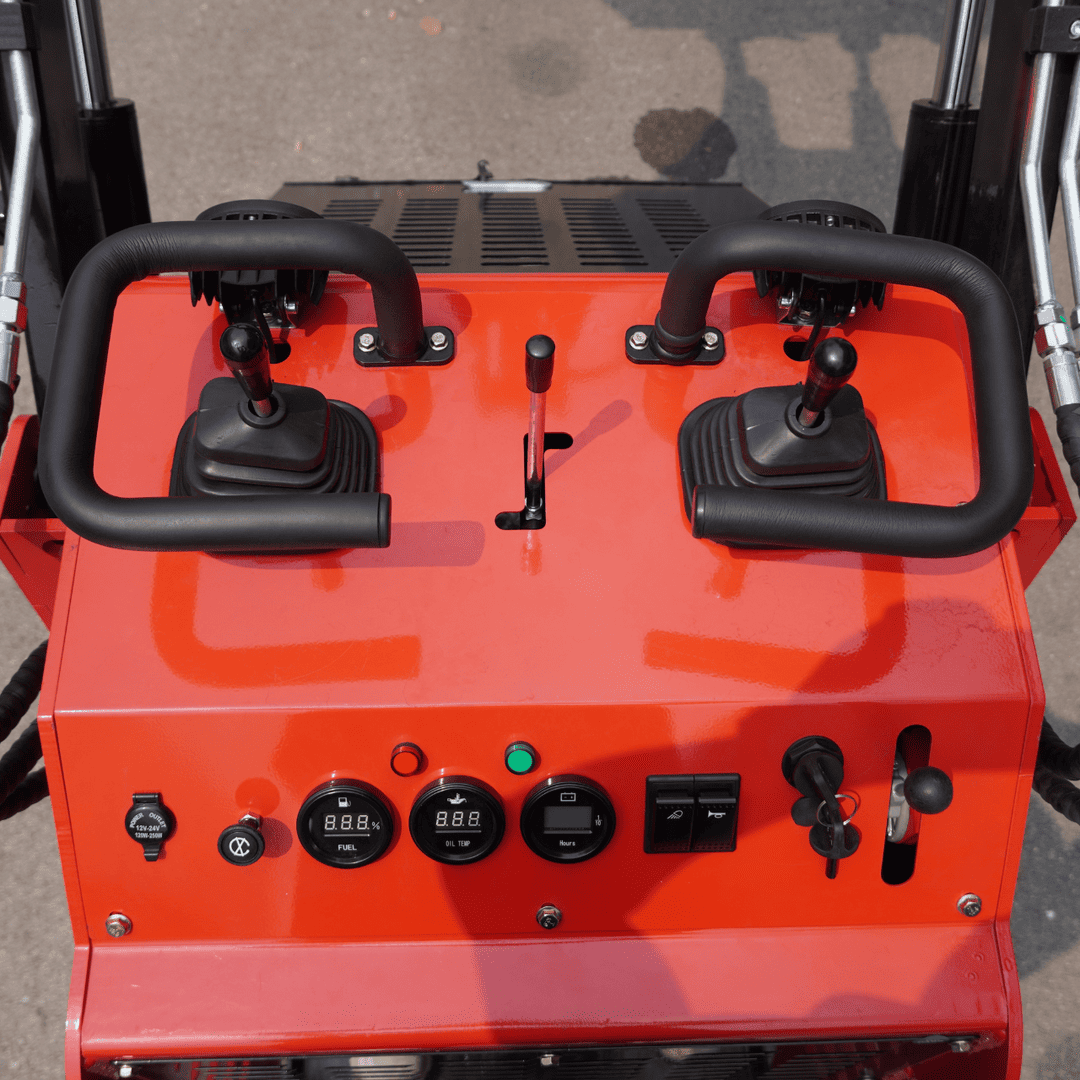

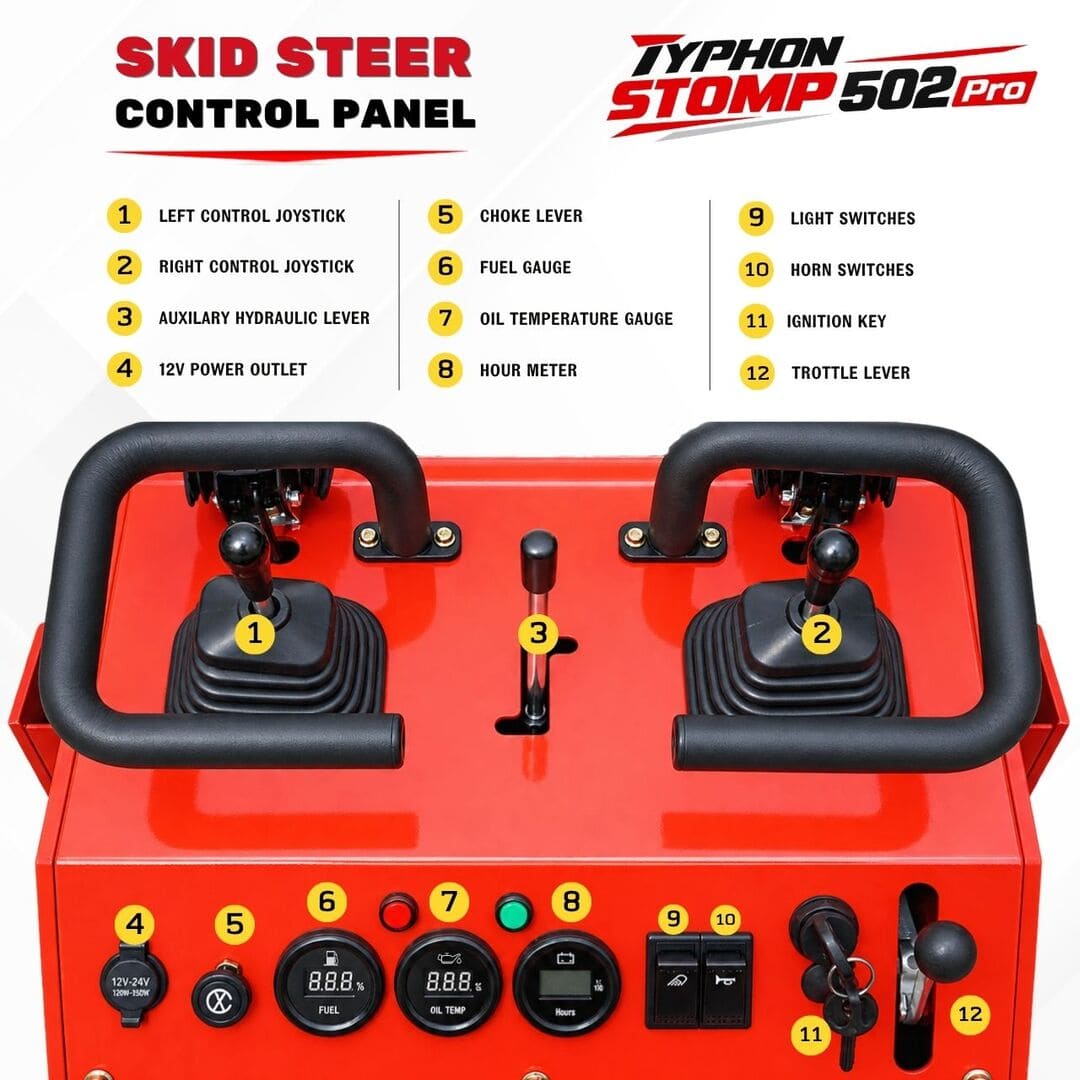

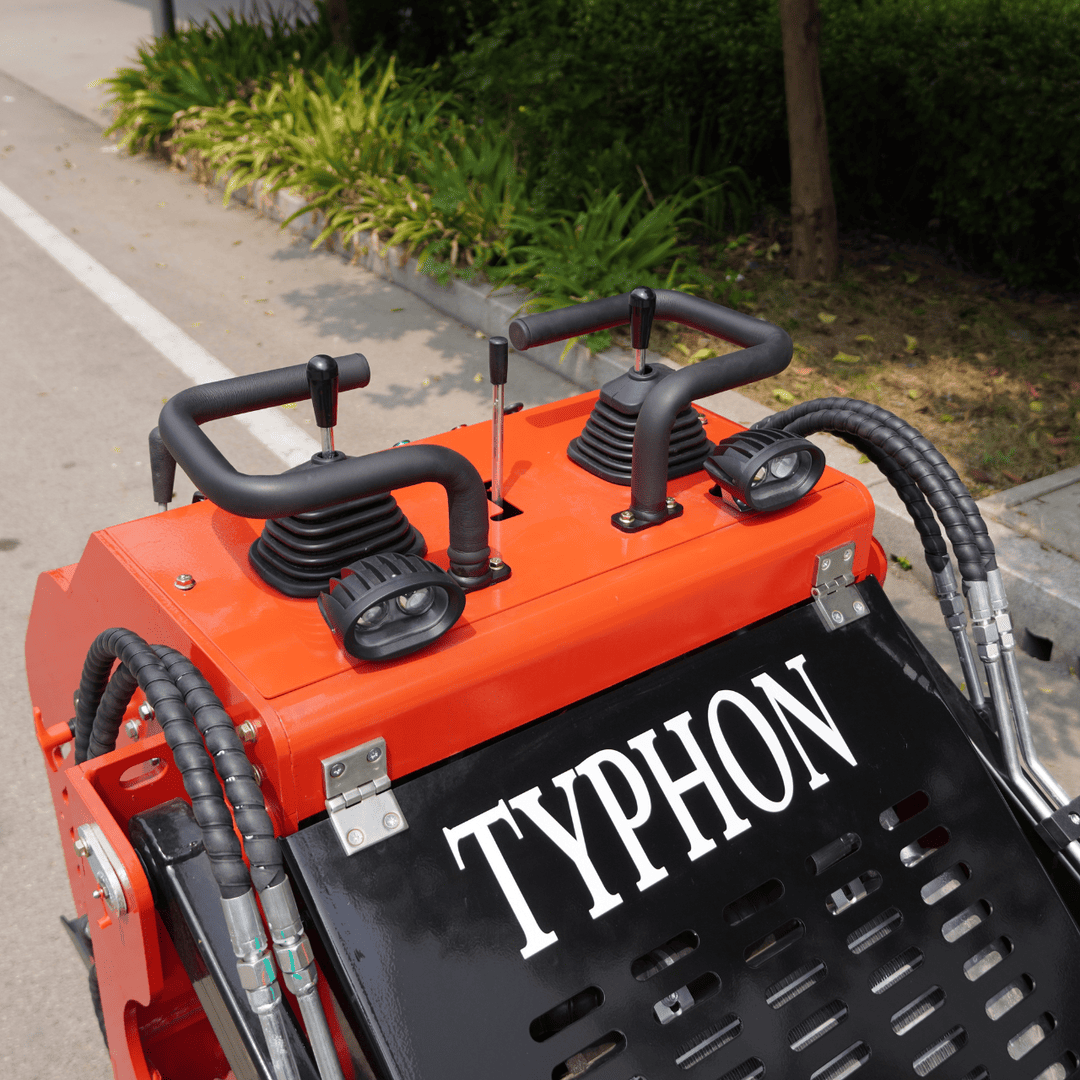

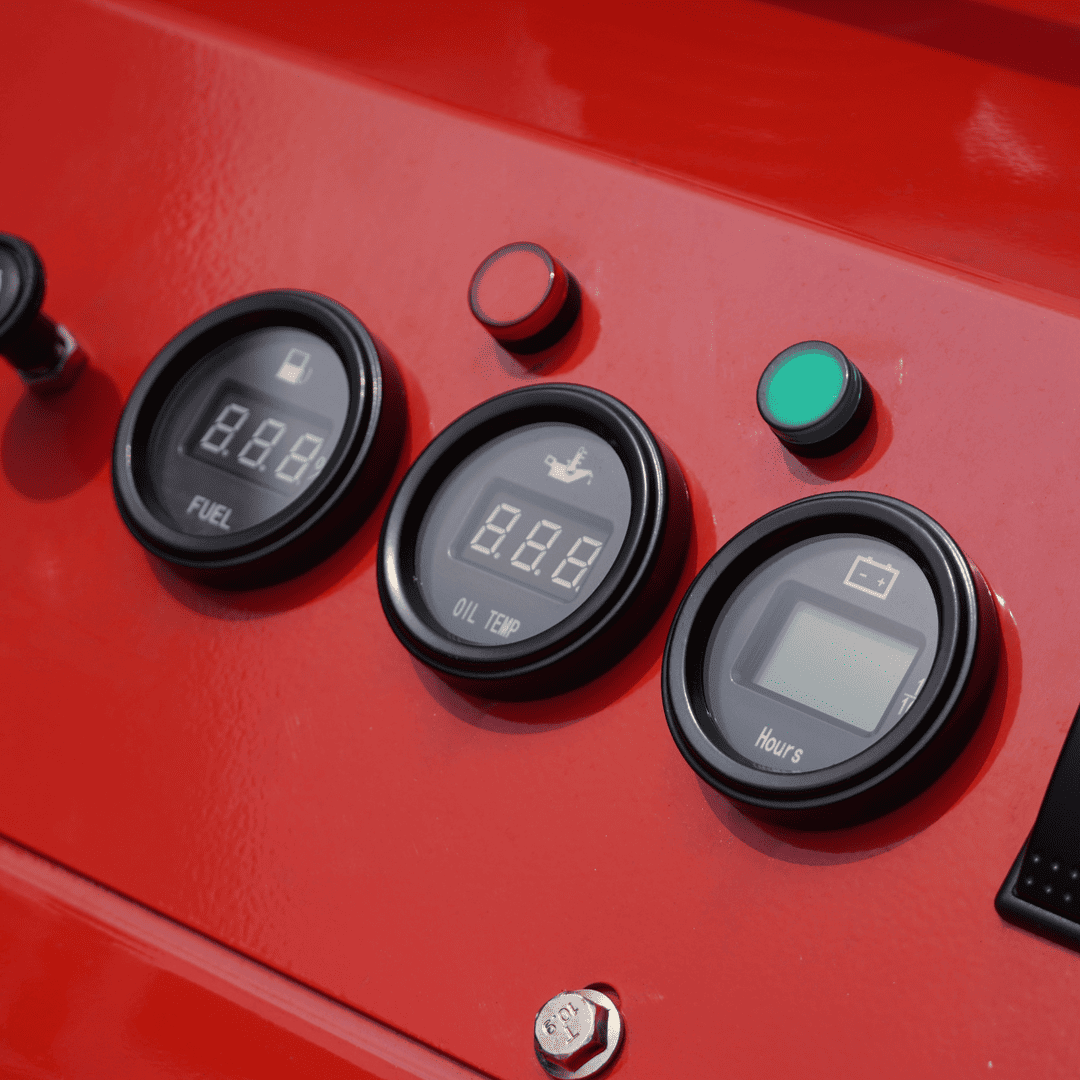

The Stand-On Operator Platform and Dual Joystick Controls provide excellent ergonomics and a clear view of your surroundings. Integrated LED work lights and a heavy-duty digital control panel keep you in command from the first task to the last.
- Built for the Toughest Jobsites
- Maximum Visibility: The high-visibility red finish makes the machine easy to see on busy construction sites, helping the operator and ground crew stay aware of each other.

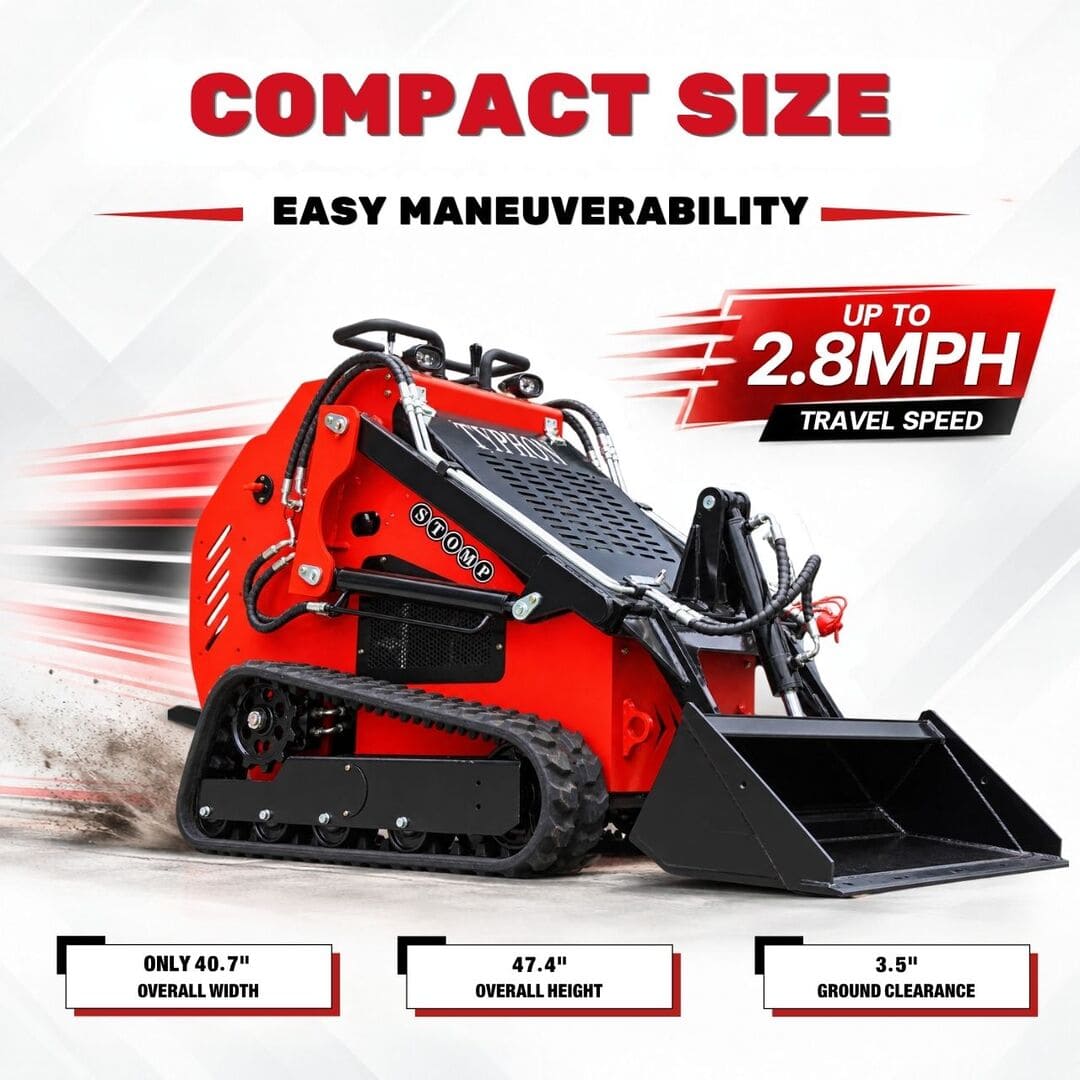

- Industrial Maneuverability: At only 40.7 inches wide and 1,962 lb in operating weight, the STOMP 502 PRO is made for tight access and easy transport between jobsites. 360° pivot steering lets it turn on a dime, and a travel speed of up to 3.4 MPH helps you move efficiently between work areas. It’s especially useful for interior demolition, landscaping, and working between foundation walls and trenches.
- High-Flow Attachment Compatibility: The 11.4 GPM high-flow hydraulic system makes the STOMP 502 PRO a versatile tool carrier for hydraulic hammers, stump grinders, heavy-duty sweepers, and other compatible hydraulic attachments.
Key Features
- EPA Certified
- 22.1 HP Honda GX690 V-Twin, Air-Cooled
- 3 Pump / 3 Valve System (11.4 GPM main flow, dual auxiliaries of 5.7 GPM each)
- 992 lb Maximum Lift
- 40.7″ Compact Width

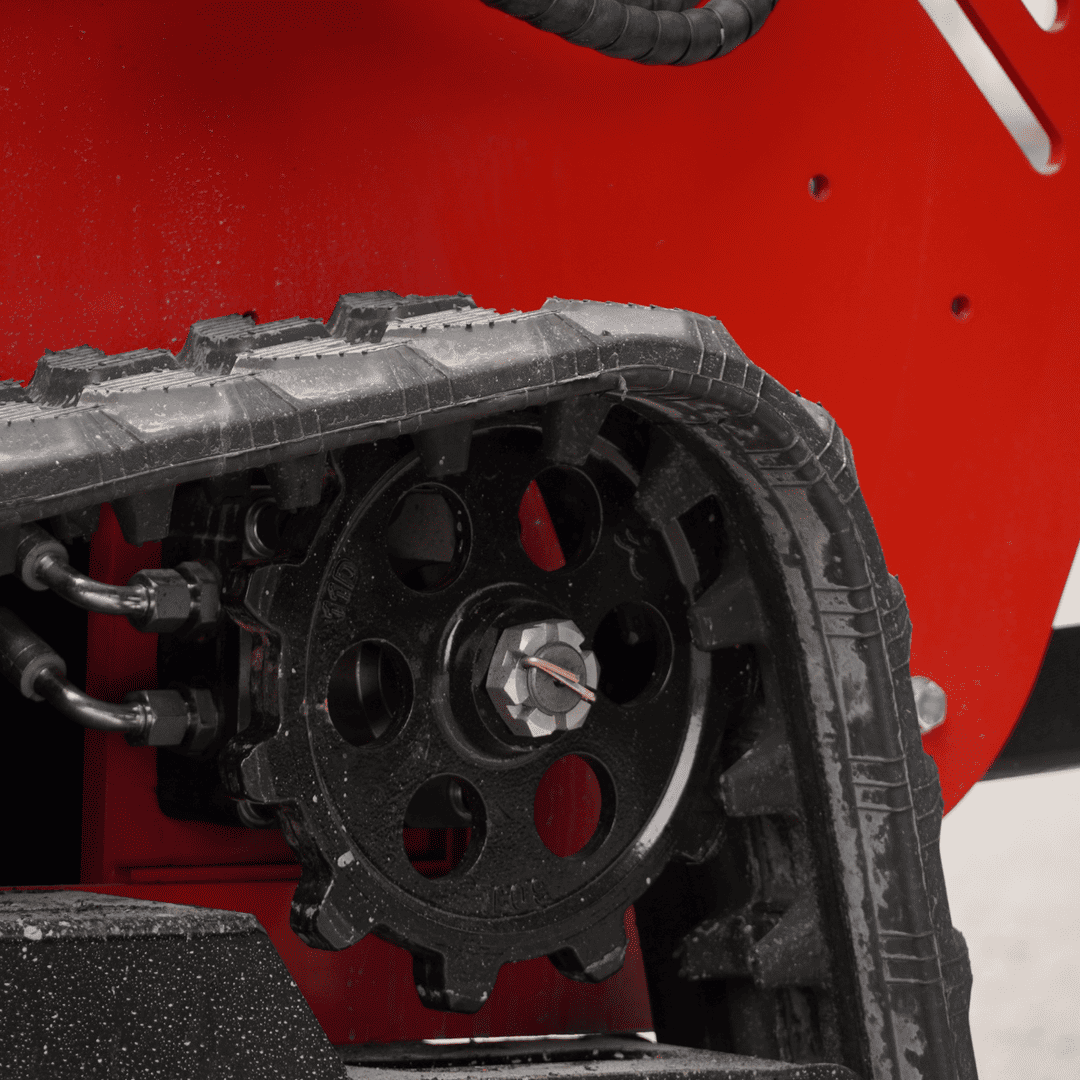

- 360° Pivot Steering & Triangle Tracks
- 3.4 MPH Travel Speed
- 838 lb Operating Load
- Stand-On Platform & Dual Joysticks
- 5.33 ft³ Bucket Capacity
- Hydraulic Attachment Ready
