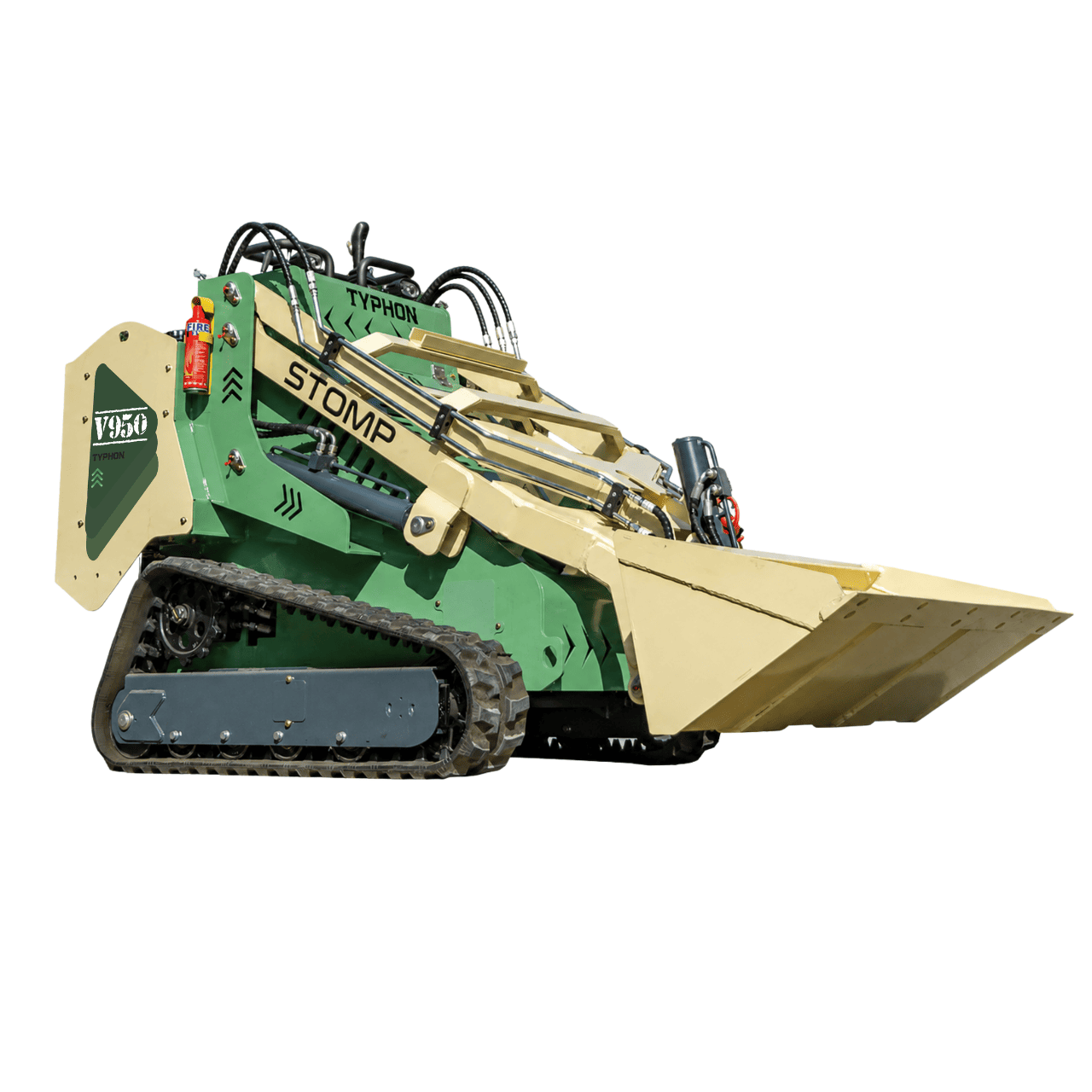

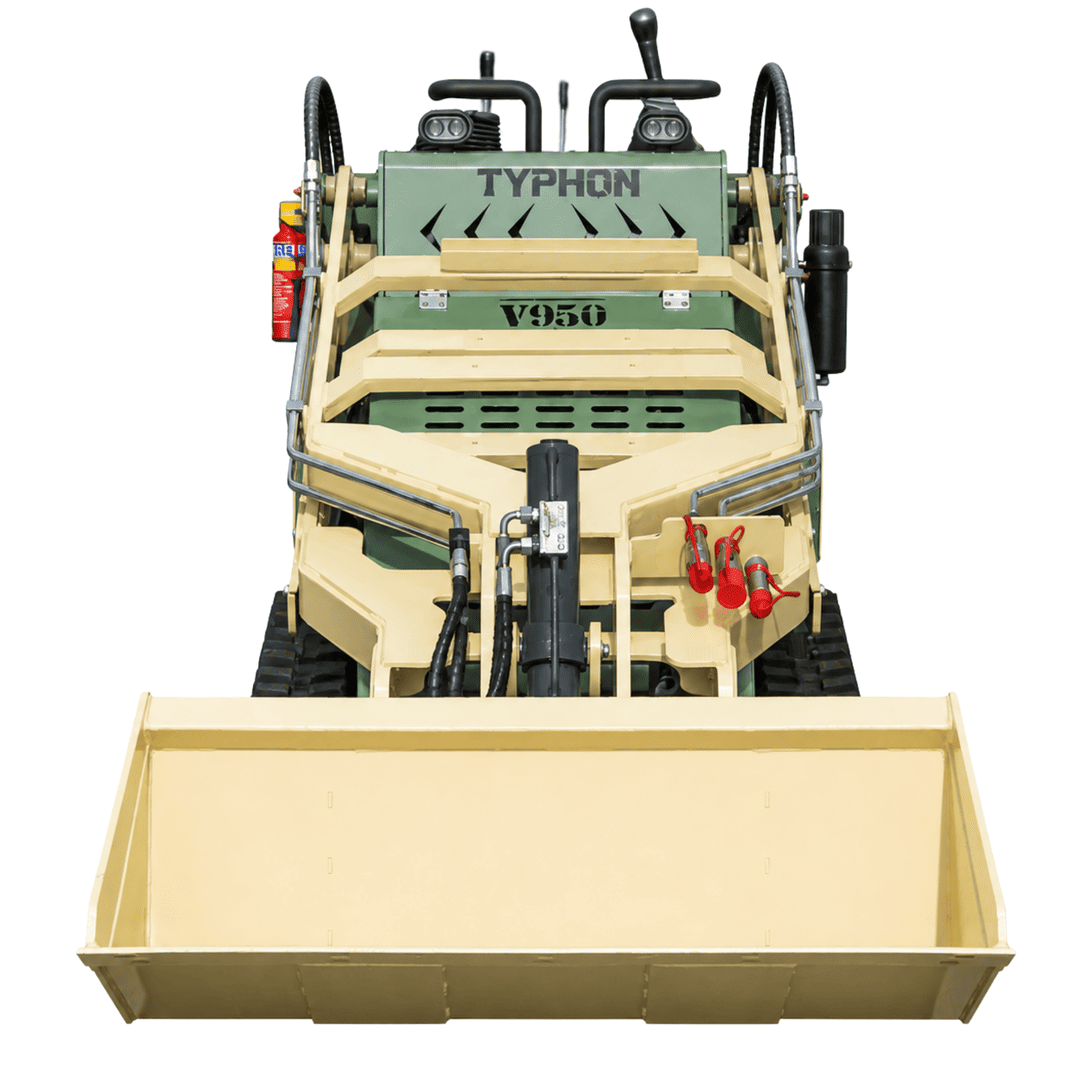

Typhon Stomp V950 Mini Skid Steer Track Loader – Konstructz Series 1.5 Ton 25HP Kubota D1105 Engine

Unleash the full capability of the TYPHON STOMP V950 Mini Track Loader, a dependable, multi-functional solution engineered for demanding work in confined environments. Built for precision and adaptability, this 1.5 Ton machine is purpose-built to deliver results across a wide range of applications. From earthmoving and land clearing to material handling and site preparation, the TYPHON STOMP V950 brings industrial-grade output in a compact, cost-effective package.

Discover the robust and efficient TYPHON STOMP V950 compact mini track loader, a proud member of the Konstructz Series, finished in the line’s signature green-and-sand color combination that reflects both purposeful design and professional-grade build quality. Featuring an advanced full hydraulic system and the proven Kubota D1105 25HP engine, the V950 is built to deliver maximum productivity and reliability on every job.

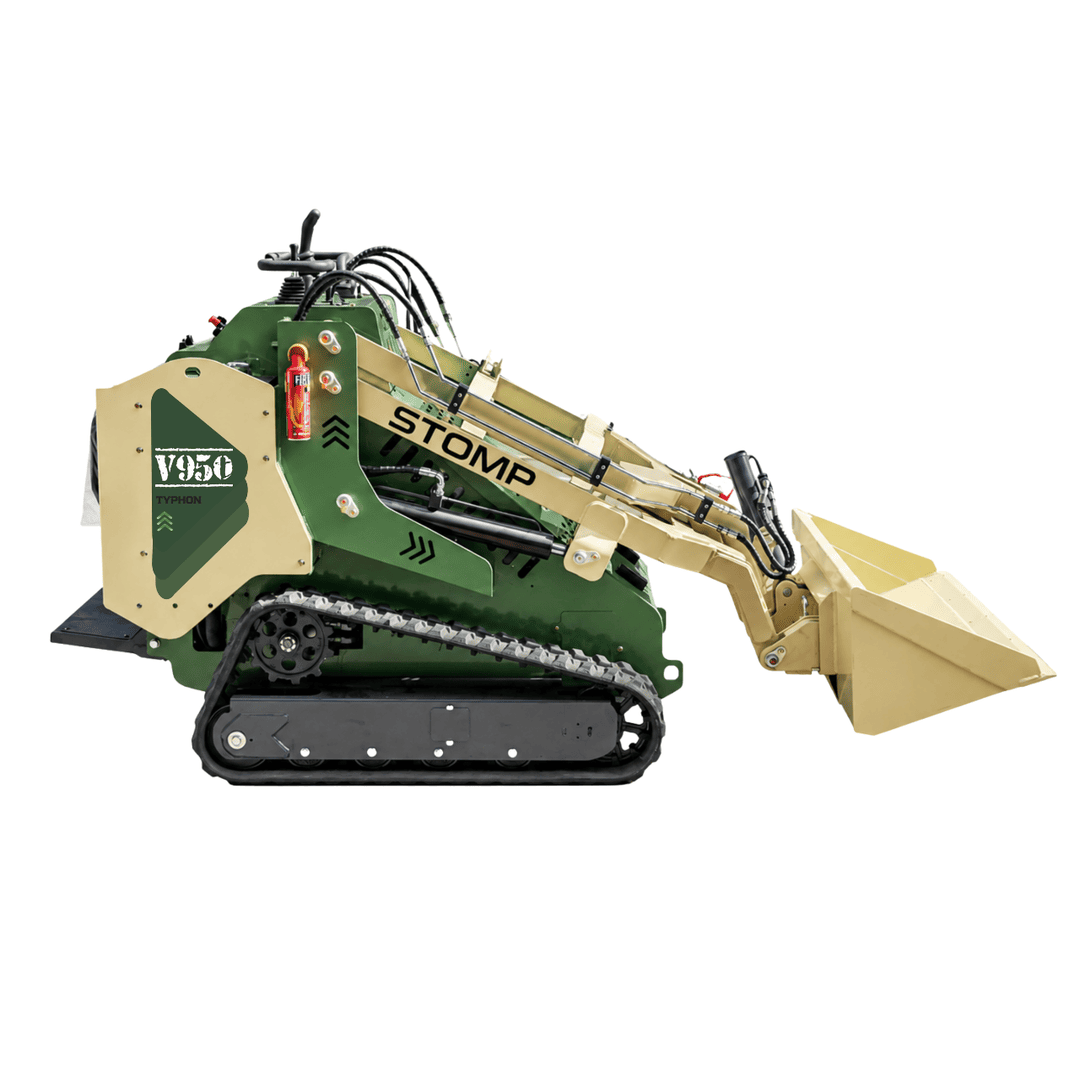

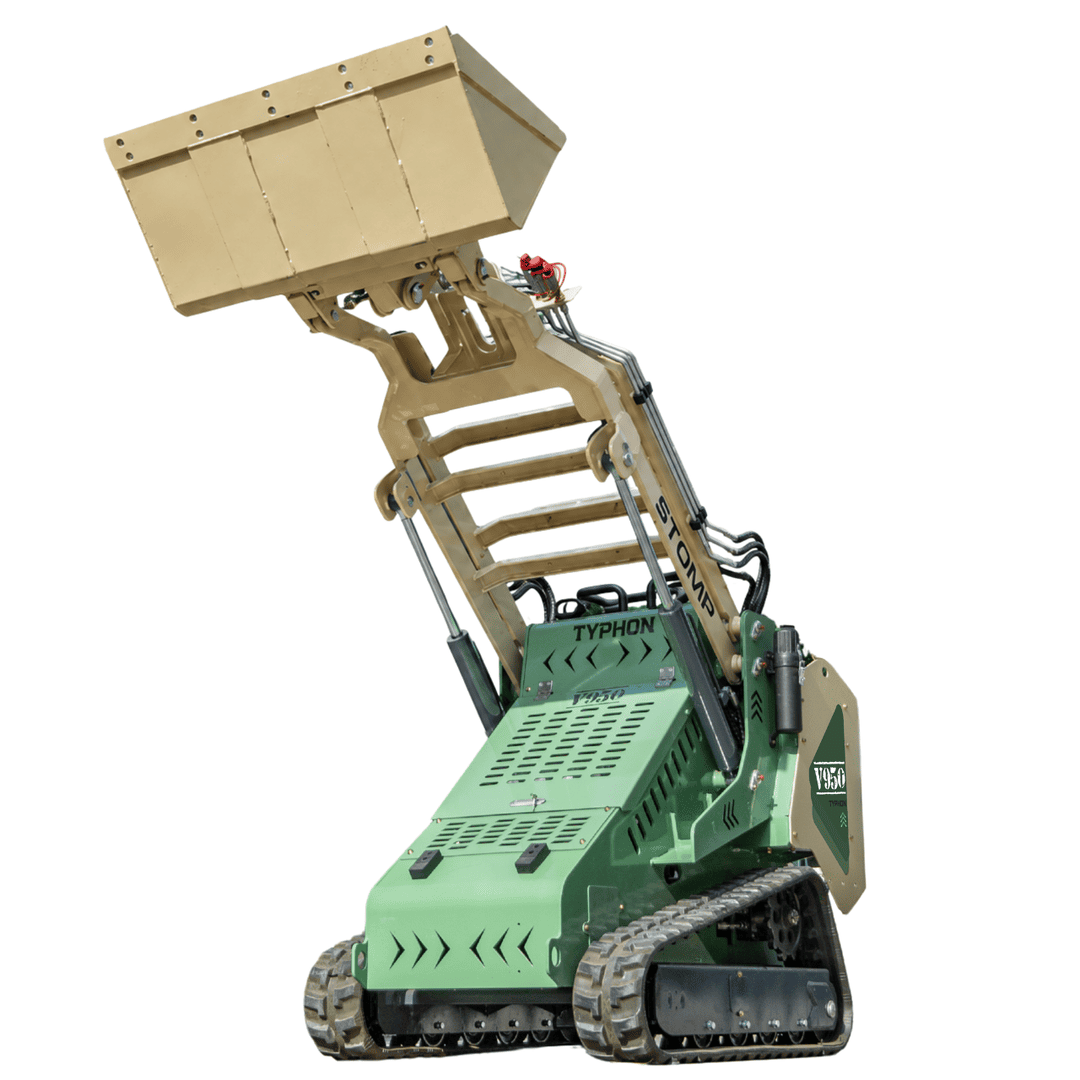

The TYPHON STOMP V950 is a compact mini track loader conceived with precision engineering and purposeful power. With a working height of 2,630mm (103.54 in) and a profile slim enough to pass through standard gates, fence doors, and interior entrances, it operates with equal confidence outdoors and inside enclosed structures.

TYPHON STOMP V950 Mini Track Loader – Key Features

1. Compact Design for Versatile Worksites

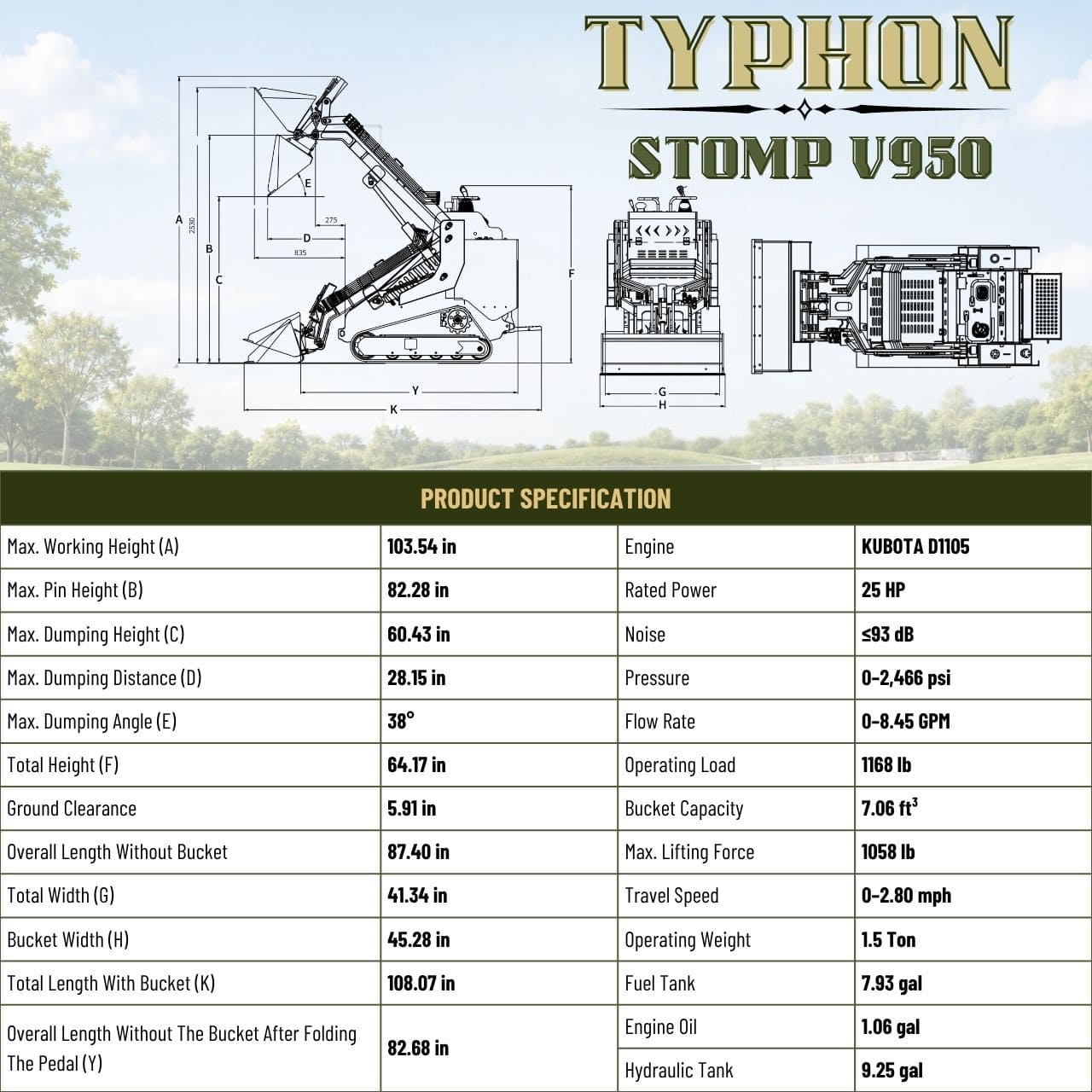

Precision-engineered for projects where space is at a premium, the V950 measures just 1,050mm (41.34 in) wide and 1,630mm (64.17 in) tall, with an overall length of 2,220mm (87.40 in) without the bucket compact enough to pass through standard gates and doorways with ease. A working height of 2,630mm (103.54 in) ensures full on-site capability, while its slim profile enables smooth, controlled maneuverability in restricted areas. Equally suited to farms, gardens, public spaces, parks, orchards, construction sites, and indoor environments.

360-degree turning capability allows the V950 to reposition and operate with precision in narrow or enclosed spaces where conventional equipment simply cannot function, turning tight corners and confined worksites into productive areas rather than obstacles.

2. Compact Yet Formidable

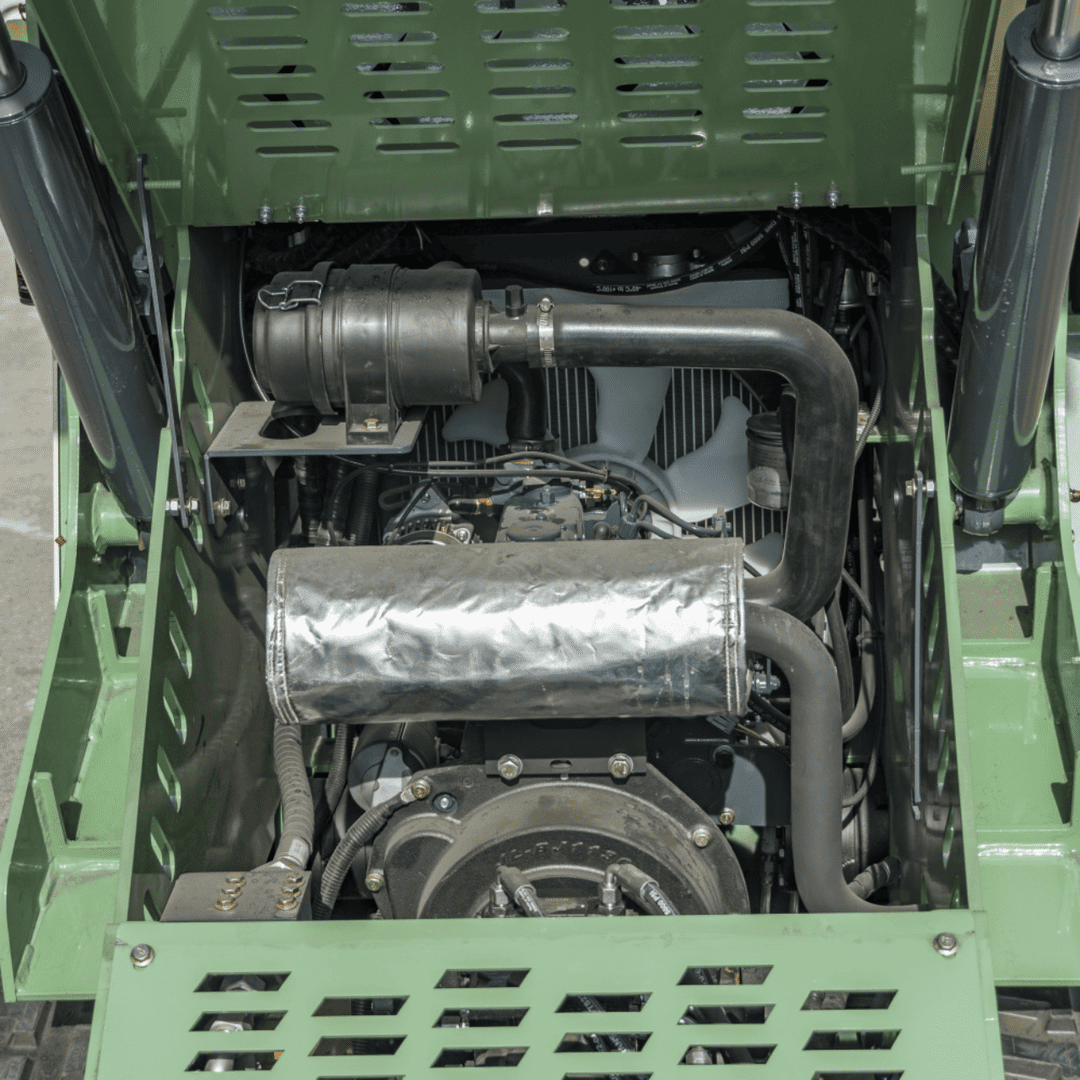

Powered by a certified Kubota D1105 25HP three-cylinder diesel engine, the V950 delivers consistent, high-output performance with low fuel consumption. With an operating load of 530 kg (1,168 lb) and a max lifting force of 480 kg (1,058 lb), it is built to handle serious material handling demands with confidence. At the heart of the hydraulic system sits an advanced single piston pump, a precision component engineered to maintain stable, high-pressure output across all functions simultaneously. It delivers smooth, lag-free hydraulic response on demand, sustaining peak performance through the most intensive load cycles and ensuring the V950 operates at full capability throughout the entire workday, not just at the start of it.

3. Premium Hydraulic & Control Components

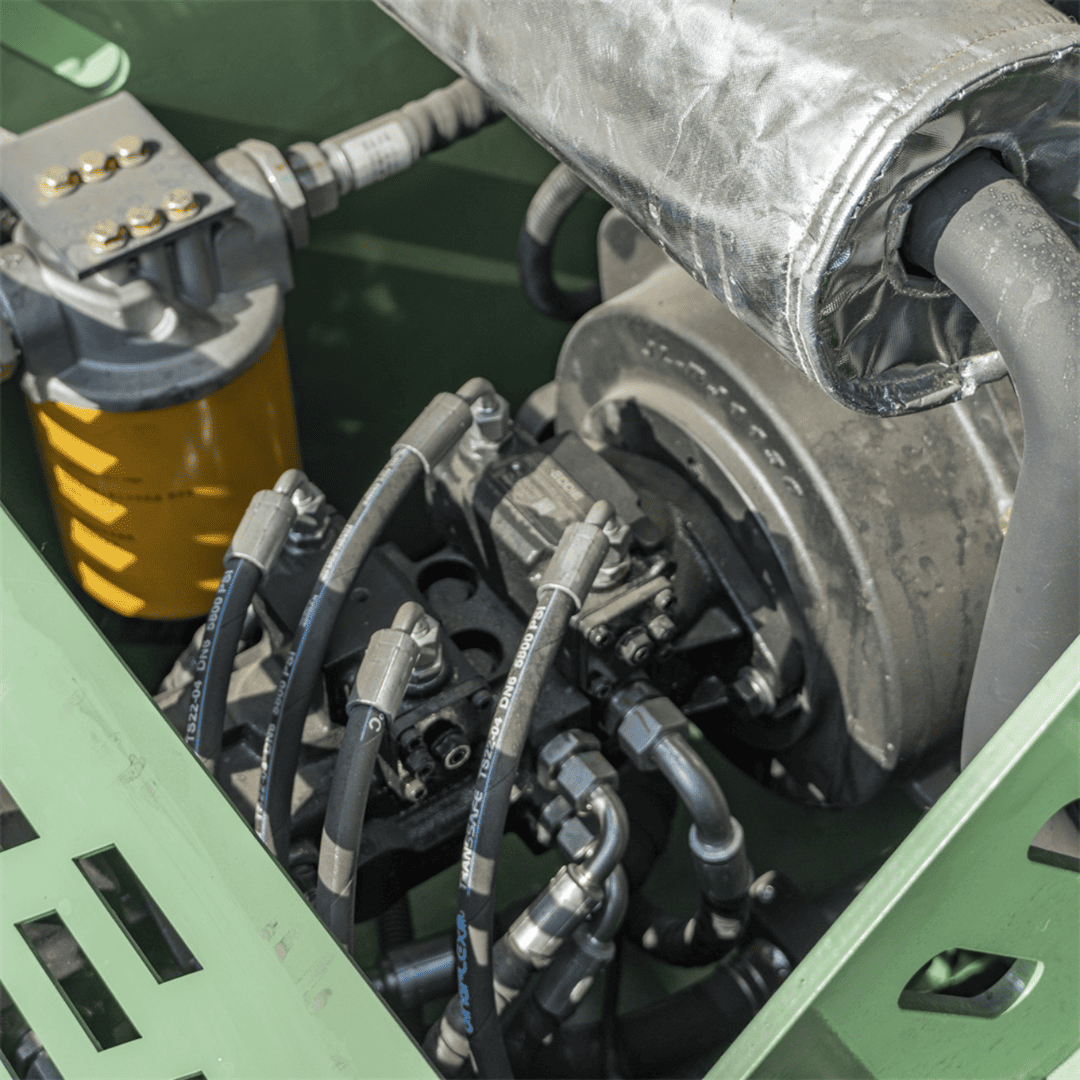

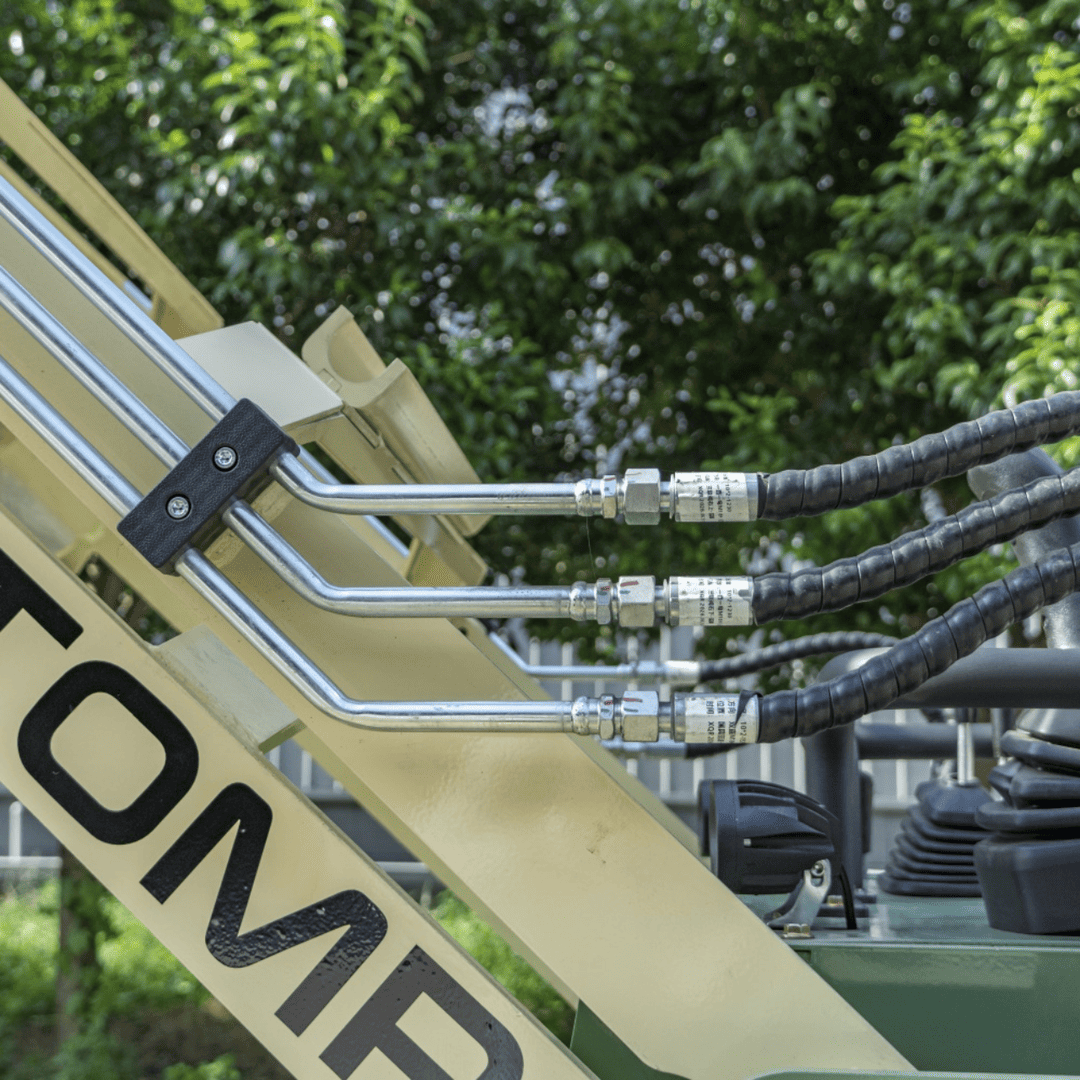

The V950 features a complete hydraulic circuit with dedicated drive gearboxes behind each motor, providing synchronized traction for powerful, controlled movement across slopes and difficult terrain. Hydraulic pressure ranges from 0 to 17 MPa (0–2,466 psi), with a flow rate of 0 to 32 L/min (0–8.45 GPM).

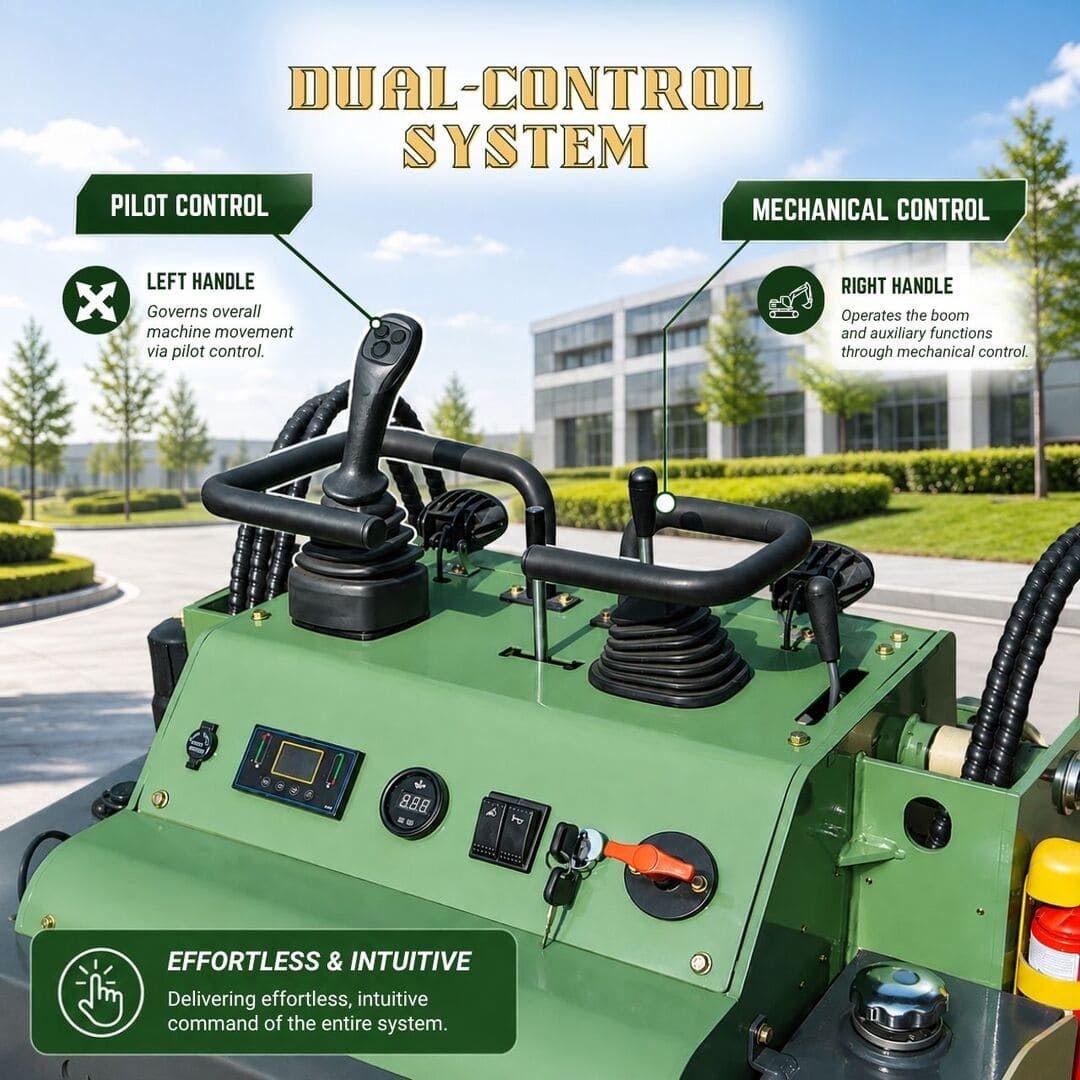

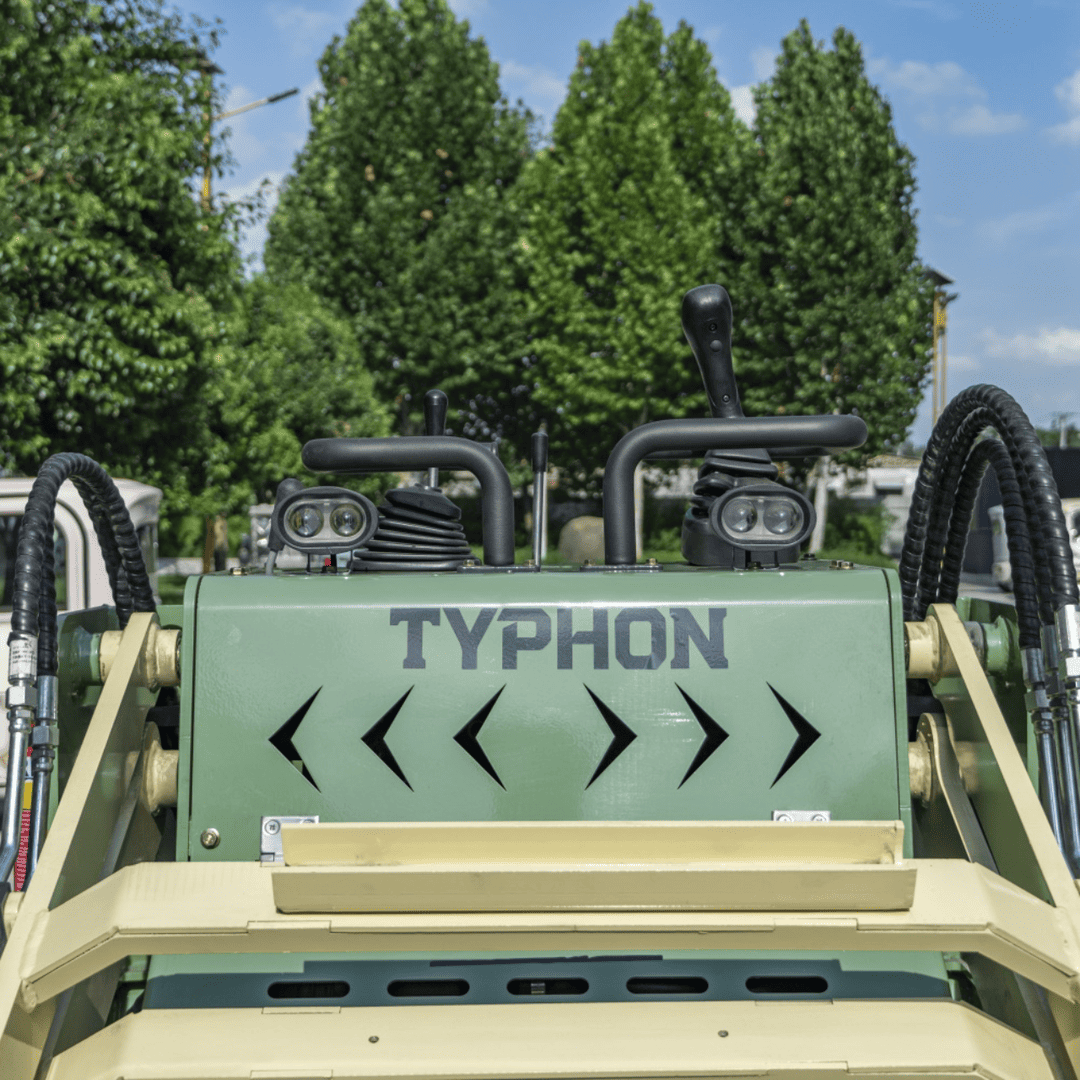

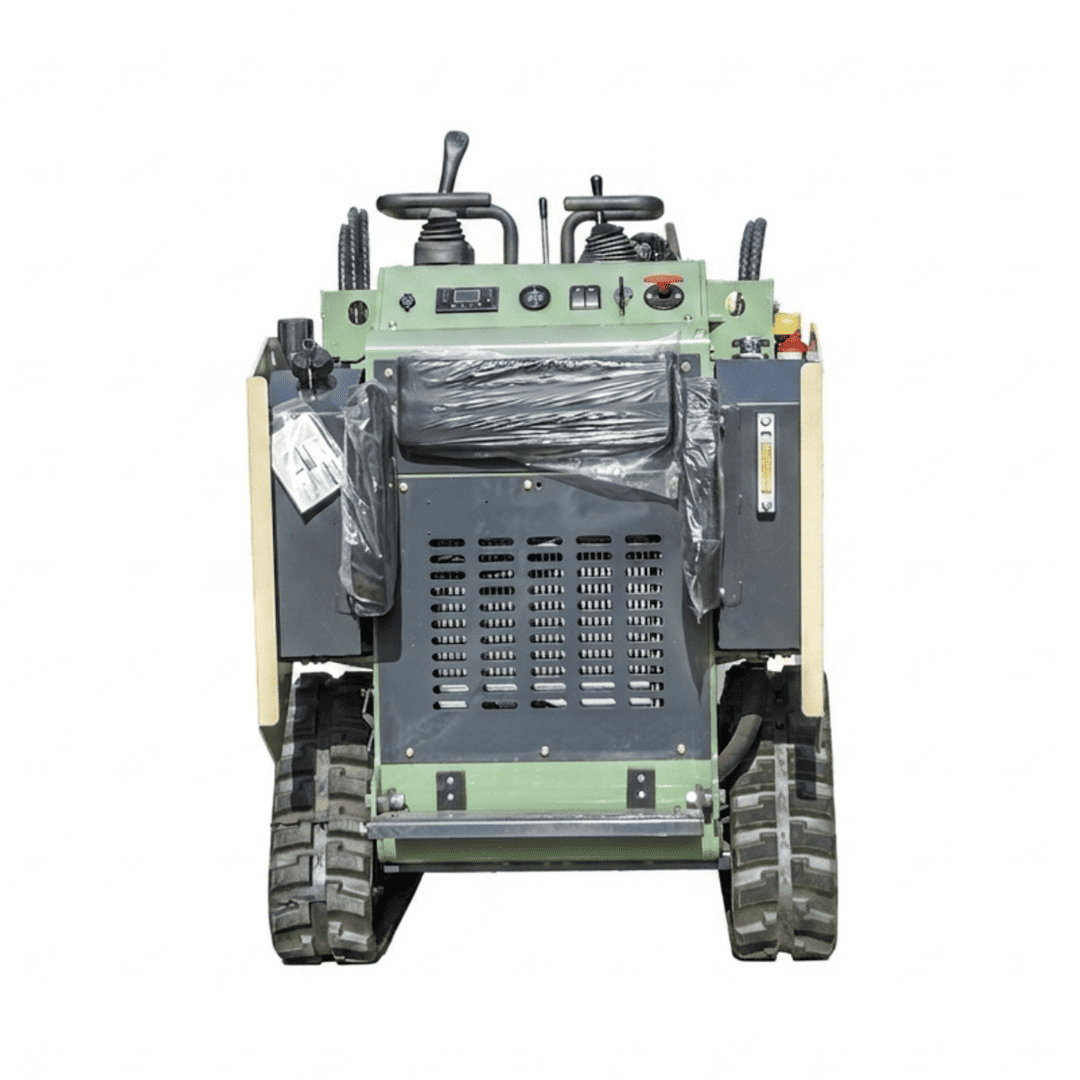

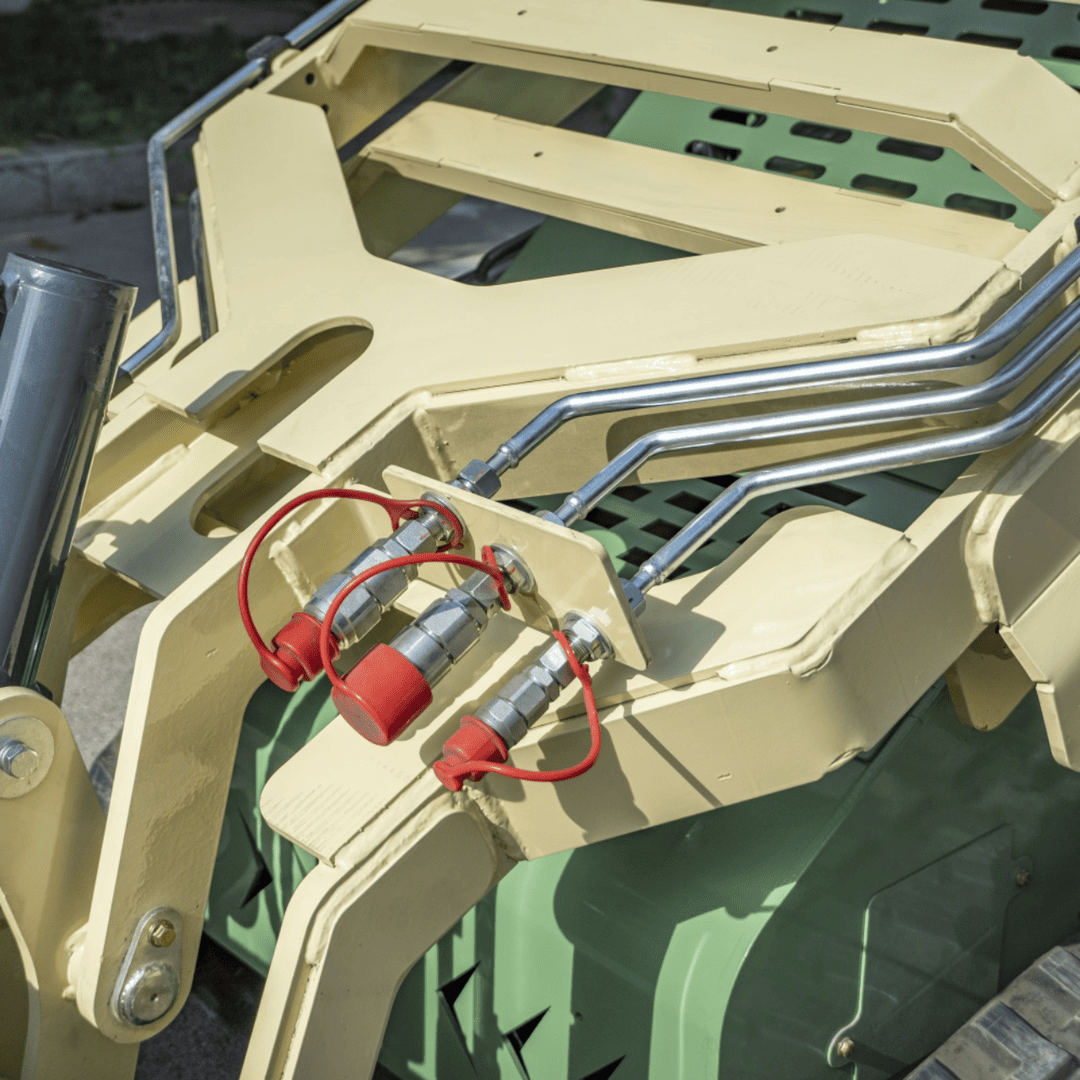

Machine operation is managed through a combination of pilot control and mechanical control. The left handle governs overall machine movement via pilot control, while the right handle operates the boom and auxiliary functions through mechanical control, delivering effortless, intuitive command of the entire system.

4. Smart Operator Interface

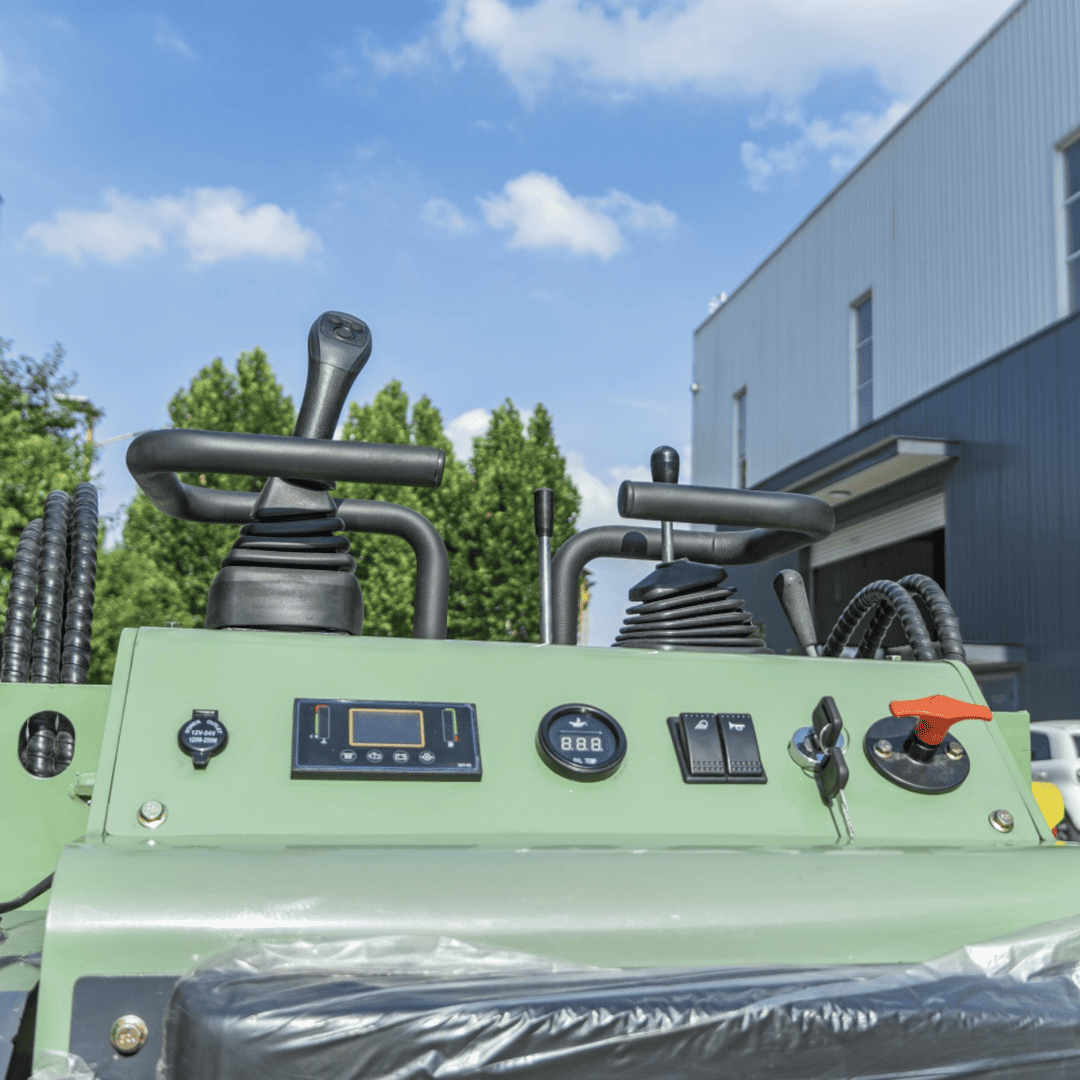

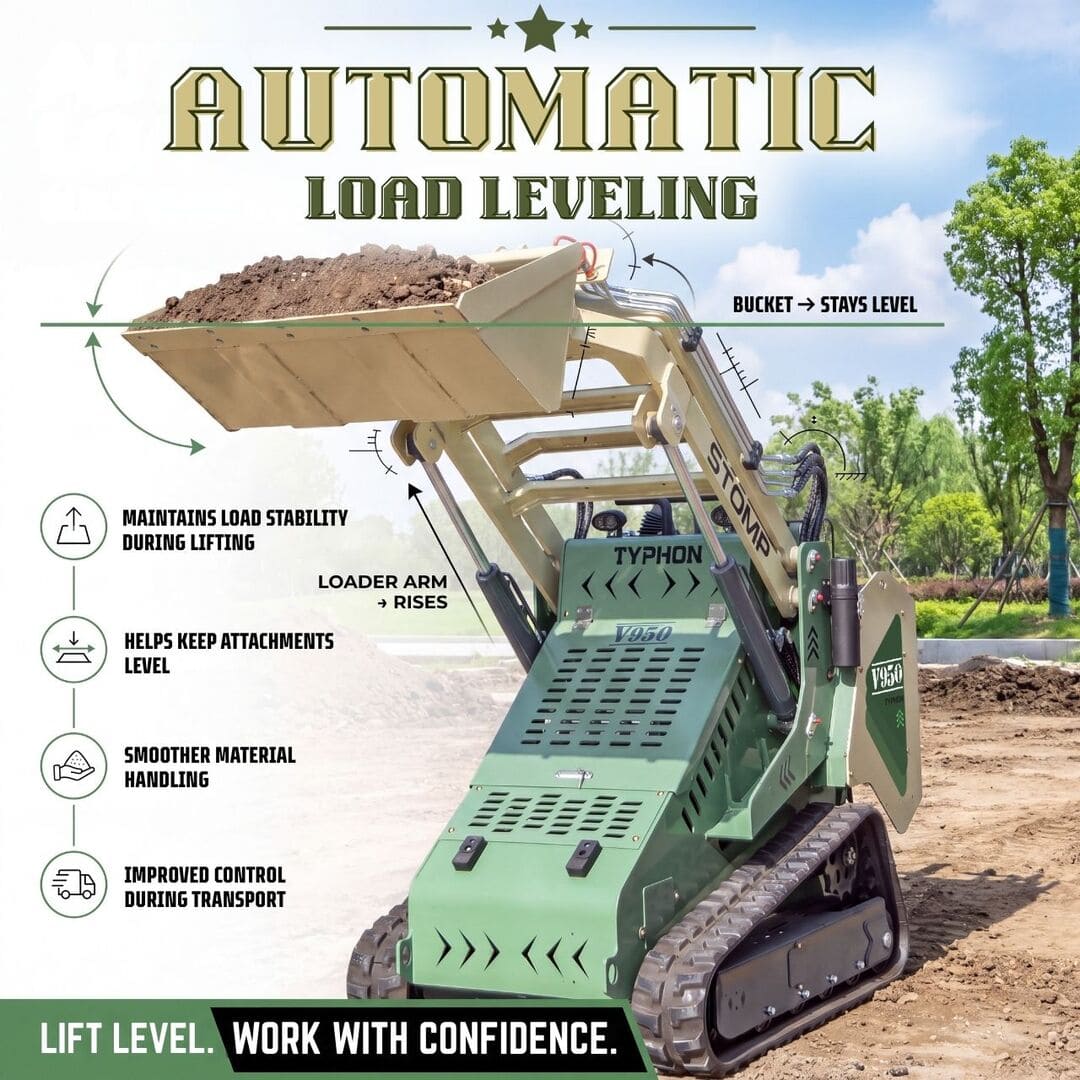

An automatic leveling system maintains load stability throughout lifting and transport cycles, while a clearly laid-out control panel delivers all operational data at a glance enabling fast, confident decision-making at every stage of the job.

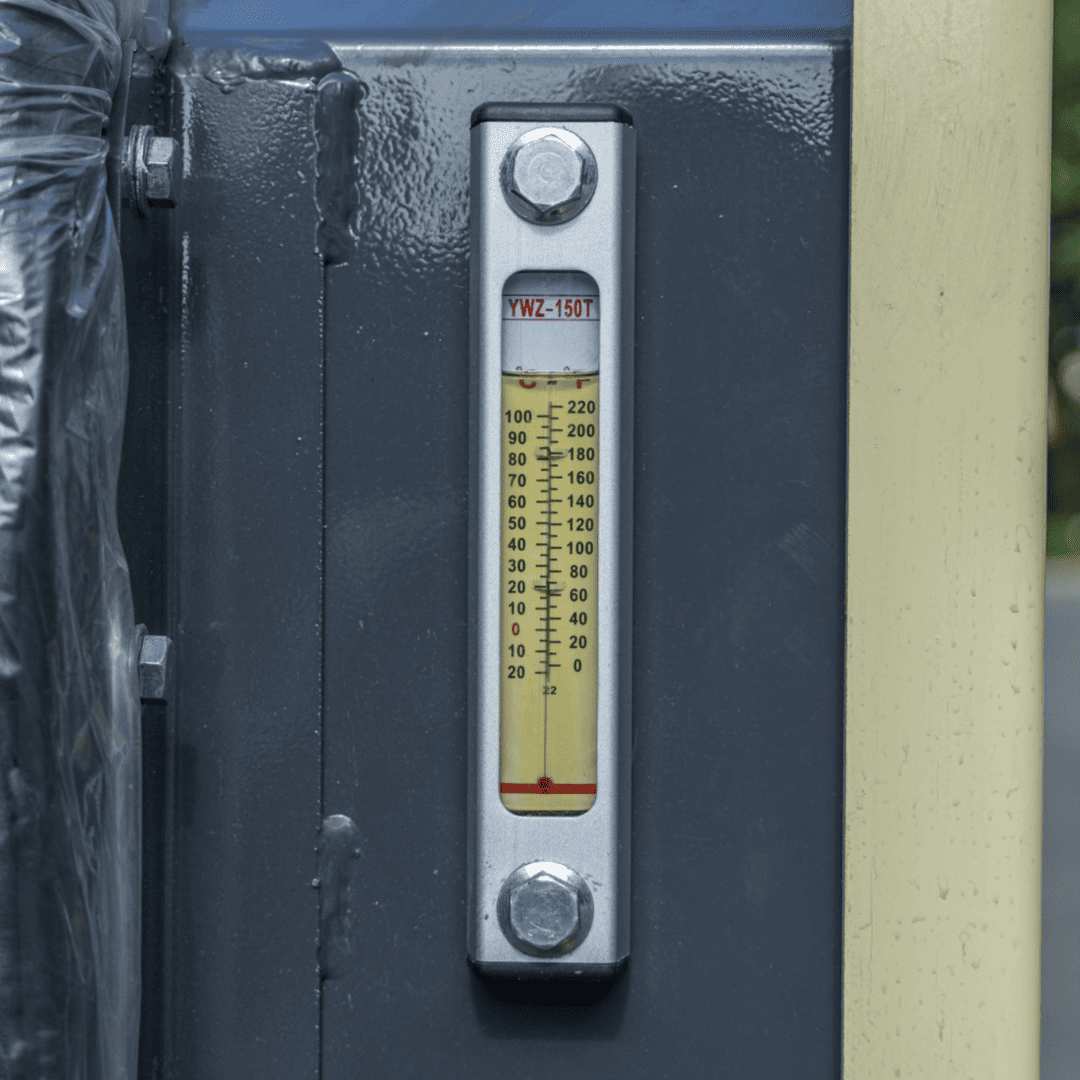

A thermally isolated hydraulic oil radiator with an integrated temperature sensor is positioned independently from the engine, actively managing heat dissipation to sustain stable operating temperatures under prolonged, heavy-duty use.

5. Engineered to Last

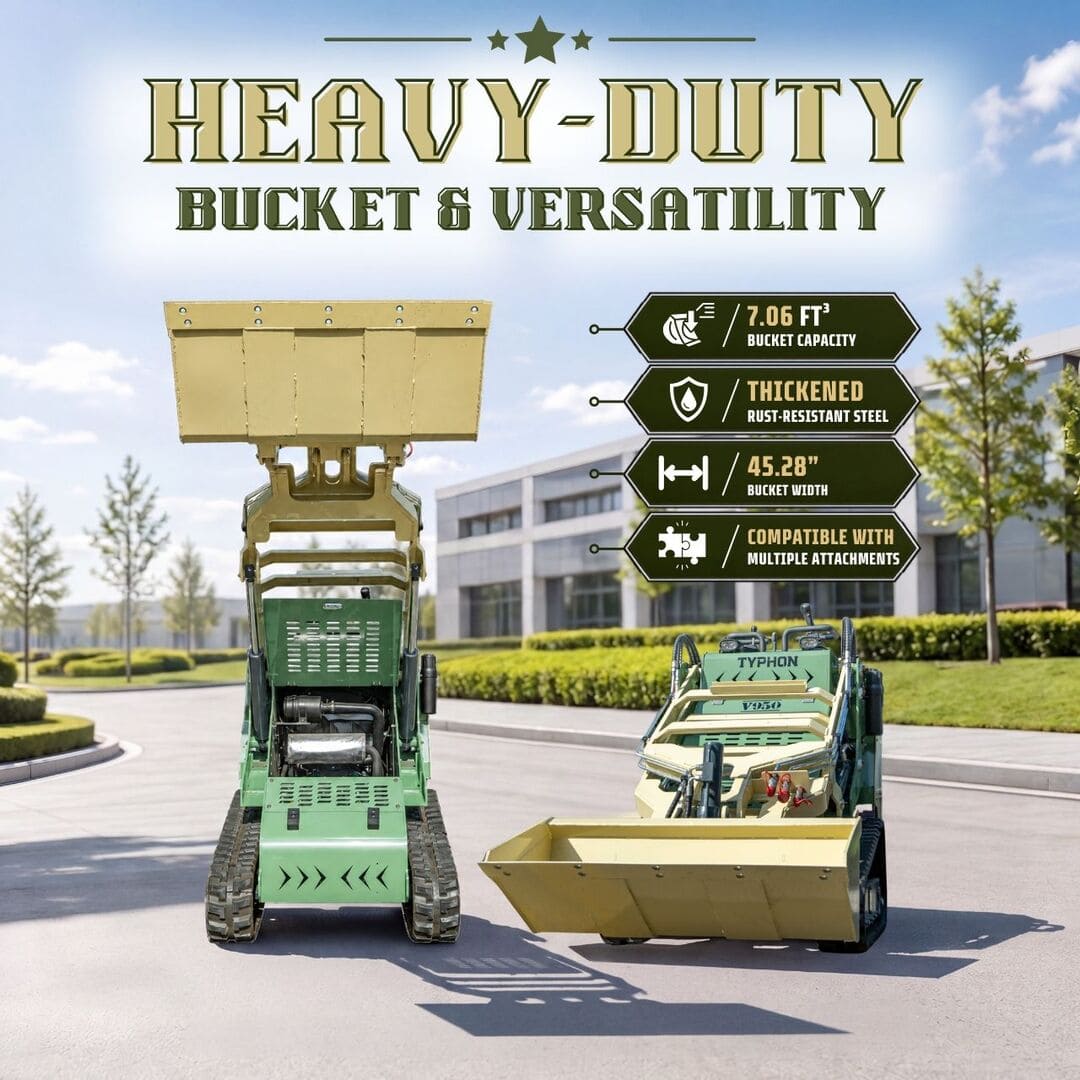

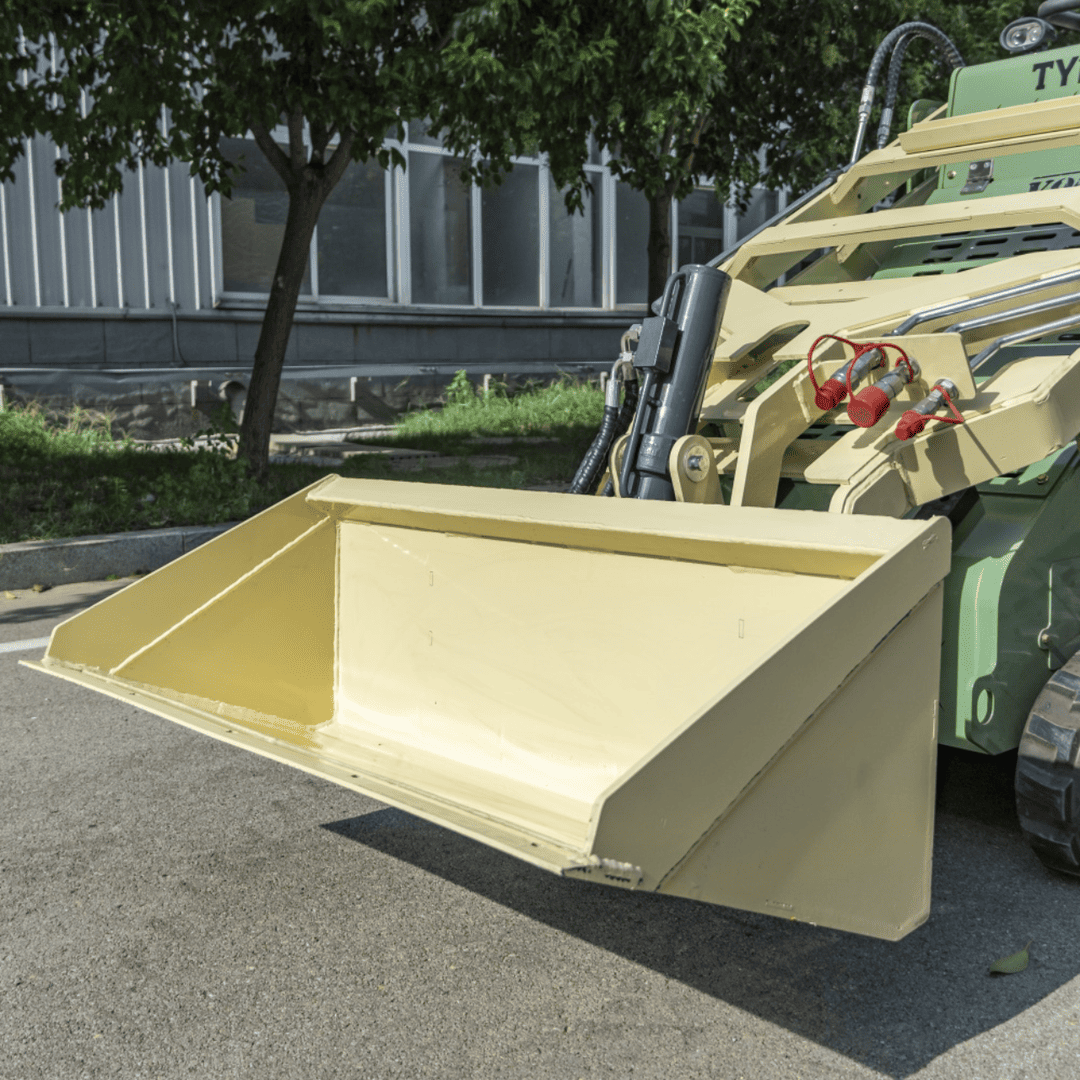

The large-capacity bucket 0.2 cbm (7.06 ft³) is constructed from thickened, rust-resistant steel and is fully compatible with a variety of interchangeable attachments, expanding the V950’s on-site versatility significantly.

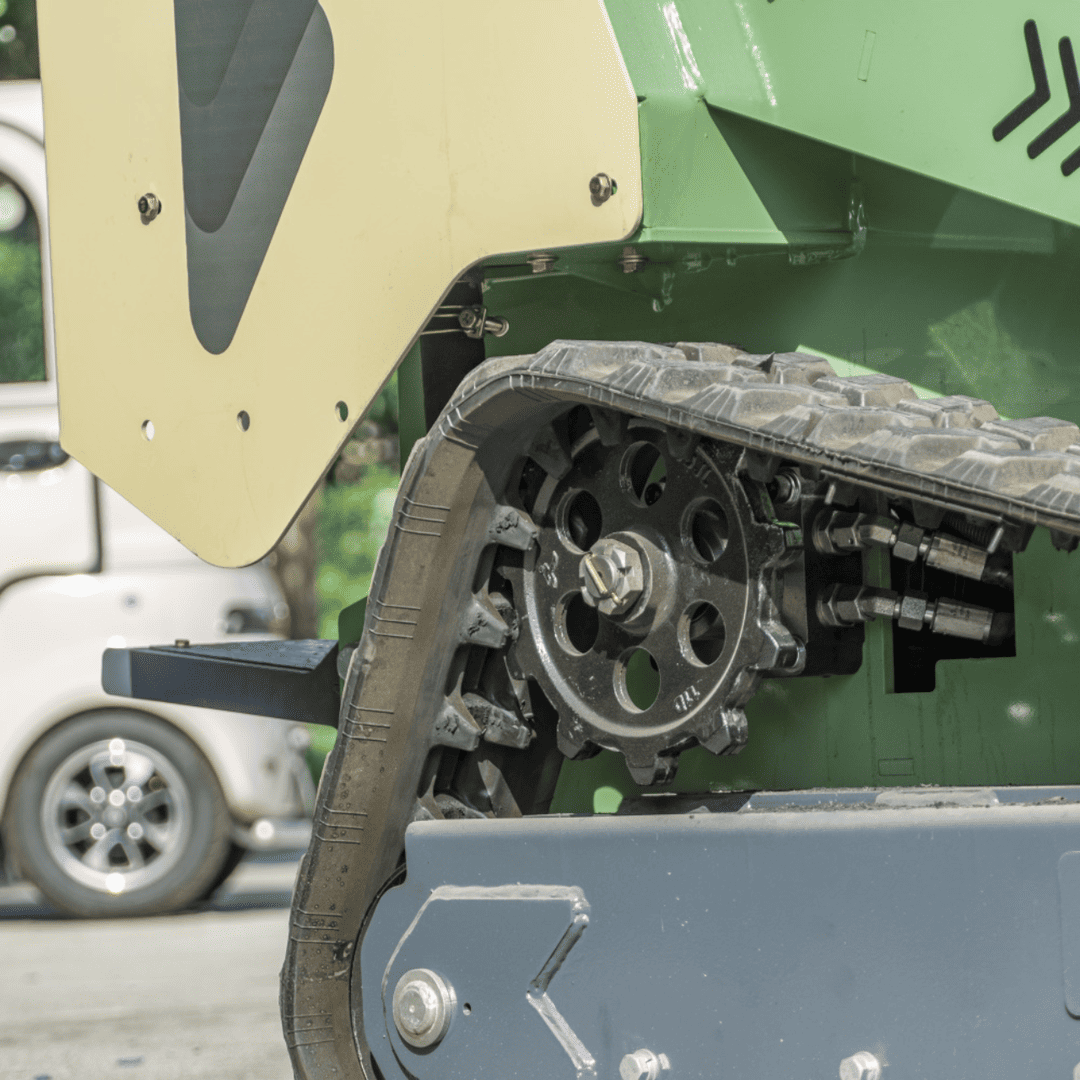

High-performance triangular rubber tracks feature a wear-resistant, non-slip compound designed to maintain traction and stability across wet, muddy, and uneven ground, improving both work safety and machine longevity.

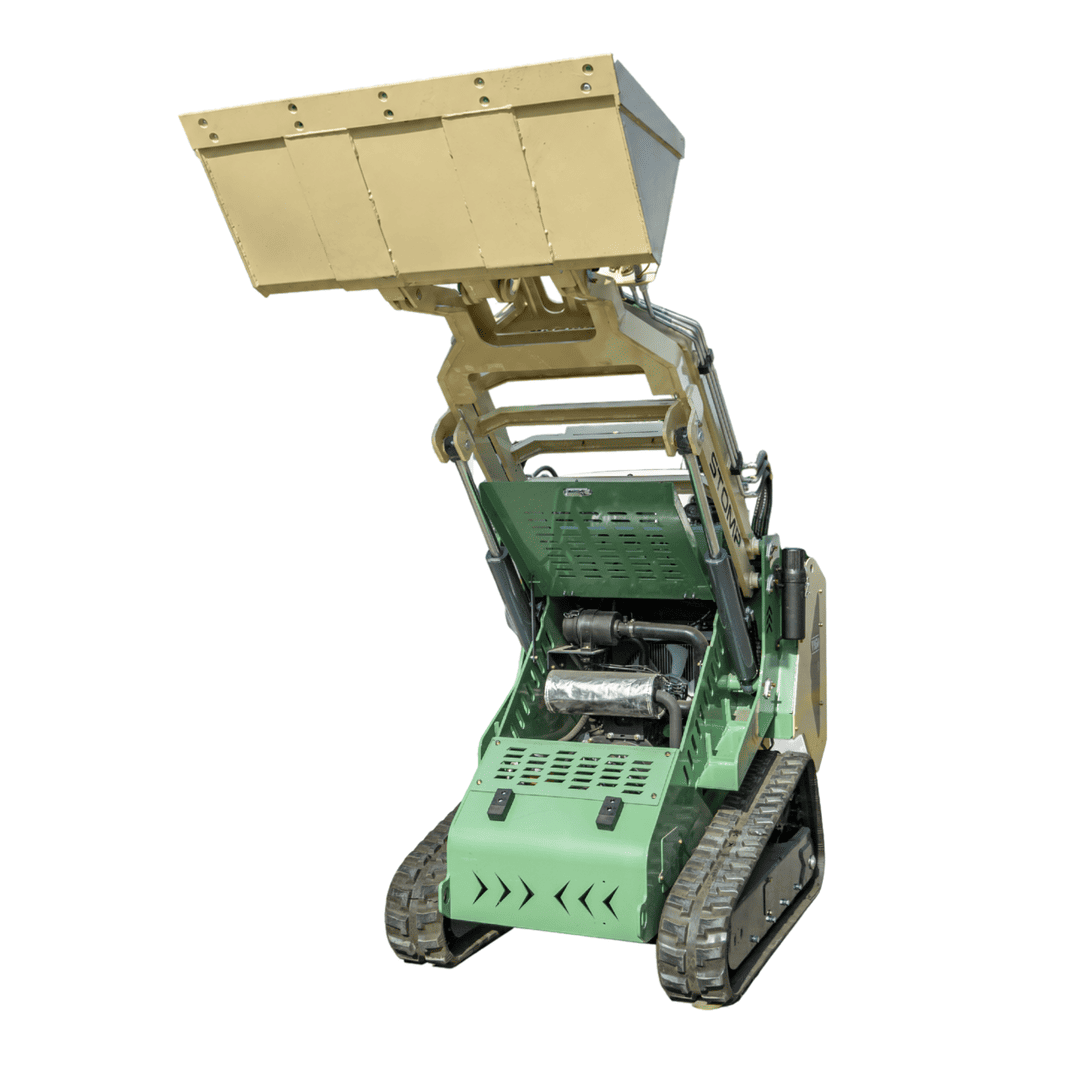

The front cover plate opens easily via a double rod support system, providing fast, unobstructed access to key components for routine inspection and maintenance, reducing downtime and maximizing uptime on the job.

6. Operator Comfort & Safety

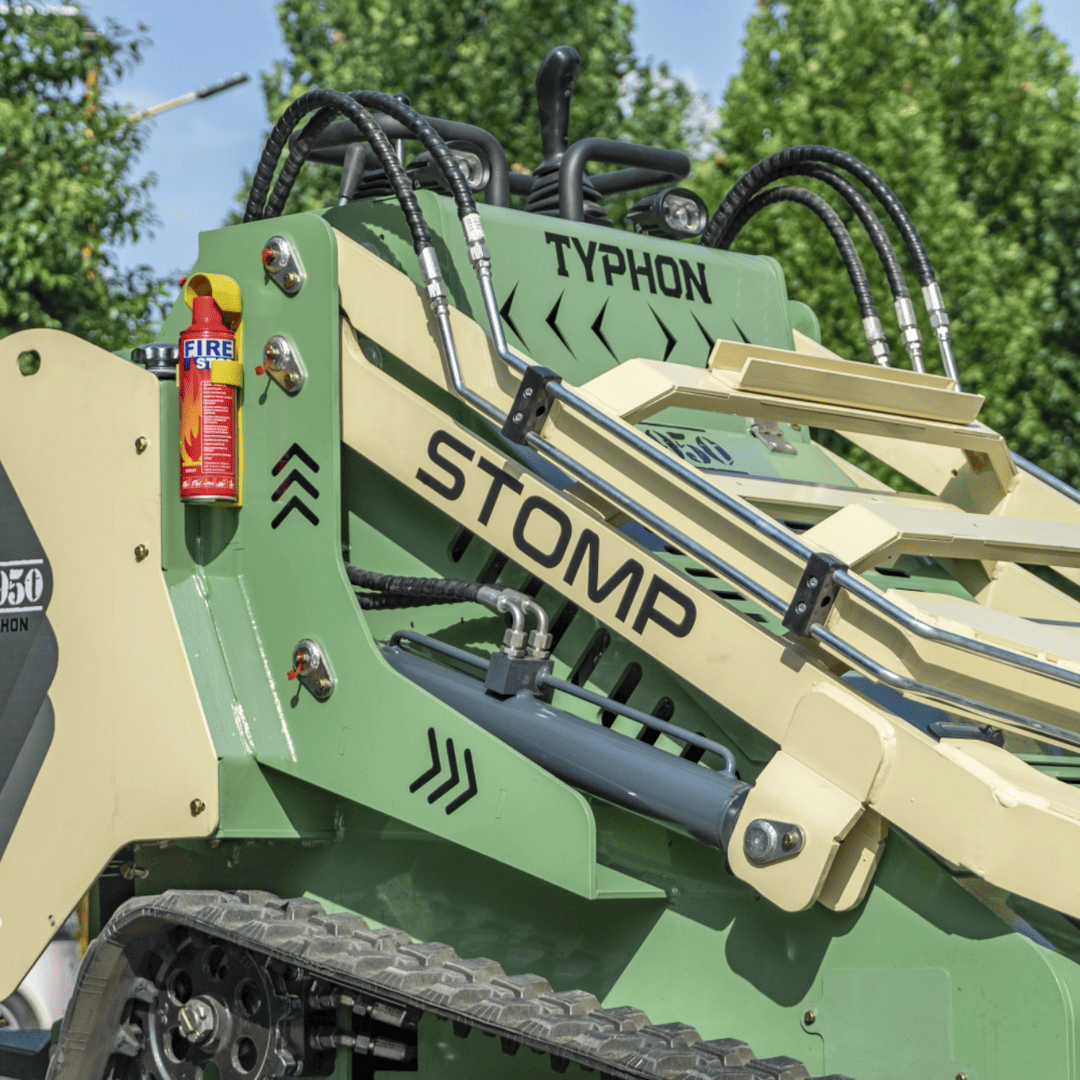

The standing operation area is fitted with an anti-collision sponge to protect the operator during use, while plush cushioning on both sides ensures sustained comfort throughout long working shifts. A fire extinguisher and storage bucket are included as standard, underscoring the V950’s commitment to on-site safety and operational readiness.

Integrated LED lighting extends productive working hours well beyond daylight, ensuring the V950 remains fully operational in low-light and nighttime conditions.

7. Multi-Application Capability

Purpose-built for a broad range of tasks including material loading, site leveling, land clearing, ditch maintenance, slope work, landscaping, and general construction, all from a single machine.

STOMP V950 – Konstructz Series Special Features at a Glance:

• Certified Kubota D1105 three-cylinder diesel engine, 25HP, low fuel consumption
• Operating weight: 1.5 Ton with Operating load: 1,168 lb | Max lifting force: 1,058 lb
• Pilot and mechanical dual-control system: left handle for machine movement, right handle for boom and auxiliary functions
• Automatic leveling system for stable load handling throughout lift and transport cycles
• Heavy-duty single piston pump with Fully hydraulic system: delivers stable, high-pressure output and smooth, lag-free hydraulic response across all functions simultaneously
• Independent hydraulic oil radiator with temperature sensor for efficient heat control in demanding conditions
• High-performance triangular rubber tracks with dedicated drive gearboxes behind each motor, wear-resistant, non-slip, high-flotation design combined with synchronized, powerful traction for reliable performance on wet, uneven, and sloped terrain
• Anti-collision sponge in standing operation area; fire extinguisher and storage bucket included as standard
• 360-degree turning capability for precise maneuvering in confined and enclosed spaces
• Large-capacity bucket: 0.2 m³ (7.06 ft³), thickened rust-resistant steel, compatible with multiple attachments
• Easy-open front cover plate with double rod support for fast inspection and low-downtime maintenance
