Description

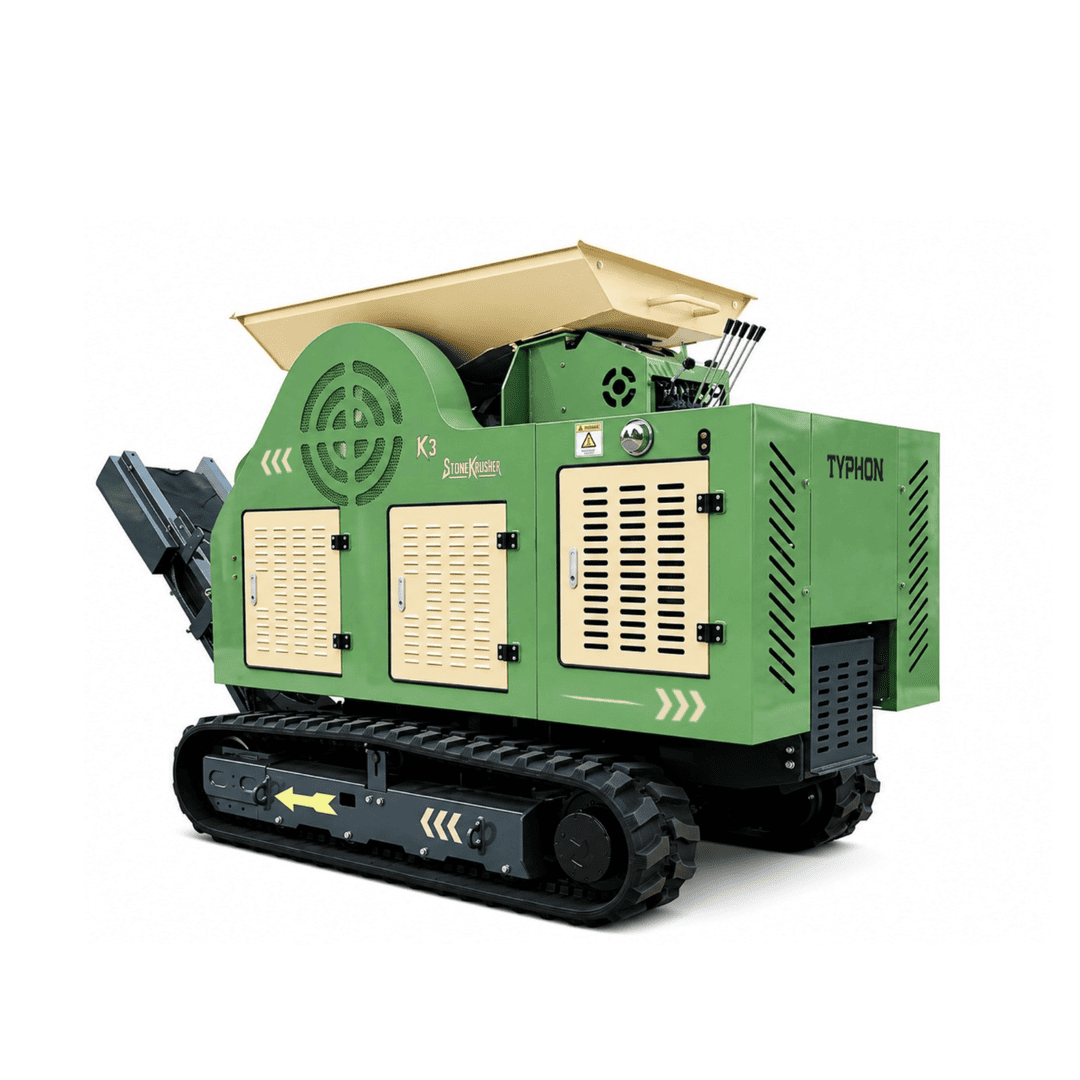

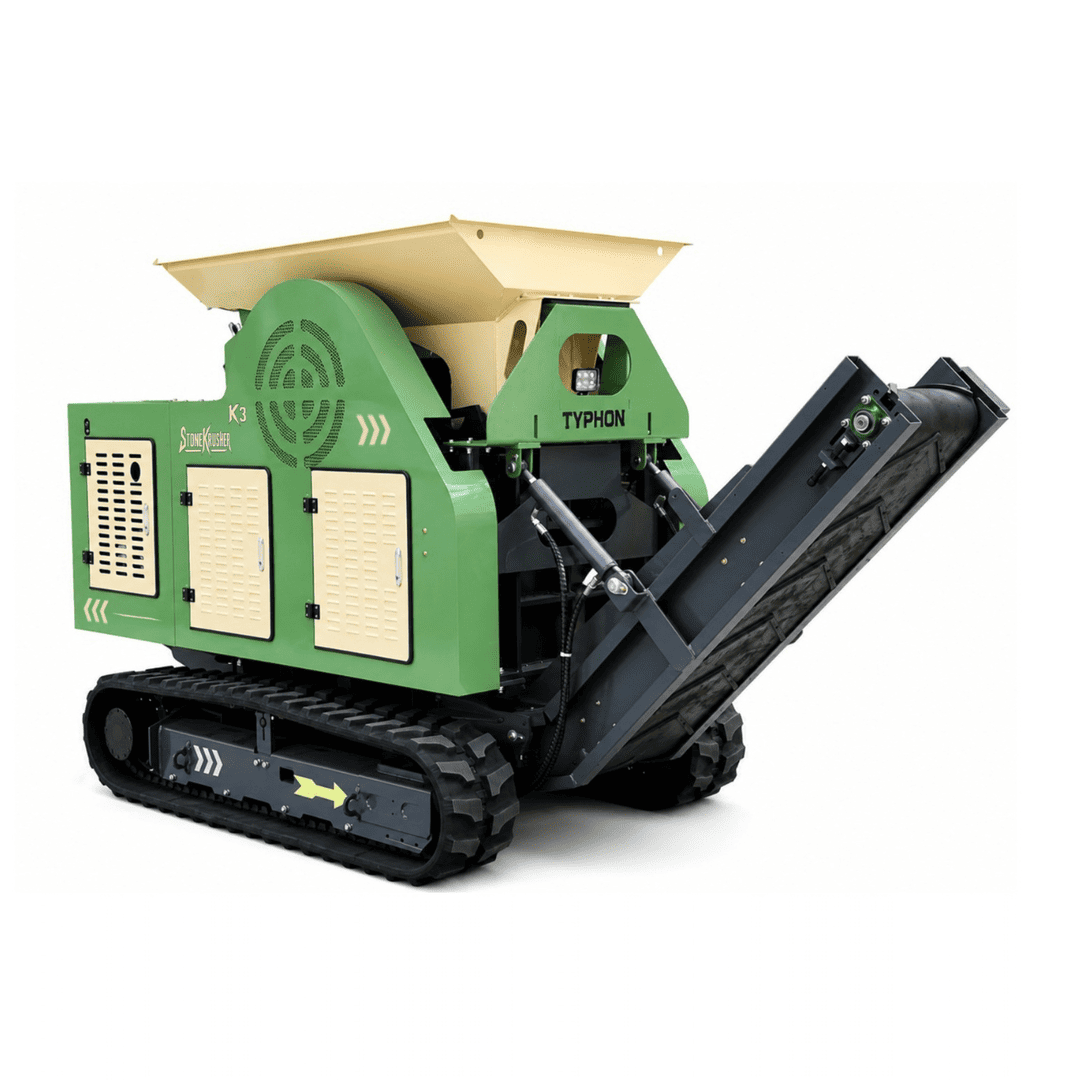

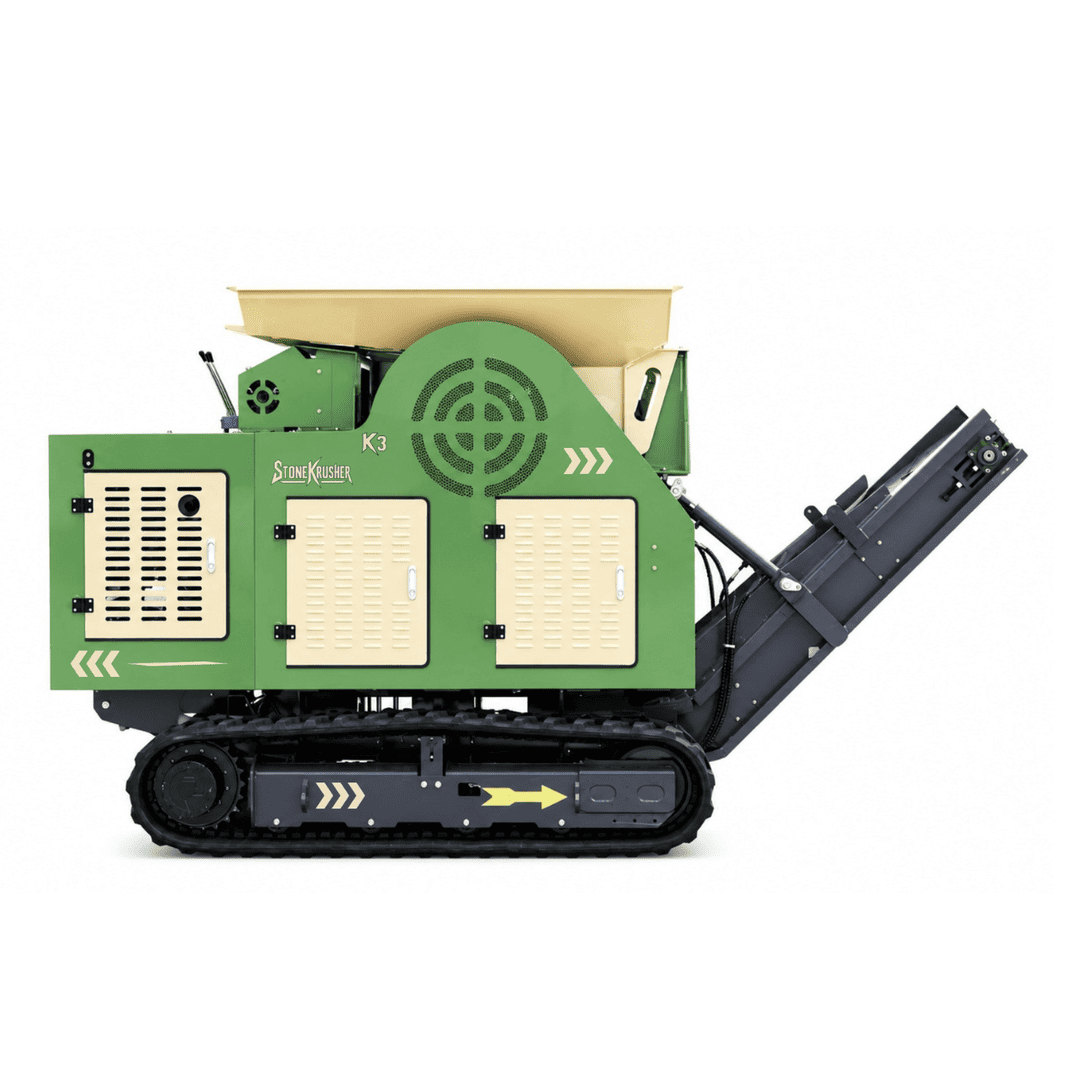

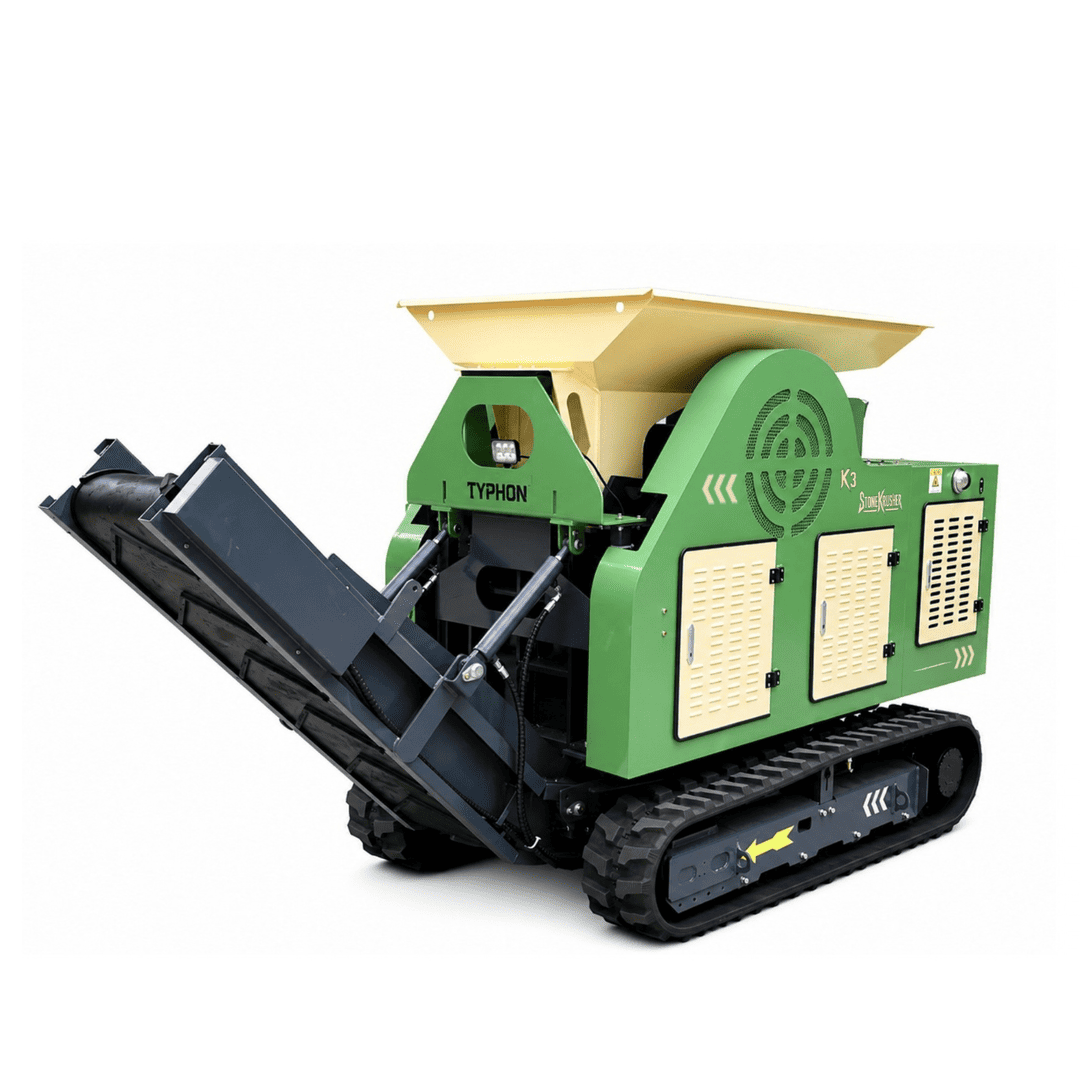

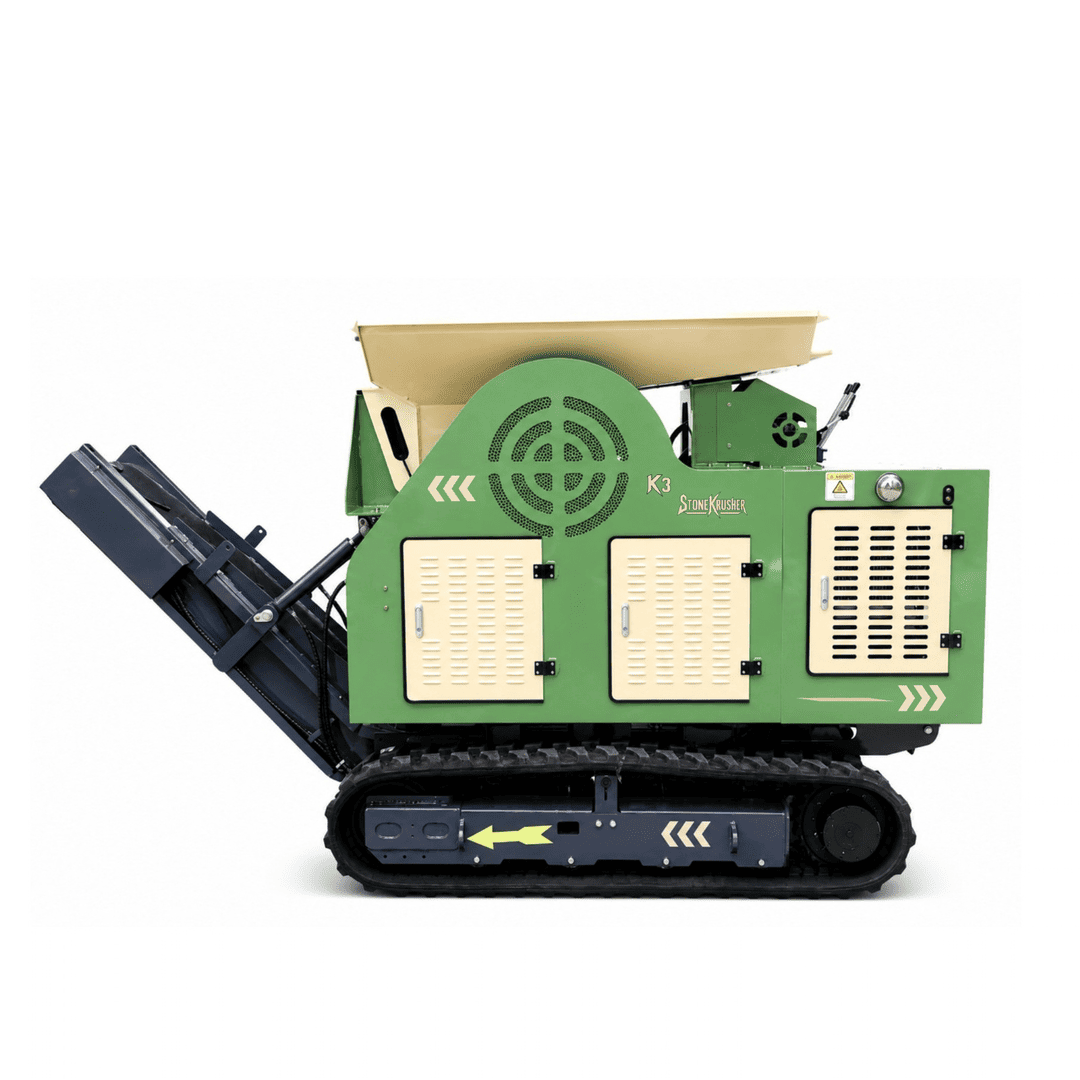

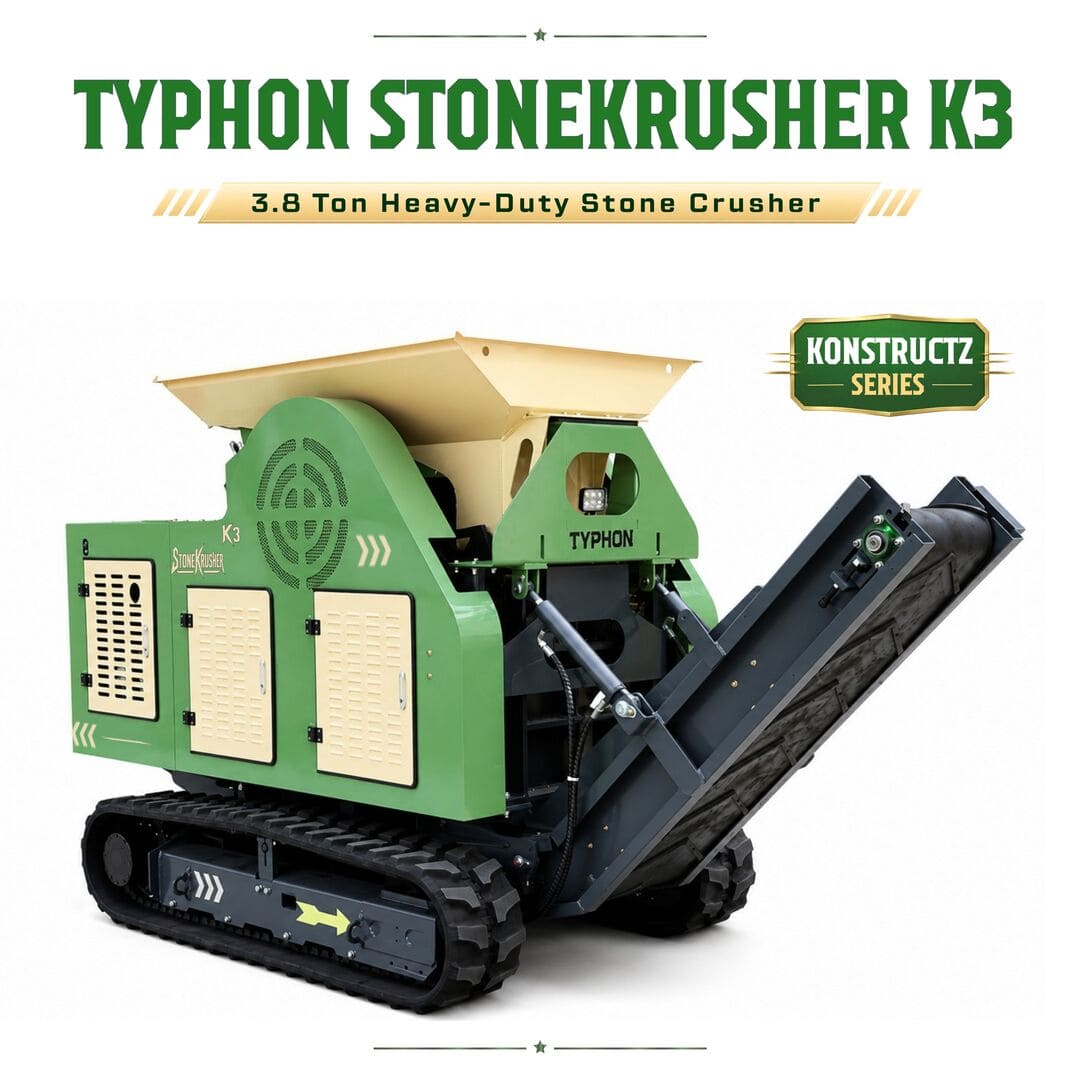

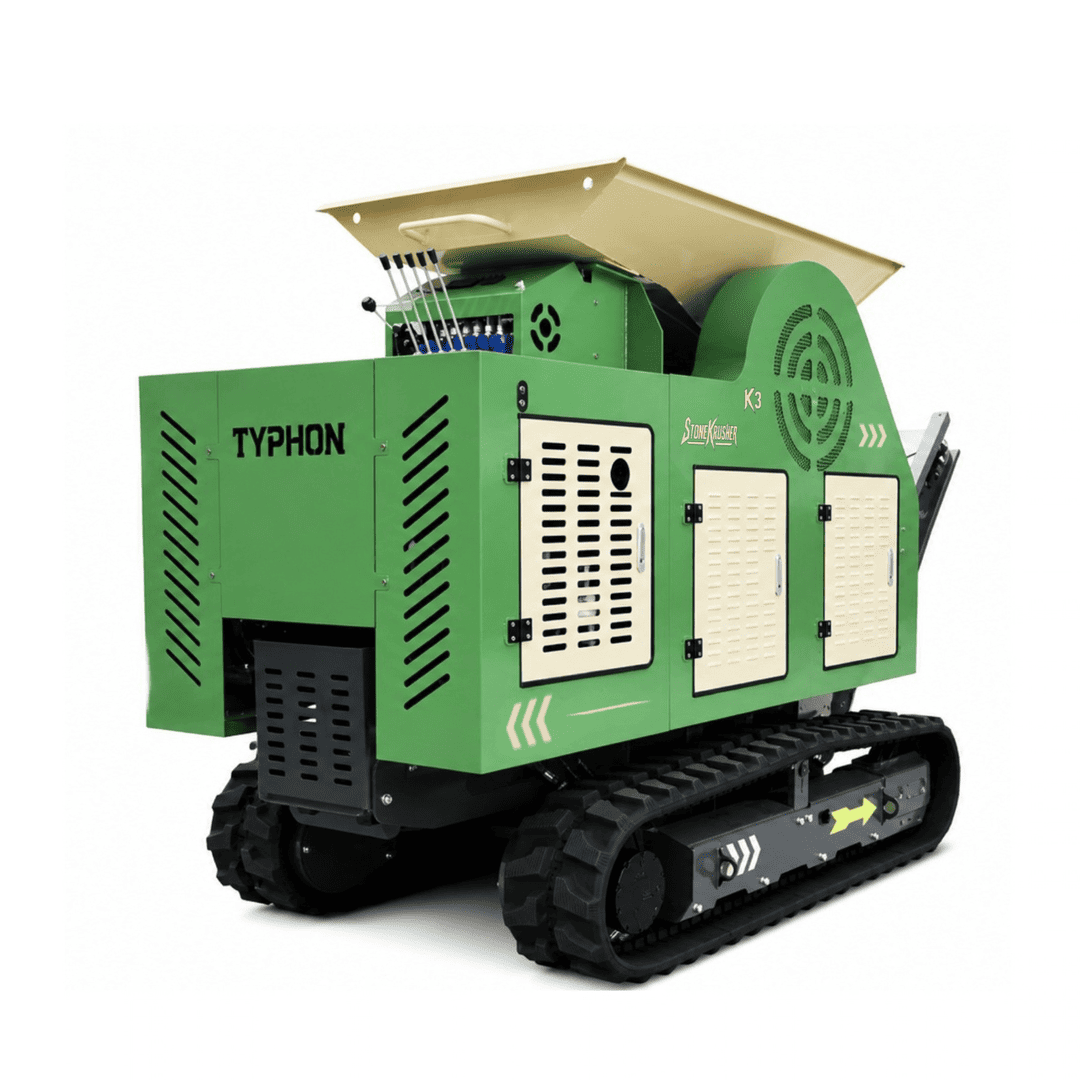

Crush material right where the work is happening. The TYPHON STONEKRUSHER K3 is a compact, self-propelled tracked stone crusher from the KONSTRUCTZ SERIES. Unlike tow-behind crushers, it drives itself across the site for fast, flexible crushing wherever you need it.
1. Compact Dimensions, Practical Mobility

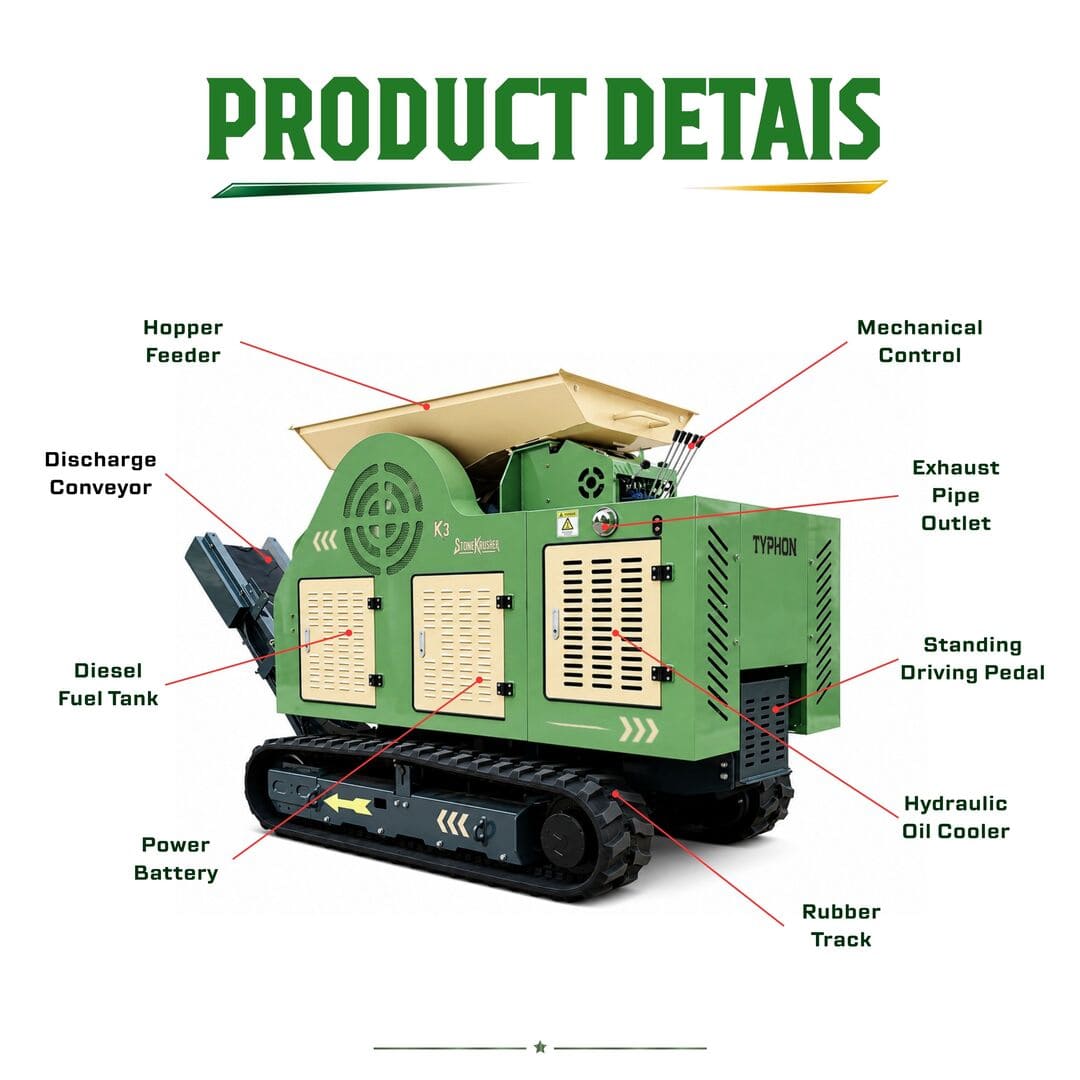

The TYPHON STONEKRUSHER K3 pairs a rugged Jaw Crusher with a compact build at 4 tons, keeping serious crushing power in a footprint that stays out of the way.

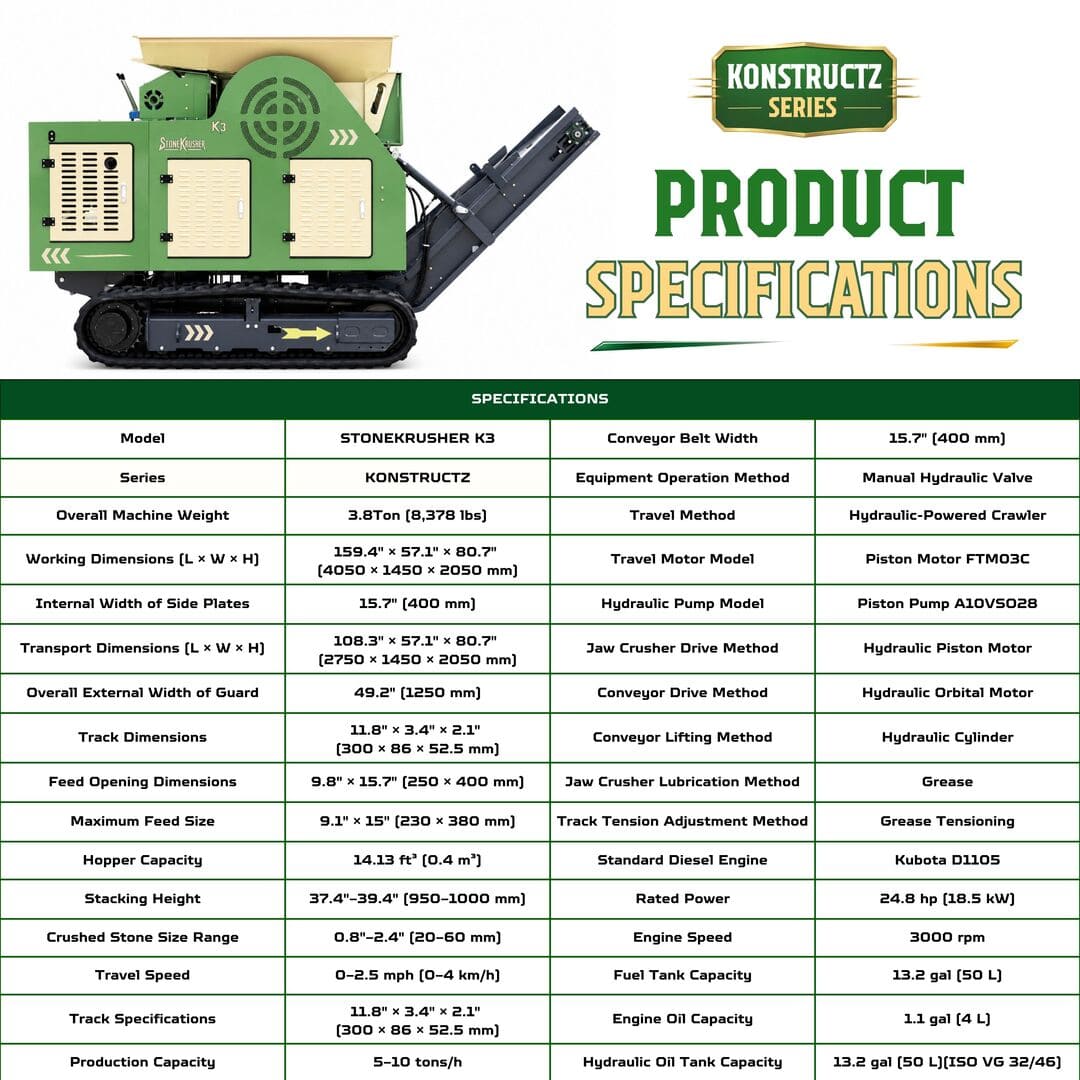

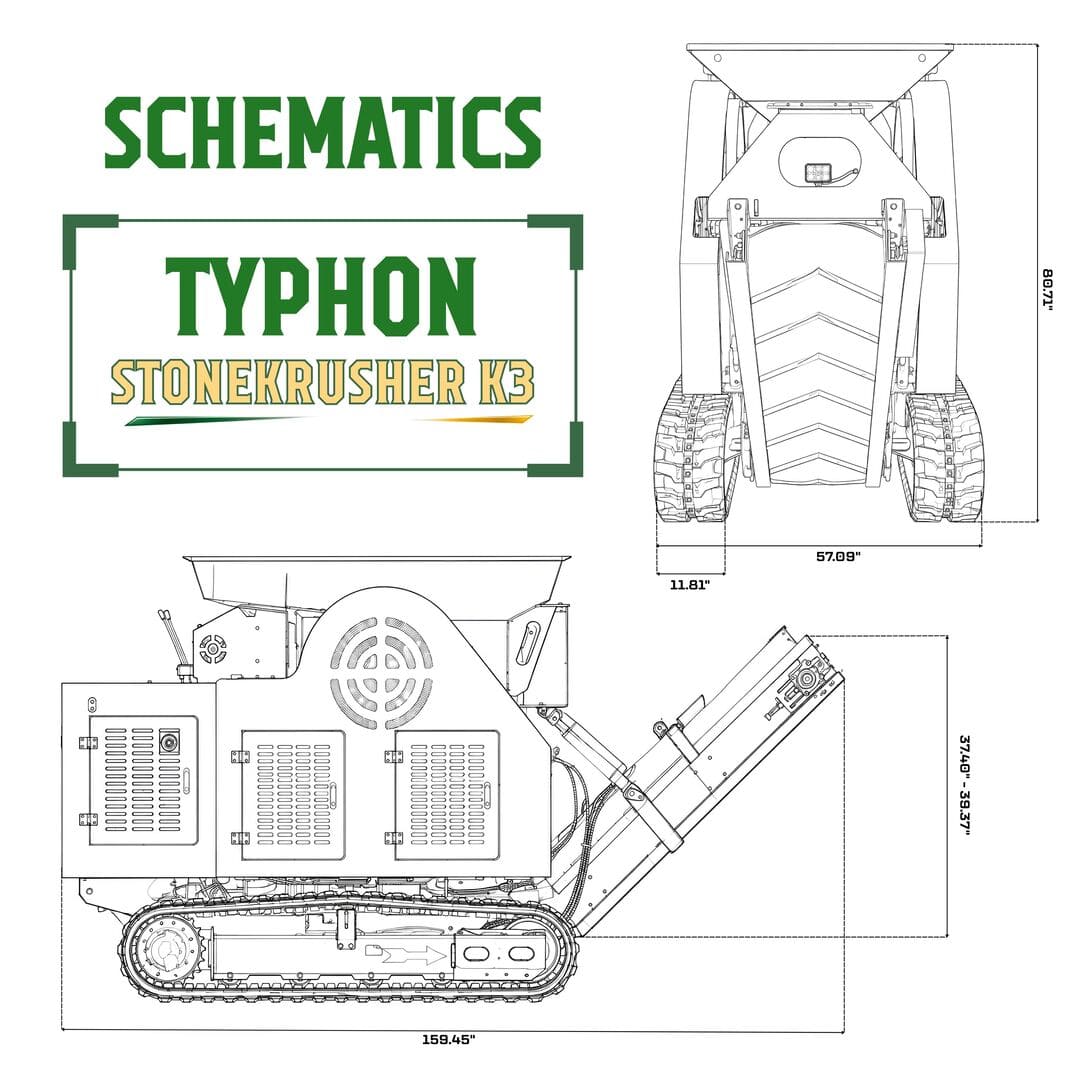

With transport dimensions of 2,750 × 1,450 × 2,050 mm (108.3 × 57.1 × 80.7 in), its tracked design reaches tight jobsites and moves on its own with no towing required.
Its rubber track system provides stable traction across rough and uneven terrain, helping the K3 stay planted during crushing and maneuver confidently around the jobsite.
2. Engine and Travel Performance

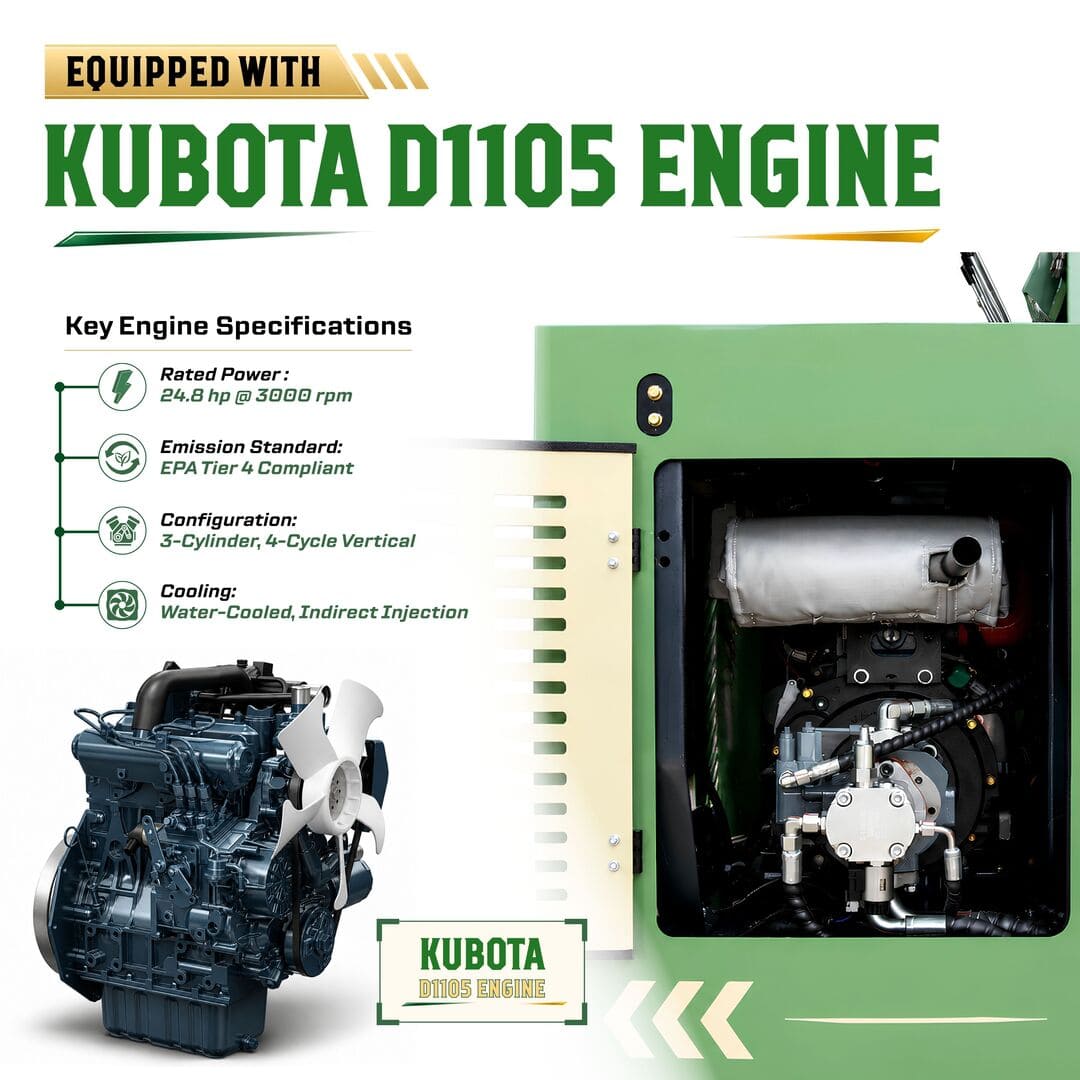

Power comes from the trusted Kubota D1105 diesel engine, delivering 18.5kW (24.8hp) at 3000rpm for dependable, all-day crushing. The hydraulic-powered crawler system moves at 0–4km/h (0–2.5mph), allowing you to inch the machine into a precise position or move it between work areas without towing.
3. Serious Crushing with Consistent Results

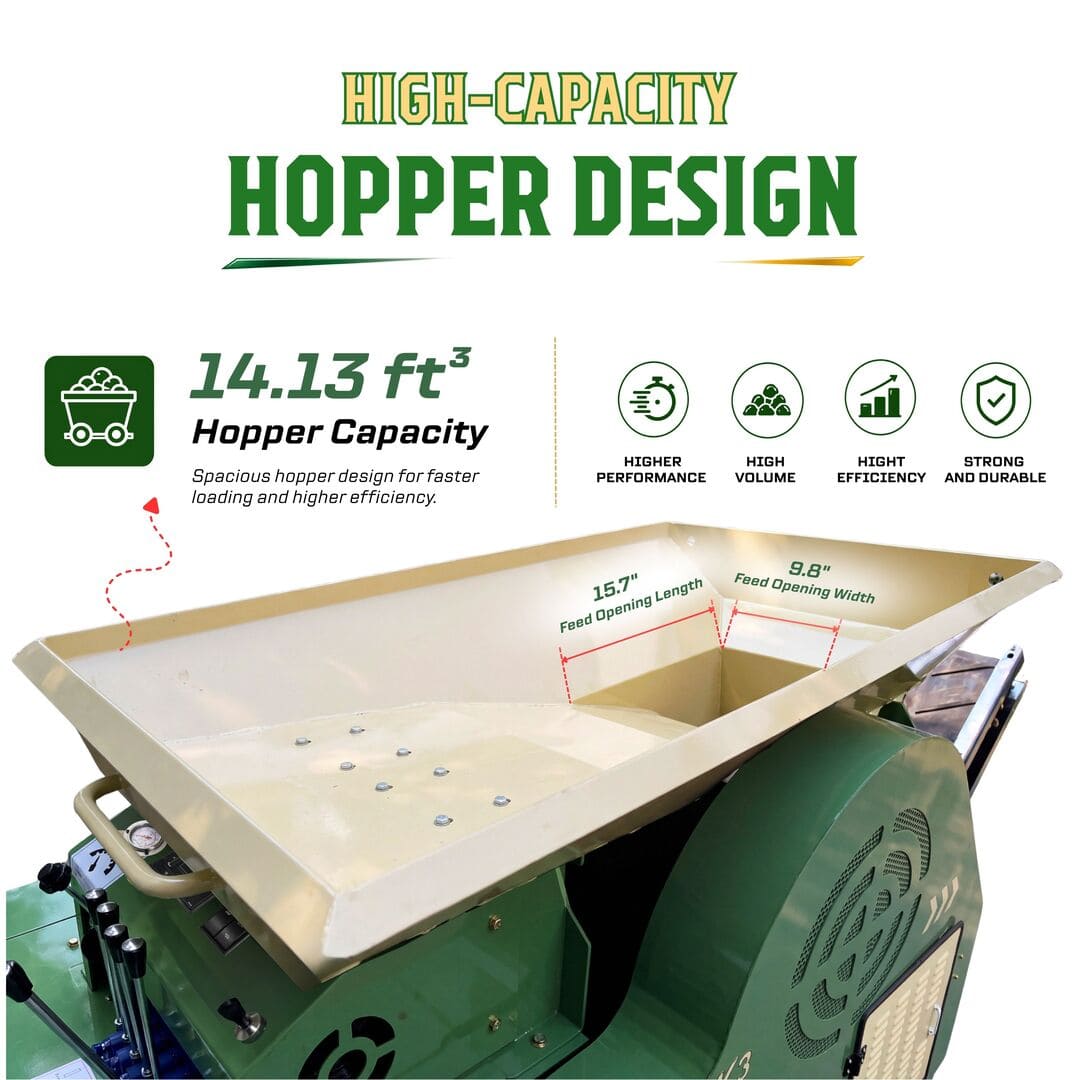

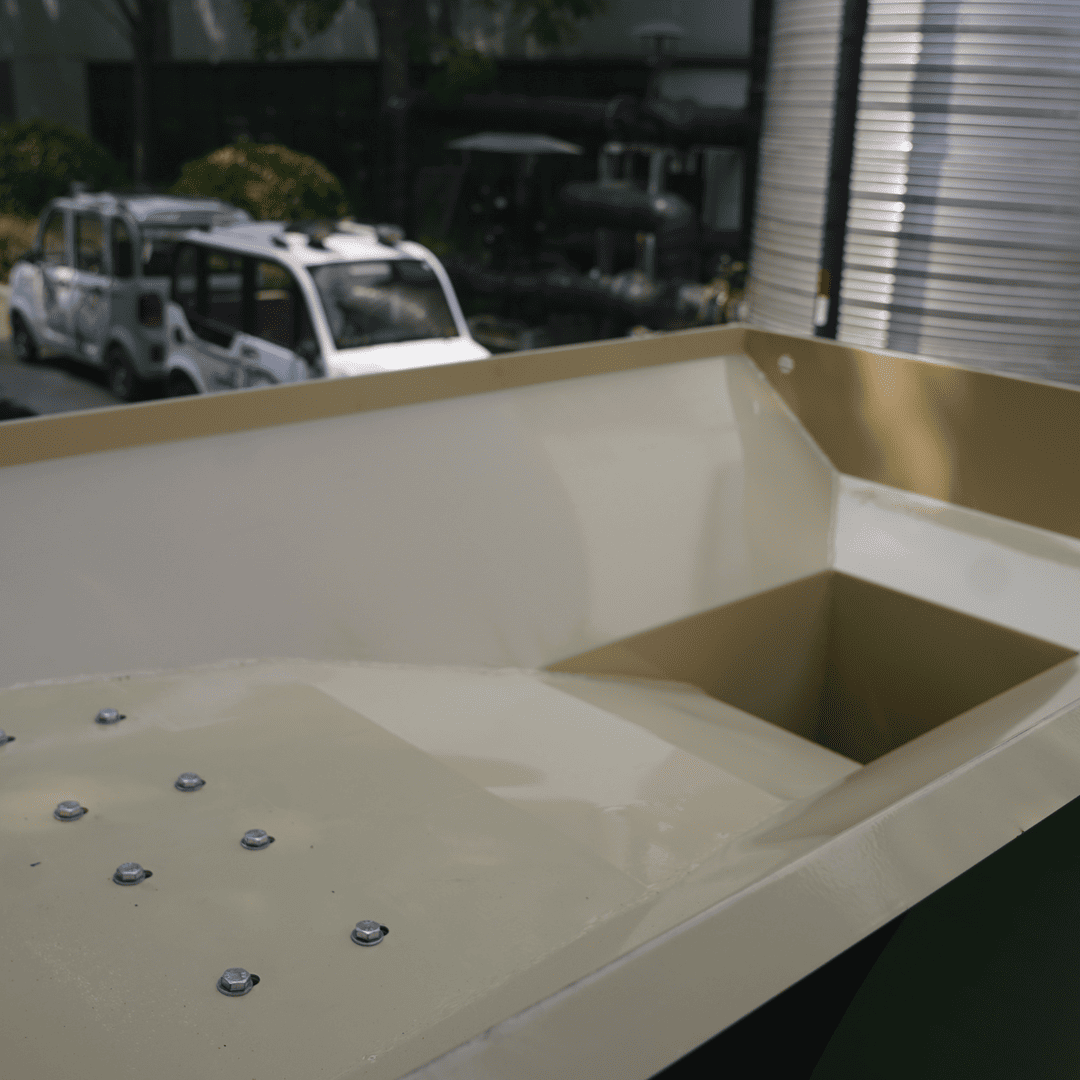

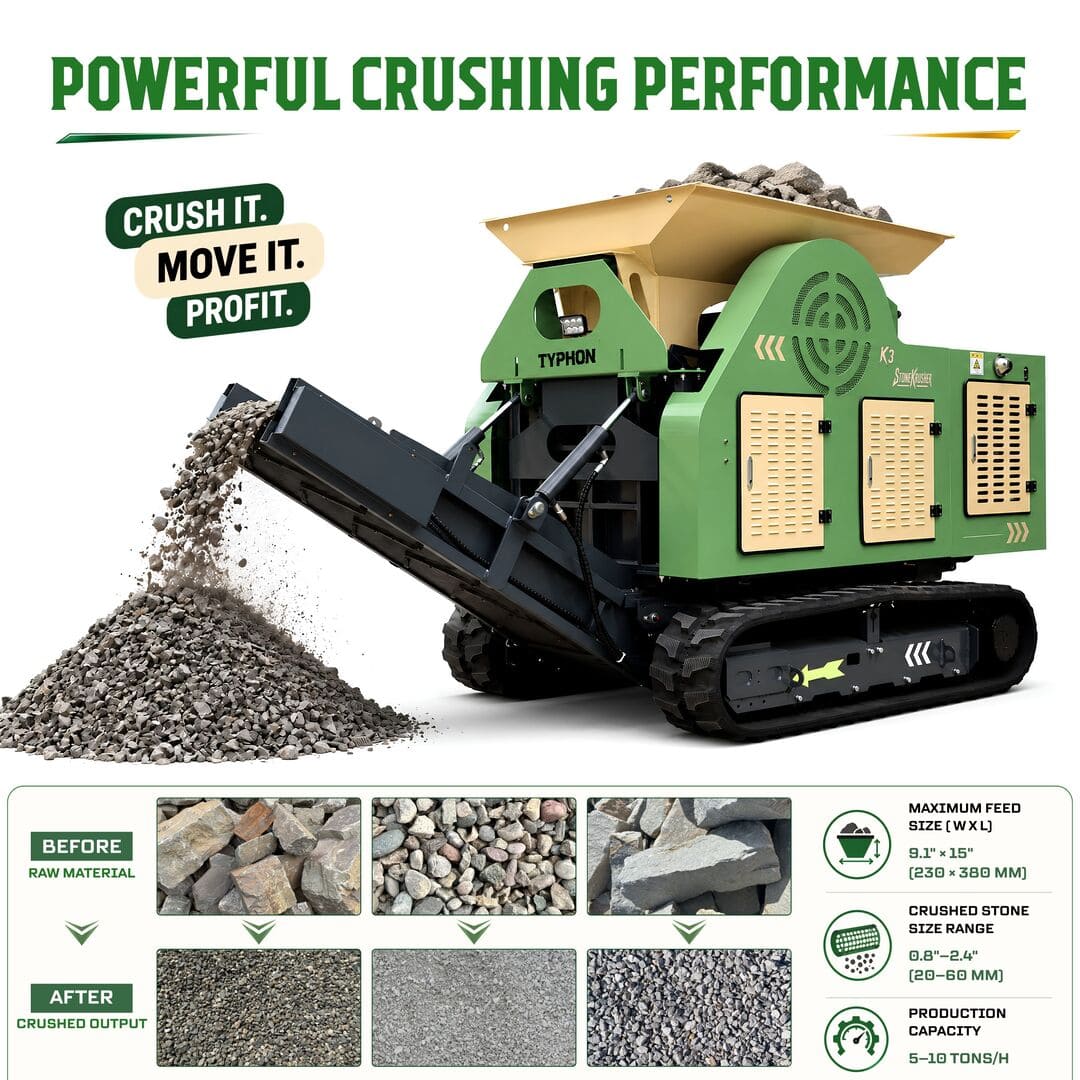

- Maximum Feed Size: accepts material up to 230 × 380 mm (9.1 × 15.0 in), so you can feed larger stones and reduce pre-sorting.
- Crushed Stone Size: delivers material in a 20–60 mm (0.8–2.4 in) range for clean, ready-to-use crushed material.

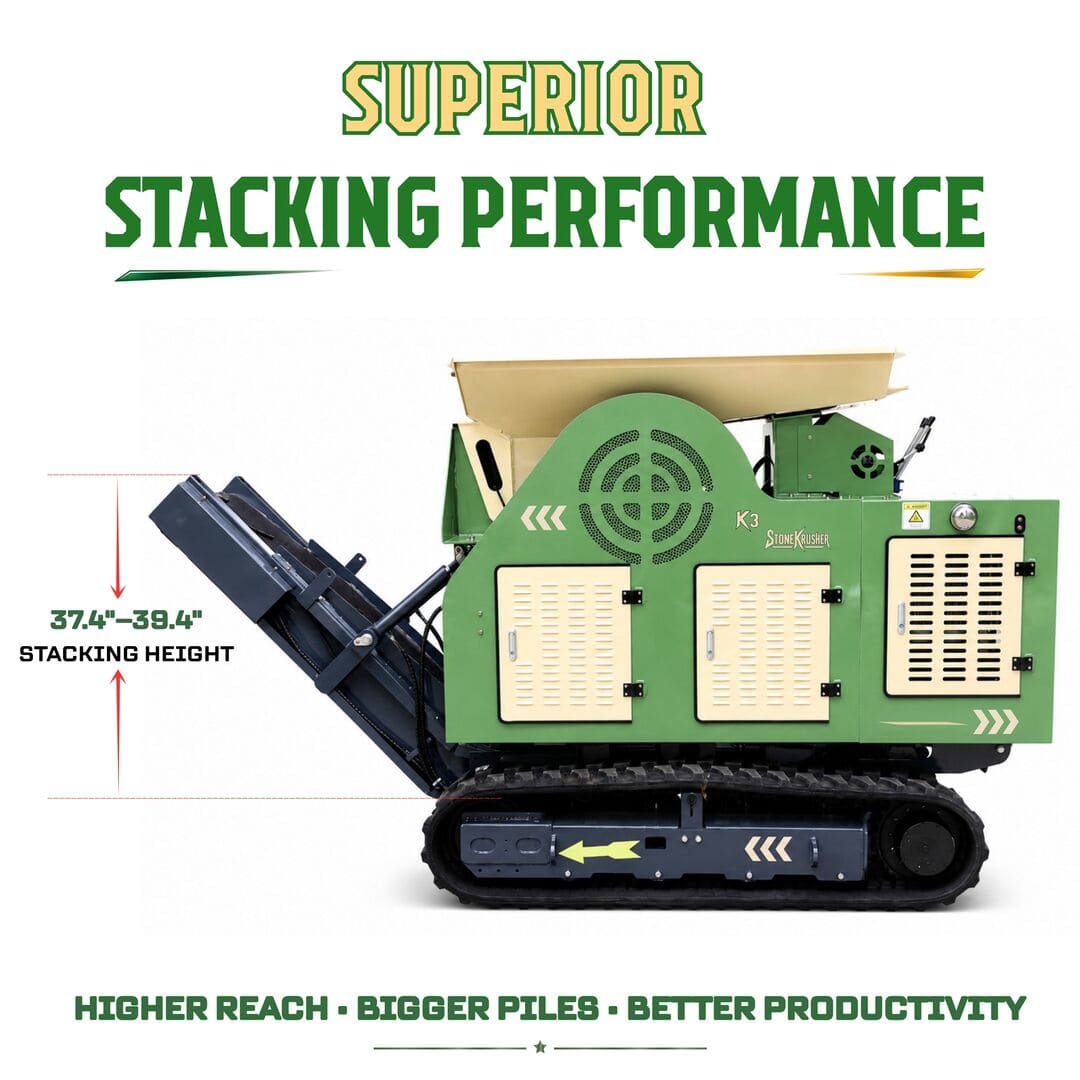

- Stacking Height: reaches 950–1000 mm (37.4–39.4 in) to pile material neatly and make stockpiling easier.

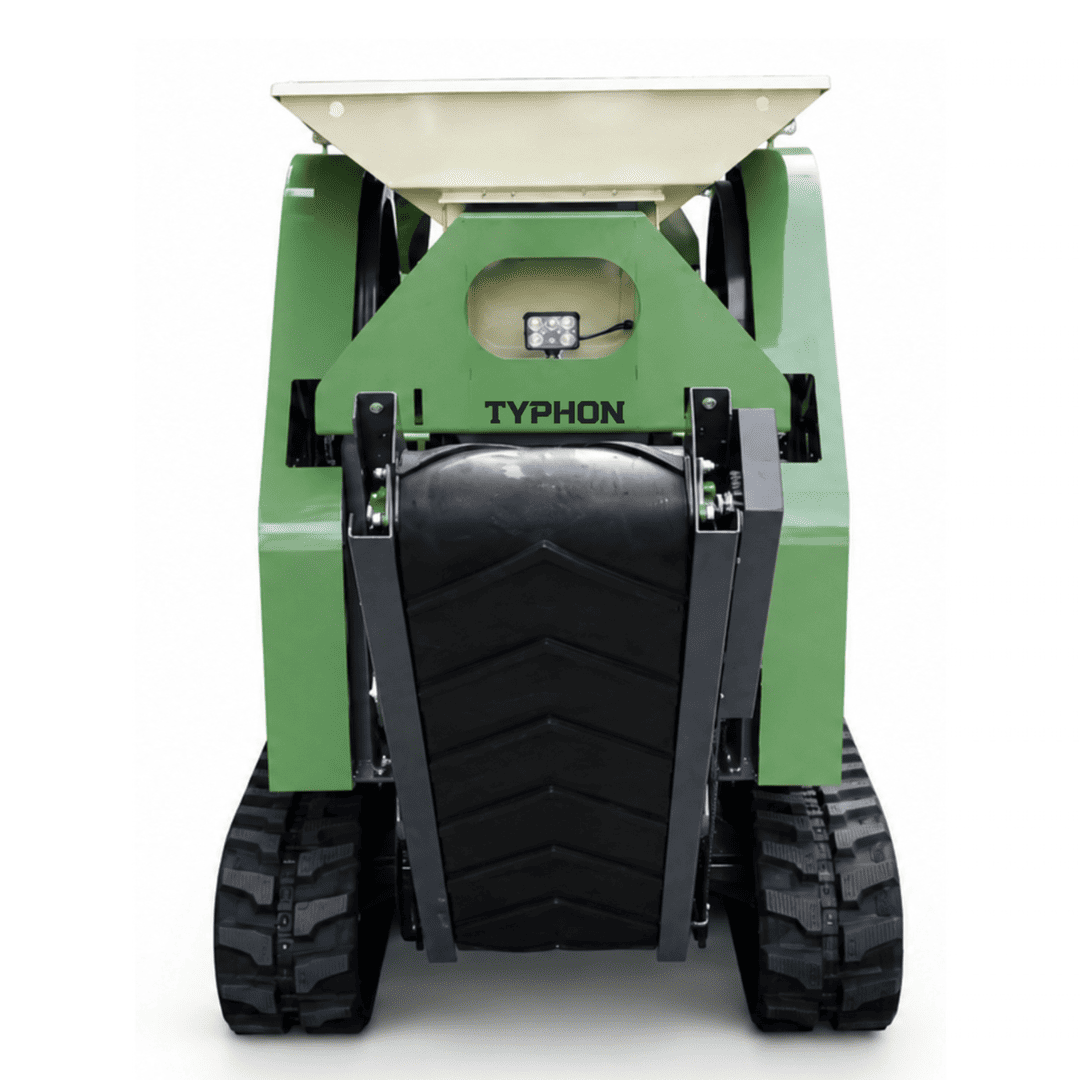

- Conveyor: the 400mm (15.7in) wide conveyor moves and stacks crushed material efficiently, making stockpiling and reuse straightforward.
- Production Capacity: processes approximately 5–10 tons/h, keeping material flowing at a practical pace for onsite crushing.
4. Hydraulic System for Efficient Operation

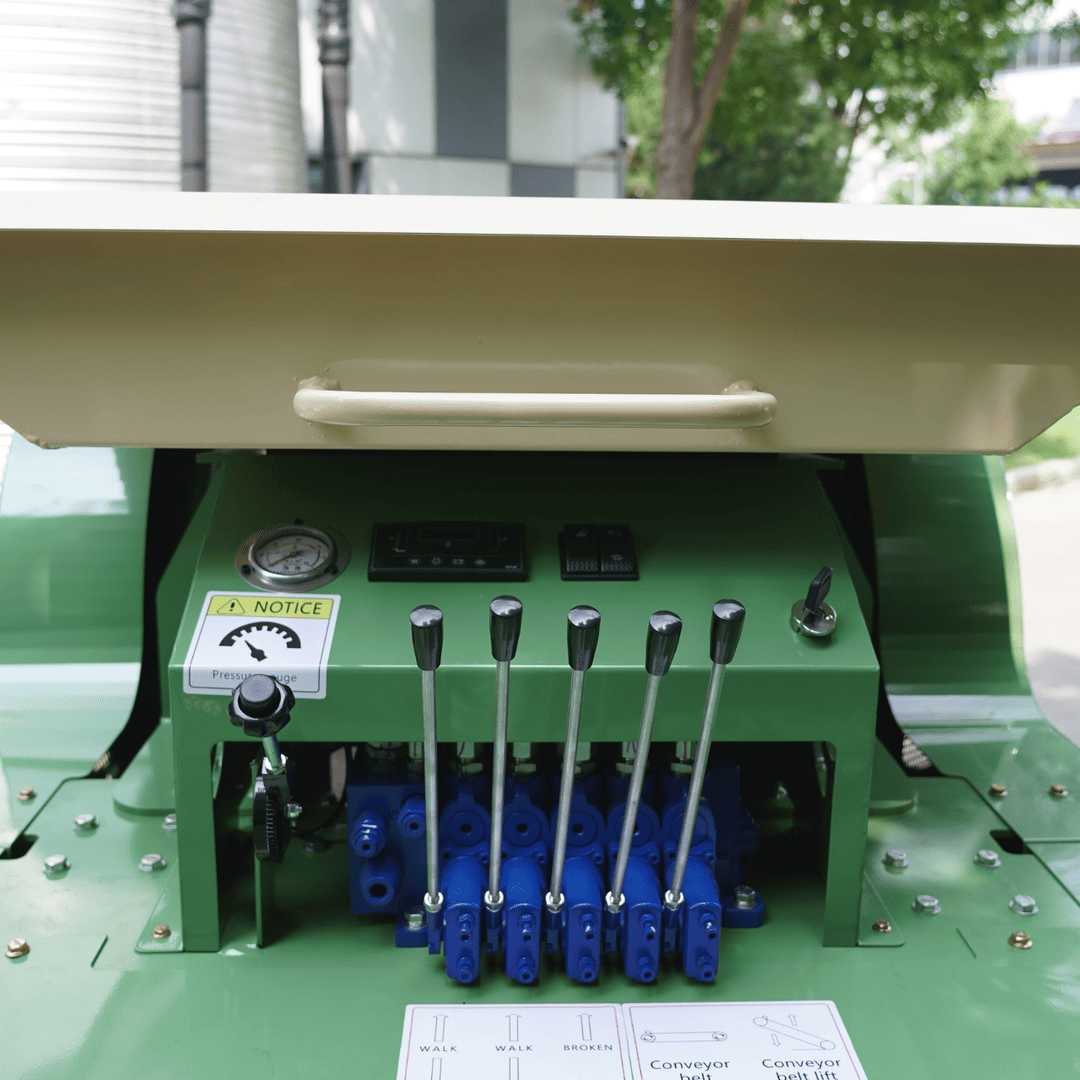

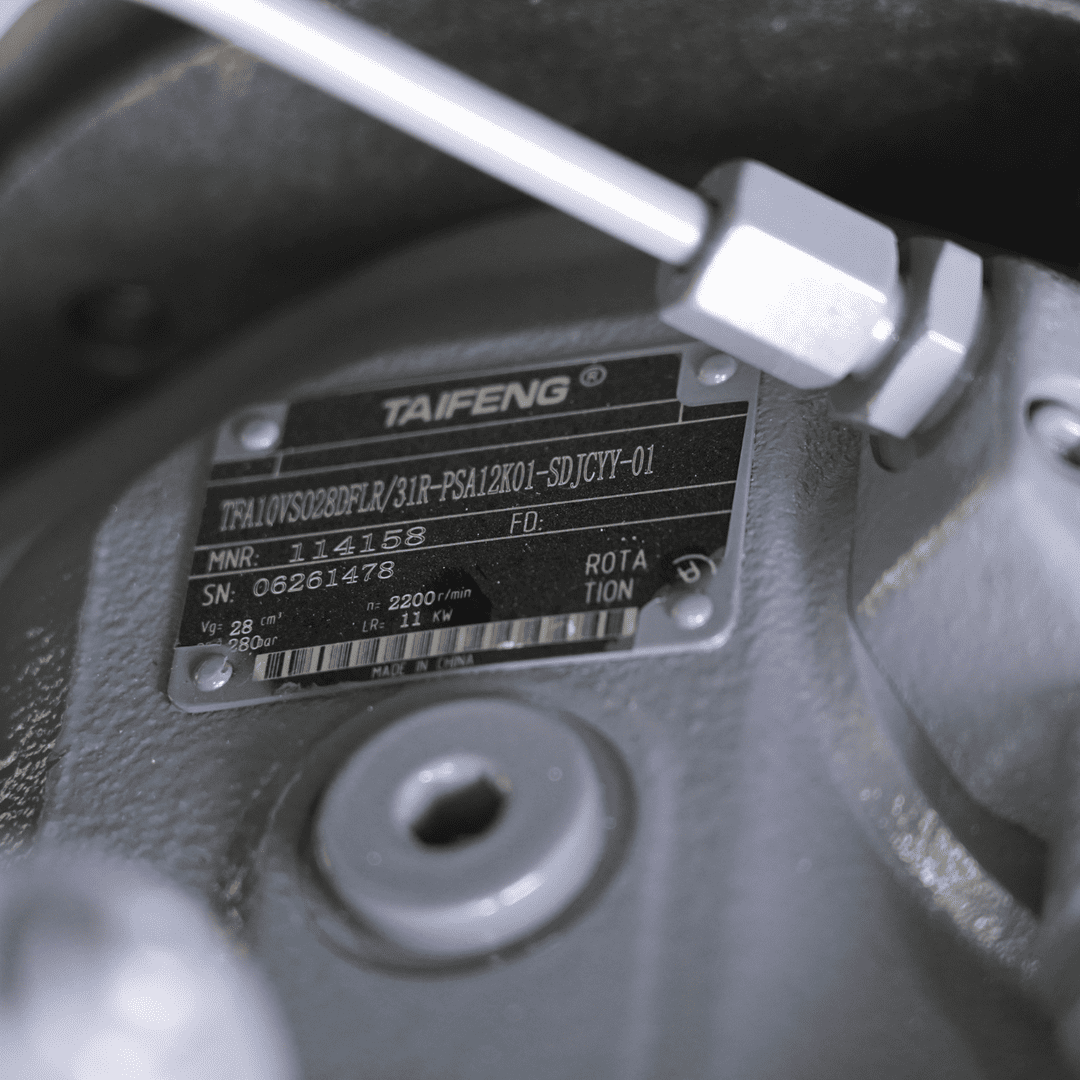

- Piston Pump: Provides responsive hydraulic power across the crawler, crusher, and conveyor systems.

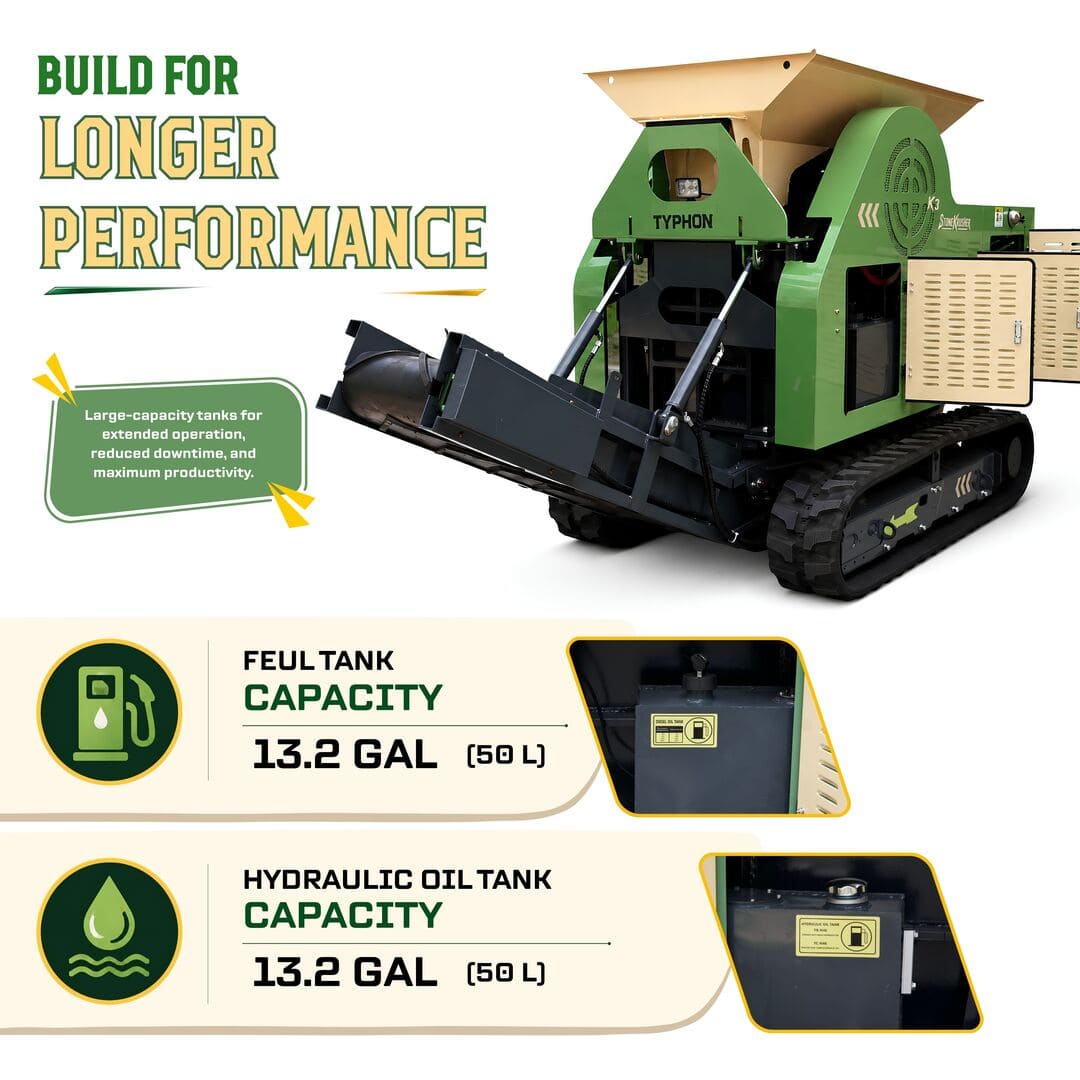

- 50L (13.2gal) High-Capacity Hydraulic Oil Tank and Fuel Tank: Provides practical fluid and fuel capacity for extended crushing operation.
- Hydraulic-Powered Crawler System: Provides controlled movement for easy repositioning around the jobsite.

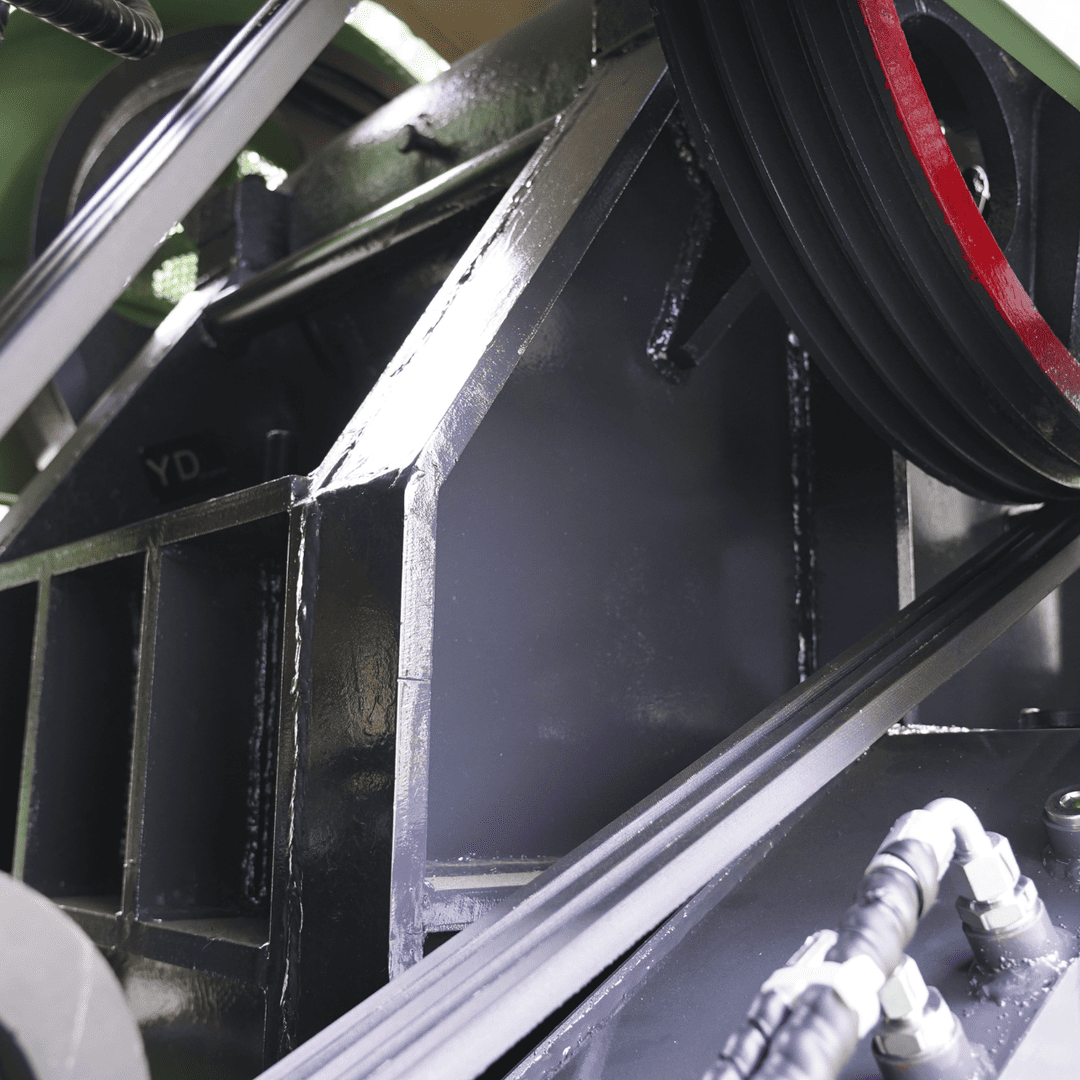

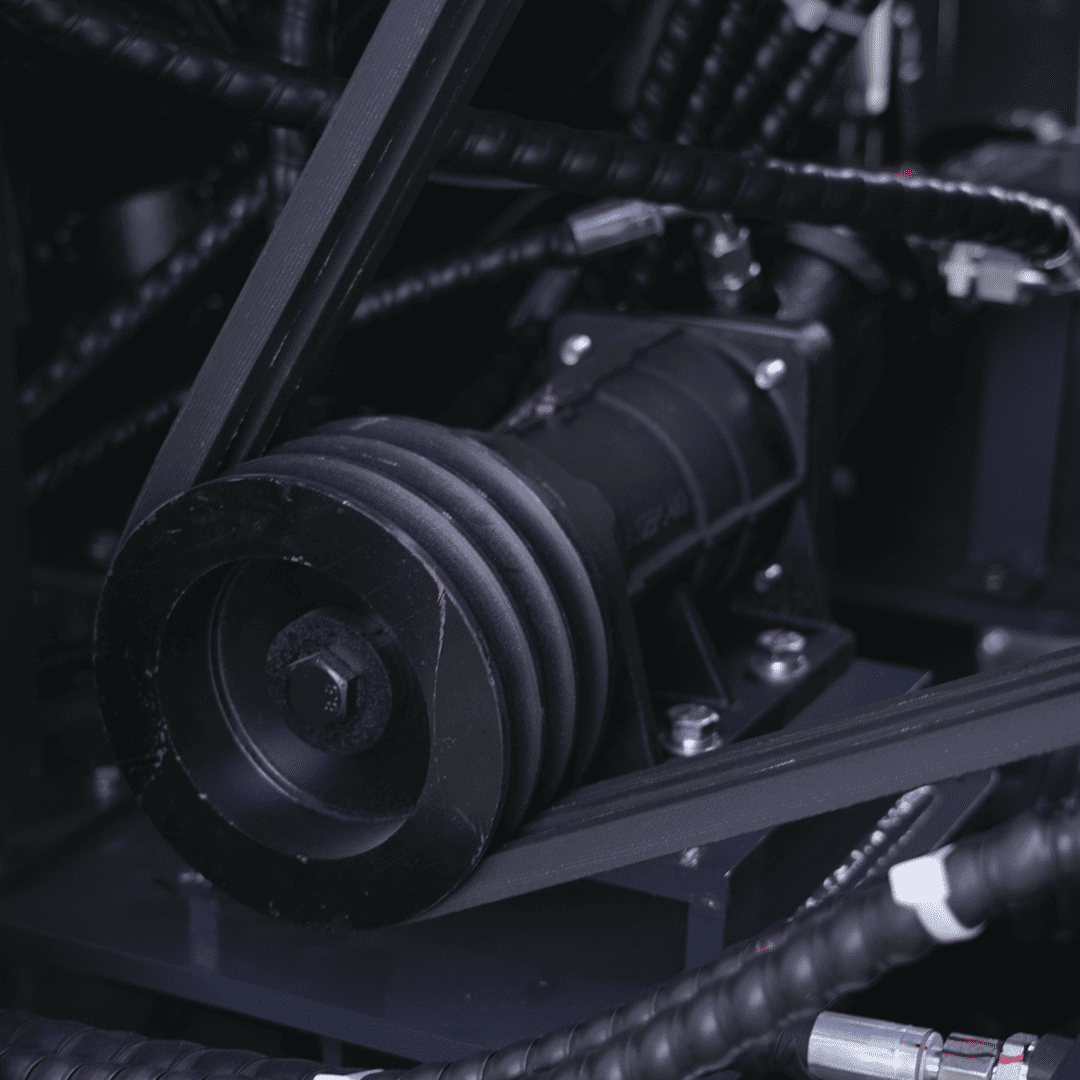

- Hydraulic Jaw Crusher Drive: A dedicated hydraulic piston motor drives the jaw crusher for consistent crushing operation.
- Hydraulic Conveyor Drive: A hydraulic orbital motor powers the conveyor for efficient material handling and stockpiling.

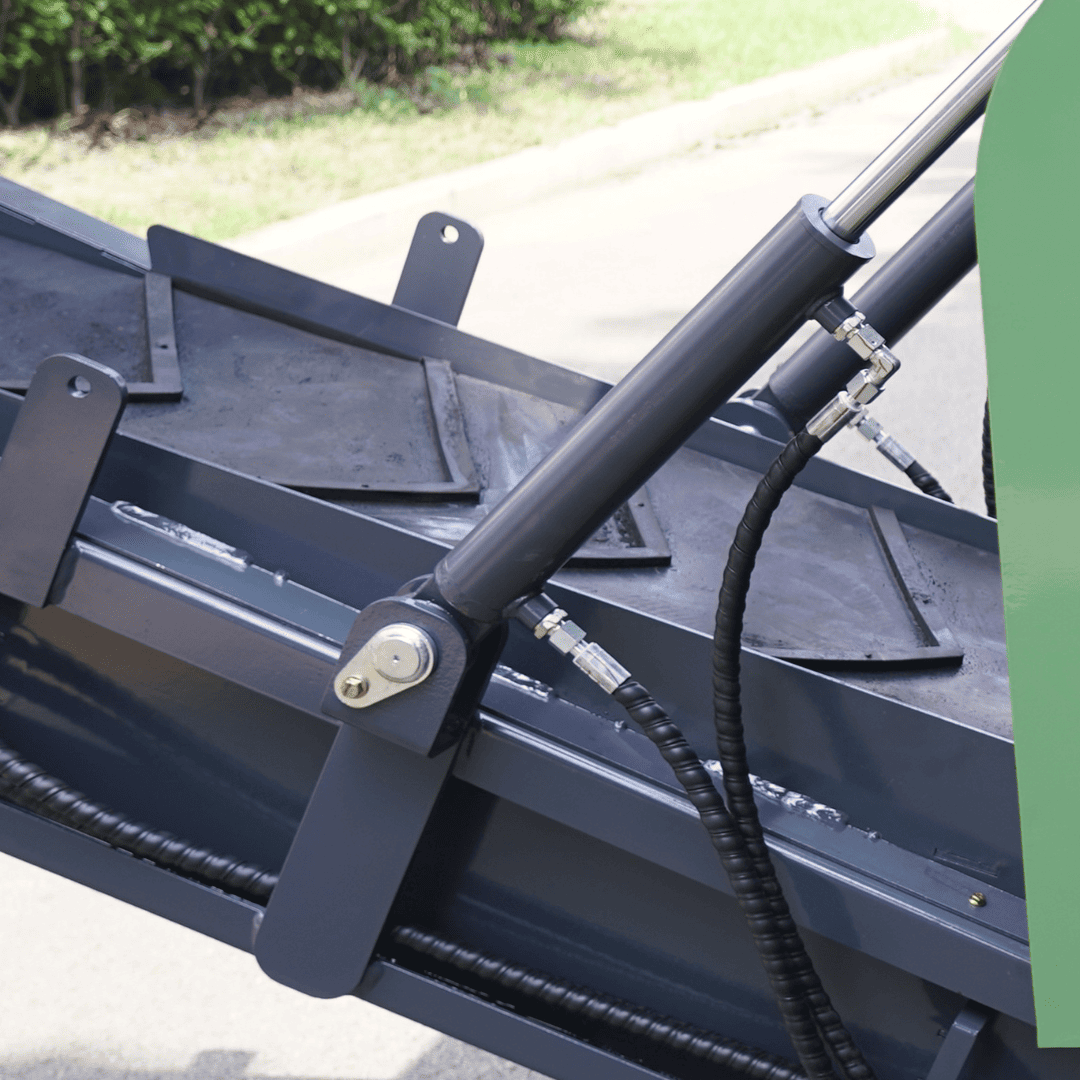

- Hydraulic Conveyor Lift Cylinder: Provides controlled conveyor positioning during setup, transport, and operation.
- 2-Speed Travel System: Offers two travel speeds for controlled low-speed maneuvering and faster repositioning around the jobsite.
5. Service Friendly Design

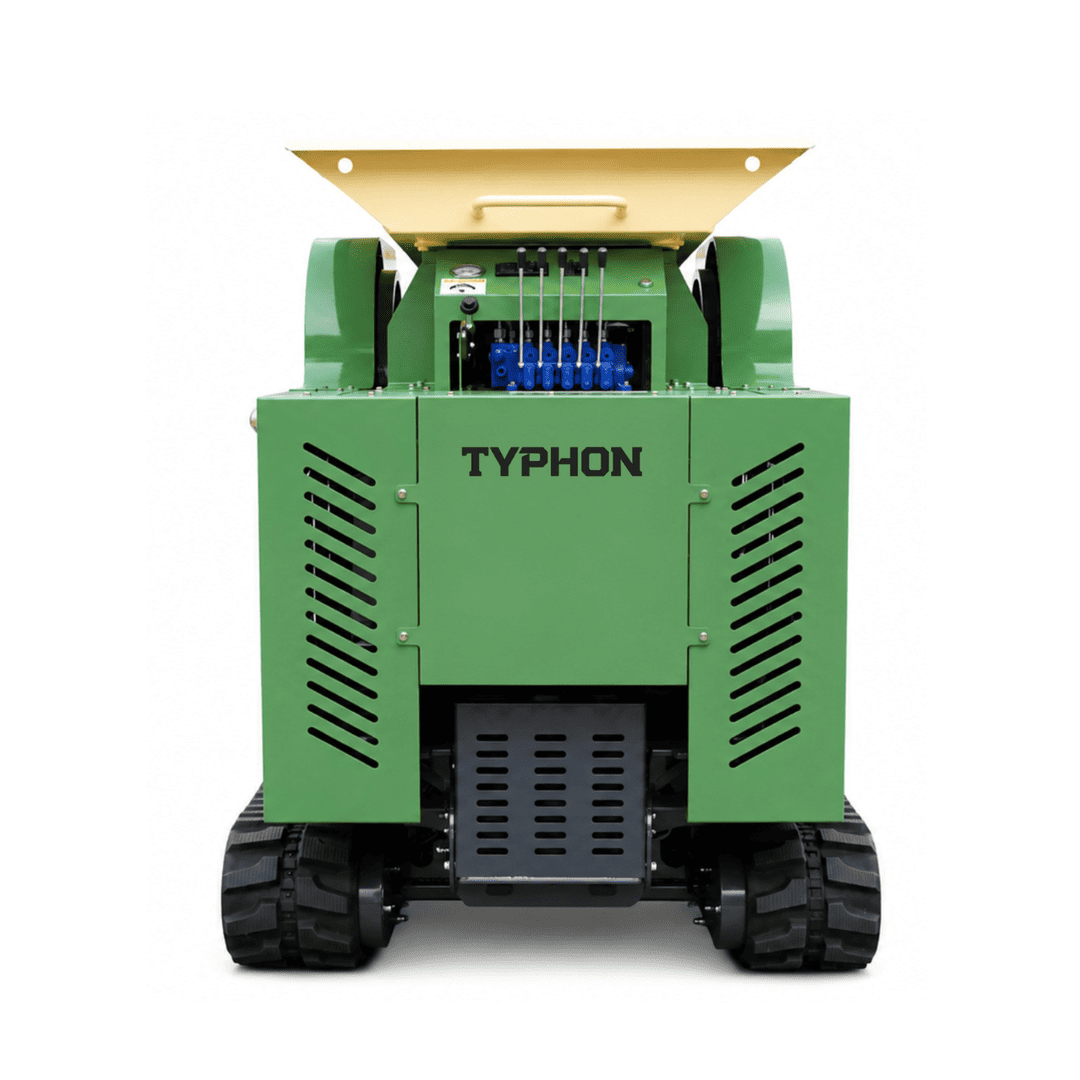

The K3 is designed for easy servicing, with side access doors providing quick access to key systems for faster maintenance.

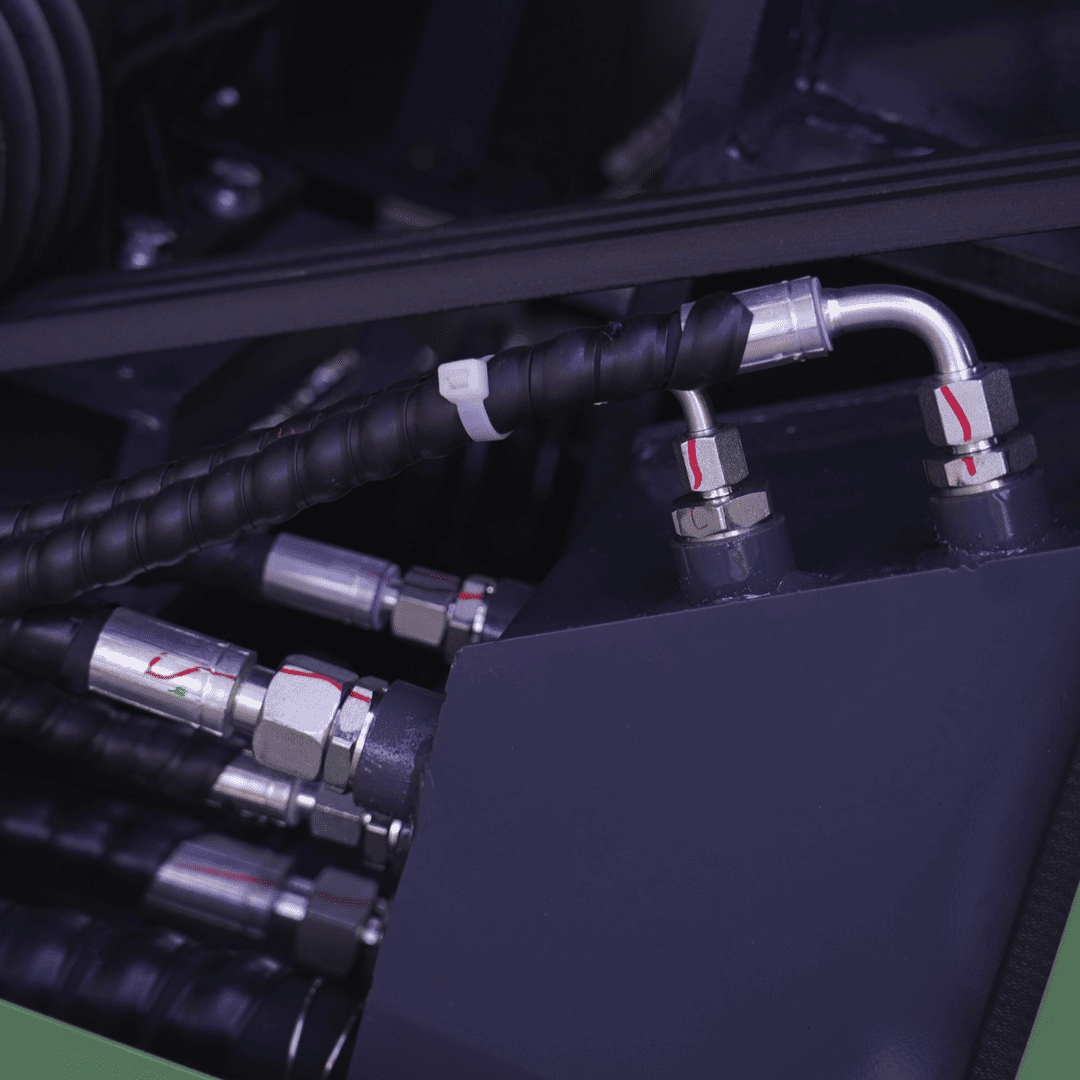

- Hydraulic System Access: reach the hydraulic oil tank and hydraulic lines for fast fluid checks and servicing.

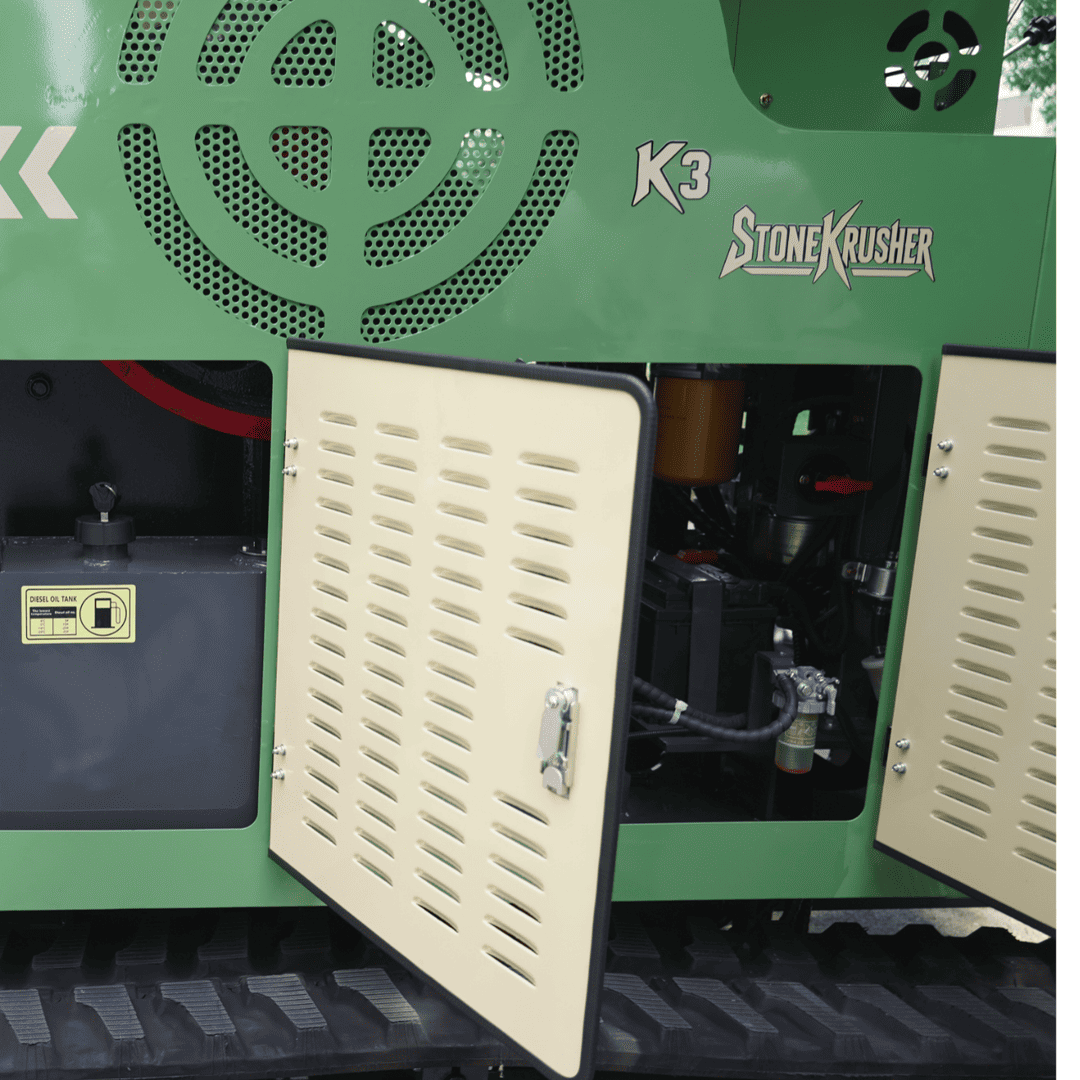

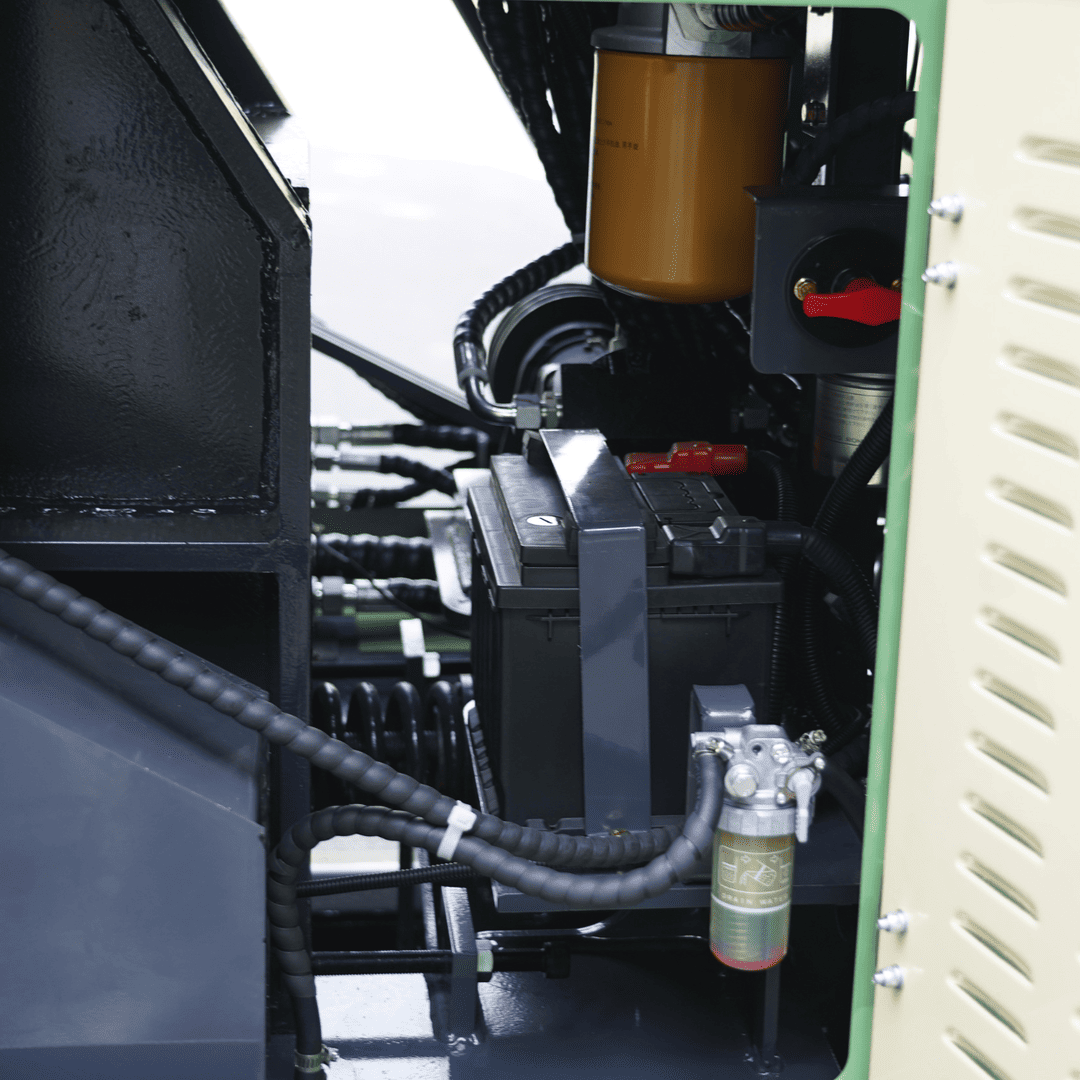

- Battery & Fuel Filter Access: battery and fuel filter/water separator are grouped together for quick inspection and drainage.

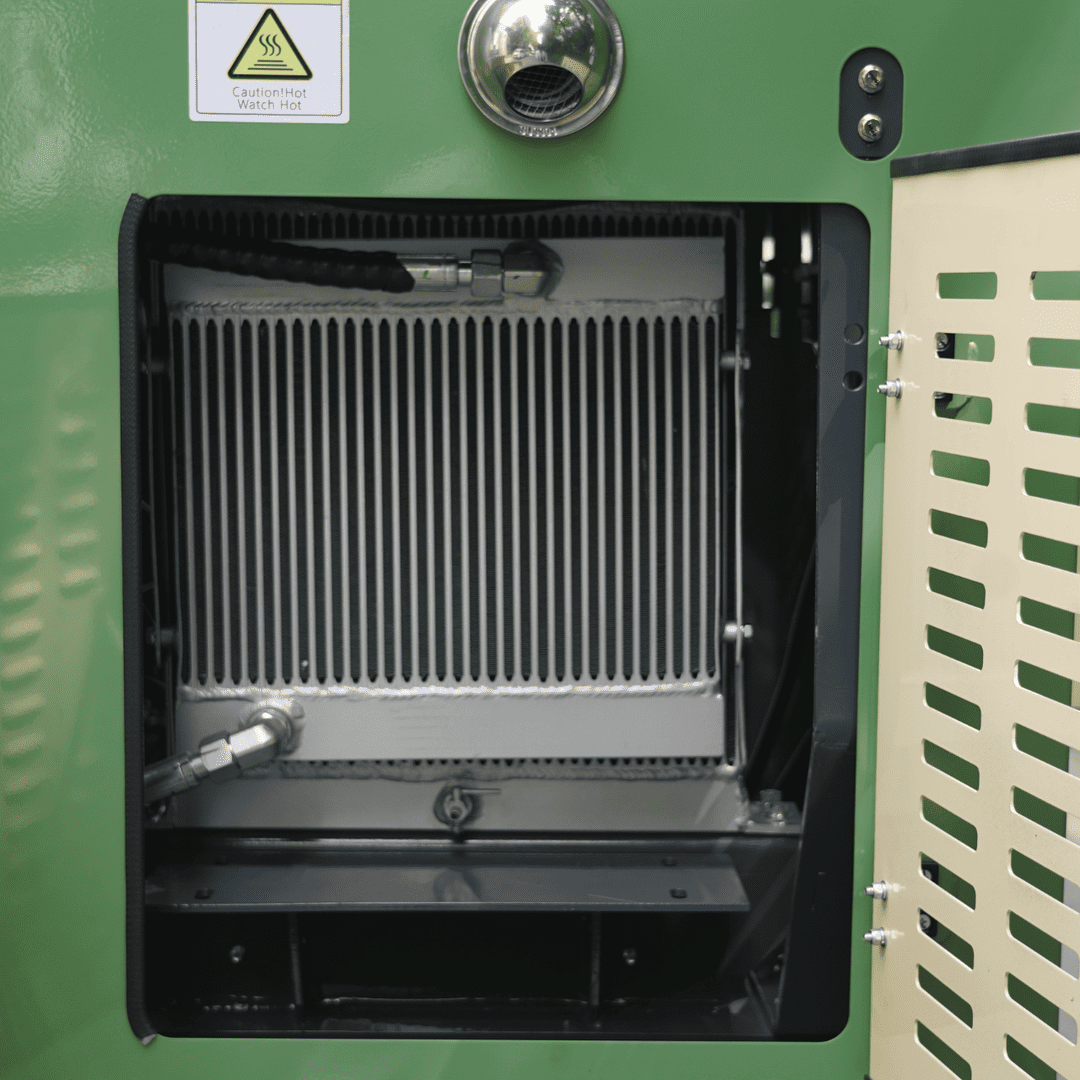

- Cooling System Access: get to the radiator and heat exchanger to keep everything clean and running efficiently.

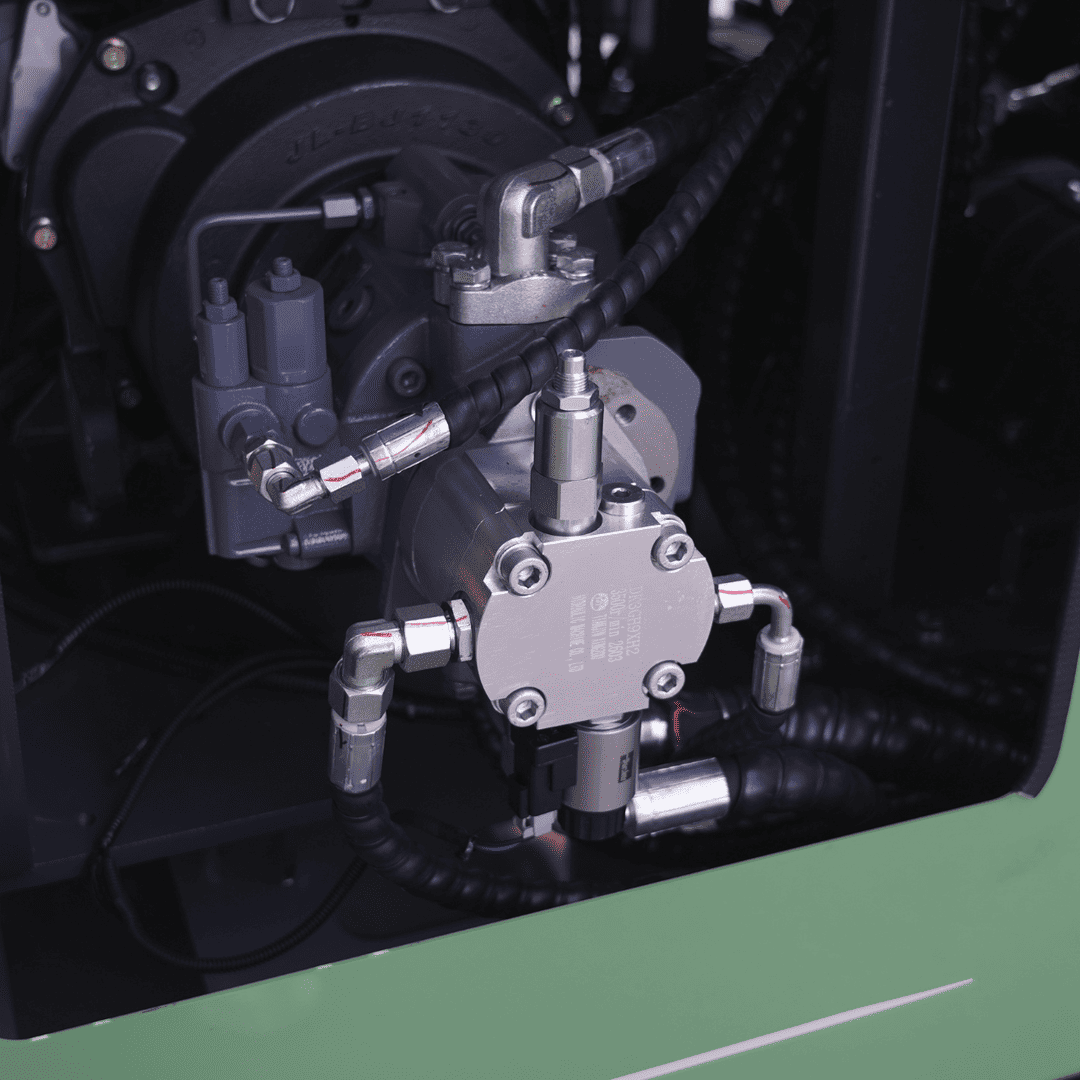

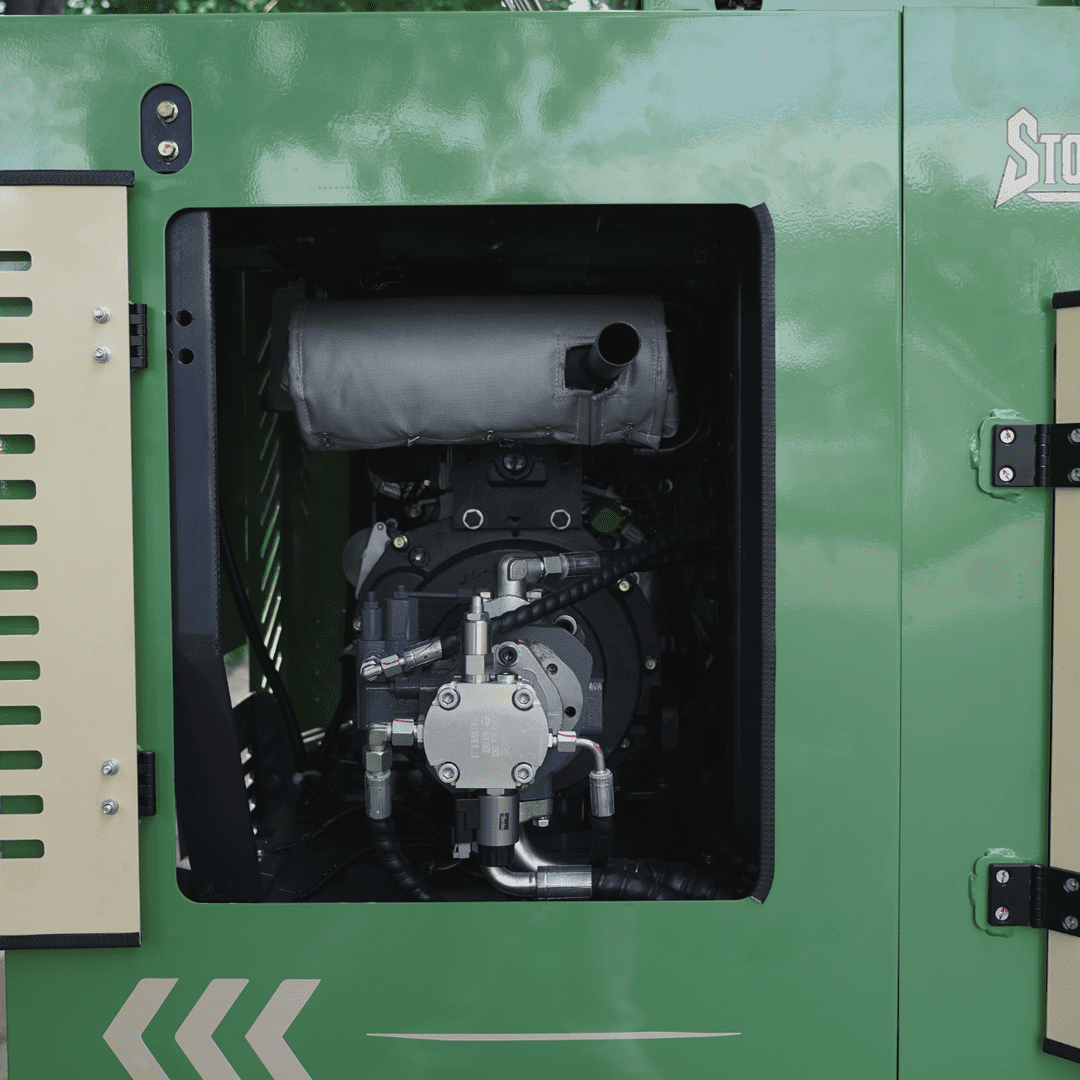

- Engine & Pump Access: open directly to the Kubota D1105 engine and piston pump for routine checks and maintenance.
- Grease Lubrication: the jaw crusher uses grease lubrication, while the crawler track tension is adjusted through a grease tensioning system.
The TYPHON STONEKRUSHER K3 delivers self-propelled, all-day crushing performance in a compact build that works wherever your project demands it. Get yours today and bring serious crushing power to every jobsite.
