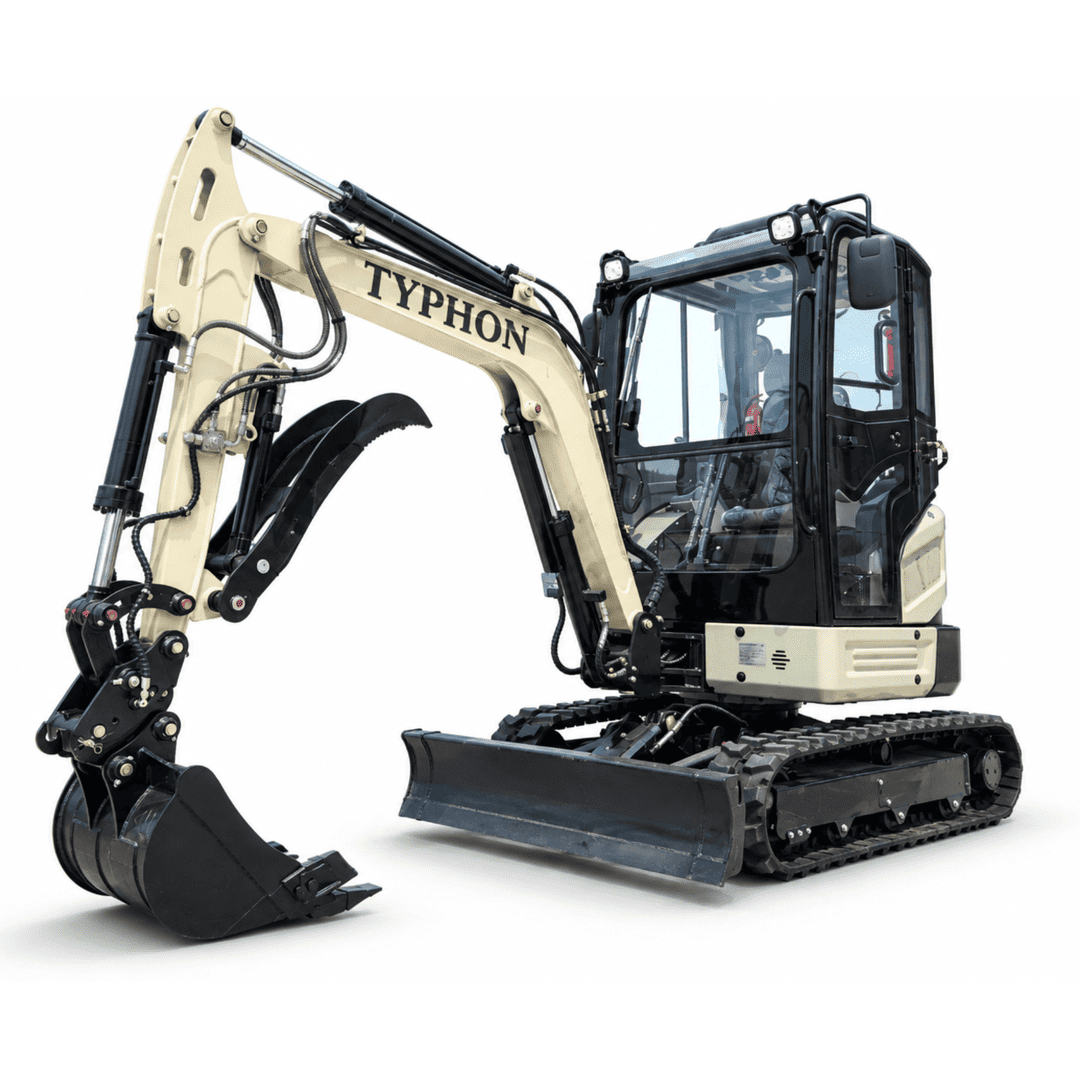

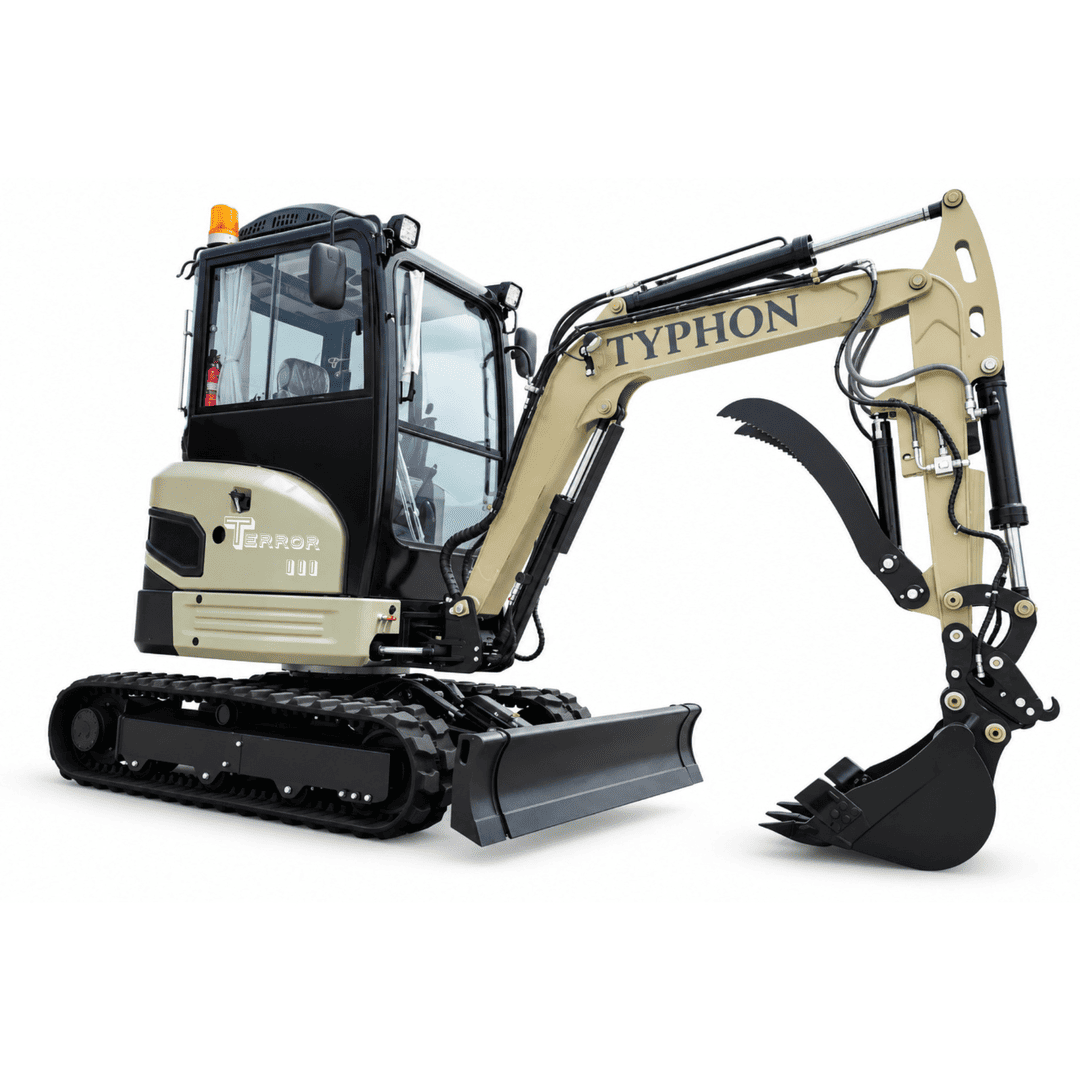

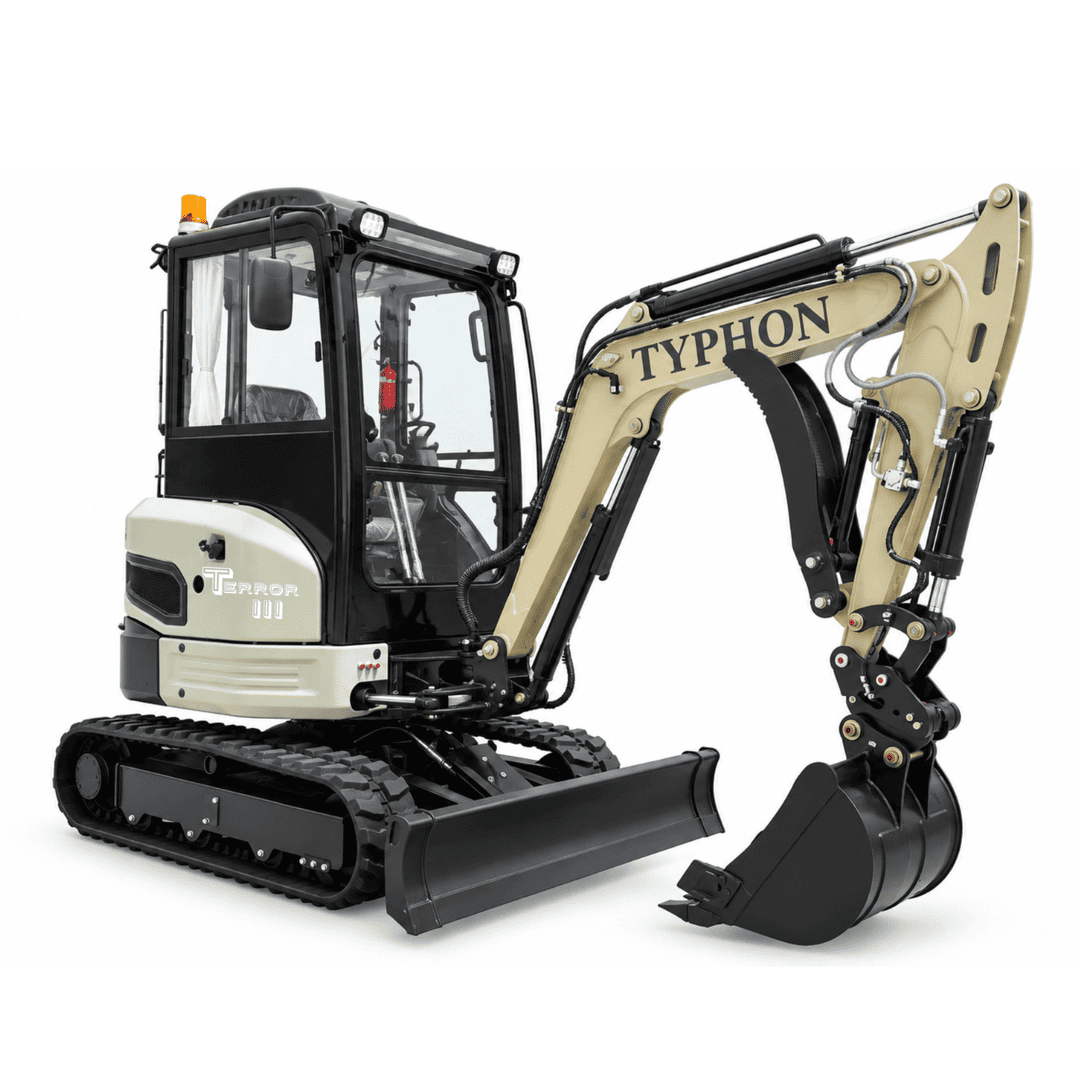

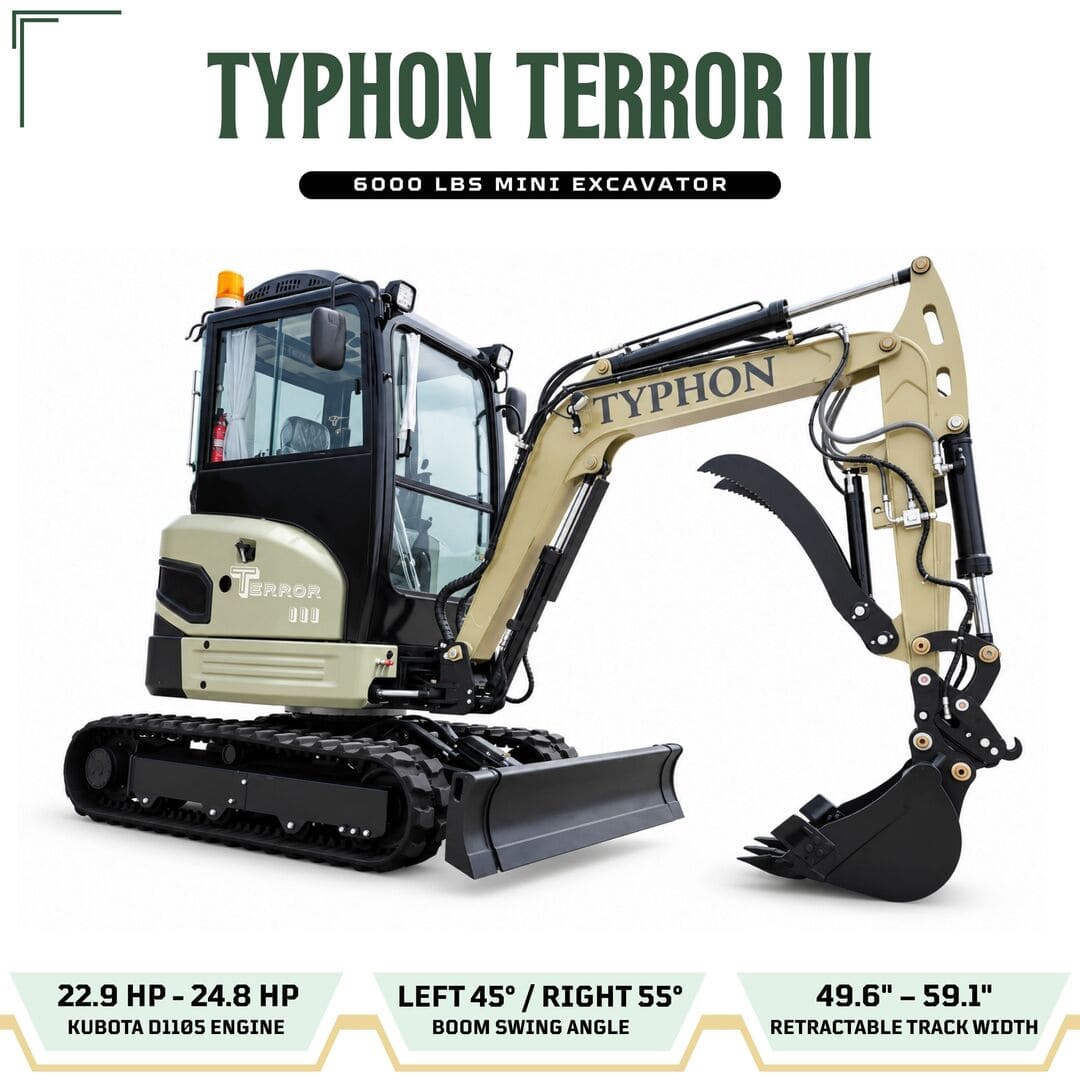

TYPHON TERROR III PROPACT Series – 6000 lb Mini Excavator with Kubota D1105 Diesel Engine, Side Swing, Retractable Rubber Track, AC & Heater Cabin

Introducing the TYPHON TERROR III PROPACT Series, a 6,000 lb compact mini excavator built specifically for jobsites that turn full-size machines away. Fenced yards, tight utility corridors, and zero-clearance foundation trenches are no longer a problem. Its compact footprint combines strong hydraulic performance, extended digging reach, and built-in grading capability, allowing it to handle excavation, trenching, backfilling, and site preparation in areas where larger equipment cannot easily operate.

01. Engine Power Delivery

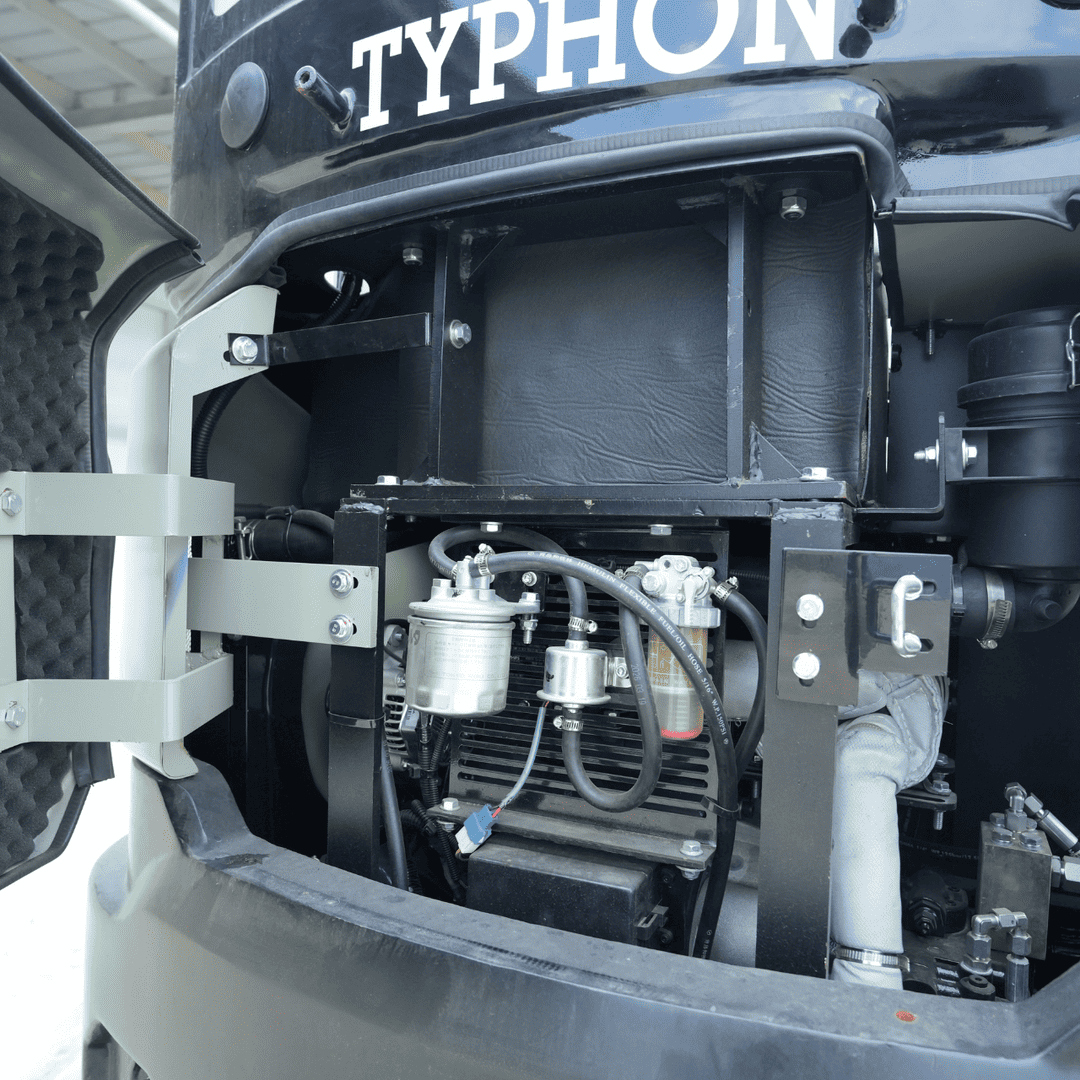

Powered by a Kubota D1105 vertical, water-cooled, 3-cylinder, 4-cycle industrial diesel engine, it produces 22.9 hp up to 24.8 hp of rated power for consistent hydraulic and digging performance under demanding excavation loads. A powerful cooling system quickly removes heat from the engine, keeping operating temperatures stable during long working hours. This helps maintain consistent engine power and reliable performance during heavy digging and continuous operation.

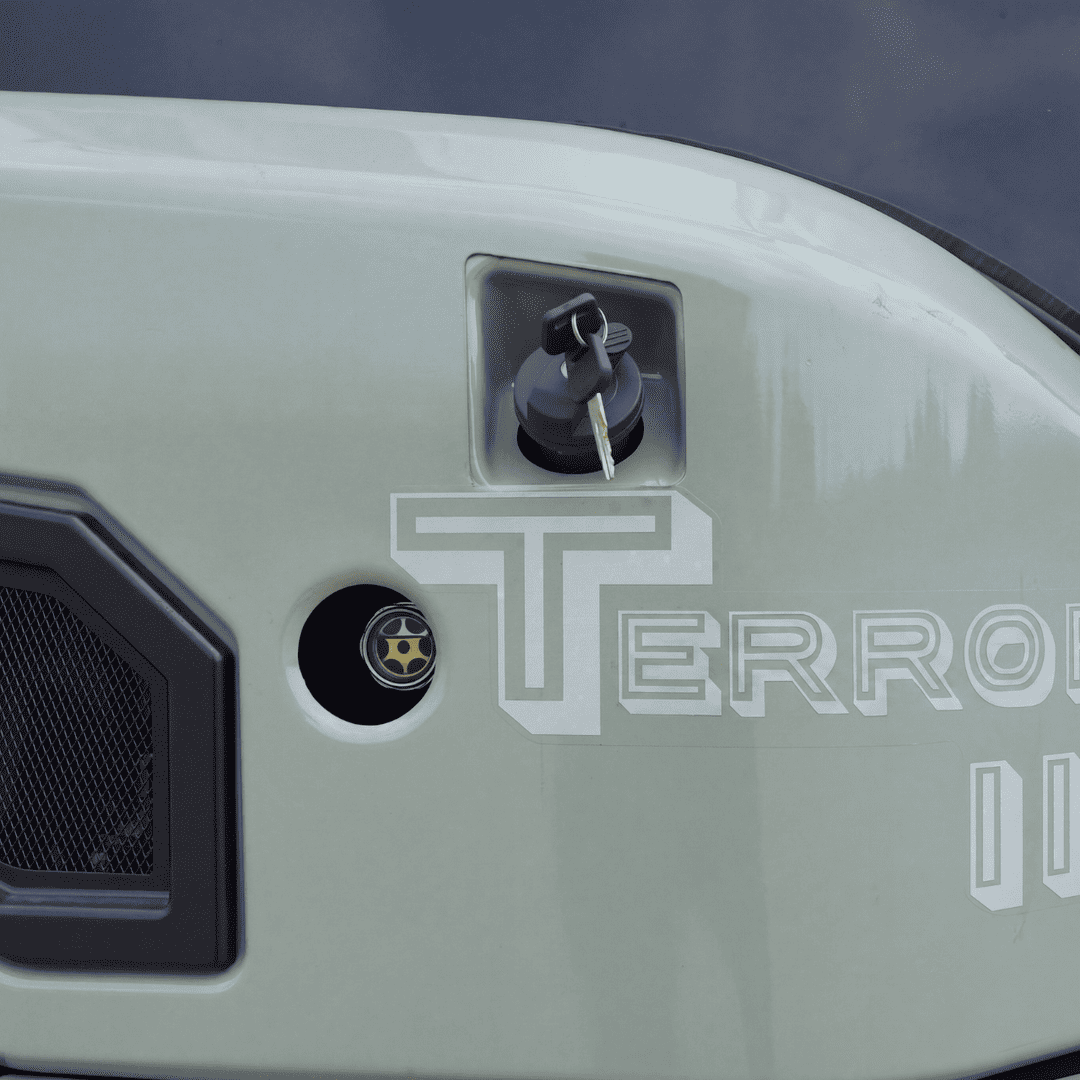

Well-established service requirements also make routine maintenance easier to schedule and manage. With a 4.2-gallon (16 L) fuel tank and 6.9-gallon (26 L) hydraulic oil reservoir, the machine is equipped for extended operating periods with fewer interruptions for refueling and fluid checks.

02. Full Hydraulic Control System

• Full Hydraulic Control System: Integrates complete hydraulic actuation across the boom, arm, bucket, swing, and travel functions, providing smooth multi-function operation and efficient fluid synchronization during demanding work cycles.
• Advanced Piston Pump & Load-Sensing Valve: Uses a piston pump and load-sensing valve to regulate hydraulic flow based on the machine’s workload, helping maintain smooth multi-function response while using hydraulic power efficiently.

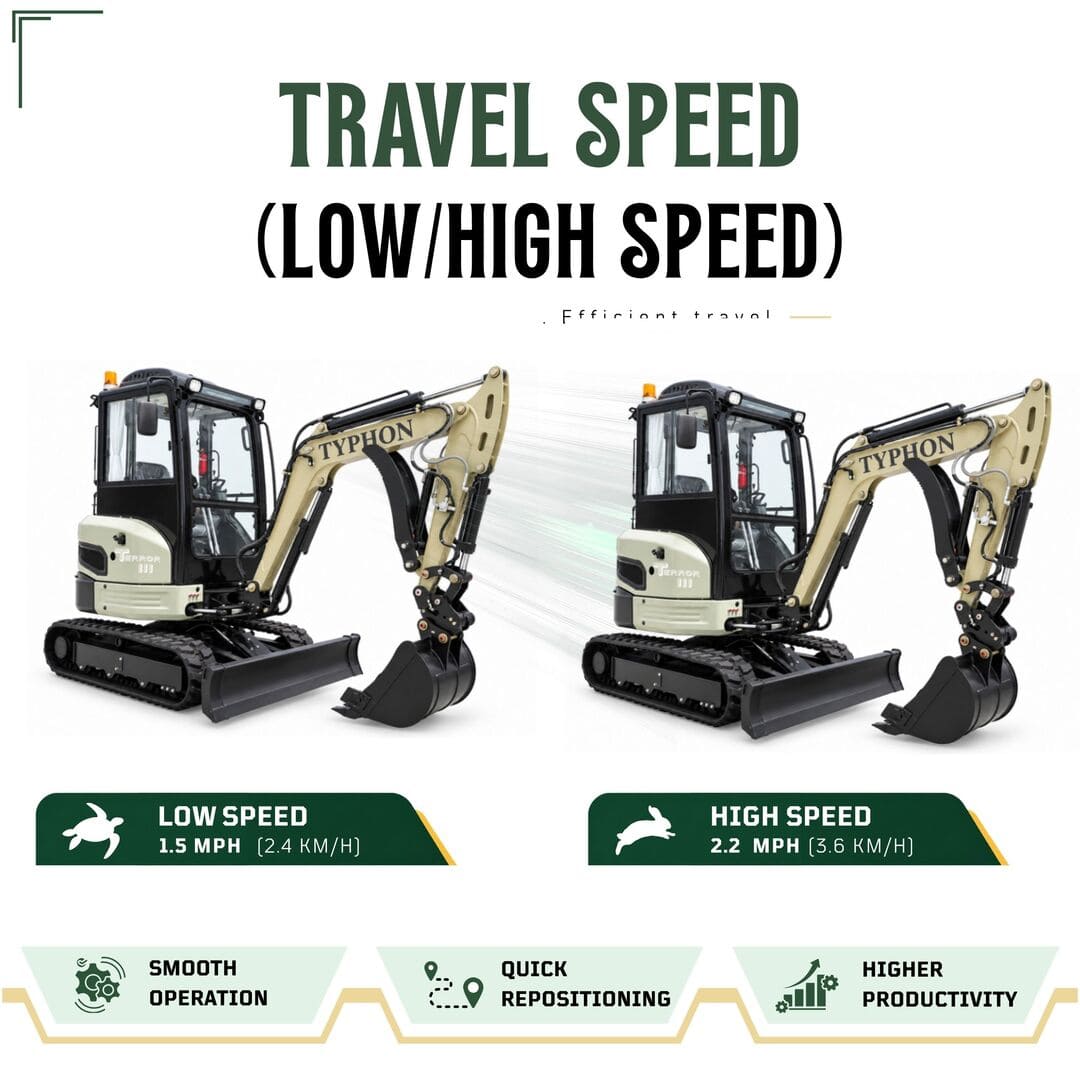

• Dual-Speed Travel System: Offers a low-speed setting at 2.4 km/h for controlled, high-torque movement and a high-speed setting at 3.6 km/h for quicker travel between work areas.

03. Hydraulic Boom Swing

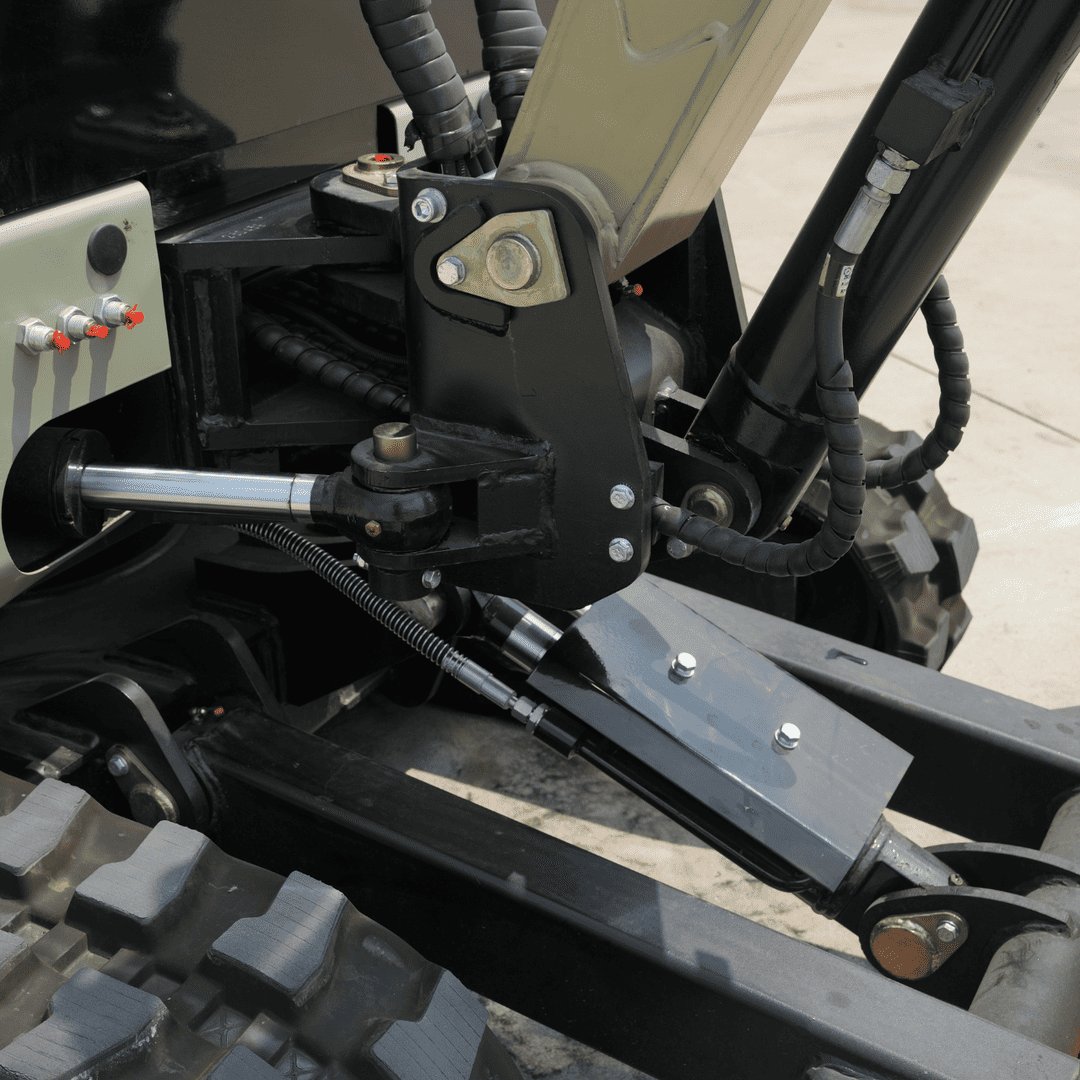

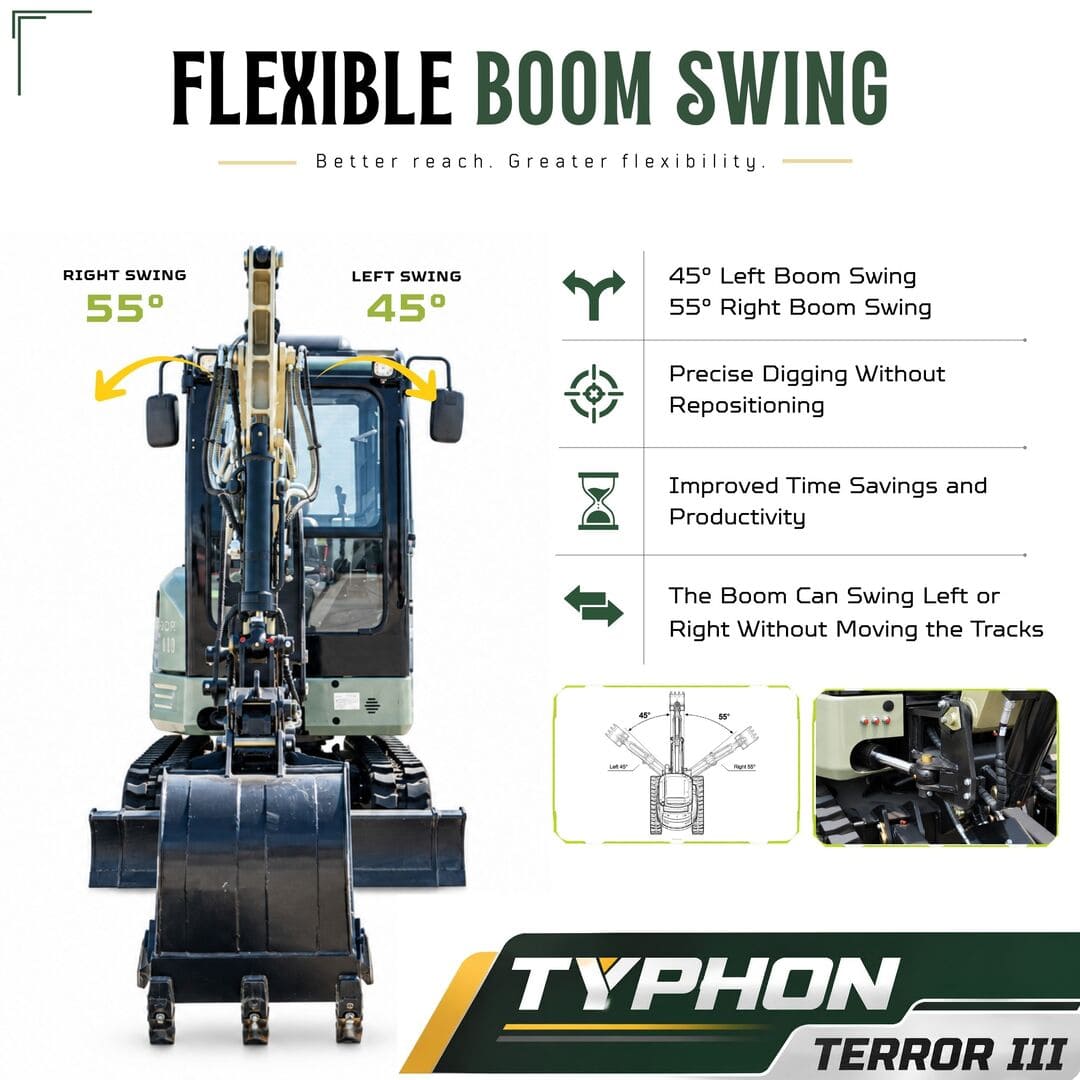

• Left & Right Boom Swing: The boom pivots up to 45° left and 55° right, enabling precise offset trenching and excavation along walls, foundations, curbs, and other obstacles without repositioning the machine.

04. Zero-Tail-Swing & 360° Rotation

• Zero Tail Swing: The excavator’s upper body rotates entirely within the width of its track footprint, allowing operators to work and swing close to walls, fences, and tight obstacles while reducing rear-end clearance requirements.
• 360° Continuous Swing Rotation: Provides continuous upper-structure rotation at 10 rpm with no mechanical stop, supporting smooth digging, loading, and positioning cycles around the machine.
• Compact Swing Radius: A minimum swing radius of 7 ft 1 in (2,159 mm) helps maintain controlled rotation in restricted work areas and reduces the clearance needed around the machine.

05. Extended Digging with Dozer Blade

• Extended Digging Range: Reaches up to 9 ft (2,745 mm) deep, with a 14 ft 3 in (4,350 mm) digging radius and 11 ft 4 in (3,457 mm) dig height, covering a broad working area for trenching, foundation work, and earthmoving.
• High Bucket Digging Force: Delivers 23 kN (5,170 lbf) of bucket force to penetrate compacted soil and dense clay, supporting consistent digging performance in demanding ground conditions.

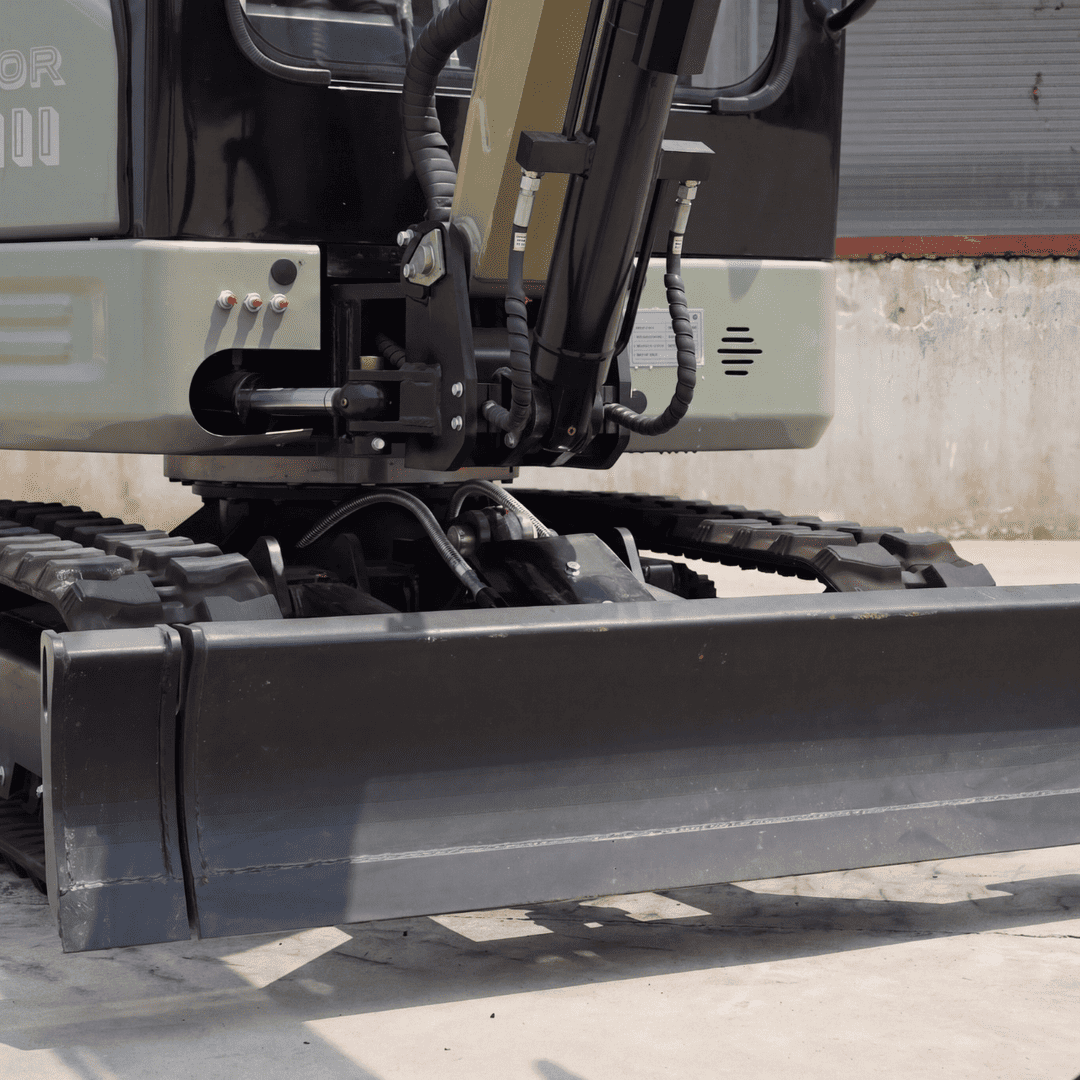

• Adjustable Front Dozer Blade: Provides 7.5 in (191 mm) above-grade and 11.5 in (293 mm) below-grade travel, giving the operator control for backfilling, surface leveling, and machine positioning.

06. Retractable Track Structure

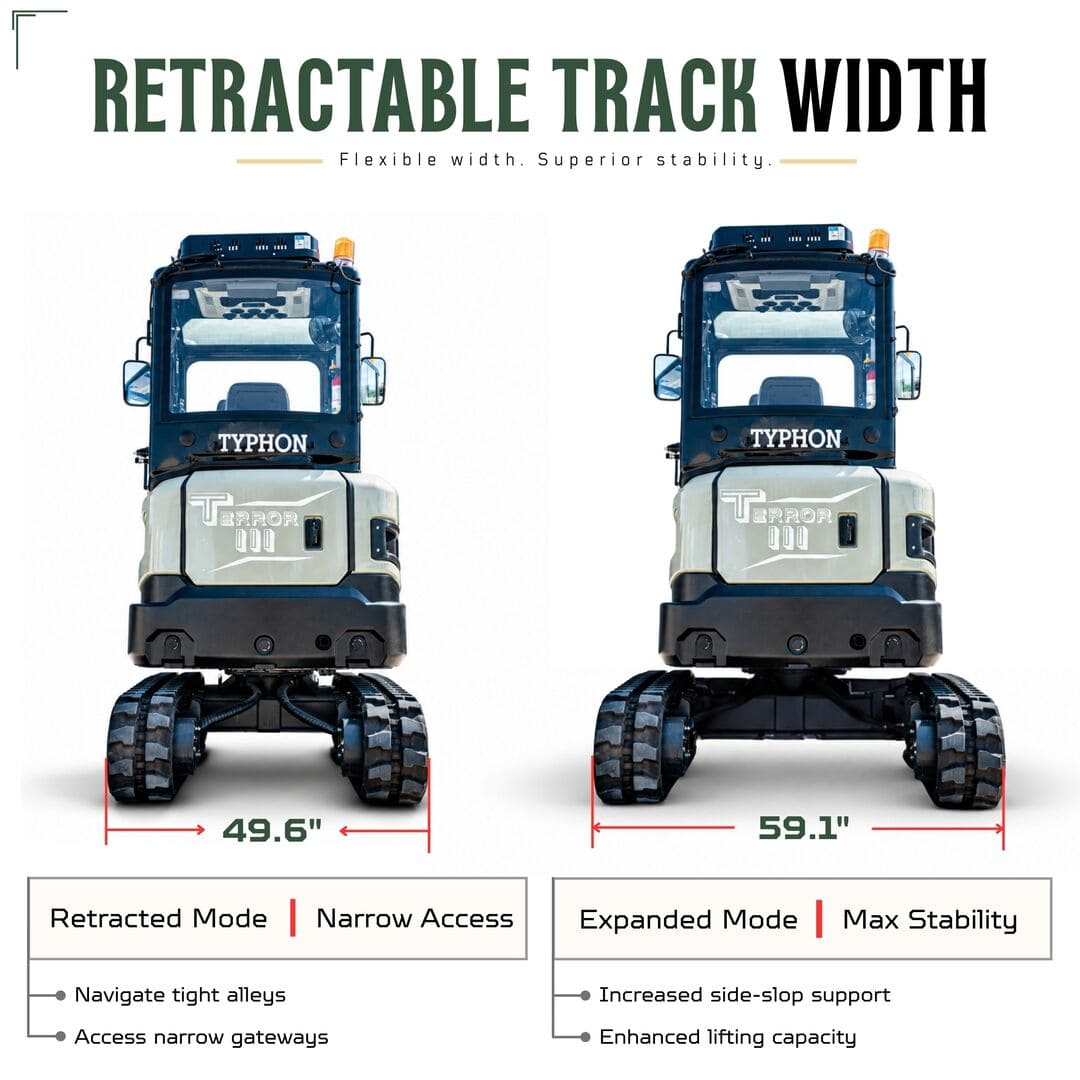

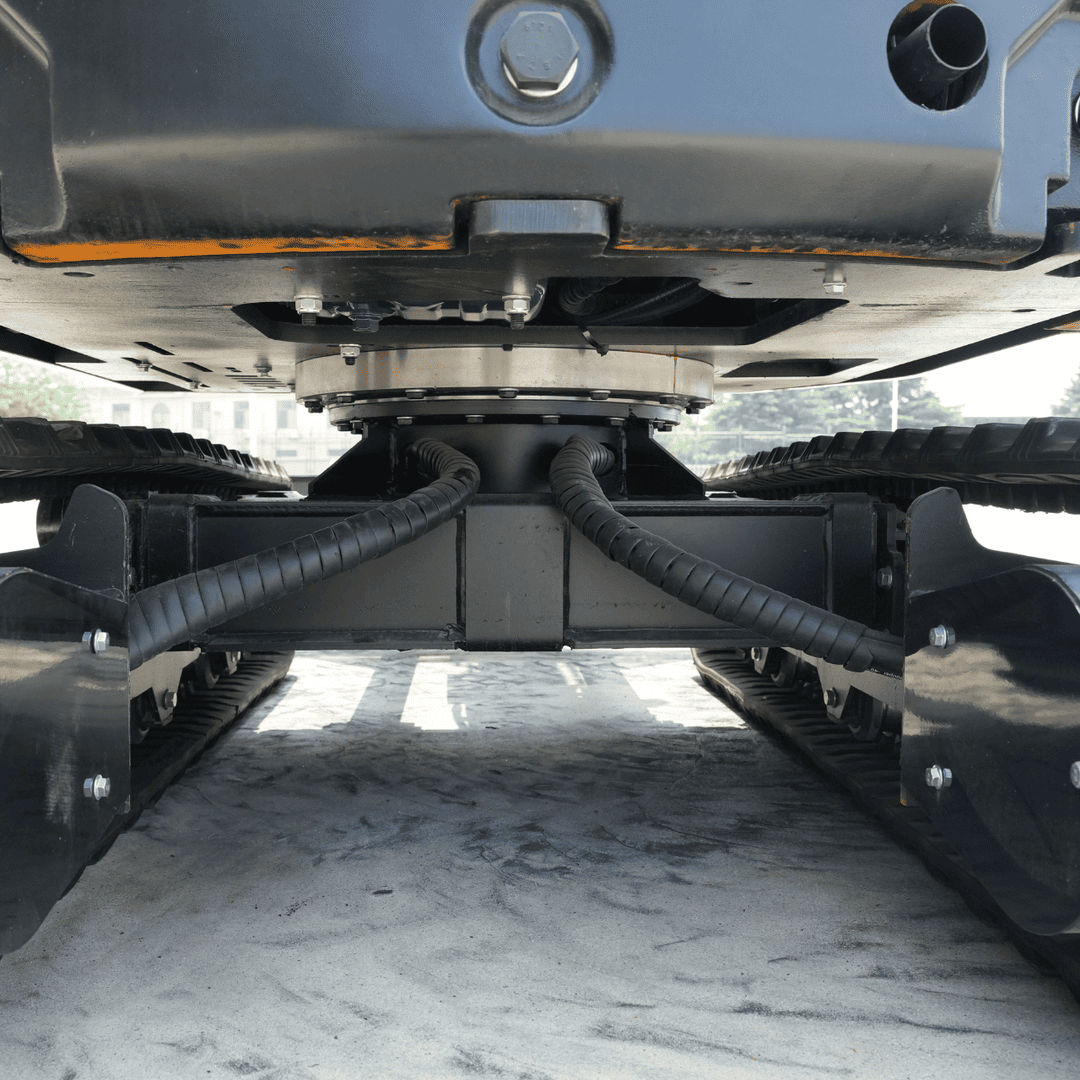

The undercarriage adjusts for both narrow access and stable digging, helping the machine work in different jobsite conditions. The retractable track frame changes from 49.6 in (1,260 mm) when retracted to 59.1 in (1,500 mm) when extended, allowing the machine to pass through tight gates and narrow entry points, then widen its stance for better stability during digging. This adjustable track width gives the machine a good balance between easy access and stable operation.

07. Operator Visibility and Ergonomic Design

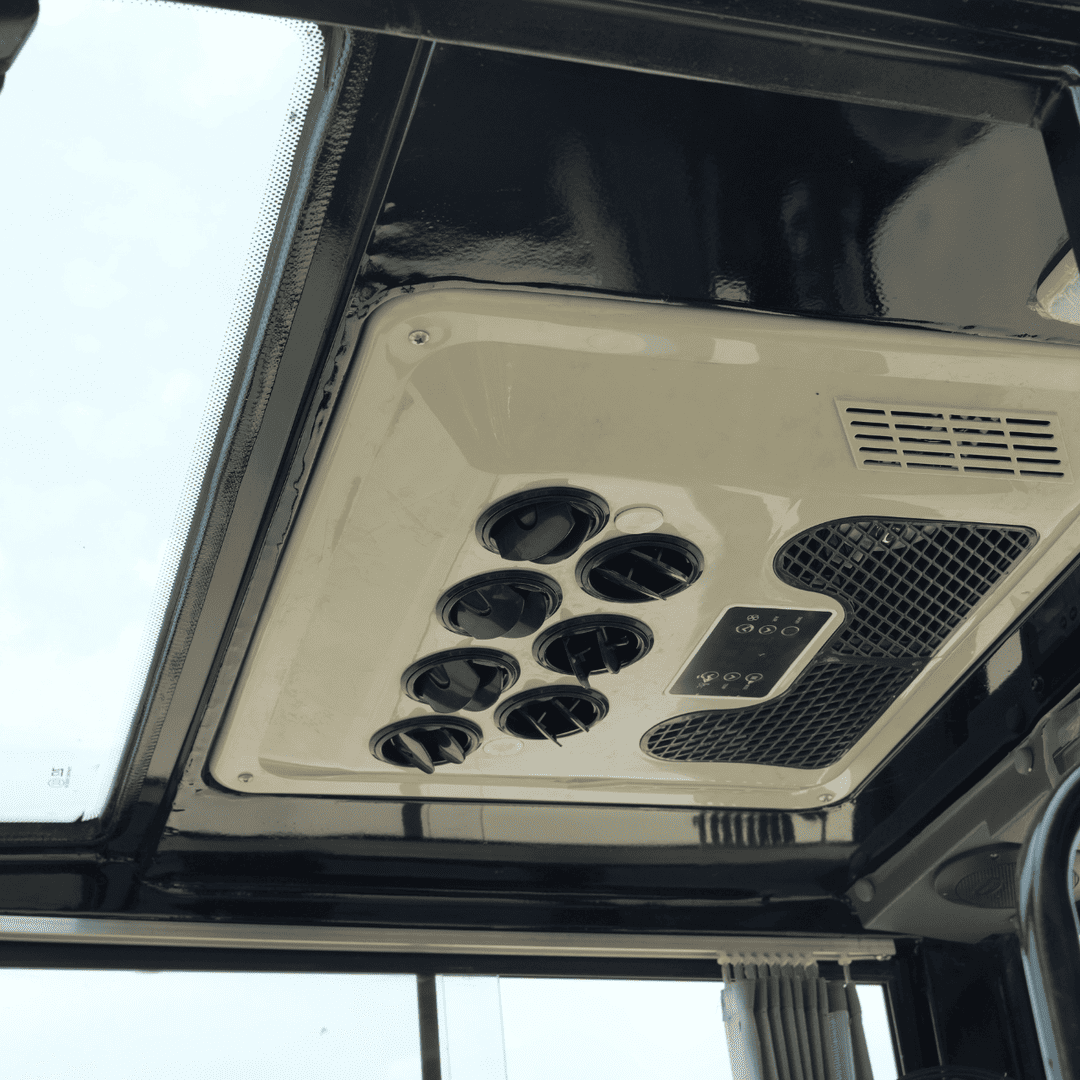

• Cab Temperature Control: Integrated AC and heater maintain a comfortable cab temperature throughout the year, helping the operator stay focused in changing weather.

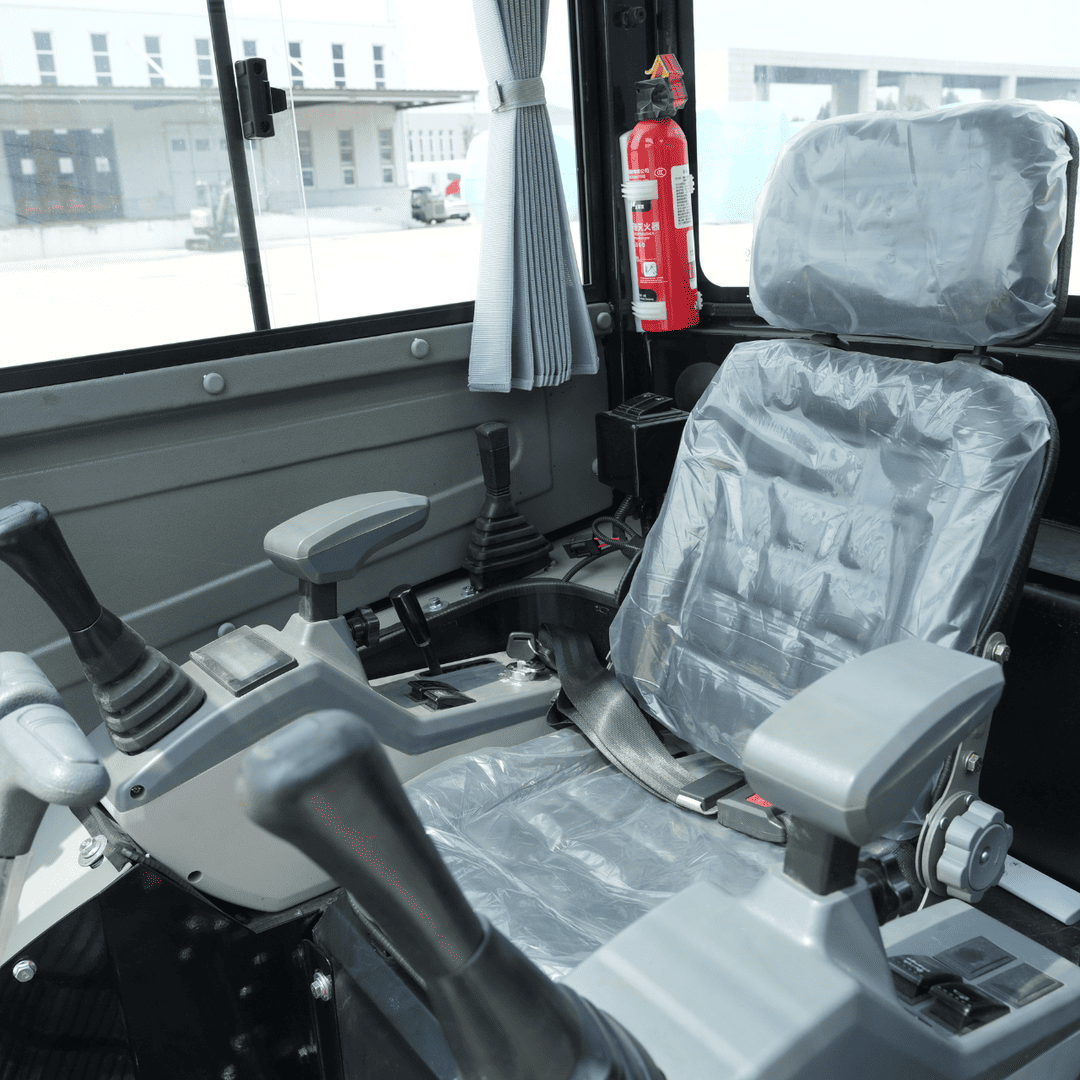

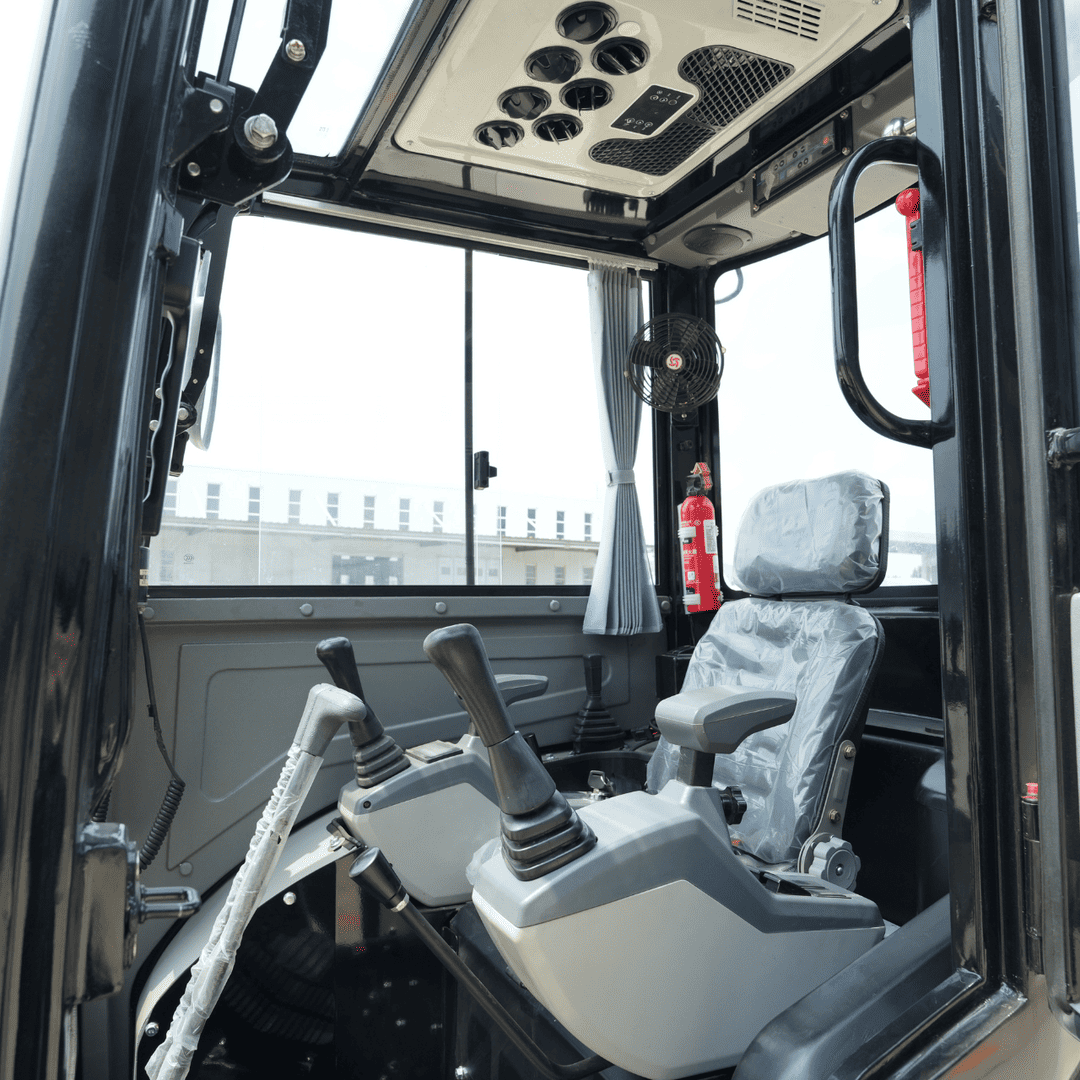

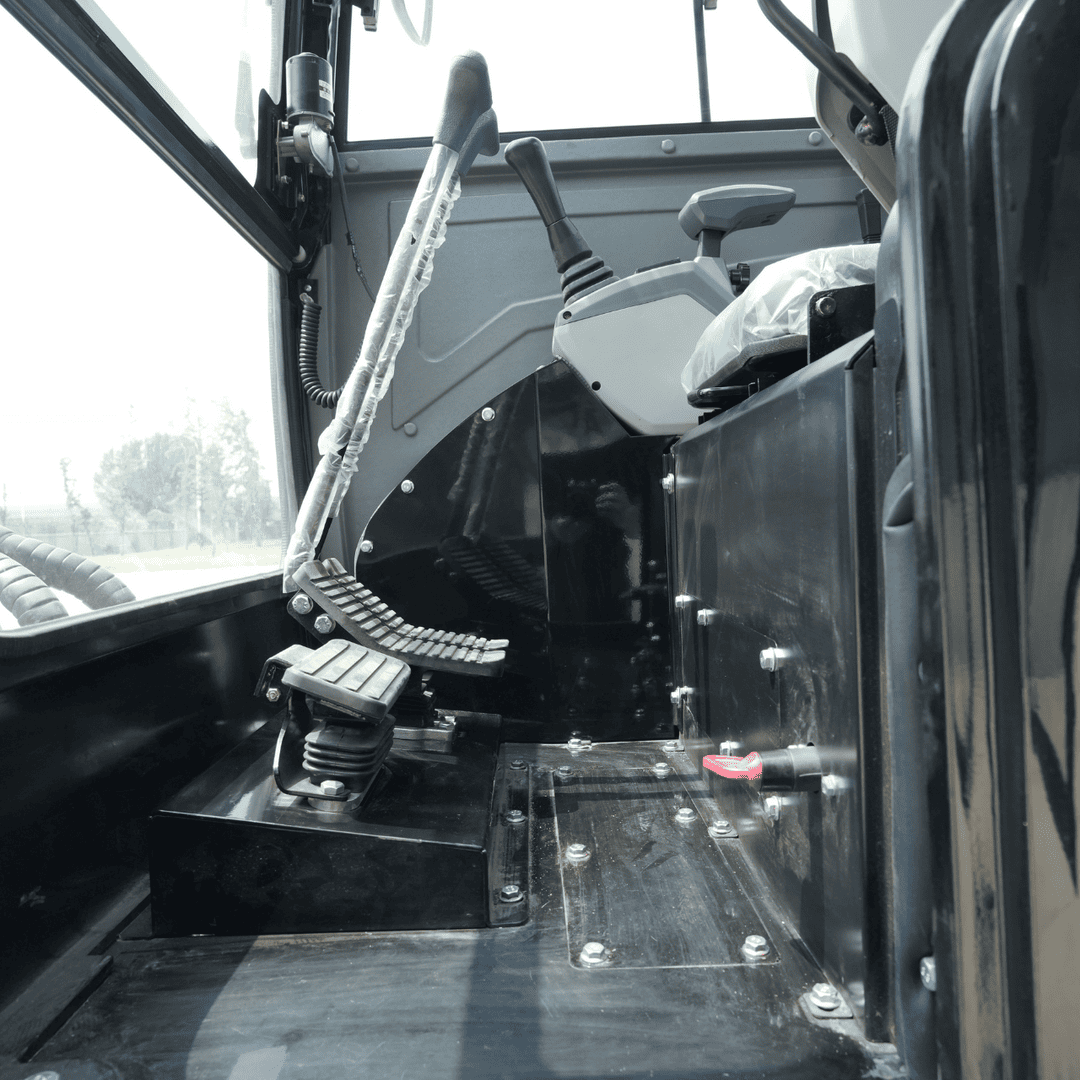

• Premium Operator Cabin: Designed with a spacious enclosed layout, ergonomic controls, supportive operator positioning, and convenient access to essential functions, creating a refined working environment that helps reduce fatigue during long operating shifts.

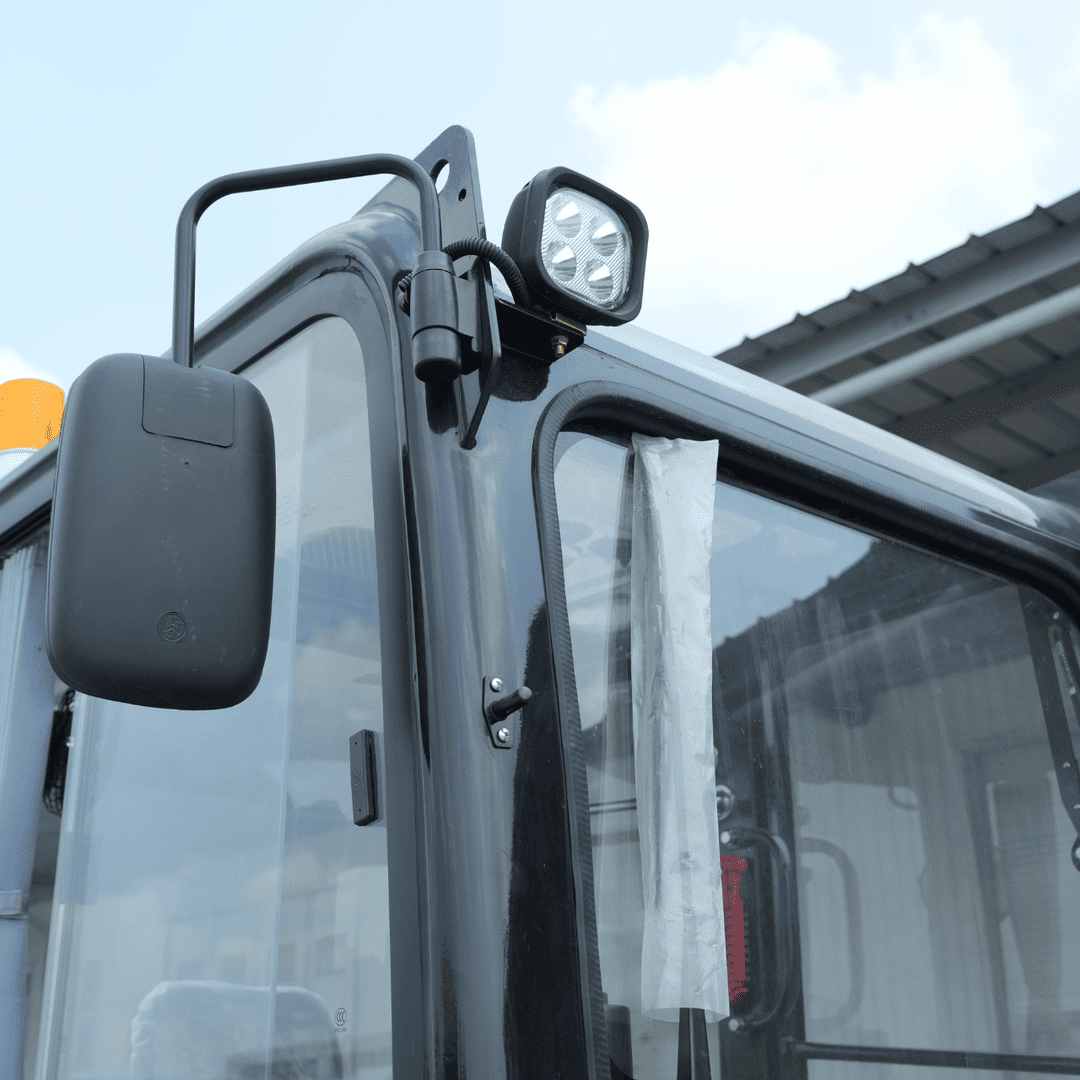

• All-Around Work Visibility and Safety: Left and right front-mounted mirrors improve rear and side visibility, while the openable right-side window provides fresh air and supports direct communication with workers. Safety equipment includes a water fire extinguisher for initial fire response and an emergency glass breaker for quick escape through the window when needed.

Additional Features

• Diesel Engine Performance: Kubota D1105 Water-cooled diesel engine delivers reliable, consistent performance for demanding excavation work.
• Full Hydraulic Control: Hydraulic actuation supports coordinated operation of the boom, arm, bucket, swing, and travel functions.
• Piston Pump & Load-Sensing Valve: Hydraulic flow responds to operating demand for responsive multi-function control and efficient power use.
• Dual-Speed Travel: Two travel speeds support both high-torque maneuvering and faster jobsite movement.
• Independent Boom Swing: 45° left and 55° right boom movement supports offset trenching alongside walls and foundations.
• Zero-Tail-Swing & 360° Rotation System: Keeps the upper structure within the track footprint while providing continuous 360° rotation for efficient digging, positioning, and loading in confined work areas.
• Compact Footprint with Solid Reach: Works in tight spaces without sacrificing digging range.
• High Ground Clearance: Navigates rocks and uneven terrain without bottoming out.
• Integrated Dozer Blade: Built-in blade for backfilling, grading, and stabilizing the machine.
• Deep Digging Reach: Extended depth and radius for utility and foundation work.
• Retractable Tracks: Adjustable width for tight-access entry and a stable digging stance.
• Comfortable Cabin Design: Equipped with AC and heater, front mirrors, an openable side window, and an integrated speaker panel for a more comfortable and practical operator environment. A water fire extinguisher provides first-response fire protection, while an emergency glass breaker enables quick window exit in an emergency.
