Description

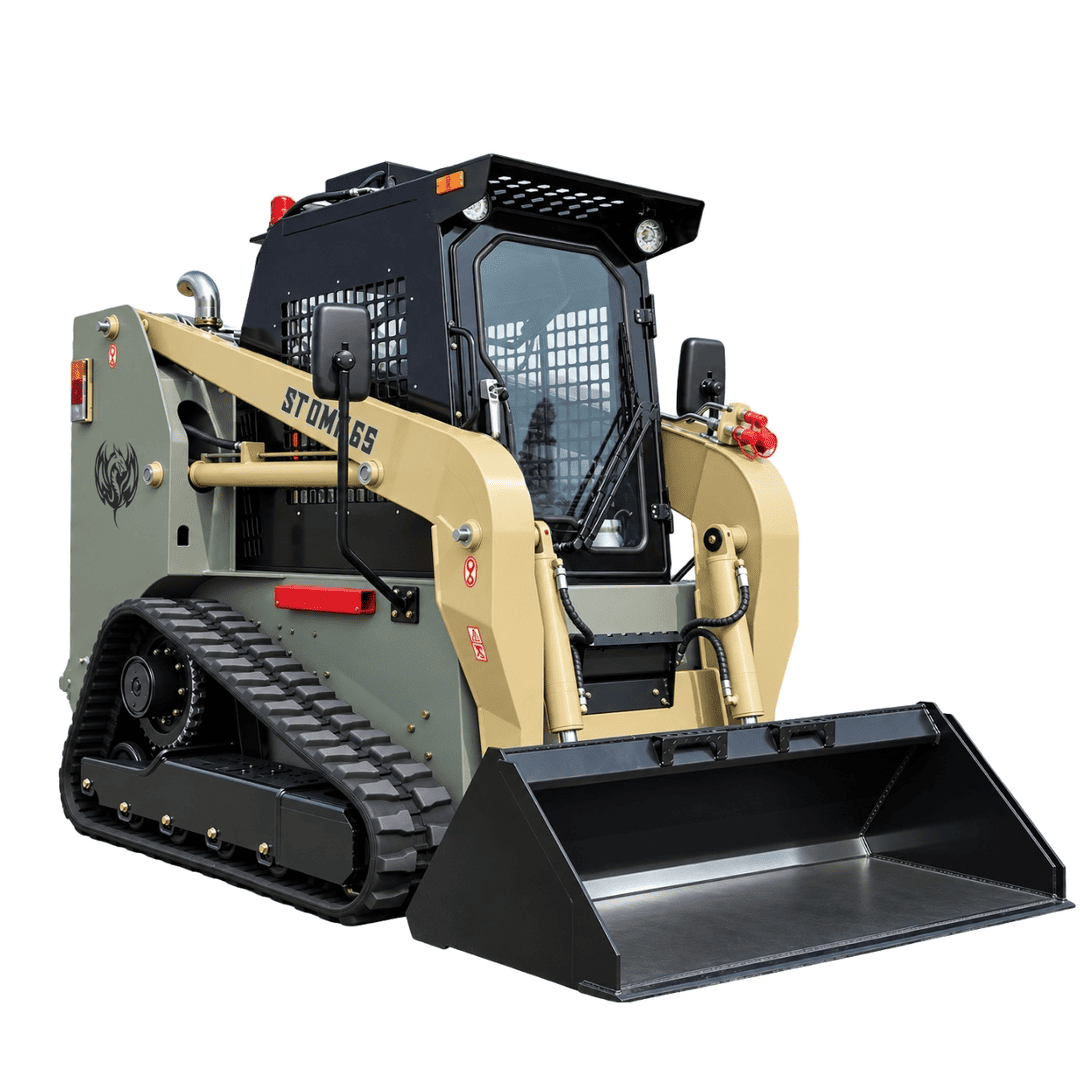

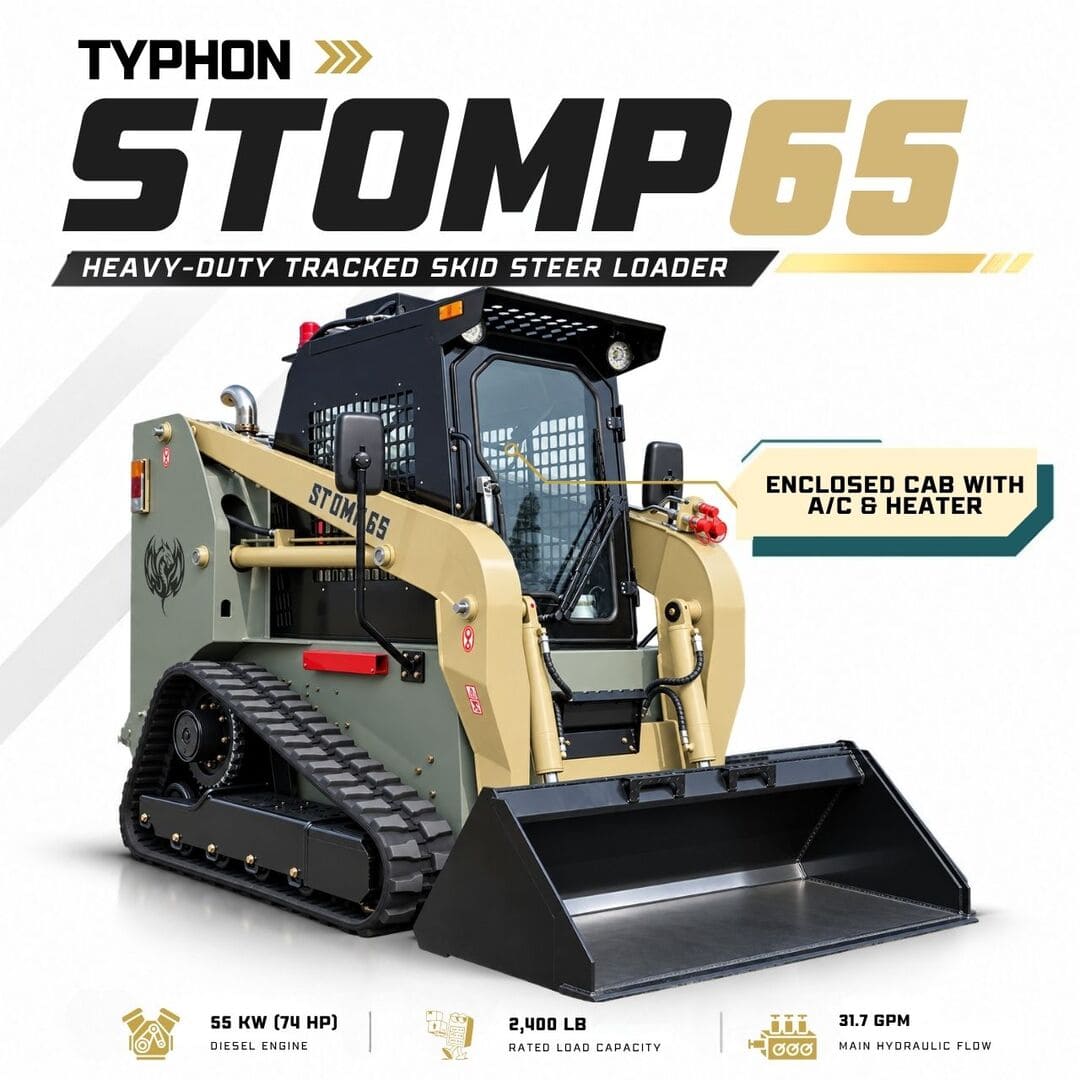

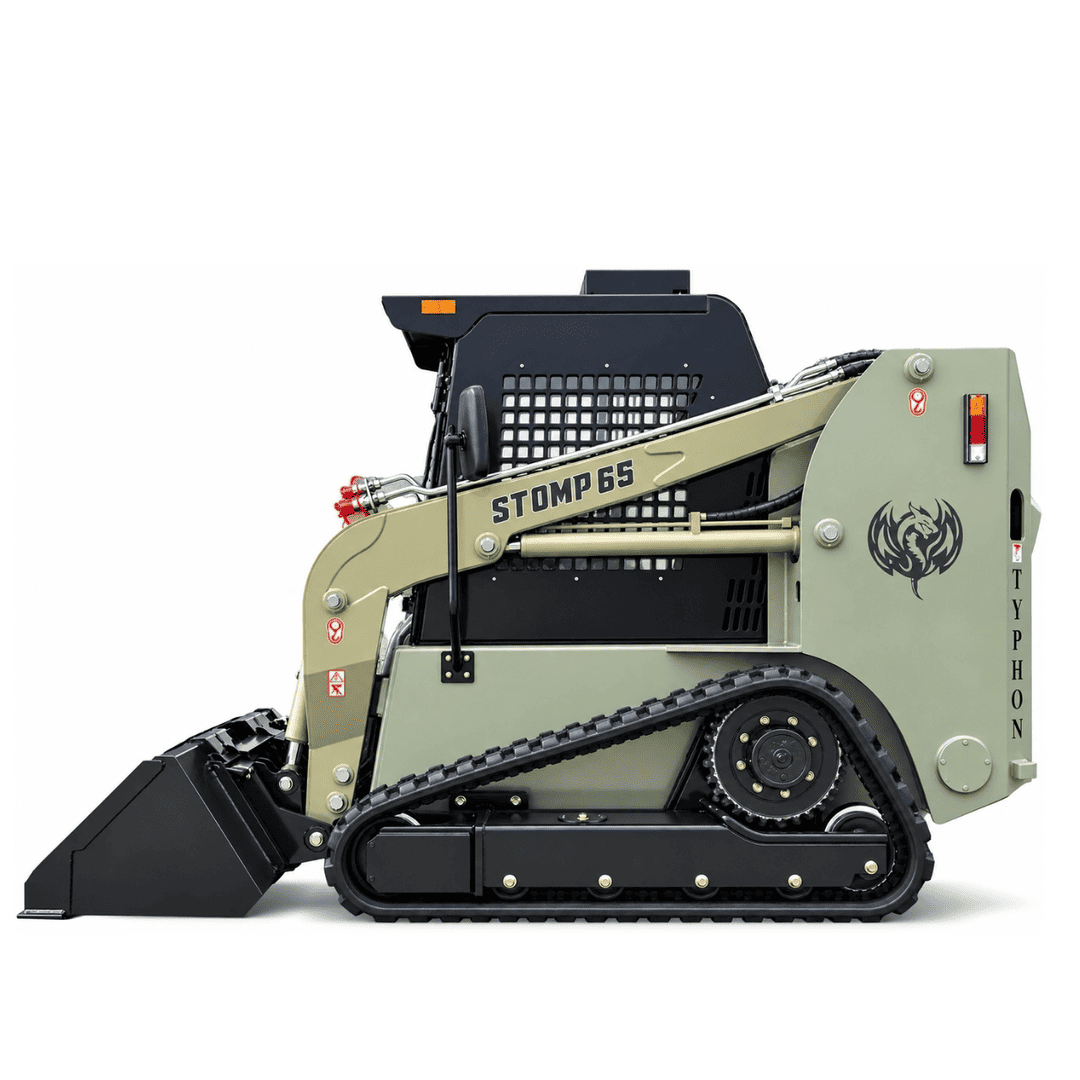

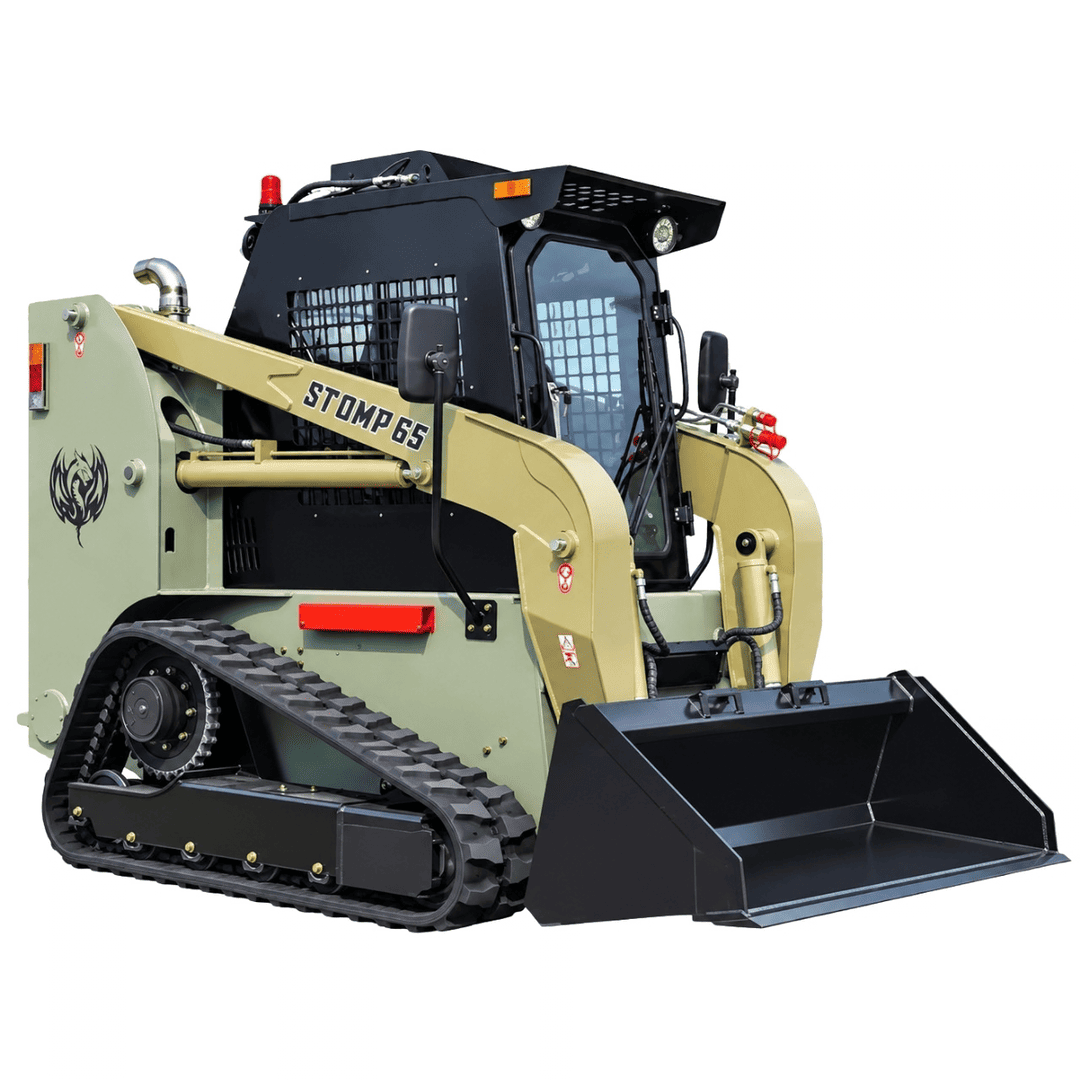

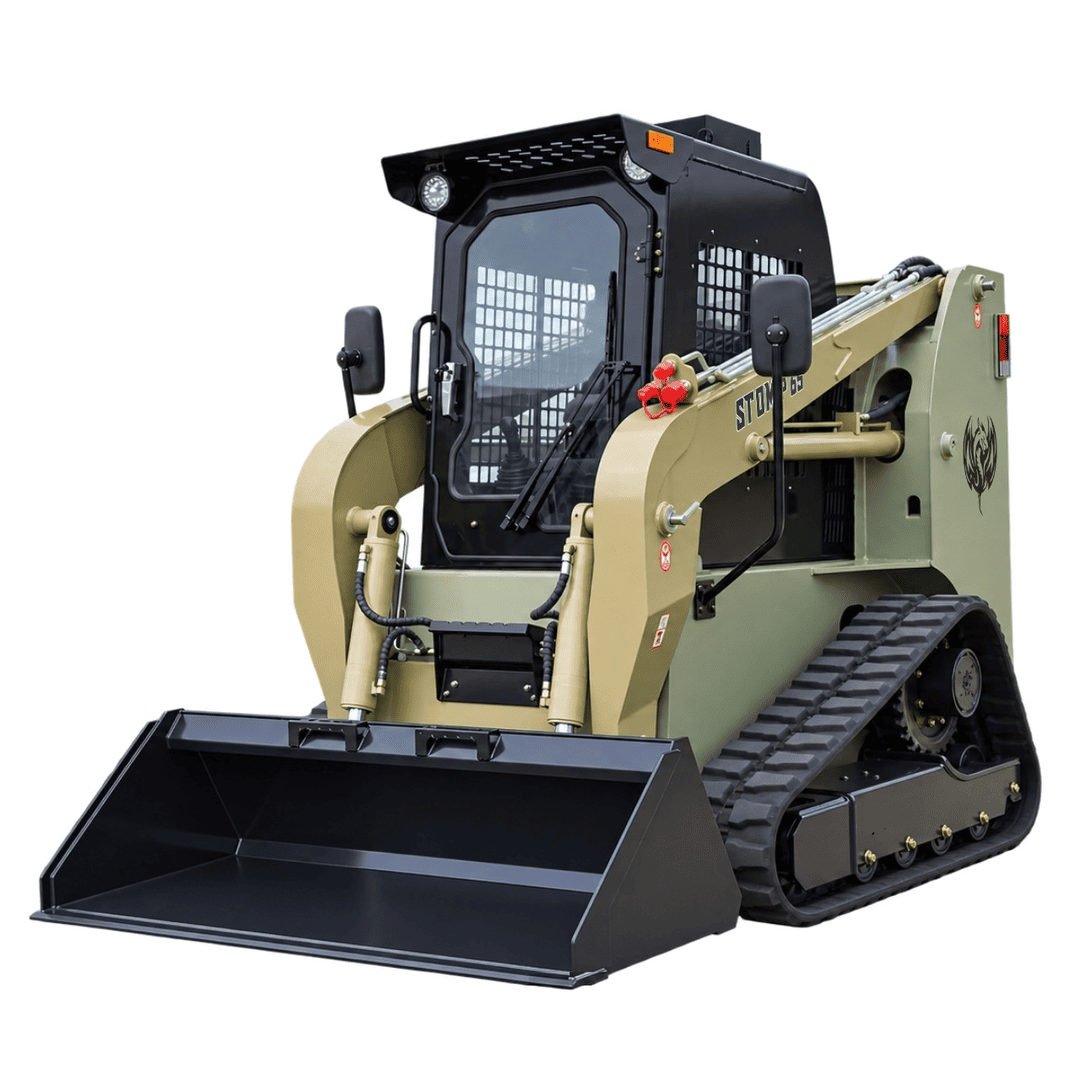

The TYPHON STOMP 65 PROPACT Series is a heavy-duty skid steer loader built for power, versatility, and operator comfort. Powered by a reliable 74 HP Cummins diesel engine and an Italian PWG dual hydraulic system, it delivers the hydraulic performance and lifting capability needed for construction, agriculture, landscaping, and property maintenance.
Inside the fully enclosed A/C and heater cabin, operators get a protected, well-equipped workspace built for long shifts and changing conditions. With dependable power, responsive hydraulics, and a rugged working platform, the STOMP 65 PROPACT Series is engineered to keep demanding jobs moving.

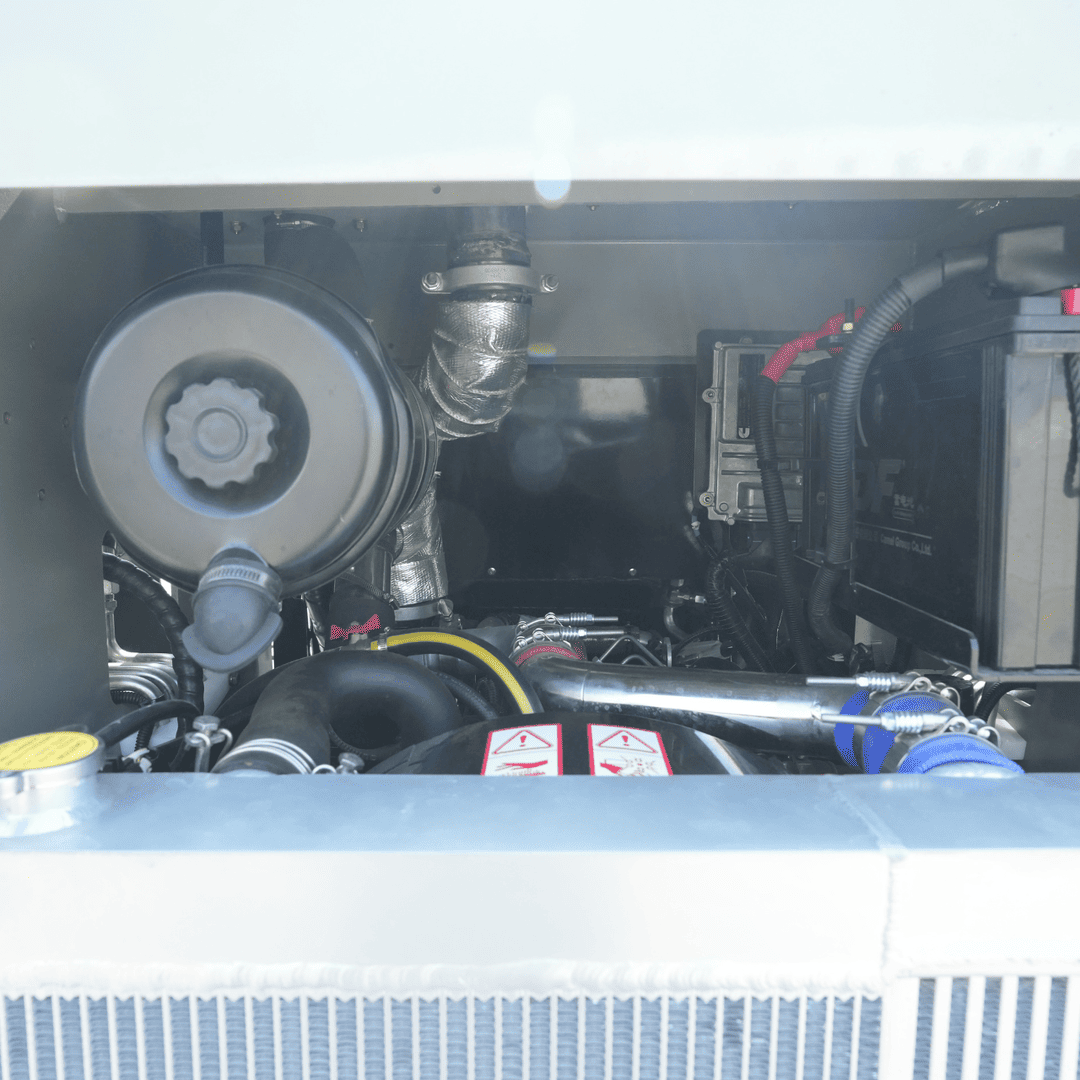

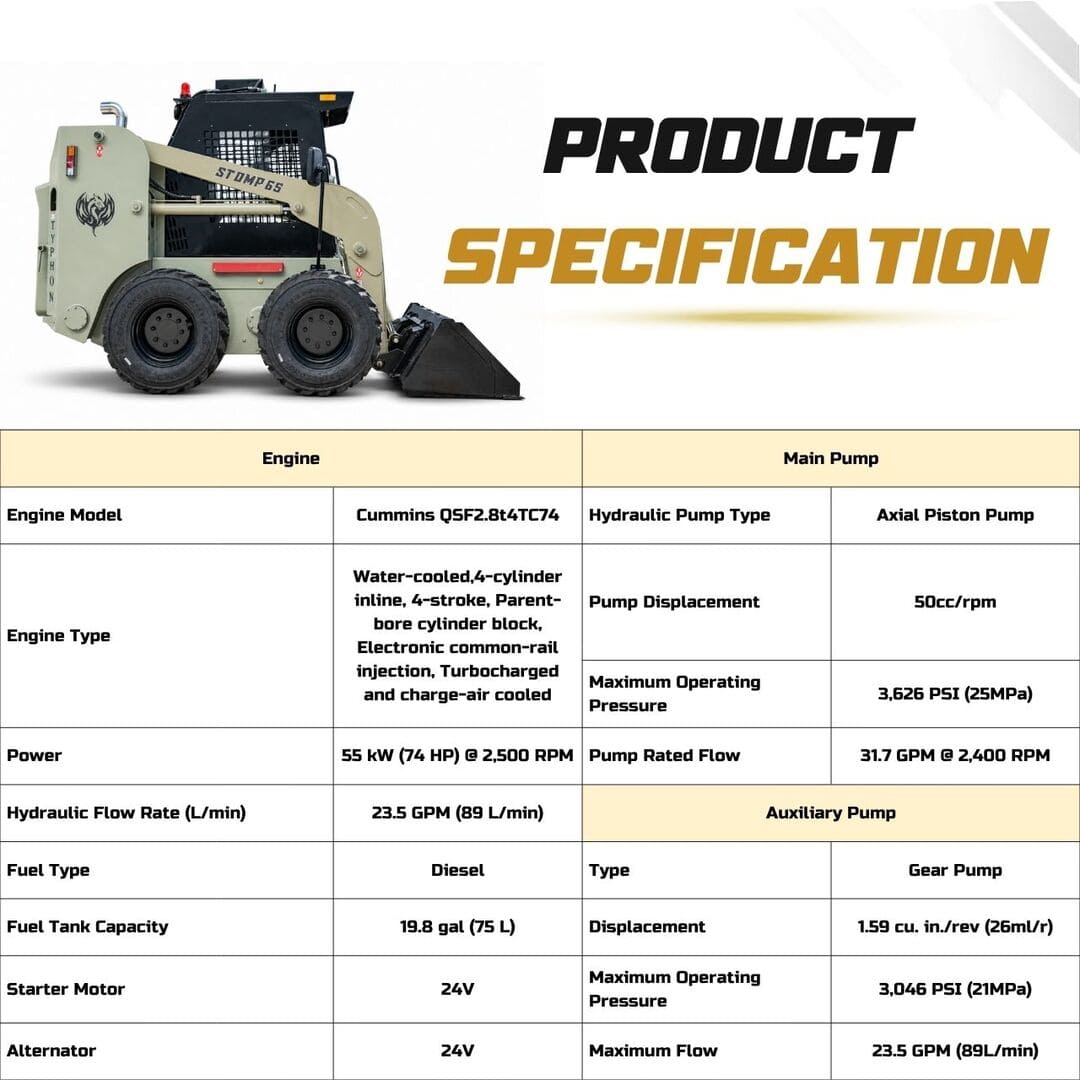

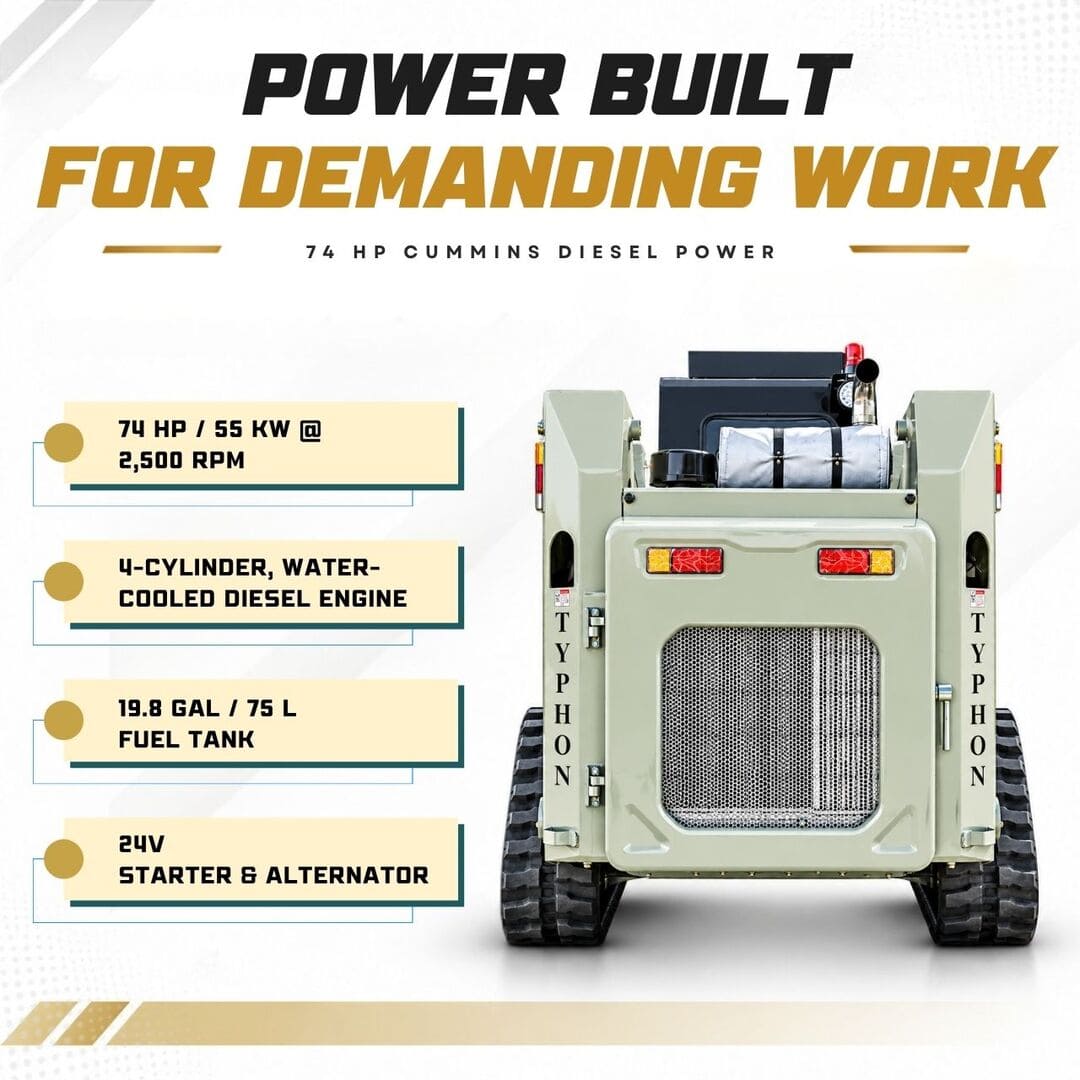

01. 74 HP Cummins Diesel Power

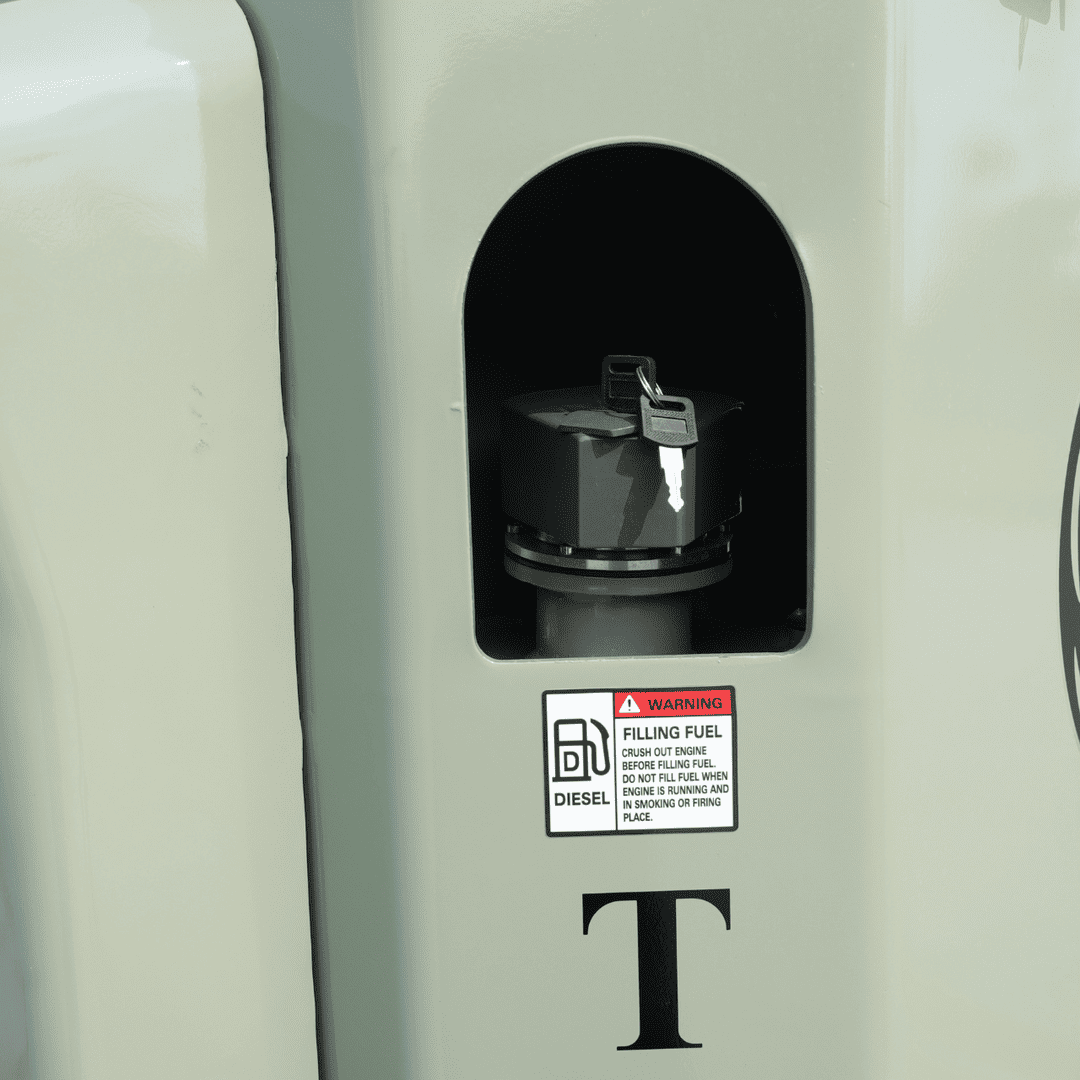

Powering the TYPHON STOMP 65 PROPACT Series is a Cummins QSF2.8 4-cylinder diesel engine, delivering 74 HP at 2,500 RPM. Its water-cooled, turbocharged design with electronic common-rail fuel injection provides strong, responsive power right when you need it. A 24V starter motor and alternator deliver dependable starting and steady electrical output for daily operation, while the 19.8-gallon fuel tank keeps you working longer between refueling stops.
02. Dual-Circuit Hydraulic System
The STOMP 65 PROPACT Series runs on two dedicated hydraulic circuits for precise, reliable control. The main system uses an axial piston pump with up to 31.7 GPM flow and 3,626 PSI pressure to drive loader functions such as lifting and bucket operation. The auxiliary system uses a gear pump delivering up to 23.5 GPM and 3,046 PSI, powering compatible attachments like mulchers, trenchers, augers, and grapples.

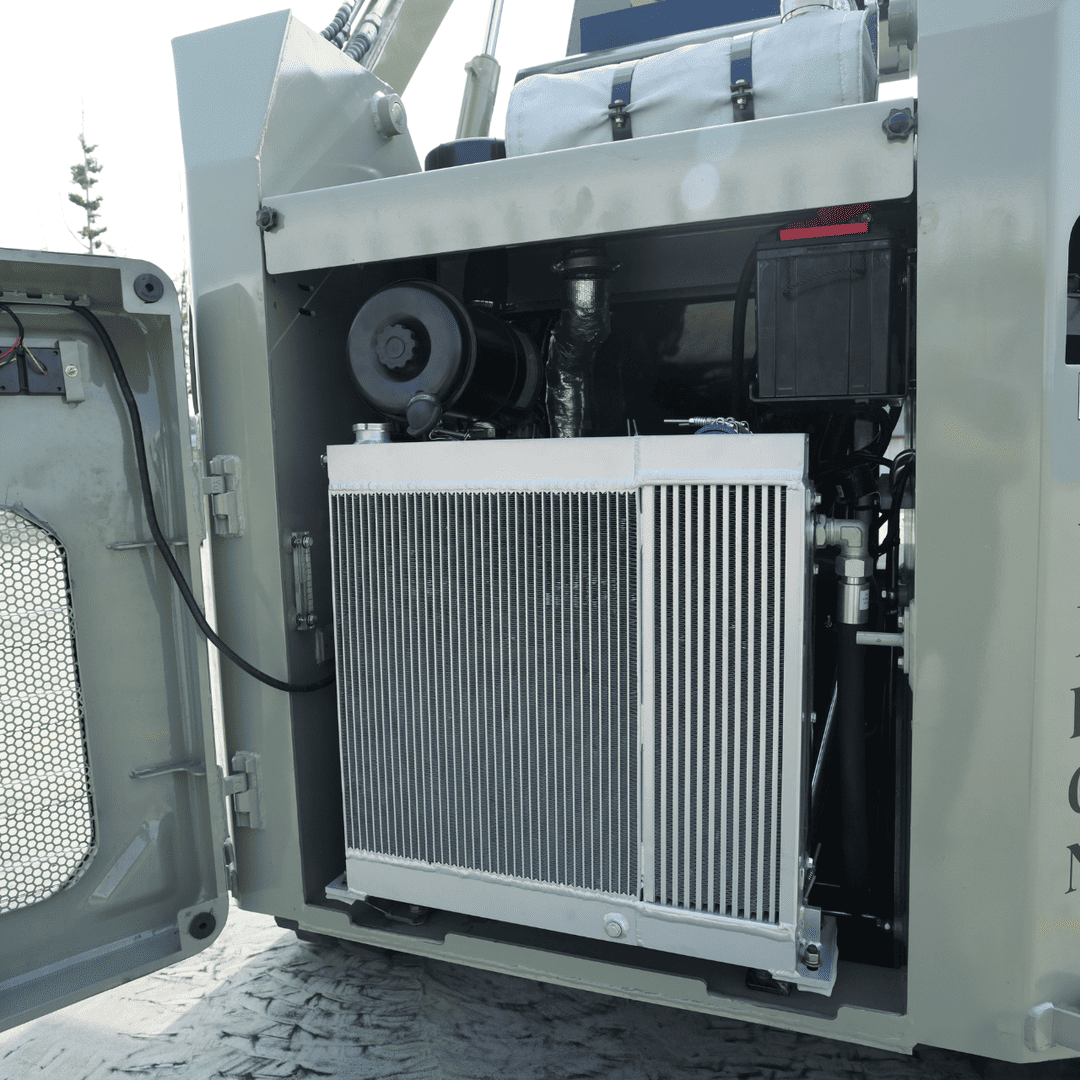

To keep that performance consistent, multi-layer hydraulic filtration scrubs contaminants from the oil, protecting critical components and extending service life shift after shift. High-pressure dual-layer hydraulic hoses stand up to pressure spikes and abrasion, giving you confident, leak-resistant performance on the toughest job sites.

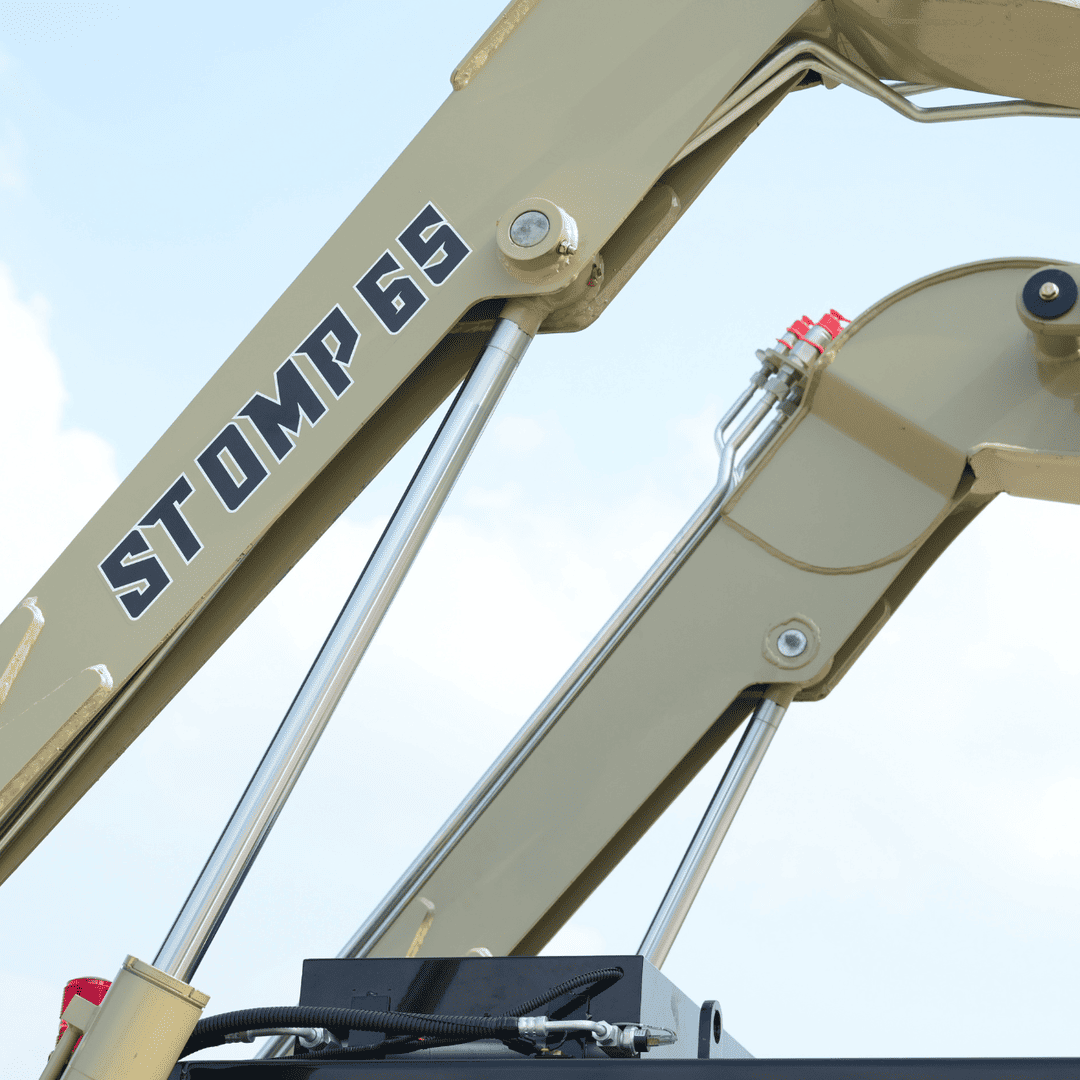

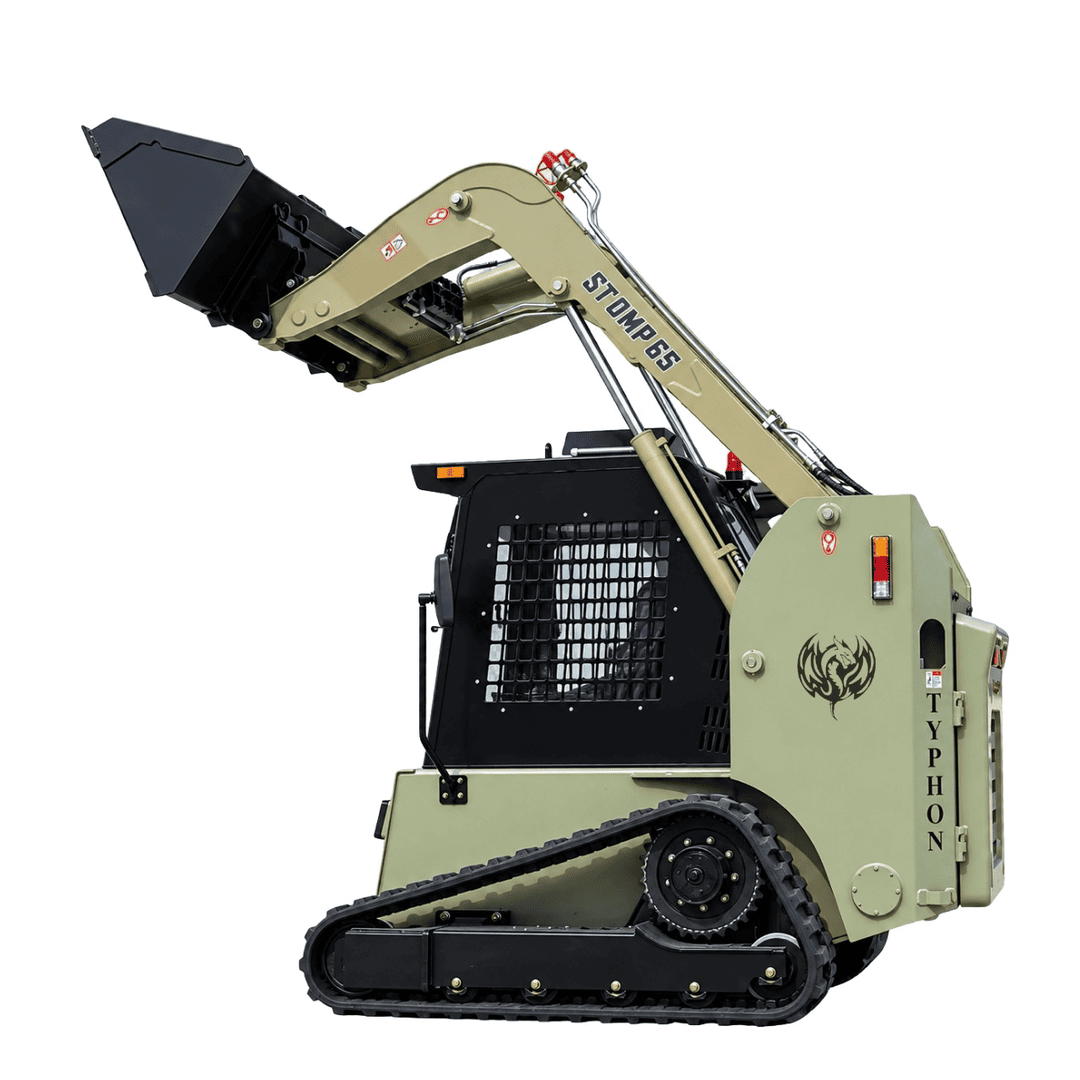

03. Strong Loading & Lifting Performance

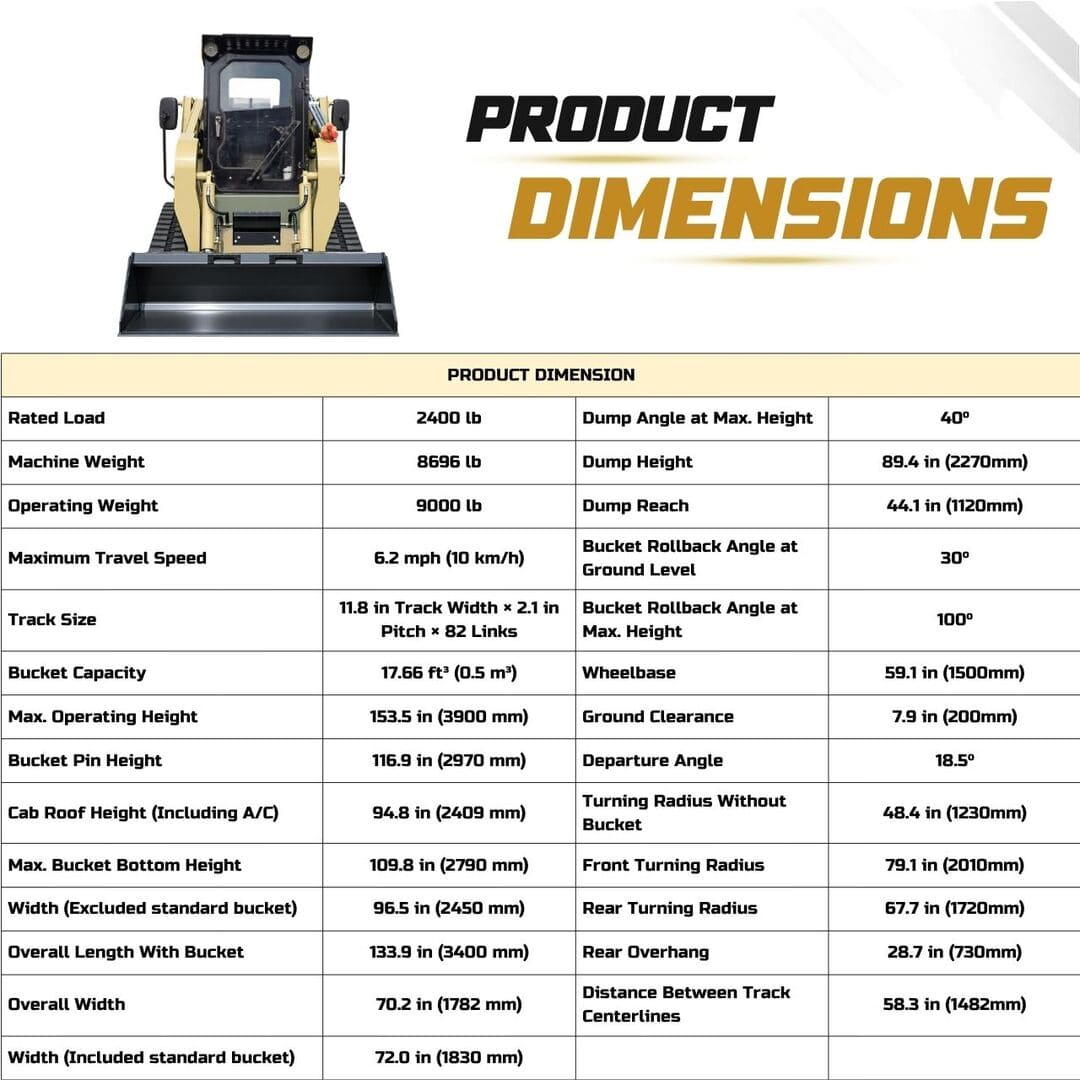

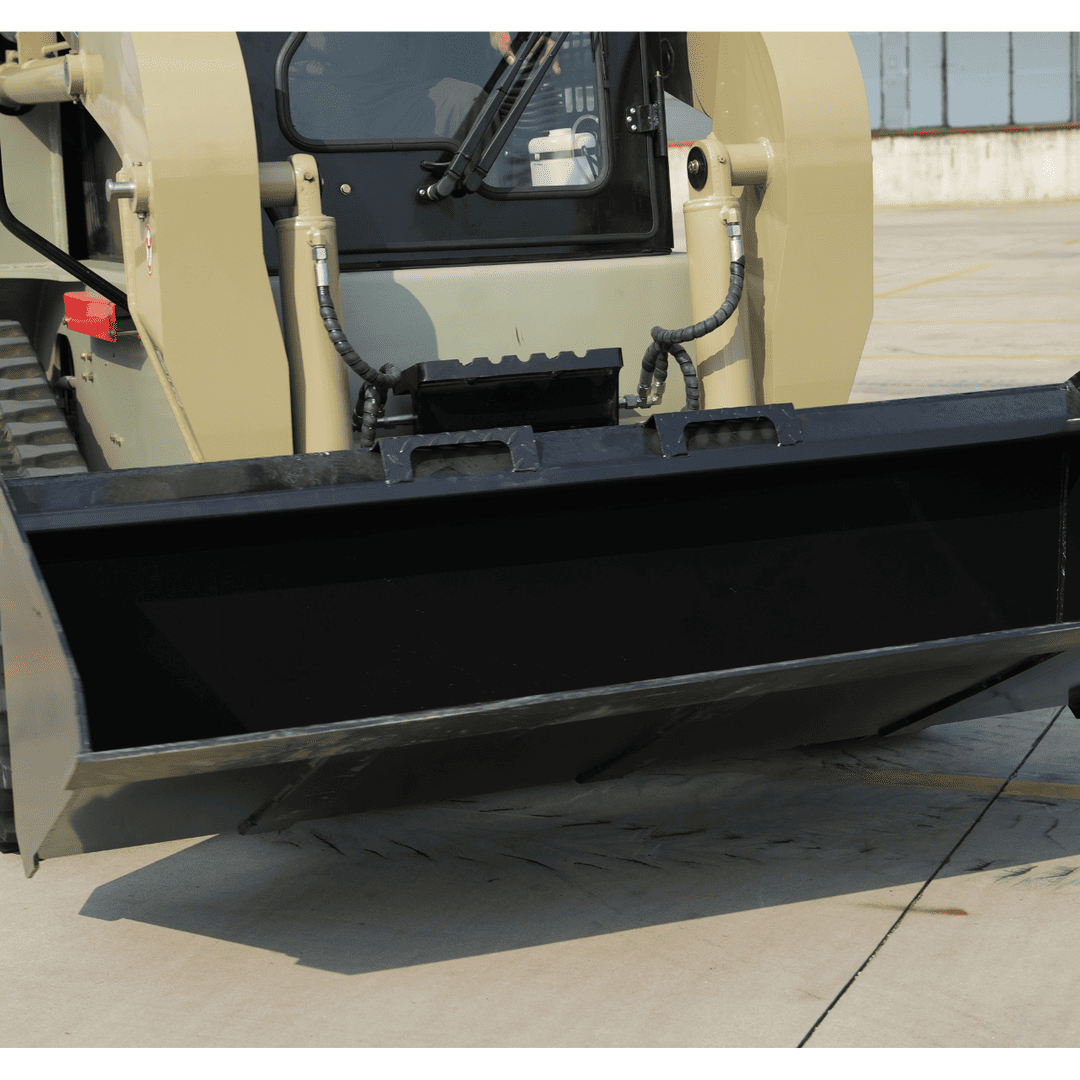

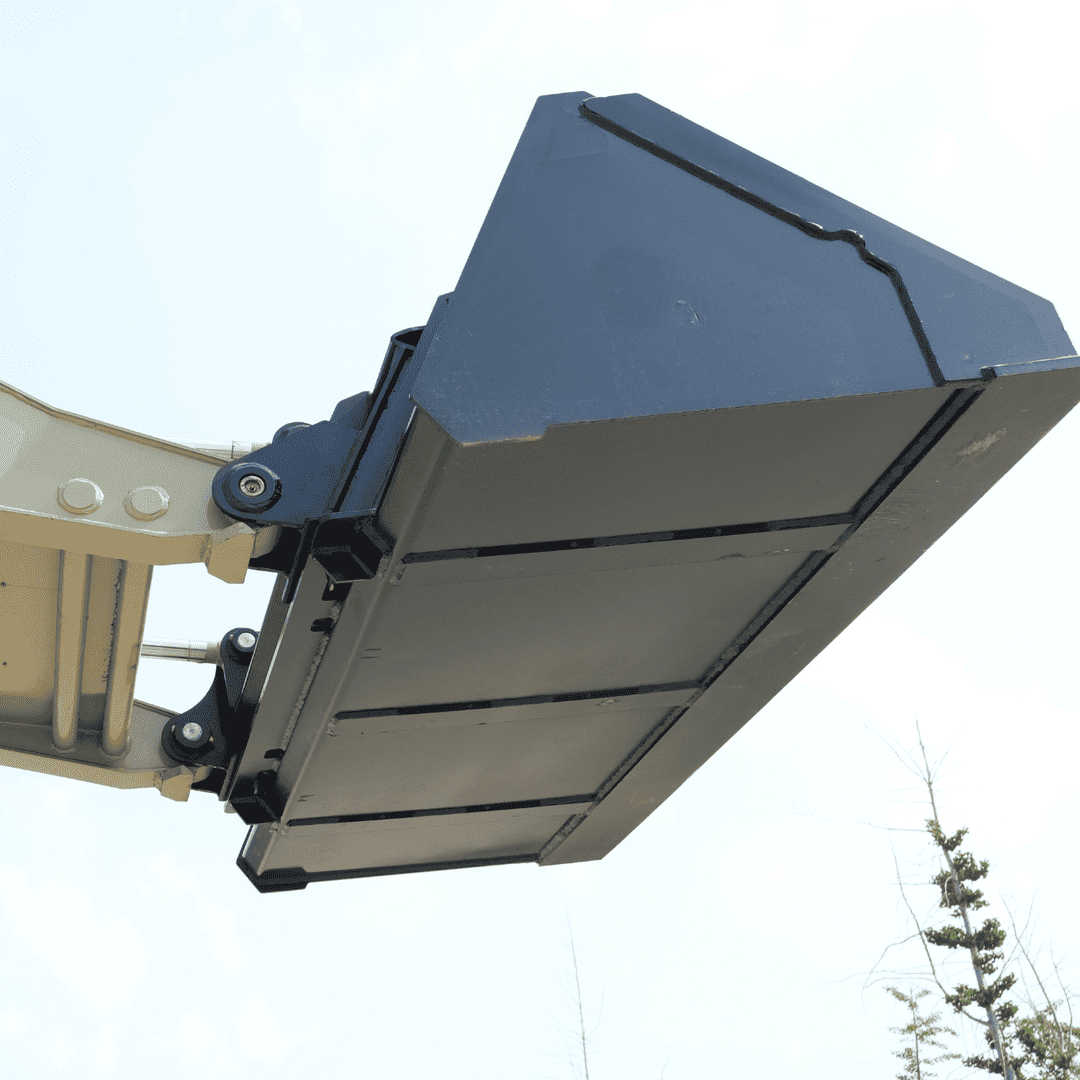

The TYPHON STOMP 65 PROPACT Series combines a 9,000 lb operating weight, 2,400 lb rated load capacity, a large 17.66 ft³ (0.5 m³) bucket, and strong lift height to handle everyday material-moving and loading tasks with confidence. It’s well suited for soil, gravel, aggregate, landscaping materials, construction debris, and more.

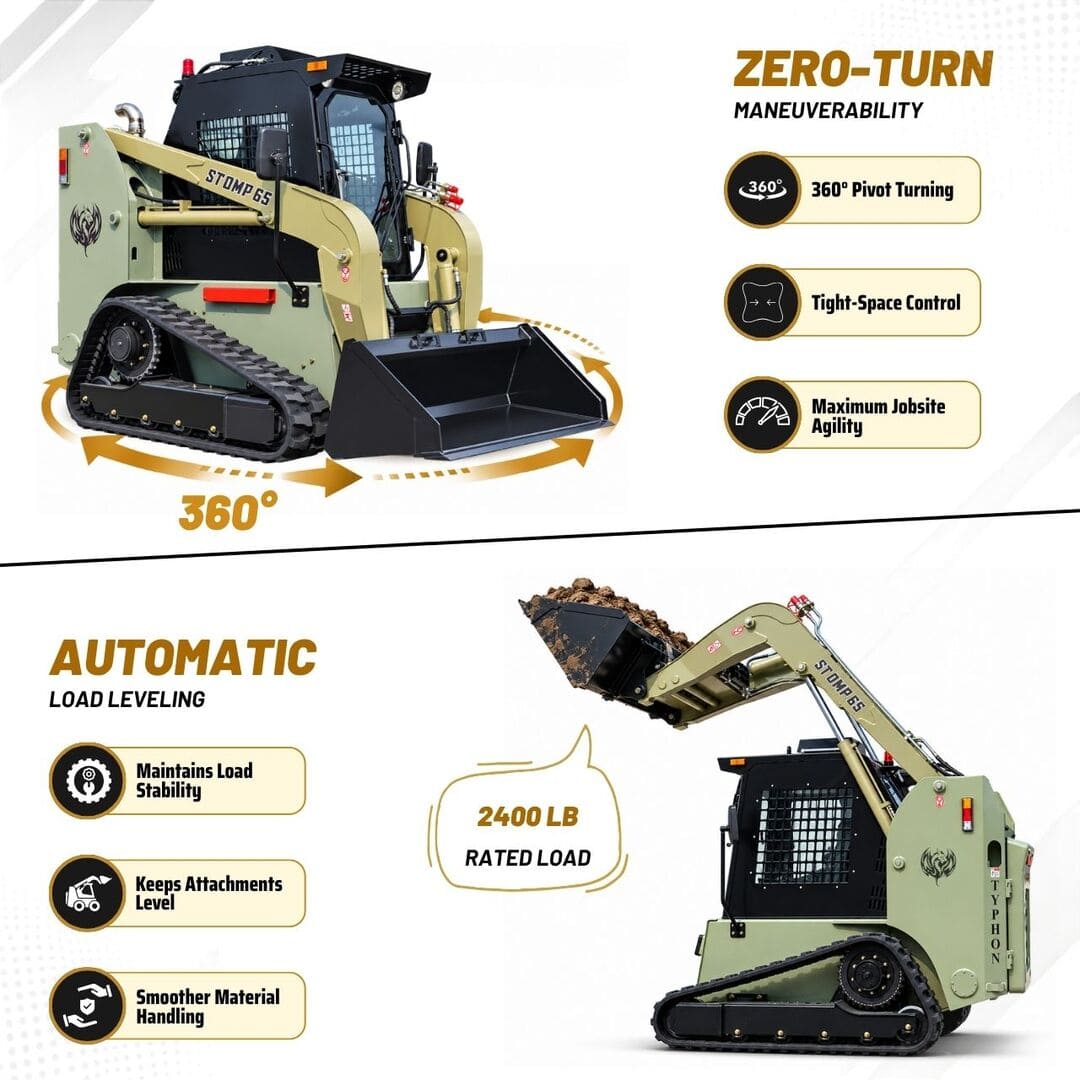

An automatic load leveling system keeps the bucket steady as you raise the arms, so material stays put instead of spilling on the way up-saving passes and reducing cleanup.
- Maximum Operating Height: 153.5 in
- Dump Height: 89.4 in
- Maximum Dump Angle: 40°
04. Built for Stability & Maneuverability
Move confidently through tight work areas and challenging terrain with the TYPHON STOMP 65 PROPACT Series. At just 70.2 inches wide, with a 48.4-inch turning radius without the bucket, its compact design makes positioning easier around buildings, obstacles, and material piles.

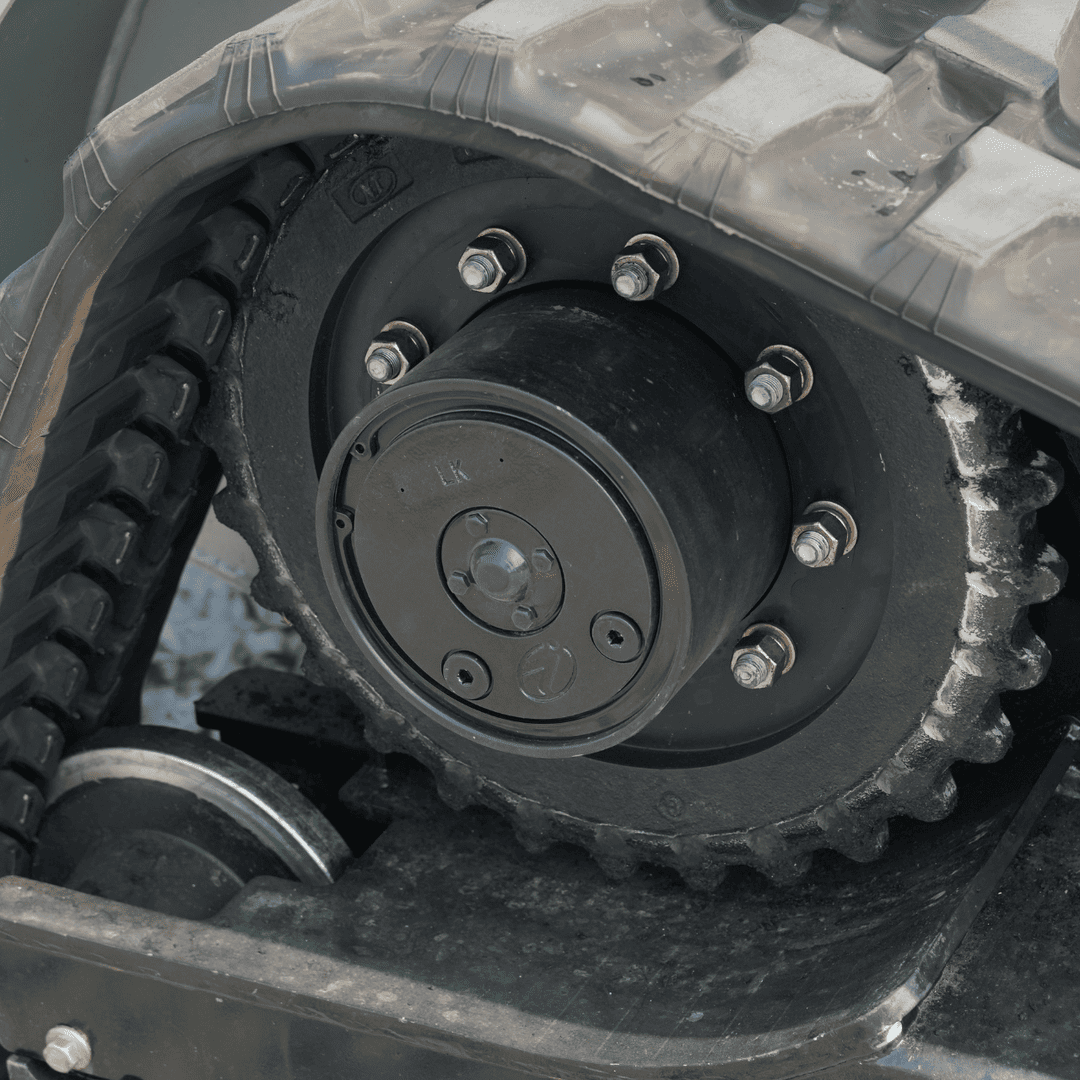

The heavy-duty triangle track system delivers a stable working platform, while 360° zero-turn capability and travel speeds up to 6.2 MPH help operators reposition efficiently between tasks.
Durability is engineered in from the frame up. Post-weld structural processing relieves internal stress in the welds and frame, so the machine holds its shape and shrugs off the pounding of demanding job sites. With multi-attachment versatility, the STOMP 65 PROPACT Series quickly transforms from a loader into a full toolkit-swap in the right attachment for grading, digging, mulching, trenching, or grappling as the job requires.

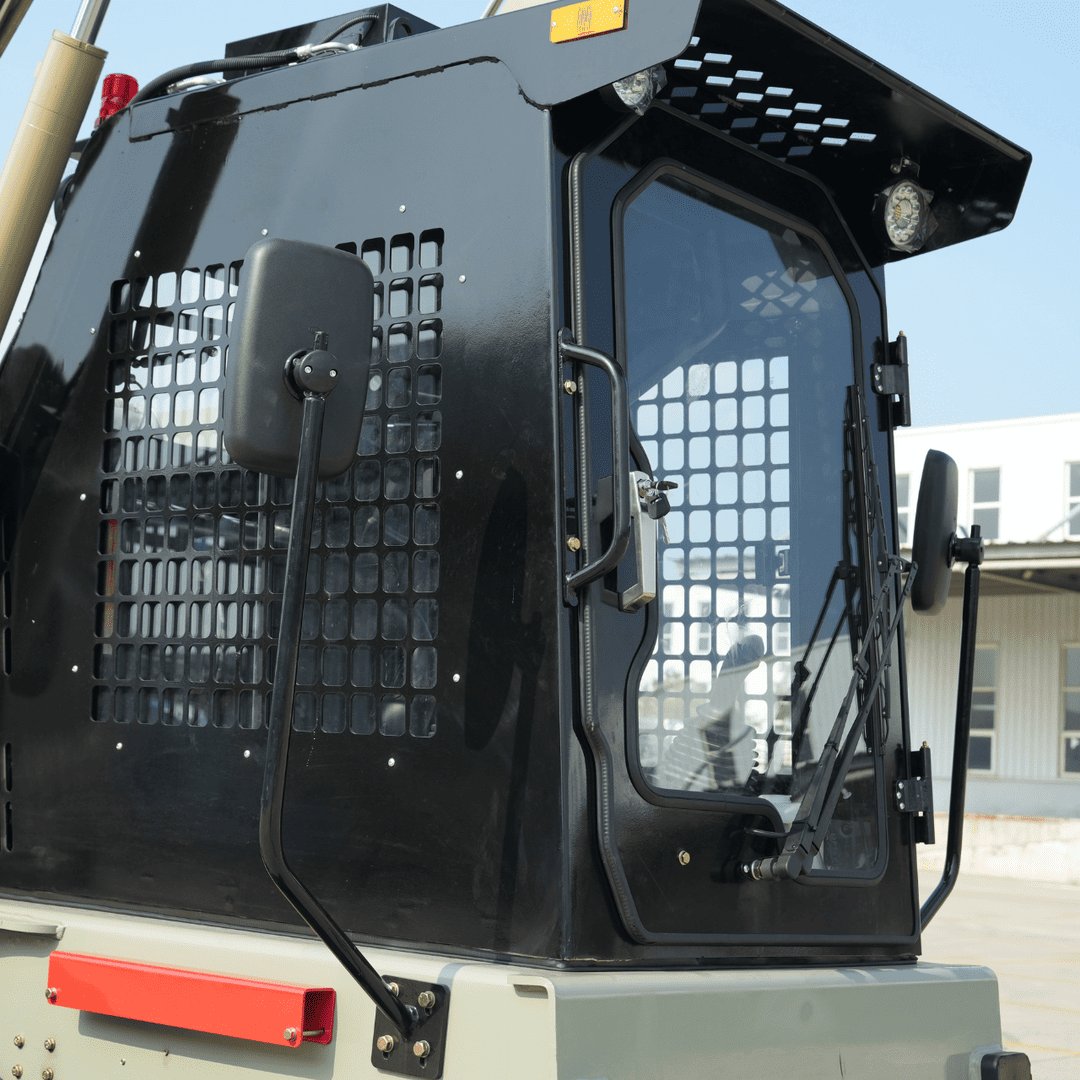

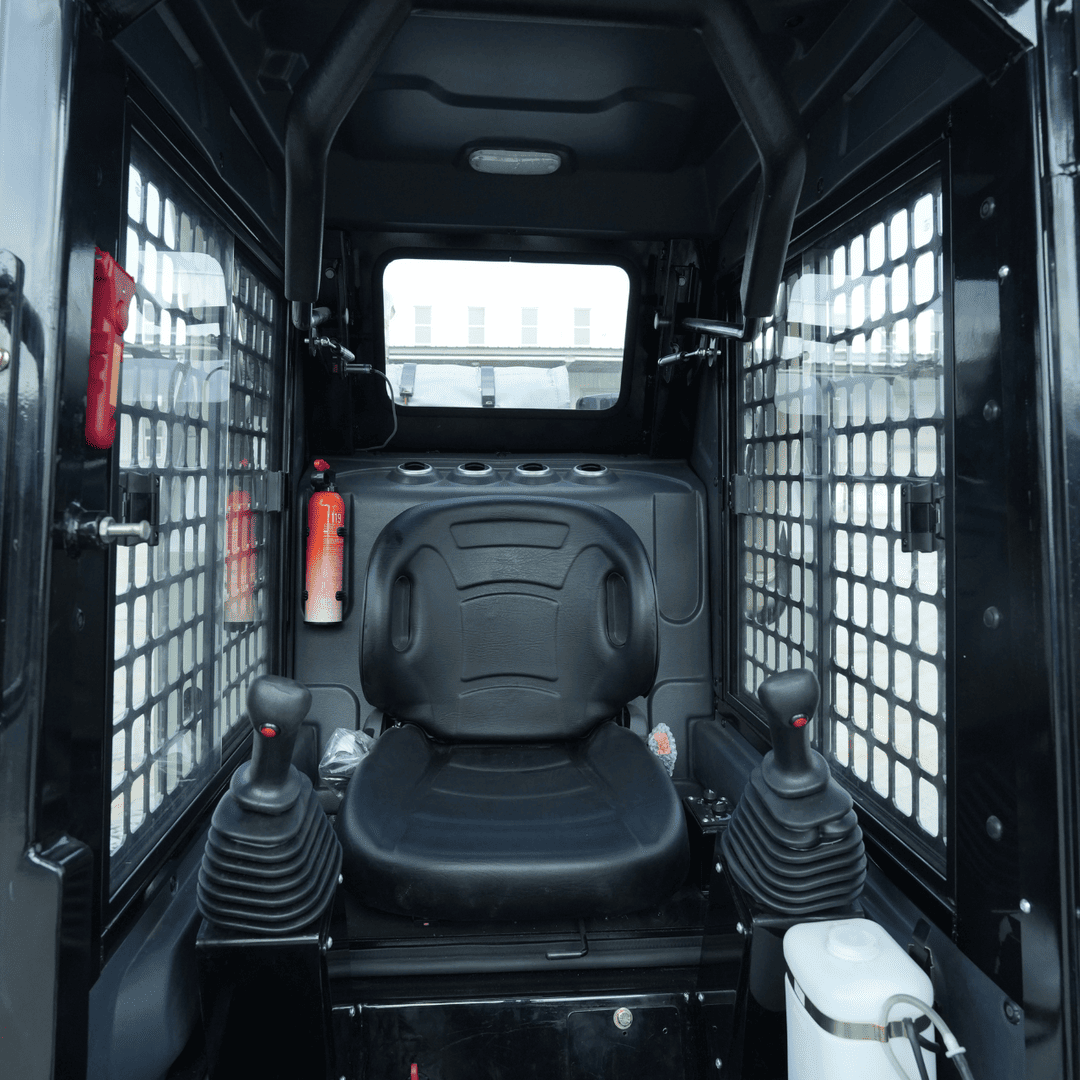

05. Enclosed A/C & Heater Operator Cab

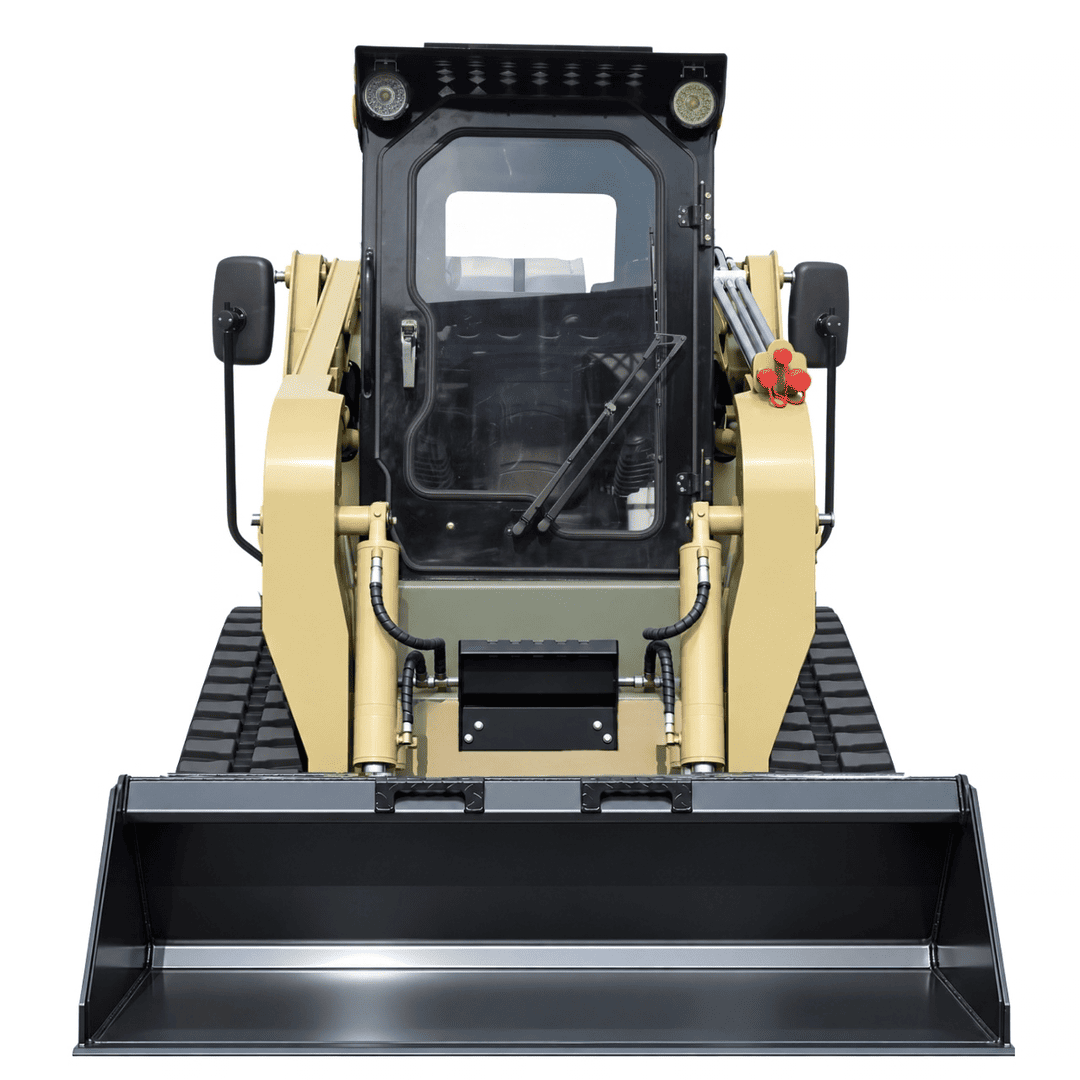

Stay focused on the job with the TYPHON STOMP 65 PROPACT Series’ fully enclosed operator cab, designed to give you a protected, well-equipped workspace in any conditions. Built-in A/C and heating, clear visibility, responsive pilot controls, and practical safety features keep the cab ready for long hours on site.
- Cab Roof Height: 94.8 in

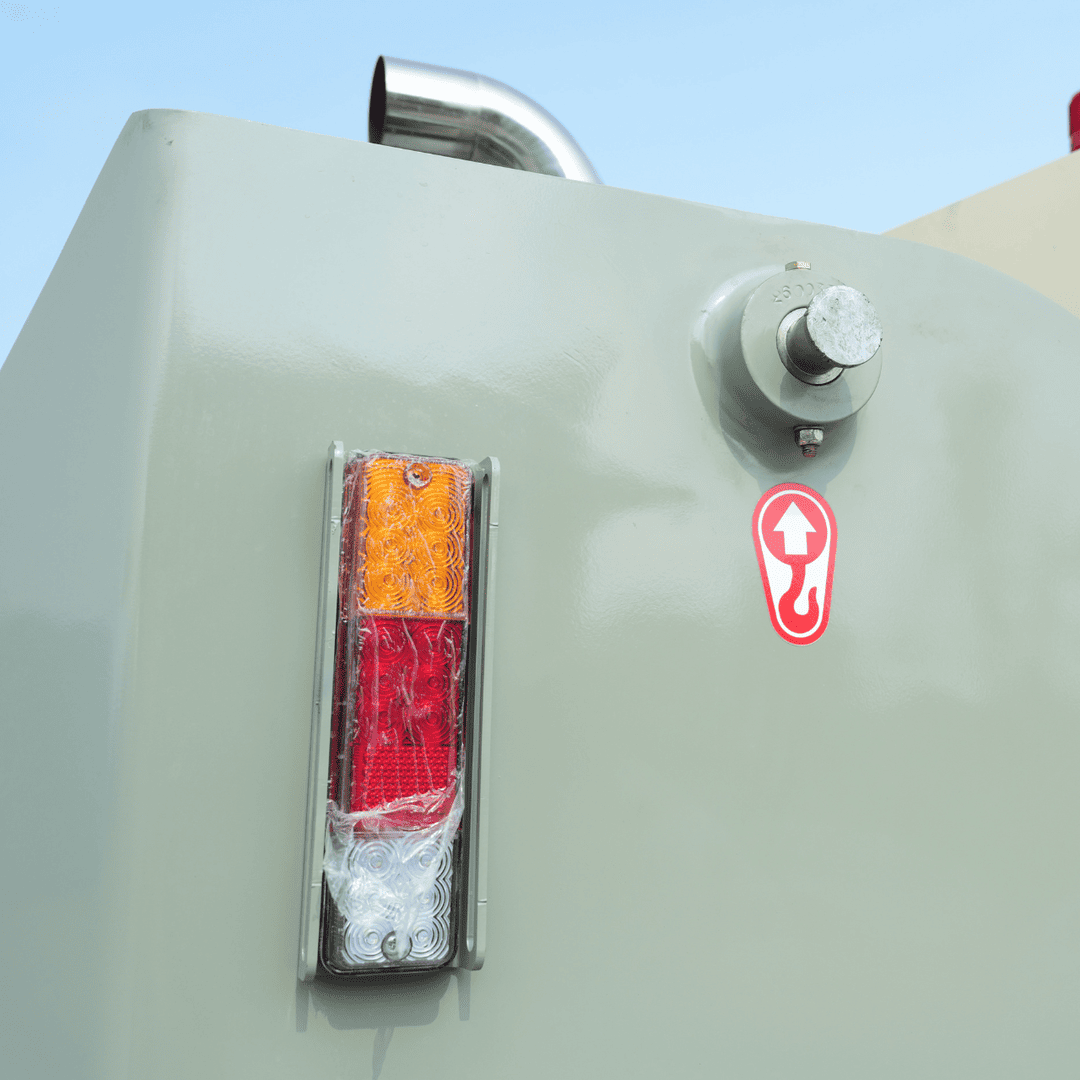

- LED Lighting: Better visibility for low-light operation
- Opening/Sliding Windows: Improved ventilation and access
- Safety Bar & Grab Handle: Added operator support
- Fire Extinguisher: Built-in emergency preparedness
- Glass-Break Hammer: Emergency exit access

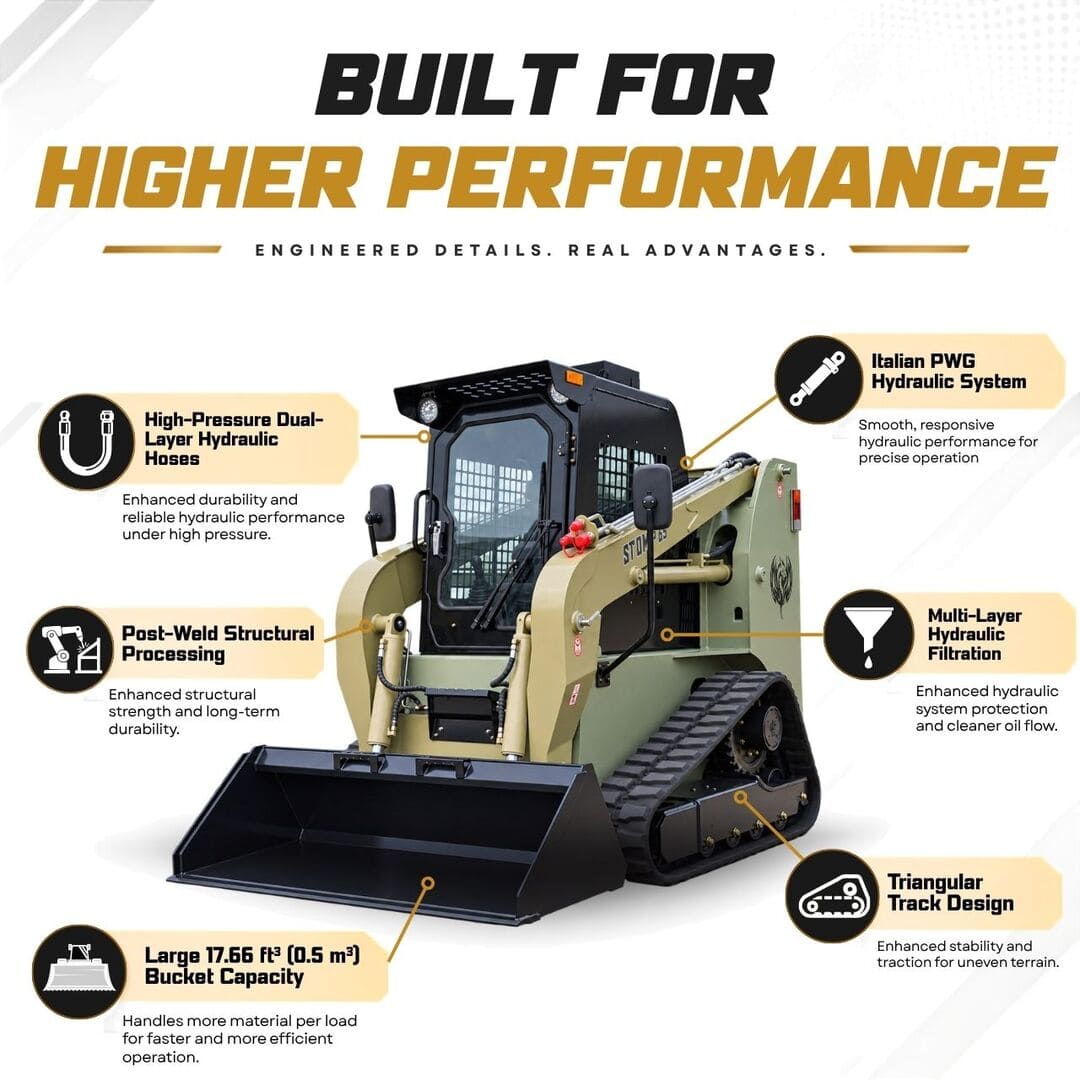

Key Features:
- 74 HP Cummins Diesel Engine: Turbocharged 4-cylinder diesel delivers dependable power for demanding work.
- Italian PWG Dual Hydraulic System: Separate circuits provide strong performance for loader functions and hydraulic attachments.
- 23.5 GPM Auxiliary Hydraulic Flow: High-flow capability for compatible attachments including mulchers, trenchers, augers, and grapples.
- Multi-Layer Hydraulic Filtration: Keeps oil clean to protect components and maintain consistent performance.
- High-Pressure Dual-Layer Hydraulic Hoses: Resist pressure spikes and abrasion for reliable, leak-resistant operation.
- 2,400 lb Rated Load Capacity: Built for efficient lifting, loading, and material handling.
- Automatic Load Leveling: Keeps the bucket steady from ground to full lift, reducing spills and rework.
- Multi-Attachment Versatility: Swap attachments quickly to tackle grading, digging, mulching, trenching, and more.
- Post-Weld Structural Processing: Stress-relieved frame and welds for lasting durability under heavy use.
- Enclosed A/C & Heater Cab: A protected operator workspace with climate control, pilot controls, and practical safety features.
- Heavy-Duty Triangle Track System: 360° zero-turn capability and 6.2 MPH travel speed deliver stability and efficient maneuverability.
